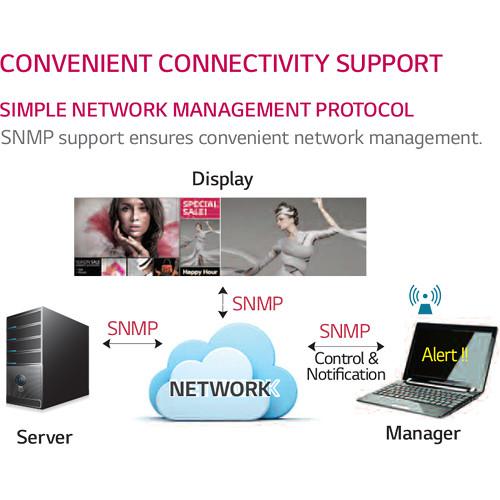

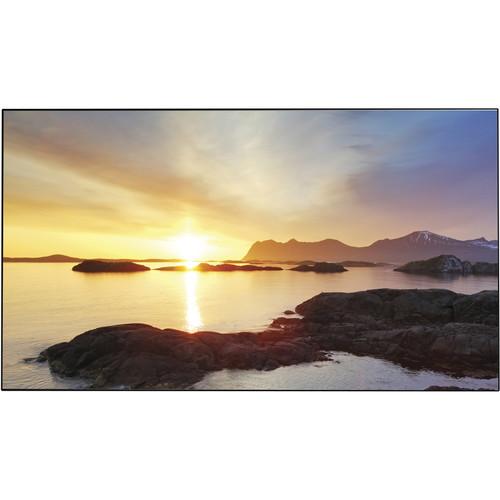

Product description Convey your corporate or advertising message digitally with the LG SSH7DB-Series 55"-Class Full HD Commercial IPS LED Display. It features a 55" LED-backlit IPS LCD panel with a Full HD (1920 x 1080) native resolution for clear video, images, and text. The display will present your content via DisplayPort, DVI-D, VGA, or HDMI for independent sources, or from your compatible USB drive. Powered speaker outputs are onboard for connecting compatible external speakers. A VGA cable and remote control are included as an added convenience. - Simple Network Management Protocol
- Simple Network Management Protocol (SNMP) support helps ensure convenient network management.

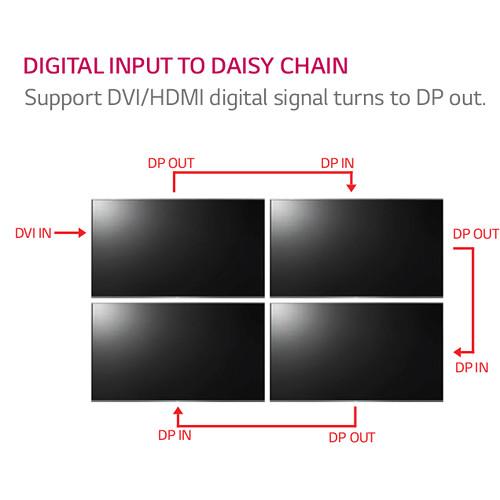

- Digital Input for Daisy-Chaining
- The SH7DB-series outputs DVI and HDMI signals over the DisplayPort output to daisy-chain multiple displays.

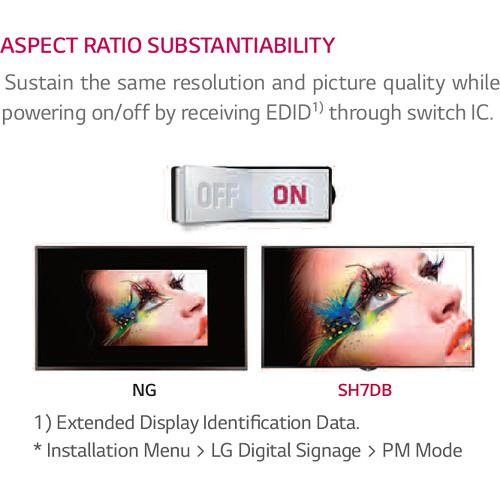

- Aspect Ratio Sustainability
- Maintain the same resolution and image quality while powering the display on and off by receiving EDID (Extended Display Identification Data) through switch IC.

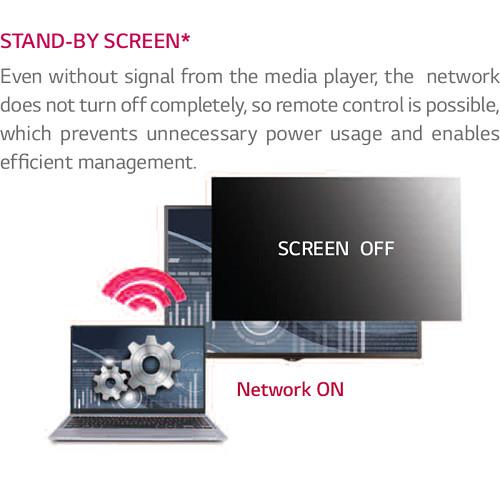

- Standby Screen
- Even without a signal from the media player, the network does not turn off completely, so remote control is possible, preventing unnecessary power usage and enabling efficient management.

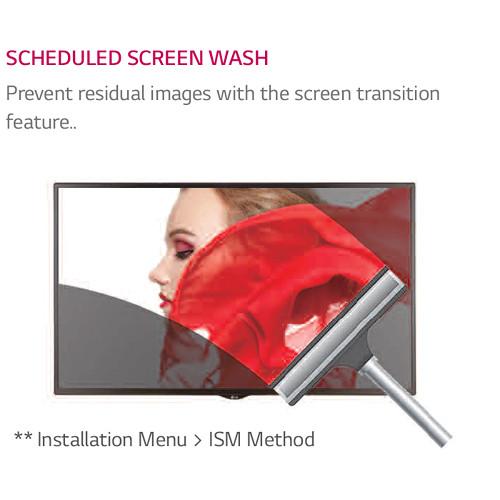

- Scheduled Screen Wash
- Prevent residual images with the screen transition feature.
- Screen Fault Detection
- This feature detects screen failure and sends an alert log via email.
- USB Content Scheduling
- Play and schedule content with a USB connection with no server connection required.

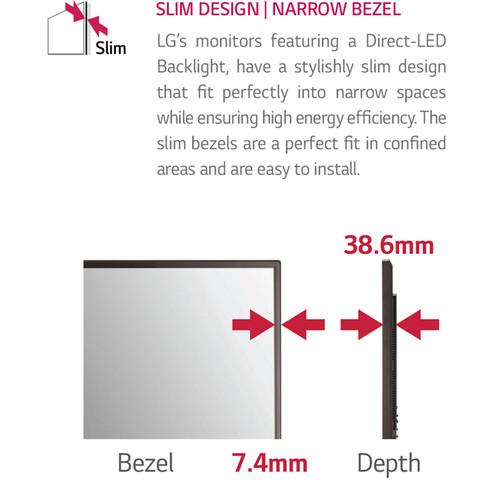

- Slim Design with a Narrow Bezel
- The SH7DB-series uses a direct-LED backlight, enabling the overall depth to be just 1.3", allowing it to blend nearly seamlessly with the wall, with an optional wall mount. The slim 7.4mm bezel is easily overlook in video wall installations.
- Conformal Coating
- The conformal coating is designed to help protect against water, dust, and iron powder deposits, which can accumulate in harsh environments, saving on installation and added enclosure costs.

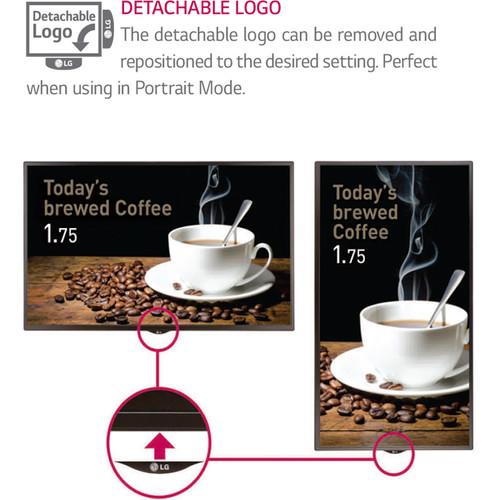

- Detachable Logo
- The ability to detach the logo allows it to be properly viewed whether the display is in portrait or landscape mode.

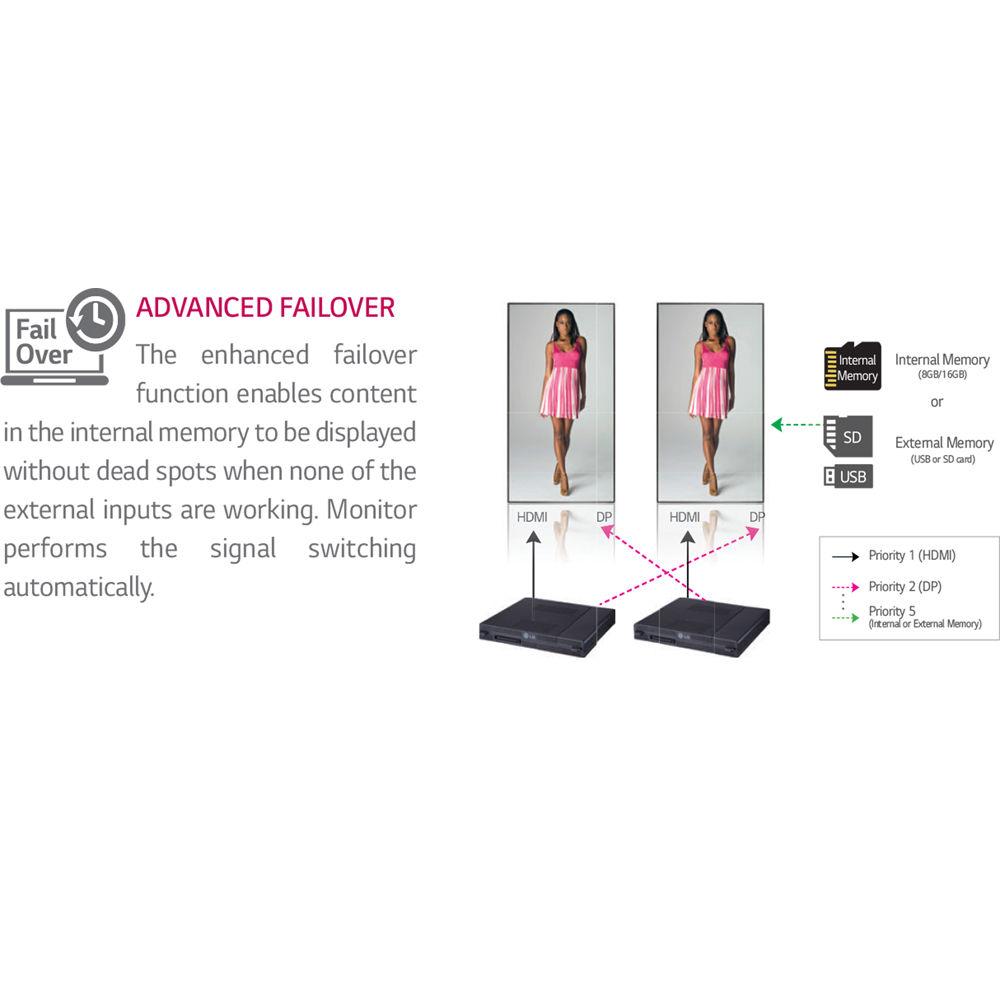

- Failover
- The enhanced failover function enables content in the internal memory to be displayed without dead spots when none of the external inputs are working. The display switches over to the internal memory automatically.
- OPS (Open Pluggable Specification) Kit / HDBaseT Box Connectivity with Optional Kit
- The SH7DB provides connectivity for an OPS Kit to connect a third-party OPS player or HDBaseT box, giving you the flexibility to choose any OPS-compatible media player.

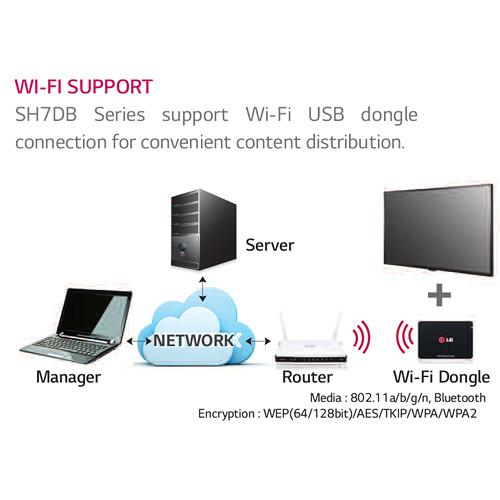

- Wi-Fi Support with Optional Adapter
- The SH7DB-series supports Wi-Fi USB adapter connection for convenient content distribution.
- Additional Features
-
- Surface treatment – hard coating (3H), anti-glare treatment of the front polarizer (haze 10%)
- Auto brightness sensor
- Tile Mode (up to 15 x 15) with Natural Mode
- Brightness, contrast, backlight, position & size control
- Auto config/phase
- ISM methods – Normal, White Wash, Color Wash, Orbiter, inversion, Washing Bar, user image
- Additional controls – dynamic contrast, dynamic color, color gamut, skin color, sky color, grass color, gamma
- Clock, on/off timer, auto off, auto standby
- Input label
- Power on status – standard, PWR, LST
- DPM select / DPM wake up
- Energy saving modes – Minimum, Medium, Maximum, Screen off
- Smart Energy Saving
- USB cloning – logo image download, EzDownload, Sent to USB, Receive from USB
- Easy Brightness Control
- Calibration Mode
- DS
- Screen off scheduling
- Time sync clock
- PM mode
- Holiday schedule
- Frameware updates via LAN
- Local time auto setting
- Still image
- HDMI CEC
- Limited Mode – input source change, menu display, OSD display
- Power on default – input source, A/V setting, aspect ratio
- Wake on LAN
- Power on delay – 0 to 255
- Pivot Mode
- OSD Portrait Mode – 0, 90, 270°
- Intelligent Auto
- Password protection/change
- Manual/auto SetID setup
- Configuration setup – splash upset, time, USB auto playback, screen saver cube
- Lock Mode via USB
- Failover to USB, VGA, DVI, HDMI
- SuperSign Server setup – player name, server IP setting, server IP status
- No signal image via internal memory
- OPS computer power control – sync on, sync on/off, disable
- Audio balance control
- Speaker on/off
- Clear Voice II
- Virtual surround
- Equalizer
- Standard, News, Music, Cinema, Sport, and Game sound modes
- MP500/MP700 media players attachable
- Compatible with SuperSign-w lite and SuperSign-c
UPC: 719192614901 In the Box LG SH7DB-Series 55"-Class Full HD Commercial IPS LED Display Remote Control with Batteries VGA Cable Phone to RS-232C Gender Adapter IR Receiver Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LG SH7DB-Series 55"-Class Full HD Commercial IPS LED Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG SH7DB Specs | | | Screen Size (Diagonal) | 54.6" | | Native Resolution | 1920 x 1080 | | Panel Type | IPS-Type LCD | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Brightness | 700 cd/m
