LG SIGNATURE W7 Series 65" Class

Search your instruction manual in PDF to download

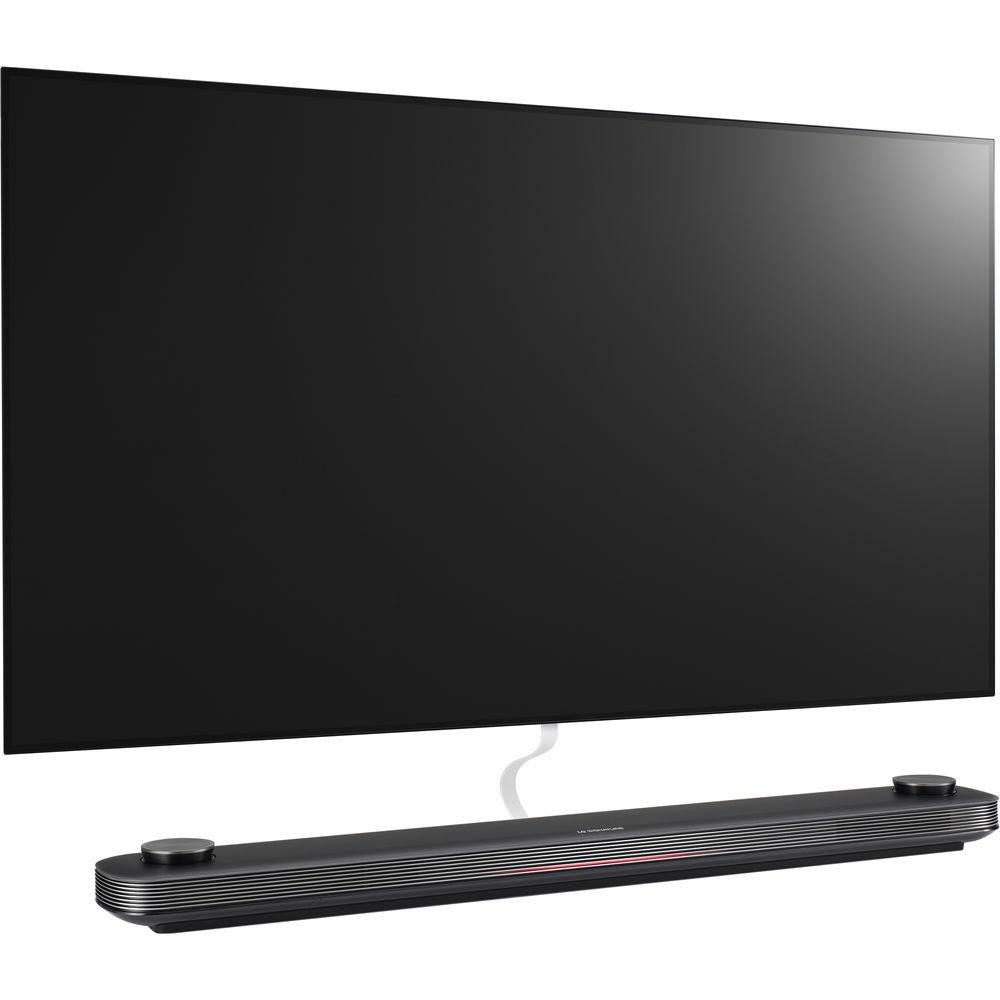

User Manual for LG SIGNATURE W7 Series 65" Class UHD Smart OLED TV

Click to enlarge the picture
LG SIGNATURE W7 Series 65" Class UHD Smart OLED TV Contents of the user manual for the LG SIGNATURE W7 Series 65" Class
  • Product category: Televisions LG
  • Brand: LG
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for LG Televisions

LG SIGNATURE W7 Series 65" Class UHD Smart OLED TV LG SIGNATURE W7 Series 65" Class UHD Smart OLED TV LG SIGNATURE W7 Series 65" Class UHD Smart OLED TV LG SIGNATURE W7 Series 65" Class UHD Smart OLED TV LG SIGNATURE W7 Series 65" Class UHD Smart OLED TV LG SIGNATURE W7 Series 65" Class UHD Smart OLED TV LG SIGNATURE W7 Series 65" Class UHD Smart OLED TV LG SIGNATURE W7 Series 65" Class UHD Smart OLED TV LG SIGNATURE W7 Series 65" Class UHD Smart OLED TV
User manual for the LG SIGNATURE W7 Series 65" Class contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any LG product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!



Product description

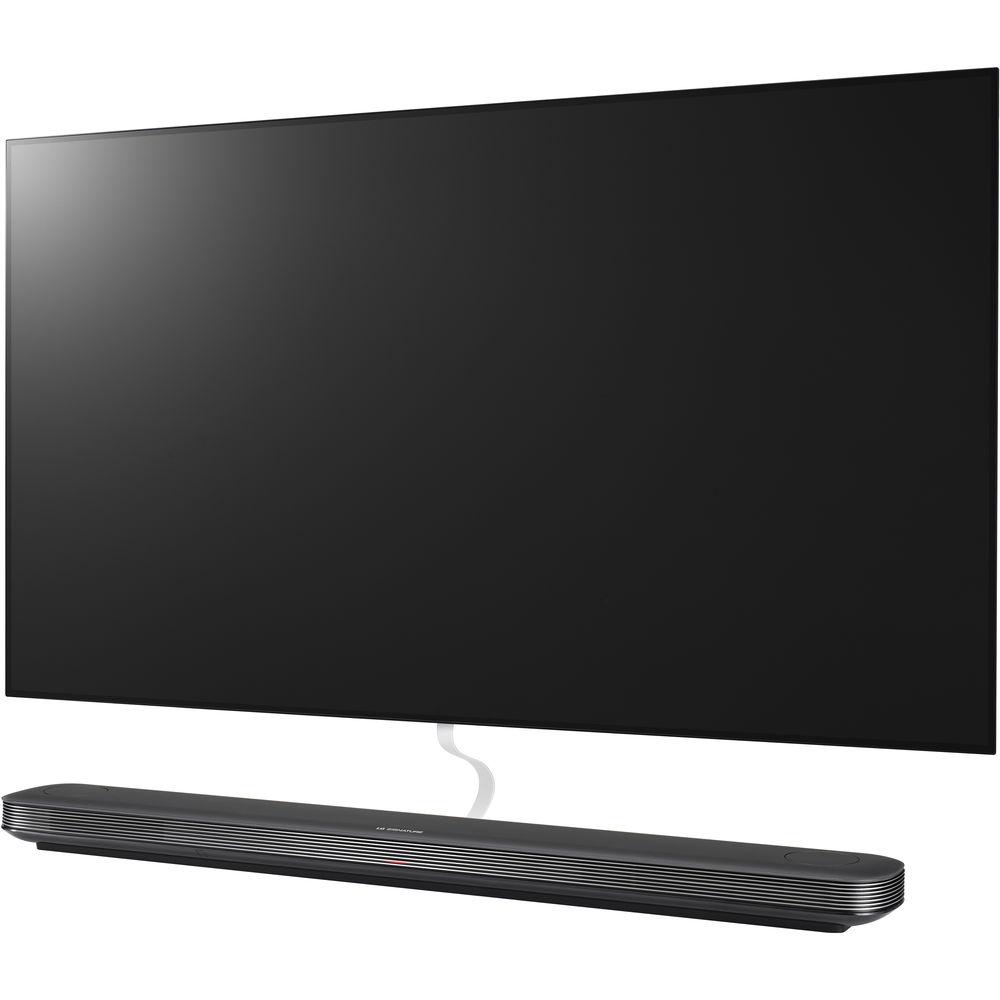

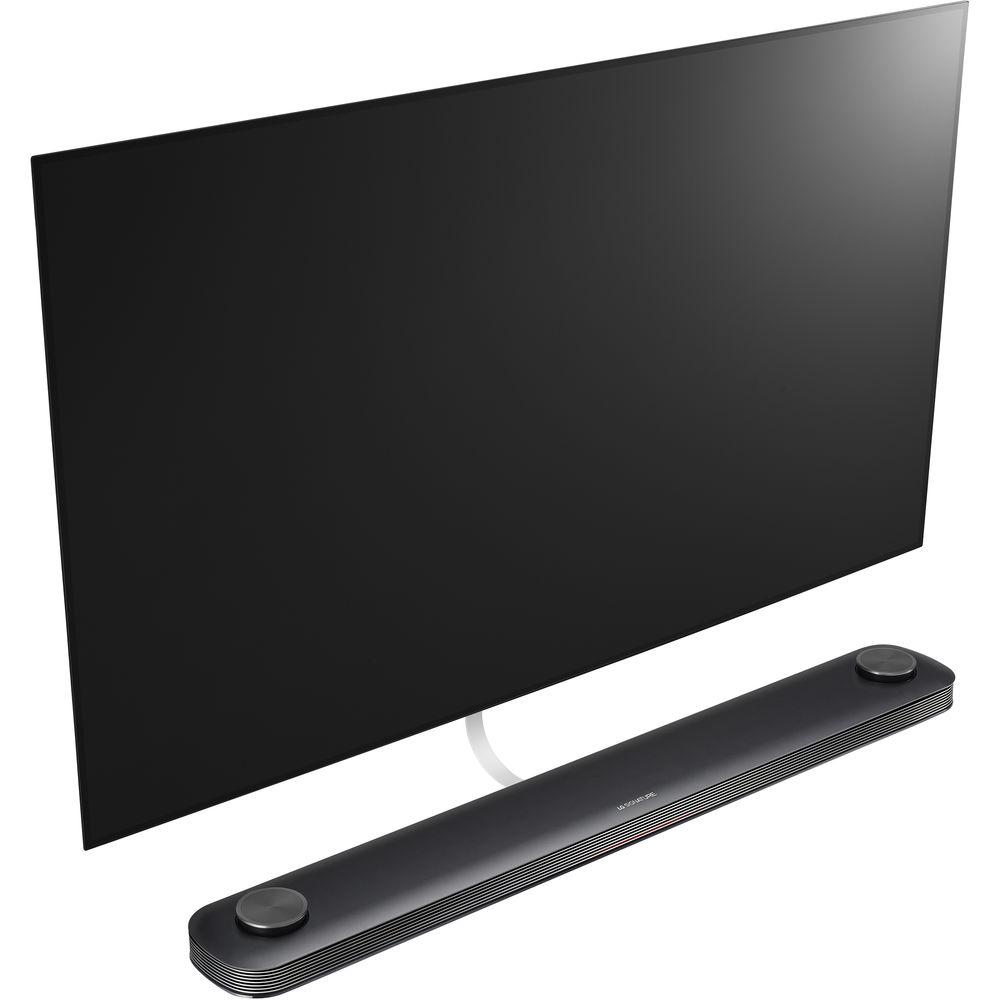

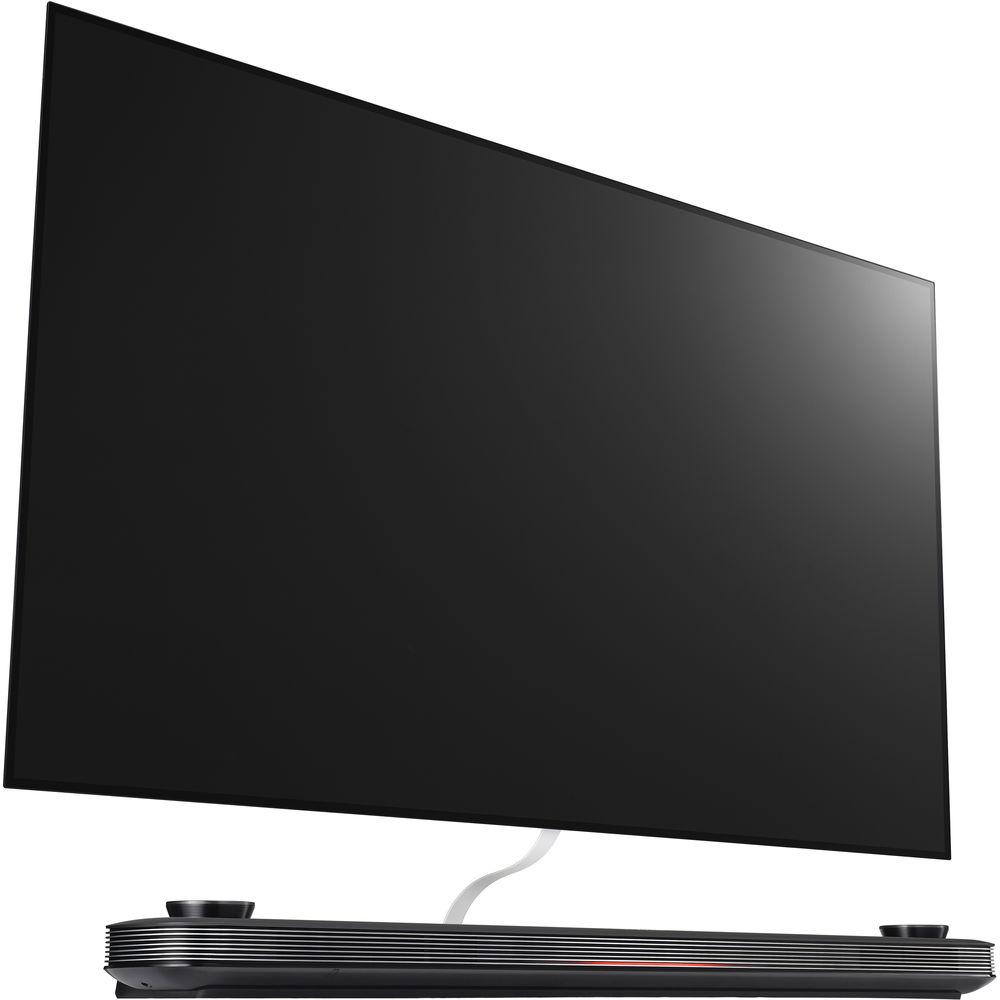

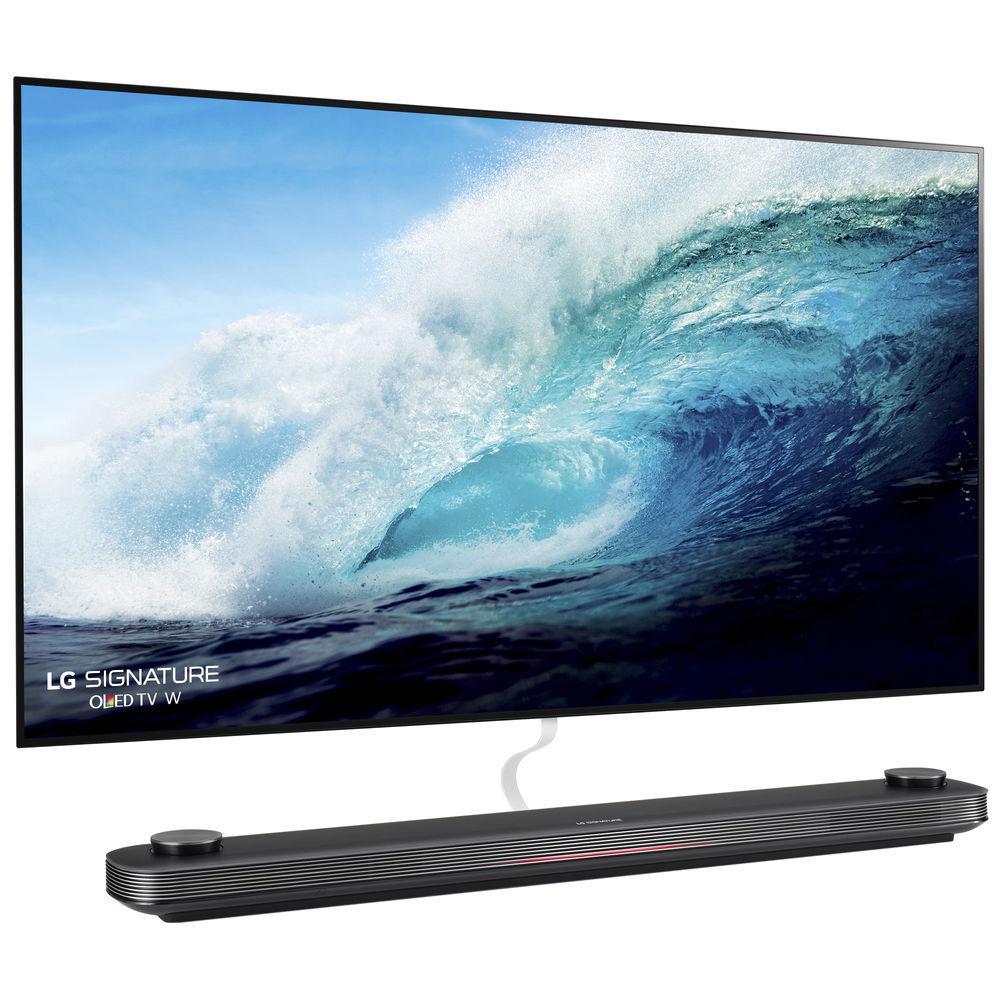

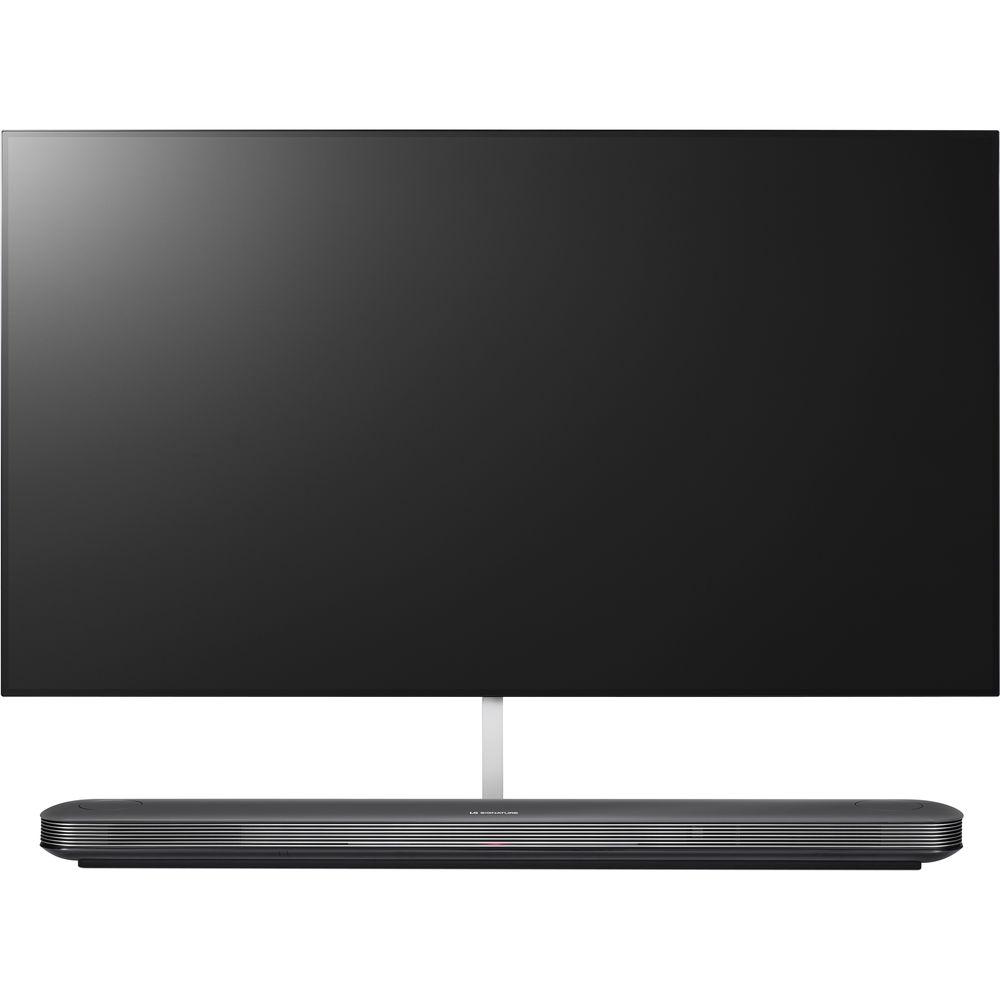

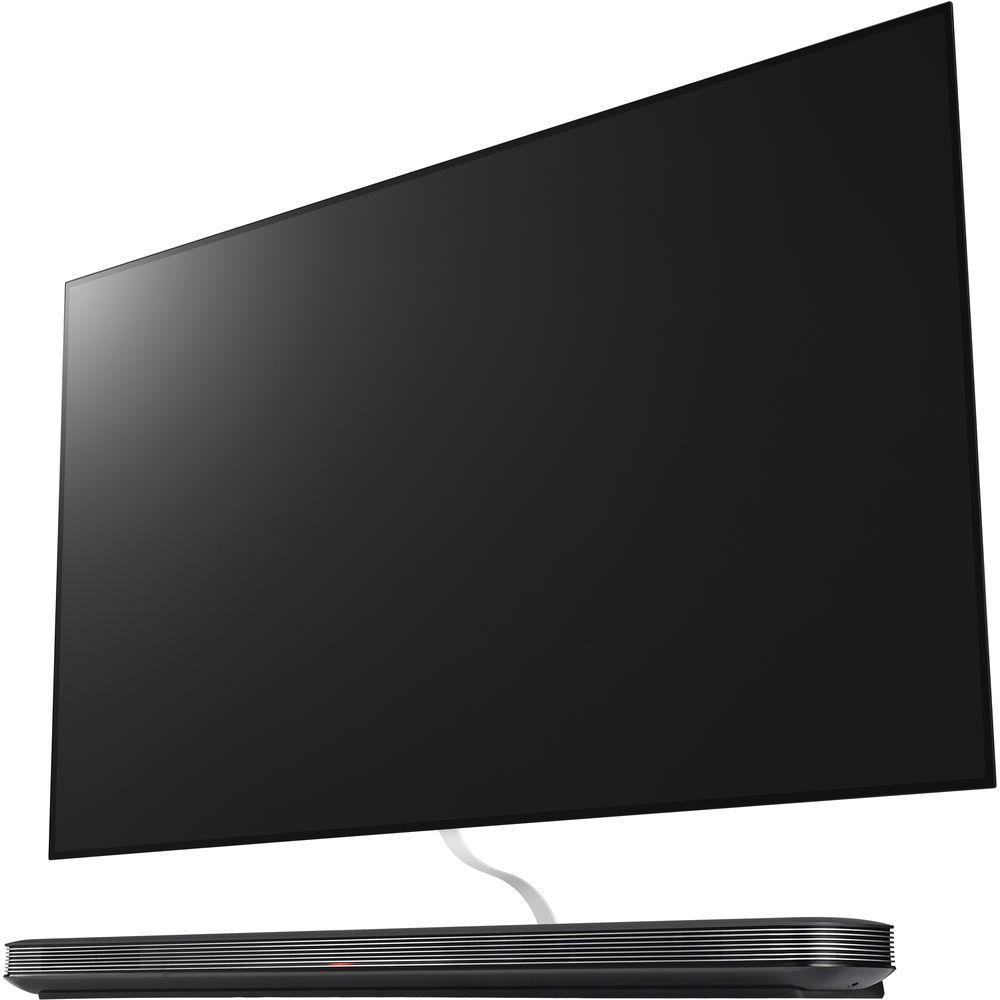

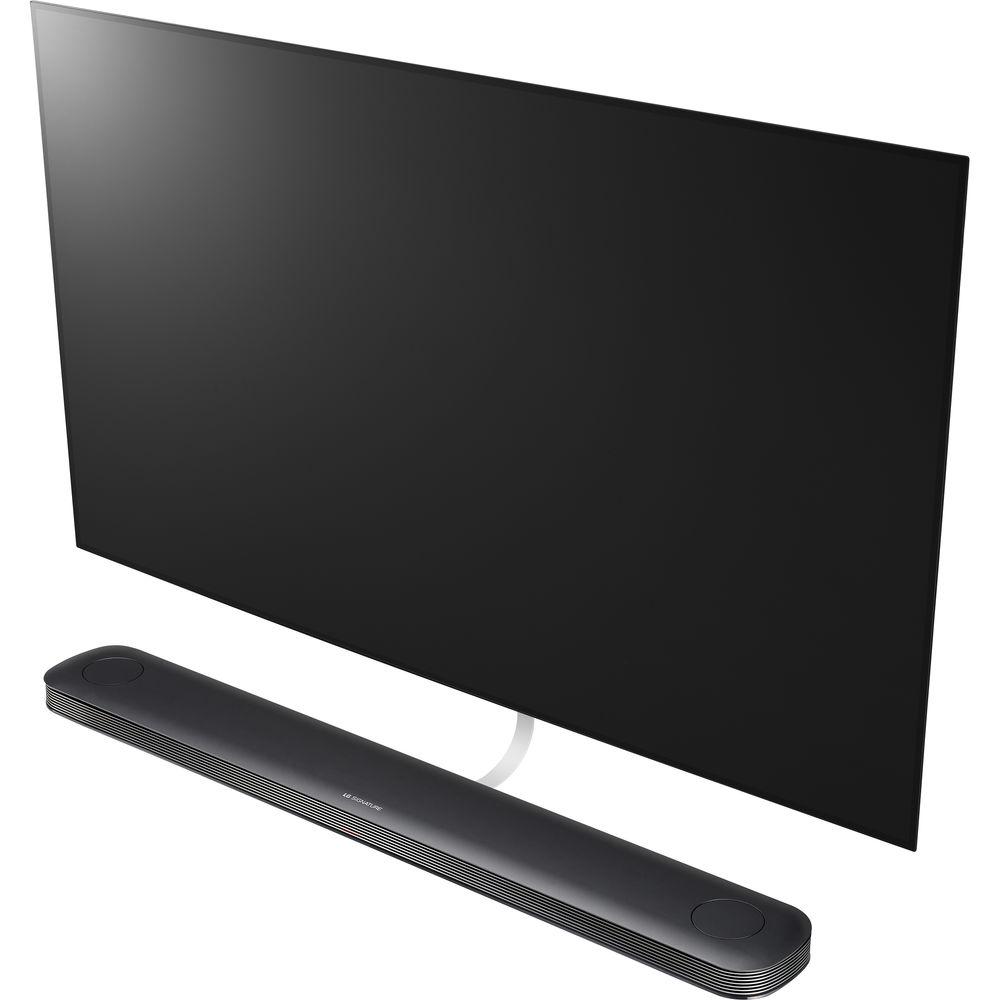

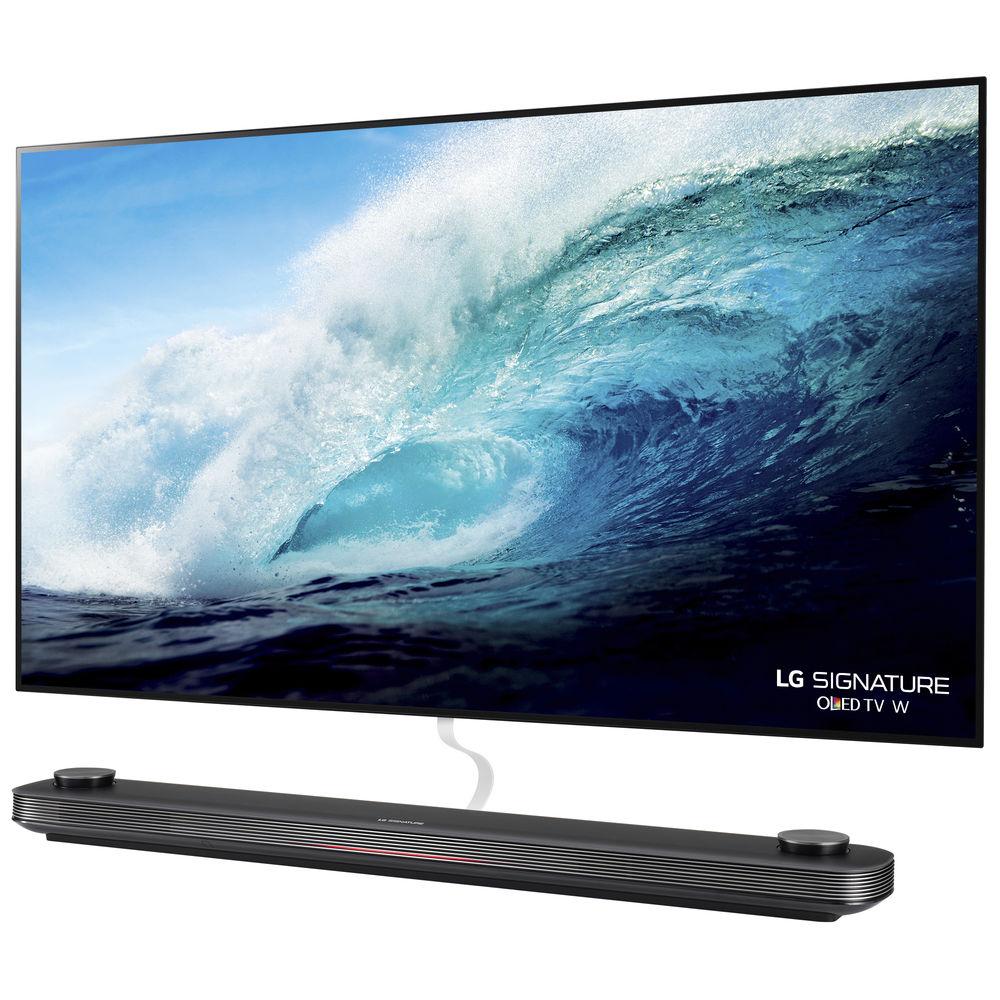

The Big March TV Tournament Read More Achieve a picture-on-wall effect with the 0.2"-deep LG SIGNATURE W7 Series 65"-Class UHD Smart OLED TV. It has a 64.5" OLED display for enhanced black levels and virtually infinite contrast. The TV features a native UHD 3840 x 2160 resolution and will upscale lower-resolution video sources for near-4K quality for augmented clarity. Being HDR10-, Dolby Vision-, and HLG-compatible, it can display a wider range of color with compatible content than non-HDR displays.

The W7 includes a 4.0.2-channel, Dolby Atmos-enabled soundbar, which serves as a media center for your sources. It has four HDMI, three USB, RCA component video, composite video, and optical audio inputs, and outputs them to the TV via the 18.5" TV-to-AV Box cable, which is built into the soundbar and is required for the TV to function; a 62.9" extension cable is included to provide more versatile placement options. The system has Wi-Fi and Ethernet built-in for smart TV capability, including webOS 3.5, the LG Content Store for apps, and a full web browser. Note: Content acquired via certain apps may require subscription to a service.
    One with Your Wall
  • The Picture-on-Wall aesthetic of the W7-series uses OLED technology to achieve a TV design that's a mere 0.2" deep.
    Perfect Black for Lifelike Image Reproduction
  • OLED pixels create their own light, and can switch off to achieve perfect black levels with zero light bleed, providing the foundation for displaying lush, vibrant color.
    Dolby Vision and Dolby Atmos
  • The W7-series brings both Dolby Vision and Dolby Atmos together for enhanced video and audio quality.
    Active HDR
  • Active HDR analyzes and optimizes HDR10 content scene-by-scene for an enhanced High Dynamic Range experience. The W7-series also supports Dolby Vision as well as the new backward-compatible HLG (Hybrid Log-Gamma) HDR standard, assuring compatibility with most HDR content from streaming.
    Dolby Atmos Brings Cinema Sound to Your Room
  • With Dolby Atmos, sounds can move anywhere, including above the listener, for enhanced surround audio. Discover Dolby Atmos (on select titles) through the included soundbar or pass it through to a compatible home theater system for the full experience.
    Wide Viewing Angle
  • Rather than force viewers to crowd into a narrow "sweet spot" position for optimal picture quality, the cinematic color and virtually infinite contrast of the W7-series TV is designed to hold up even from wide angles, so now everyone on the couch will have an ideal viewing experience.
    Video Features
    • Cinematic Color
    • Billion Rich Colors
    • Ultra Luminance
    • Pixel Level Dimming
    • HDR Effect
    • 4K Upscaler
    Smart TV Features
    • webOS 3.5
    • Natural Voice Recognition
    • Universal Control Capability
    • LG Content Store (app store)
    • Full Web Browser
    • Channel Plus
    Smart Share
    • Screen Share
    • Content Share
    Audio Features
    • 4.0.2-channel soundbar
    • Dolby Atmos enabled with Dolby Atmos decoder
    • DTS-HD decoder
    • OLED Surround Mode
    • Hi-Fi Audio
    • Wireless Sound Sync
    Connectivity Features
    • 802.11ac Wi-Fi built-in
    • Wi-Fi Direct
    • IP Control
    • Simplink (HDMI CEC)
    • Soundbar has an 18.5" cable built-in for a single-cable connection to the TV
UPC: 719192610989 In the Box LG SIGNATURE W7 Series 65" Class UHD Smart OLED TV (2017 Model)
  • Magic Remote Control
  • Wall Mount
  • 62.9" TV-to-AV Box Extension Cable
  • Limited 1-Year Warranty
  • The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 18.8mb Table of Contents




    Upload User Manual

    Have you got an user manual for the LG SIGNATURE W7 Series 65" Class UHD Smart OLED TV in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    LG W7 Specs

    Screen Size (Diagonal) 64.5"
    Panel Type OLED
    Aspect Ratio 16:9
    Pixel Resolution 3840 x 2160
    HDR Compatibility HDR10, Dolby Vision, Hybrid Log Gamma
    Video System NTSC
    TV Tuner Yes
    3D No
    Primary Connectivity Location Soundbar
    Input Ports 4 x HDMI – Audio, Video
    1 x RF Antenna – Audio, Video
    1 x RCA Component – Video
    1 x RCA Composite – Video
    1 x TOSLINK Optical – Audio
    USB Ports 3 x USB (Version Unspecified) – Audio, Photo, Video
    Ethernet LAN
    Control RS-232C
    Wi-Fi Built-In
    Remote Control Yes
    Tilt/Swivel None
    Channels 4.0
    Power Output 60W
    Dimensions (WxHxD) 49.6 x 3.1 x 7.8" / 126.0 x 7.9 x 19.8 cm
    Weight 22.7 lb / 10.30 kg
    Power Requirements 120 VAC, 50/60 Hz
    Power Consumption Standby: < 0.5 W
    Dimensions (W x H x D) 57.1 x 32.5 x 0.2" / 145.0 x 82.5 x 0.5 cm
    Weight 16.8 lb / 7.6 kg
    Package Weight 76.0 lb
    Box Dimensions (LxWxH) 64.0 x 37.5 x 11.5"
