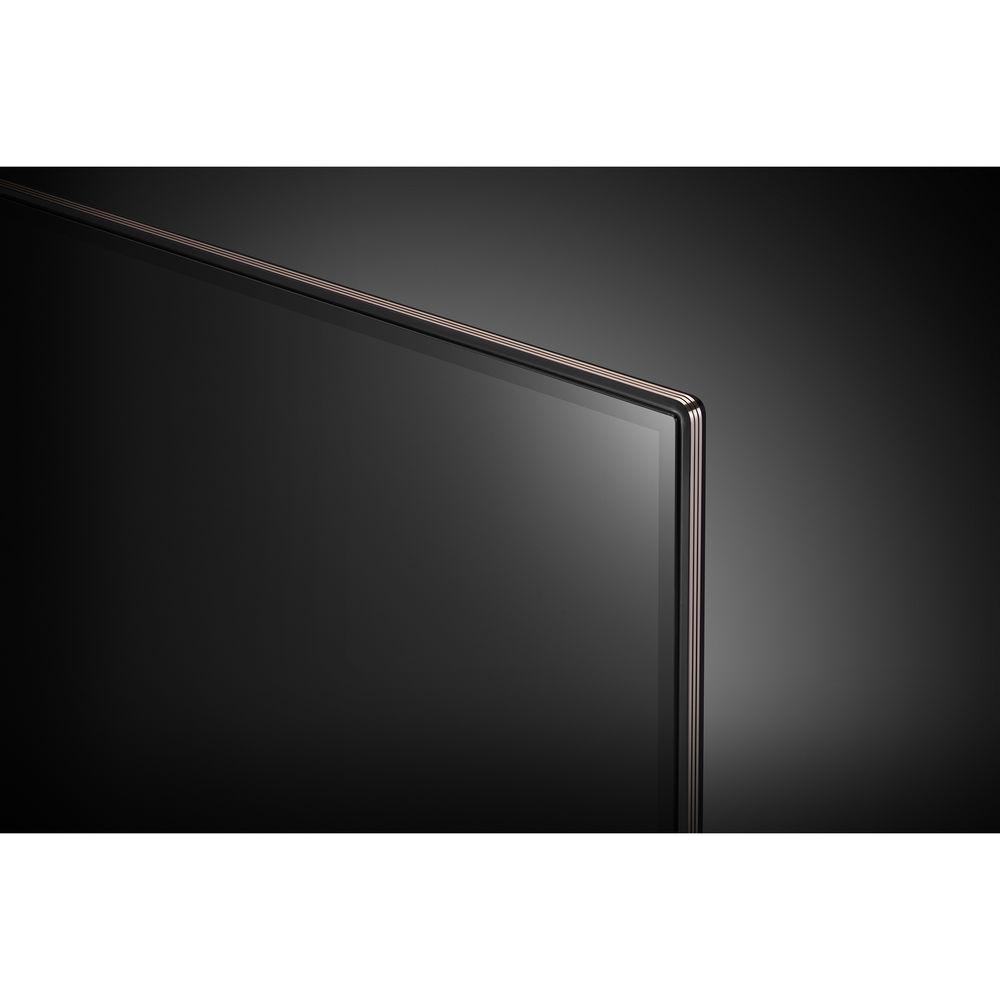

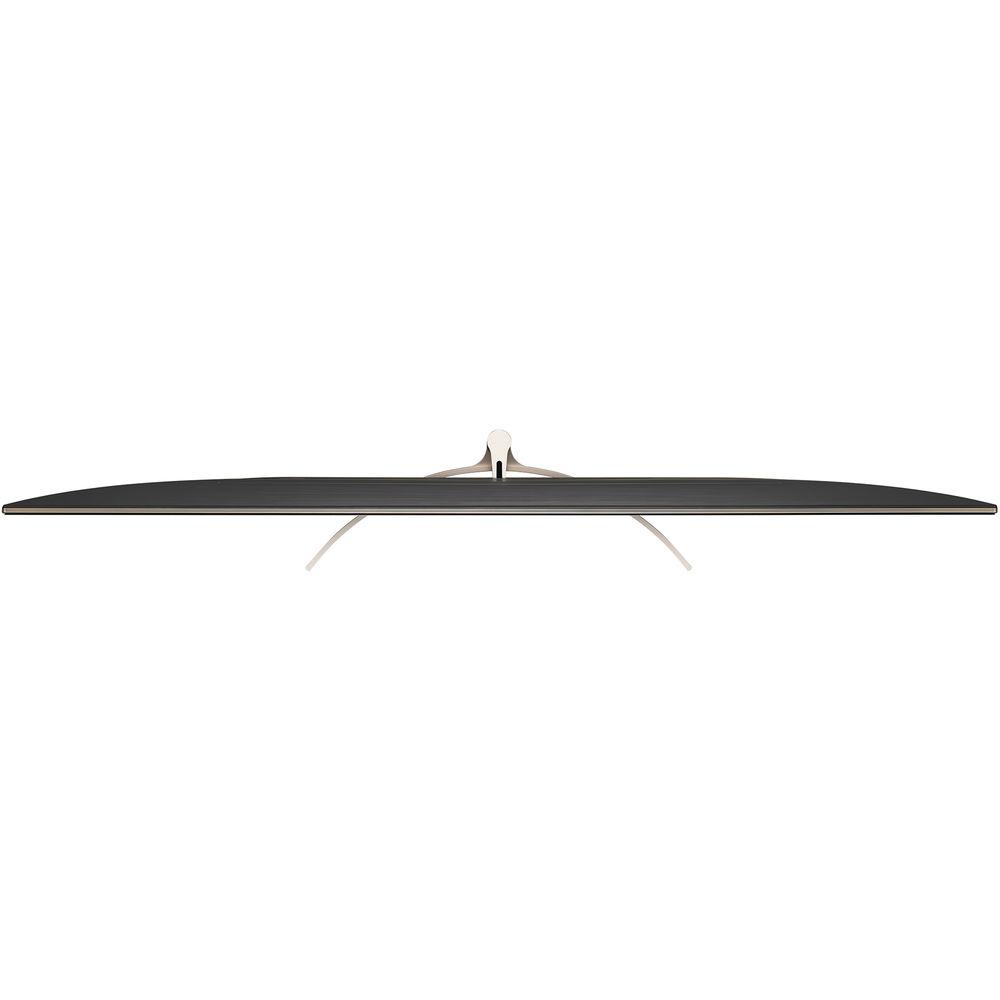

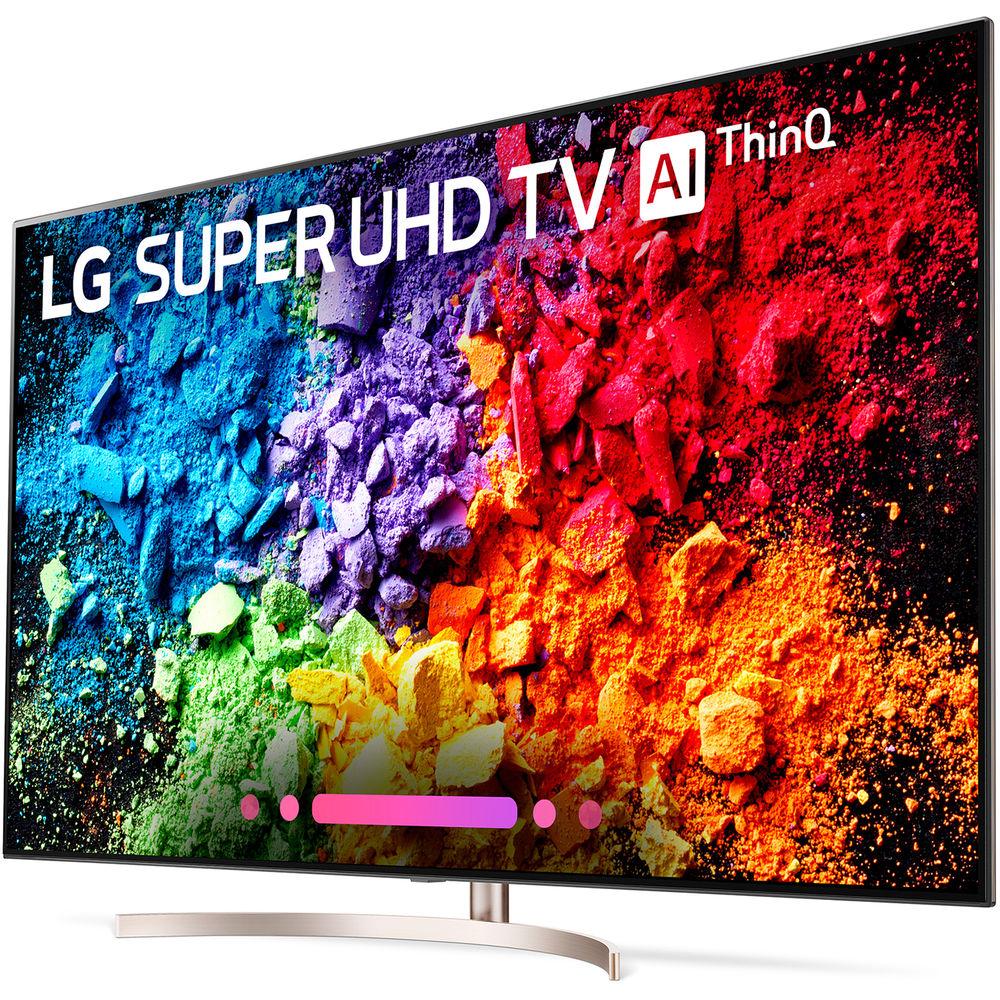

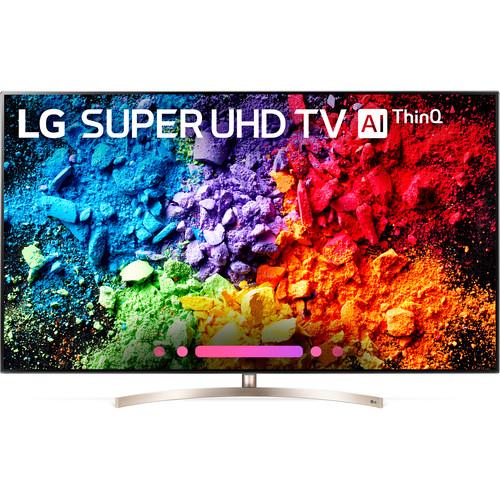

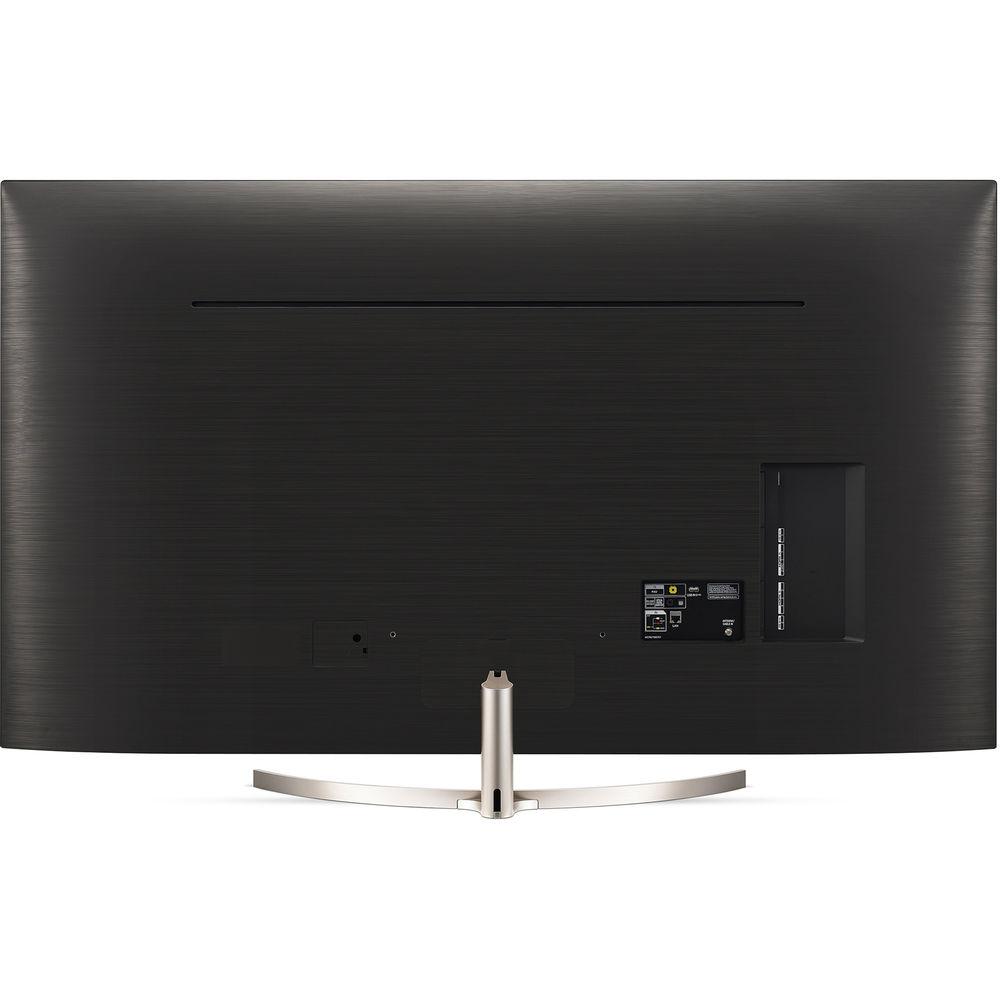

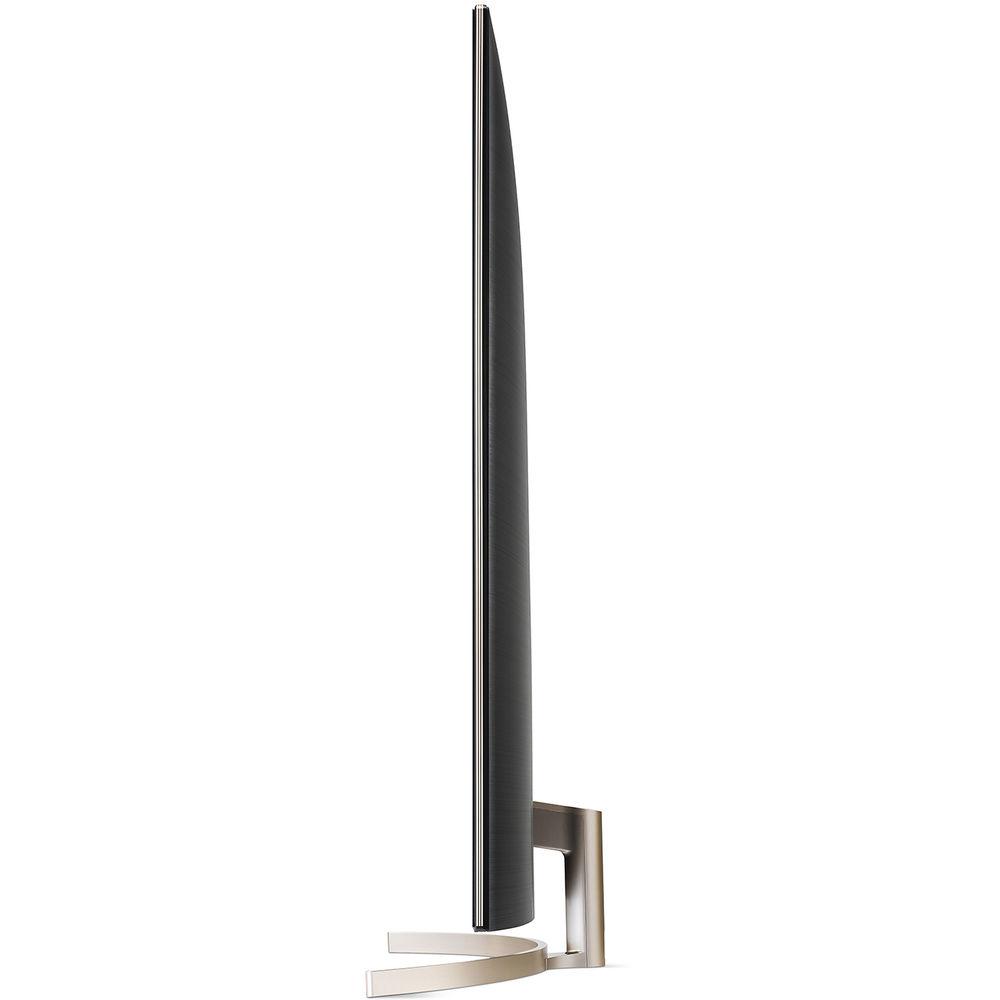

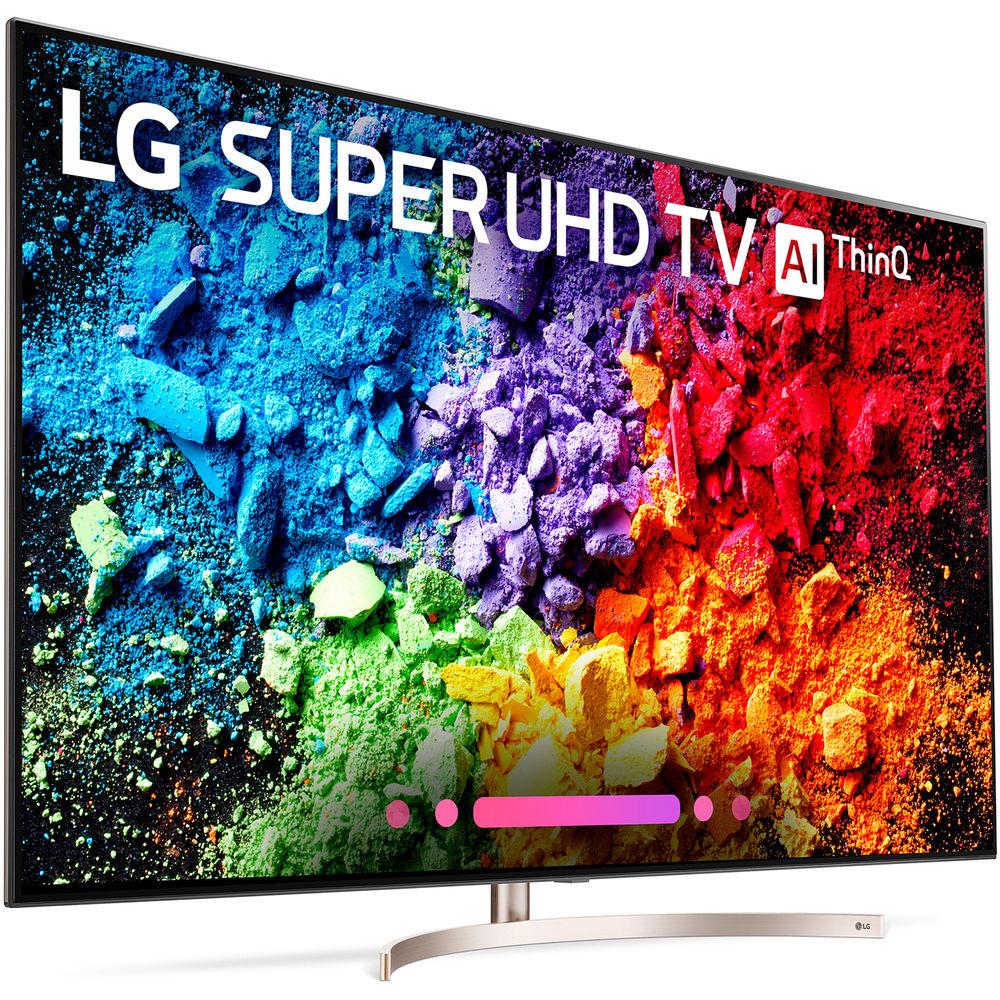

User Manual for LG SK9500PUA 65" Class HDR UHD Smart Nano Cell IPS LED TV Click to enlarge the picture
Contents of the user manual for the LG SK9500PUA 65" Class HDR UHD
- Product category: Televisions LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Televisions
 |
User manual for the LG SK9500PUA 65" Class HDR UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description The Big March TV Tournament Read More Enjoy UHD HDR video with compatible content and the LG SK9500PUA- 65" Class HDR UHD Smart Nano Cell IPS LED TV. The 64.5" LED-backlit LCD panel features a native resolution of 3840 x 2160, allowing you to view UHD images, and the 120 Hz refresh rate with TruMotion 240 technology helps reduce the blur commonly associated with fast-moving, on-screen objects. It can display HLG, HDR10, Dolby Vision, and Advanced HDR video with compatible source devices and content. Its four HDMI inputs allow you to connect your digital HD sources, such as HD cable/satellite boxes or game consoles. - Nano Cell Technology
- Nano Cell technology helps to enhance color accuracy with its wide color gamut while mitigating unwanted light for reduced reflectivity and augmented black levels, even at wide angles.
- LG ThinQ AI
- ThinQ AI TVs are engineered to become the hub for all your connected smart devices. Beyond apps and entertainment, LG ThinQ AI uses voice control with Google Home built-in, plus Amazon Echo compatibility to create a smart TV platform for your IoT devices.
- α7 Intelligent Processor
- The α7 Intelligent Processor is designed to deliver an enhanced 4K HDR image with augmented depth, sharpness, and color accuracy.
- Full Array Dimming Pro
- The SK9500PUA-series uses a full-array LED backlight across the entire screen for more precise local dimming control, enhancing the contrast and helping to maintain deep black levels while revealing image detail.
- 4K Cinema HDR
- The SK9500PUA-series supports the HDR10, HLG, Dolby Vision, and Advanced HDR formats. LG's advanced tone-mapping technology helps provide scene-by-scene optimization.
- Dolby Atmos Decoding
- Dolby Atmos surround sound technology dispenses with channel-based coding in favor of more advanced object-based coding, giving the sound designer the ability to precisely place sounds anywhere in the 3-dimensional space.
- Additional Features
-
- 120 Hz native refresh rate with TruMotion 240 digital motion enhancement
- Nano Cell Color Pro
- 10-bit color
- True Color Accuracy
- Nano Cell Black
- Ultra Luminance Pro
- 4K Upscaler
- Google Assistant-, Intelligent Voice Recognition-, and Universal Control-capable
- Compatible with optional Google Home & Amazon Alexa devices
- Gallery Mode
- LG Content Store for app downloads
- Full web browser
- Channel Plus
- Screen Share & Content Share screen mirroring
- DTS-HD decoding
- Bluetooth audio playback (version 4.2)
- LG Sound Sync
- Integrated 802.11ac Wi-Fi with Wi-Fi Direct
- IP control
- Simplink HDMI CEC
- ARC support via HDMI 2
UPC: 719192621152 In the Box LG SK9500PUA 65" Class HDR UHD Smart Nano Cell IPS LED TV Magic Remote Control with Battery Power Cable Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 23.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG SK9500PUA 65" Class HDR UHD Smart Nano Cell IPS LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

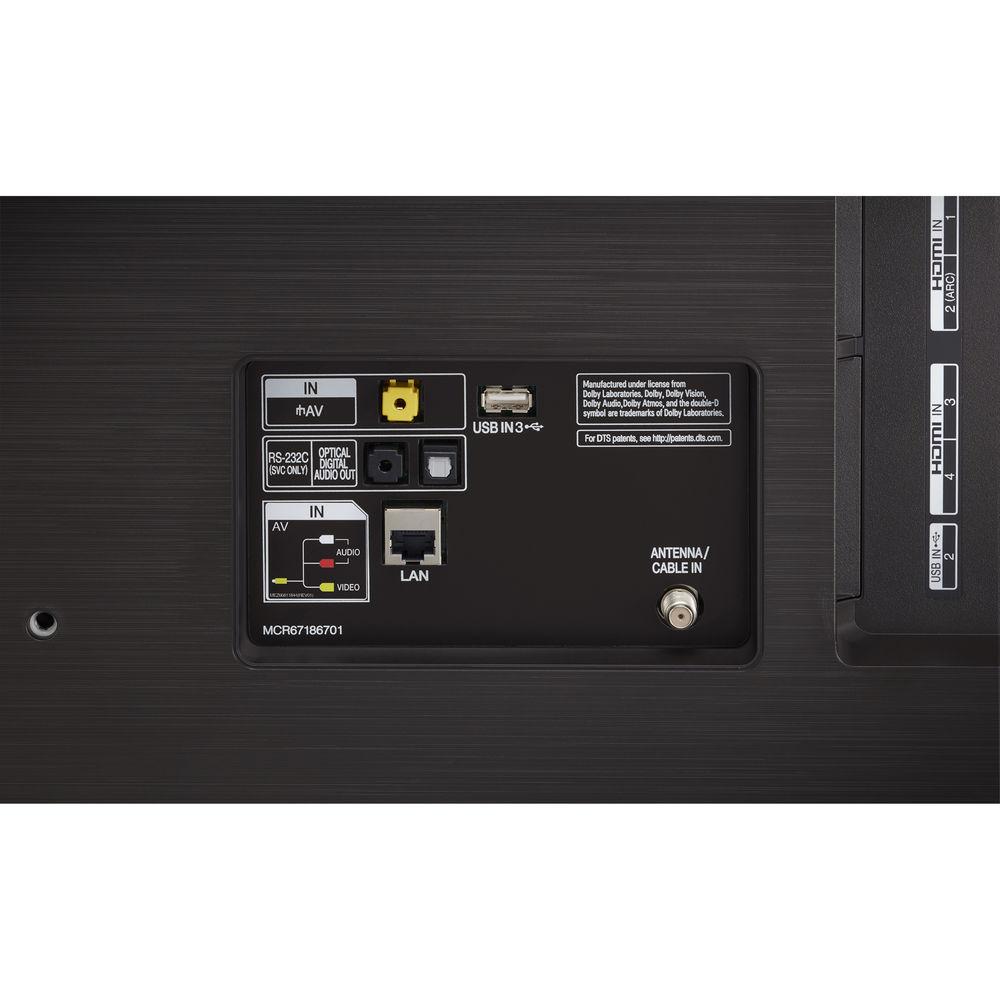

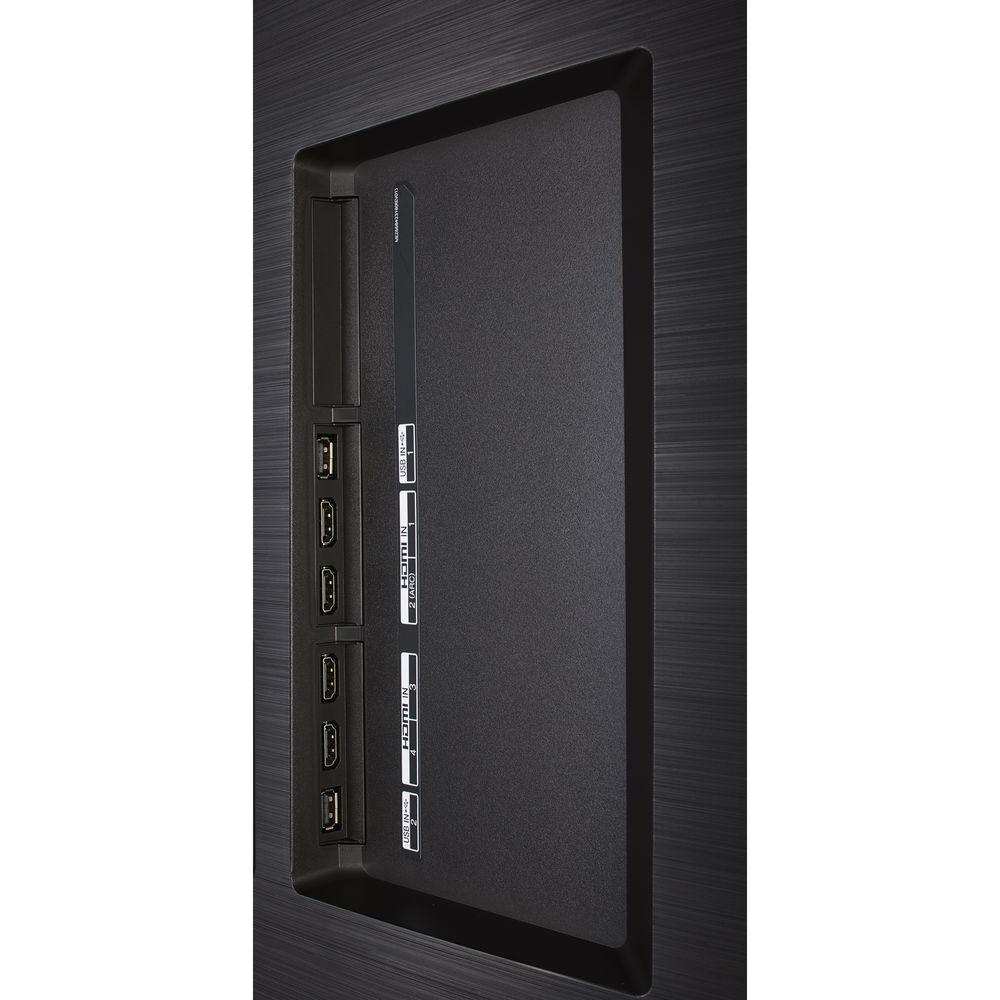

Technical parametersLG SK9500 Specs | | | Screen Size (Diagonal) | 64.5" | | Panel Type | IPS | | Aspect Ratio | 16:9 | | Pixel Resolution | 3840 x 2160 | | HDR Compatibility | HDR10, Dolby Vision, Hybrid Log Gamma, Advanced HDR | | Refresh Rate | 120 Hz | | | | Video System | NTSC / | | TV Tuner | Yes | | 3D | No | | | | Primary Connectivity Location | Display | | Input Ports | 4 x HDMI – Audio, Video (Side)
1 x RF Antenna – Audio, Video (Rear)
1 x RCA Composite – Video (Rear)
1 x RCA Stereo (L/R) – Audio (Rear) | | Output Ports | 1 x TOSLINK Optical – Audio (Rear) | | USB Ports | 2 x USB 2.0 – Audio, Photo, Video (Side)
1 x USB 2.0 – Audio, Photo, Video (Rear) | | Ethernet | LAN | | Control | RS-232C | | | | Sound | Stereo | | Subwoofer | None | | Power | 40 W | | Dolby Digital | Yes | | | | Virtual Assistant Support | Amazon Alexa, Google Assistant | | Operating System | AI ThinQ | | Wi-Fi | Built-In | | Remote Control | Yes | | Wall Mounting | 300 x 300mm | | | | Power Requirements | 120 VAC, 50/60 Hz | | Power Consumption | Standby: < 0.5 W | | Dimensions (W x H x D) | 57.2 x 32.8 x 2.5" / 145.3 x 83.3 x 6.3 cm Without stand
57.2 x 35.6 x 10.3" / 145.3 x 90.4 x 26.2 cm With stand | | Weight | 59.7 lb / 27.1 kg Without stand
62.8 lb / 28.5 kg With stand | | | | Package Weight | 76.0 lb | | Box Dimensions (LxWxH) | 62.5 x 40.5 x 7.0" |
