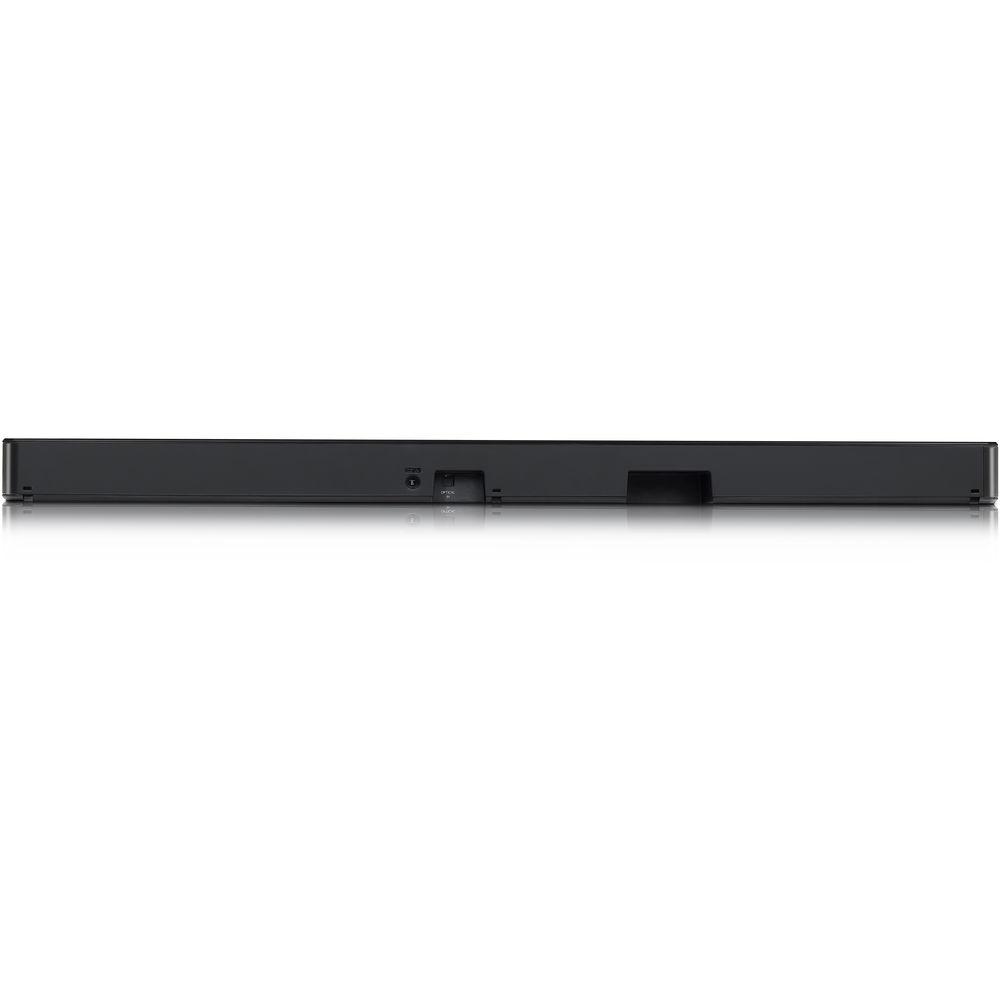

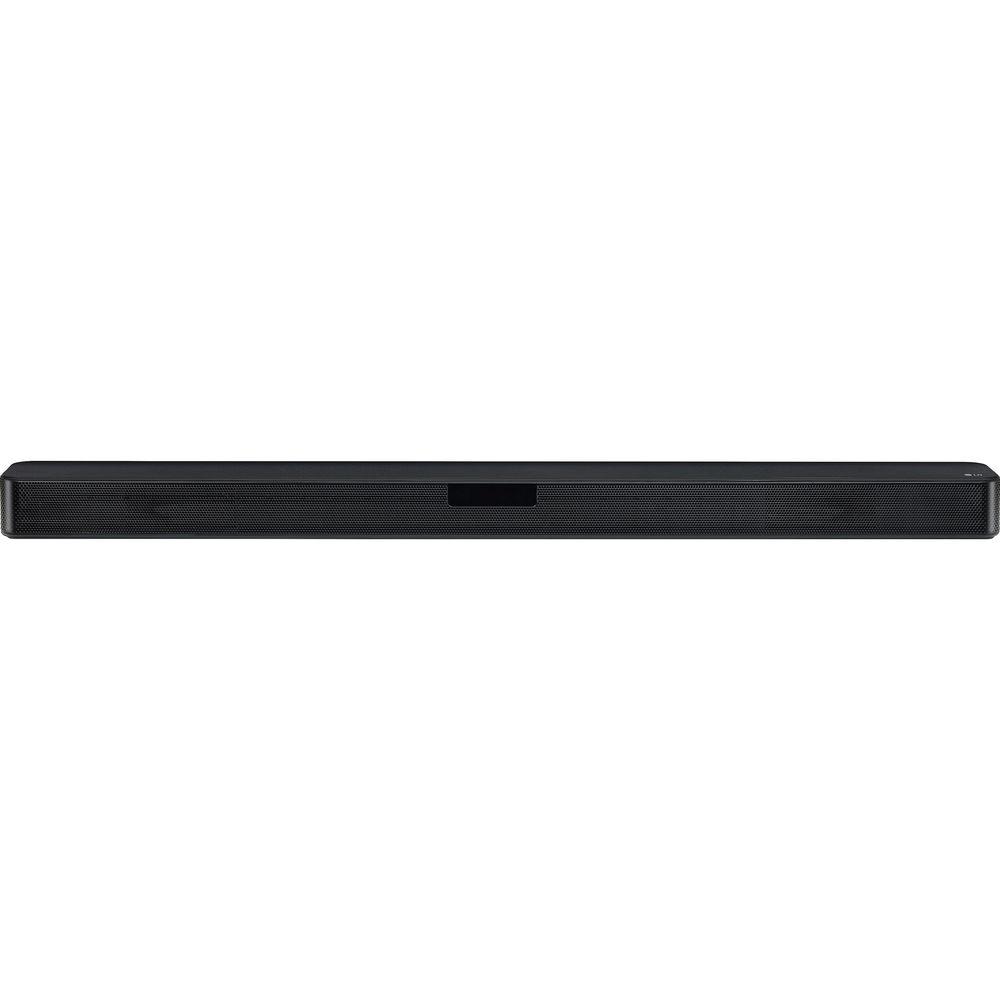

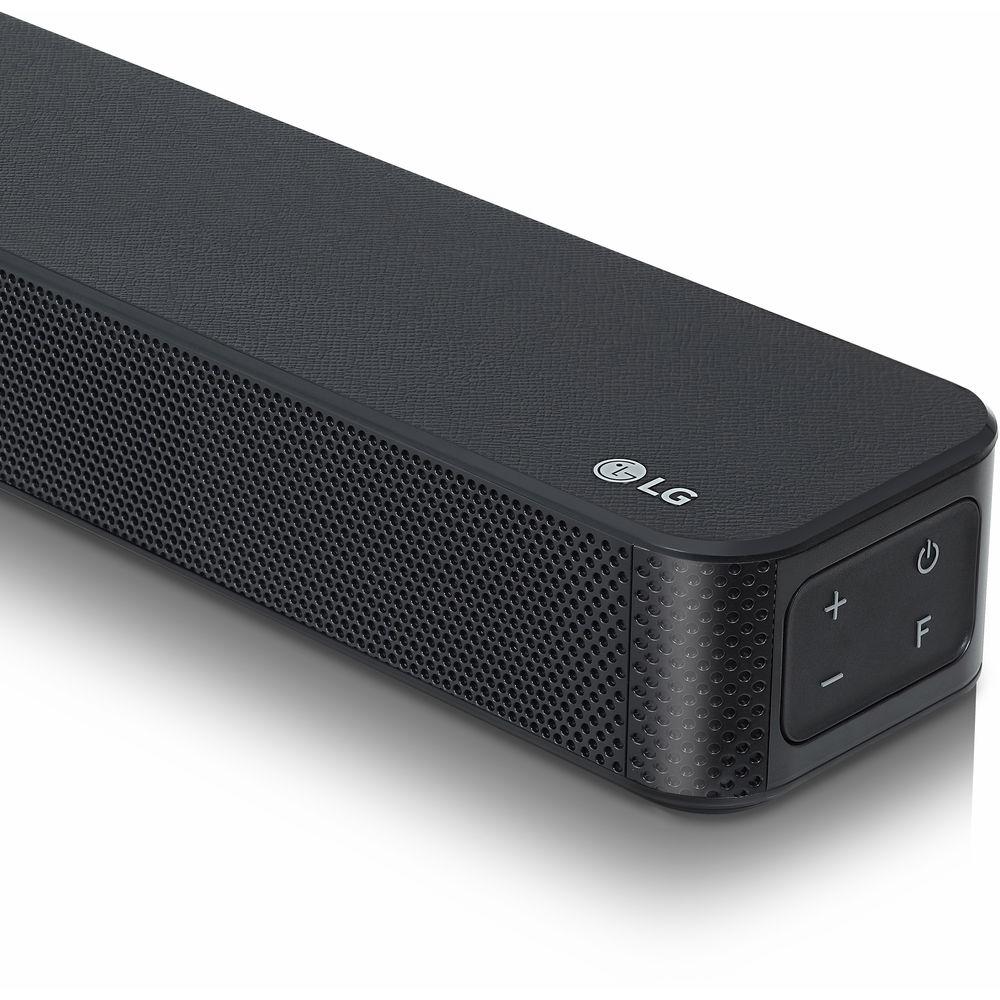

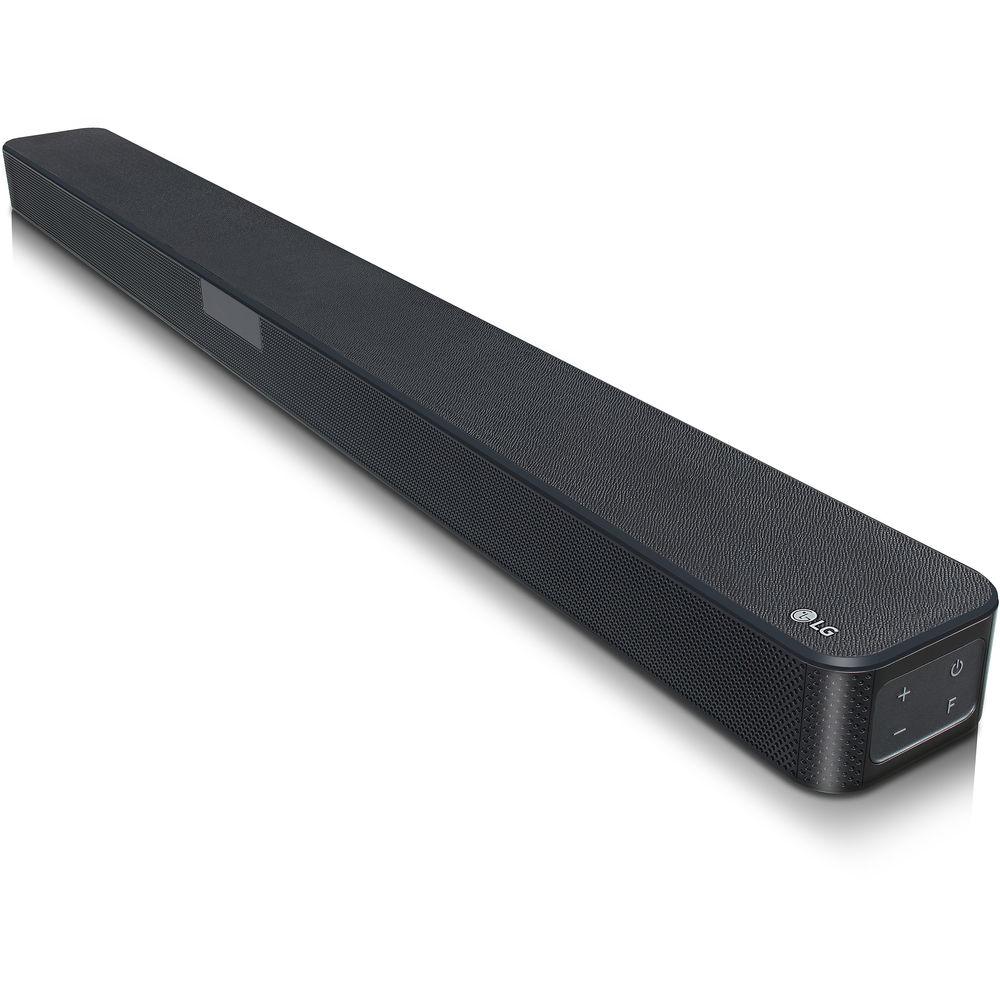

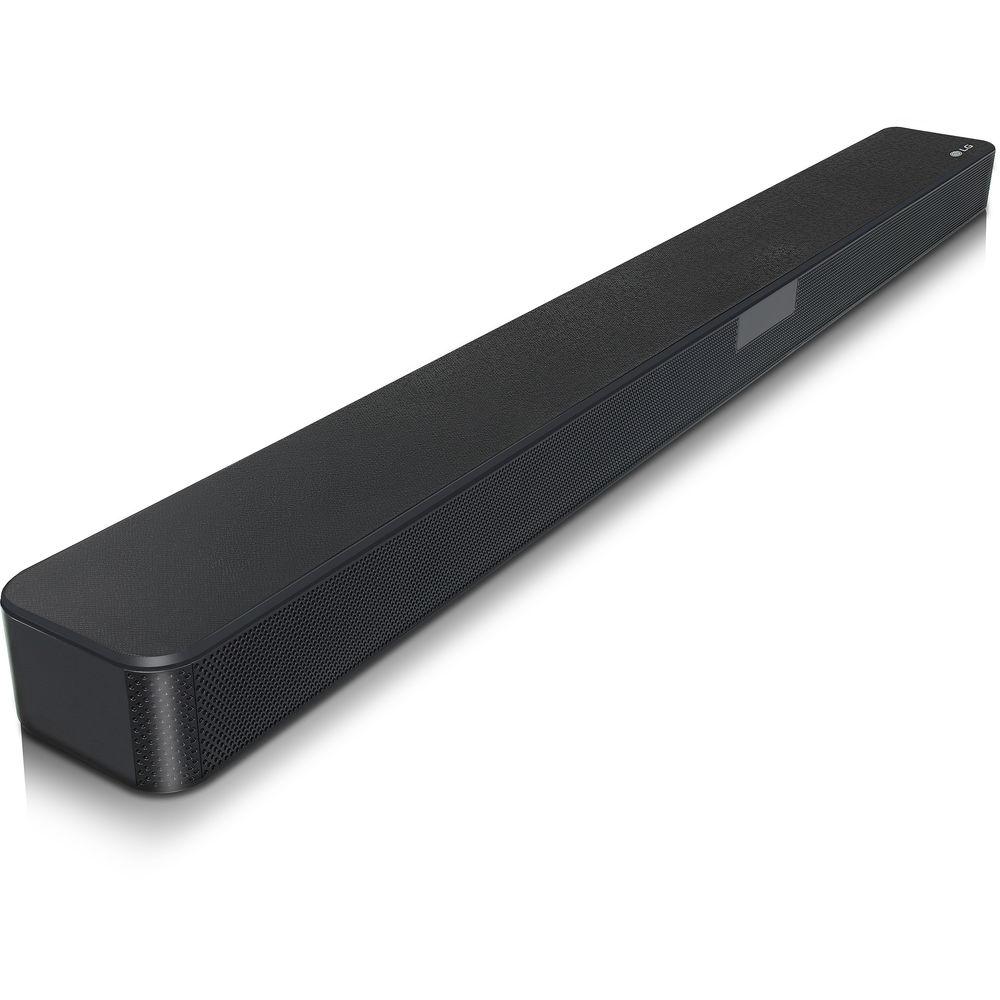

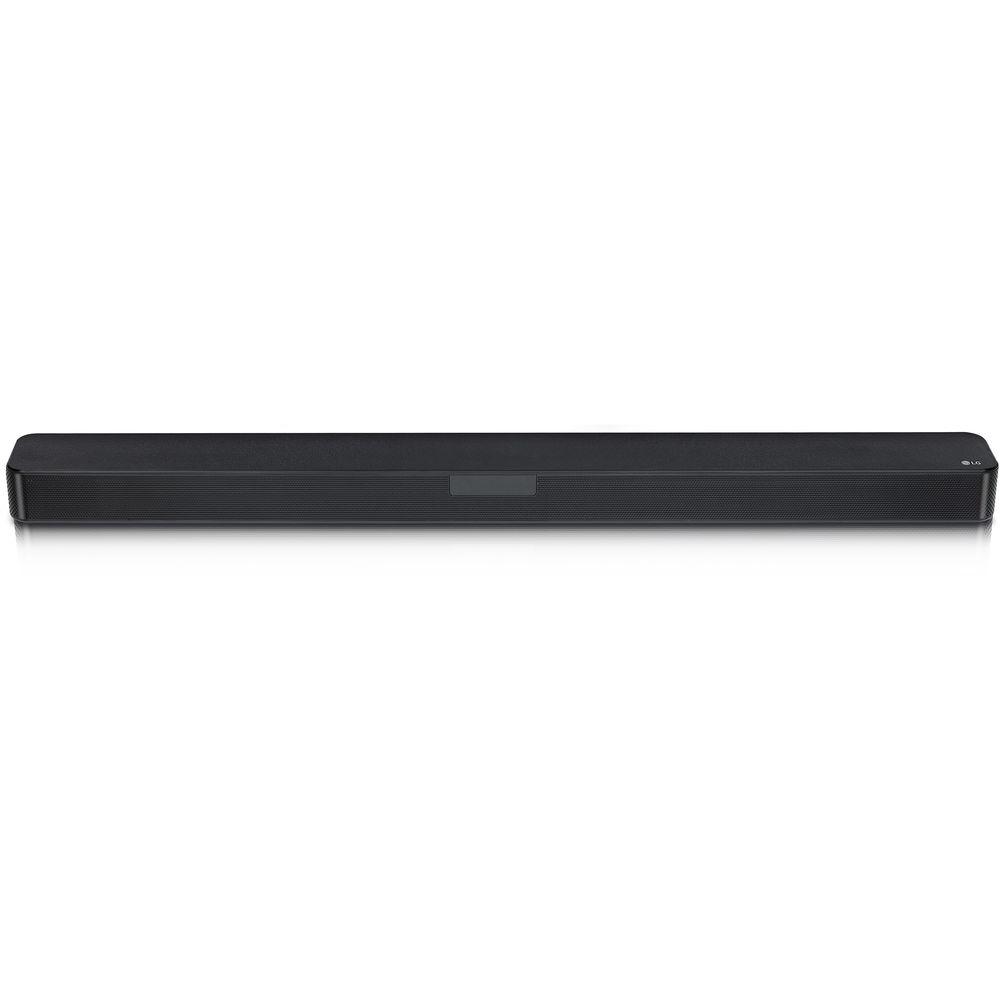

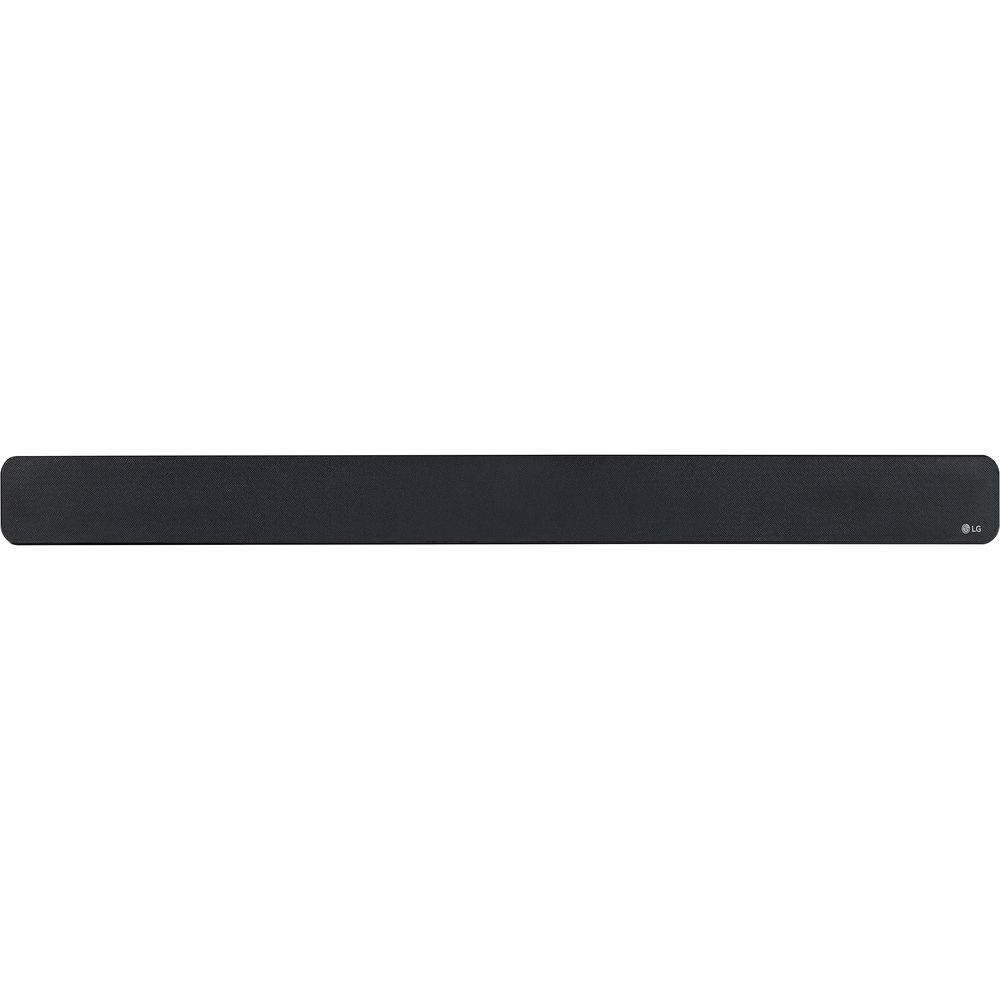

User Manual for LG SL5Y 400W 2.1-Channel Soundbar System Click to enlarge the picture
Contents of the user manual for the LG SL5Y 400W 2.1-Channel Soundbar System
- Product category: Soundbar Speakers LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Soundbar Speakers
 |
User manual for the LG SL5Y 400W 2.1-Channel Soundbar System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

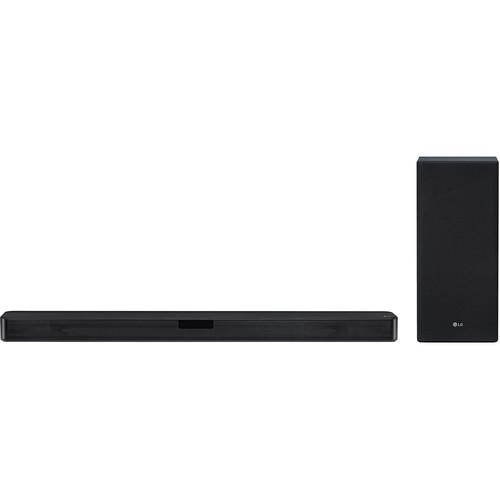

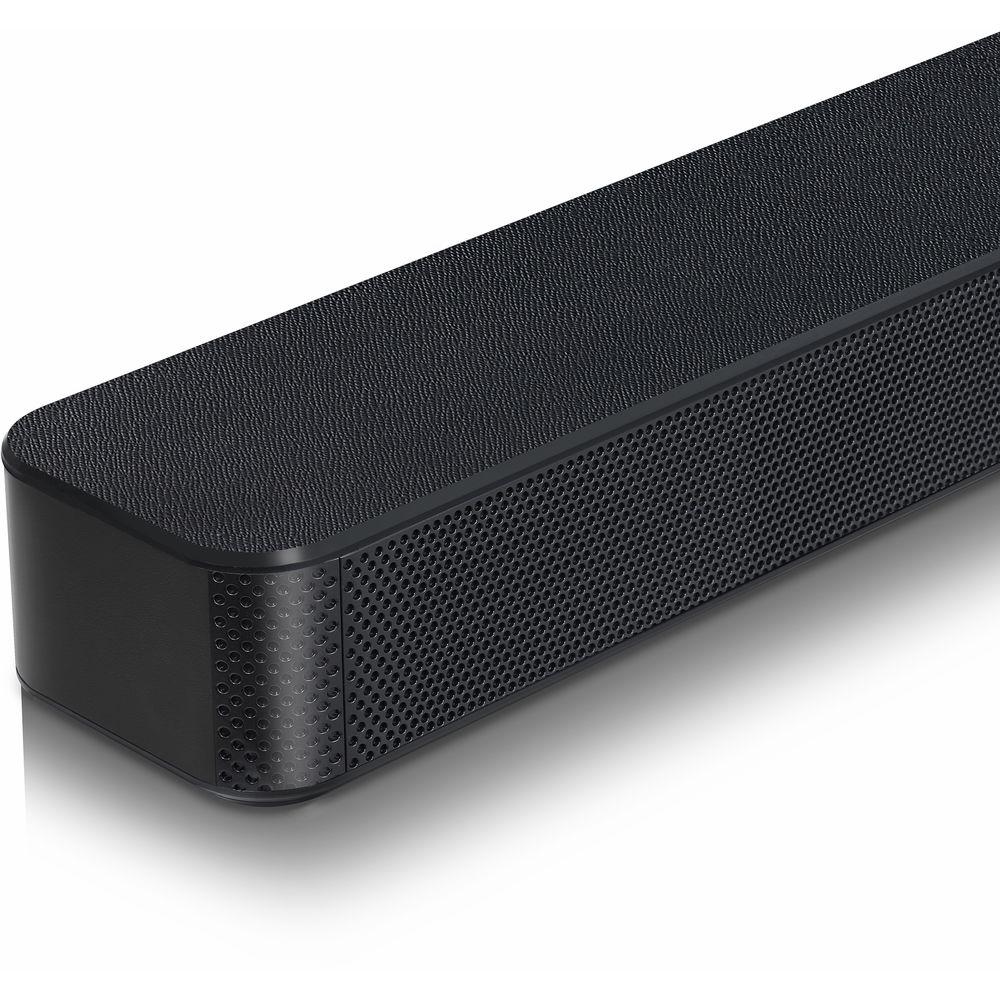

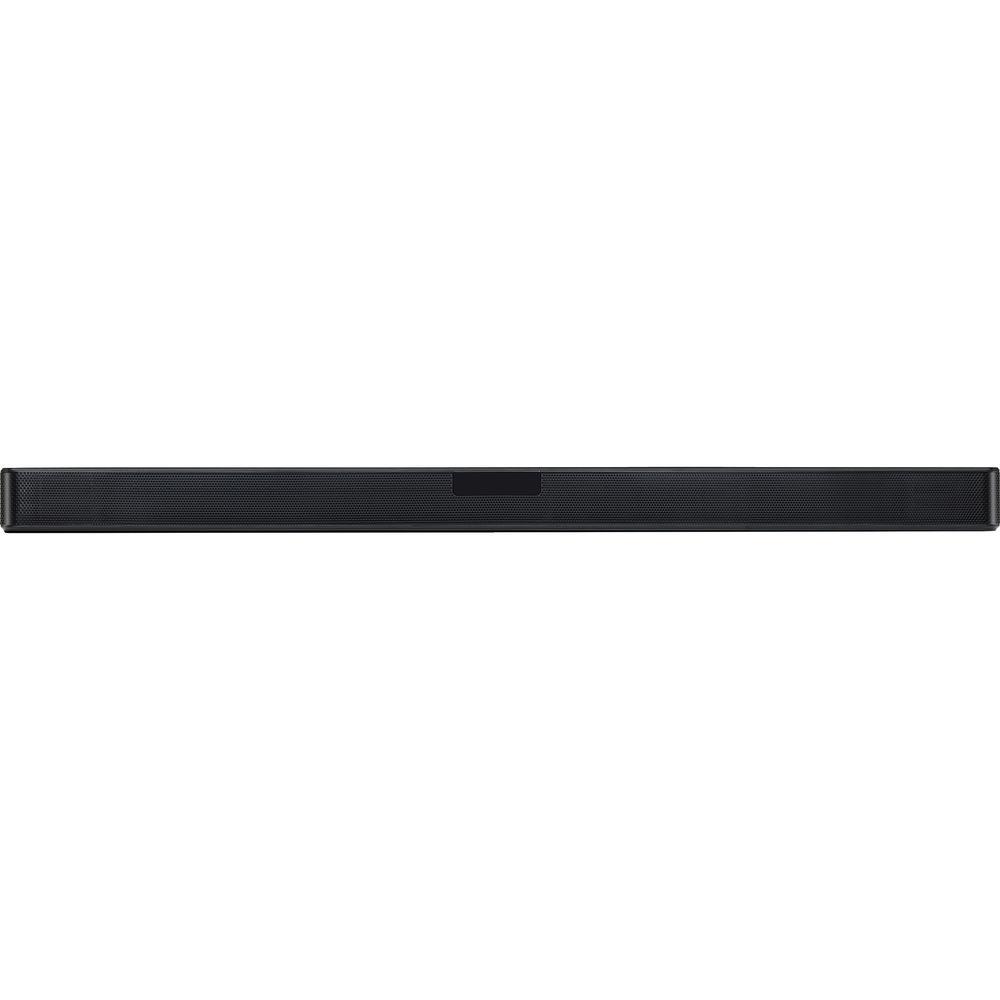

Product description How to Choose a Soundbar System Read More Upgrade the sound of your display's audio with the LG SL5Y 400W 2.1-Channel Soundbar System. It delivers up to 400W of total power, which includes a 220W wireless subwoofer for enhanced bass. Bluetooth is built into the soundbar for pairing with other Bluetooth-enabled devices, such as smartphones or tablets. Once paired, you can wirelessly stream audio from your connected source.
At 35" wide, the SL5Y is recommended for displays 40" and larger. The soundbar has HDMI, optical, and 1/8" inputs for connecting wired audio sources to complement the aforementioned Bluetooth connectivity. An optical cable, soundbar wall mount bracket, and remote control are included for added convenience. - LG Sound Sync
- Bluetooth connectivity lets you connect the soundbar to your compatible LG TV via LG Sound Sync, or to your Bluetooth-enabled device for wireless streaming.
- Hi-Res Audio
- The onboard processor provides enhanced sound quality for Hi-Res Audio sources up to 24-bit/96 kHz.
- Soundbar Wall Mount Included
- You can place the soundbar on a piece of furniture or mount it to the wall above or below your display.
- Automatic Volume Adjustment
- The soundbar can automatically adjust the sound level as you switch from action to drama to sports, or when a show takes a commercial break.
- Ready for Wireless Rear Speakers
- Expand the soundbar system to a 4.1-channel surround sound setup with the optional SPK8-S system. It includes two rear speakers and connects wirelessly to the soundbar system.
- Additional Features
-
- Smartphone Remote App for compatible iOS & Android devices
- TV remote compatibility
- BLE EZ Setup
- SIMPLINK HDMI CEC
- Firmware over-the-air (FOTA)
- Night Mode
- Dot LED display
- ASC (Adaptive Sound Control: Default)
- Standard, Bass Blast, Bass Blast +, and Movie sound modes
- DTS Virtual:X
- Support for OGG files up to 48 kHz
- AAC & AAC+ support via Bluetooth
- LG TV Sound Sync via Bluetooth or optical inputs
In the Box LG SL5Y 400W 2.1-Channel Soundbar System Remote Control with Batteries Optical Cable Soundbar Wall Mount Bracket Limited 1-Year Warranty Bose: The New Lineup of Home Speaker Systems Richard L. Stevens 10/11/2014 syzvwcbwqvbxcywesfedqfuresqteetfw Table of Contents
|
Upload User Manual
Have you got an user manual for the LG SL5Y 400W 2.1-Channel Soundbar System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG SL5Y Specs | | | Speaker Configuration | 2.1-Channel | | Amplification | 4 x (Discrete Amplifiers) | | Amplifier Output | 45 W | | | | Amplifier Output | 220 W | | Subwoofer Connectivity | Wireless | | | | Inputs | 1 x HDMI 1.4
1 x Optical TOSLINK
1 x 1/8" / 3.5 mm | | Outputs | 1 x HDMI 1.4 | | USB Ports | 1 x USB (Version Unspecified) | | Wireless Audio Protocols | Bluetooth | | NFC | No | | | | Audio Decoding | DTS Digital Surround, DTS Virtual X, Dolby Digital, LPCM | | Sampling Frequencies | Up to 192 kHz | | HDMI Compliance | ARC, CEC | | Supported File Formats | FLAC, LPCM, MP3, OGG, WAV, WMA | | | | Power Consumption | 28 W (Soundbar)
33 W (Subwoofer)
< 0.5 W (Soundbar, Subwoofer, Standby) | | | | Wall Mountable | Yes, with Included Hardware | | Recommended Screen Size | 40" and Up | | Dimensions | 35.0 x 2.2 x 3.3" / 88.9 x 5.6 x 8.4 cm (Soundbar)
6.7 x 15.5 x 9.8" / 17.0 x 39.4 x 24.9 cm (Subwoofer) | | Weight | 5.2 lb / 2.4 kg (Soundbar)
11.7 lb / 5.3 kg (Subwoofer) |
