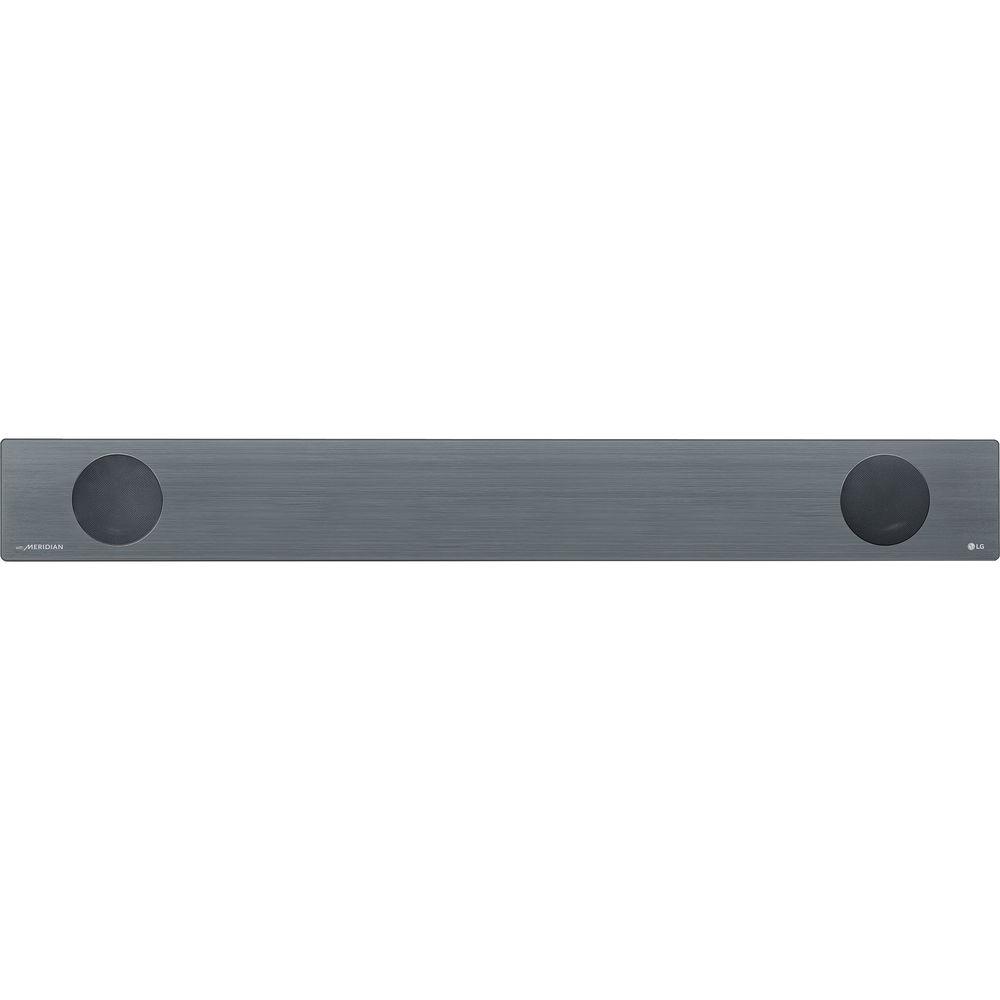

User Manual for LG SL9YG 500W Virtual 4.1.2-Channel Soundbar System Click to enlarge the picture
Contents of the user manual for the LG SL9YG 500W Virtual 4.1.2-Channel Soundbar
- Product category: Soundbar Speakers LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Soundbar Speakers
 |
User manual for the LG SL9YG 500W Virtual 4.1.2-Channel Soundbar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

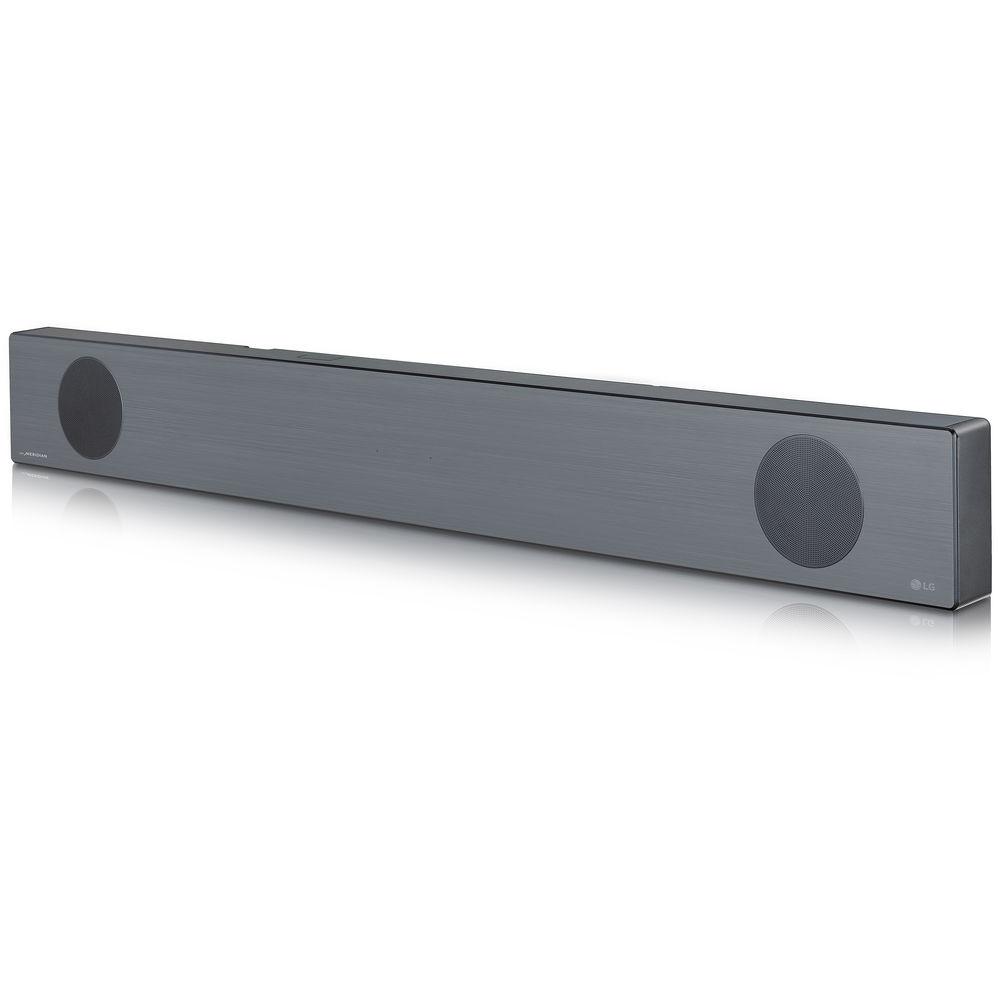

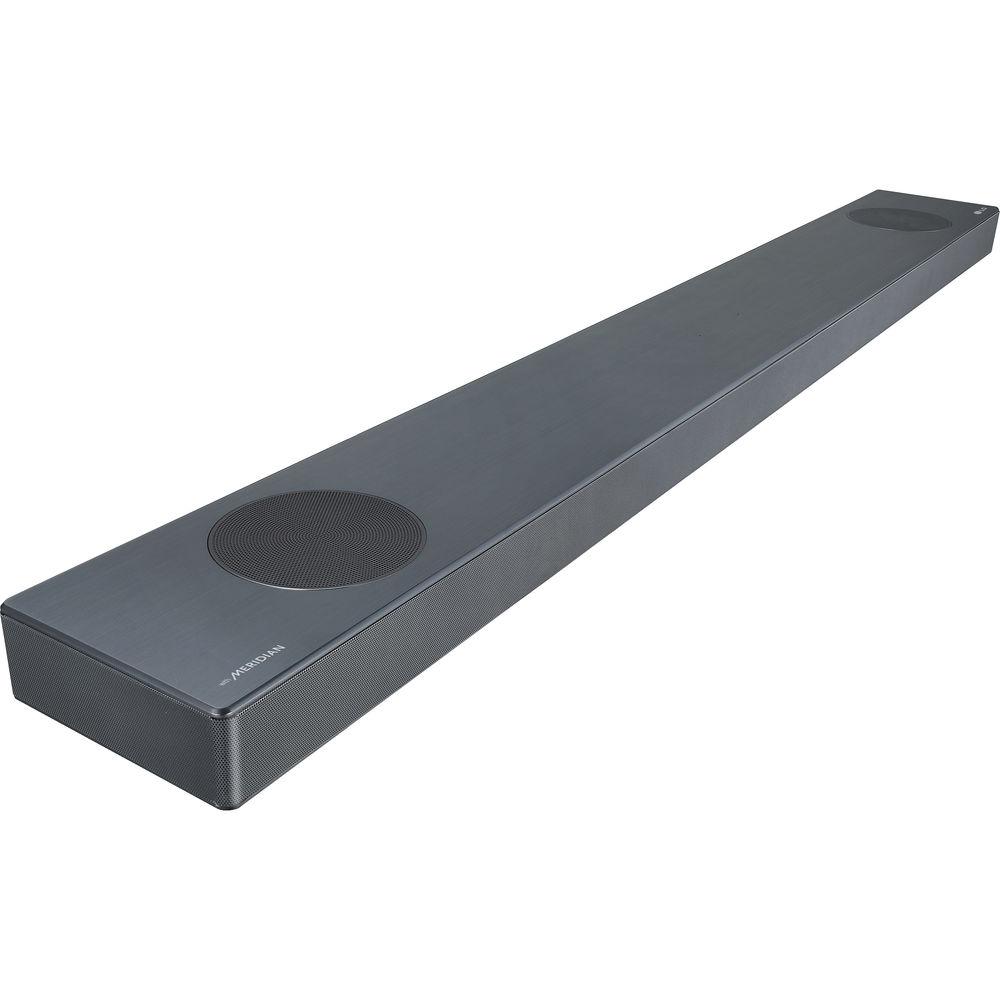

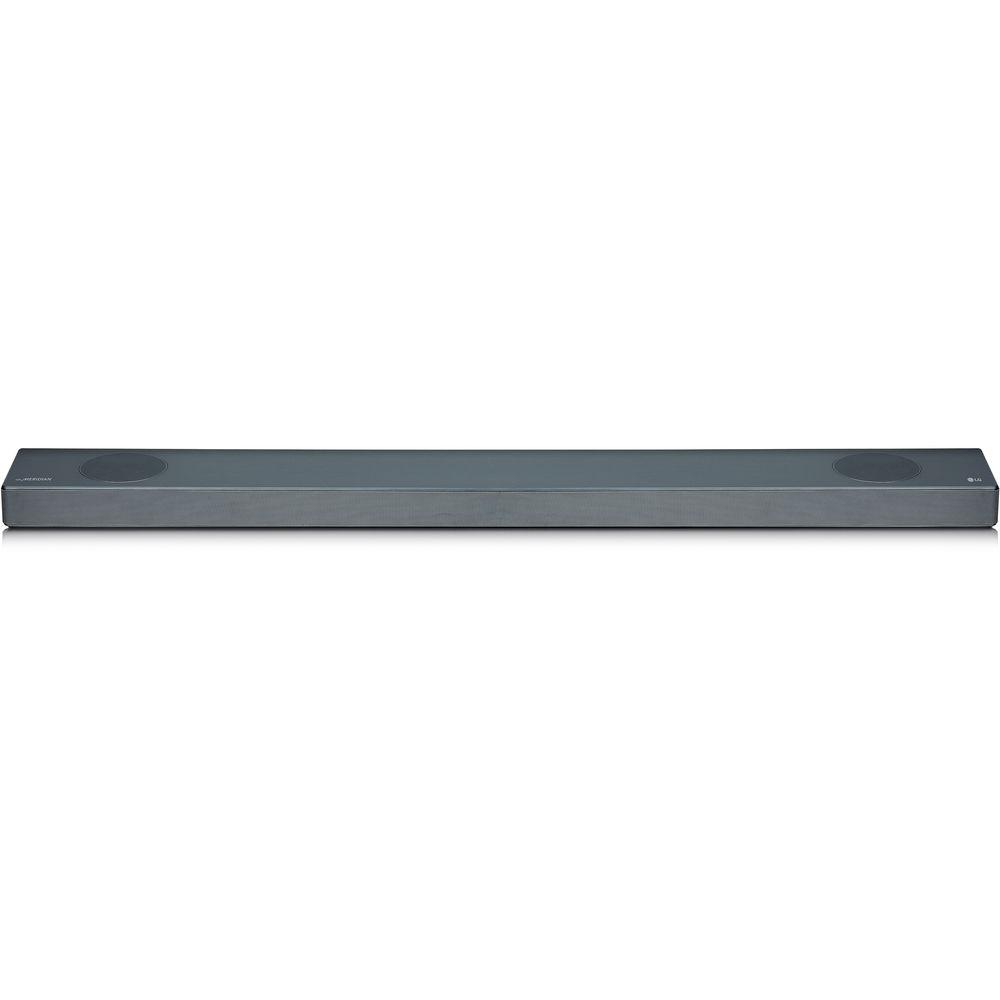

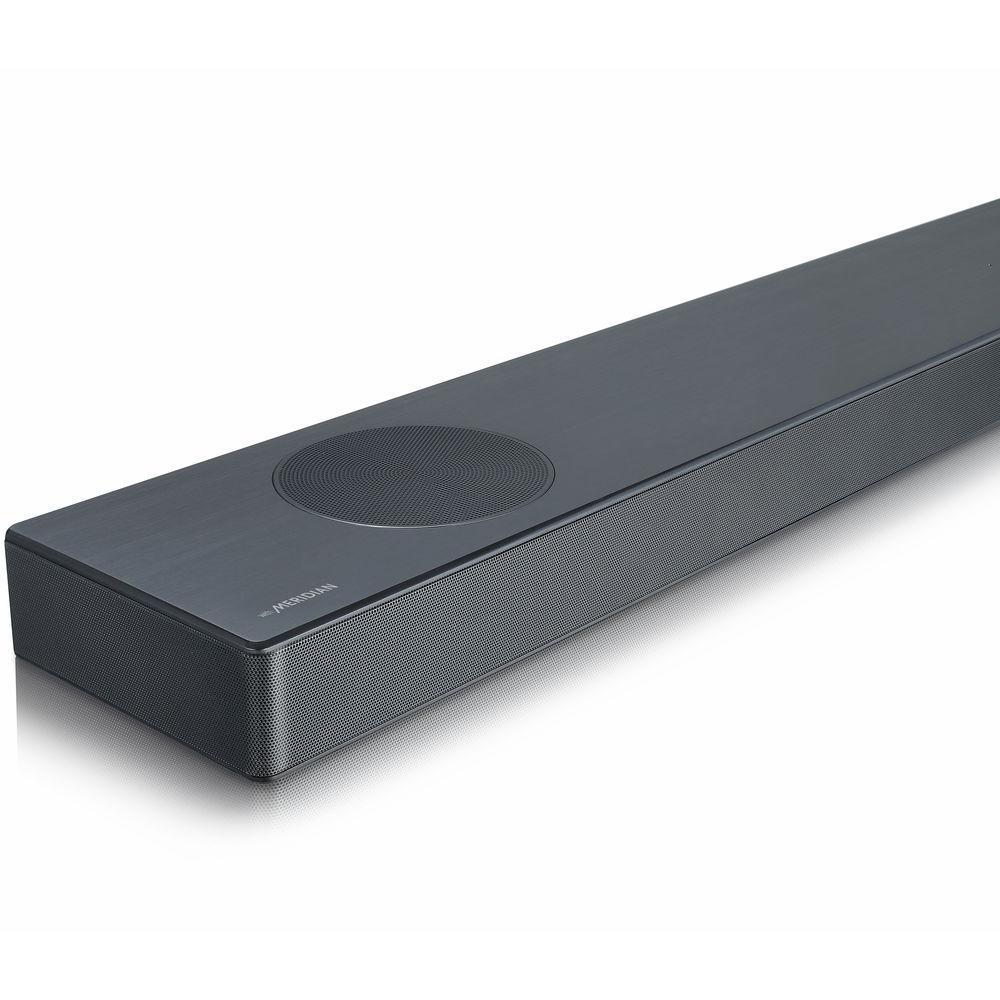

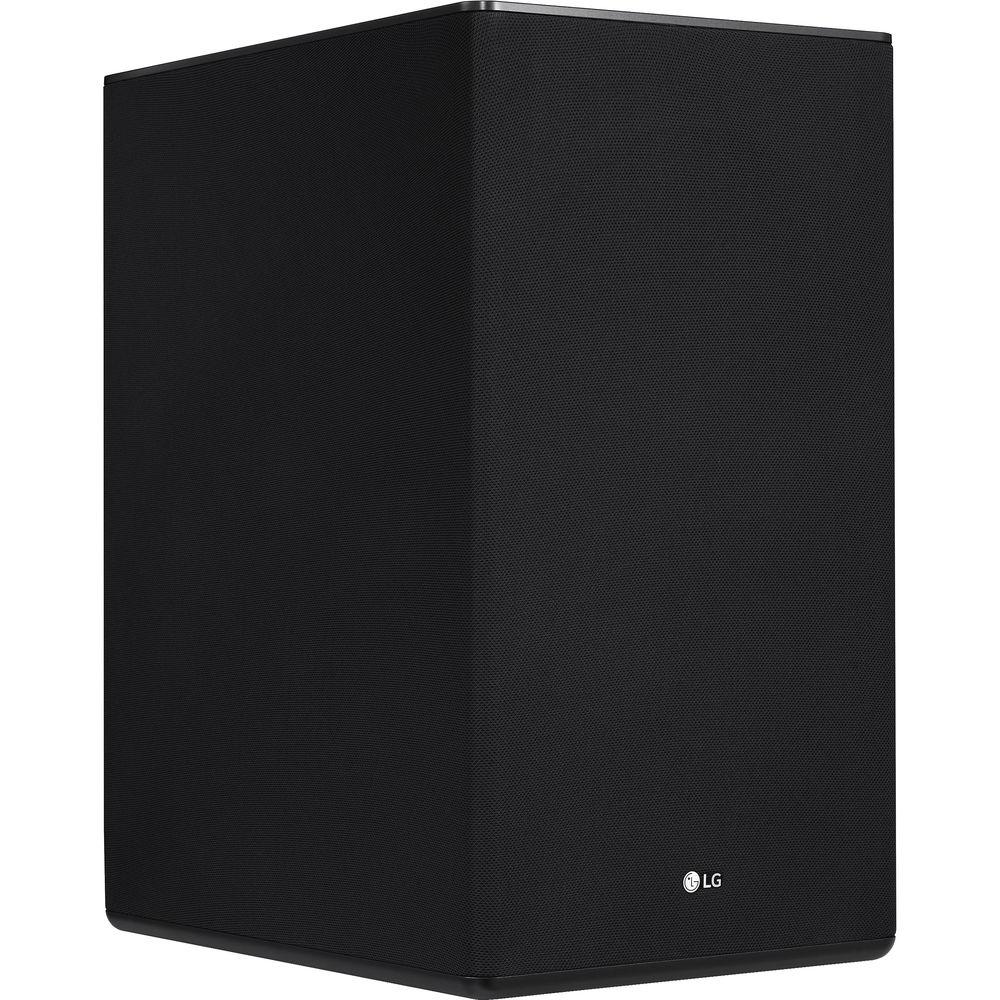

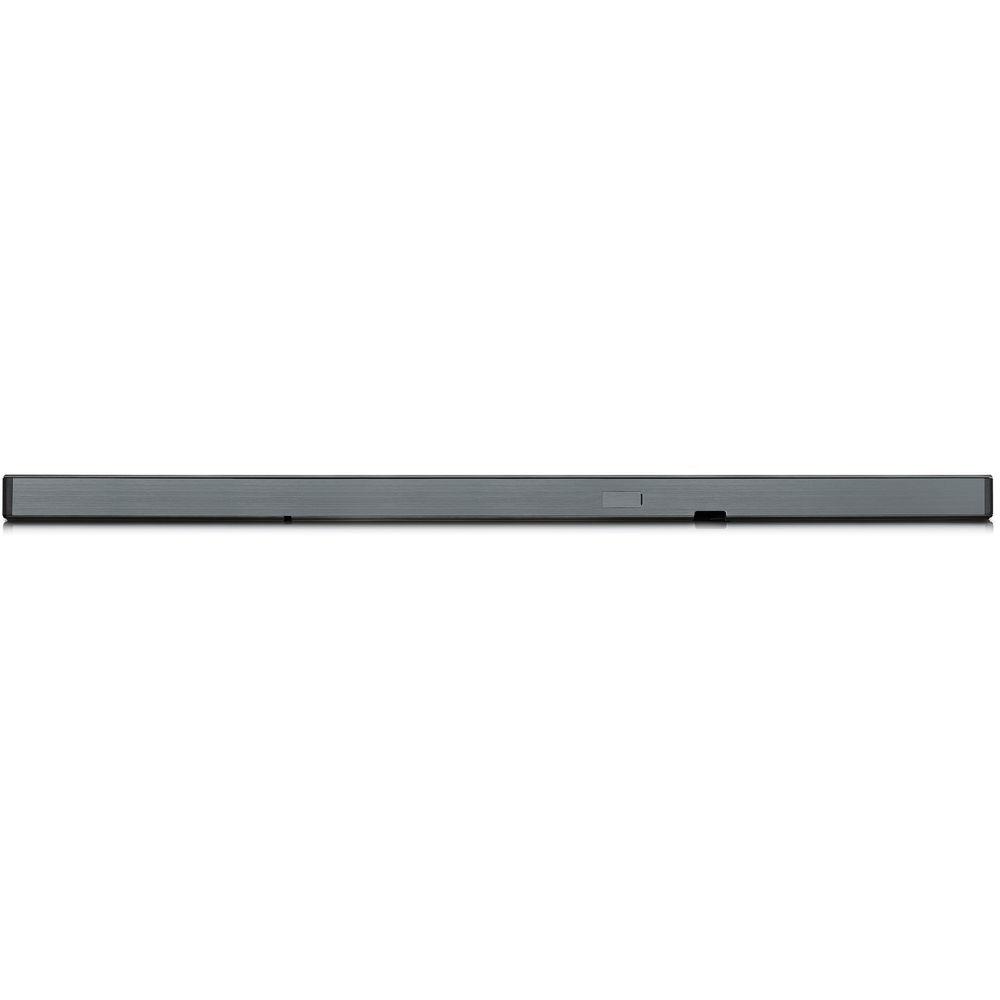

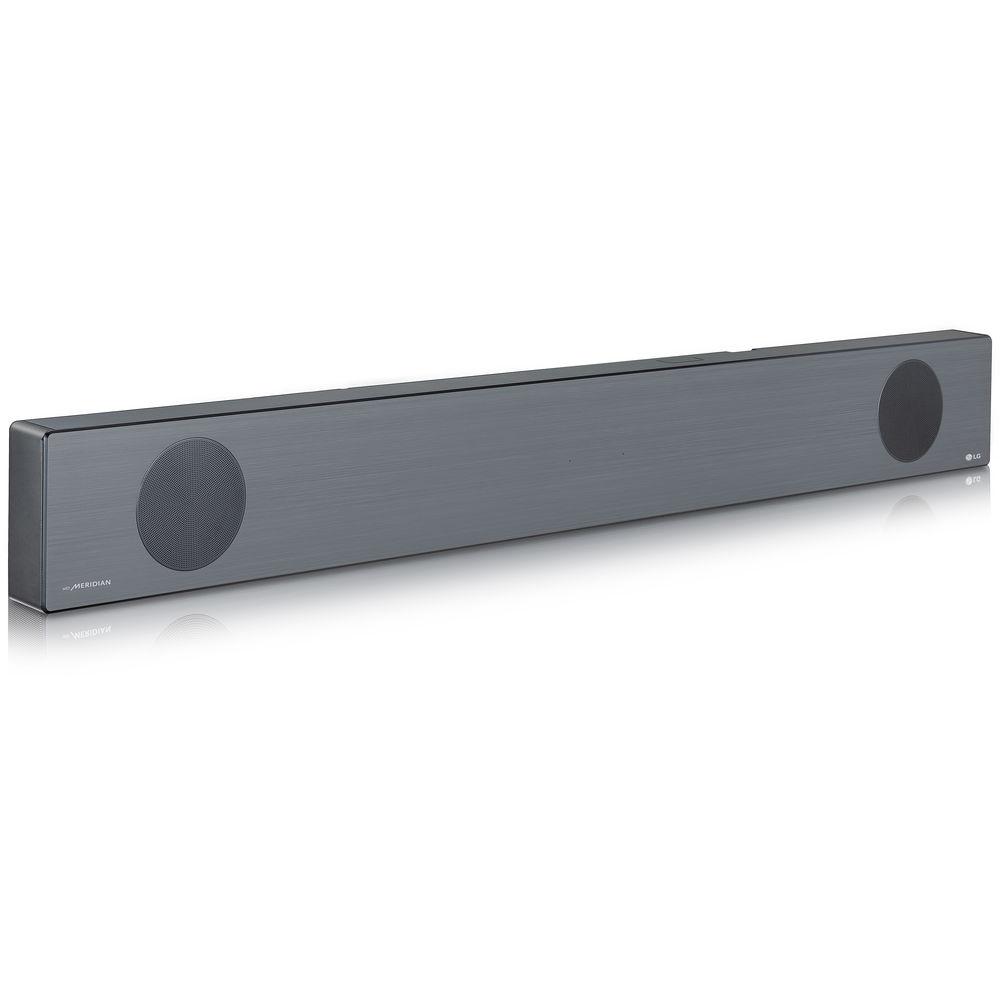

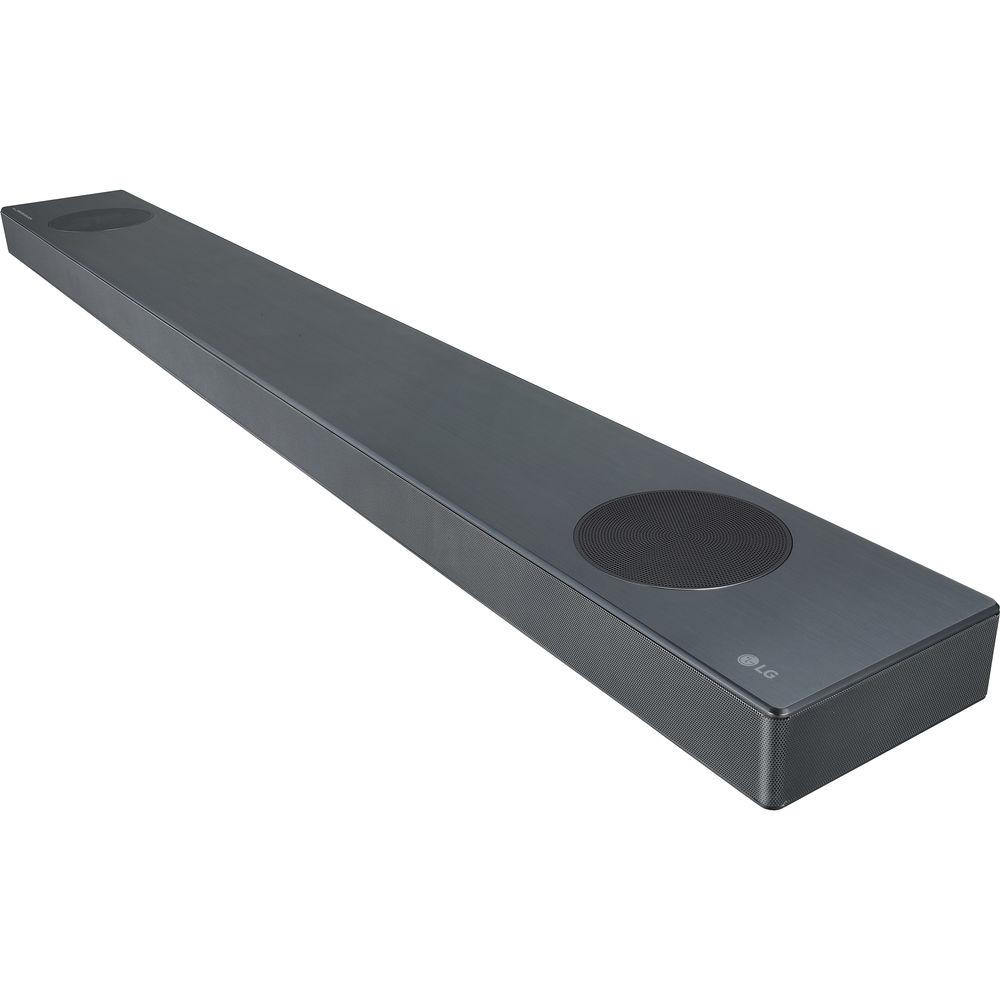

Product description How to Choose a Soundbar System Read More Upgrade the sound of your display's audio with the LG SL9YG 500W Virtual 4.1.2-Channel Soundbar System. It delivers up to 500W of total power, which includes a 220W wireless subwoofer for enhanced bass. Two up-firing speakers built into the soundbar enable overhead sound effects for Dolby Atmos and DTS:X object-based audio. Bluetooth is built into the soundbar for pairing with other Bluetooth-enabled devices, such as smartphones or tablets. Once paired, you can wirelessly stream audio from your connected source.
At 48" wide, the SL9YG is recommended for displays 55" and larger. The soundbar has HDMI and optical inputs for connecting wired audio sources to complement the aforementioned Bluetooth connectivity. Wi-Fi and Chromecast built-in are also onboard, as well as the Google Assistant for voice control. An optical cable, soundbar wall mount bracket, and remote control are included for added convenience. - Bluetooth 4.2 Connectivity
- Onboard Bluetooth 4.2 connectivity lets you connect your compatible TV or mobile device wirelessly. You can also connect the soundbar to your compatible TV via LG Sound Sync.
- 4K Pass-Through
- Enjoy a full home theater experience when passing through HDMI signals from an external source, such as a 4K Blu-ray player or streaming device.
- Google Assistant Built-In
- The SL9YG has the Google Assistant built-in, so you can simply say "Ok Google" to give a command to control the soundbar, your entertainment, and your smart home devices.
- Works with Google Chromecast
- Cast your favorite music wirelessly from your phone's streaming apps, such as Pandora or Google Play Music. You can even group Chromecast-enabled speakers together for a whole-home audio experience.
- Dolby Atmos
- Dolby Atmos surround sound technology dispenses with channel-based coding in favor of more advanced object-based coding, giving the sound designer the ability to precisely place sounds anywhere in the 3-dimensional space. The SL9YG has two onboard side-firing surround channels and two Dolby Atmos-certified up-firing speakers in addition to its two forward-facing channels.
- DTS:X
- DTS:X decoding delivers multi-dimensional surround sound that adapts to your speaker configuration in real time. Sound is positioned precisely around and above you thanks to object-based audio decoding.
- Meridian Technology
- LG partnered with Meridian Technology to combine their signal processing and hardware designs to help create a broad sound field.
- Hi-Res Audio
- The onboard processor provides enhanced sound quality for Hi-Res Audio sources up to 24-bit/192 kHz.
- Ready for Wireless Rear Speakers
- Expand the soundbar system to a full surround sound setup with an optional SPK8-S system, which includes two rear speakers and connects to the soundbar system wirelessly.
- Additional Features
-
- 24-bit upsampling
- Hi-Fi DAC
- Group Play Mode via Chromecast
- Easy Setup with BLE
- USB playback
- TV remote compatibility
- Smartphone Remote App for compatible iOS & Android devices
- Auto Volume Leveler in app
- Dynamic Range Control in app
- SIMPLINK HDMI CEC
- Firmware over-the-air (FOTA)
- Night Mode
- LCD display auto-dimmer
- ASC (Adaptive Sound Control: Default)
- Standard, Music, Bass Blast, Bass Blast+, and Movie sound modes
- Support for OGG files up to 48 kHz, FLAC files up to 192 kHz (C4A)
In the Box LG SL9YG 500W Virtual 4.1.2-Channel Soundbar System Remote Control with Batteries Optical Cable Cable Management Soundbar Wall Mount Bracket Limited 1-Year Warranty Bose: The New Lineup of Home Speaker Systems Richard L. Stevens 10/11/2014 Table of Contents
|
Upload User Manual
Have you got an user manual for the LG SL9YG 500W Virtual 4.1.2-Channel Soundbar System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG SL9YG Specs | | | Speaker Configuration | 4.1.2-Channel (Virtual Surround) | | Amplifier Output | 280 W | | | | Amplifier Output | 220 W | | Subwoofer Connectivity | Wireless | | | | Inputs | 1 x HDMI 2.0 - Audio/Video
1 x Optical TOSLINK - Audio | | Outputs | 1 x HDMI 2.0 - ARC/Audio/Video | | USB Ports | 1 x USB (Version Unspecified) – Audio | | Wireless Audio Protocols | Bluetooth | | Bluetooth Version | 4.2 | | NFC | No | | Wi-Fi | Yes | | | | Audio Decoding | DTS Digital Surround, DTS:X, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, LPCM | | Sampling Frequencies | Up to 192 kHz | | HDMI Compliance | ARC, CEC | | HDCP Compliance | HDCP 2.2 | | Supported File Formats | AAC, FLAC, LPCM, MP3, OGG, WAV, WMA | | | | Power Consumption | 36 W (Subwoofer)
< 0.5 W (Soundbar, Subwoofer, Standby) | | | | Wall Mountable | Yes, with Included Hardware | | Recommended Screen Size | 55" and Up | | Dimensions | 48.0 x 2.2 x 5.7" / 121.9 x 5.6 x 14.5 cm (Soundbar)
8.7 x 15.4 x 12.3" / 22.1 x 39.1 x 31.2 cm (Subwoofer) | | Weight | 13.9 lb / 6.3 kg (Soundbar)
17.2 lb / 7.8 kg (Subwoofer) |
