User Manual for LG SM5KD-Series 32"-Class Full HD Commercial Smart LED Display Click to enlarge the picture
Contents of the user manual for the LG SM5KD-Series 32"-Class Full HD Commercial
- Product category: Commercial Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Commercial Monitors
 |
User manual for the LG SM5KD-Series 32"-Class Full HD Commercial contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|

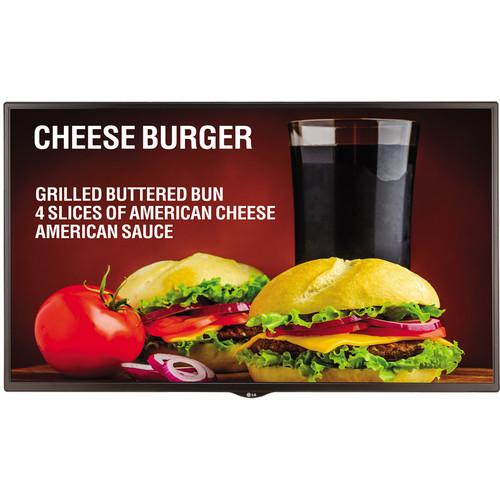

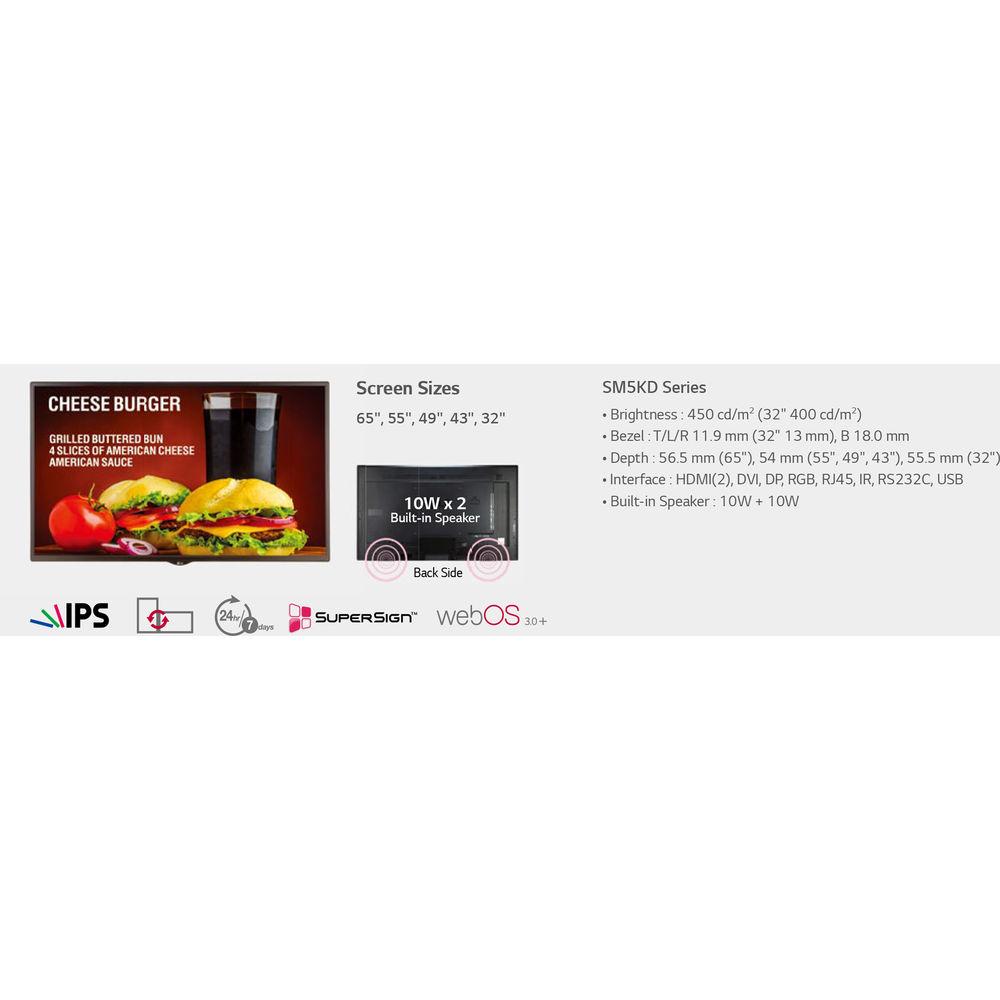

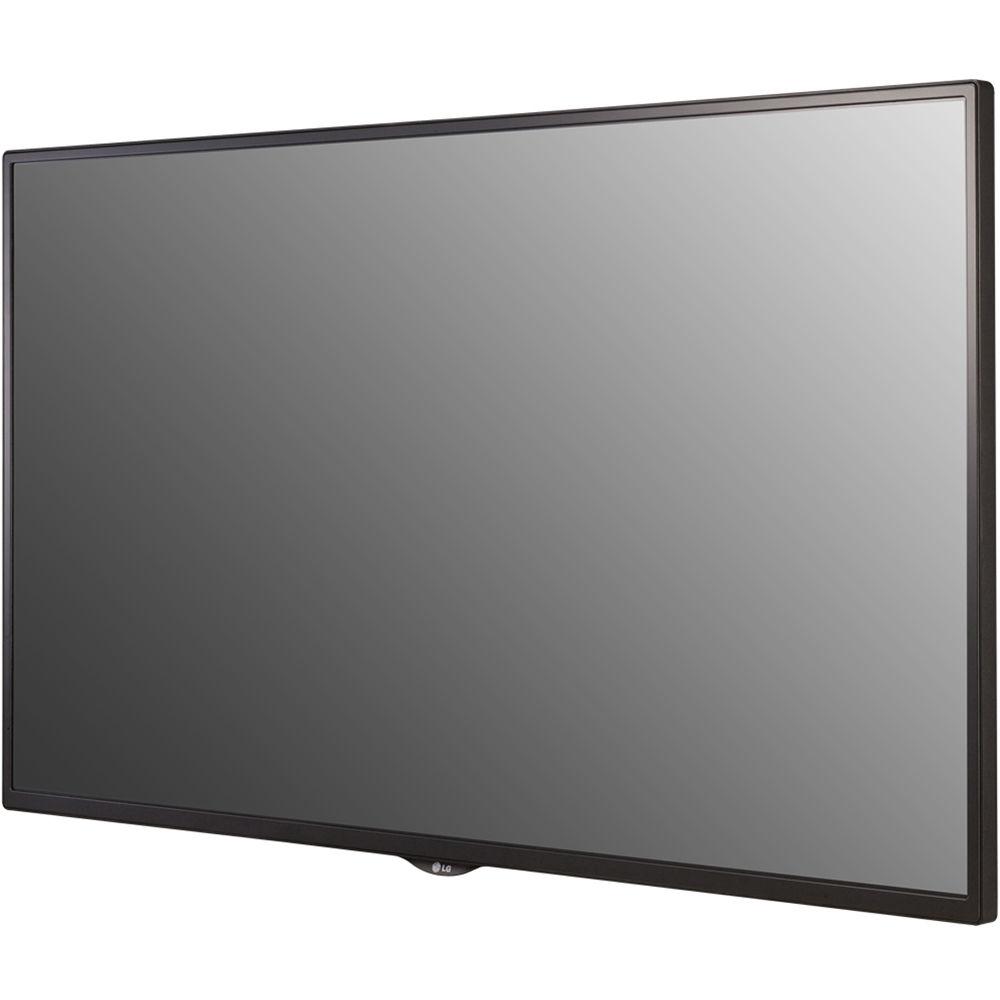

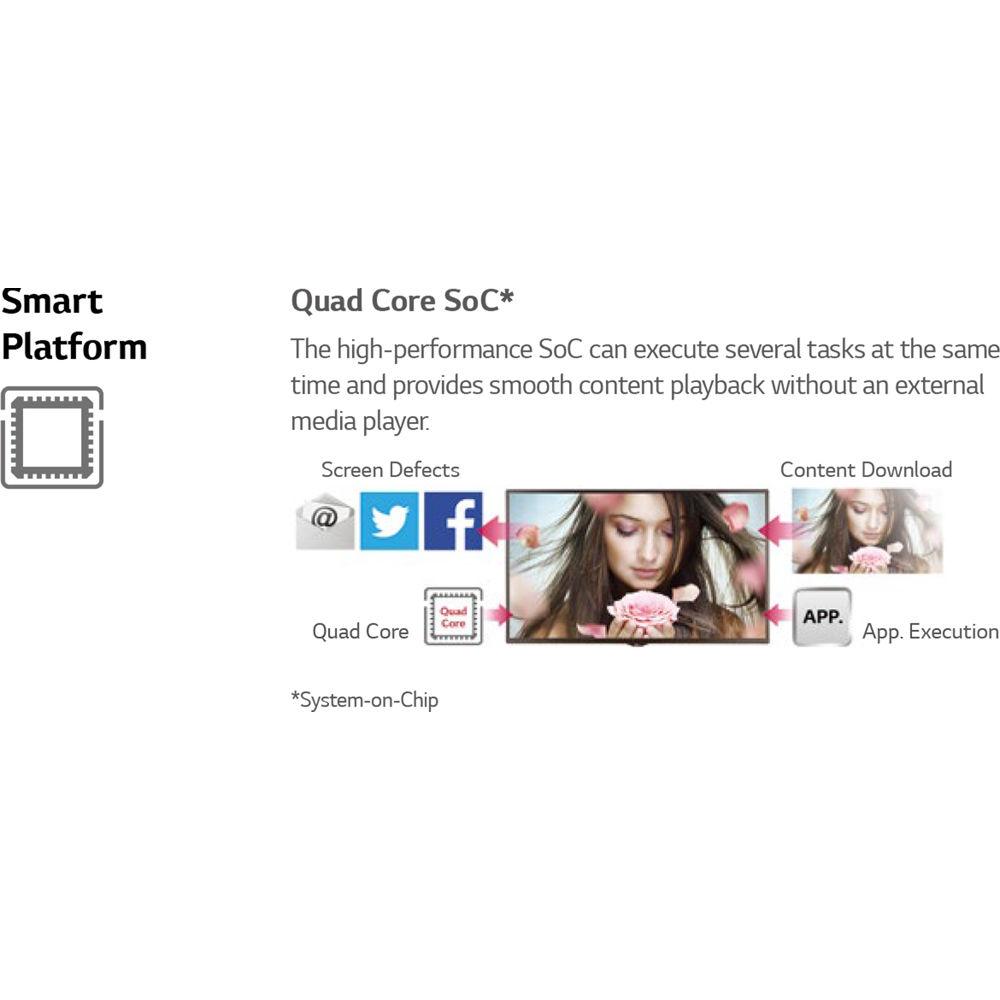

Product description New LG Digital Signage Displays to Drive Your Business Read More Convey your corporate or advertising message digitally with the LG SE3KD-Series 32"-Class Full HD Commercial Display. It features a 32" LED-backlit IPS LCD panel with a Full HD (1920 x 1080) native resolution for clear video, images, and text. The display will present your content via DisplayPort, DVI-D, VGA, or its two HDMI inputs for independent sources, or from your compatible USB drive. You can also share content via screen mirroring with built-in Wi-Fi. Two 10-Watt speakers are built-in to ensure your audio is heard. A VGA cable and remote control are included as an added convenience. - Quad-Core System-on-Chip
- The SoC is designed to execute several tasks at the same time, and provide smooth content playback without an external media player.

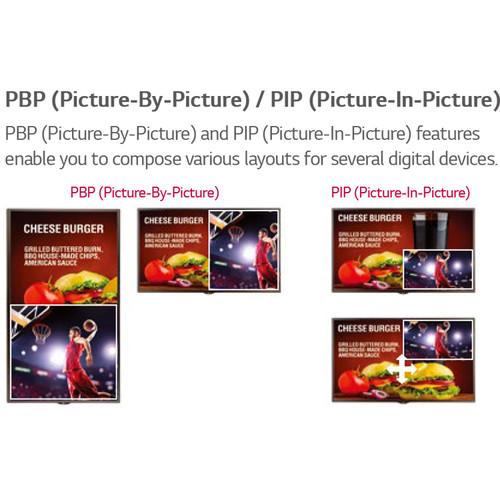

- PBP (Picture-By-Picture) / PIP (Picture-In-Picture)
- The PBP and PIP features enable you to compose various layouts for several digital devices.

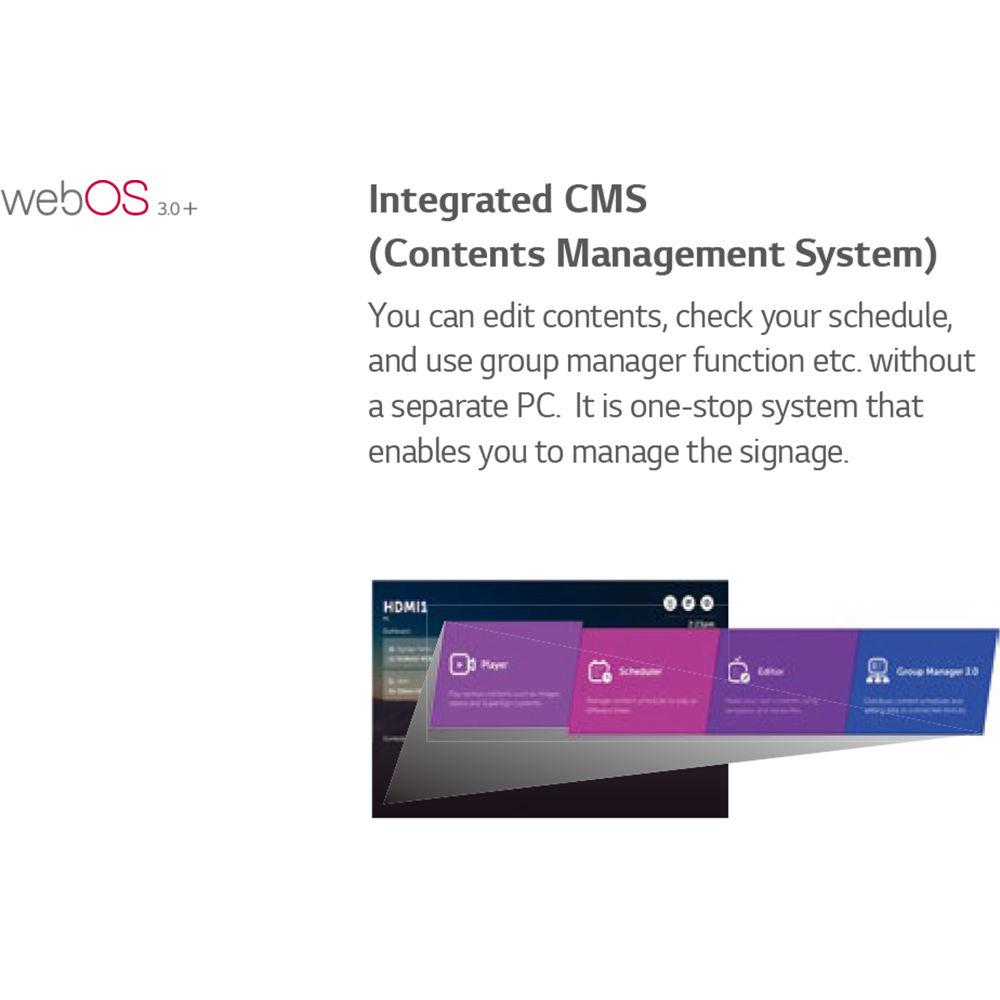

- Integrated CMS (Contents Management System)
- With the CMS, powered by webOS 3.0+, you can edit content, check your schedule, and use group manager functions (among other functionality) without the need for a separate computer, offering one-stop management of your signage.

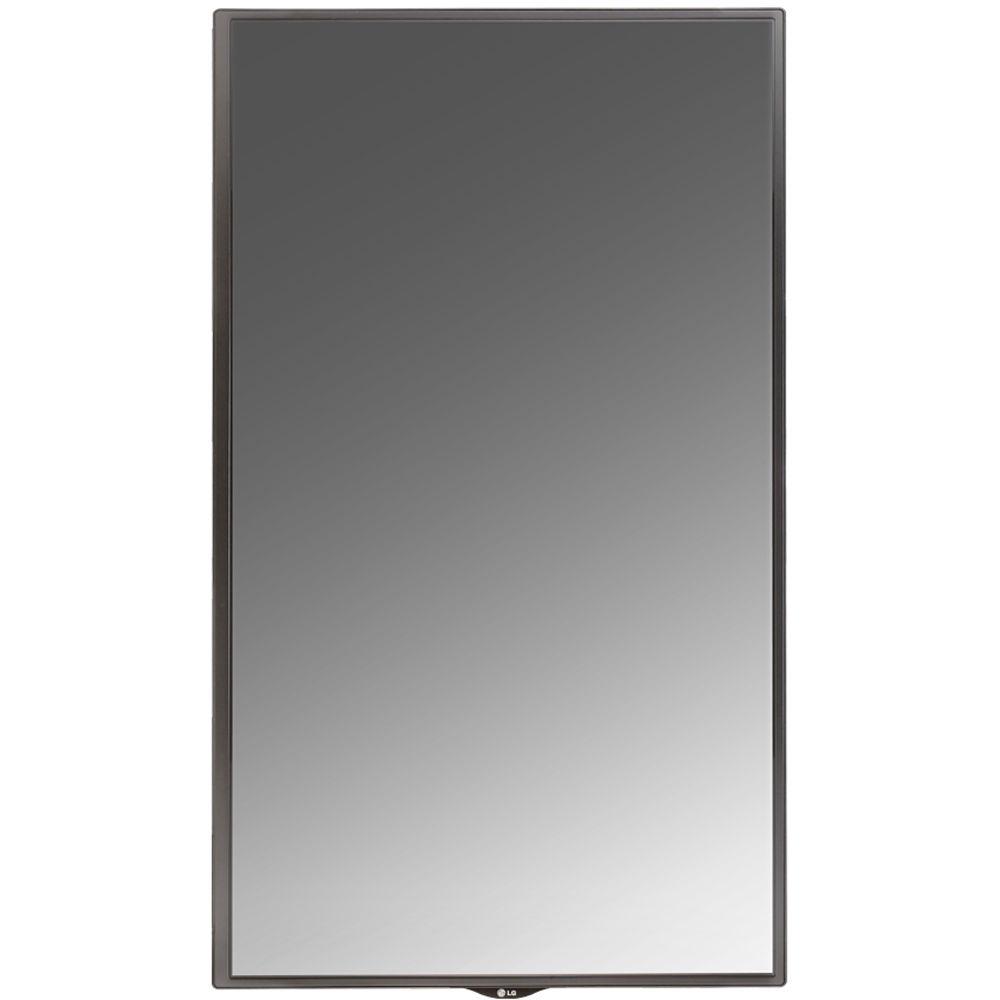

- Portrait & Landscape Mode
- When using the SM5KD in portrait mode, the display adjusts to show the images without affecting the original aspect ratio or resolution of the images.
- EZ Setting
- All of the functions on the display are indexed in the EZ Setting menu, providing convenient access to these settings for efficient management.
- IP Streaming Protocol
- Various types of IP video streaming protocol are supported, such as RTSP (Real-Time Streaming Protocol)/RTP (Real-time Transport Protocol), MMS (Microsoft Media Server), HLS (http live streaming), and MPEG-2 TS.
- HTTPS Protocol Support
- By supporting HTTPS (Hypertext Transfer Protocol over Secure Socket Layer) protocol, communication between your server and signage is more secure.
- Proxy Server
- Proxy Server is a server that acts as an intermediary for requests from clients seeking resources from other servers, and is designed to enhance web access speed and security.
- Screen Mirroring with Built-In Wi-Fi
- Content sharing is more convenient on a Wi-Fi network
- SoftAP
- SoftAP software allows the display to operate as a wireless access point for mobile devices.
- Enhanced Connectivity

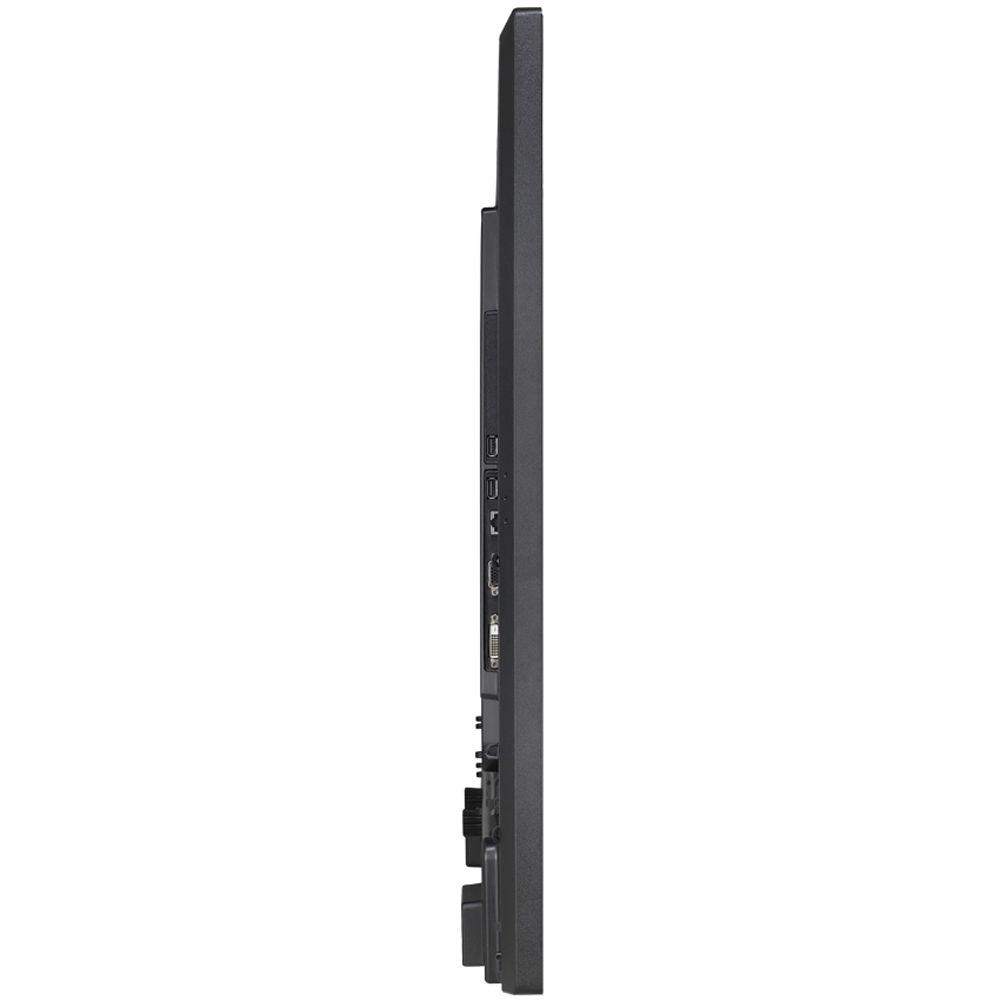

- Through its diverse interface, which includes DisplayPort, VGA, and HDMI, the display lets you connect more than one device for convenient switching of sources.
- BEACON and BLE Support
- With BEACON and BLE (Bluetooth Low Energy) supported by the display, retail stores can provide coupons and information in real time.
- Dust & Humidity Protection
- Circuit board reliability is enhanced with a conformal coating designed to protect against dust, iron powder, humidity, and other harsh conditions.
- Detachable Logo
- The ability to detach the logo allows it to be properly viewed whether the display is in portrait or landscape mode.
- Additional Features
-
- Designed for 24-hour/7-day operation
- Temperature and auto brightness sensor
- Tile Mode (up to 15 x 15)
- DPM Select & DPM Wake Up
- Energy saving & smart energy saving modes
- File play via USB
- 8GB of internal memory
- USB cloning
- Easy Brightness Control
- Holiday schedule
- Limited Mode
- Wake on LAN
- Fail over
- Embedded template
- OPS media player compatible
- SuperSign Premium & SuperSign Link compatible
UPC: 719192614994 In the Box LG SM5KD-Series 32"-Class Full HD Commercial Smart LED Display Remote Control with Batteries VGA Cable Phone to RS-232C Gender Adapter Memory Cover Power Cord Limited 2-Year Warranty More from Manufacturer fbqdfttweufzyf Table of Contents
|
Upload User Manual
Have you got an user manual for the LG SM5KD-Series 32"-Class Full HD Commercial Smart LED Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG SM5KD Specs | | | Screen Size (Diagonal) | 32" | | Native Resolution | 1920 x 1080 | | Panel Type | IPS-Type LCD | | Brightness | 400 cd/m
