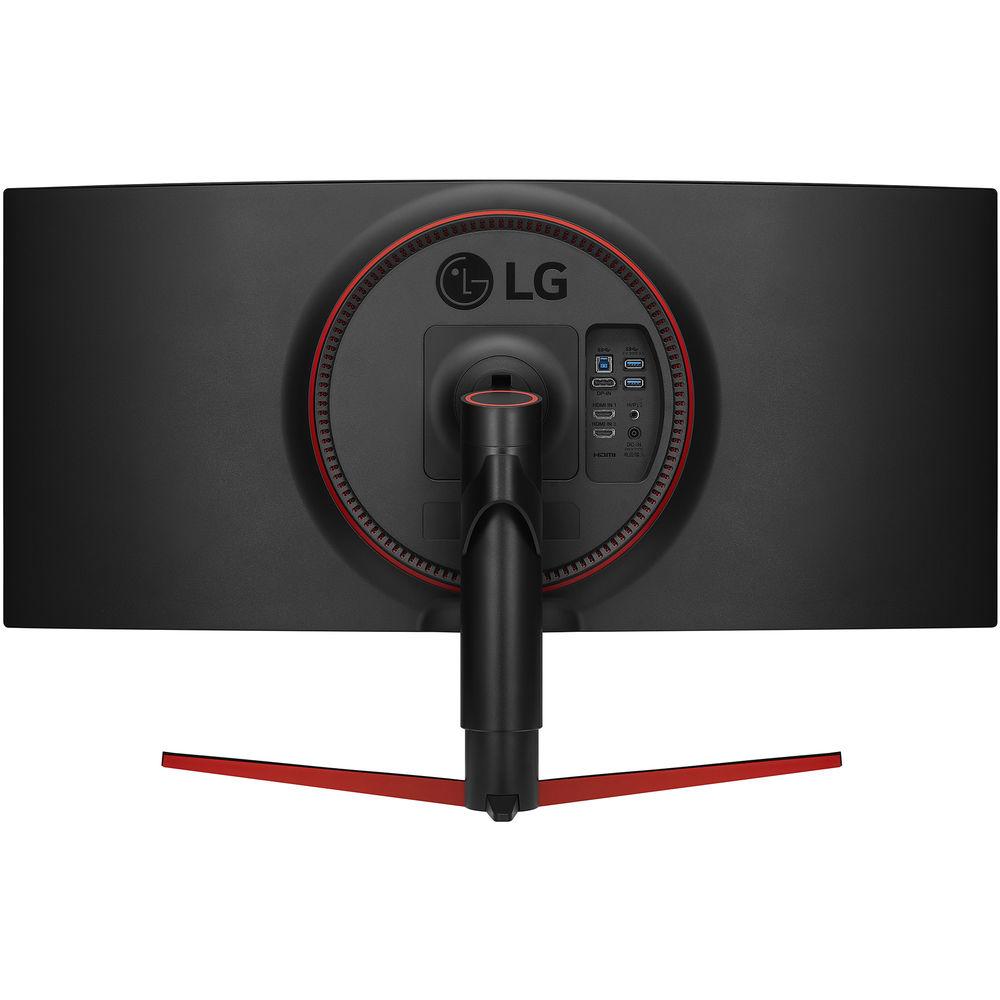

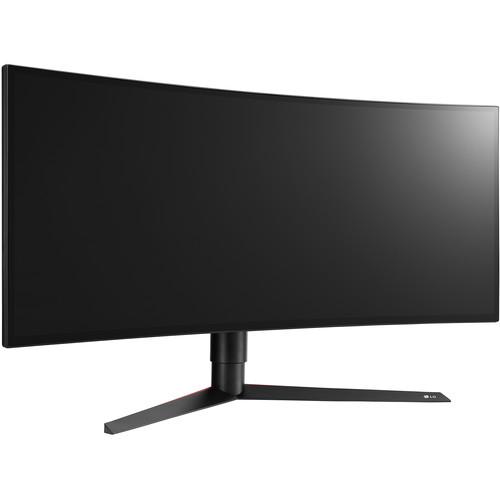

User Manual for LG UltraGear 34GK950F-B 34" 21:9 Curved 144 Hz FreeSync IPS Gaming Monitor Click to enlarge the picture
Contents of the user manual for the LG UltraGear 34GK950F-B 34" 21:9 Curved
- Product category: Computer Monitors LG
- Brand: LG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LG Computer Monitors
 |
User manual for the LG UltraGear 34GK950F-B 34" 21:9 Curved contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LG product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More - LG UltraGear Gaming Monitor - Geared Up For Victory

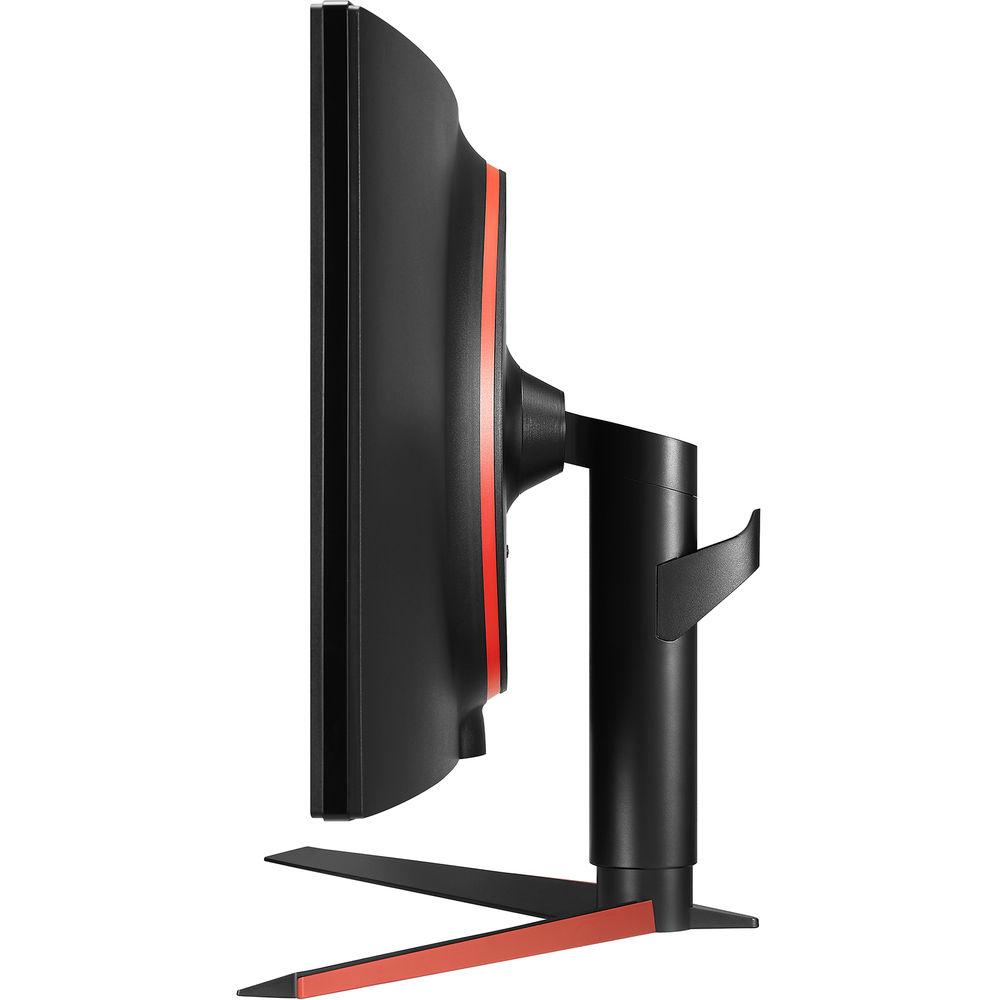

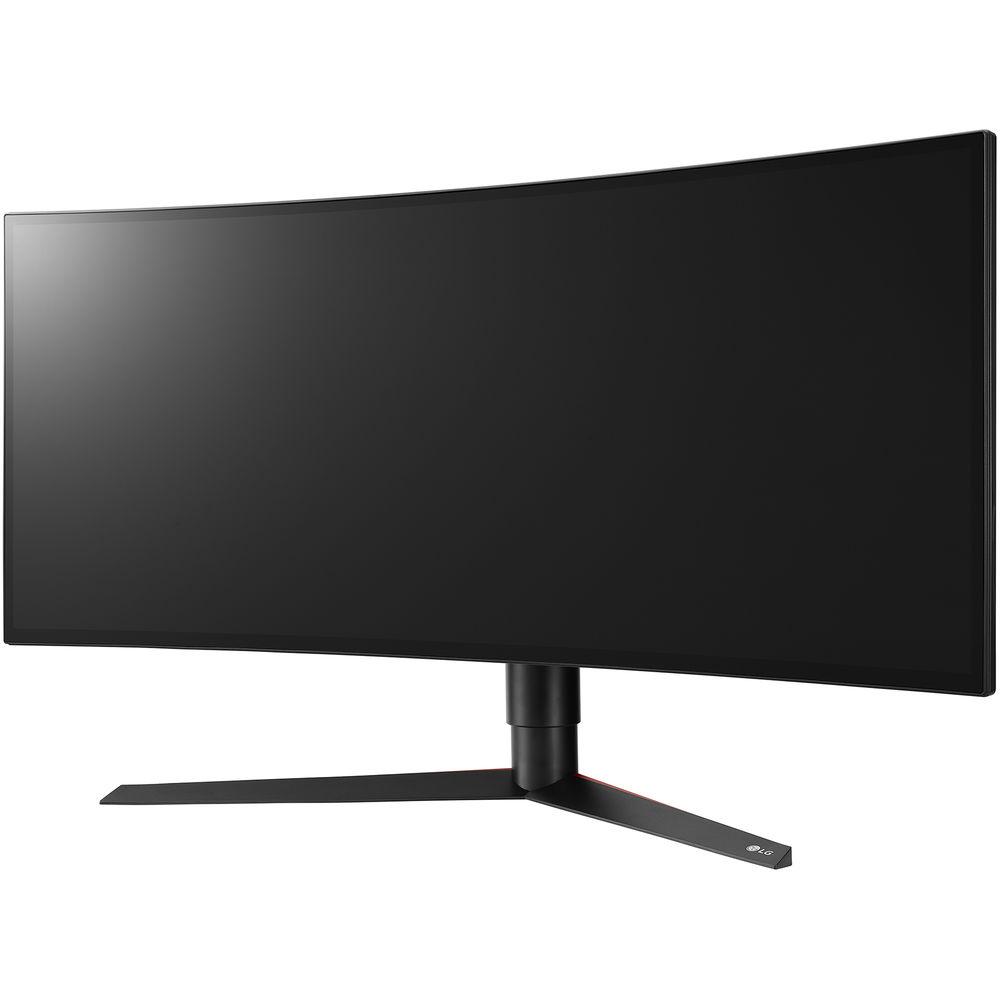

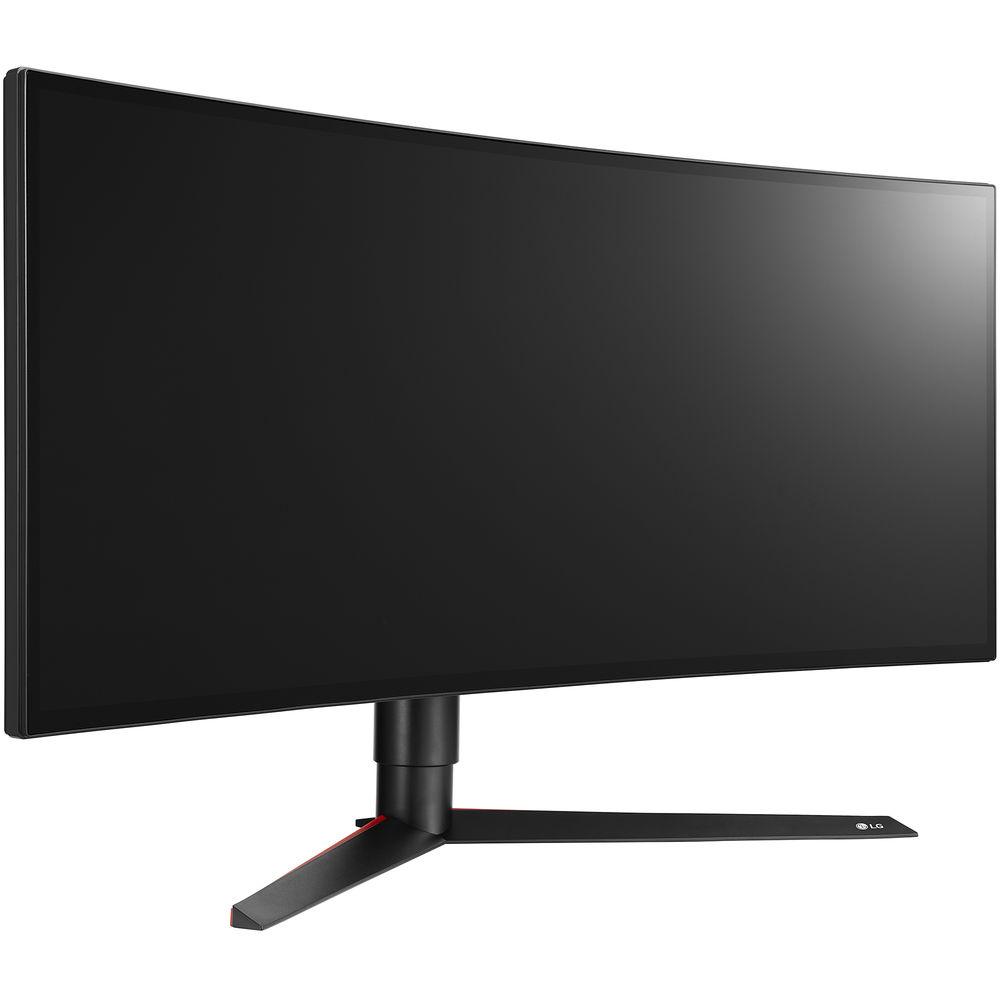

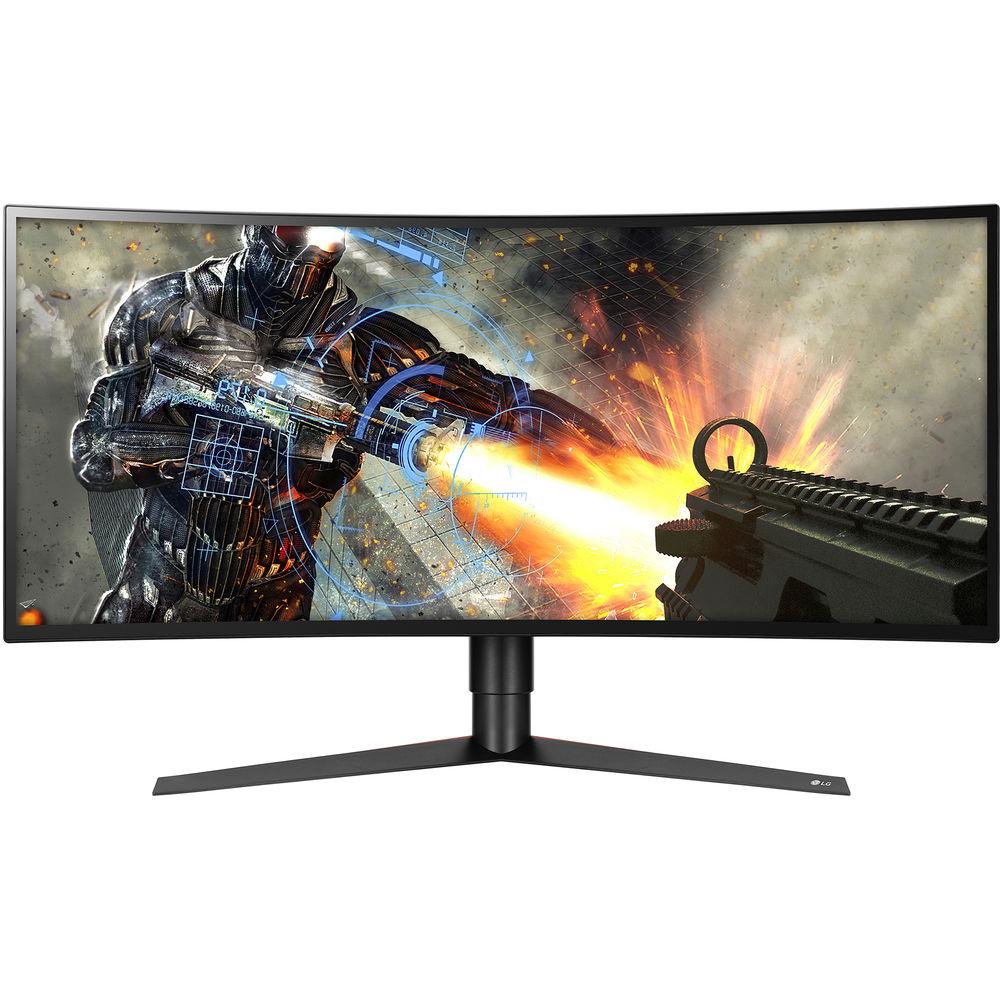

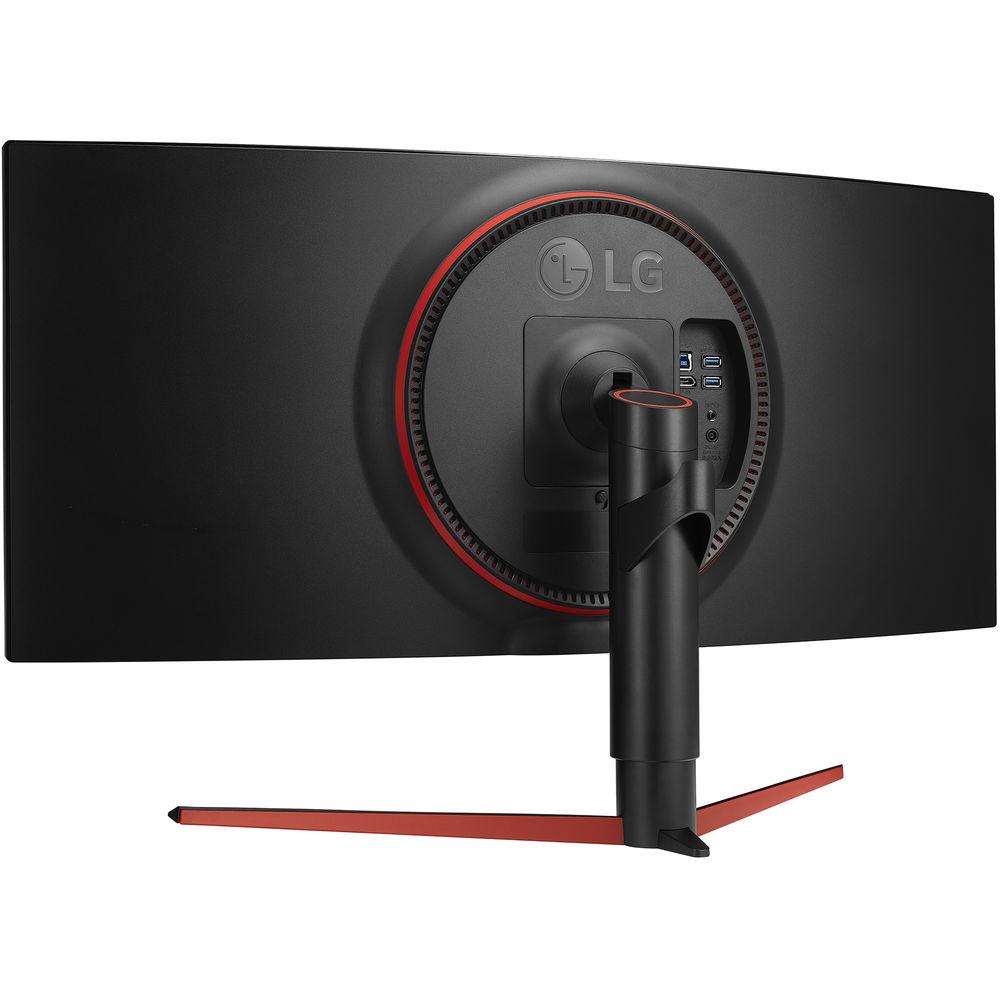

The UltraGear 34GK950F-B 34" 21:9 Curved 144 Hz FreeSync IPS Gaming Monitor from LG features multiple design and hardware choices aimed for gamers. Its 34" ultra-wide screen offers a large viewing area and is curved to wrap around your field-of-view, placing you right in the middle of the action. Specs-wise, it has a 3440 x 1440 QHD resolution, a 1000:1 static contrast ratio, a 400 cd/m² brightness rating, and support for 1.07 billion colors. Other gaming-focused specs include a 144 Hz refresh rate, a 5 ms (GtG) or 1 ms (MBR) response time, and support for FreeSync 2. For your convenience, it also has a built-in two-port USB 3.0 Type-A hub. Connect this display to your system via HDMI or DisplayPort and adjust its versatile stand to best fit your viewing preferences. Otherwise, you can install an optional VESA-compatible mount, stand, or arm if needed. - AMD FreeSync 2
- AMD FreeSync 2 improves upon its previous iteration, which syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing and stuttering for a smoother gaming experience. This update supports High Dynamic Range (HDR) content in addition to other enhancements.
- UltraWide QHD
- With an ultra-wide 21:9 aspect ratio and a 3440 x 1440 resolution, this display provides you with plenty of screen real estate for work, play, and more.
- 144 Hz Refresh Rate & 1 ms Motion Blur Reduction
- The 144 Hz refresh rate combined with 1 ms Motion Blur Reduction provides precise and accurate images, reducing blurring and ghosting for more fluid viewing.
- VESA DisplayHDR 400 Certified
- This display is VESA DisplayHDR 400 certified, which ensures true 8-bit image quality, supports global dimming for improved dynamic contrast ratios, and reaches a brightness rating of 400 cd/m².
- Custom Gaming Environment
- Choose from multiple gaming optimized modes including Gamer, FPS, and RTS to best fit your current application.
- Dynamic Action Sync
- Dynamic Action Sync minimizes input lag so movements feel smoother.
- Black Stabilizer
- Black Stabilizer enhances dark scenes for better viewing, allowing you to spot enemies that may be hiding in wait for you in the dark.
- Crosshair
- An on-screen crosshair can be toggled on or off to help improve your accuracy in First-Person Shooter games.
UPC: 719192622388 In the Box LG UltraGear 34GK950F-B 34" 21:9 Curved 144 Hz FreeSync IPS Gaming Monitor Power Cable DisplayPort Cable HDMI Cable USB Upstream Cable Limited 1-Year Warranty User Manual PDF 6.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the LG UltraGear 34GK950F-B 34" 21:9 Curved 144 Hz FreeSync IPS Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLG UltraGear Specs | | | Size | 34" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3440 x 1440 | | Aspect Ratio | 21:9 | | Pixels Per Inch (ppi) | 109 ppi | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 144 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | HDR Compatibility | None | | Color Gamut | 98% DCI-P3 | | Response Time | 5 ms (GtG)
1 ms | | Viewing Angle | Horizontal: 178°

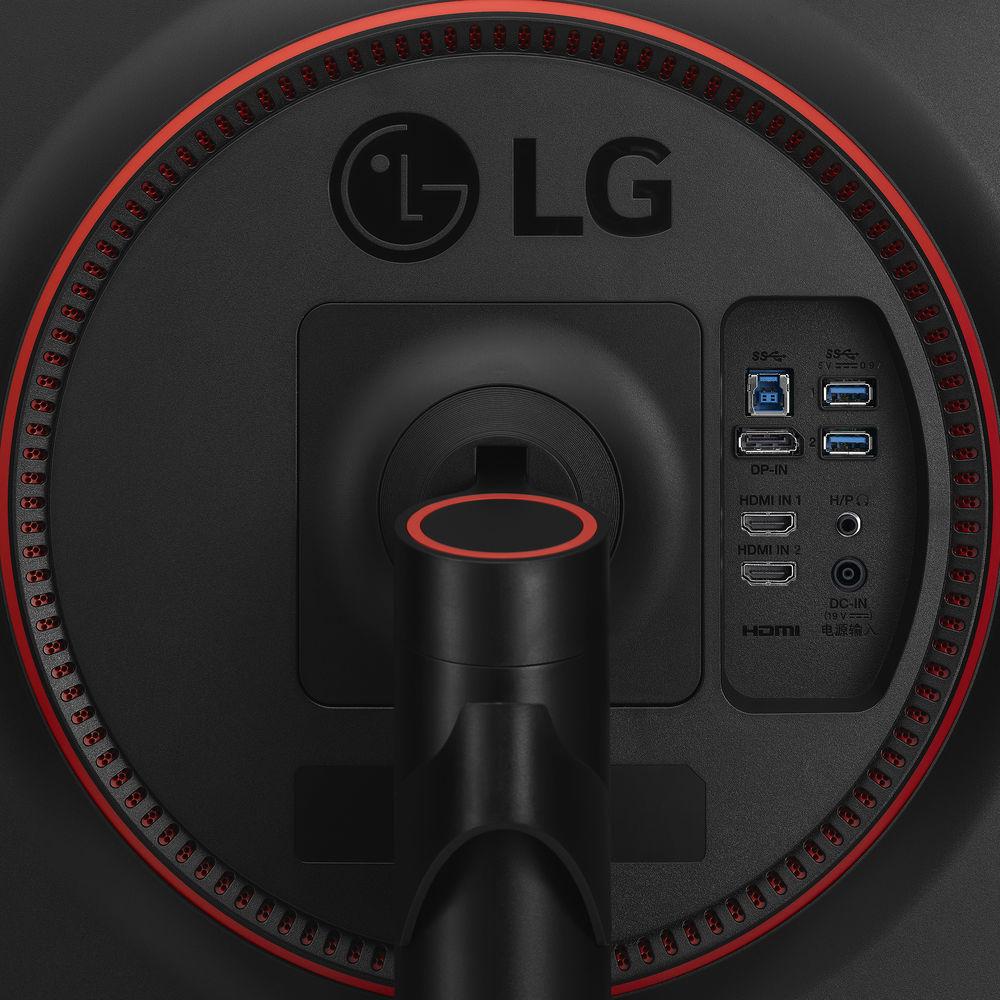

Vertical: 178° | | Dot Pitch | 0.2325 x 0.2325 mm | | | | Connectivity | 2 x HDMI
1 x DisplayPort
1 x USB Type-B (USB 3.1 Gen 1) Input
2 x USB Type-A (USB 3.1 Gen 1) Output
1 x 3.5 mm Output | | Built-In Speakers | None | | | | Power Consumption | 140 W (Maximum)
95 W (Typical)

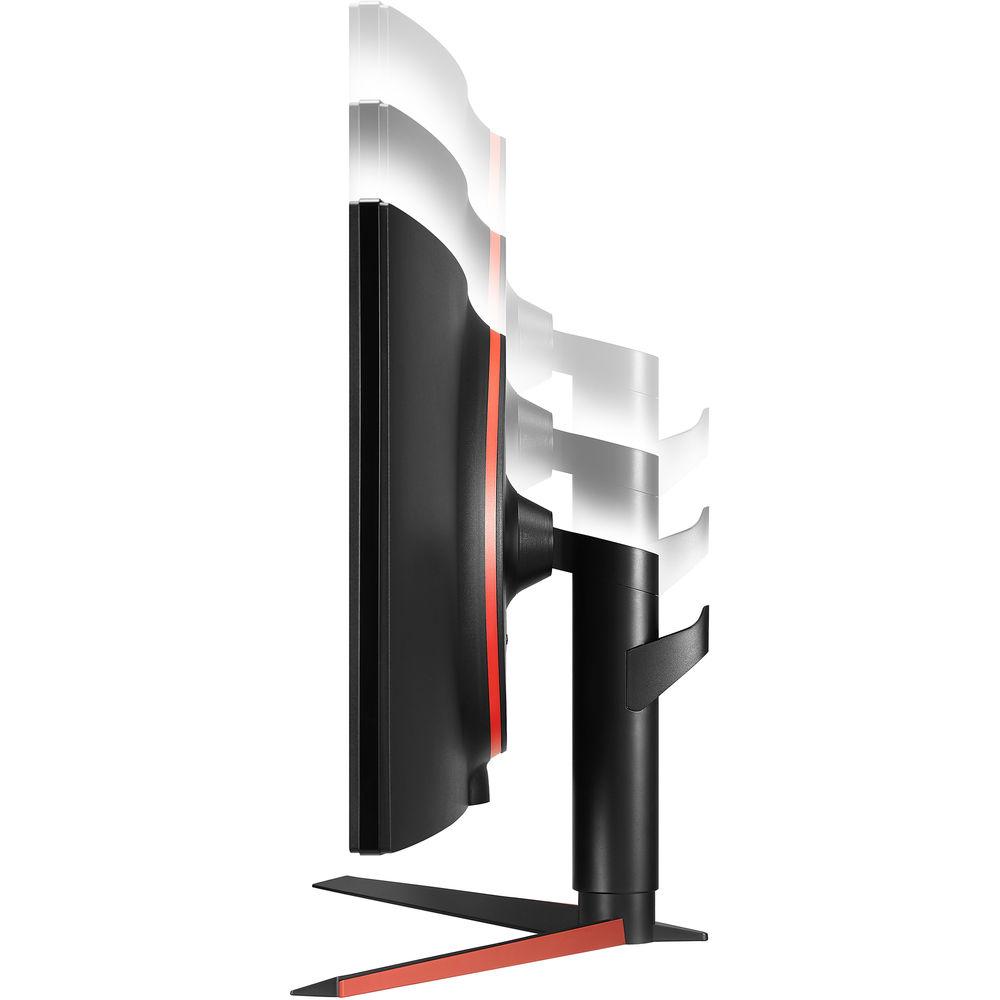

0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Certifications | BSMI, CCC, CE, ErP Lot 6, FCC, TUV, UL, cUL, as per Manufacturer | | | | Height Adjustment | 4.33" / 110 mm | | Rotation Adjustment | None | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | No | | Dimensions (W x H x D) | 32.3 x 22.5 x 11.3" / 820.4 x 571.5 x 287.0 mm (With Stand)
32.3 x 14.3 x 4.1" / 820.4 x 363.2 x 104.1 mm (Without Stand) | | Weight | 16.1 lb / 7.30 kg (With Stand)
12.1 lb / 5.49 kg (Without Stand) | | | | Package Weight | 25.2 lb | | Box Dimensions (LxWxH) | 39.0 x 20.5 x 8.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
