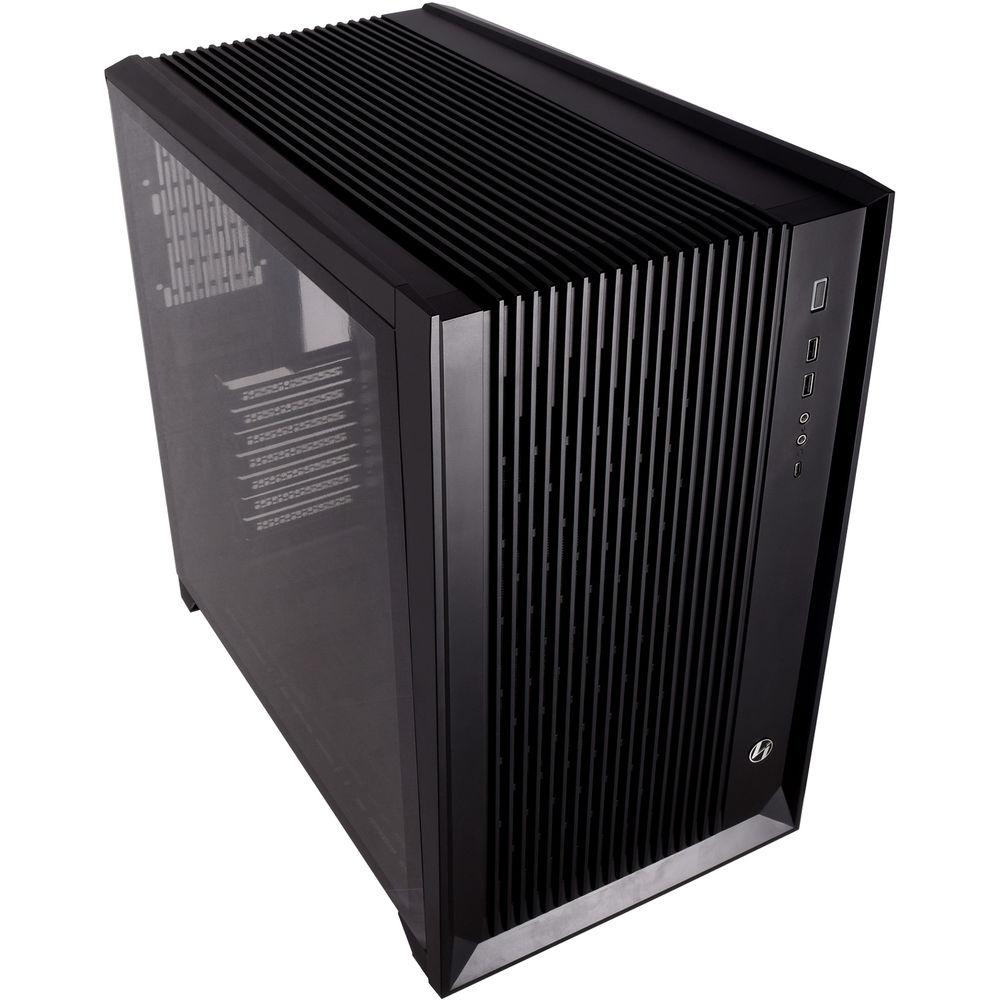

User Manual for Lian Li O11 Air RGB Full-Tower Case Click to enlarge the picture
Contents of the user manual for the Lian Li O11 Air RGB Full-Tower
- Product category: Desktop Computer Cases Lian Li
- Brand: Lian Li
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lian Li Desktop Computer Cases
 |
User manual for the Lian Li O11 Air RGB Full-Tower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lian Li product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lian Li user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lian Li product will considerably shorten its lifespan!
|

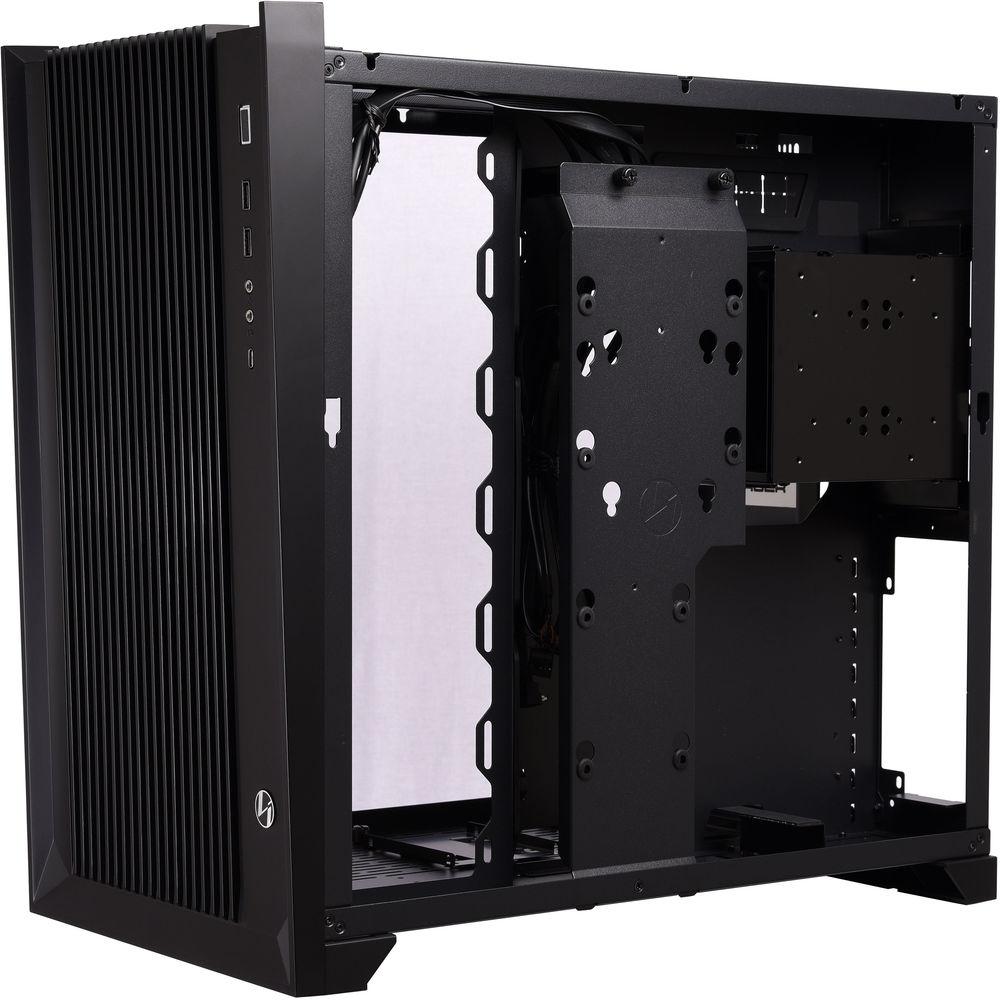

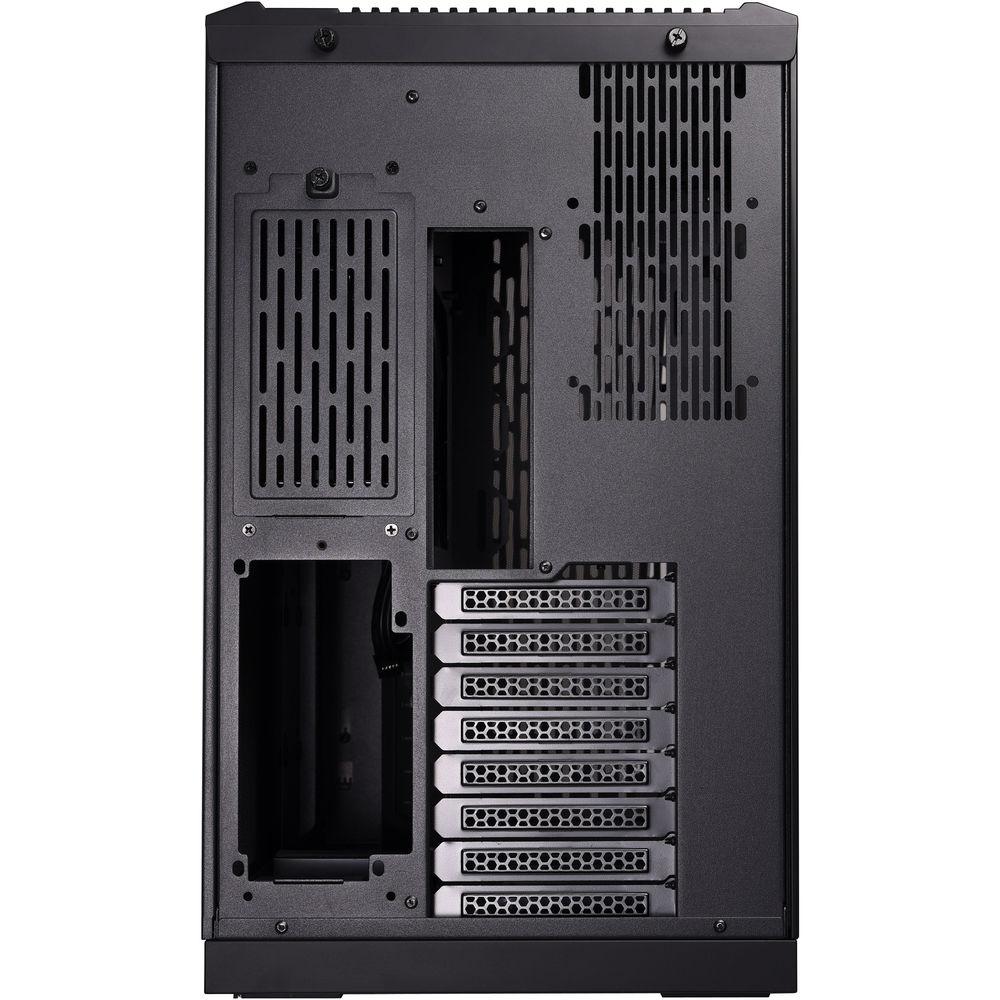

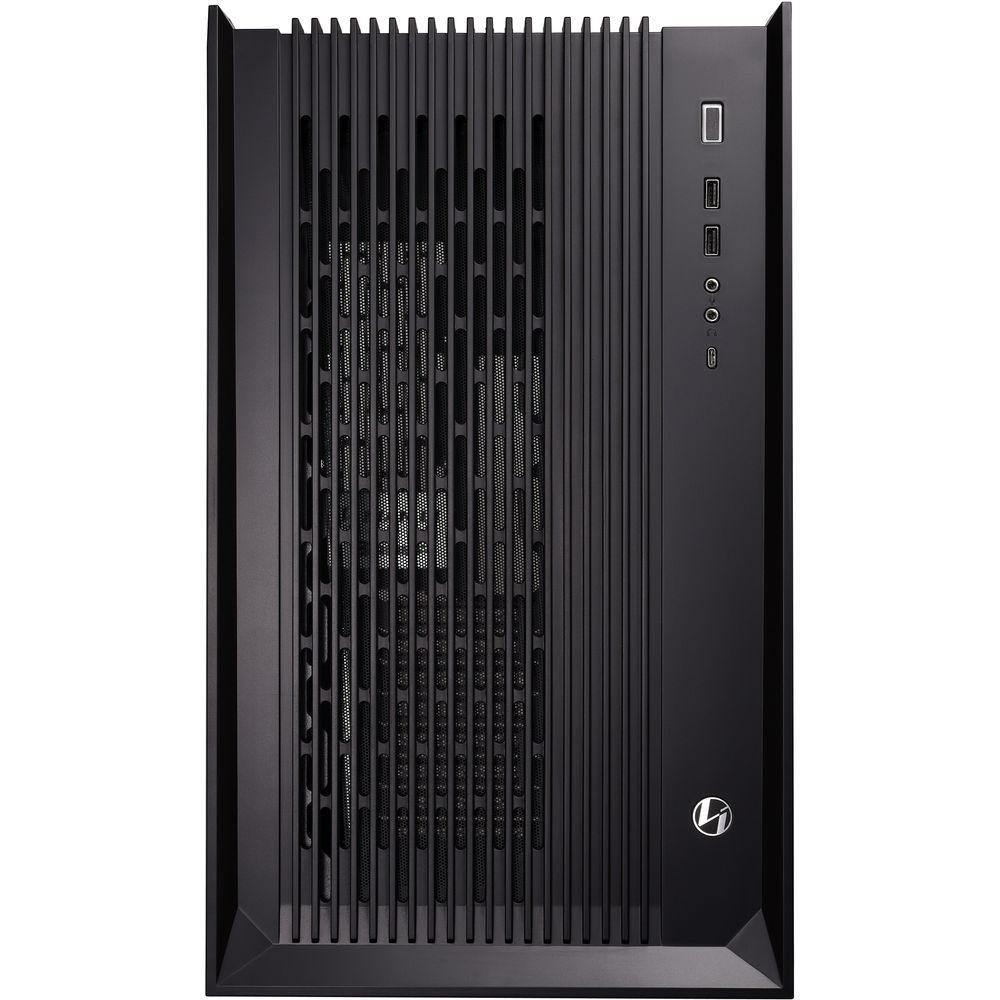

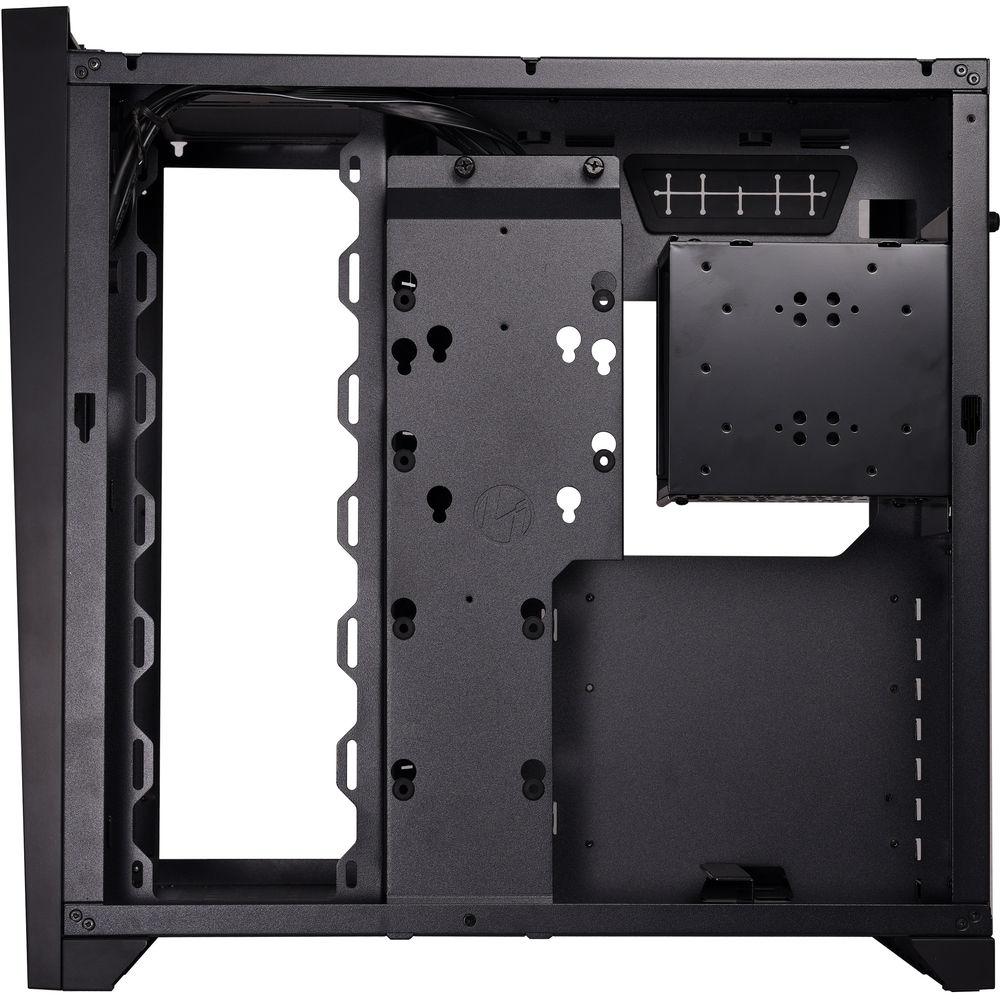

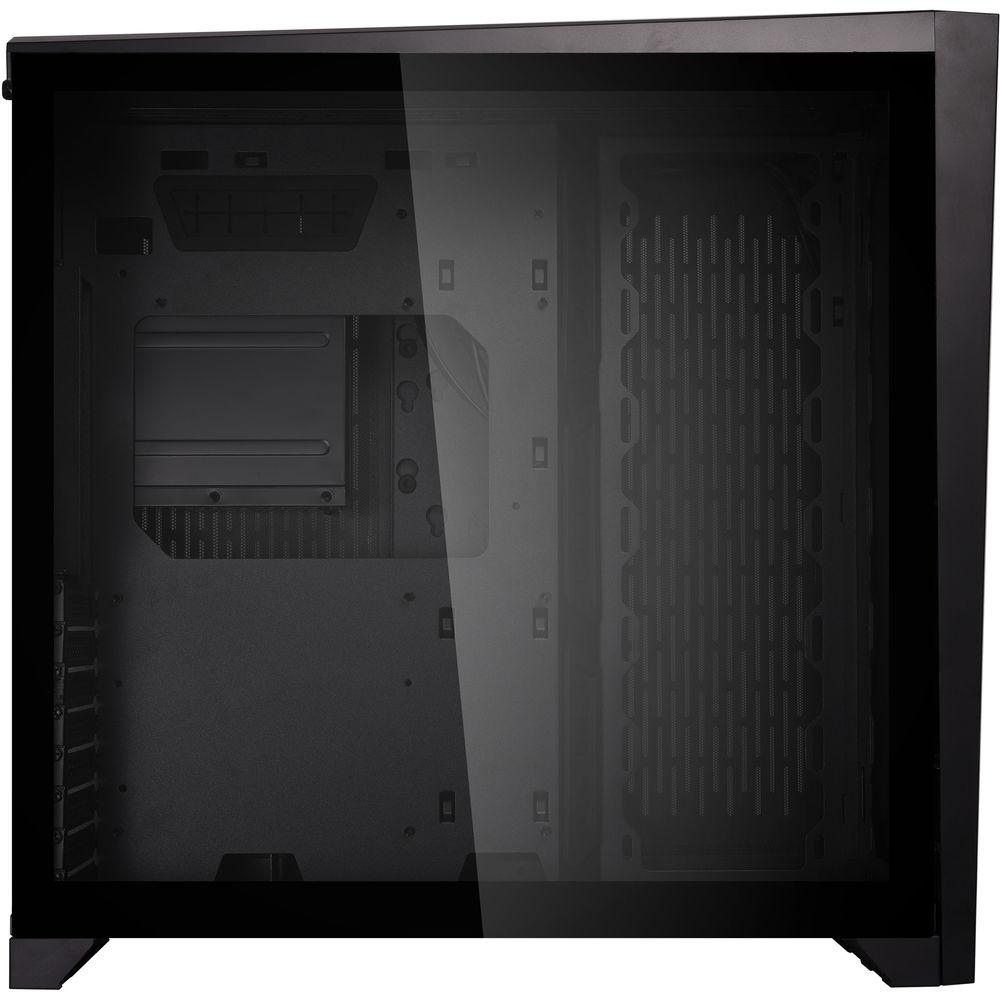

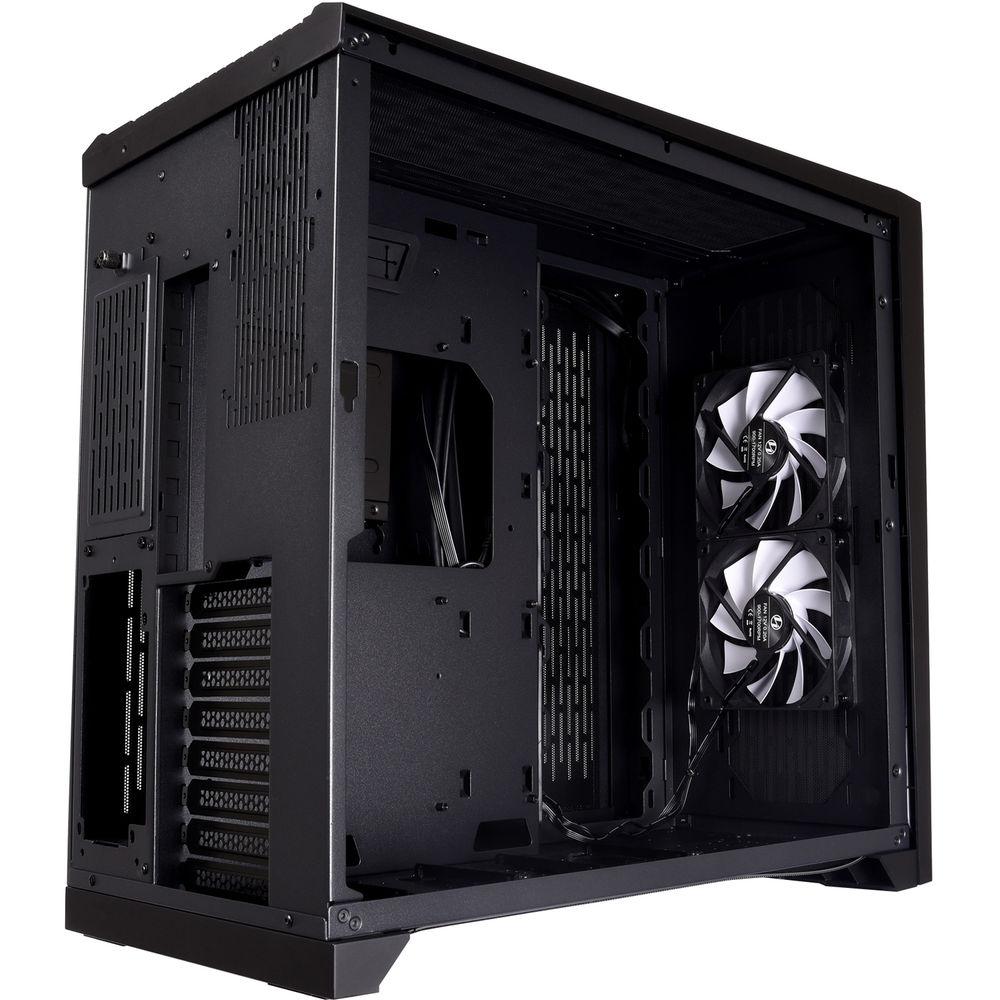

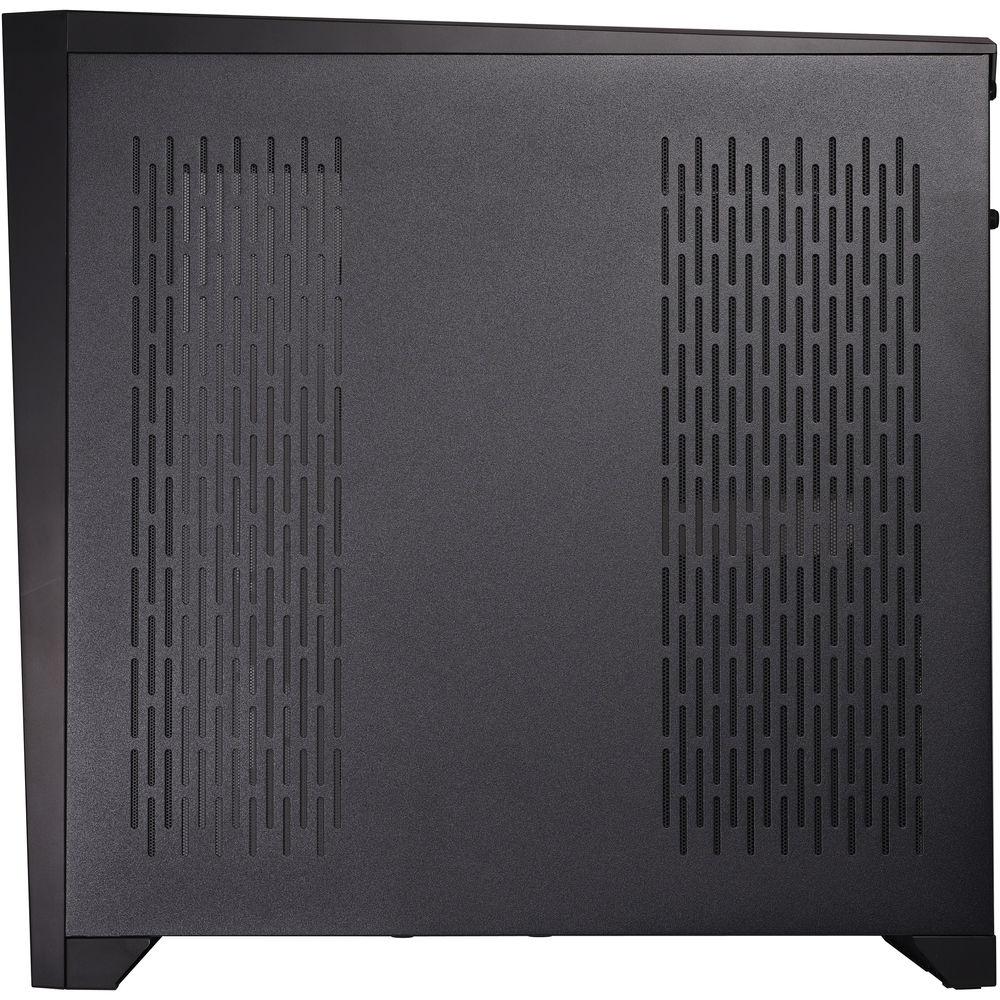

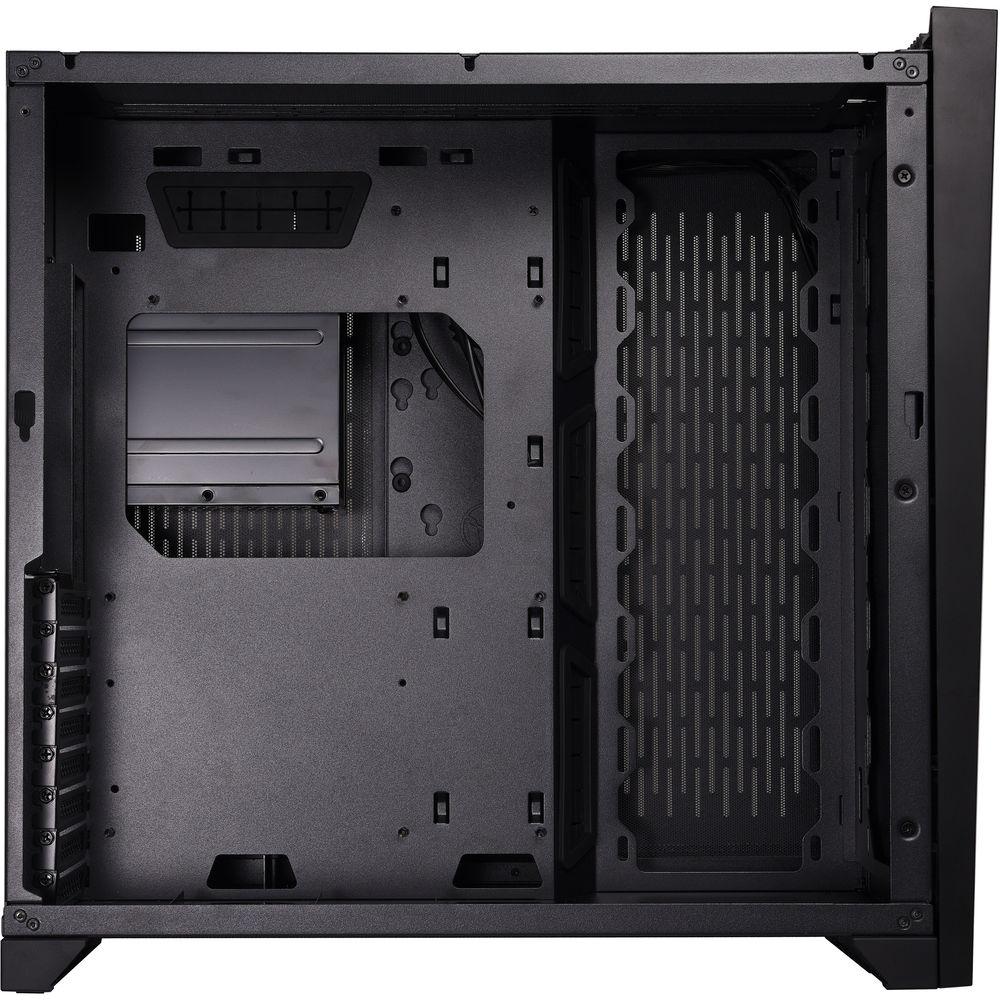

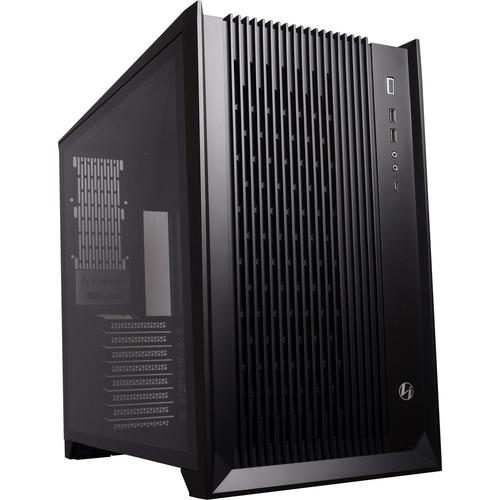

Product description Designed to maximize the cooling potential of your build, the O11 Air RGB from Lian Li is a full-tower computer case that boasts a steel chassis, a windowed side panel, and a dual-chamber design to help boost air flow. You can mount up to a dozen 120mm fans plus a pair of rear 80mm fans, or you can opt for up to four 360mm radiators. Two 120mm fans and three 120mm RGB fans are included. The O11 Air RGB has storage bays for up to six 2.5" drives and up to three 3.5" drives. Also included are eight expansion ports, two USB 3.0/3.1 Gen 1 Type-A ports, a single USB 3.1 Gen 1 Type-C port, and audio input/output jacks. The case supports graphics cards up to 16.5" long and room for up to two PSUs. - Dual PSU Capability
- The O11 Air's drive caddy can be swapped for a second power supply unit or switched to a lower position in the case.
- Patented Glass Mounting Mechanism
- Two bolts affixed to the windowed side panel help to secure the glass while allowing for easy removal.
- Double-Layer Cable Management Design
- The angled motherboard tray and rear cable management bar help to organize and hide your cables.
- Dust Protection
- The front, bottom, top, and side panels of the O11 are equipped with magnetic dust protectors to help prevent dust intrusion.
- Collaborative Cooling Design
- The O11 Air was designed in collaboration with professional overclocker Roman Hartung, a.k.a. "Der8auer," a key developer of gaming PC cooling systems. Der8auer's logo is etched onto the O11's chassis.
UPC: 840353009448 In the Box Lian Li O11 Air RGB Full-Tower Case Screw Kit 2 x 120 mm Fans 3 x 120 mm RGB Fans 5 x Dust Filters Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lian Li O11 Air RGB Full-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLian Li 011 Air Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX | | External Drive Bays | None | | Internal Drive Bays | 6 x 2.5"
3 x 3.5" | | Expansion Slots | 8 x Full Height | | Maximum GPU Length | 16.54" / 420 mm | | CPU Cooler Height | 6.10" / 155 mm | | Maximum PSU Length | 10.04" / 255 mm | | | | Fan Mounting (Front) | 3 x 120 mm
2 x 140 mm
Or | | Fan Mounting (Rear) | 2 x 80 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 3 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Bottom) | 3 x 120 mm
| | Fans Included (Front) | 3 x 120 mm LED | | Fans Included (Rear) | None | | Fans Included (Side) | None | | Fans Included (Top) | 2 x 120 mm | | Fans Included (Bottom) | None | | Maximum Radiator Size (Front) | 1 x 360 mm | | Maximum Radiator Size (Side) | 1 x 360 mm | | Maximum Radiator Size (Top) | 1 x 360 mm | | Maximum Radiator Size (Bottom) | 1 x 360 mm | | Fan Mounting (Internal) | 3 x 120 mm
| | Fans Included (Internal) | None | | Filter Locations | Bottom, Front, Side, Top | | | | Connections | 2 x USB Type-A (USB 3.1)
1 x USB Type-C (USB 3.1) | | Audio Connections | 1 x 3.5 mm Output
1 x 3.5 mm Input | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel, Plastic | | Built-In Lighting | No | | Security | None | | Dimensions (W x H x D) | 18.7 x 18.3 x 10.6" / 476.0 x 465.0 x 270.0 mm | | Weight | 20.9 lb / 9.5 kg | | | | Package Weight | 27.15 lb | | Box Dimensions (LxWxH) | 22.5 x 22.25 x 14.0" |
