User Manual for Lian Li PC-A05FN Mid Tower ATX Case Click to enlarge the picture
Contents of the user manual for the Lian Li PC-A05FN Mid Tower ATX
- Product category: Desktop Computer Cases Lian Li
- Brand: Lian Li
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lian Li Desktop Computer Cases
|
User manual for the Lian Li PC-A05FN Mid Tower ATX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lian Li product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lian Li user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lian Li product will considerably shorten its lifespan!
|

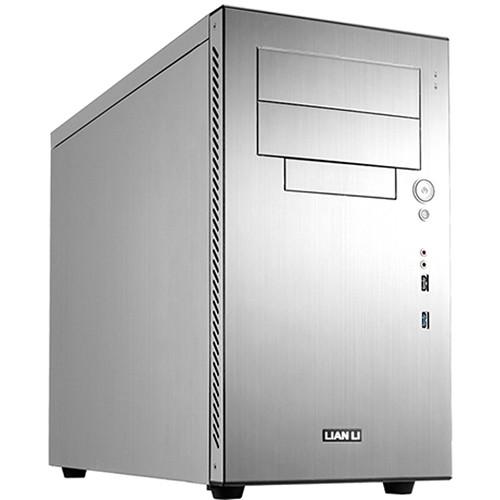

Product description The silver PC-A05FN Mid Tower ATX Case from Lian Li is an enclosure designed with two 5.25" and one 3.5" drive bay, three 3.5" and two 2.5" hard drives, one USB 3.0, and one USB 2.0 port. It comes with ATX, Micro-ATX, and Mini-ITX motherboard support. The enclosure has a tool-less PCI design, two standard 5.25" optical drives support, HD audio ports and a video card length of up to 11.02". It is compatible with a maximum PSU length of 6.29" and a maximum CPU cooler height of 6.49". Additionally, it features liquid cooling holes along with fan speed controller space. It includes anti-vibration clips and grommets. - Cooling System
- The power supply features one 4.7" fan in the rear that takes air into the system, and a 4.7" fan (HDD cage) (front) exhaust the hot air out of the system through the vent holes on the front panel. The top features a 5.5" fan slot mount for user upgrade
- Front Mounted PSU
- The tower is easy to service, and maintains a balance of space and hardware performance
- Supports Three 3.5" HDDs and Two 2.5" HDDs
- The HDD cage uses thumb screws with a rubber suspension and is able to mount three 3.5" HDDs
UPC: 840353004757 Table of Contents
|
Upload User Manual
Have you got an user manual for the Lian Li PC-A05FN Mid Tower ATX Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLian Li PC-A05FNA Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | 2 x 5.25"
1 x 3.5" | | Internal Drive Bays | 3 x 3.5"
2 x 2.5" | | Expansion Slots | 8 x Full Height | | Maximum GPU Length | 11" / 27.9 cm | | CPU Cooler Height | 6.5" / 16.5 cm | | Maximum PSU Length | 6.3" / 16 cm | | | | Fan Mounting (Top) | 1 x 140 mm
| | Fans Included (Front) | 1 x 120 mm | | Fans Included (Rear) | 1 x 120 mm | | Fan Controller Included | No | | | | Connections | 1 x USB Type-A (USB 3.0)
1 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Aluminum | | Cable Management Space | None | | Dimensions (W x H x D) | 8.3 x 15.2 x 19.7" / 21.0 x 38.5 x 50.0 cm | | Weight | 9.7 lb / 4.4 kg | | | | Package Weight | 12.4 lb | | Box Dimensions (LxWxH) | 22.1 x 17.8 x 10.9" |
