User Manual for Lian Li PC-O5SX Mini-Tower Case Click to enlarge the picture
Contents of the user manual for the Lian Li PC-O5SX Mini-Tower Case
- Product category: Desktop Computer Cases Lian Li
- Brand: Lian Li
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lian Li Desktop Computer Cases
 |
User manual for the Lian Li PC-O5SX Mini-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lian Li product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lian Li user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lian Li product will considerably shorten its lifespan!
|

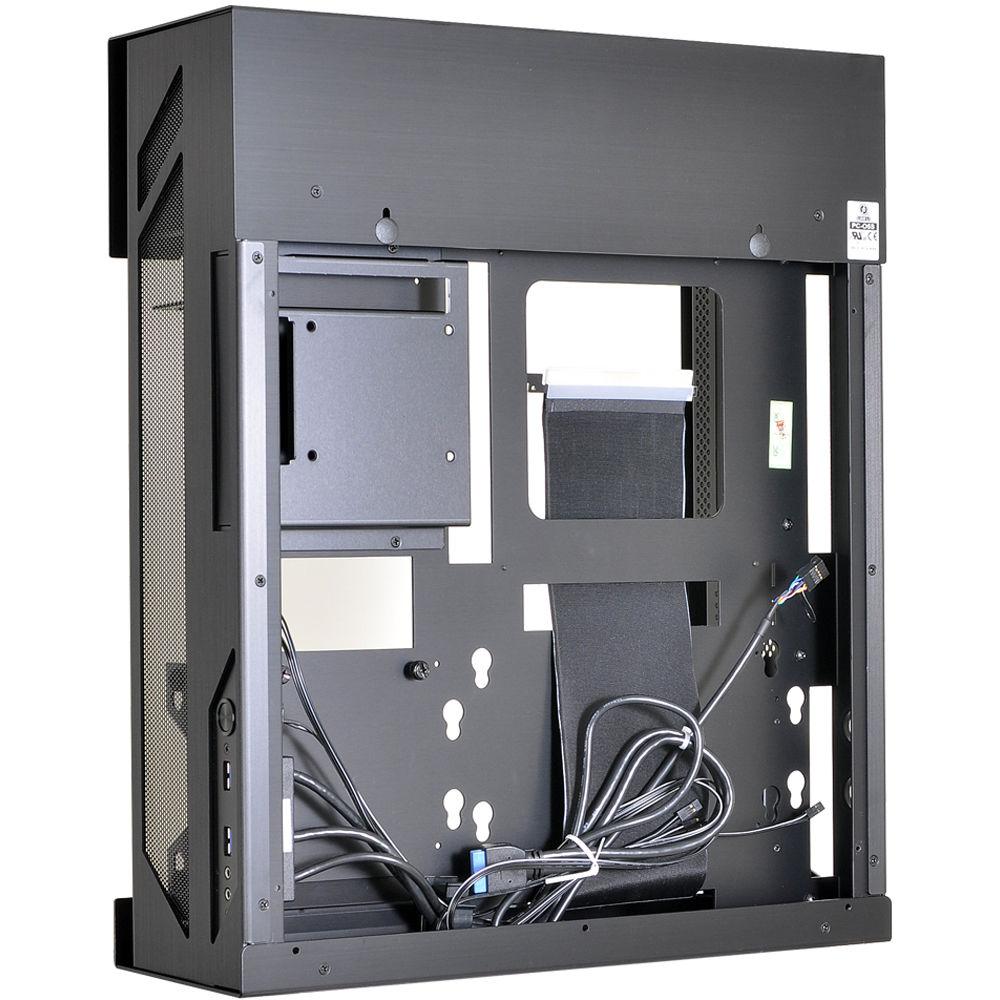

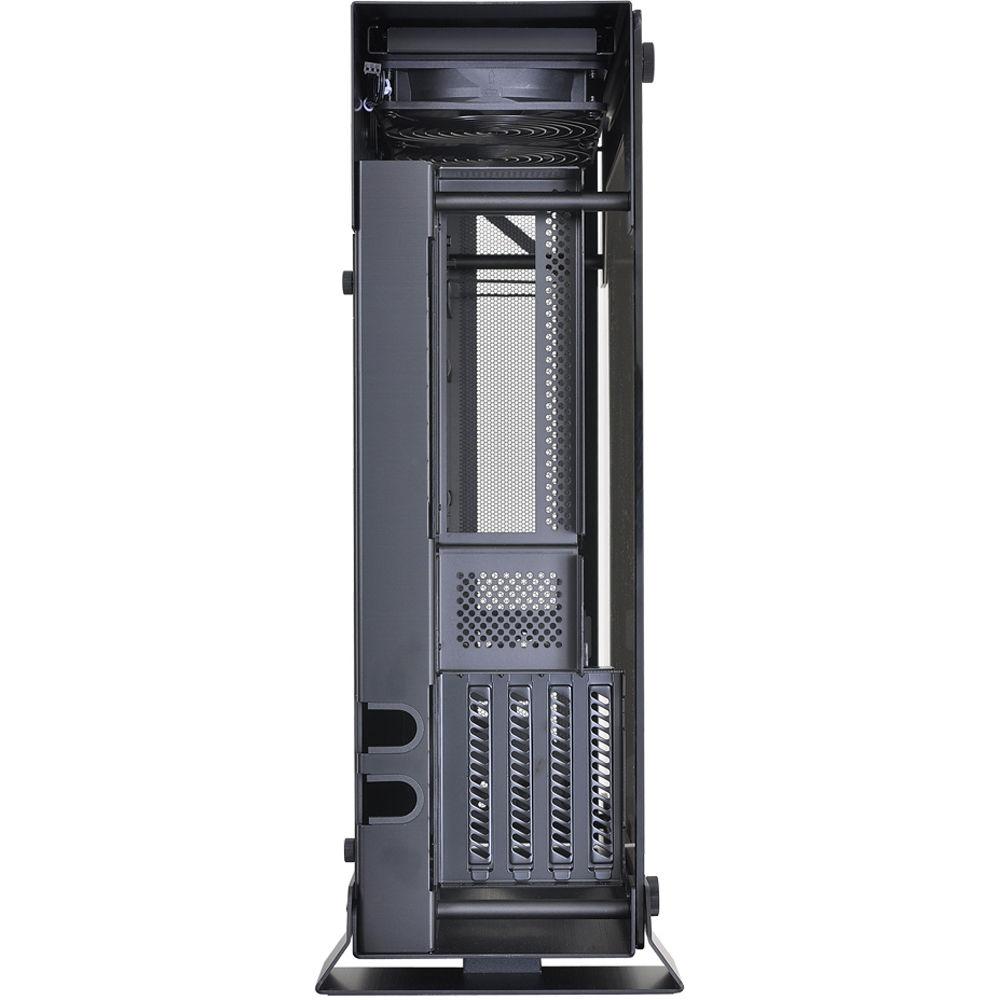

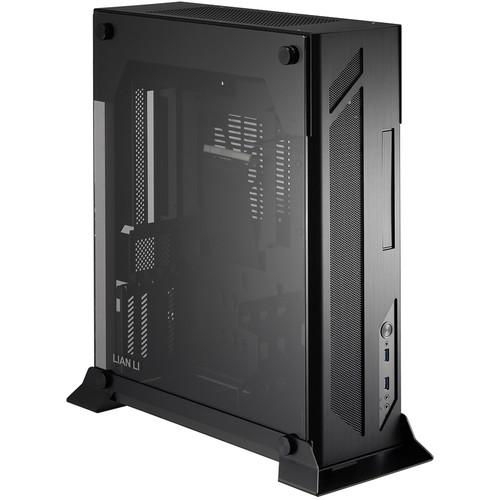

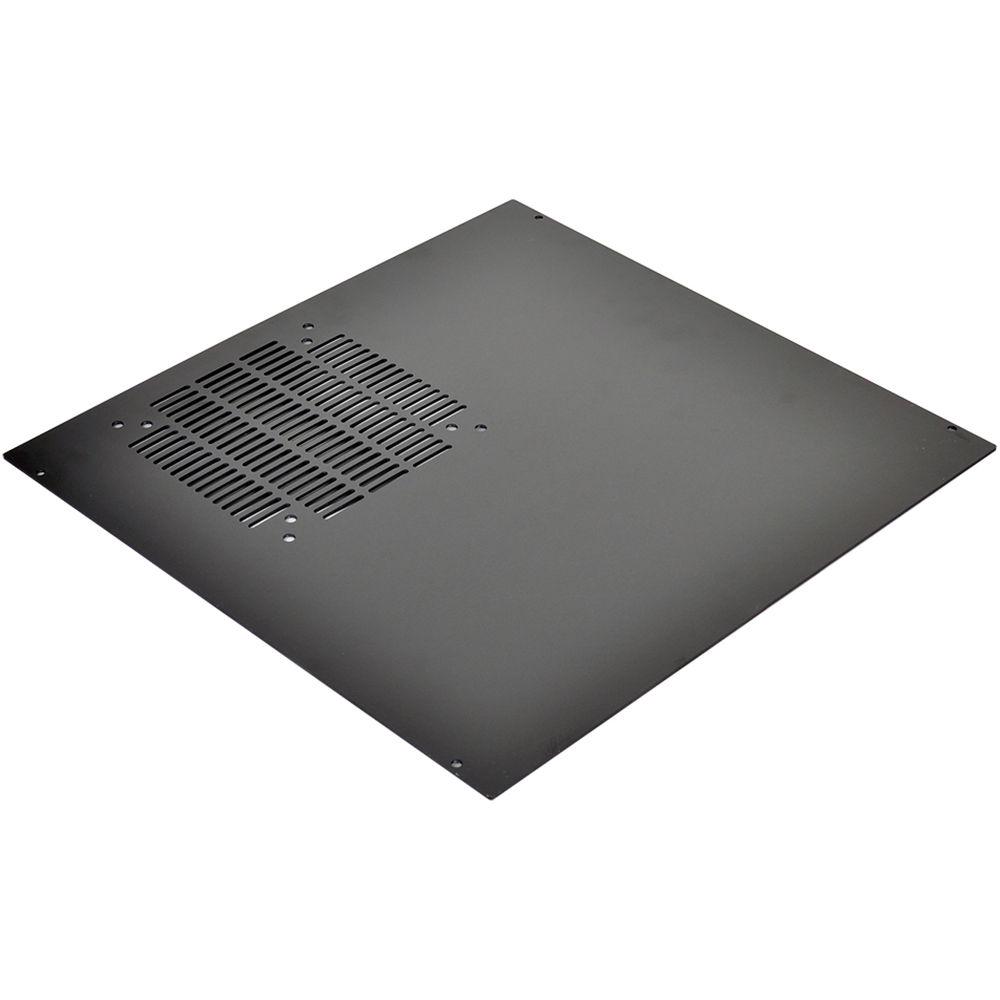

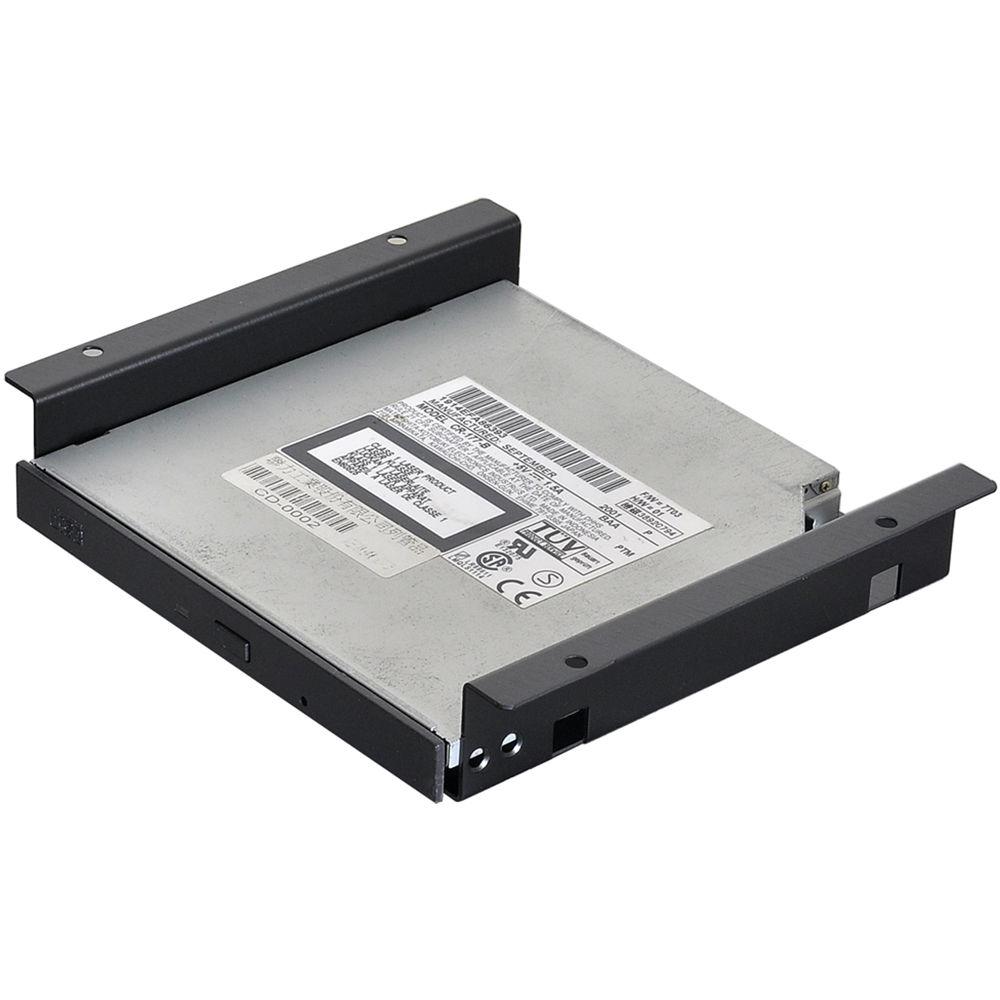

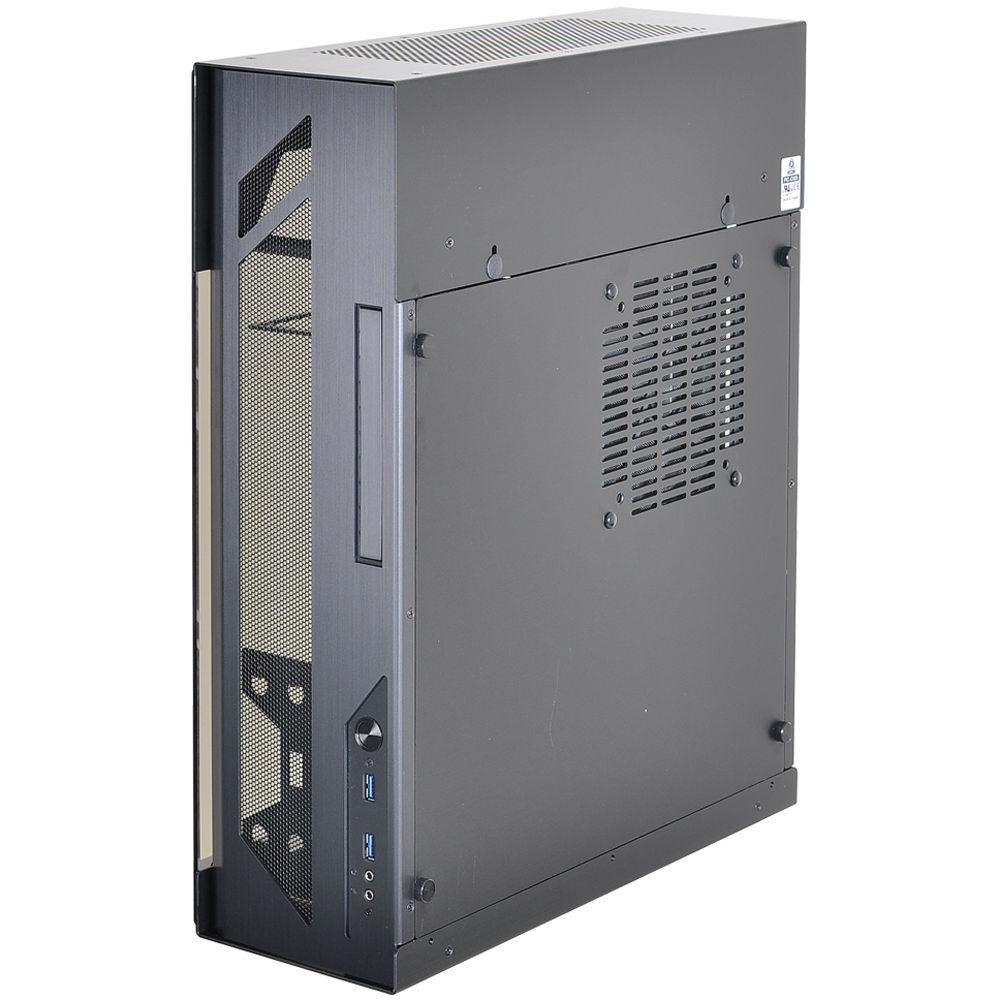

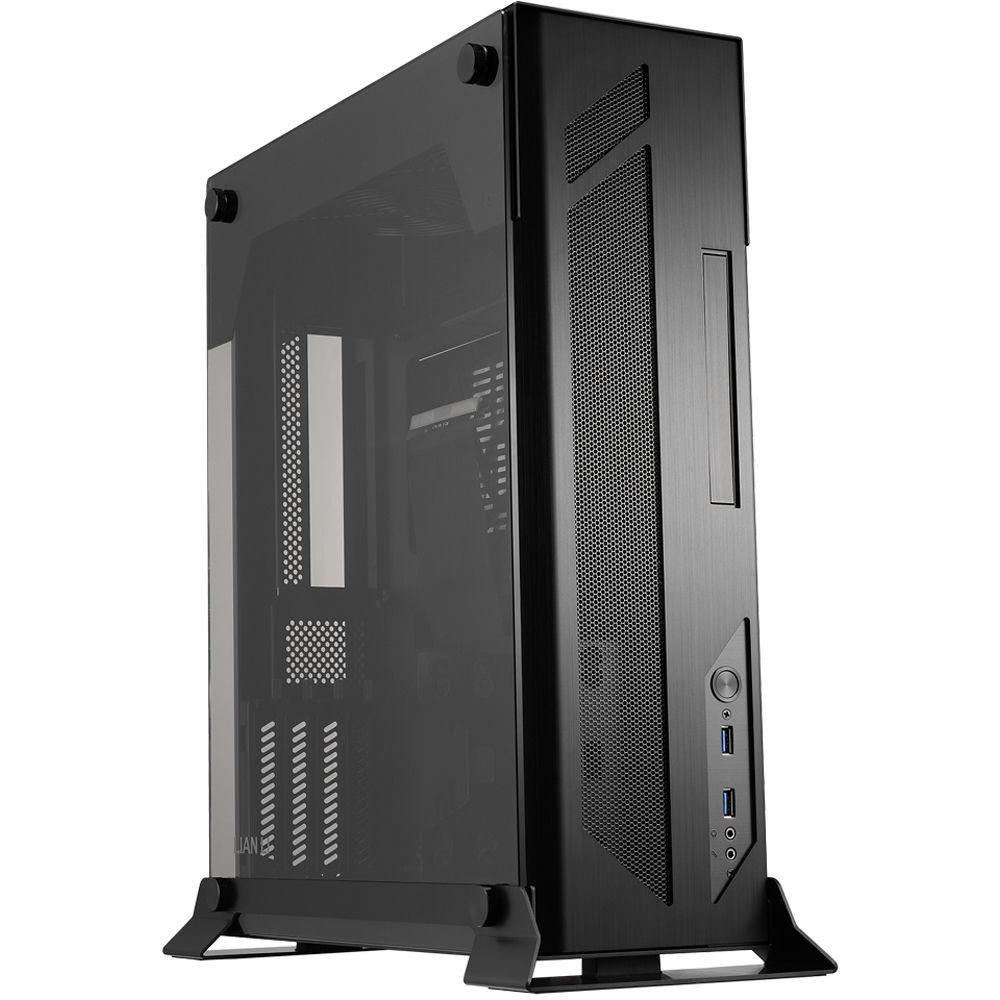

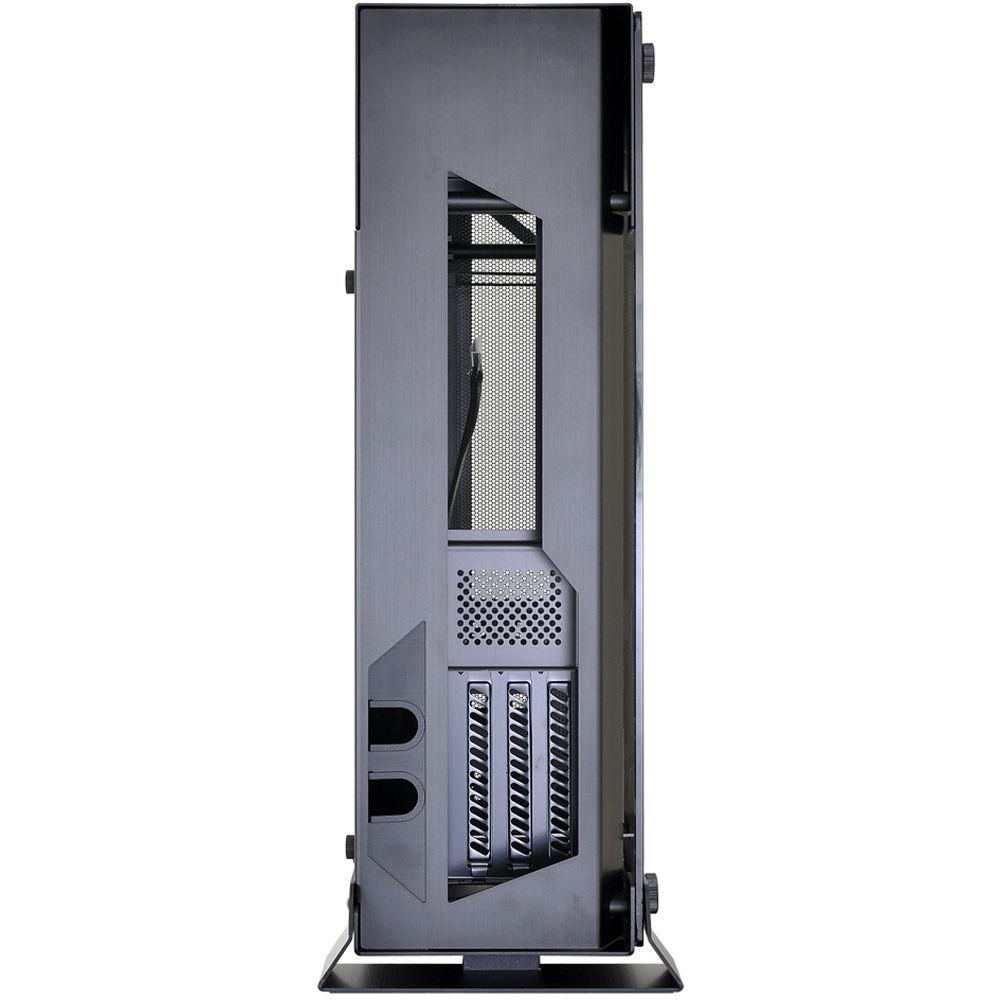

Product description The black Lian Li PC-O5SX Mini-Tower Case is designed for mini-ITX systems. It has one 5.25" drive bay, which is designed to fit a slim optical drive. It also has three 3.5" hard drive bays and one 2.5" hard drive bay in the hard drive rack. You can also mount one 2.5" HDD and one 3.5" HDD or two 2.5" HDDs to the motherboard tray. Behind the motherboard tray, you can have one 3.5" HDD and one 2.5" HDD or two 2.5" HDDs. The PC-05SX can be placed vertically or mounted on the wall. It has two 120mm fans at the top to pull the hot air out of the case. An optional 140mm fan can be mounted at the rear for additional cooling. A 35mm cable management space is provided to keep things neat. Features UPC: 840353007048 In the Box Lian Li PC-O5SX Mini-Tower Case (Black) Base Stand Buzzer USB 3.0 for USB 2.0 Converter 16 x Thumb Screws for 3.5" HDDs 10 x Umbrella Head Screws for 3.5" HDDs and HDD Cover Plate 4 x Long Thumb Screws for the Motherboard 5 x Hex Head Screws for the PSU 8 x Flat Head Screws for 2.5" HDDs HD Cover Plate 2 x Short Thumb Screws for the Motherboard 4 x Rubber Pads 8 x Shock Absorption O Rings 2 x Thumb Screws for HDD Cover Plate 3 x Umbrella Head Screws for the Base Stand 3 x Wire Straps 8 x Flat Head Screws for 2.5" HDDs 4 x Screws for Slim ODD 8 x Umbrella Head Screws for 2.5" HDDs 3 x Wire Mounts Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lian Li PC-O5SX Mini-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLian Li PC-O5SX Specs | | | Motherboard Support | Mini-ITX | | Internal Drive Bays | 3 x 3.5"
1 x 2.5" | | Additional Drive Mounting | 2 x 3.5" (Motherboard Tray)
2 x 2.5" (Motherboard Tray) | | Maximum GPU Length | 12.2" / 31 cm | | CPU Cooler Height | 3.3" / 8.5 cm | | Supported PSU Size | SFX | | Maximum PSU Length | 5.5" / 14 cm | | | | Fan Mounting (Rear) | 1 x 140 mm
| | Fans Included (Top) | 2 x 120 mm | | Maximum Radiator Size (Top) | 300 mm | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Aluminum | | Cable Management Space | None | | Dimensions (W x H x D) | 15.1 x 18.3 x 5.8" / 38.4 x 46.5 x 14.8 cm | | Weight | 14.1 lb / 6.4 kg | | | | Package Weight | 20.2 lb | | Box Dimensions (LxWxH) | 24.331 x 21.024 x 10.394" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
