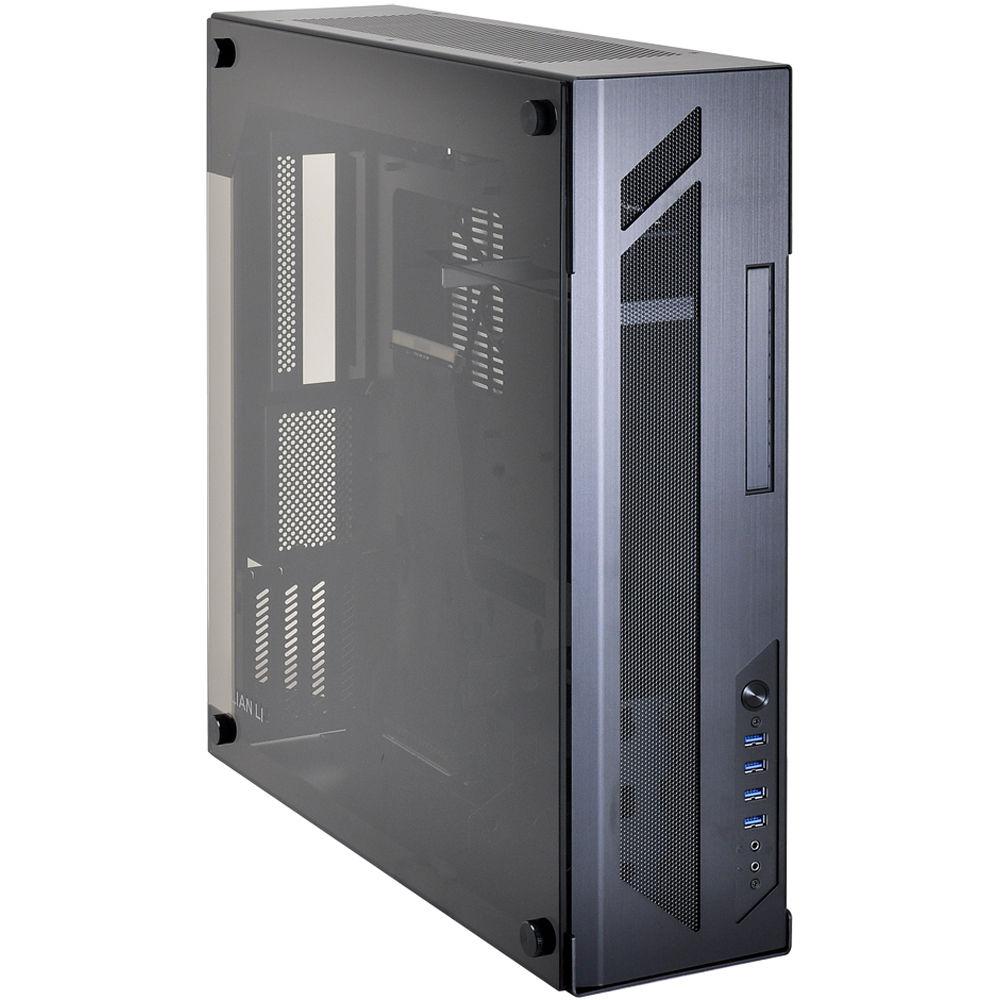

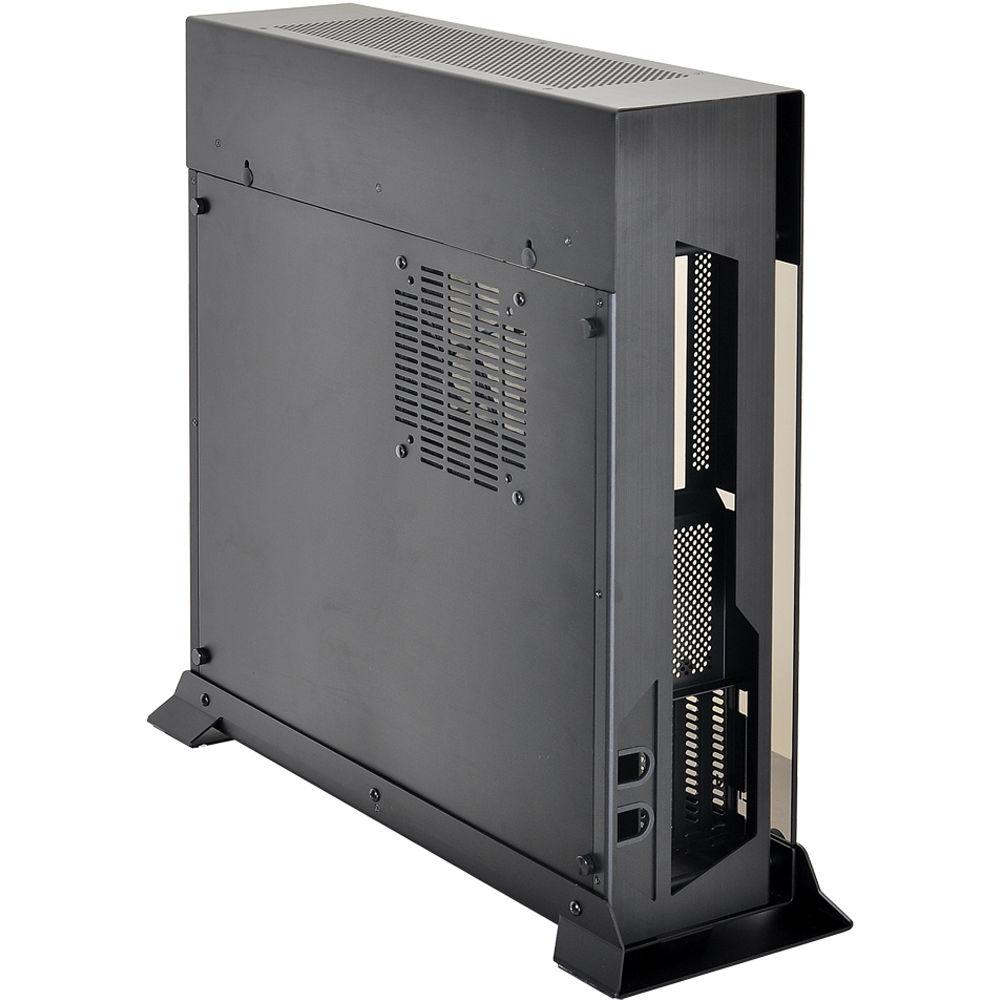

Product description The Lian Li PC-O6SX Mid Desktop Case comes with a tempered glass top and can be wall mounted, which helps save desk space. The included base stand holds the case vertically or you can purchase optional feet to help protect the case while lying horizontally. This case supports a micro ATX motherboard along with graphics cards up to 11.4" long. It offers a HDD rack that lets you install a single 2.5" drive as well as three 3.5" drives. Moreover, its motherboard tray can hold two drives on the top and up to three 2.5" or two 3.5" drives on the bottom. However, two drives mounted on the top prevent you from installing PCI cards.

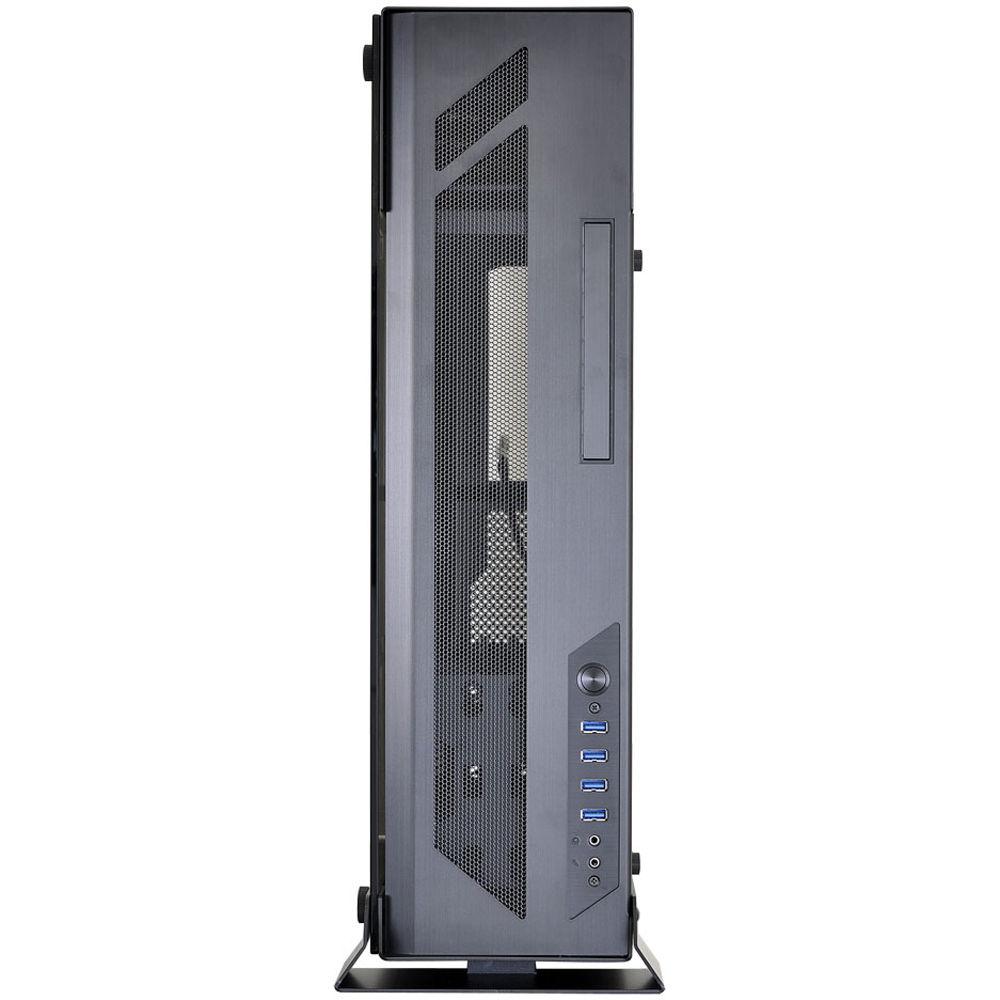

This case comes with three 120mm cooling fans and supports an optional radiator. In addition, an optional 120mm or 140mm fan can be installed. This case has four USB 3.0 ports and two 3.5mm audio jacks on the front of the case so you can easily connect your peripherals. Furthermore, the front of the case supports an optional slim optical disc drive or you can use this bay for another 2.5" or 3.5" drive. To help keep unwanted dust from entering inside the case, it includes a removable air filter. -
- The PC-O6SX can be attached to the wall

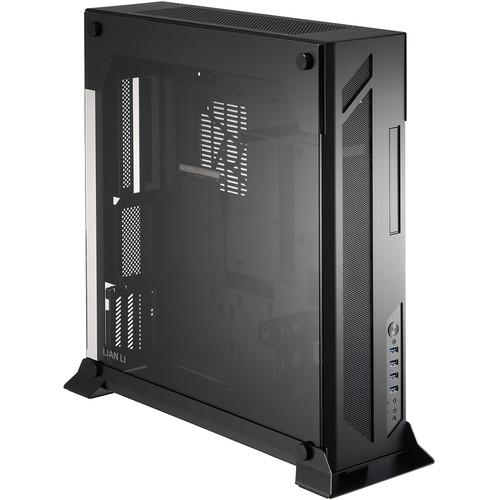

- The included base stand holds the case vertically
- Optional SD-02 feet help protect the case during horizontal placement
- Three 120mm cooling fans are included in the front
- Supports an optional 120mm or 140mm fan
- The HDD rack can hold up to three 3.5" drives and one 2.5" drive
- Space on top of the motherboard supports two 2.5" or 3.5" drives or PCI cards

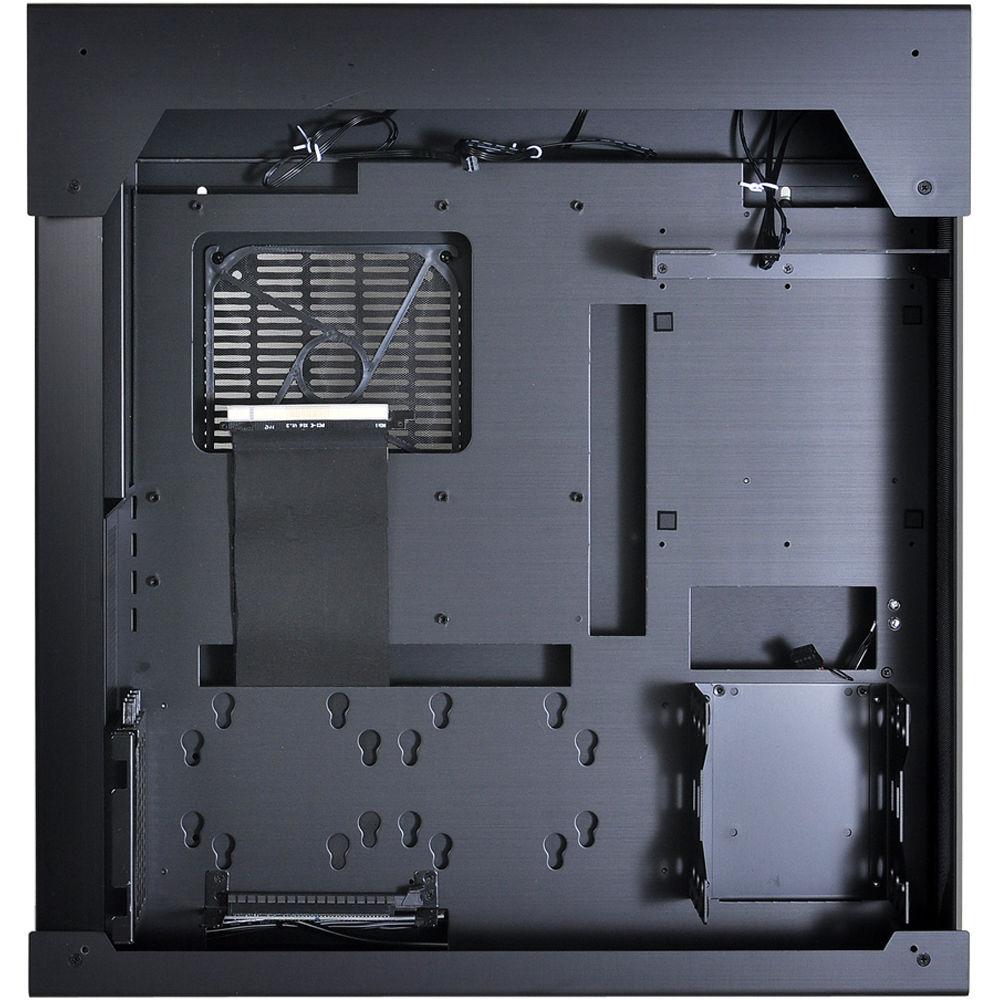

- One 3.5" and two 2.5" drives, three 2.5" drives, or two 3.5" drives can be installed behind the motherboard tray
- Supports micro ATX motherboards
- Cable management space is 1.4" (35mm) high
- Supports an optional radiator in the size of 15.7 x 2.4 x 5.2" (400.0 x 60.0 x 132.0mm)
- The top-removable air filter prevents dust from entering inside
- The ODD rack can support a separately sold slim optical disc drive, a 2.5" drive, or a 3.5" drive
- The case can hold up to two graphics cards with an optional PW-PCI-E adapter
UPC: 840353007093 In the Box Lian Li PC-O6SX Mid Desktop Case Screw Kit 8 x Shock Absorption O-Rings HD Cover Plate 3 x Wire Mounts Base Stand Converter 4 x Rubber Pads for Power Supply 3 x Wire Straps Buzzer 2 x 3-Pin to 4-Pin Power Cord Converters for Fan Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lian Li PC-O6SX Mid Desktop Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLian Li PC-O6SX Specs | | | Motherboard Support | Micro-ATX | | External Drive Bays | 1 x Slim Optical Drive | | Internal Drive Bays | 3 x 3.5"
1 x 2.5" | | Additional Drive Mounting | 2 x 2.5" (Motherboard Tray)
3 x 2.5" (Motherboard Tray) | | Maximum GPU Length | 11.4" / 29 cm | | CPU Cooler Height | 3.3" / 8.5 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.1" / 18 cm | | | | Fan Mounting (Rear) | 1 x 120 mm
Or
1 x 140 mm
| | Fans Included (Top) | 3 x 120 mm | | Maximum Radiator Size (Side) | 400 mm | | Fan Controller Included | No | | | | Connections | 4 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Aluminum, Tempered Glass | | Cable Management Space | None | | Dimensions (W x H x D) | 19.1 x 20.3 x 5.8" / 484.0 x 515.0 x 148.0 mm | | Weight | 19.2 lb / 8.7 kg | | | | Package Weight | 28.3 lb | | Box Dimensions (LxWxH) | 25.5 x 24.0 x 11.0" |
