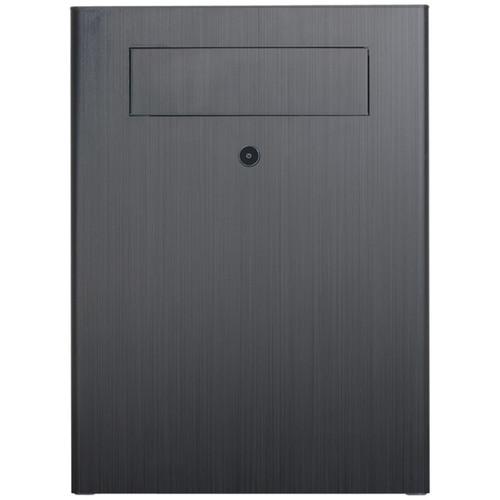

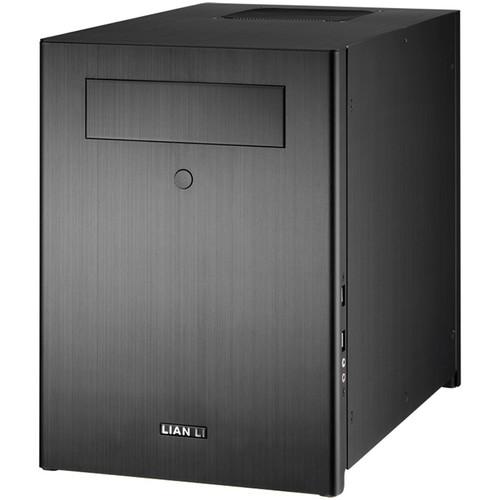

Product description The black Lian Li PC-Q28B Mini Tower Desktop Case features a 9" x 12" x 13.6" chassis and maximizes the space to house all your important components. It can house a mini-ITX or mini-DTX motherboard and a graphics card up to 11.4" long so you can build a gaming PC for your living room. With its efficient design, you can install one 2.5" and four 3.5" drives to its cage. Lian Li also provides a drive rack to hold two more 3.5" or 2.5" drives. In addition, you can install an optical drive to the 5.25" drive bay.
Lian Li includes one 140mm fan in the front of the case to draw in cool air and pushes the hot air out of the case with a 120mm fan in the back. This case supports an ATX power supply and a CPU cooler up to 3.9" tall. Furthermore, there are two USB 3.0 ports as well as a headphone jack and a microphone jack on the lower right side of the case. -

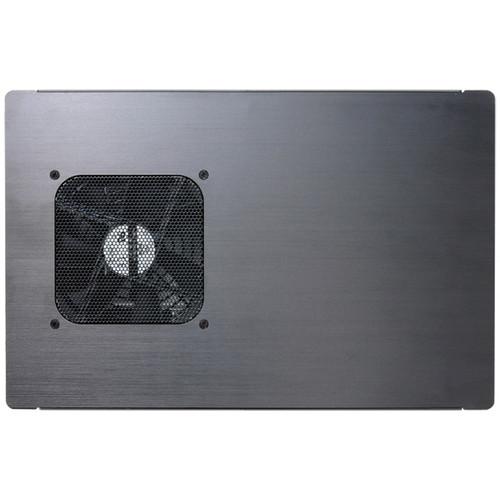

- The 140mm fan in the front pulls cool air into the system and the 120mm fan on the top brings hot air out

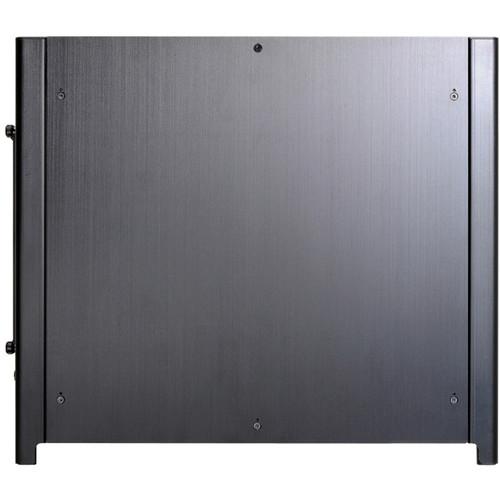

- Remove a single screw and push the side panel up to release

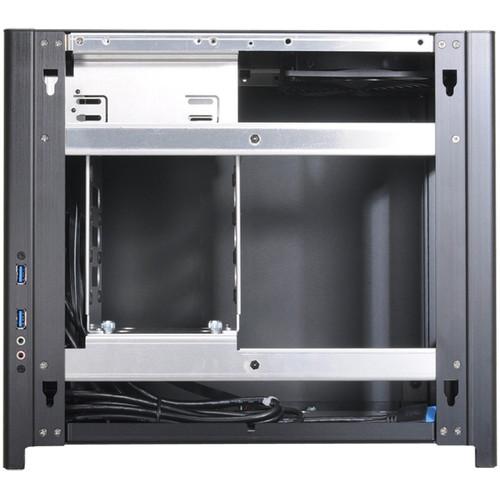

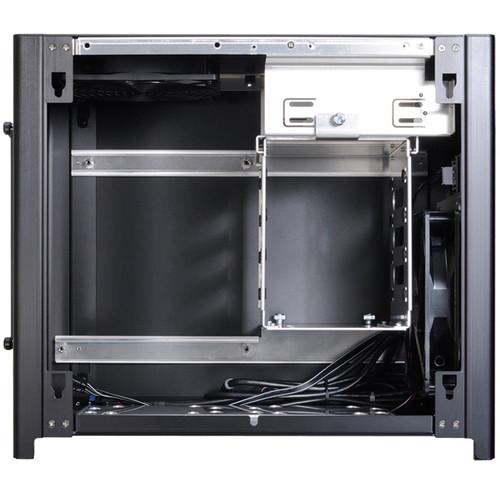

- The hard drive cage can be removed without the need for tools
- The bottom drive rack can be removed to provide additional space for a graphics card

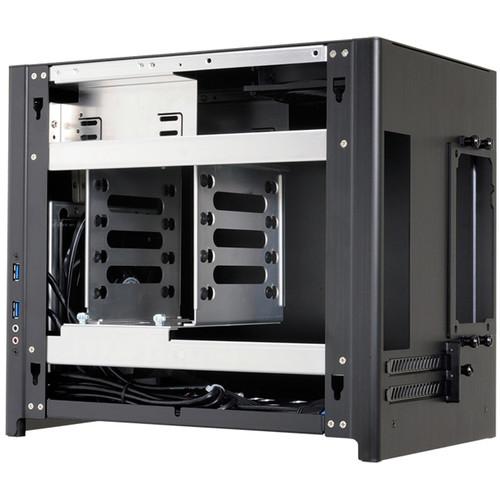

- The cage and rack support up to seven storage drives

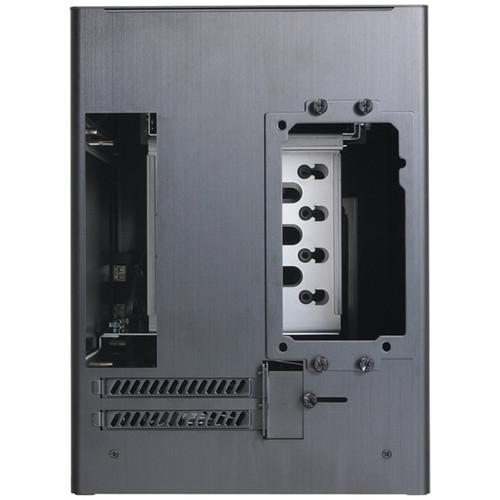

- Supports ATX power supplies

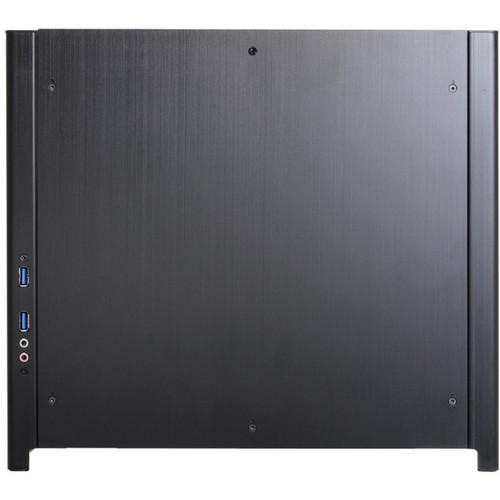

- This case also features a dual LED power switch, two USB 3.0 ports, a headphone jack, and a microphone jack
In the Box Lian Li PC-Q28B Mini Tower Desktop Case (Black) Buzzer USB 3.0 to USB 2.0 Converter 2 x Cable Ties Clamp Anti-Vibration Rubber Ring Kit Screw Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lian Li PC-Q28B Mini Tower Desktop Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLian Li PC-Q28B Specs | | | Motherboard Support | Mini-ITX, Mini-DTX | | External Drive Bays | 1 x 5.25" | | Internal Drive Bays | 4 x 3.5"
1 x 2.5" | | Additional Drive Mounting | 2 x 2.5" (Bottom) | | Expansion Slots | 2 x Full Height | | Maximum GPU Length | 11.4" / 29 cm | | CPU Cooler Height | 3.9" / 10 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 6.6" / 17 cm | | | | Fans Included (Front) | 1 x 140 mm | | Fans Included (Top) | 1 x 120 mm | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Aluminum | | Cable Management Space | None | | Dimensions (W x H x D) | 8.9 x 12.0 x 13.6" / 227.0 x 305.0 x 345.0 mm | | Weight | 7.1 lb / 3.2 kg | | | | Package Weight | 8.95 lb | | Box Dimensions (LxWxH) | 15.827 x 14.252 x 10.866" |
