User Manual for Libec ALX KIT Tripod and Fluid Head Kit Click to enlarge the picture
Contents of the user manual for the Libec ALX KIT Tripod and Fluid
- Product category: Tripod Systems Libec
- Brand: Libec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Libec Tripod Systems
 |
User manual for the Libec ALX KIT Tripod and Fluid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Libec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Libec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Libec product will considerably shorten its lifespan!
|

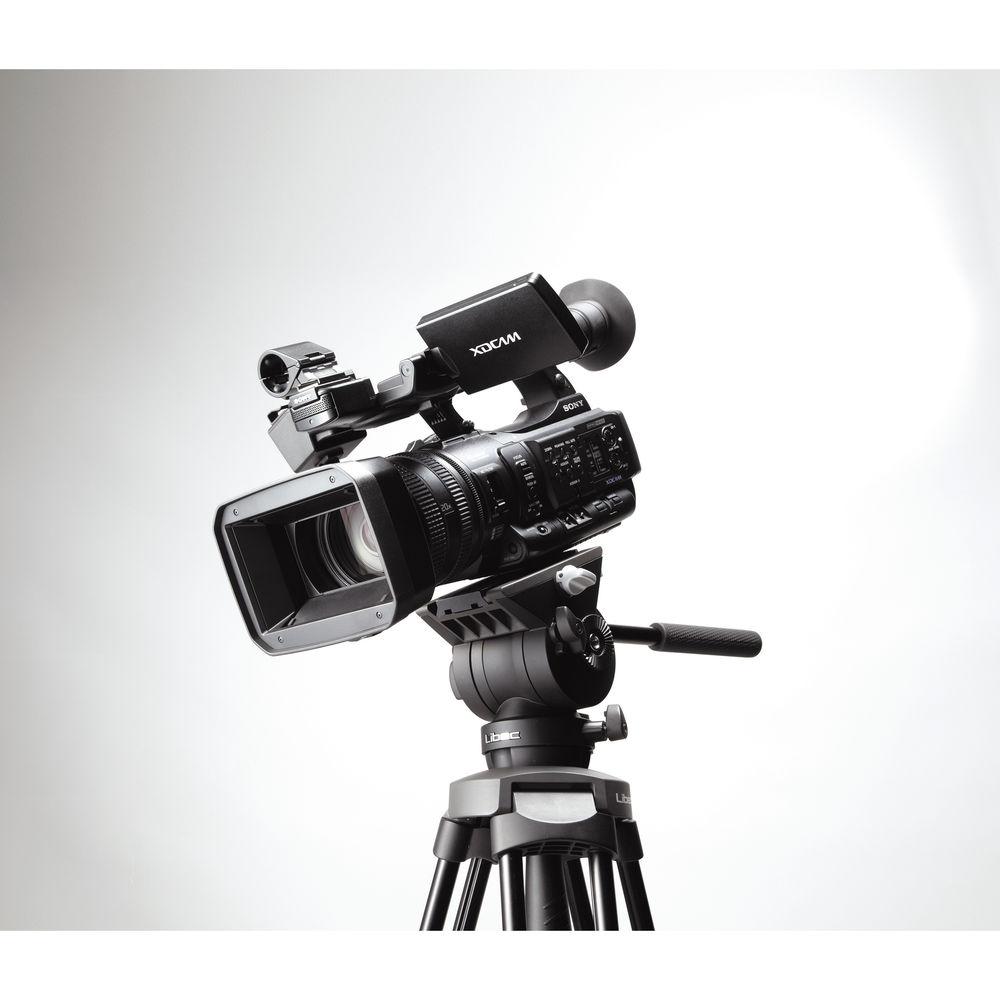

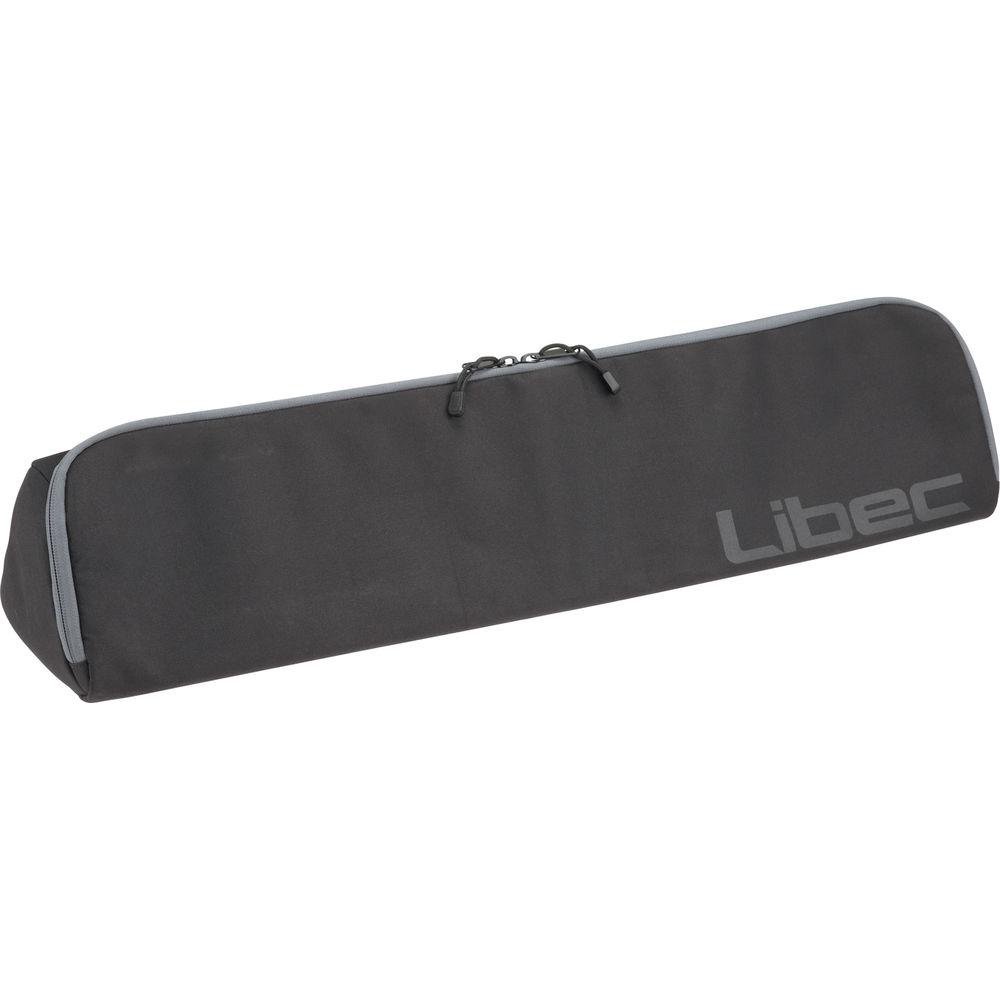

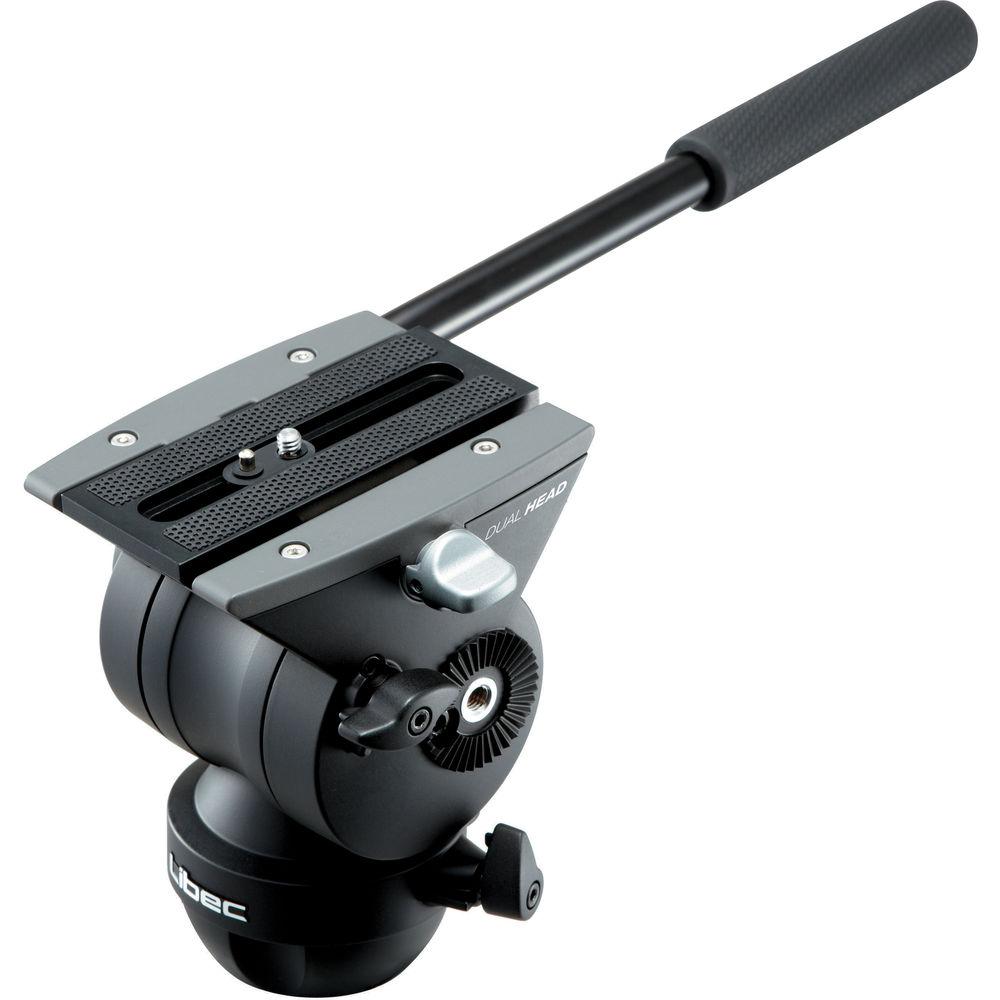

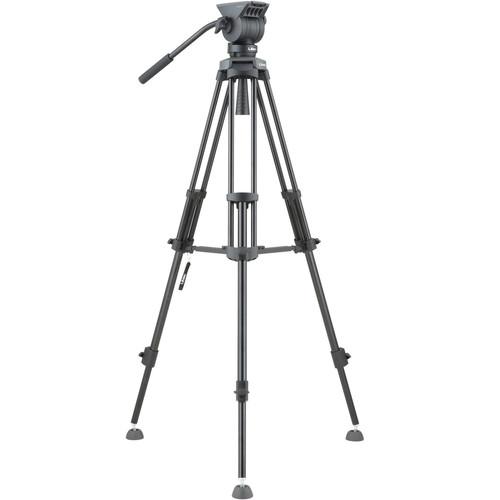

Product description The ALX KIT from Libec is a tripod system comprising the 75mm bowl Libec ALX T tripod and the ALX H fluid head that supports loads up to 9 lb. The 3-section aluminum tripod has an operating height of 29.3 to 64.8" and features a telescopic mid-level spreader for added leg rigidity. The ALX H head provides smooth pan and tilt movements, using its fixed drag and counterbalance, and includes a sliding quick release plate for camera attachment. The plate comes with a 1/4"-20 screw, and a 3/8"-16 screw is also provided that stores in a thread under the plate. Because the 75mm ball base of the head has a flat bottom, the head can also be used with flat base tripods or even mounted to a camera slider platform. The entire ALX KIT tripod system stores inside of an included padded carrying case. - ALX H Dual-Base Fluid Head Compatible with both flat and ball-base hardware, the Libec ALX H Fluid Head is a versatile tripod head for video production. The ALX H base features a standard 75mm ball-base with a flattened area containing a standard 3/8"-16 threaded hole for mounting to standard flat-mount hardware found on compact sliders and other grip equipment. The pan and tilt fluid-drag mechanisms are fixed-strength, as is the counterbalance. The head's construction allows for a wide +90° (down)/-80° (up) tilt range. Each axis can be locked down for extra stability during stationary shots. Both sides of the tripod head feature rosettes for attaching the included pan handle on the desired side. The camera connects to the included sliding snap-in plate, which by default holds a 1/4"-20 screw and a guiding pin. A 3/8"-16 screw is included and can be stowed underneath the camera plate when not in use.
- Dual-base head with a 75mm ball base and flat base

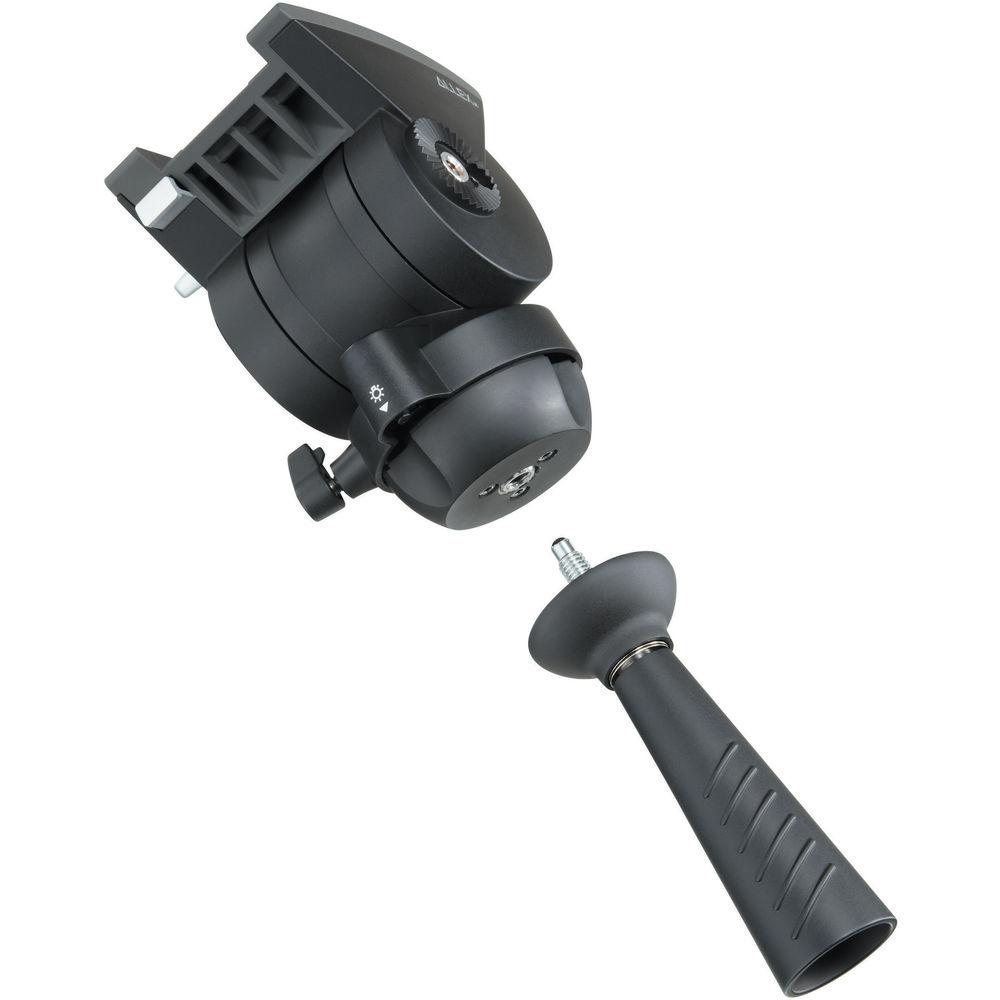

- Includes quick release camera plate and dual-side rosette mount pan handle
- Rosette adapters on both sides
- Fixed counterbalance and drag

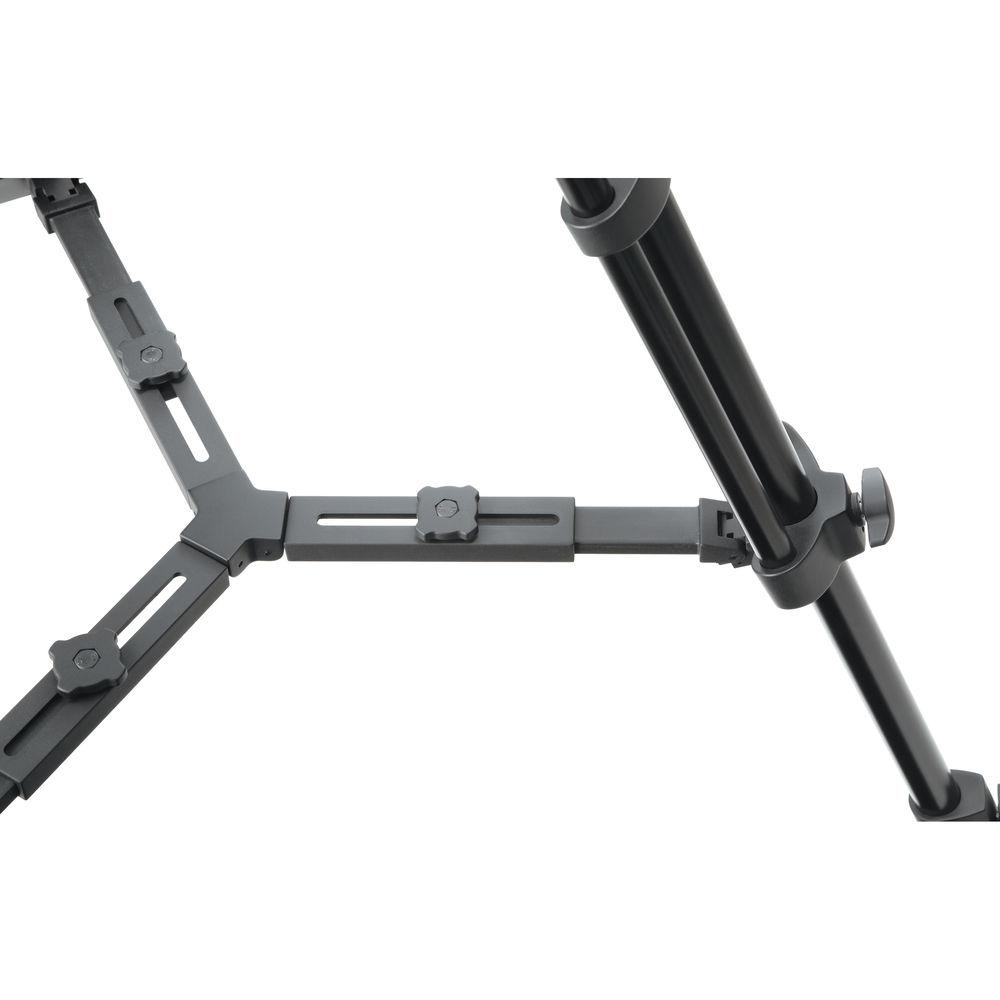

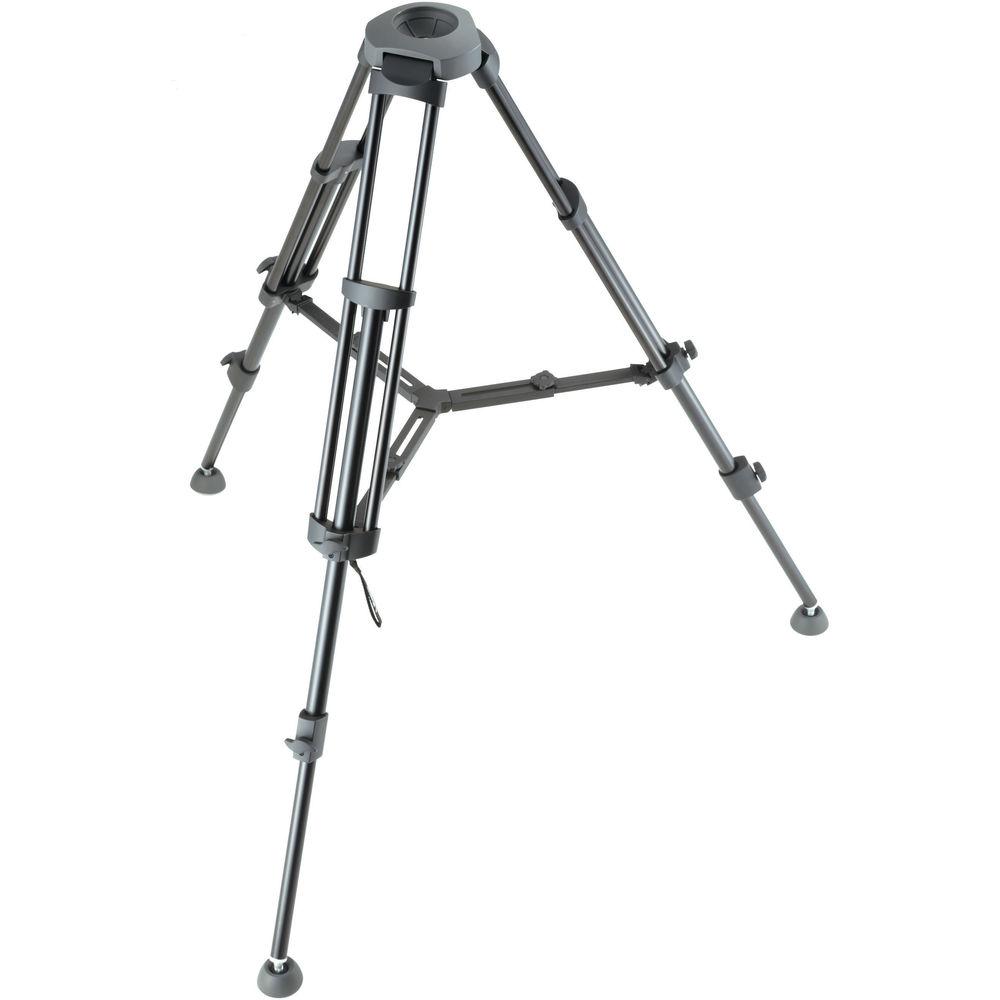

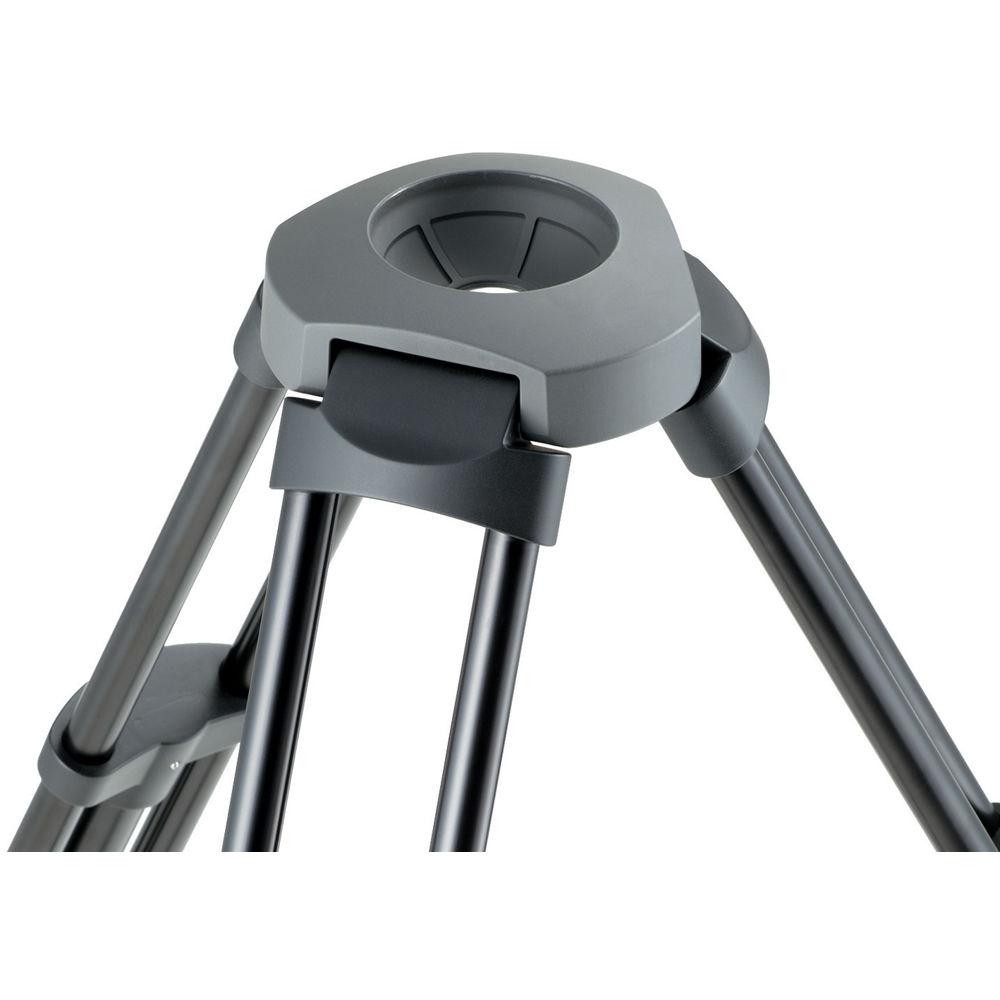

- ALX T Aluminum Tripod with Mid-Level Spreader (75mm Bowl) Get the stability you need for your heavy cinema camera kit by using this ALX T Aluminum Tripod with Mid-Level Spreader from Libec. The ALX T can support up to 55 lb and offers a 75mm bowl fitting for holding a wide variety of heads. The standard two-stage legs have a height range of 23.5 to 59", while a telescopic mid-level spreader is available for added stability and fast setup. The tripod also has rubber feet with integrated metal spikes for working on both smooth surfaces and rough outdoor environments. Additionally, it weighs 5.5 lb.
In the Box Bundle Items ALX H Dual-Base Fluid Head - Tripod Mount Fixing Handle

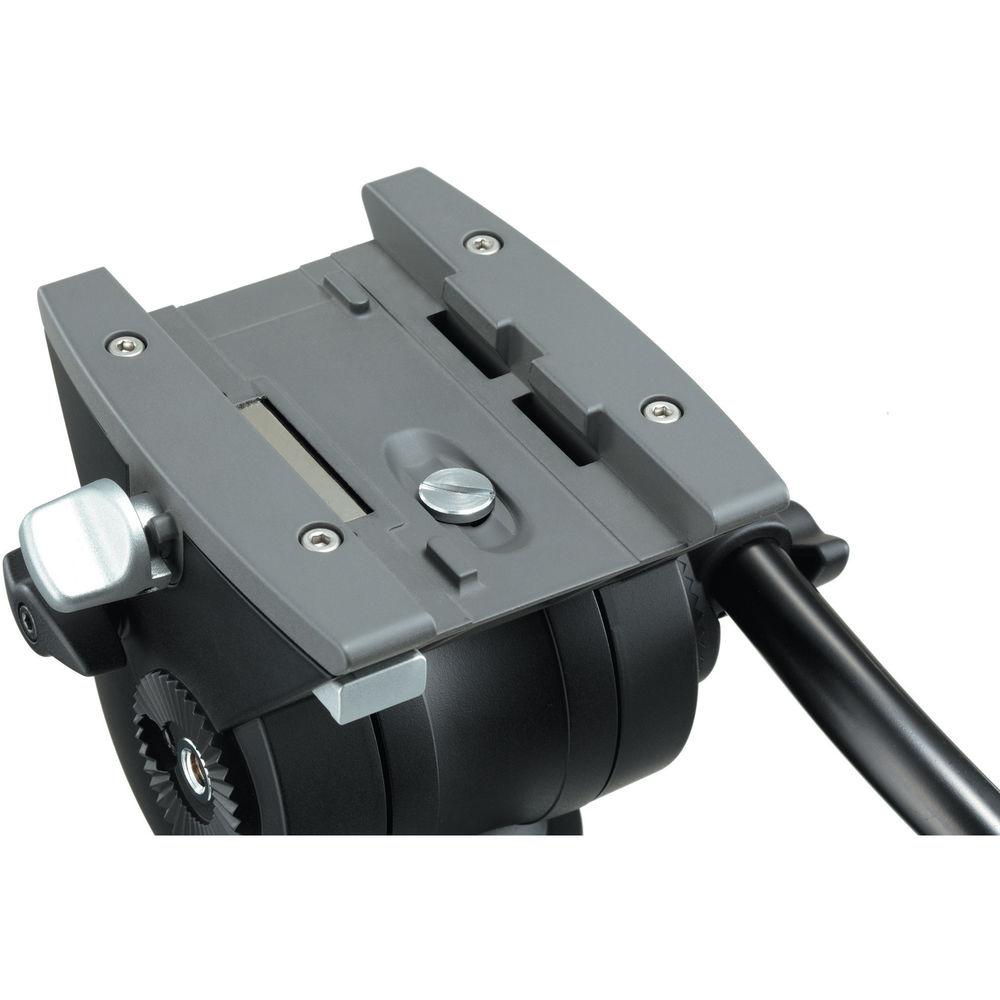

- Quick Release Camera Plate
- 1/4"-20 Mounting Screw and Video Pin
- 3/8"-16 Spare Mounting Screw
ALX T Aluminum Tripod with Mid-Level Spreader (75mm Bowl)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Libec ALX KIT Tripod and Fluid Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ALX H Dual-Base Fluid Head
| | | Camera Plate Features | Sliding Balance Plate | | Camera Mounting Screw | 1 x 1/4"-20 Male with Locating Pin | | Balance Plate Sliding Range | 3.1" / 80 mm | | | | Base Mount | 60 mm Half Ball
3/8"-16 Thread | | | | Drag Control | Fixed | | Vertical Tilt | +90
