Product description - Catching up with filmmakers Demetrius and Christina Wren about their impressions on their LIBEC ALLEX models

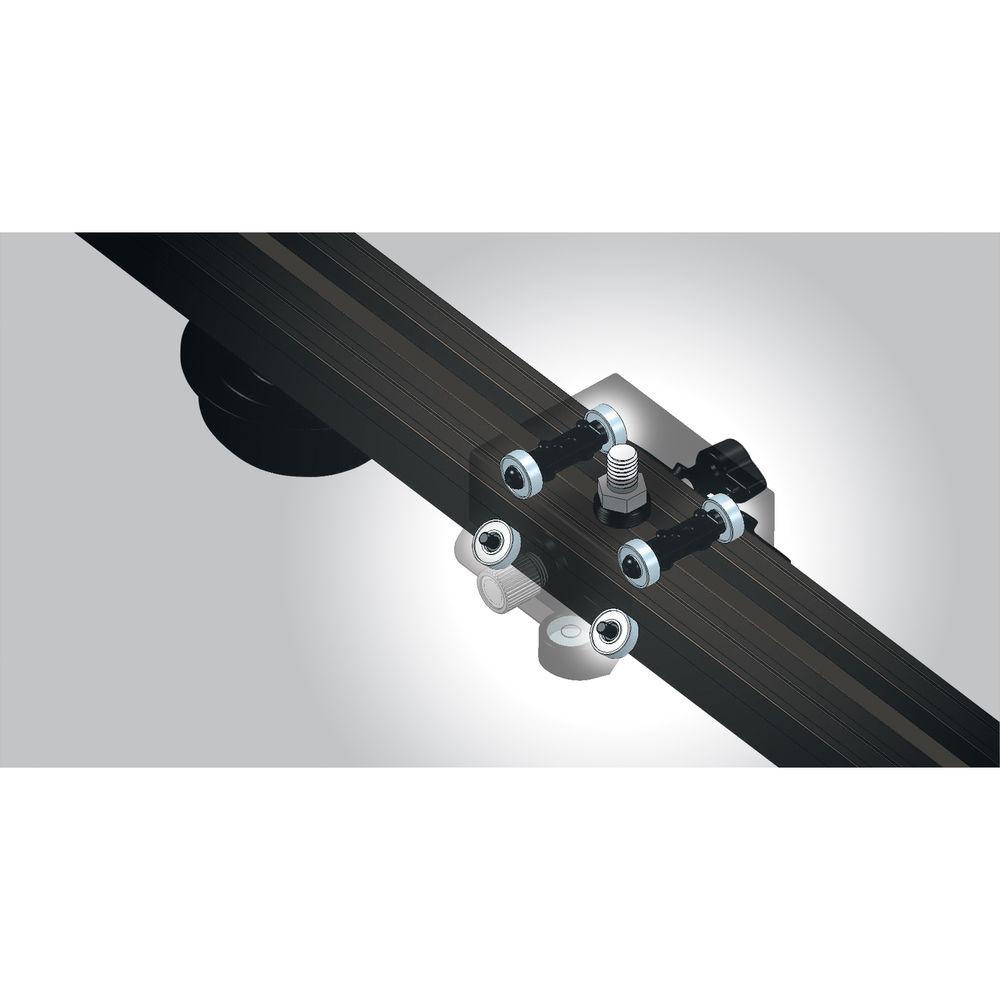

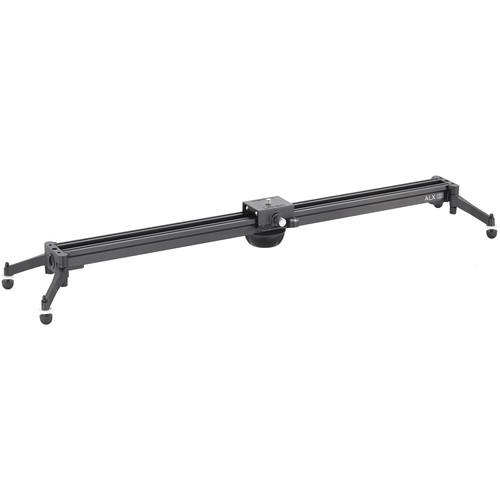

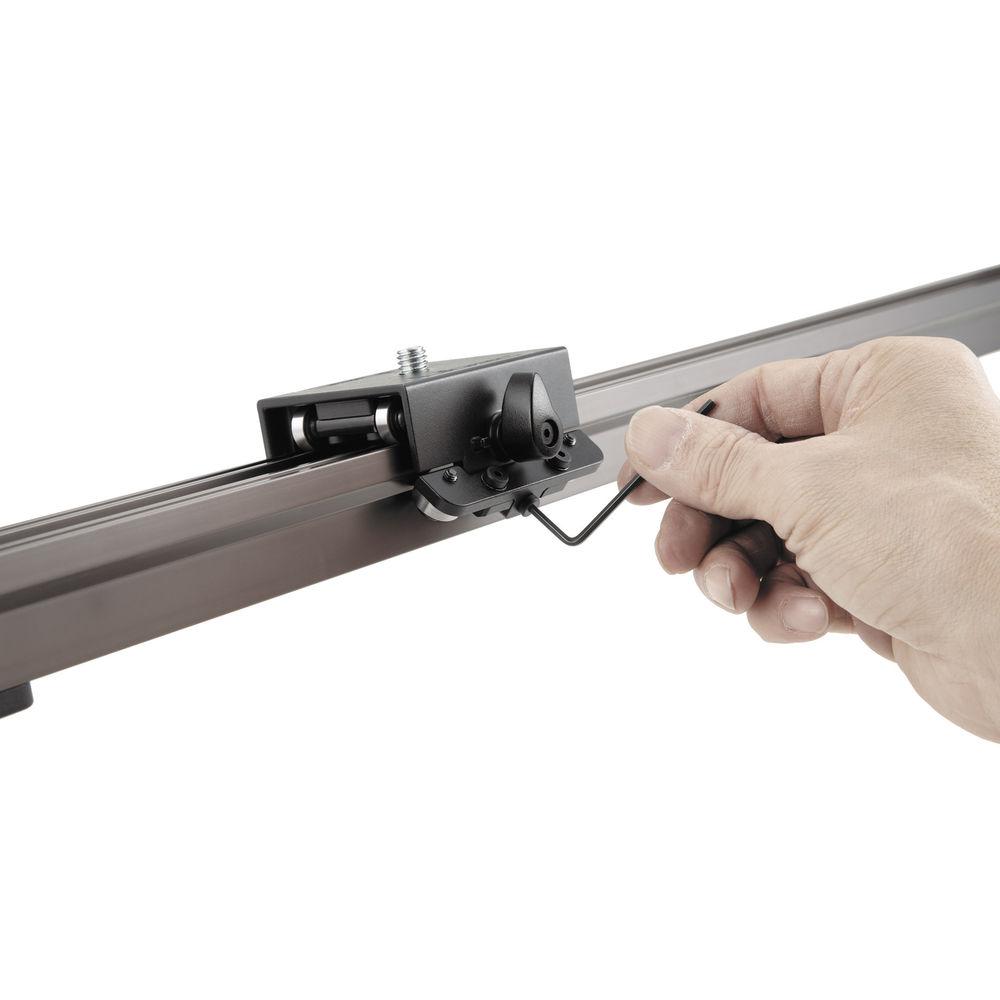

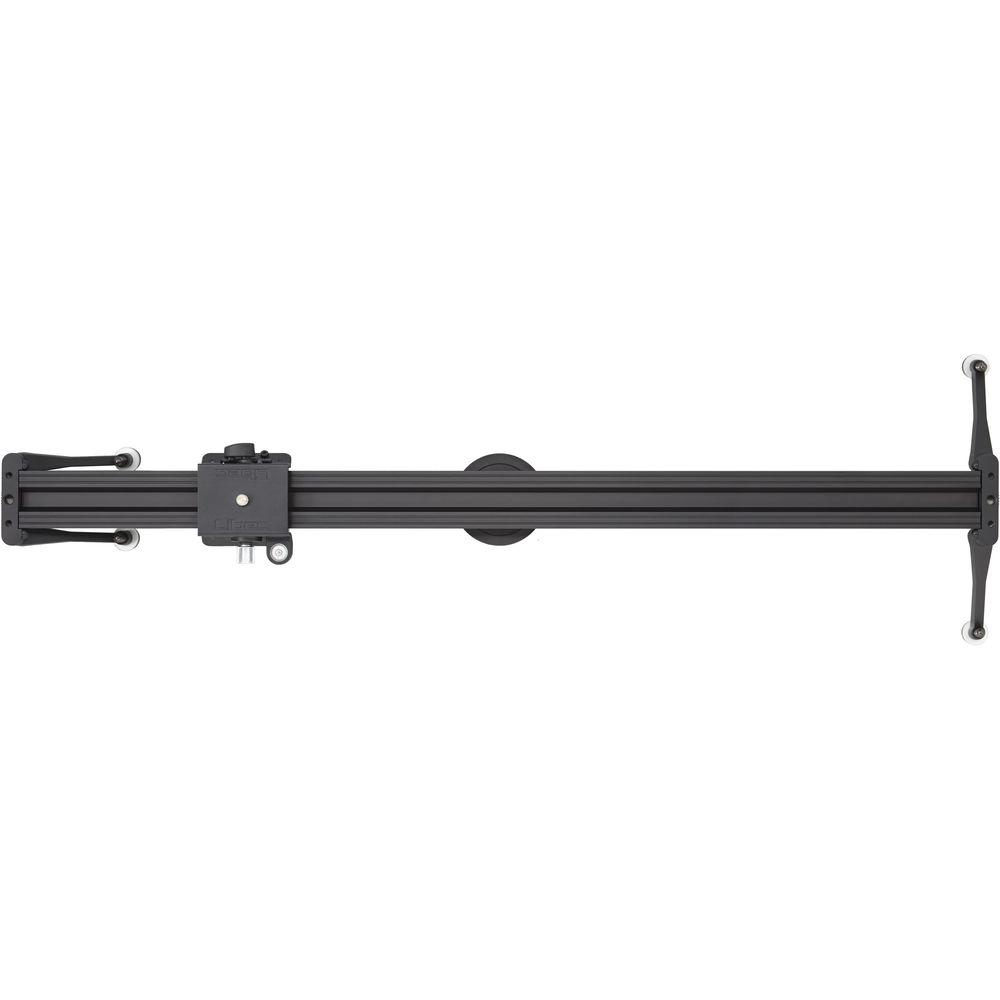

The Libec ALX S8 is a 32.6" long camera slider that features an integrated 75mm ball base with a flat bottom, allowing it to be mounted directly to 75mm bowl fluid heads as well as flat-base heads. When used on tabletop or flat surface using, the slider has a maximum load capacity of 33 lb. For smooth and wobble-free operation, the carriage features eight roller bearings positioned on the rail top and along the sides at angles. A spring-loaded friction knob allows you to adjust slide tension, while a brake knob will lock the carriage in place at any point on the rails. Using a supplied hexagon wrench, you can adjust the pushing force that the ball bearing exerts on the rail.

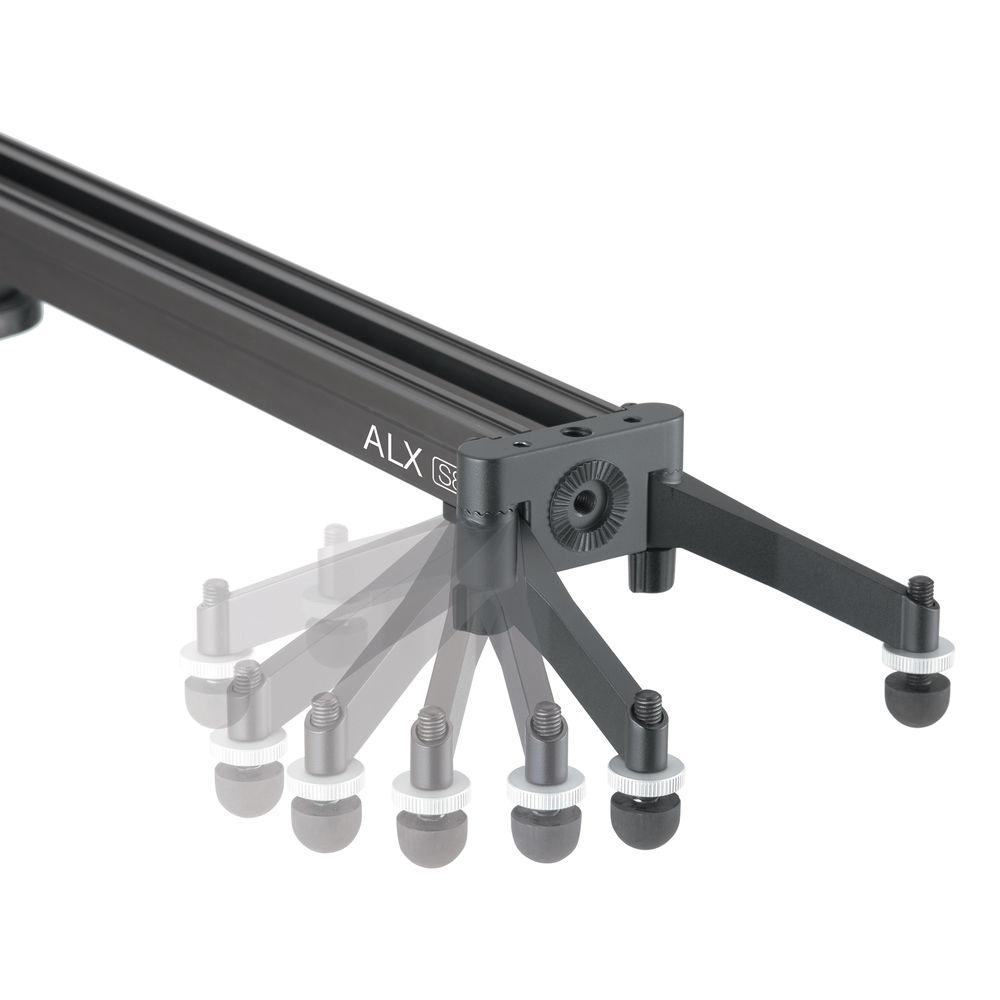

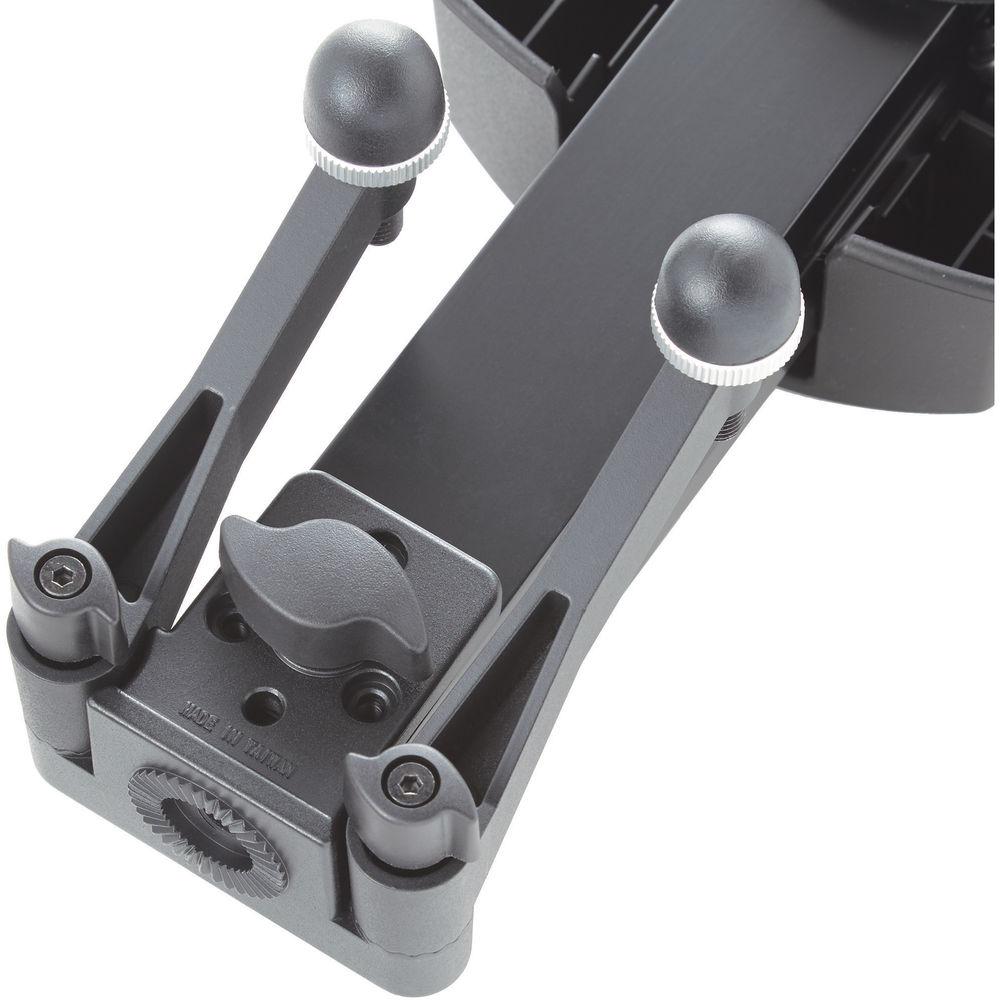

At each end of the slider, there are 1/4"-20 and 3/8"-16 threads and a rosette for attaching various accessories. If you will be using the slider on the ground or tabletop, the slider features built-in legs with height-adjustable feet to accommodate non-level terrain. For compact storage, the legs fold up against the side of the slider, securing in place using thumb knobs. Unscrewing the knobs completely allows you to detach the legs completely and swap out the 32.6" rail for separately available 15.5" or 47" rail lengths. - Key Features
-
- 28" slide range with a 33 lb payload
- 33 lb load capacity when used on a tabletop or flat surface
- Dual-base tripod mount adapter and bowl clamp for mounting on a tripod with a flat-base or 75mm ball head
- Eight high-performance ball bearings on the top and sides allow for smooth, wobble-free motion

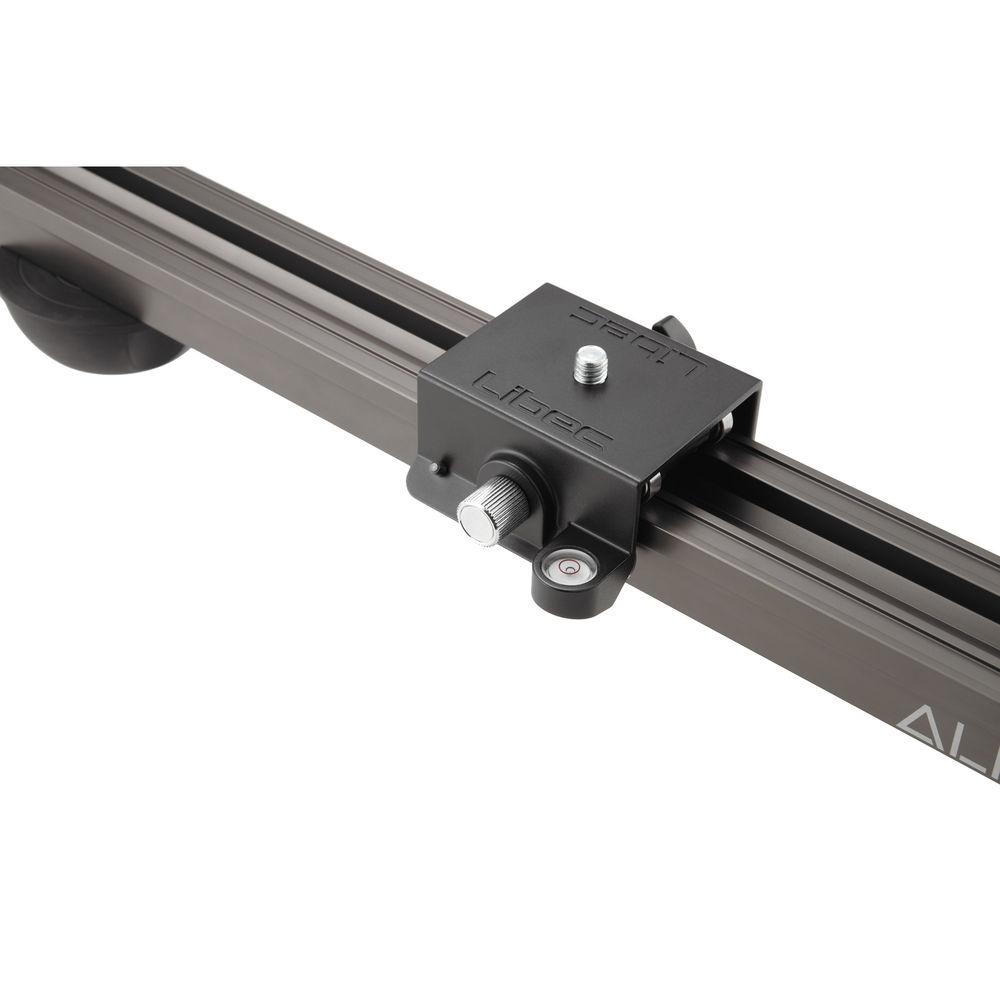

- Tension/friction knob, brake knob, and bubble level
- 32.6" rail can be swapped for optional 15.5" or 47" rail lengths
- Collapsible tabletop legs for easy setup and storage
- Height-adjustable feet

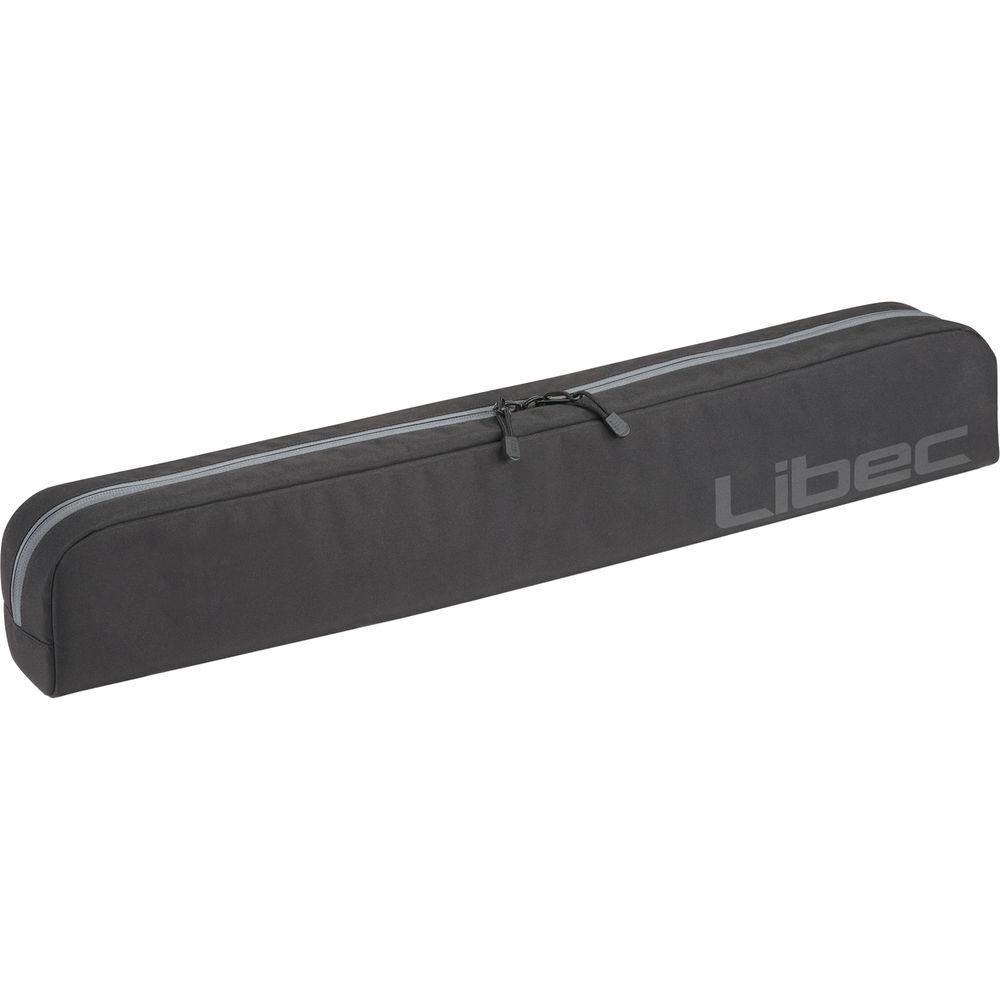

- Includes padded carrying case with fixing handle and maintenance kit
In the Box Libec ALX S8 Slider (32.6") ALX SP Slider Platform rtwerwcrrsftcxyexwuwerevuvqzvfazq Dual-Base Tripod Mount Adapter Tripod Mount Fixing Handle Collapsible / Removable Tabletop Legs Padded Nylon Carrying Case Maintenance Kit Limited 3-Year Warranty rtwerwcrrsftcxyexwuwerevuvqzvfazq Table of Contents
|
Upload User Manual
Have you got an user manual for the Libec ALX S8 Slider in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLibec ALX S8 Specs | | | Load Capacity | 33 lb / 15 kg | | Travel Distance | 28" / 71.1 cm | | | | Camera Mounting Screw | 3/8"-16 Male | | Accessory Mounting | 2 x 1/4"-20 Female
2 x 3/8"-16 Female
2 x Rosette | | Tripod Mounting | 75 mm Ball Base
3 x 1/4"-20 Female Thread
3 x 3/8"-16 Female Thread | | | | Body Material | Aluminum, Plastic | | Track Length | 31.5" / 80 cm | | Weight | 4 lb / 1.8 kg | | | | Package Weight | 8.1 lb | | Box Dimensions (LxWxH) | 34.5 x 6.5 x 6.5" |
