User Manual for Libec LX10 Studio Two-Stage Aluminum Tripod System and H65B Head with Dual Pan Handles and Spreader Dolly Click to enlarge the picture
Contents of the user manual for the Libec LX10 Studio Two-Stage Aluminum Tripod
- Product category: Tripod Systems Libec
- Brand: Libec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Libec Tripod Systems
 |
User manual for the Libec LX10 Studio Two-Stage Aluminum Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Libec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Libec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Libec product will considerably shorten its lifespan!
|

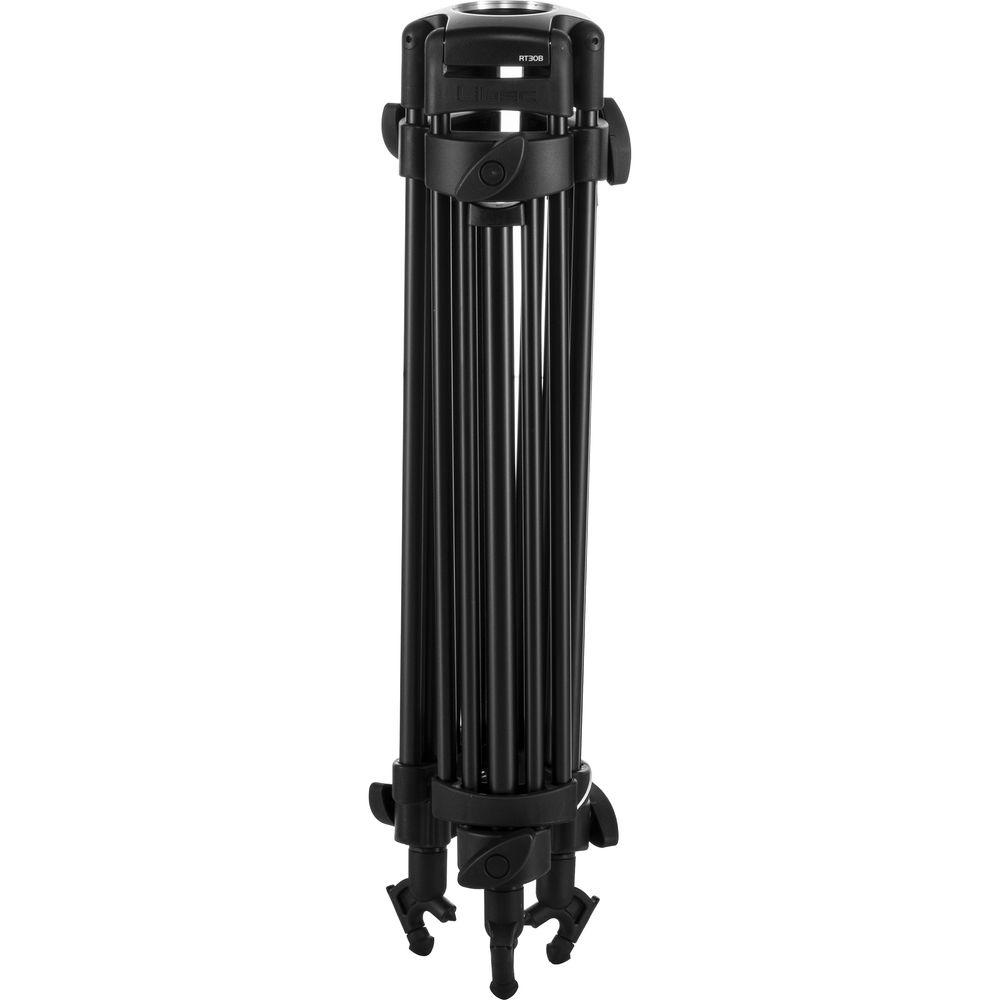

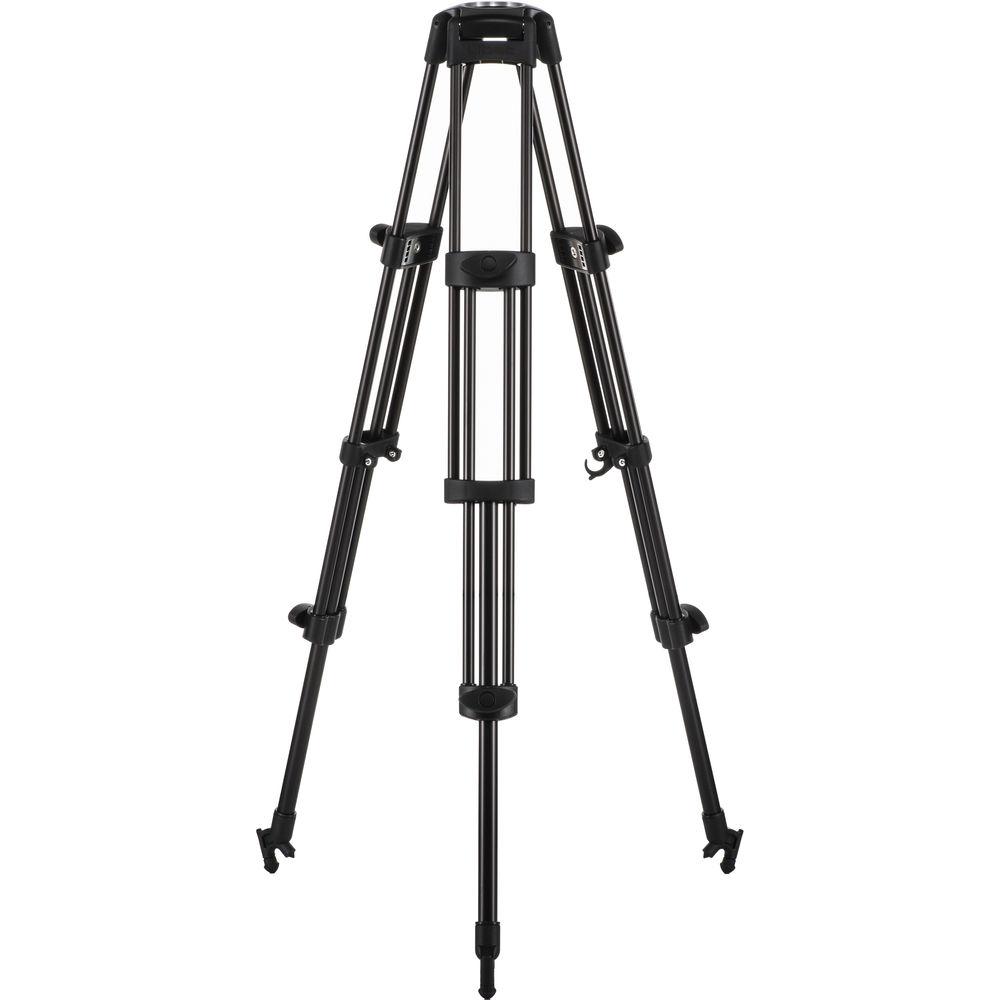

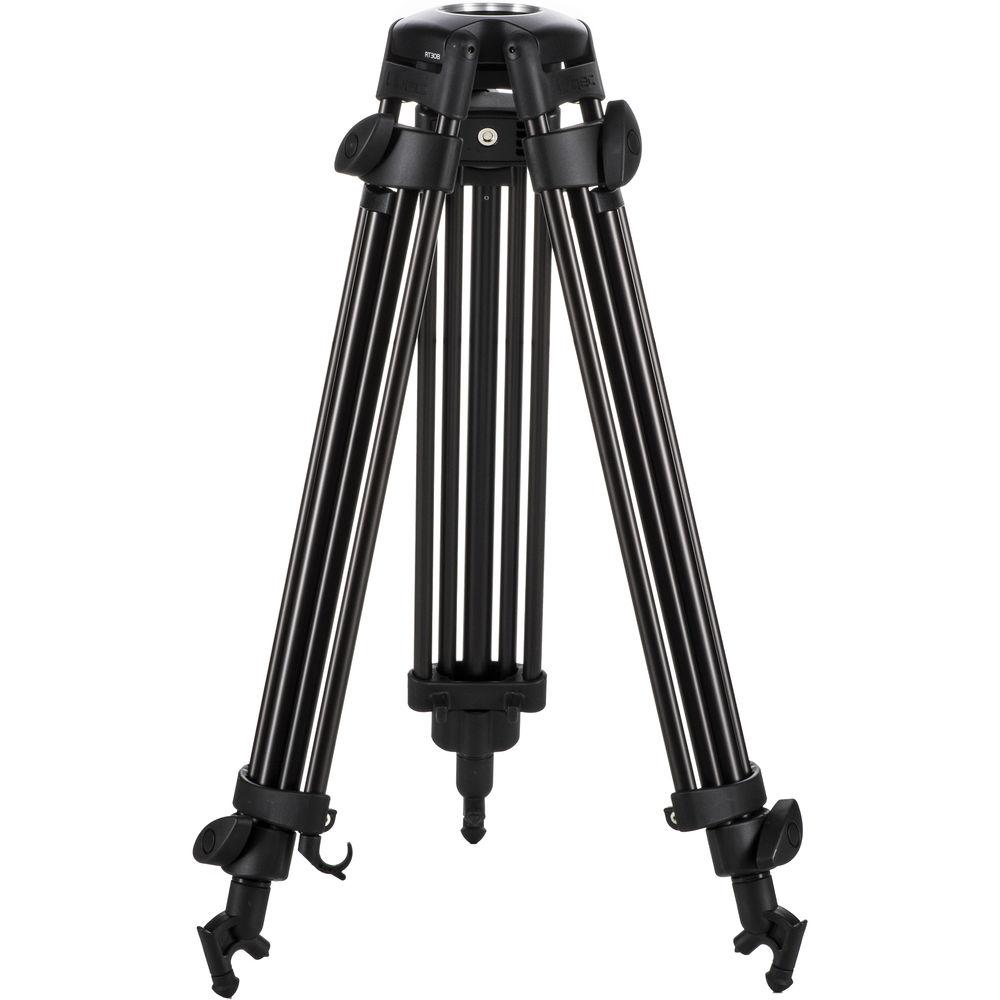

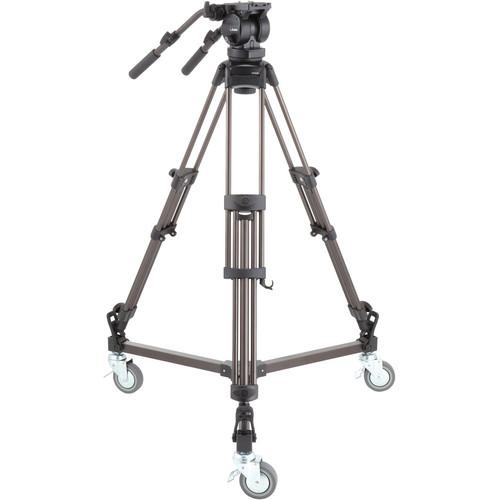

Product description The Libec LX10 Studio Two-Stage Aluminum Tripod System and H65B Head with Dual Pan Handles and Spreader Dolly supports cameras and accessories weighing up to 11 pounds. The head and legs feature a 100mm ball/bowl, which provides a wide platform for stable shots. The legs are made from aluminum and feature three leg sections. The head and legs come with a spreader dolly, and the system is height-adjustable from 36 to 73.5". To aid in leveling your shot, a bubble level is incorporated into the head. The head also features a sliding baseplate that allows you to adjust the balance of your camera. It provides fixed counterbalance that helps the fluid head support loads up to 35 pounds. With individual fluid drag adjustments for both pan and tilt, you can adjust the fluid head to suit your shooting style or the needs of the shot. The head features discreet pan and tilt locks, and the removable pan handle can be attached to either side of the head by via the built-in rosettes. - The sliding balance plate features a total of four inches of balance adjustment, two inches forward and two inches back of center. This does not take into account the integrated balance slot that allows you to adjust the position of the captive camera tie-down screw.
- The head incorporates a small stud at the front that prevents the balance plate from sliding out.
- The included spreader dolly secures your tripod's legs, but allows you to roll your tripod from one point to another on a smooth surface. It can be used during a shot, but it is not as smooth as a true dolly.
In the Box Libec LX10 Studio Two-Stage Aluminum Tripod System and H65B Head with Dual Pan Handles and Spreader Dolly Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Libec LX10 Studio Two-Stage Aluminum Tripod System and H65B Head with Dual Pan Handles and Spreader Dolly in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLibec LX10 Specs | Payload | 35 lb / 16 kg | | Counterbalance | Fixed | | Drag Mode | Two-step | | Tilt Angle | +85° / -65° | | Camera Plate | Sliding | | Sliding Range | ±2" / 50 mm | | Plate Attachment | Two 3/8"-16 screws | | Spare Screw | 3/8"-16 | | Section | Two-stage | | Bubble Level | Non-illuminated | | Ball Diameter | 100 mm | | Temperature Range | -4 to 140°F / -20 to +60°C | | Height | 36.0 to 73.5" / 91.4 to 186.9 cm | | Weight | 23.3 lb / 10.6 kg | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 31.4 x 16.9 x 10.4" |
