User Manual for Libec RS-250DM Tripod System with Mid-Level Spreader Click to enlarge the picture
Contents of the user manual for the Libec RS-250DM Tripod System with Mid-Level
- Product category: Tripod Systems Libec
- Brand: Libec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Libec Tripod Systems
 |
User manual for the Libec RS-250DM Tripod System with Mid-Level contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Libec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Libec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Libec product will considerably shorten its lifespan!
|

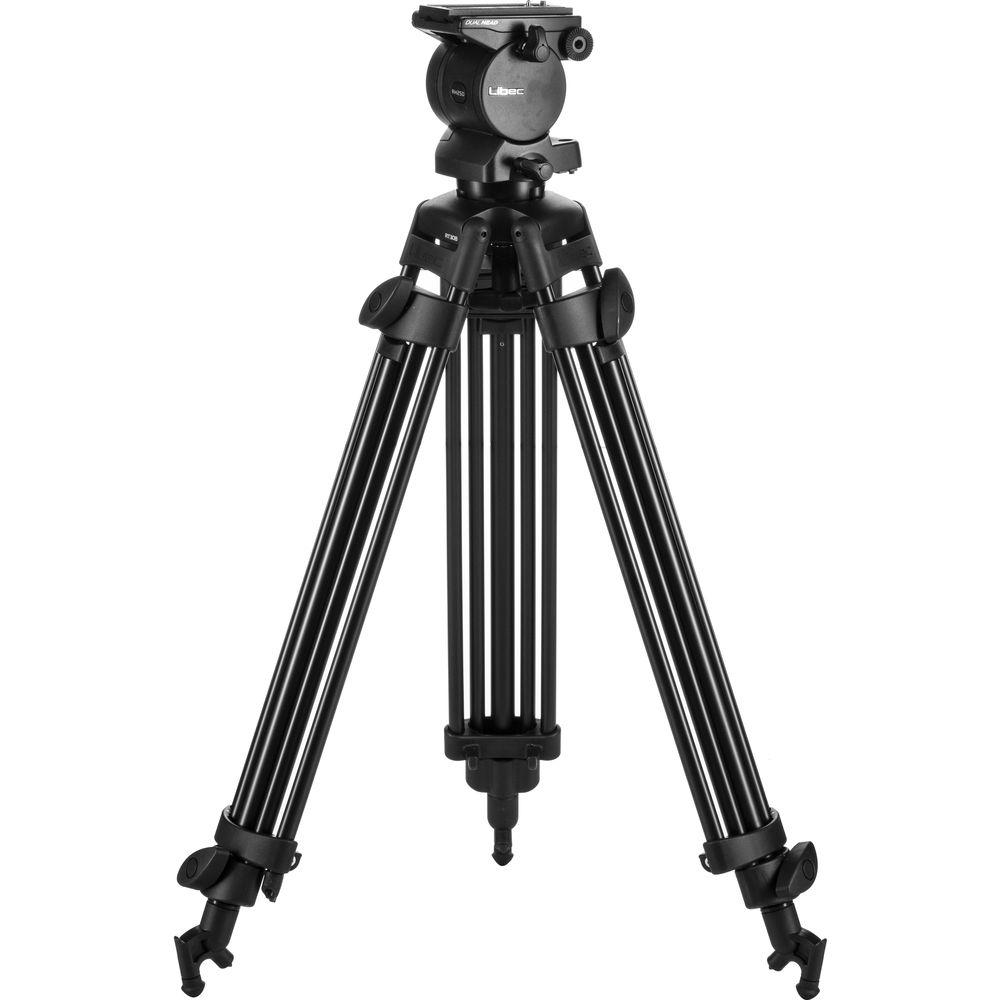

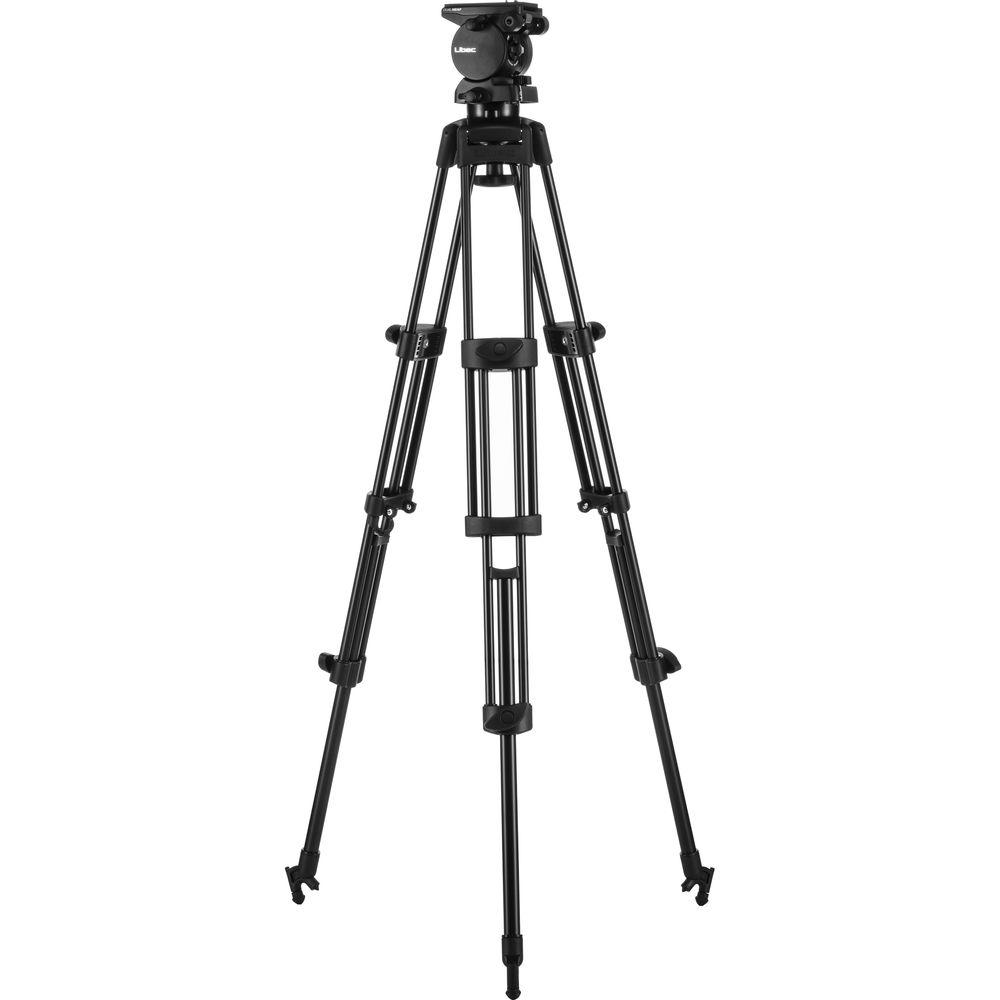

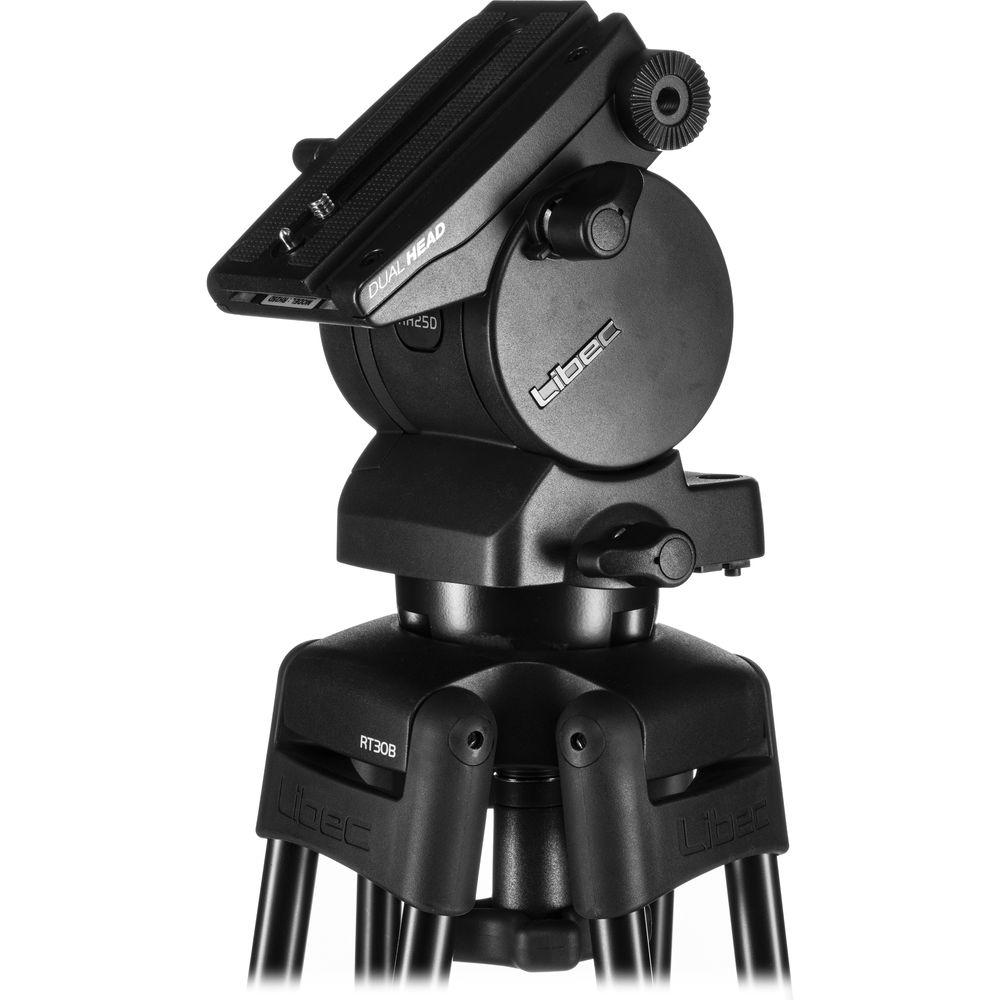

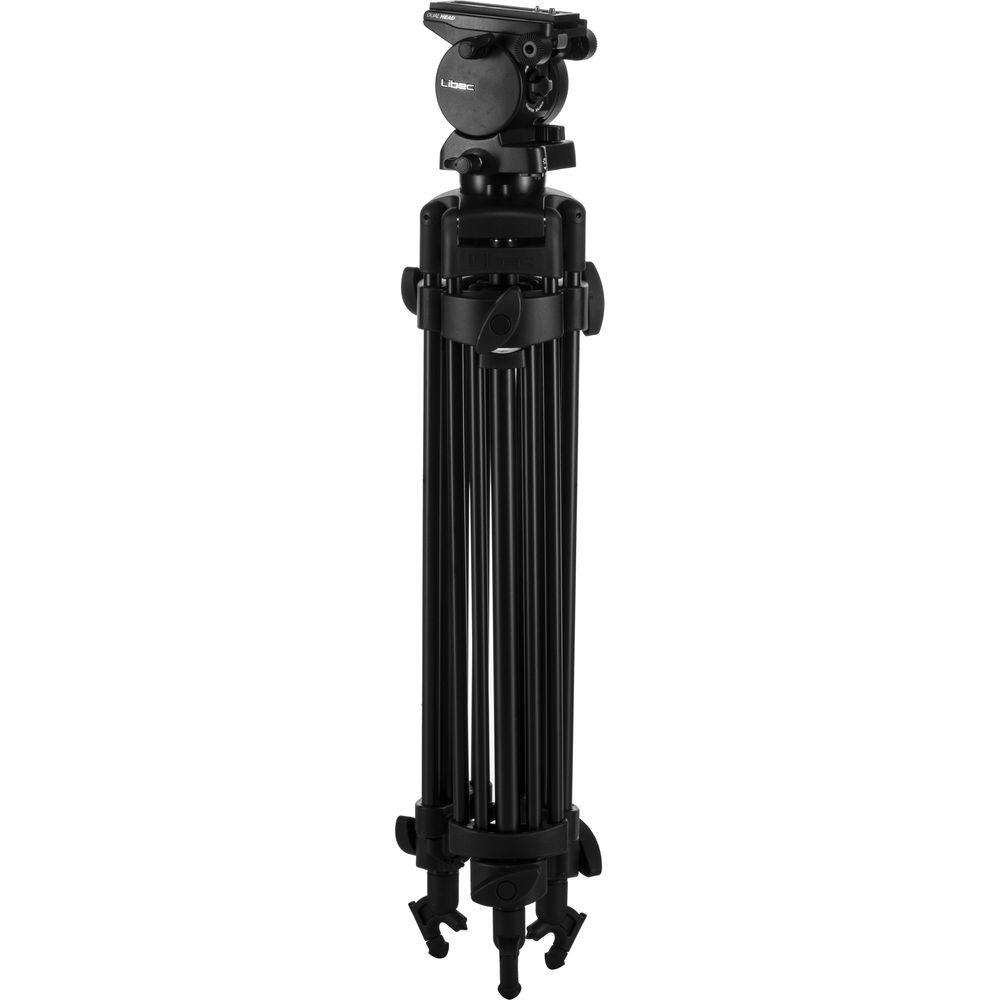

Product description The RS-250DM Tripod System from Libec includes the RT30B tripod with a 75mm bowl, the RH25D head, the BR-2B mid-level spreader, and the RC-30 case. The RT30B 2-stage aluminum tripod can extend from 16 to 59.5". It is designed to work with the RH25D head. The BR-2B ground spreader works on level surfaces, providing both stability and floor protection. The RC-50 black tripod case is a padded case with rubber feet, designed to carry your tripod. - RH25D Fluid Head Designed for compact cameras weighing up to 13 lb, the RH25D Fluid Head from Libec features a unified ball/flat mount design. The base of the tripod can fit either in a standard 75mm bowl or on a flat mount with a 3/8"-16 screw. Having both options available means you can transfer the RH25D from a tripod with a bowl mount to a flat-mount slider.To achieve proper balance, the head includes a sliding camera plate with 1.6" of fore/aft adjustment. The screw and locating pin are moveable to orient the plate on the camera to achieve the best possible balance. Once the camera is balanced, the continuous counterbalance and pan/tilt drag controls provide a smooth action with reduced backlash and unnecessary "bouncing."Included with the head is a PH-6B pan handle. The handle is extendable for better reach or more precise movement. The bar can be placed on the right or left side of the head by screwing it onto one of the rosettes.
- Continuous Counterbalance
- This fluid head is equipped with an continuously adjustable counterbalance system that can be fine-tuned to provide the correct amount of counterforce that corresponds to the weight and angle of your camera. Different cameras can be used and correct counterbalance can be set for each camera configuration.
- Fluid Drag System
- The fluid drag mechanism reduces backlash that can occur at the beginning or end of panning/tilting moves.
- Low Temperature Performance
- The RH25D is rated to be used in temperatures down to -40°F without seriously impacting the performance of the fluid drag system.

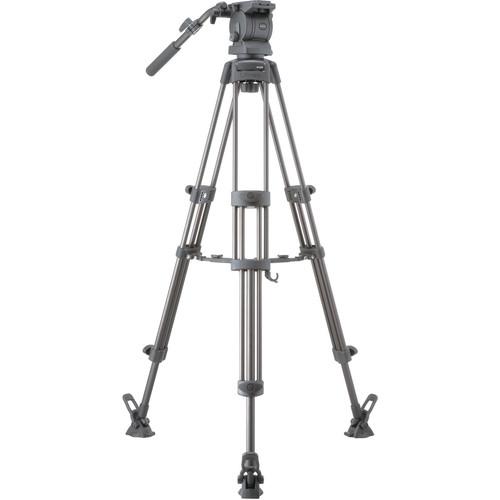

- BR-2B Mid-Level Spreader The Libec BR-2B Mid-Level Spreader is designed to offer added stability to RT30B tripods. Best used on uneven surfaces where ground spreaders won't lie flat, the BR-2B also keeps the tripod's legs from twisting.
- RT30B 2-Stage Aluminum Tripod The Libec RT30B 2-Stage Aluminum Tripod sports an all-new design over earlier models, with an increased maximum height and a 75mm ball diameter that ensures torsional rigidity. Stability is further enhanced by the use of aluminum die casting material for the tripod's upper leg casing.
Weighing only 5.7 lbs (2.6kg), the RT30B supports a payload of up to 55 lb (25 kg) and can extend from 16 - 59.5" (40.5 - 150.5 cm), making it ideal for small- to mid-sized HD cameras used in a range of broadcast and production situations. - Carrying Case The Libec RC-30 Carrying Case (Black) is a non-padded, vinyl case designed to carry a Libec RT-30 tripod with an RH-30 tripod head attached. It is carried by a handle or an attached, adjustable shoulder strap.
- Construction
-
- Non-padded vinyl
- Zipper closure
- Carrying options
-
- Carry handle
- Attached, adjustable shoulder strap
- Compatible with Libec RT-30 tripod with an RH-30 tripod head
In the Box Bundle Items RH25D Fluid Head tqrazvwwdzszsuzfwyucfswxc - PH-6B Extendable Pan Bar Handle for RH25D and RH45D Video Heads
BR-2B Mid-Level Spreader RT30B 2-Stage Aluminum Tripod Carrying Case Spec sheet PDF 317.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Libec RS-250DM Tripod System with Mid-Level Spreader in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RH25D Fluid Head
| | | Camera Plate Features | Sliding Balance Plate | | Balance Plate Sliding Range | 3.2" / 80 mm | | | | Base Mount | 75 mm Half Ball
3/8"-16 Thread | | | | Drag Control | Tilt: 2-Step | | Vertical Tilt | +90
