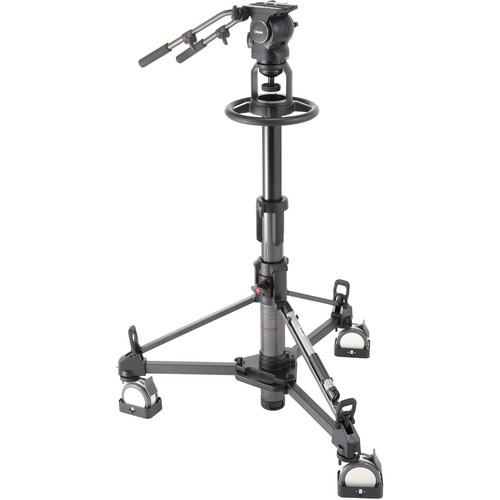

Libec RSP-850PD Pedestal System for Studio

User Manual for Libec RSP-850PD Pedestal System for Studio Broadcasting

• Product category: Pedestals Libec
• Brand: Libec
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Libec Pedestals

Product description

• RHP85 Fluid Head with PH-8B Extendable Pan Handles The Libec RHP85 Fluid Head with PH-8B Extendable Pan Handles features the fully adjustable Continuous Counterbalance technology. It offers optimal counterbalance, as well as Balance Stabilizer Mechanism that prevents the slightest wobble on your image, while providing a smooth balancing system.

  The Fluid Head features a 7-step pan and tilt torque switch that covers a wide torque range. The one-touch attachment and release ensures that the camera plate can be attached and detached with just a touch, enabling fast and easy setup. The Fluid Head comes with the PH-8B Pan Handle with rubber grip that can stop the camera precisely at any tilt angle.

  The Fluid Head is capable of operating at temperature of -40°F. The Fluid Head features a 100mm diameter ball head. It is designed for use with ENG (Electronic News Gathering) cameras that can capture fast moving objects.It is capable of handling a payload of 55 lb.
  • Fully adjustable Continuous Counterbalance technology
  • Balance Stabilizer Mechanism prevents wobble on your images
  • Smooth balancing system
  • 7-step pan and tilt torque switch
  • One-touch camera plate attachment and release
  • Operates at as low as -40°F
  • Features an extendable pan handle with a rubber grip
  • 100mm diameter ball head
  • Great for ENG cameras that can capture fast moving objects
• PH-8B Extendable Pan Bar Handle for RHP75, RHP85, and LX10 Video Heads This Libec Pan Bar Handle is compatible with the Libec RHP75, RHP85, and LX10 video heads. It connects and locks into either side of those heads with a clamp and bolt for right or left-handed use. A rubberized handle provides a comfortable means to move its telescoping aluminum-alloy shaft, which is effectively adjustable from 16 to 22".

  This angled pan bar handle can rotate within its clamp, allowing a downward-pointing orientation for right or left-handed use. It is packaged for immediate installation with a downward-pointing orientation for right-handed use. For a pan bar handle that installs on a Libec RHP75, RHP85, or LX10 video head and is packaged for immediate installation with a downward-pointing orientation for left-handed use, the Libec PH-8BL Extendable Pan Bar Handle can be used instead.
• P110S Pneumatic Column Pedestal System The Libec P110S Pneumatic Column Pedestal System consists of the P110 Column, DL-10 Dolly, and wheelguard and offers seamless movement of mid-rage cameras and lightweight teleprompters. A double bearing system at the base prevents unsteady movement caused by sudden vertical motion. With a maximum load capacity of 66 lb (30 kg), it is ideal for indoor and outdoor shooting. You can adjust the air-pressure in the pneumatic column corresponding to the attached camera and maintain it by tightening the lock knobs, thereby securing the camera and allowing long shoots. A safety valve protects against over pressurizing of the pneumatic column. In addition to the tracking locking mechanism, the 125 mm double-wheel casters also include adjustable cable guards. A double stopper ensures that the wheels and axle shafts are secured.
  • Consists of the P110 Column, DL-10 Dolly, and wheelguard and offers seamless movement of mid-rage cameras and lightweight teleprompters
  • Double bearing system at the base prevents unsteady movement caused by sudden vertical motion
  • Maximum load capacity of up to 66 lbs (30 kg) makes it ideal for indoor & outdoor shooting
  • Air-pressure in the pneumatic column can be adjusted corresponding to the attached camera and maintained by tightening the lock knobs, thereby securing the camera and allowing long shoots
  • Safety valve protects against over pressurizing of the pneumatic column
  • Includes tracking locking mechanism and double-wheel 125mm casters with adjustable cable guards
  • Multi-positioning caster locking positions to guarantee exact, repeating, pedestal dolly moves
  • A double stopper ensures that the wheels and axle shafts are secured

• PH-8B Extendable Pan Bar Handle for RHP75, RHP85, and LX10 Video Heads

• Limited 3-Year Warranty

• Limited 1-Year Warranty

• P110 Column

• DL-10 Dolly

• Wheelguard

• 3 Year Parts & Labor Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• RHP85 Fluid Head with PH-8B Extendable Pan Handles

  Camera Plate Features	Sliding Balance Plate
  Camera Mounting Screw	2 x 3/8"-16 Male
  Balance Plate Sliding Range	4.3" / 110 mm

  Base Mount	100 mm Half Ball

  Drag Control	7-Step
  Vertical Tilt	+90 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 14 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
