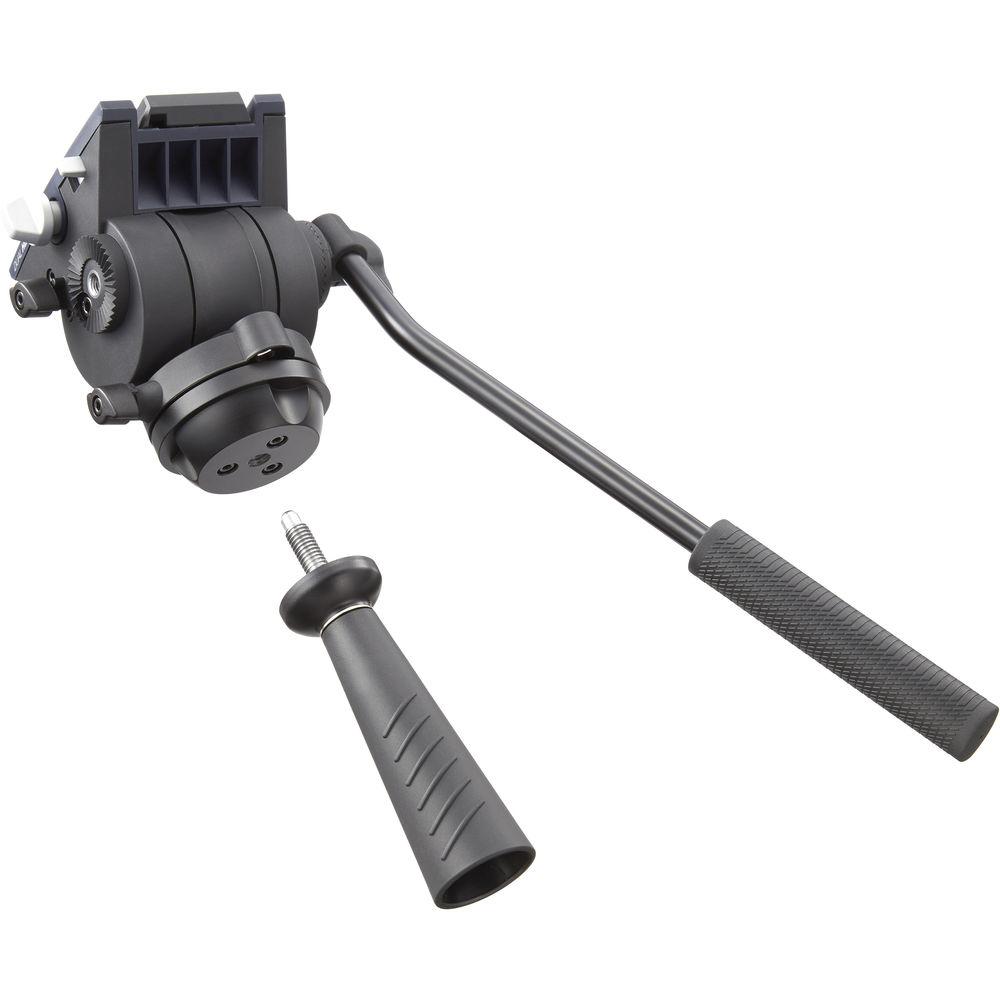

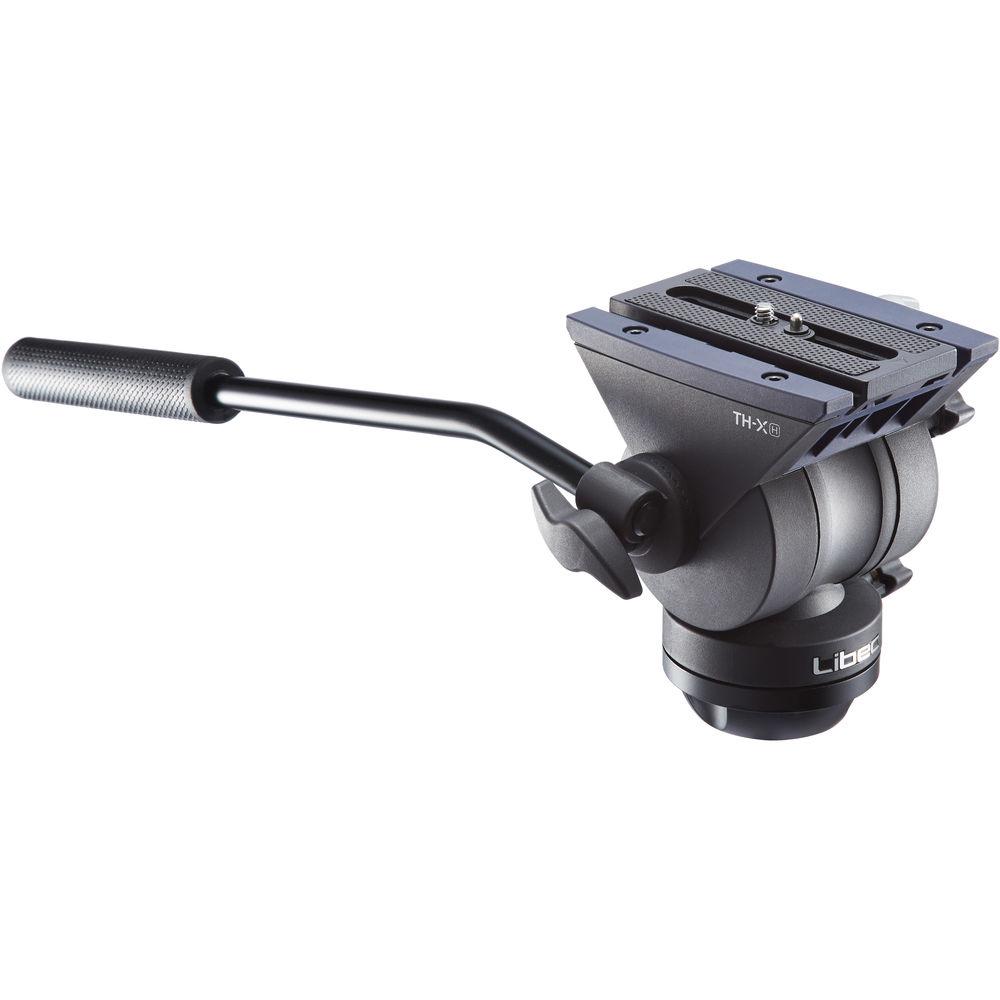

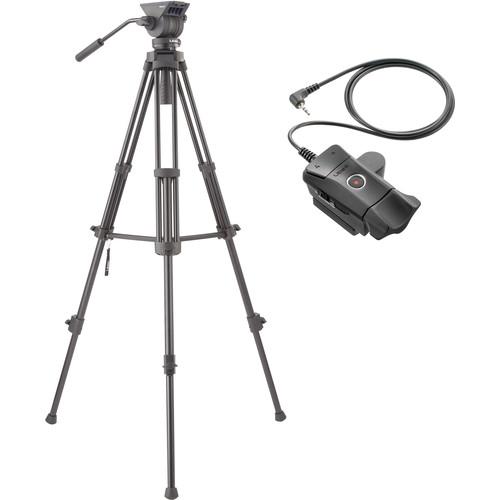

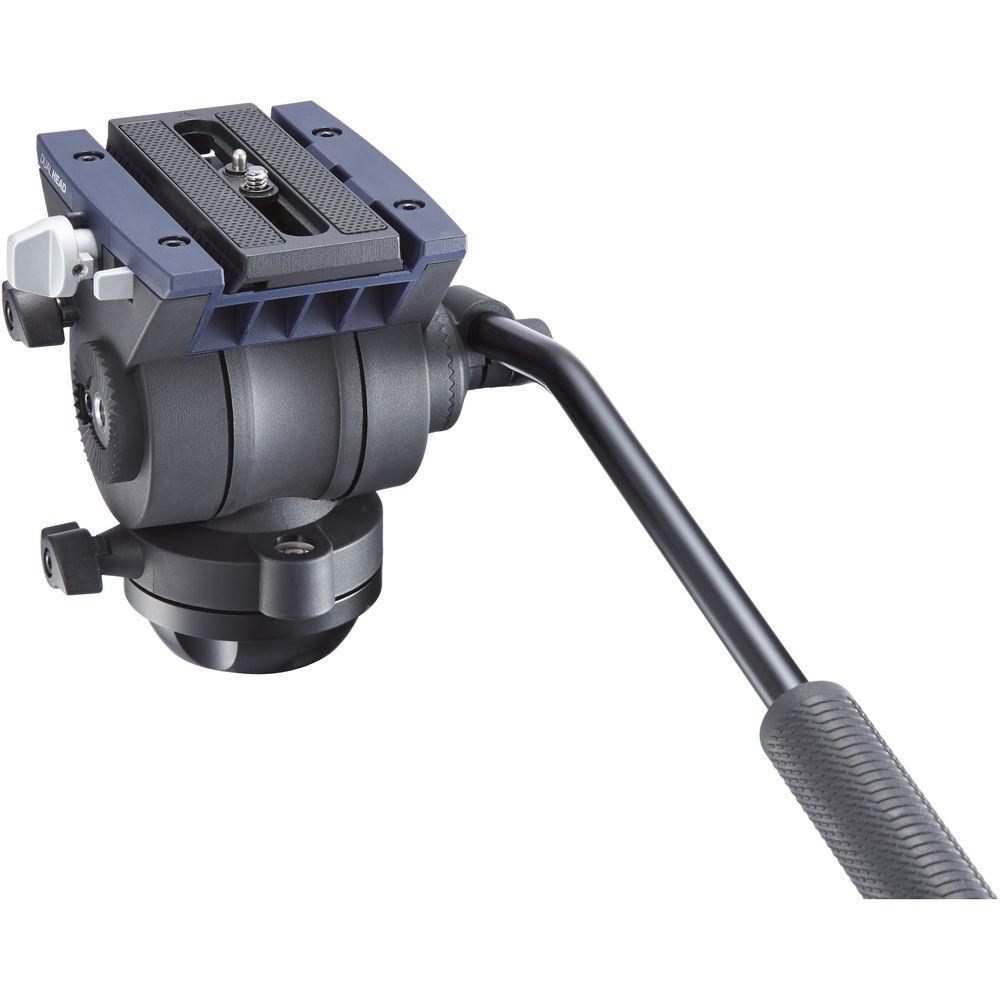

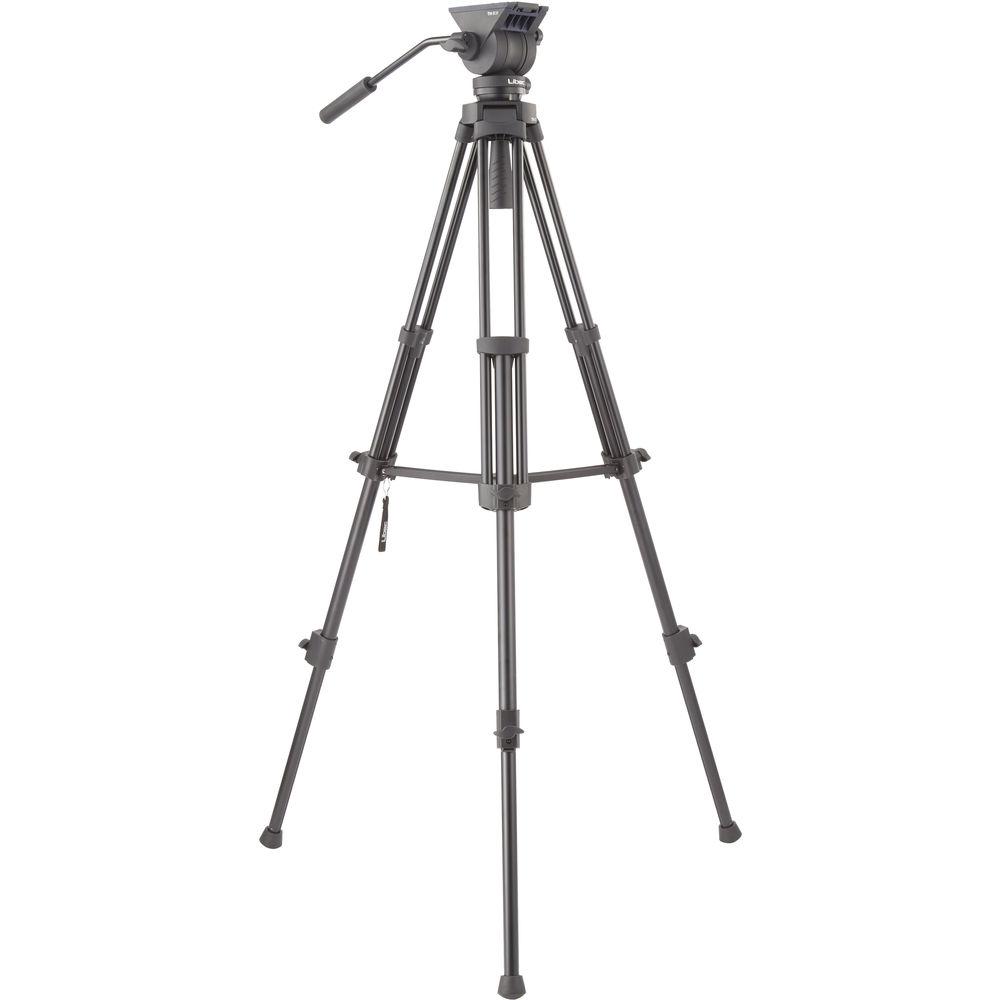

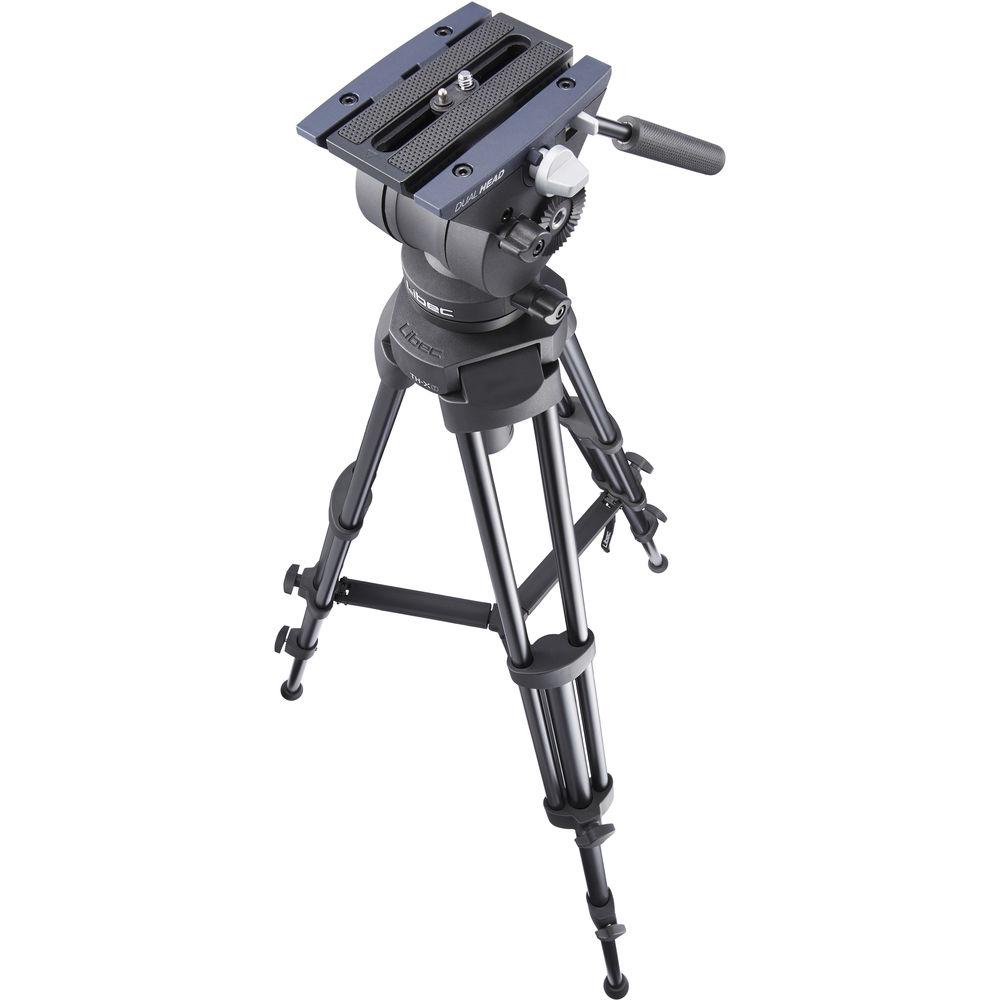

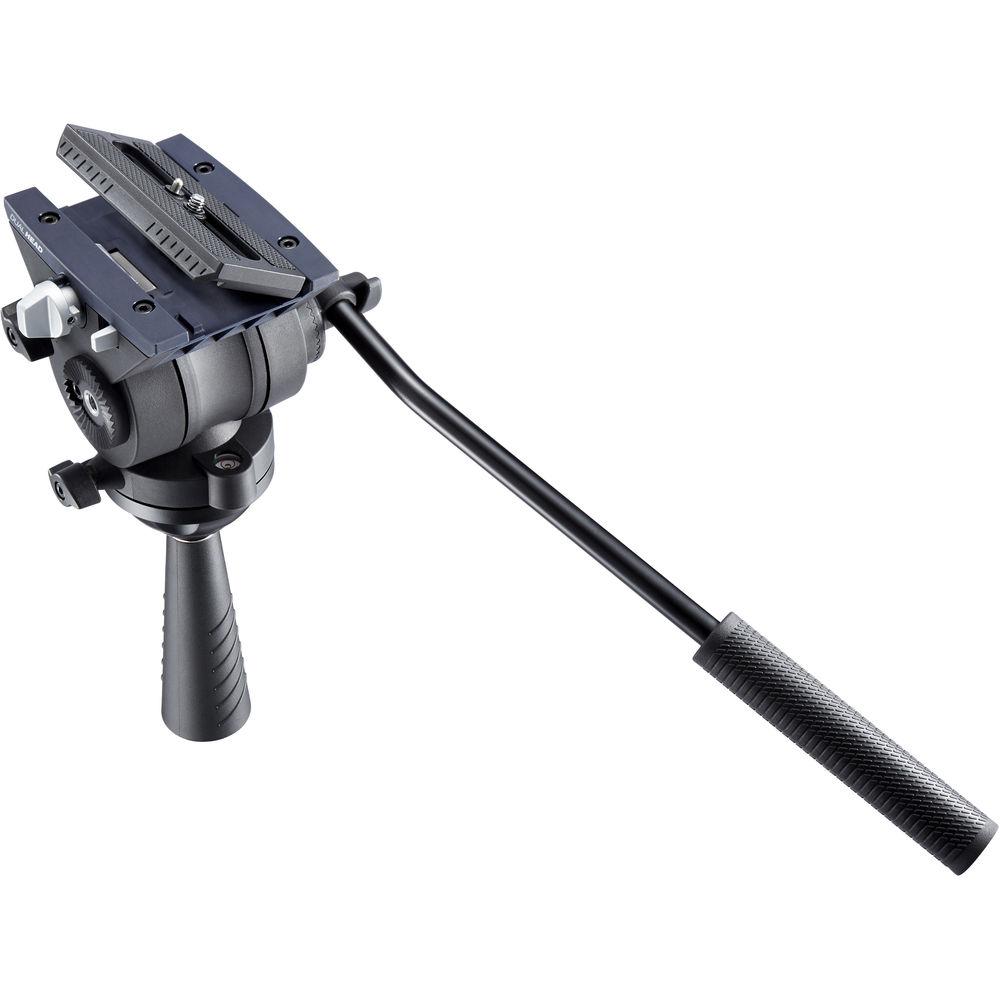

Product description The Libec TH-X ZFC Kit includes the TH-X video tripod system, the ZFC-L LANC remote controller, and a carrying case for easy transportation. The TH-X system is capable of supporting loads up to 9 lb. It offers fixed counterbalance and drag, with height adjustment from 30 to 62". The ZFC-L controller clamps onto the tripod arm to allow for remote zoom and focus control of compatible camcorders. - TH-X Head and Tripod System Provide stable support to your small camcorder, DSLR, or mirrorless camera with the Libec TH-X Tripod System. Mounted atop a two-stage (3-segment) tripod with a 65mm bowl, the TH-X head provides a sliding balance platform for optimal pan/tilt performance for loads up to 9 pounds. The drag and counterbalance are fixed, and both the pan and tilt can be locked. Rosettes on either side of the head can hold the pan bar for right and left-handed operators.While the 65mm ball base offers quick-leveling capabilities when used with a tripod, it has a trick up its sleeve. The bottom of the base is flattened and has a 3/8"-16 thread in the center, enabling it to be secured to flat-mount accessories such as sliders, jibs, and more without unwieldy bowl adapters.The included tripod offers a 30-62" height range for both lower and higher-angled shots. Thumbscrew-tightened leg sections secure the tripod, and the mid-level spreader provides stability and quick operation, even on uneven terrain and flooring.
- All-in-one tripod system for small camcorders and DSLR cameras

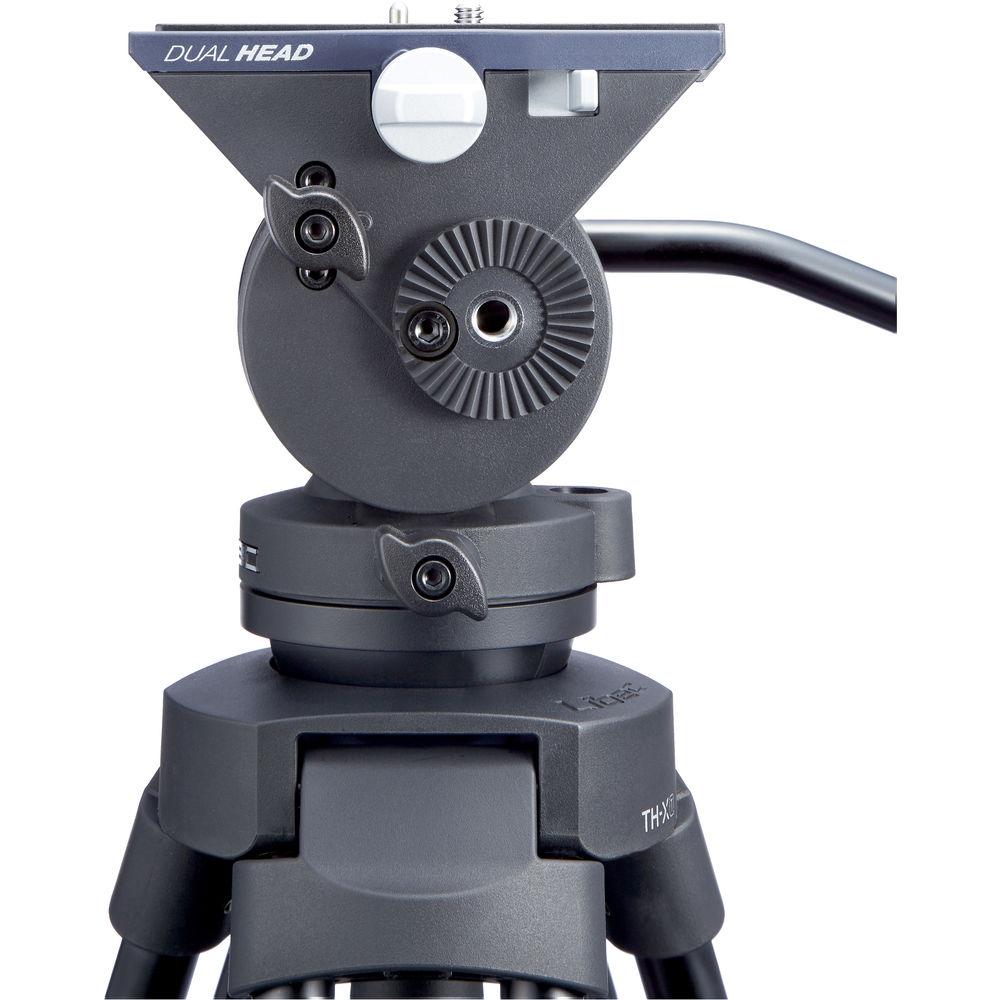

- Dual head design for 65mm bowl tripods and flat base equipment with 3/8"-16 screws
- Built-in counterbalance for precise camera balance and tilt movements
- One-touch quick release sliding plate for easy camera balance adjustments
- Sliding camera plate compatible with Sachtler and Manfrotto heads
- Dual pan handle rosettes for additional pan handle or support arm

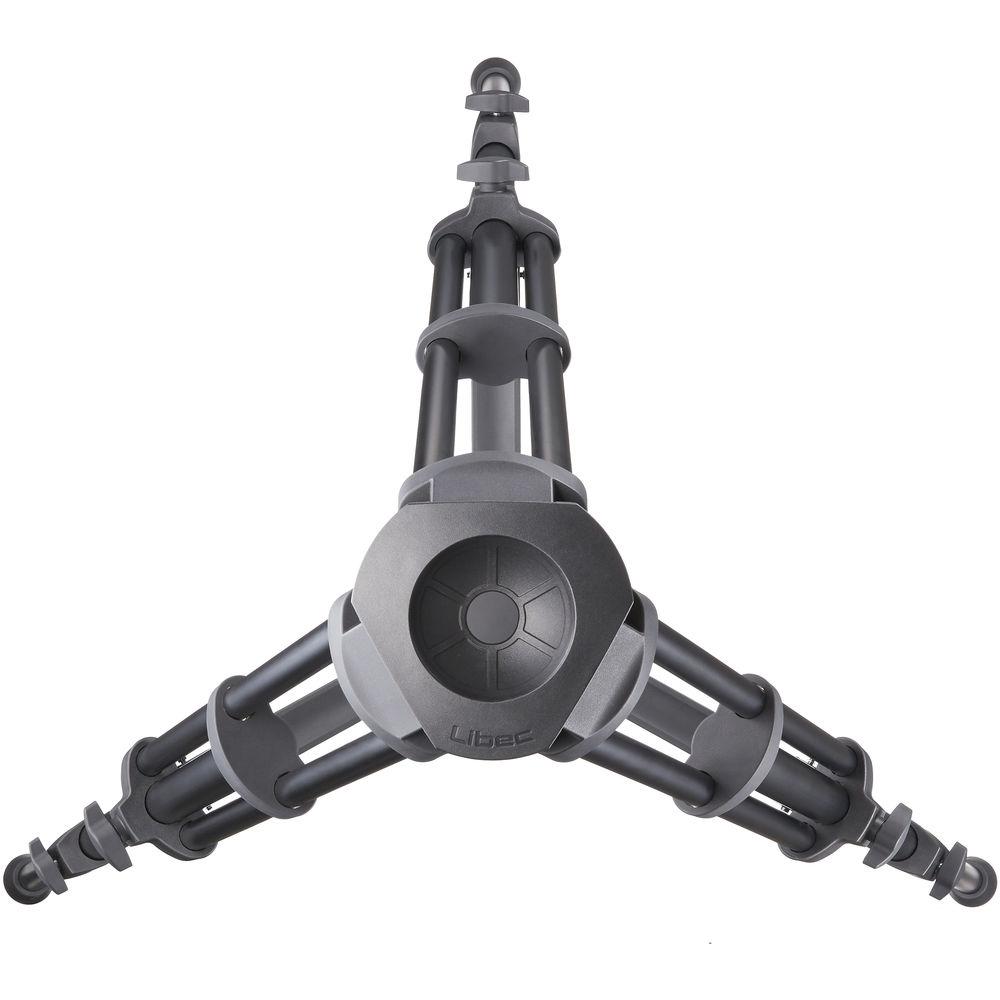

- Rigid tripod legs for enhanced stability

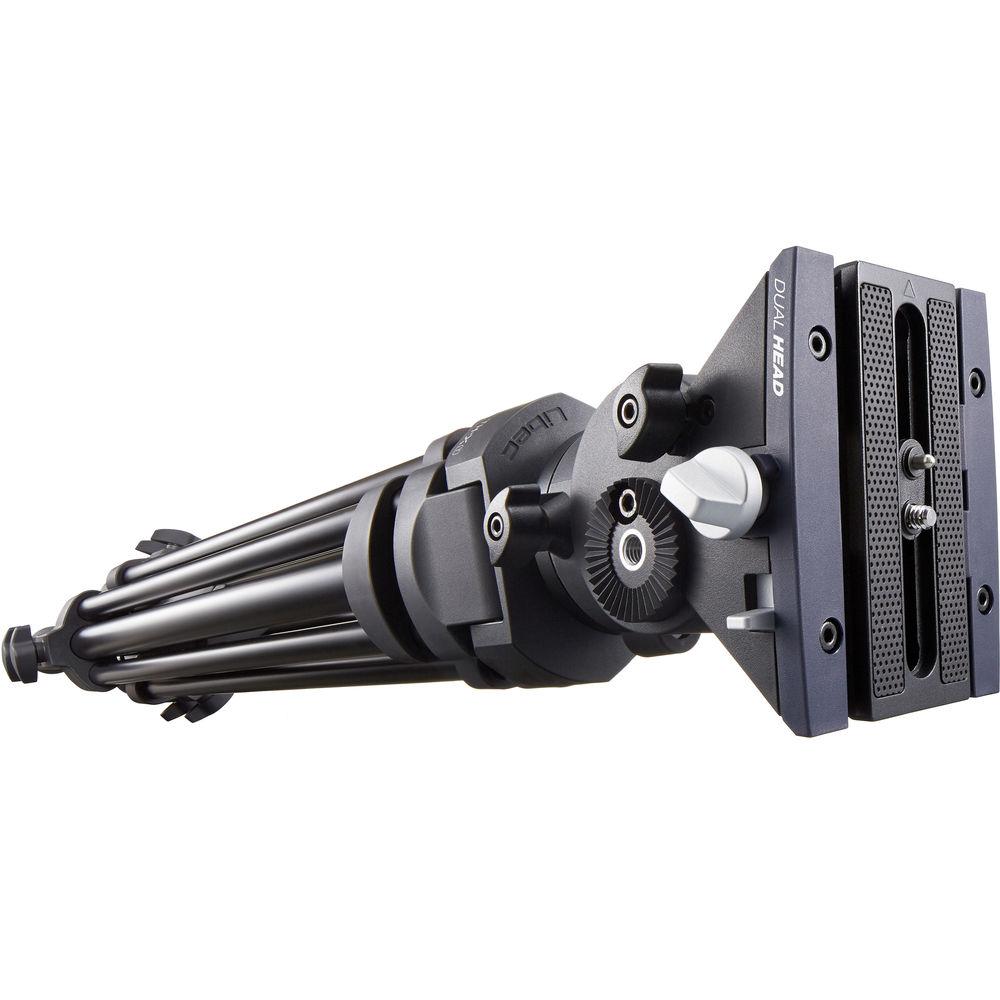

- Compact for collapsing and storing
- Aluminum material and lightweight for easy mobility
- Padded carrying case with shoulder strap and side pocket
- ZFC-L LANC Zoom and Focus Control for Select Sony/Canon Cameras The Libec ZFC-L LANC Zoom and Focus Control enables remote REC start/stop, zoom, and focus control for LANC-equipped Canon and Sony camcorders (certain models may have limited or no compatibility). It connects to the camcorder via a 2.3' long cable terminated with a 2.5mm sub mini plug. The zoom speed can be adjusted by tilting the rocker. Its inverted switch allows you to control the zoom direction. The control unit features a clamp that easily mounts onto pipes up to 1.8" in diameter.
In the Box Bundle Items TH-X Head and Tripod System wdywcuvtww ZFC-L LANC Zoom and Focus Control for Select Sony/Canon Cameras Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Libec TH-X Video Tripod System with ZFC-L LANC Remote Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Libec TH-X Video Tripod System with ZFC-L LANC Remote Control can be downloaded in PDF format at the link stated below.
Technical parameters - TH-X Head and Tripod System
| | | Ball Diameter | 65 mm | | Counter Balance System | Fixed | | Tilt Drag | Fixed | | Tilt Range | +90° / -80° | | Pan Range | 360° | | Temperature Range | -4 to 140°F / 20 to 60°C | | Sliding Range | ±1.2" / ±30 mm | | Plate Attachment | 1/4"-20 screw with register pin | | | | Material | Aluminum | | Head Attachment Fitting | 65 mm bowl diameter | | Leg Stages | 2-stage (3-section) | | Lock Type | Twist | | Feet | Rubber | | Spreader | Mid-level brace | | | | Load Capacity | 9 lb / 4.1 kg | | Maximum Height | 62.6" / 159 cm | | Minimum Height | 29.7" / 75.4 cm | | Folded Length | 29.7" / 5.4 cm | | Weight | 6.9 lb / 3.1 kg | | | | Box Dimensions (LxWxH) | 32.3 x 8.0 x 7.5" | - ZFC-L LANC Zoom and Focus Control for Select Sony/Canon Cameras
| Functions | Record Start/Stop Button
Zoom Rocker (Continuous Variable Zooming)
Inverted Switch (Reversing the Zoom Direction)
Focus Button
Note: Certain models are not compatible with the variable zooming function. | | Connectors | 2.5 mm Sub Mini Plug | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Clamping Width | 0.4 to 1.8" / 1.0 to 4.5 cm | | Cable Length | 2.3' / 70 cm | | Dimensions | 3.1 x 2.2" / 8.0 x 5.5 cm | | Weight | 0.3 lb / 0.12 kg | | | | Box Dimensions (LxWxH) | 3.7 x 3.65 x 3.65" |
