User Manual for Light & Motion GoBe S 500 Spot Waterproof Flashlight Click to enlarge the picture
Contents of the user manual for the Light & Motion GoBe S 500
- Product category: Dive Lights Light & Motion
- Brand: Light & Motion
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Light & Motion Dive Lights
 |
User manual for the Light & Motion GoBe S 500 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Light & Motion product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Light & Motion user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Light & Motion product will considerably shorten its lifespan!
|

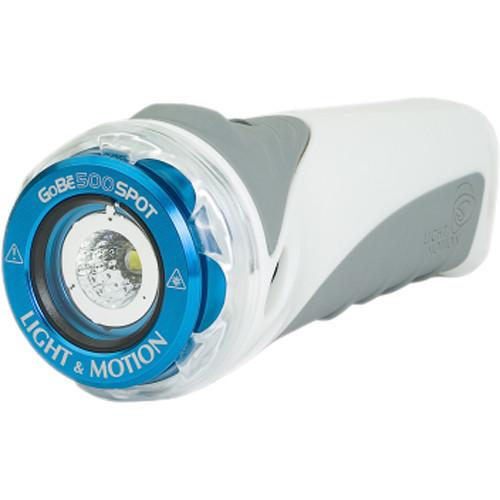

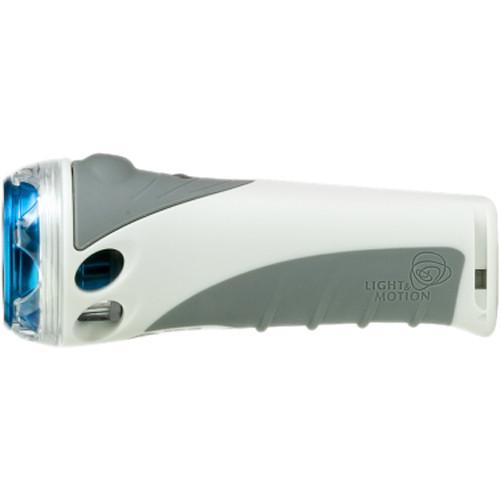

Product description Explore the great outdoors and illuminate the underwater world at depths as great as 394' with the compact, blue/gray and white Light & Motion GoBe S 500 Spot Waterproof Flashlight. Its single CREE LED outputs 70-500 lumens in three selectable levels, and can also be set to SOS mode for emergency signaling. Power is provided by a rechargeable lithium-ion battery pack, which gives the light a run time of 1.5-12 hours depending on the brightness level.
The GoBe's narrow, concentrated 10° beam eliminates hot spots, and is great for use as a bike light, a focusing aid, or a secondary dive light for exploring tight spaces in caves or coral reefs. Built for durability, the light has an impact- and corrosion-resistant polycarbonate housing to protect it against drops and bumps. - Light Performance
-
- Light source: CREE LEDs
- Outputs: 70, 225, and 500 lumens
- Run time: 1.5 hours at 500 lumens, 3.0 hours at 225 lumens, and 12 hours at 70 lumens with supplied, rechargeable li-ion battery
- Extended Runtime mode outputs 35 lumens for up to 24 hours
- SOS mode with 70-lumen output can send emergency signal for up to 36 hours
- Features narrow, concentrated 10° beam, which eliminates hot spots for smooth, even coverage and allows for maximum beam distance
- Tight coverage angle makes GoBe a great bike light, focusing aid, or secondary dive light for exploring small spaces, such as underwater caves or coral reefs
- Switching System
-
- Push-button switch right behind light head for powering on/off and cycling through output modes
- Construction Details
-
- Depth rating: 394'
- Sealed at factory for flood-free performance

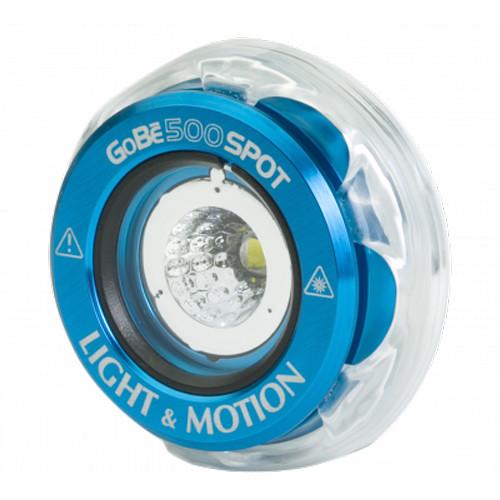

- Interchangeable light heads
- Corrosion-resistant polycarbonate housing also has FL-1 Certification for impact resistance based on ANSI-NEMA testing
- Glass emitter window
- Ergonomic shape and ridges on bottom for comfortable, secure grip
- Various mounting options, including bar, camera housing's grip handle, ball mount, and Locline system
UPC: 812190017429 In the Box Light & Motion GoBe S 500 Spot Waterproof Flashlight (Blue/White) Rechargeable Li-Ion Battery USB Charging Cable Lanyard Limited 2-Year Warranty (6 Months on Battery) Table of Contents
|
Upload User Manual
Have you got an user manual for the Light & Motion GoBe S 500 Spot Waterproof Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLight & Motion GoBE S 500 Specs | Depth Rating | 394' / 120 m | | Light Source | 1x CREE LED | | Light Output | Extended Runtime Mode: 35 Lumens
SOS: 70 Lumens
Low: 70 Lumens
Medium: 225 Lumens
High: 500 Lumens | | Beam Angle | 10° | | Color Temperature | Approx. 5500-6500 K | | Run Time | SOS: 36 hr
Extended Runtime Mode: 24 hours
Low: 12 hours
Medium: 3 hours
High: 1.5 hours | | Switching System | Push-button switch | | Material of Construction | Housing/Body: Polycarbonate
Emitter Window: Glass | | Power | Rechargeable, 2.6 Ah lithium-ion battery pack
USB charging cable for connection to computer or wall unit
Charge time: 4.5 hours | | Dimensions | 4.9 x 1.9" / 12.4 x 4.8 cm | | Weight | 6.1 oz / 172 g | | | | Package Weight | 0.59 lb | | Box Dimensions (LxWxH) | 8.8 x 3.6 x 2.2" |
