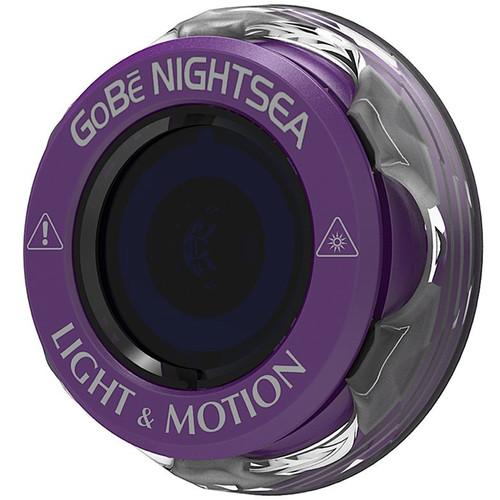

User Manual for Light & Motion NightSea LED Head for GoBe Dive Lights Click to enlarge the picture
Contents of the user manual for the Light & Motion NightSea LED Head
- Product category: Lighting Accessories Light & Motion
- Brand: Light & Motion
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Light & Motion Lighting Accessories
|
User manual for the Light & Motion NightSea LED Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Light & Motion product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Light & Motion user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Light & Motion product will considerably shorten its lifespan!
|
Product description With Light & Motion's NightSea LED Head on your GoBe or GoBe+ Dive Light, you can excite coral and other underwater organisms to make them emit a brilliant fluorescent glow. The light outputs 100-750mW in three levels, and features a dark blue color close to the edge of the visible spectrum. By placing the attached, flip-down phosphor filter over the emitter window, you change the light to a standard white beam for normal illumination and underwater color correction. This is the light head only, without the required body.
A tight coverage angle of 20° ensures that a focused, concentrated beam hits the coral, fish, and other organisms for maximum effect. It's highly recommended that you pick up a yellow barrier filter to put over your dive mask, in order to block the blue light emitted by the NightSea while allowing the fluorescent glow of the sea life to be observed in brilliant colors. If capturing images or video with your camera, put another barrier filter over your lens or lens port.
The GoBe light with this head is submersible to 394', giving you plenty of room to explore the ocean's mysterious depths. The NightSea is powered by the GoBe body's rechargeable lithium-ion battery, which provides a run time of 2-16 h depending on the output setting selected. - Light Performance
-
- Produces deep, dark blue light designed for illuminating proteins in certain coral, fish, other organisms, and minerals, which emit a fluorescent glow in response to stimulation by specific wavelengths
- Output: 100, 350, and 750mW with rechargeable li-ion battery included with GoBe and GoBe+ bodies
- Run time: 2 h at 750mW, 4 h at 350mW, and 16 h at 100mW with GoBe body's rechargeable lithium-ion battery; run times increased by 30% when using more powerful battery supplied with GoBe+
- Flipping down attached phosphor filter and placing it over emitter window changes beam to white light for normal illumination and color-correction
- Beam angle is a tight 20°, ensuring a focused, concentrated beam hits the coral, fish, and other organisms for maximum effect
- When using white light, tight beam makes great focusing aid or secondary dive light for exploring small spaces, such as nooks and crannies in caves and reefs
- Features SOS mode for emergency signaling
- Optional Barrier Filters
-
- Placing optional yellow barrier filter over dive mask will block blue light emitted by NightSea, while allowing fluorescent glow of sea life to be observed in brilliant colors
- If capturing images or video with camera, put another barrier filter over lens or lens port to record fluorescence
- Switching System
-
- Push-button switch on GoBe light body for turning on/off and cycling through output modes
- Construction Details
-
- Depth rating: 394'
- Glass emitter window
In the Box Light & Motion NightSea LED Head for GoBe Dive Lights Phosphor Filter Head Splash Cap Spare O-Ring Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Light & Motion NightSea LED Head for GoBe Dive Lights in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLight & Motion 804-0179-A Specs | Depth Rating | 394' / 120 m | | Light Source | LED | | Light Output | Dark Blue Light
Low: 100 mW
Medium: 350 mW
High: 750 mW
White Light: Not specified by manufacturer | | Beam Angle | 20° | | Color Temperature | Dark Blue Light: Not applicable
White Light: Not specified by manufacturer | | Run Time | With Required GoBe Body and Battery:
Low: 16 h
Medium: 4 h
High: 2 h
Run times increased by 30% when using more powerful battery in GoBe+ | | Switching System | Push-button switch on GoBe light body | | Material of Construction | Emitter Window: Glass | | Power | Runs on GoBe's rechargeable lithium-ion battery |
