User Manual for Light & Motion Sidekick Duo LED Light for GoPro Click to enlarge the picture
Contents of the user manual for the Light & Motion Sidekick Duo LED
- Product category: Lights Light & Motion
- Brand: Light & Motion
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Light & Motion Lights
 |
User manual for the Light & Motion Sidekick Duo LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Light & Motion product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Light & Motion user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Light & Motion product will considerably shorten its lifespan!
|
Product description - Sidekick - Before And After

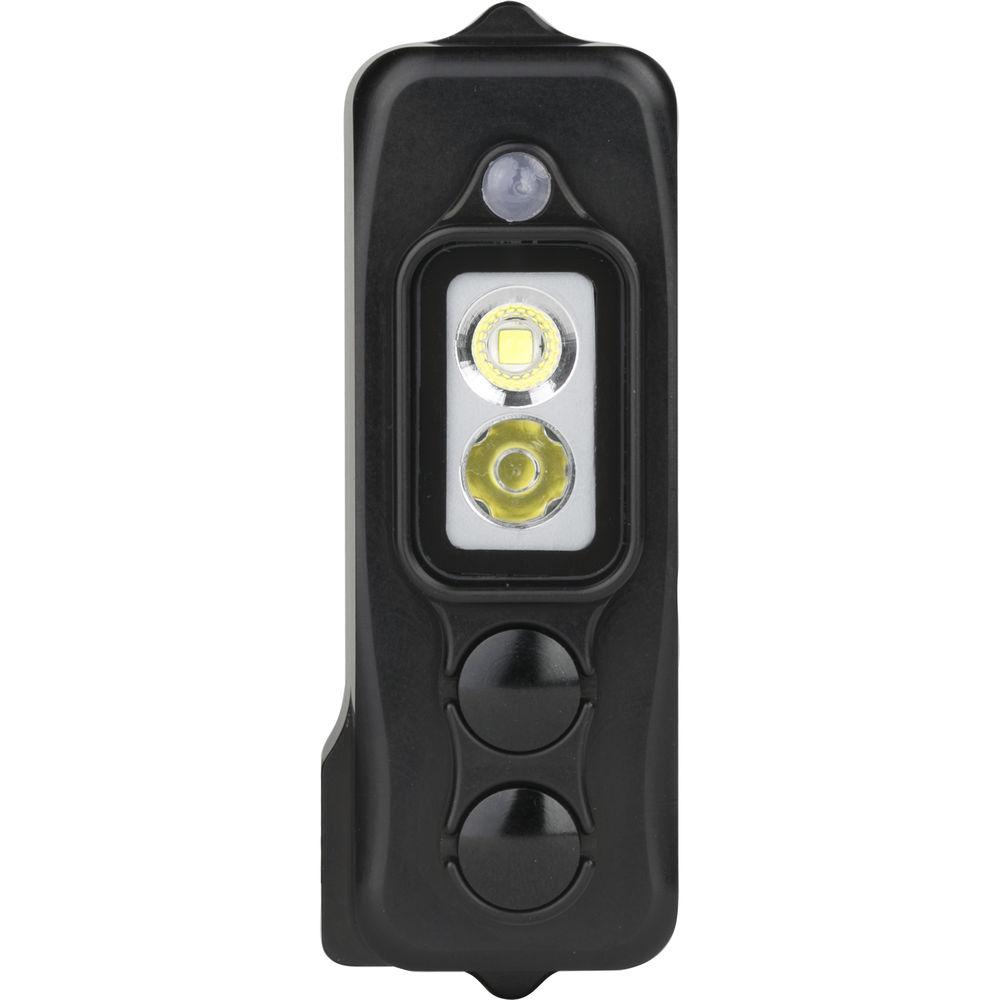

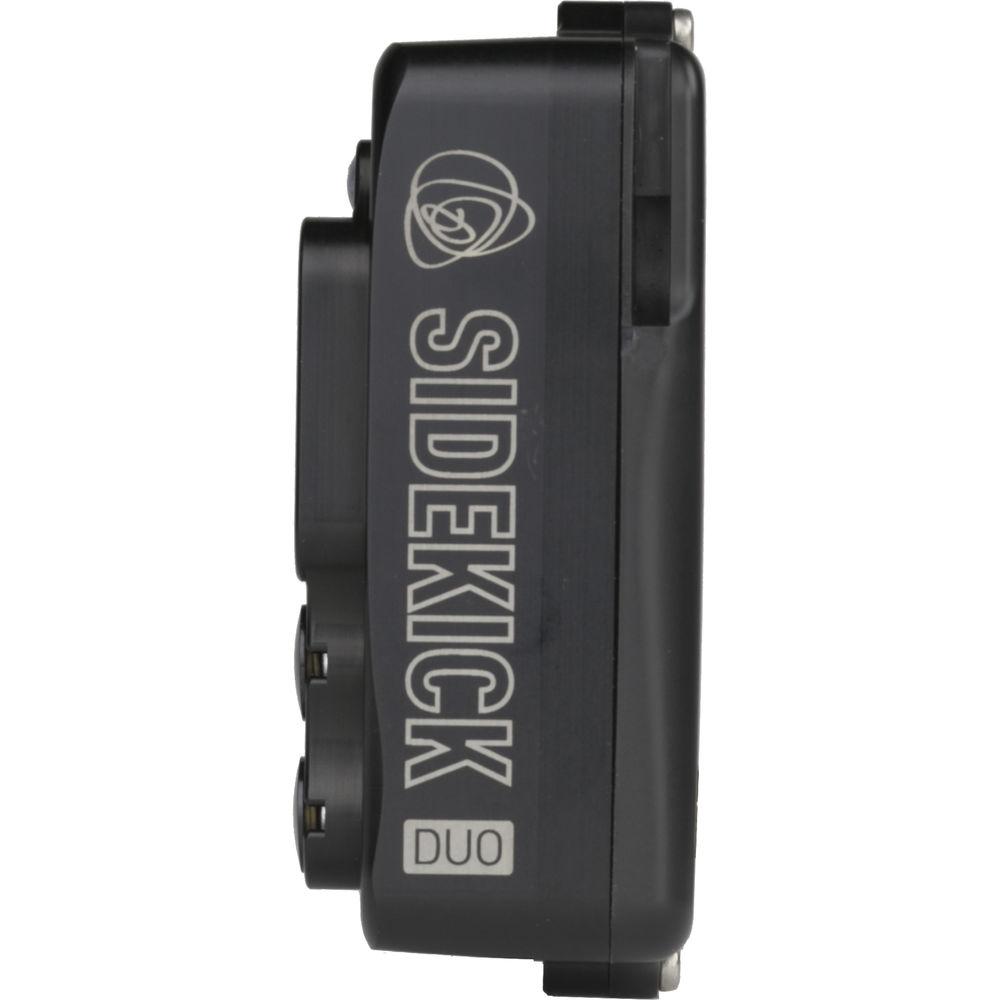

The black Sidekick Duo from Light & Motion is a compact, yet powerful LED light for the GoPro that attaches to your existing GoPro mounts, letting it accompany your camera no matter where the action takes you -- even underwater, thanks to its factory-sealed design that is waterproof to depths of 197'. The light features switchable/adjustable spot and flood modes that gives you the flexibility to control the amount and type of light to suit your POV footage. It provides a 90° flood and 23° spot beam angles above water, and 60° flood and 12° spot beam angles underwater. To adapt to the situation at hand, the light output is adjustable from high, medium, and low output levels, with a maximum output of 600 lumens in flood mode and 400 lumens in spot mode. A two button system makes it easy to switch between modes.

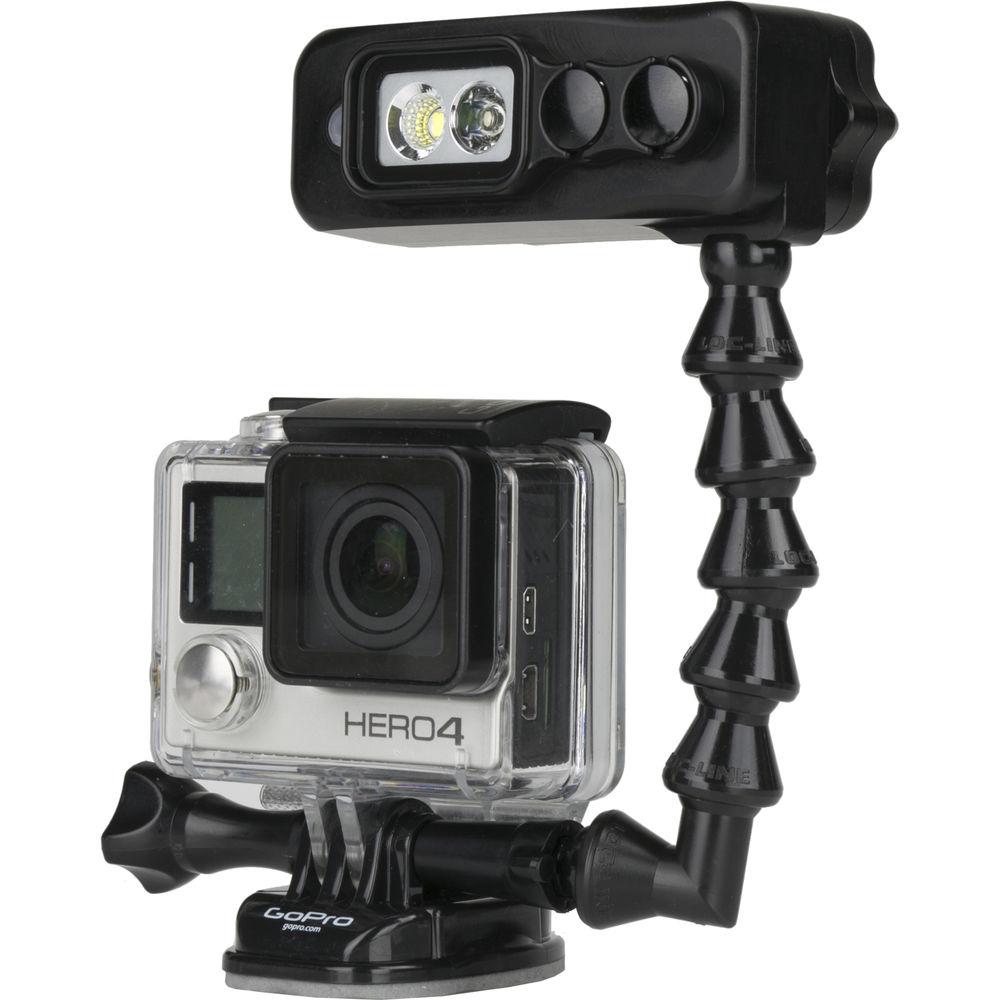

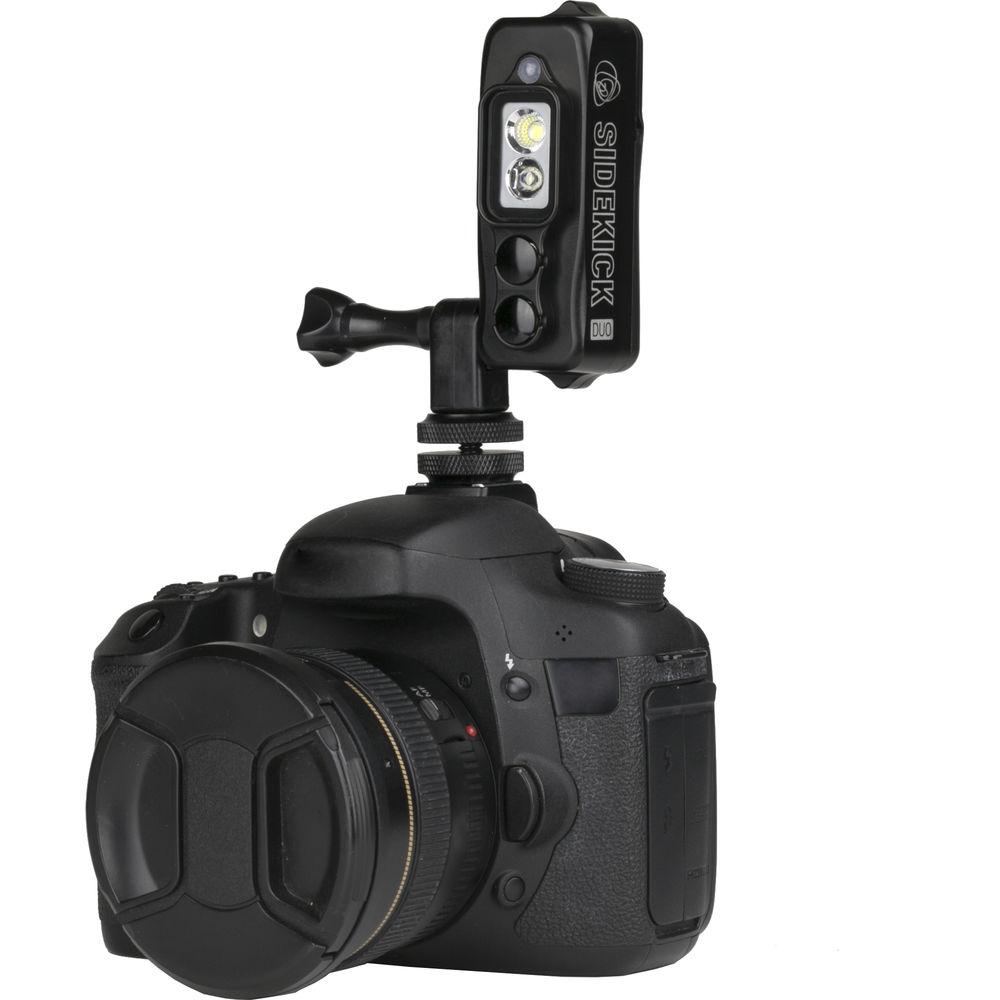

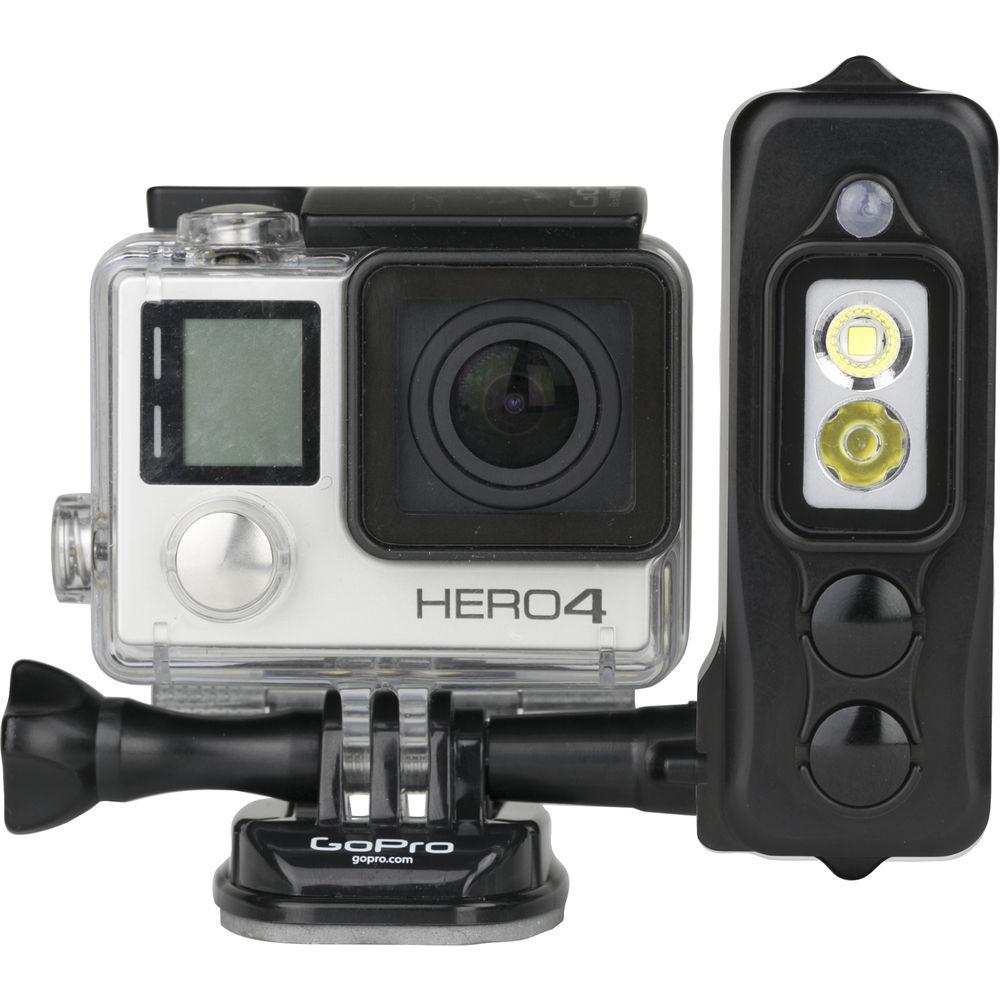

The Sidekick uses a simple bolt extender to attach to the opposite side of a GoPro thumbscrew, making the Sidekick compatible with virtually every GoPro mount. Out-of-the-box it mounts vertically on the side of the camera, but it can also be mounted above the camera using the optional Dive Arm Mount Kit. Other optional accessories include a Cold Shoe/Tripod Kit for mounting on a DSLR or tripod, and a GoPro Mount Adapter for direct mounting to a GoPro three-prong mount.
Weighing less than the GoPro itself, the Sidekick won't hinder your POV action footage. It is powered using an internal lithium-ion battery that enables continuous run times up to four hours in the Low output setting. The battery is recharged using an included charging cable that slides onto the Sidekick and plugs into any standard USB wall charger. Charging time for a depleted battery is approximately 4.5 hours. A colored LED indicator clearly displays battery levels during use and when charging. - FL-1 Certification
- The Sidekick meets the ANSI/NEMA FL-1 Standard, a testing protocol to scientifically measure a light's brightness, run-time, and water/impact resistance.
- Key Features
-
- 90° Flood / 23° Spot Beam Angles
- 600 Lumen Flood / 400 Lumen Spot Output
- Uses Cree LEDs
- Regulated output; doesn't dim during use
- 197' waterproof
- 3.3' impact resistant
- Two-button user interface
- Bolt extender for attachment to GoPro mounts
- LED battery level/charging indicator light
- 1 to 4 hour run-time
- USB charging cable included
UPC: 812190017306 In the Box Light & Motion Sidekick Duo LED Light for GoPro (Black) GoPro Bolt Extender USB Charging Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Light & Motion Sidekick Duo LED Light for GoPro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLight & Motion 856-0575-A Specs | Beam Angle | Flood: 90° (60° underwater)
Spot: 23° (15° underwater) | | Lumens | Flood
High: 600
Med: 300
Low: 150
Spot
High: 400
Med: Not specified by manufacturer
Low: Not specified by manufacturer | | Waterproof Depth | 196.85' (60 m) | | Impact Resistance | 3.28' (1 m) | | Battery Type | Rechargeable lithium-ion (USB charging cable included) | | Battery Run Time | High: 60 minutes
Med: 120 minutes
Low: 240 minutes | | Dimensions | 3.2 x 1.2 x 1.5" | | Weight | 4.3 oz (123 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 6.4 x 1.4 x 1.4" |
