User Manual for Light & Motion SOLA Dive Laser 600 FC LED Light Click to enlarge the picture
Contents of the user manual for the Light & Motion SOLA Dive Laser
- Product category: Dive Lights Light & Motion
- Brand: Light & Motion
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Light & Motion Dive Lights
 |
User manual for the Light & Motion SOLA Dive Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Light & Motion product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Light & Motion user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Light & Motion product will considerably shorten its lifespan!
|

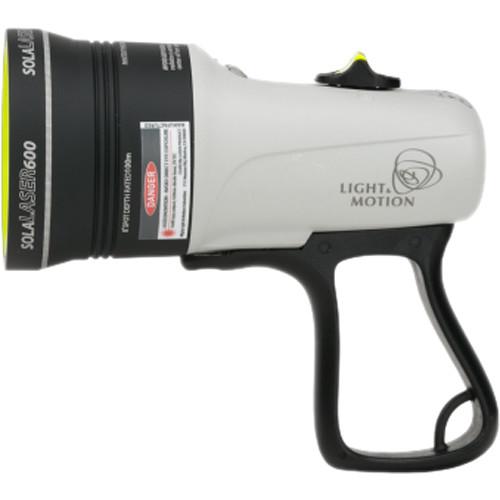

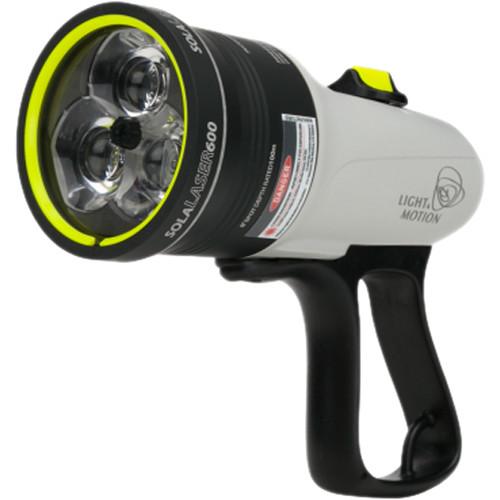

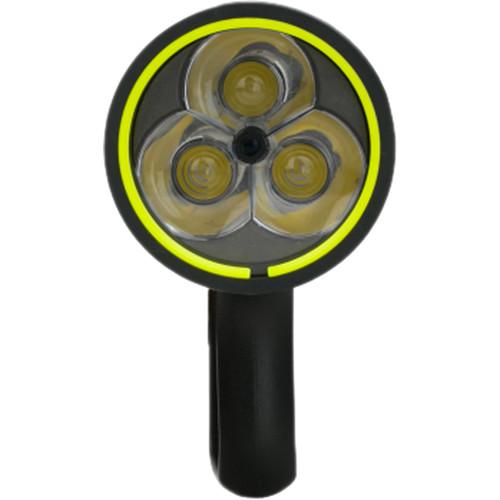

Product description If you long to illuminate and explore the underwater world at depths as great as 328', Light & Motion's white SOLA Dive Laser 600 FC LED Light is here for you. What separates this model from other dive lights is the green laser diode in the center of the white light beam, which makes it easy to point out details and send signals to your partners.
The Laser 600 FC's LED outputs 150-600 lumens in three selectable levels, and provides a narrow, concentrated 8° spot beam for focusing and examining tight spaces, such as nooks and crannies in reefs and caverns. Power is provided by a rechargeable lithium-ion battery pack, which gives the light a run time of 2-8 hours in the constant modes, depending on the brightness level. In SOS mode, the LED will last for up to 20 hours, giving you nearly a full day's worth of use. A sliding thumb switch on the SOLA's body enables you to power the light on and off and select output modes. - Light Performance
-
- Light source: LED
- Outputs: 150 lumens on low (and in SOS mode), 300 lumens on medium, and 600 lumens on high setting
- Narrow, concentrated 8° spot beam great for exploring tight spaces, such as nooks and crannies in coral reefs and caves
- Green laser diode in center of white light beam for pointing out details and sending signals to dive partners
- Laser can also be used without white light
- Run time: 2 hours on high, 4 hours on medium, 8 hours on low, and 20 hours in SOS mode with included, rechargeable li-ion battery
- Battery can be restored to full power in about 1.5 hours via supplied charger
- Switching System
-
- Sliding thumb switch on body for powering on/off and selecting output modes
- Construction and Handling Details
-
- Depth rating: 328'
- Sealed at factory for flood-free performance
- Pistol grip
- D-Ring kit for buoyancy control device
- Optional ballistic cordura nylon hand mount, consisting of horizontal grip and strap, lets you place light on back of hand--leaving fingers free to hold camera, climb a ladder, or perform other tasks
- Optional Goodman Handle adapter, T-handle, and Kirby Morgan helmet mount
- Optional 1" ball, 3/4" Locline, and YS-type mounts for attachment to lighting arms for photo and video
- Aluminum heat sink absorbs excessive heat, allowing for efficient operation in extreme water temperatures and even in open air for several minutes
In the Box Light & Motion SOLA Dive Laser 600 FC LED Light (White) Rechargeable Li-Ion Battery 12V Power Supply Zippered Bag Pistol Grip Limited 2-Year Warranty (6 Months on Battery) Table of Contents
|
Upload User Manual
Have you got an user manual for the Light & Motion SOLA Dive Laser 600 FC LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLight & Motion SOLA Dive Laser 600 Specs | Depth Rating | 328' / 100 m | | Light Source | LED | | Light Output | Low: 150 Lumens
Medium: 300 Lumens
High: 600 Lumens
SOS: 150 lumens | | Beam Angle | 8.0° | | Color Temperature | Not specified by manufacturer | | Run Time | High: 2 hours
Medium: 4 hours
Low: 8 hours
SOS: 20 hours | | Switching System | Sliding switch for power on/off and mode selection | | Material of Construction | Not specified by manufacturer | | Power | Rechargeable lithium-ion battery (included)
12 V power supply (included)
Charging Time: 1.5 hours
Low-battery warning and auto heat-sensing shut-off | | Status Indicator | Colored indicator lights for battery and mode | | Mounting | Pistol grip (included)
D-Ring kit for buoyancy control device (included)
Optional ballistic cordura nylon hand mount, Goodman Handle adapter, T-handle, Kirby Morgan helmet mounts
Optional 1.0" ball, 3/4" Locline, and YS mounts for photo/video | | Dimensions | Length x Diameter: 5.1 x 2.1" / 13 x 5.3 cm | | Weight | 11.9 oz / 336 g |
