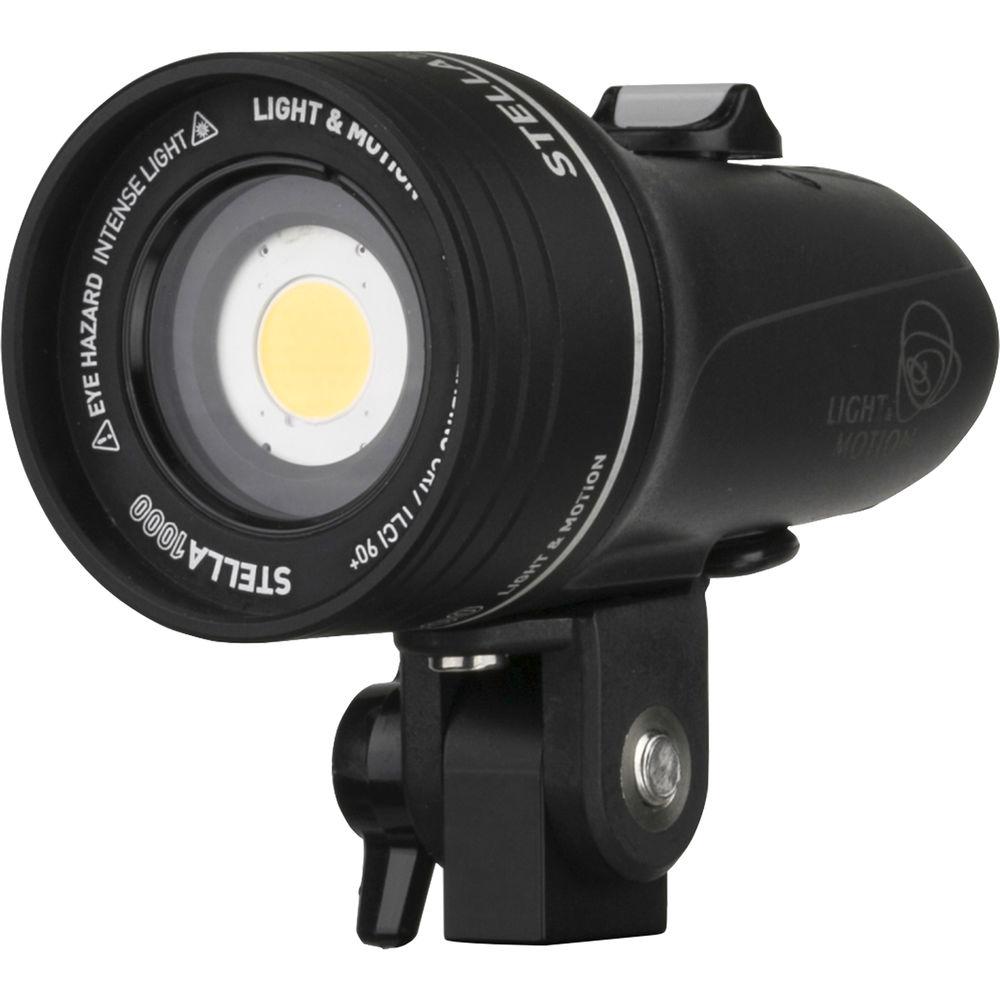

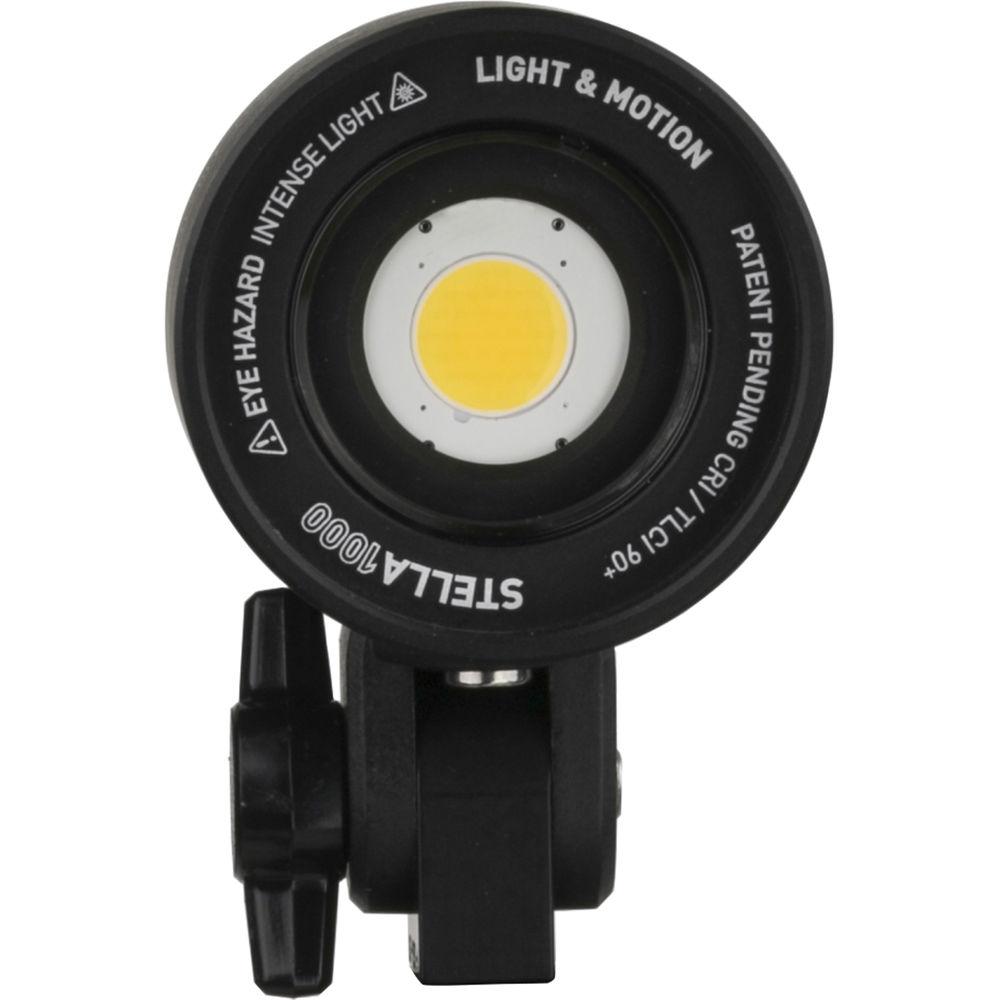

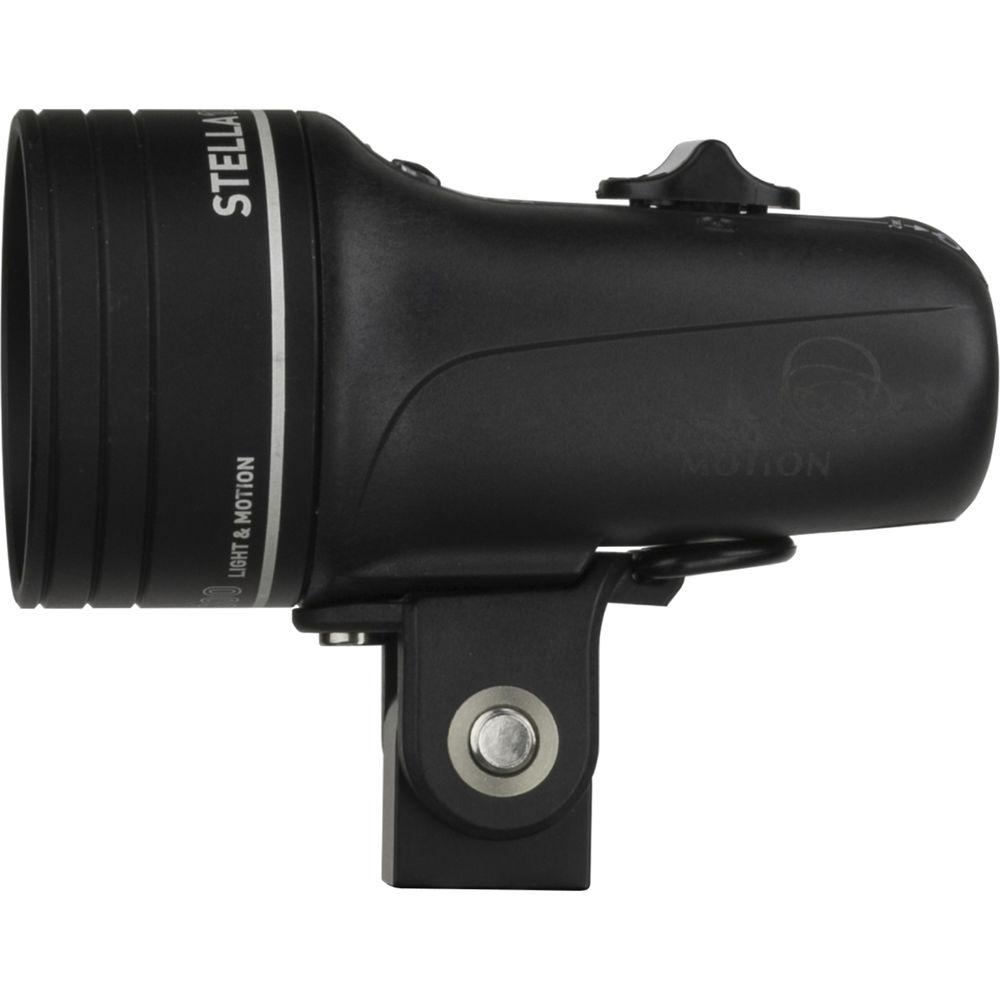

User Manual for Light & Motion Stella 1000 2500 UW Hybrid LED Light Click to enlarge the picture
Contents of the user manual for the Light & Motion Stella 1000 2500
- Product category: LED Lights Light & Motion
- Brand: Light & Motion
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Light & Motion LED Lights
 |
User manual for the Light & Motion Stella 1000 2500 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Light & Motion product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Light & Motion user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Light & Motion product will considerably shorten its lifespan!
|
Product description Light & Motion has pushed the envelope with the introduction of the 5600K Stella 1000 / 2500 UW Hybrid LED Light. Like other lights in the Stella series, this 4.3 x 2.2 x 2.2", 9.7 oz fixture is IP68 rated, making it waterproof and submersible to 328'. But there's a unique twist - the fixture has the ability to illuminate underwater at a full 2500 lumens and transitions seamlessly to topside use at 1000 lumens, making the Stella 1000 / 2500 UW Hybrid ideal to mount on both topside cameras and underwater camera rigs. When using out of the water, Boost Mood outputs a 30-second light intensity increase for situations that require just a little more light. The fixture is also durably built and can survive repeated dropping on concrete from a height of 3.3', The Stella 1000 / 2500 UW has a wide 120-degree beam that can be narrowed with the optional 50° focus optic or narrowed even tighter with the 25-degree Fresnel for selective lighting. The fan-free design is dead quiet for sound-sensitive locations, while the light is dimmable either continuously or in steps.The Stella 1000 / 2500 UW is powered by a built-in Li-ion battery that charges to full power in 2 hours and gives you a run time of 45 to 720 minutes depending on the power selected. You can also run the light from a D-Tap external battery source for longer shoots. Additionally, you can use mains power anywhere in the world thanks to the inclusion of a multi-voltage AC power supply. The Stella 1000 / 2500 UW also comes with a YS Mount and a cold-shoe mount to quickly and easily secure your light on a stand or for on-camera use. Benefits - Rugged Waterproof Construction
- Designed to perform in the most challenging environments - Stella is waterproof to a depth of 328' (IP68 Rating) and tested to resist repeated drops on concrete impacts on concrete from 3.28'.
- Boost Mode
- Boost Mode allows the light to run continuously at 2500 lumens in water plus it can provide a temporary boost in air for 30 +/- seconds enabling the perfect shot.
- Integrated Li-ion Battery
- The Stella can run completely cord-free for 45 to 720 minutes and because the battery is integrated into the device, Stella is permissible in both checked and carry-on luggage.
- -Multiple Power Options
- For longer shoots topside simply plug Stella into any AC or DC power source including Gold-mount/V-mount battery "bricks" (with optional D-Tap cable).
- 120° Native Beam Angle / (90° Underwater)

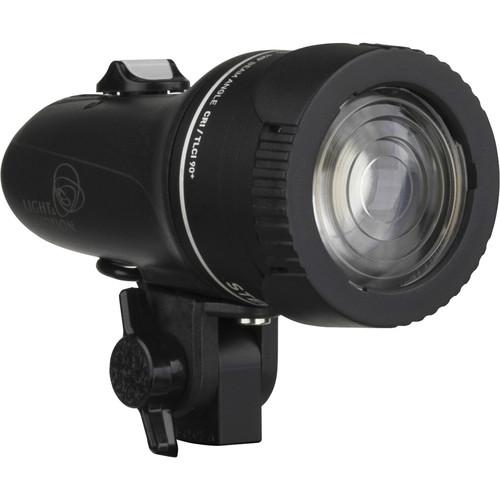

- Stella's light output can be easily focused to 25° with the included snap-on Fresnel Modifier.
- High Output COB "Chip on Board" LED
- The light's design eliminates the multi-shadow effect that can be a problem with panel-style light sources, while it also keeps Stella's footprint small.
- Benefits in Short
-
- Certified TLCI 93+, CRI 90+, CCT 5600K
- Output up to 1000 Lux at 3.28' Meter (113 Lux at 9.8') with Fresnel lens
- Boost mode runs continuously in water for 45 minutes; 30 seconds +/- in above water depending on air temperature
- Integrated rechargeable Li-ion battery provides 45-720 minutes of cord-free operation
- Sophisticated flicker-free firmware design
- Regulated lumen output - does not fade during use
- Dimming with continuous or stepped control
- Fan-free thermal management for silent operation
- Controlled beam angle from 120° (native) to 25° (with modifier)
- Colored LED indicators give accurate battery status

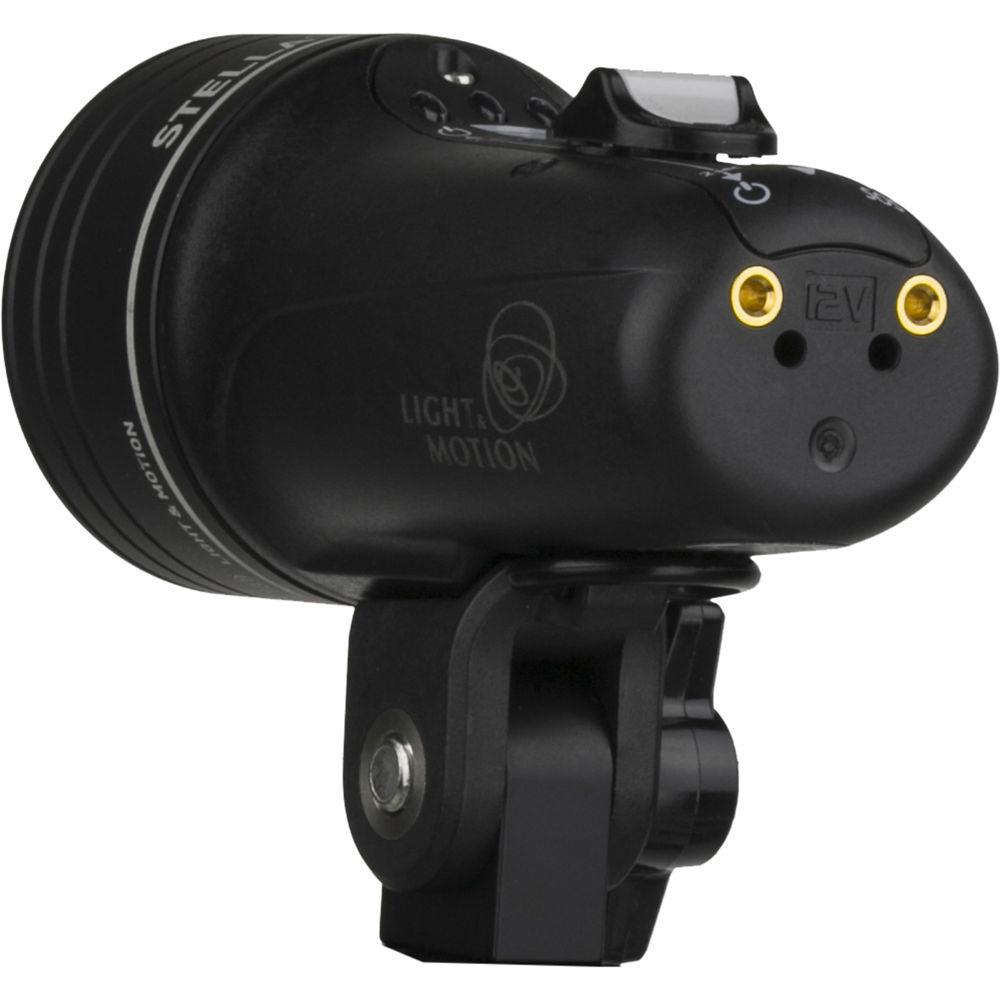

- Runs off wall power, D-Tap, 10.5-18V, external battery kits
- Fast full charge of 2 hours, 80% charged in 1 hour

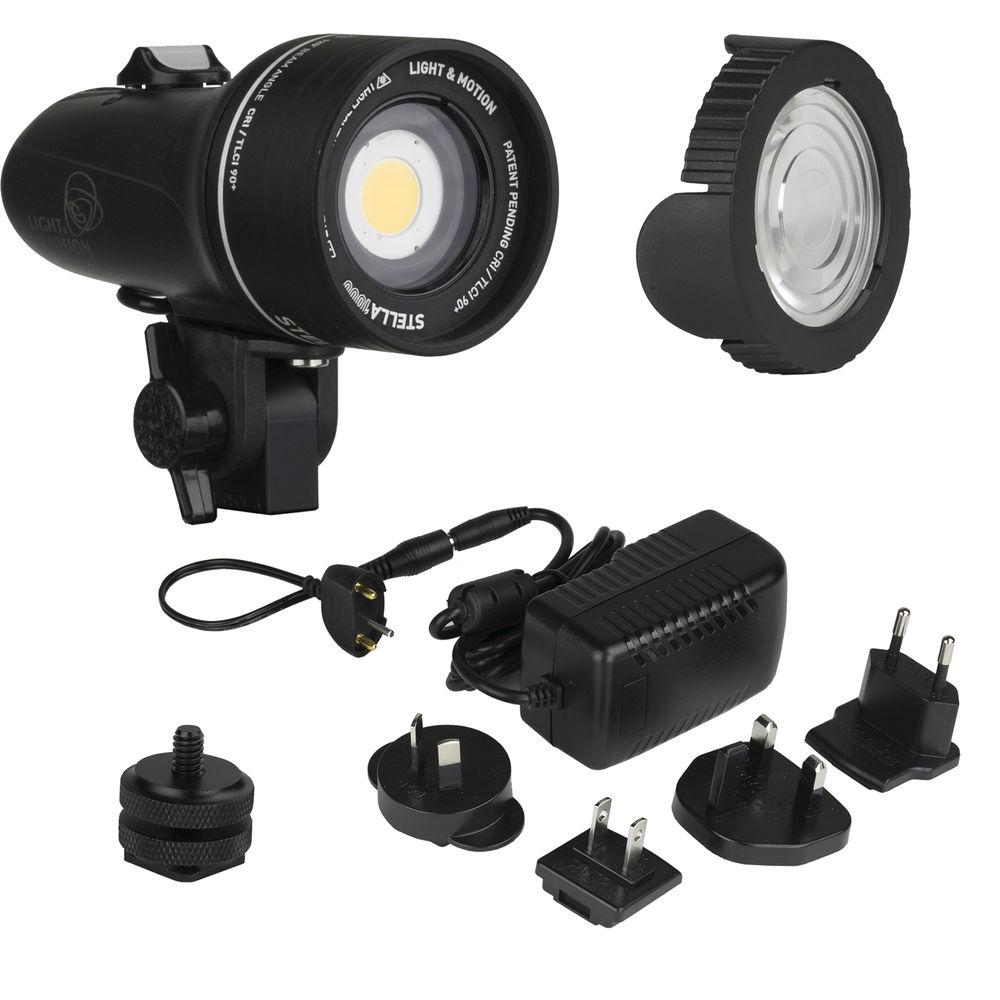

UPC: 891193000843 In the Box Light & Motion Stella 1000 / 2500 UW Hybrid LED Light YS Mount Kit for Stella 1000 and 2000 ercefbazrxqssrvbddcbwdueaftrbvabtf Cold Shoe Mount 1/4"-20 Adapter for Stella 1000/2000/5000 LED Lights Fresnel Lens for Stella 1000 LED Light 12V External Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Light & Motion Stella 1000 2500 UW Hybrid LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLight & Motion 1000/2500 UW Hybrid Specs | | | Beam Angle | 120° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 90
TLCI 93 | | Cooling System | Passive | | Dimming | Yes | | Display | None | | Lumens | 2500 | | Photometrics | 120° at 5600K:
10.5 fc / 113 lux at 9.84' / 3 m | | Fixture Dimensions | 4.3 x 2.2 x 2.2" / 110.0 x 56.0 x 56.0 mm | | Fixture Weight | 9.77 oz / 277 g | | | | Battery Plate | None | | Power Input Connector | D-Tap | | | | Yoke Mount | None | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 10.5 to 18 VDC | | Power Source | AC Adapter, External Battery, Integrated Battery | | Power Pass-Thru | None | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 8.0 x 5.7 x 5.5" |
