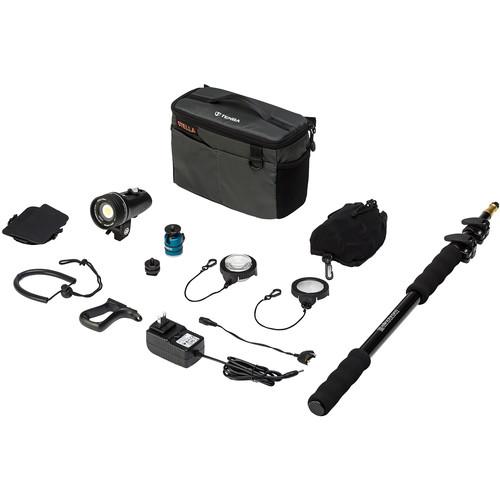

User Manual for Light & Motion Stella 1000 Action Kit 5600K

• Product category: LED Lights Light & Motion
• Brand: Light & Motion
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Light & Motion LED Lights

Product description

• Stella 1000 spLED 5600K LED Light
  • Stella Pro Lights for on-Location Adventure Filmmaking
  • Outdoor Photoshoot with Light & Motion Stella Lights

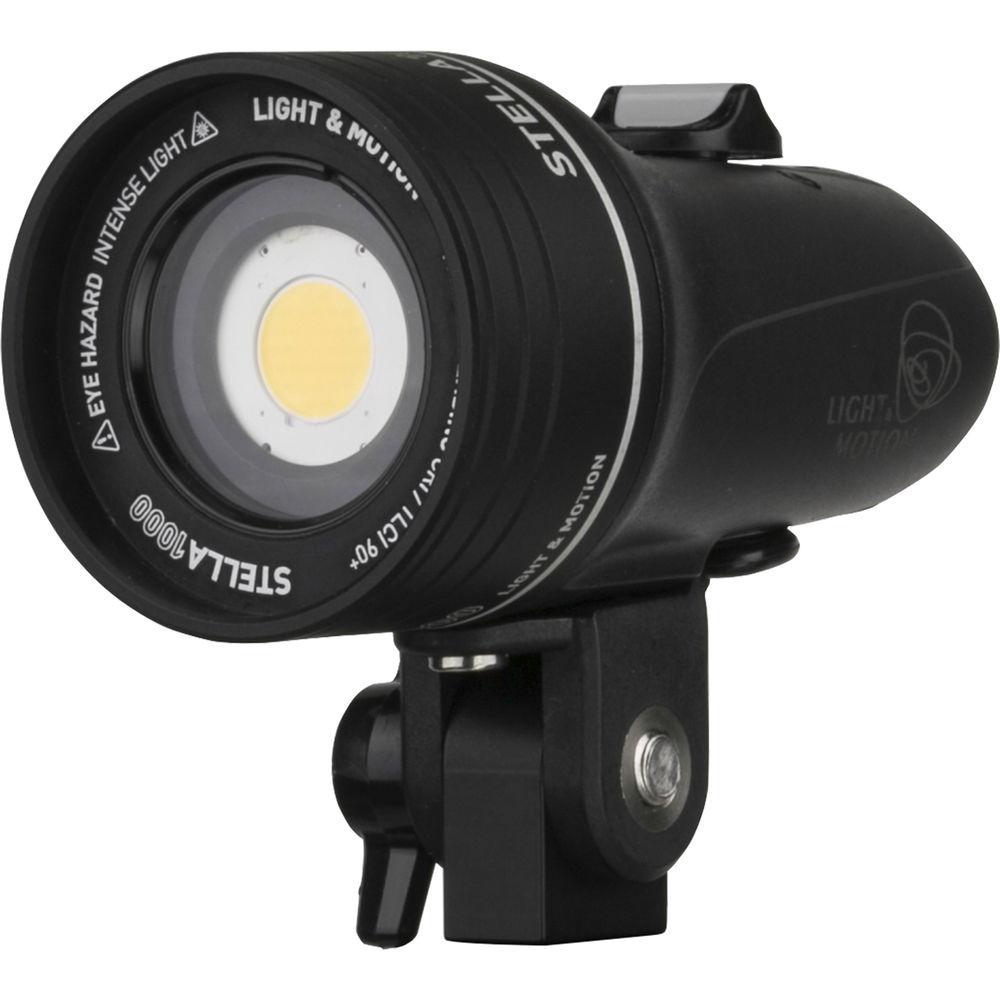

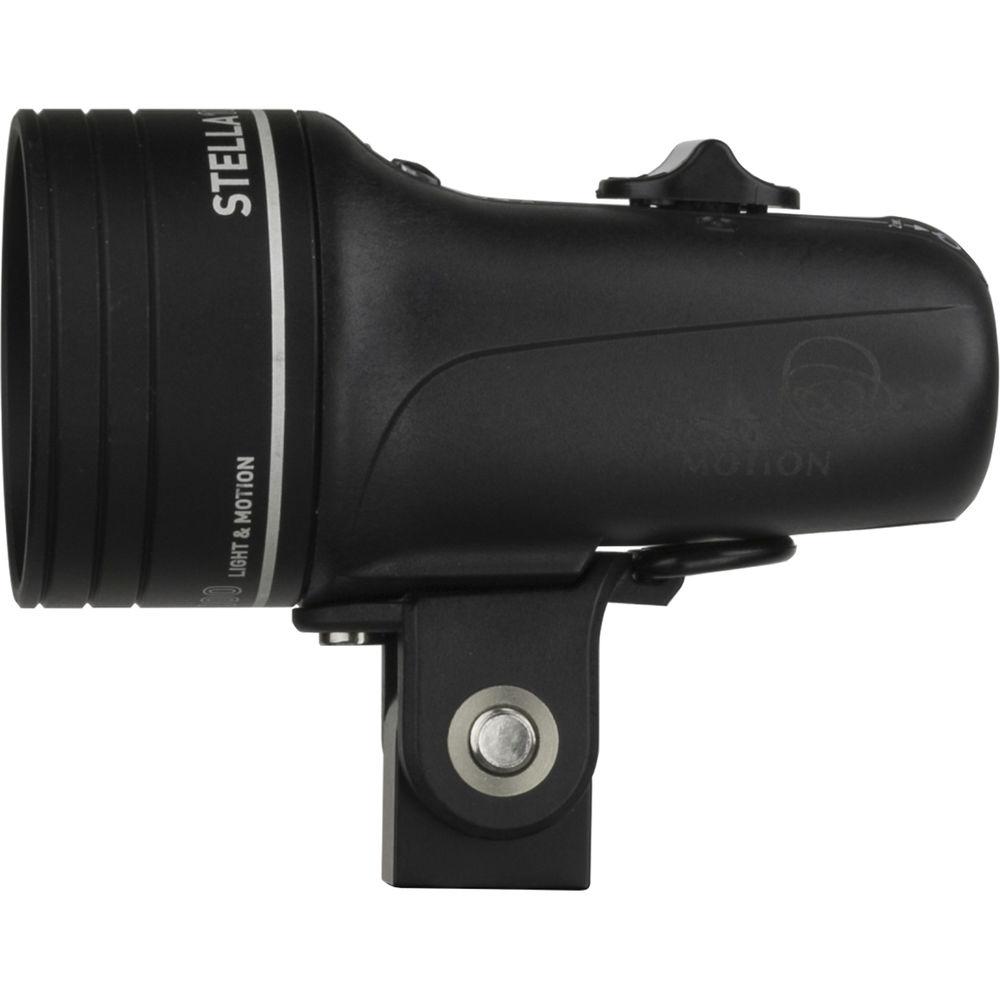

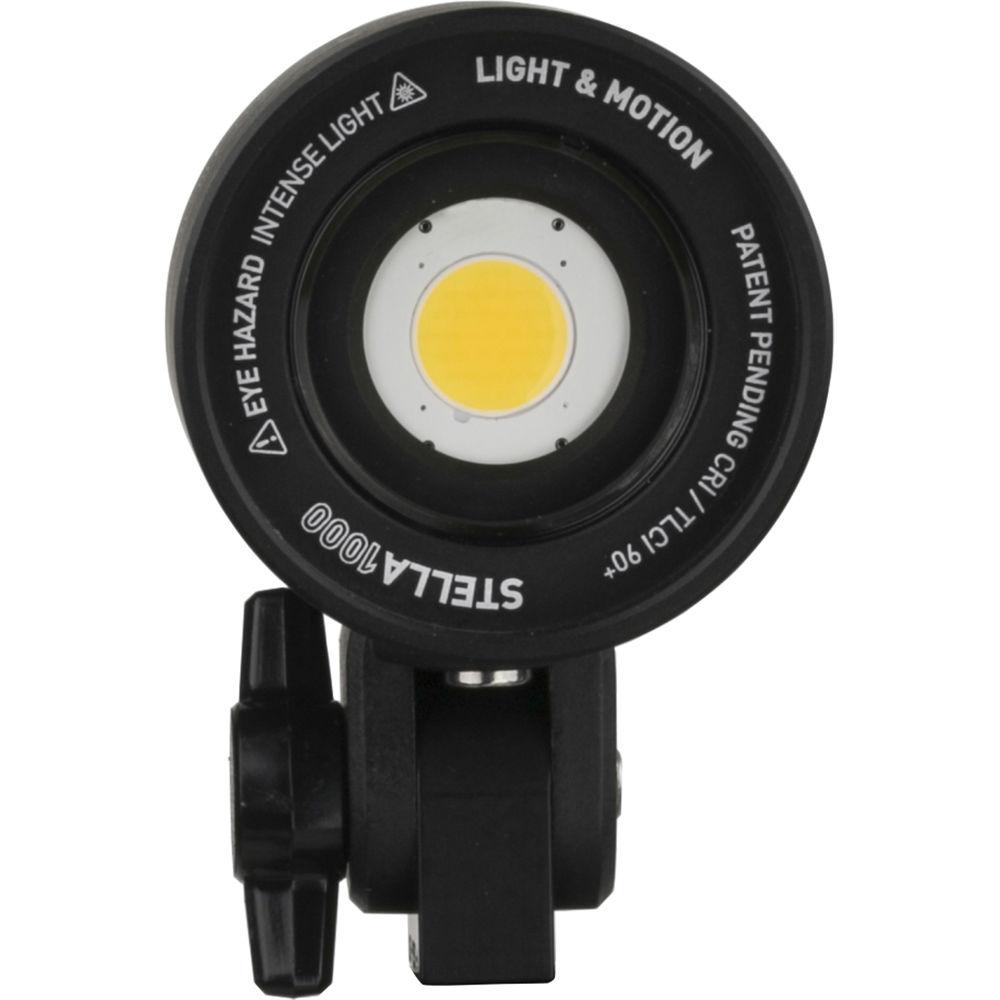

  The Stella 1000 spLED Light from Light & Motion is a daylight-balanced LED source that packs enough features to cause many users to call it their ideal on-camera source. The LEDsp designation indicates "single point" enhancements to the 18 emitters that Light & Motion has made to reduce the light field and eliminate multiple shadows that can plague LED fixturesFor location work, the Stella 1000 is hard to beat. With a very small form factor and weight of only 9.7 oz, it's barely noticeable in your kit case. What is noticeable is the clean, accurate color rendering output from the unit's flicker-free COB LED that gives it a rating of 90 CRI and 90 TLCI.The Stella 1000 has a wide 120-degree beam that can be narrowed with the included 25-degree Fresnel or softened with the diffuser. The fan-less design is dead quiet for sound-sensitive locations and is dimmable either continuously or in steps. And the housing is durably built. Not only can it survive repeated dropping on concrete from a height of 3.3', but it's also waterproof to depths of 328 feet!The unit is powered by a built-in battery that charges in 1.0 hr. to 80% and 1.75 hr. to full charge, giving you a run time of 90 - 700 minutes depending on the power selected. You can also run the light from a D-tap external battery source for longer shoots. Additionally, you can use mains power anywhere in the world thanks to the inclusion of a multi-voltage AC power supply. The Stella 1000 also comes with a cold shoe mount and a 1/4"-20 adapter.
  Benefits
  • • High Output "Chip on Board" LED
    • Certified TLCI 90, CRI 90, CCT 5600° Kelvin
    • Output up to 1000 lux at 3.28'
    • Integrated Rechargeable li-ion battery provides 90-700 minutes of cord-free operation
    • Sophisticated flicker-free firmware design
    • Regulated lumen output - does not fade during use
    • Dimming with continuous or stepped control
    • Fan-free thermal management for silent operation
    • Controlled beam angle from 120°
    • Broad range of accessories
    • Colored LED indicators give accurate battery status
    • Runs off wall power, D-tap, 12V, external battery kits
    • Fast Charge of 1.75 hours, 80% charged in 1 hour
    • Certified performance (FL-1 Standard)
  UPC: 812190019508
• Pistol Grip Light Handle For Stella 1000, 2000, and Sola Dive The Pistol Grip Light Handle from Light and Motion allows the Stella 1000, 2000, and Sola Dive fixtures to be hand-held in a comfortable upright position. A wrist lanyard is included to prevent dropping. UPC: 812190013292

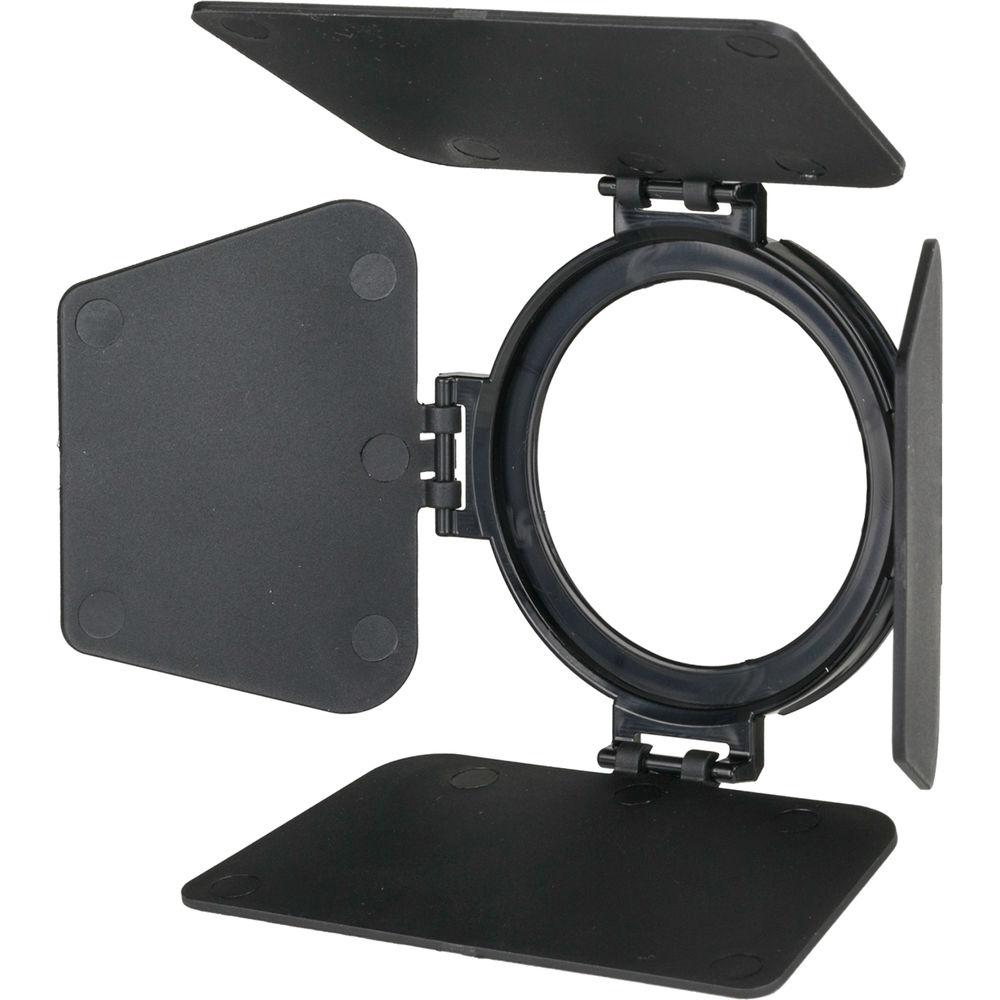

• Barndoor Modifier Set for Stella 1K The 4-leaf Barndoor Modifier Set for Stella 1K from Light & Motion controls spill light while it allows you to shape the fixture's light beam by swinging one or all the leaves into it. Made of lightweight ABS plastic, the barndoors are especially valuable for selective lighting to illuminate only the areas of your subject that you want to. UPC: 812190018068

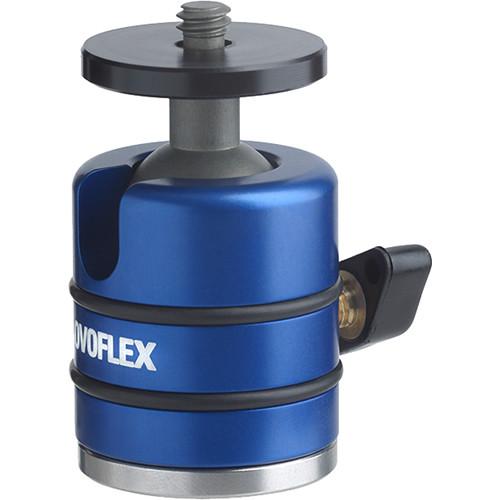

• BALL19 Small Ball Head with 1/4"-20 Screw The Novoflex BALL19 Small Ball Head is a compact and extremely strong ball head. It features a 1/4"-20 camera screw, and is ideal for point and shoot or small digital cameras. It can also be used in combination with the many innovative Novoflex accessories that use a 1/4"-20 male screw.
• EL Handheld Boom Arm (25-61") The Elinchrom EL Handheld Boom Arm (25-61") has a rubberized handgrip and can be used to extend lights up to 5.1' (156 cm). This is a more precise, flexible way to position lighting gear (even with umbrellas or softboxes) than placing it on stands, and it takes up less floor space as well. The two sections of the EL-Boom Arm can be quickly adjusted with the clip-locks. The standard spigot mount fits Elinchrom flash heads and the Ranger Quadra heads. The arm will hold approximately 4.4 lb (2 kg).
  • Minimum length: two sections, 24" (63 cm) each
  • Rubberized handgrip
  • Profiled aluminum tubes
  • Standard spigot for EL-Flashheads and the Ranger Quadra heads
  • Maximum extension: 5.1' (156 cm)
  UPC: 719821323402
• BYOB/Packlite 9 Flatpack Bundle with Insert and Packlite Bag (Black and Gray) Brought together by the popular demand of photographers and filmmakers, the black and gray BYOB/Packlite 9 Flatpack Bundle with Insert and Packlite Bag from Tenba. The Camera Insert is designed to carry and protect a camera and gear inside other non-camera bags including larger backpacks, suitcases or handbags. Its soft outer shell molds to the shape of a variety of carry bags. The BYOB 9 will hold a mirrorless camera or compact DSLR with 2-3 lenses and accessories. Padded interior dividers are adjustable to fit multiple configurations and soft brushed tricot lining does not scratch your equipment.

  The insert features a zippered top cover that can be folded back and stowed to allow easy access to your gear and a handle for carrying and quick removal of the insert. Stretchy mesh pockets provide a place to store mobile phones, camera and lens accessories or other items and zippered interior pockets can secure smaller more valuable items. In addition there are front and rear pockets for additional accessories and a D-ring to attach keys, a carabiner or tethered media wallet. UPC: 026815362829

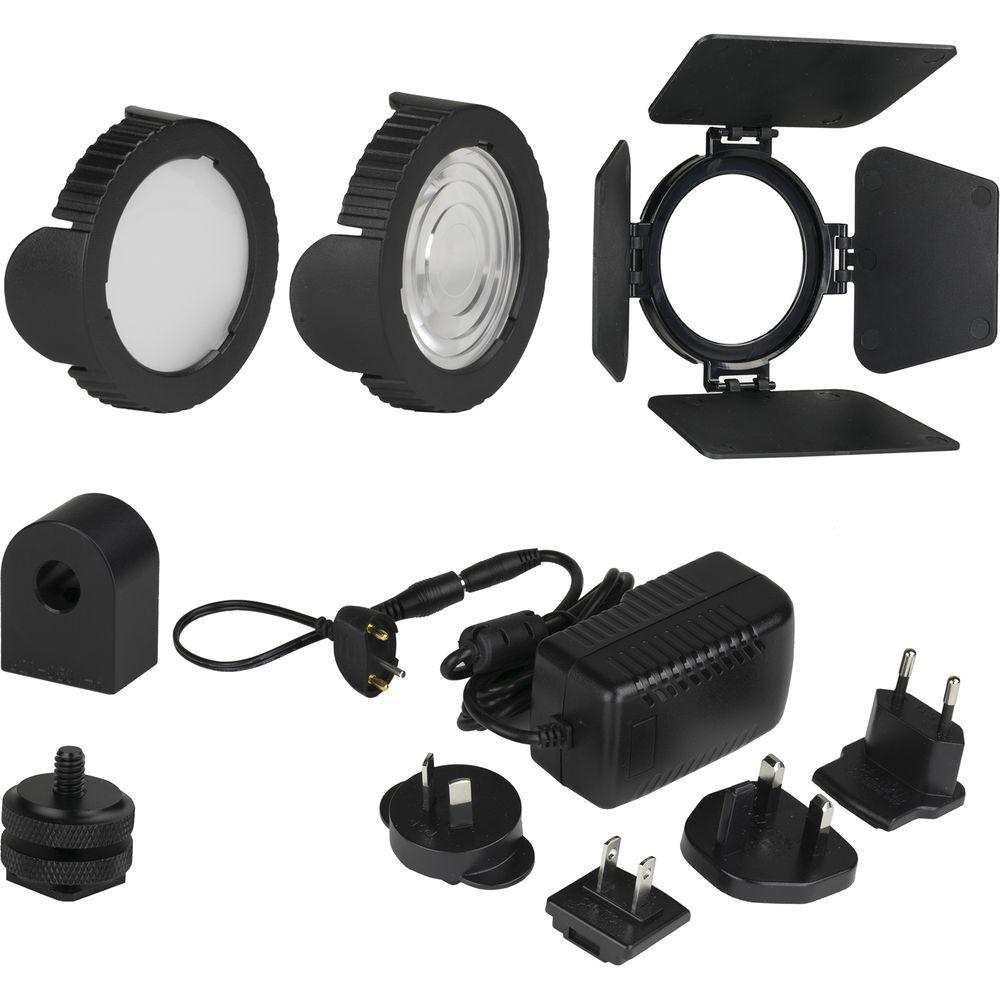

• Fresnel Lens for Stella 1000 LED Light

• Cold Shoe Adapter

• Power Adapter for Stella 1000 and 2000 (12V, US/UK/EU/AUS)

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• 1-Year Limited Warranty

• #9 Camera Insert

• Packlite Bag

• Limited 5-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Stella 1000 spLED 5600K LED Light

  Beam Angle	120°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 90 TLCI 90
  Cooling System	None
  Dimming	Yes Continuous, Stepped
  Display	None
  Lumens	1000
  Fixture Dimensions	4.3 x 2.2 x 2.2" / 110.0 x 56.0 x 56.0 mm
  Fixture Weight	9.7 oz / 277 kg

  Power Input Connector	D-Tap

  Fixture Mount	1/4"-20 Female Thread
  Mount via Included Adapter	Shoe Mount
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 VDC
  Power Source	AC Adapter, External Battery, Integrated Battery

  Run Time	90 Minutes at Full Power 700 Minutes at Low Power
  Charging Time	1.75 Hours

  IP Rating	IP68

  Box Dimensions (LxWxH)	8.0 x 5.6 x 5.4"

• Pistol Grip Light Handle For Stella 1000, 2000, and Sola Dive

  Box Dimensions (LxWxH)	4.0 x 2.8 x 0.6"

• Barndoor Modifier Set for Stella 1K

  Material of Construction

  ABS plastic, aluminum parts

  Box Dimensions (LxWxH)	4.7 x 4.3 x 2.6"

• BALL19 Small Ball Head with 1/4"-20 Screw

  Head Type	Ball Head
  Base Mount	1/4"-20 Thread
  Quick Release Plate Type	No Quick Release
  Load Capacity	6.6 lb / 3 kg
  Number of Bubble Levels	None
  Friction Control	No

  Base Diameter	1.8" / 30 mm
  Dimensions	H: 2.2" / H: 56.0 mm
  Weight	3.2 oz / 92.0 g

  Box Dimensions (LxWxH)	7.1 x 2.9 x 1.3"

• EL Handheld Boom Arm (25-61")

  Load Capacity	Approximately 4.4 lb (2 kg)
  Maximum Length	5.1' (156 cm)
  Minimum Length	24" (63 cm)
  Weight	0.97 lb (0.44 kg)

  Box Dimensions (LxWxH)	24.8 x 2.1 x 1.6"

• BYOB/Packlite 9 Flatpack Bundle with Insert and Packlite Bag (Black and Gray)

  Material	BYOB: Water-repellent shadow ripstop nylon Packlite: Water-repellent silicone-coated ripstop nylon, YKK zipper, Tricot lining
  Interior Dimensions	8.5 x 6.0 x 3.5" / 21.6 x 15.2 x 8.9 cm
  Exterior Dimensions	9.0 x 6.5 x 4.0" / 22.9 x 16.5 x 10.2 cm
  Weight	Insert: 6.4 oz (181 g) Insert with Packlite Bag: 10.4 oz / 294.8 g

  Box Dimensions (LxWxH)	10.0 x 6.693 x 5.118"
