User Manual for Light & Motion Stella 2000 5600K LED Light Click to enlarge the picture
Contents of the user manual for the Light & Motion Stella 2000 5600K
- Product category: LED Lights Light & Motion
- Brand: Light & Motion
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Light & Motion LED Lights
 |
User manual for the Light & Motion Stella 2000 5600K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Light & Motion product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Light & Motion user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Light & Motion product will considerably shorten its lifespan!
|
Product description - Stella Pro Single Point LED Lights Progressive, Portable and Powerful

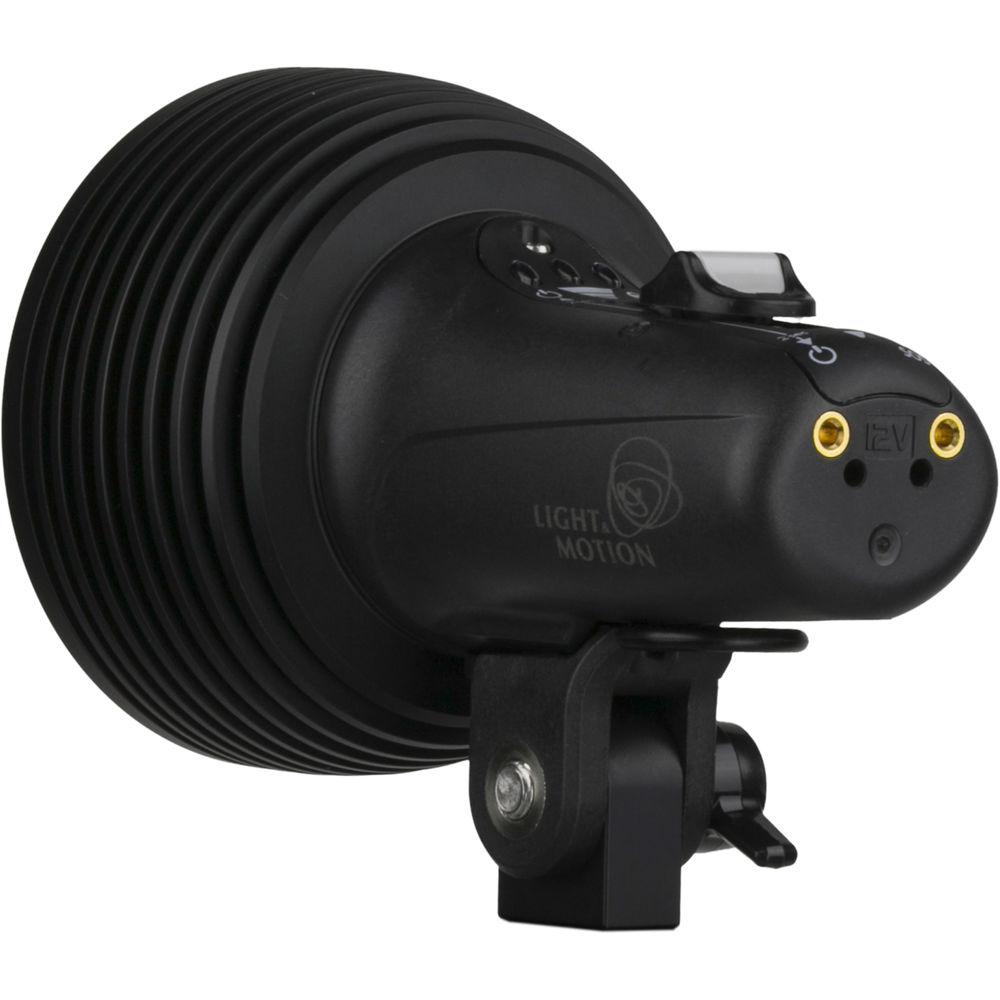

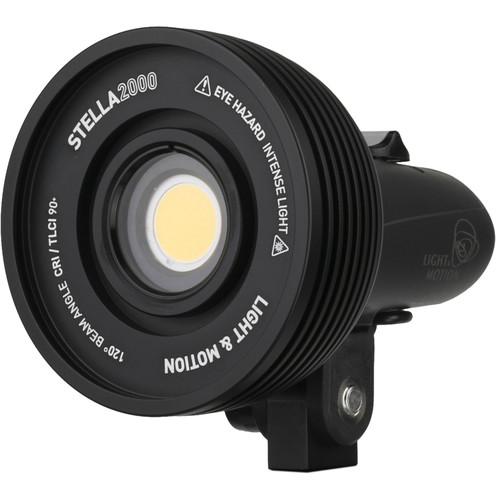

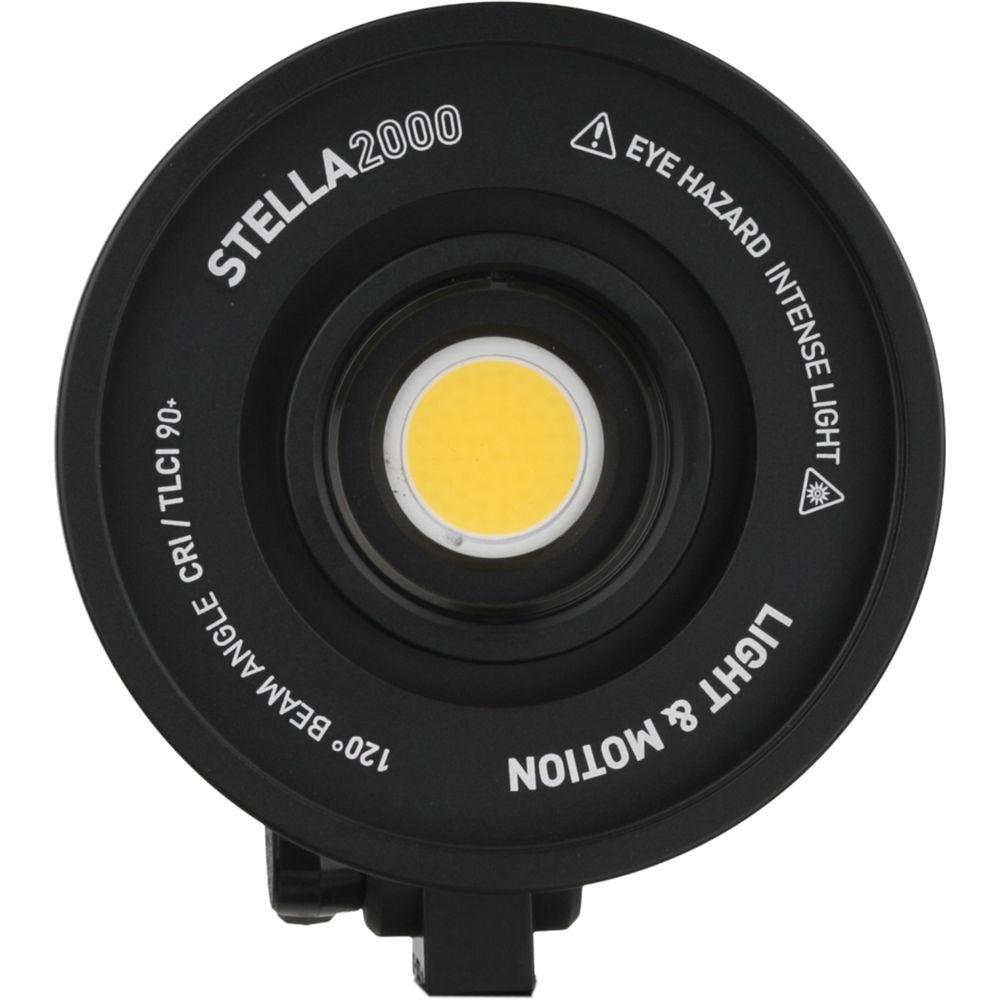

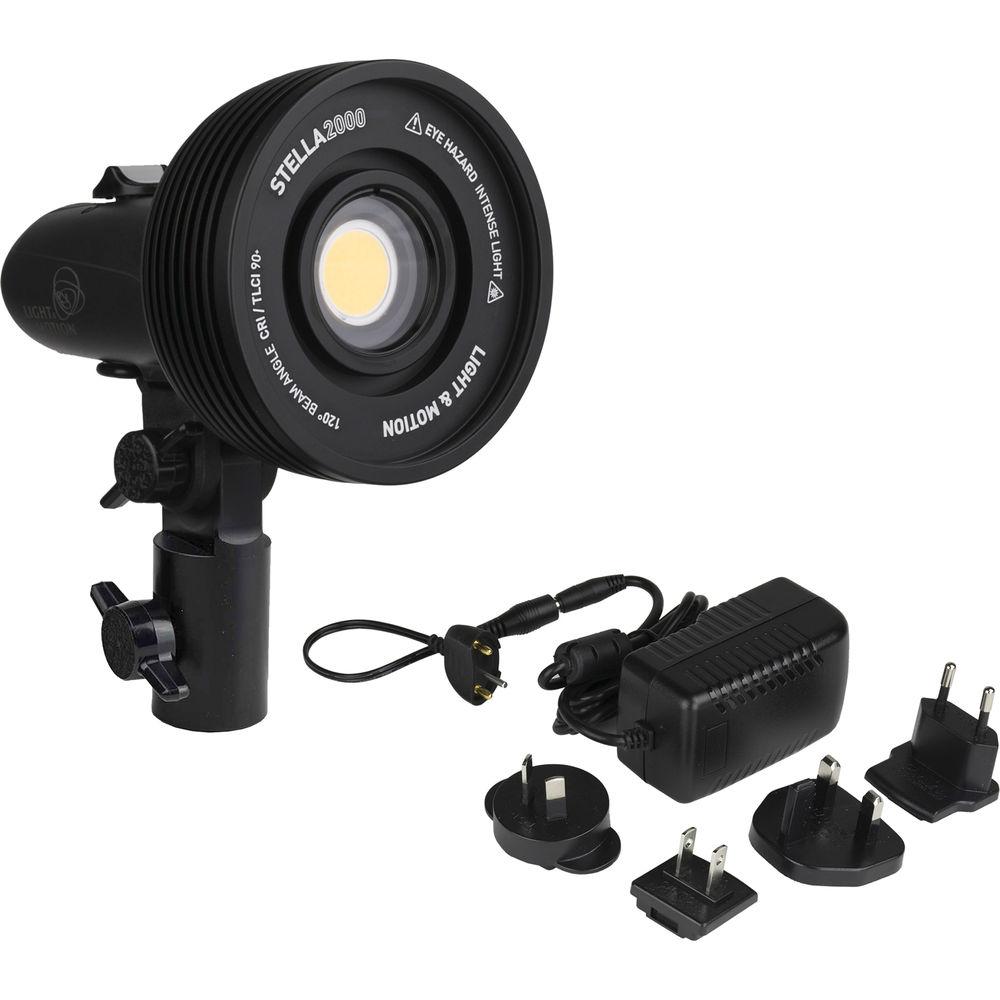

The Stella 2000 5600K LED Light from Light & Motion is a daylight-balanced LED source that packs a wide variety of features into a very compact fixture. The light employs a high-output COB LED that reduces its size and eliminates multiple shadows that can plague LED fixtures. The Stella 2000 is ideal for location. Measuring 4.8 x 3.6 x 3.6" and weighing just 1.1 lb, it's barely noticeable in your kit case. What is noticeable is the clean, accurate, flicker-free color rendering that gives it a rating of CRI rating of 90 and TLCI rating of 93. The Stella 2000 has a wide 120-degree beam that can be narrowed with an optional 50-degree optic or softened with an optional diffuser. The fan-free design is dead quiet for sound-sensitive locations, while the light is dimmable either continuously or in steps. The housing is also durably built. Not only can it survive repeated dropping on concrete from a height of 3.3', but it's also waterproof to depths of 328 feet! The unit is powered by a built-in battery that charges to full power in 1.75 hours and gives you a run time of 50 to 415 minutes depending on the power selected. You can also run the light from a D-Tap external battery source for longer shoots. Additionally, you can use mains power anywhere in the world thanks to the inclusion of a multi-voltage AC power supply. The Stella 2000 also comes with a YS Mount and a C-Stand Mount to quickly and easily secure your light on a stand or other support. UPC: 891193000409 In the Box Light & Motion Stella 2000 5600K LED Light Power Adapter for Stella 1000 and 2000 (12V, US/UK/EU/AUS) YS Mount for Stella Pro Series LED Lights C-Stand Mount for Stella LED Lights Limited 2-Year Warranty User Manual PDF 343.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Light & Motion Stella 2000 5600K LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLight & Motion 850-0397-B Specs | | | Beam Angle | 120° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 90
TLCI 93 | | Cooling System | Passive | | Dimming | Yes | | Display | OLED | | Lumens | 2000 | | Photometrics | 120° at 5600K:
581.6 fc / 6260 lux at 3.28' / 1 m | | Fixture Dimensions | 4.8 x 3.6 x 3.6" / 122.0 x 92.0 x 92.0 mm | | Fixture Weight | 17.78 oz / 504 g | | | | Battery Plate | None | | Power Input Connector | D-Tap | | | | Yoke Mount | None | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 10.5 to 18 VDC | | Power Source | AC Adapter, External Battery, Integrated Battery | | Power Pass-Thru | None | | | | Package Weight | 2.37 lb | | Box Dimensions (LxWxH) | 7.95 x 5.7 x 5.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
