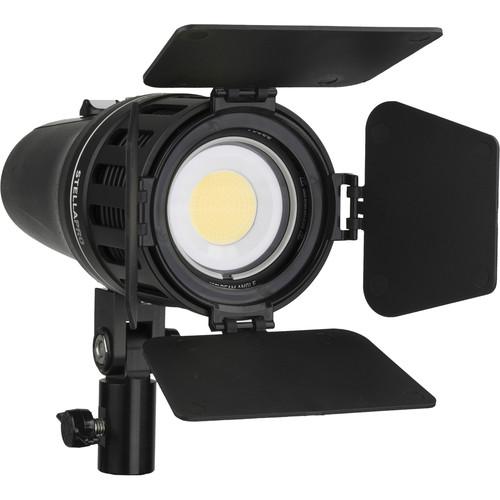

User Manual for Light & Motion Stella Pro 5000 LED Light Click to enlarge the picture
Contents of the user manual for the Light & Motion Stella Pro 5000
- Product category: LED Lights Light & Motion
- Brand: Light & Motion
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Light & Motion LED Lights
 |
User manual for the Light & Motion Stella Pro 5000 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Light & Motion product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Light & Motion user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Light & Motion product will considerably shorten its lifespan!
|

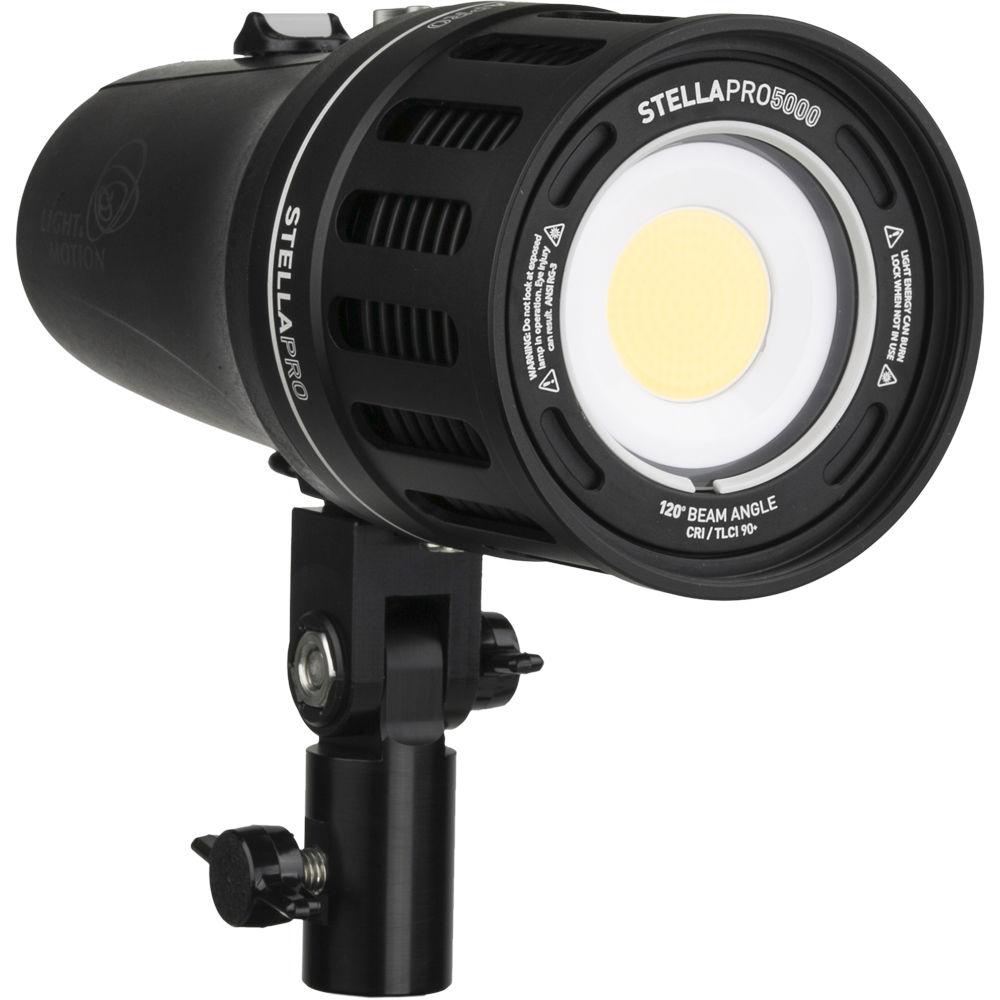

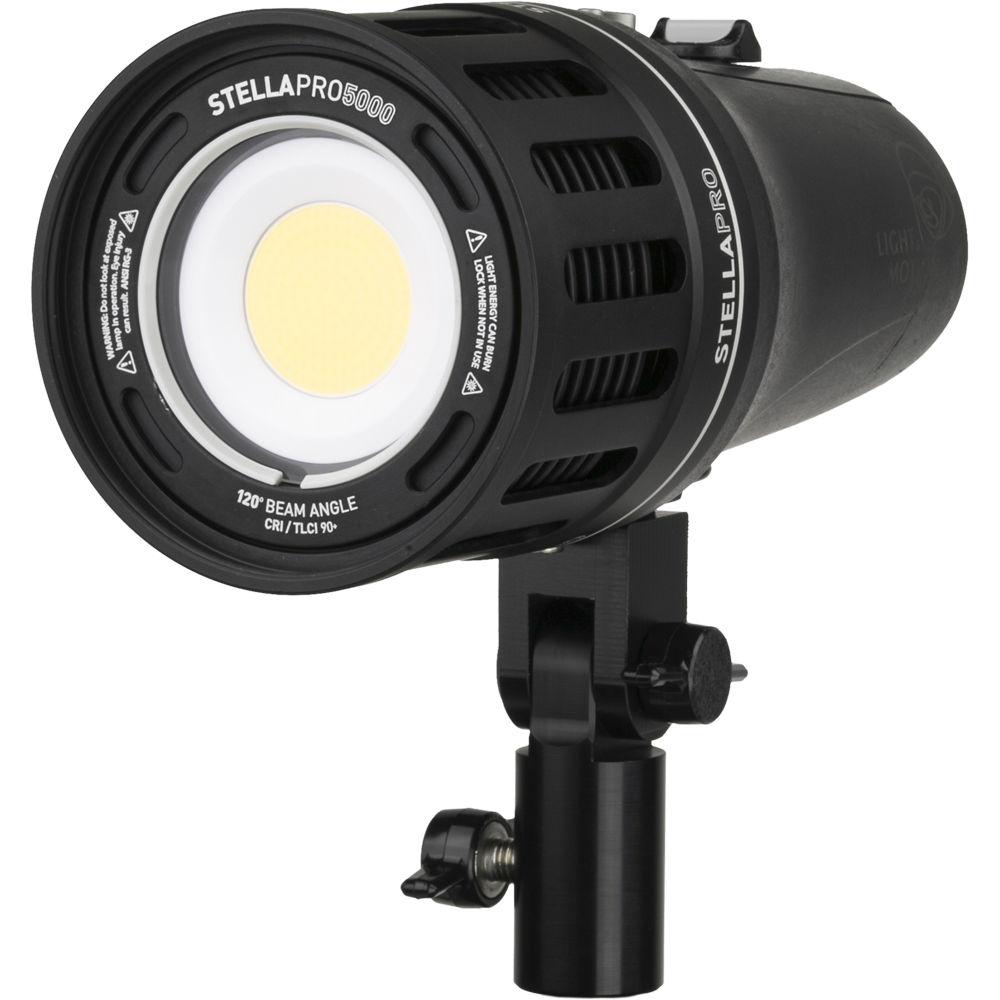

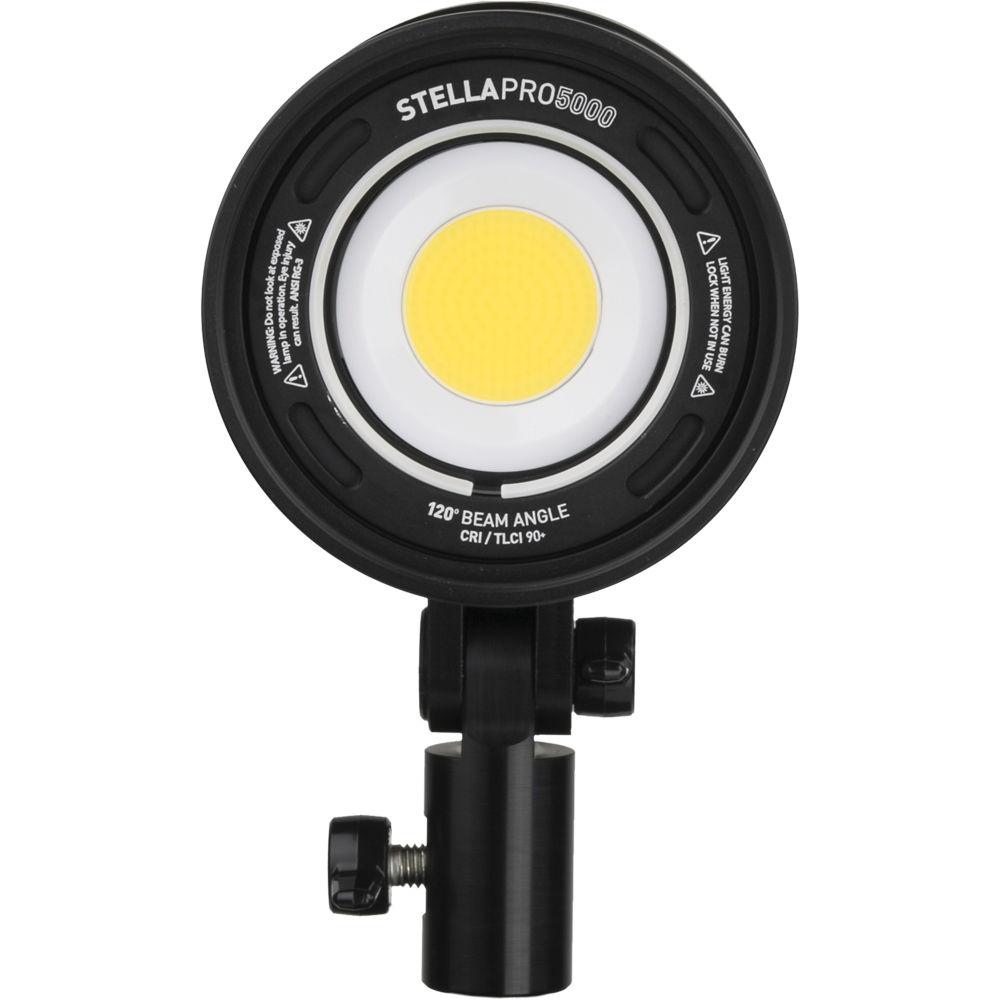

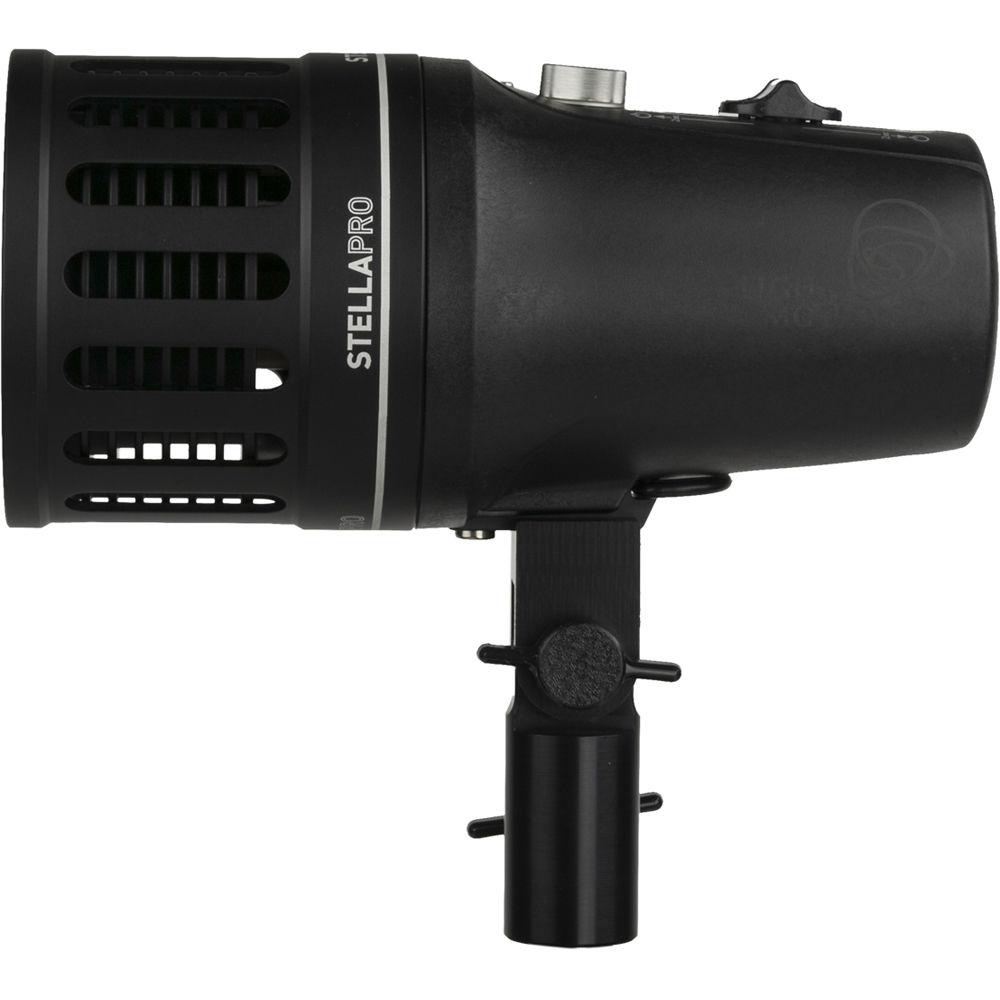

Product description - Stella Pro 5000 LED Camera Light
- Stella LED Camera Lights tested to FL-1 Standard

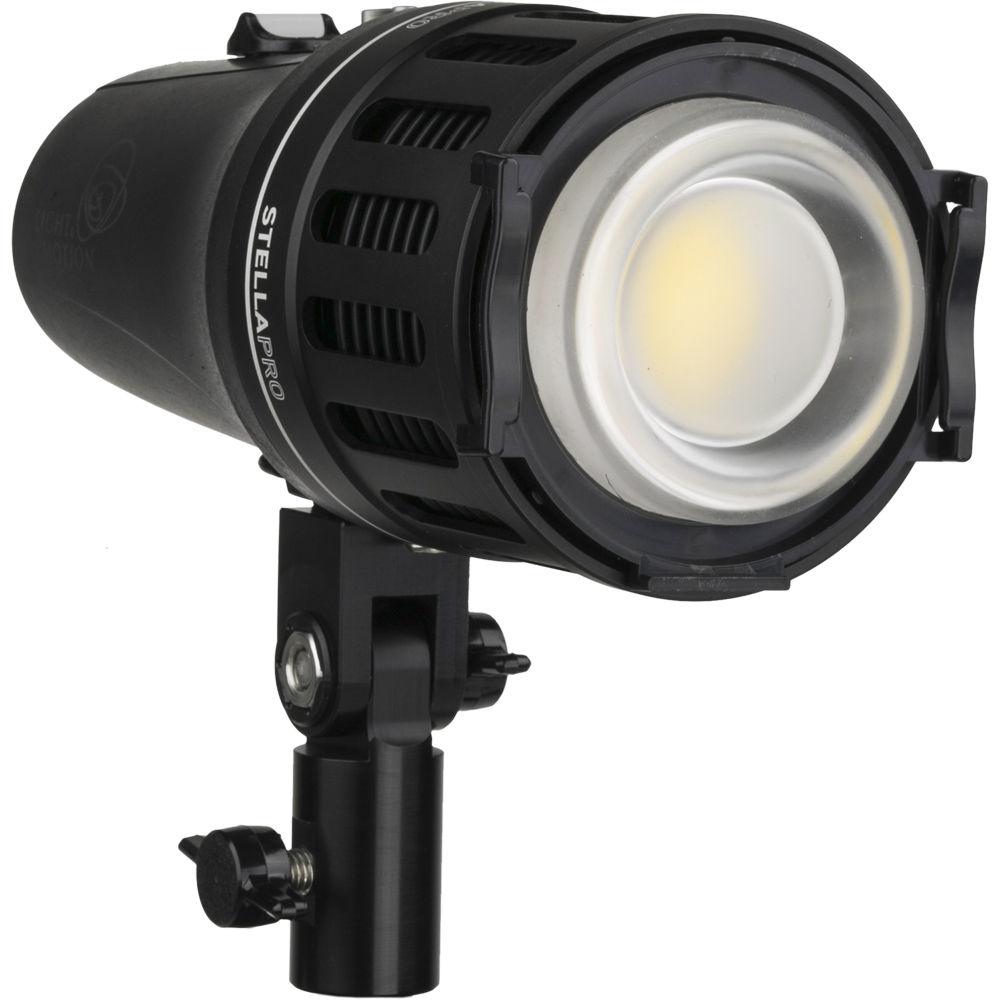

The Stella Pro 5000 LED Light from Light & Motion is a daylight-balanced LED source that packs enough features to cause many users to call it their ideal on-camera source. For location work, the Stella Pro 5000 is hard to beat. With a very small form factor and weight of only 2.5 lb, it's barely noticeable in your kit case. What is noticeable is the clean, accurate color rendering output from the unit's flicker-free COB LED that gives it a rating of 90 CRI and 93 TLCI.The Stella Pro 5000 has a wide 120 degree beam that can be narrowed with the included 50° focus optic or softened with the optional diffuser. The fan-less design is dead quiet for sound-sensitive locations and is dimmable either continuously or in steps. And, the housing is durably built. Not only can it survive repeated dropping on concrete from a height of 3.3', but it's also waterproof to depths of 328 feet!The unit is powered by a built-in battery that charges in 1.5 hr. to 80% and 2.0 hr. to full charge, giving you a run time of 90 to 720 minutes depending on the power selected. You can also run the light from a D-Tap external battery source for longer shoots. Additionally, you can use mains power anywhere in the world thanks to the inclusion of a multi-voltage AC power supply. The Stella Pro 5000 also comes with a 50° Focus Optic, 4-way barndoor set, high leverage handle, stand mount, and an external power supply. - Benefits
-
- High output Chip on Board (COB) LED
- Certified 90 CRI and 93 TLCI, CCT 5000 Kelvin
- Integrated, rechargeable, Li-ion battery provides 90 to 720 minutes of cord-free operation
- Flicker-free firmware design
- Regulated lumen output, does not fade during use
- Dimming with continuous or stepped control
- Fan-free thermal management for silent operation
- Wide 120° beam angle
- Broad range of accessories including Profoto and Chimera adaptability

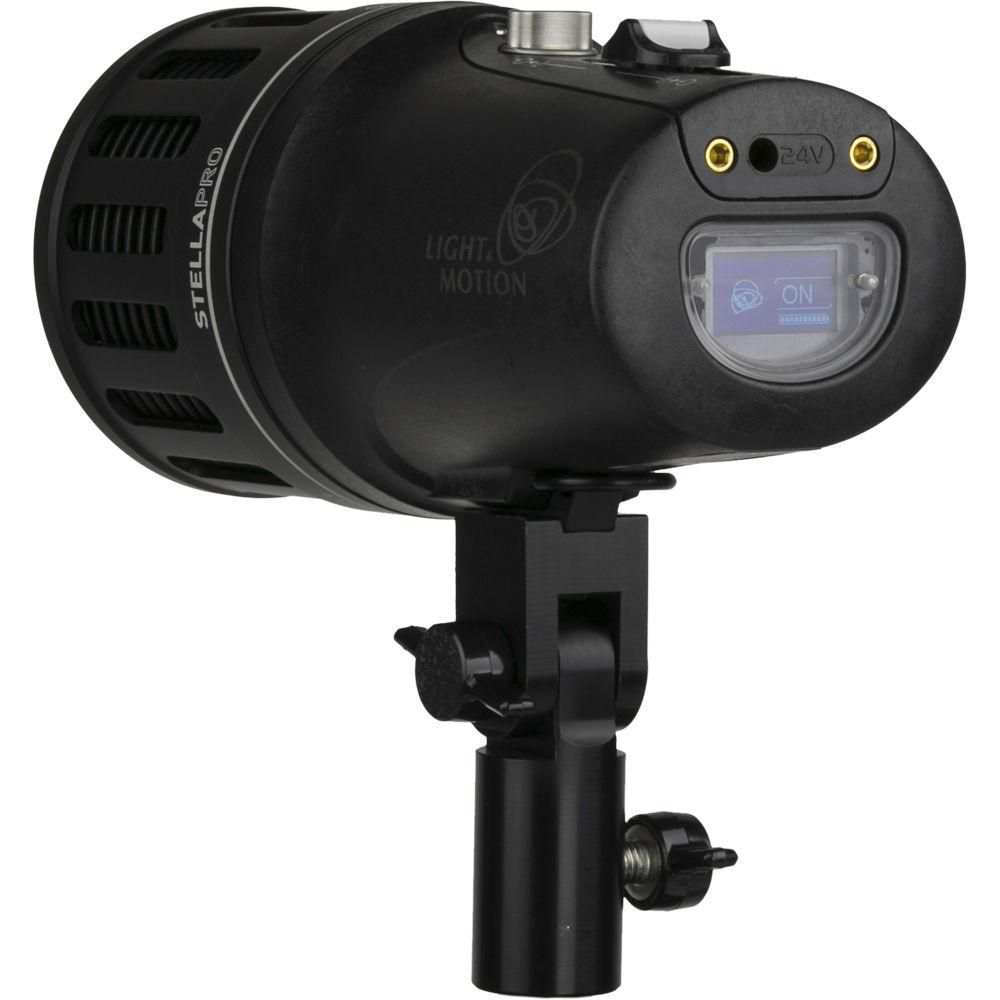

- Colored LED indicators give accurate battery status
- Runs off wall power or D-Tap, 12V, external battery kit
- Fast charge of 1.5 hr. to 80% and 2.0 hr. to full charge
- Certified performance (FL-1 standard)

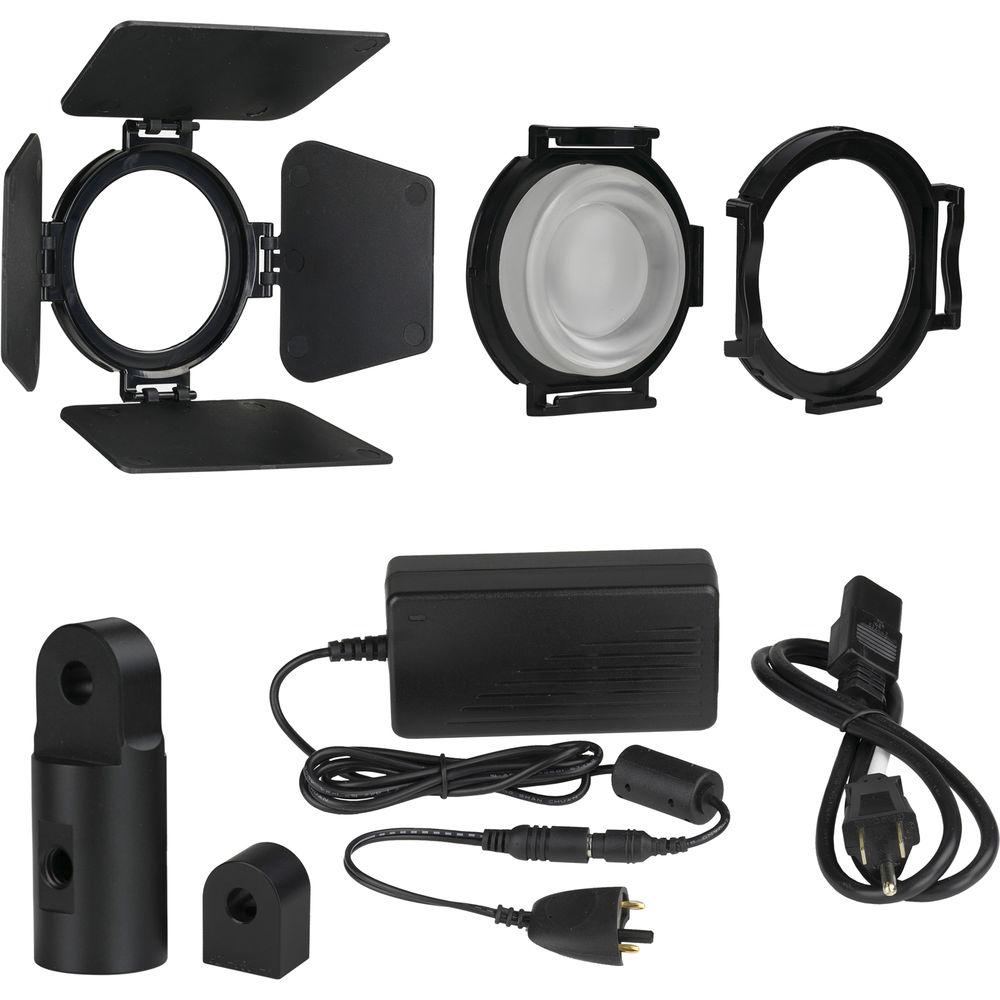

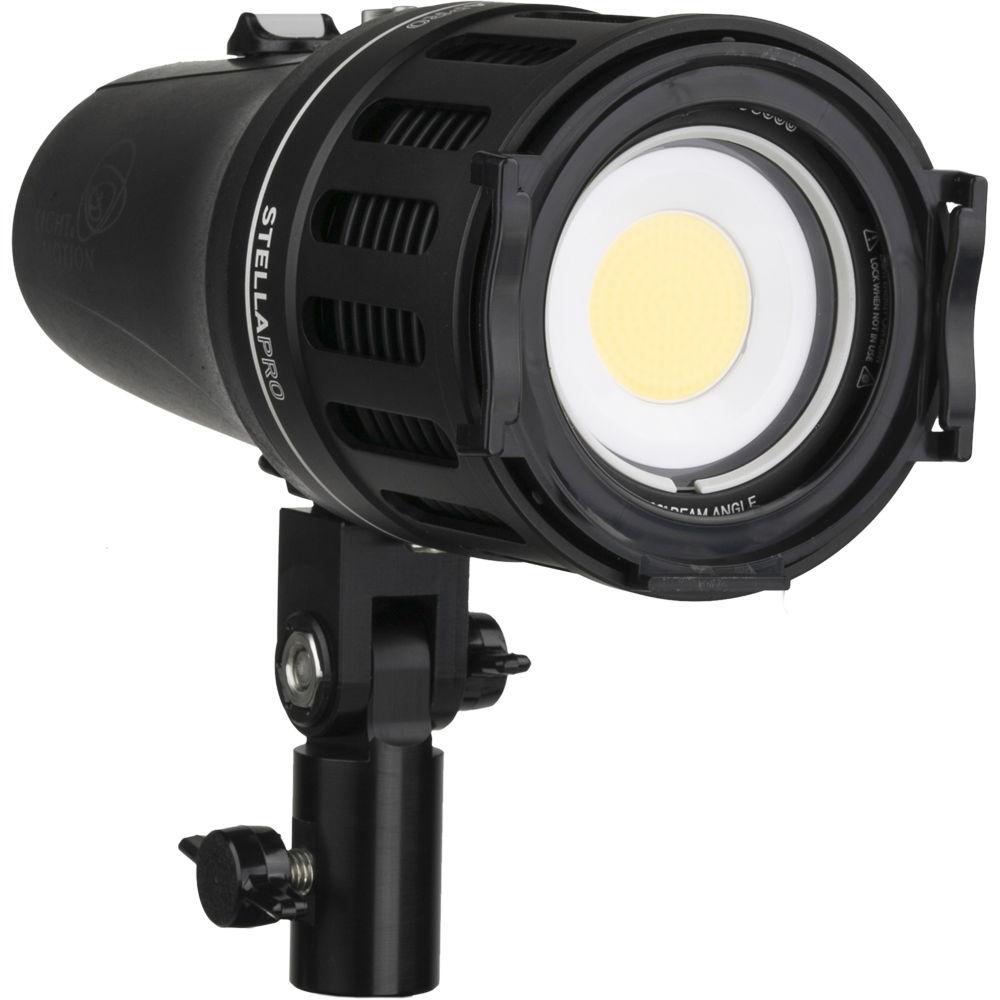

UPC: 812190017771 In the Box Light & Motion Stella Pro 5000 LED Light Four-Way Barndoors Focus Optic for Stella 2000 and 5000 LED Lights (50°) yyuwxqeraz Stand Mount Power Adapter for Stella Pro 5000 & Sola 8000 (24V, US/JP) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Light & Motion Stella Pro 5000 LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLight & Motion Pro 5000 Specs | | | Lumens | 5000 | | Fixture Dimensions | 4.8 x 3.6 x 3.6" / 122.0 x 92.0 x 92.0 mm | | Fixture Weight | 1.1 lb / 0.5 kg | | | | Power Input Connector | D-Tap | | | | Fixture Mount | 1/4"-20 Female Thread | | Mount via Included Adapter | Shoe Mount | | | | Package Weight | 4.31 lb | | Box Dimensions (LxWxH) | 8.15 x 5.8 x 5.35" |
