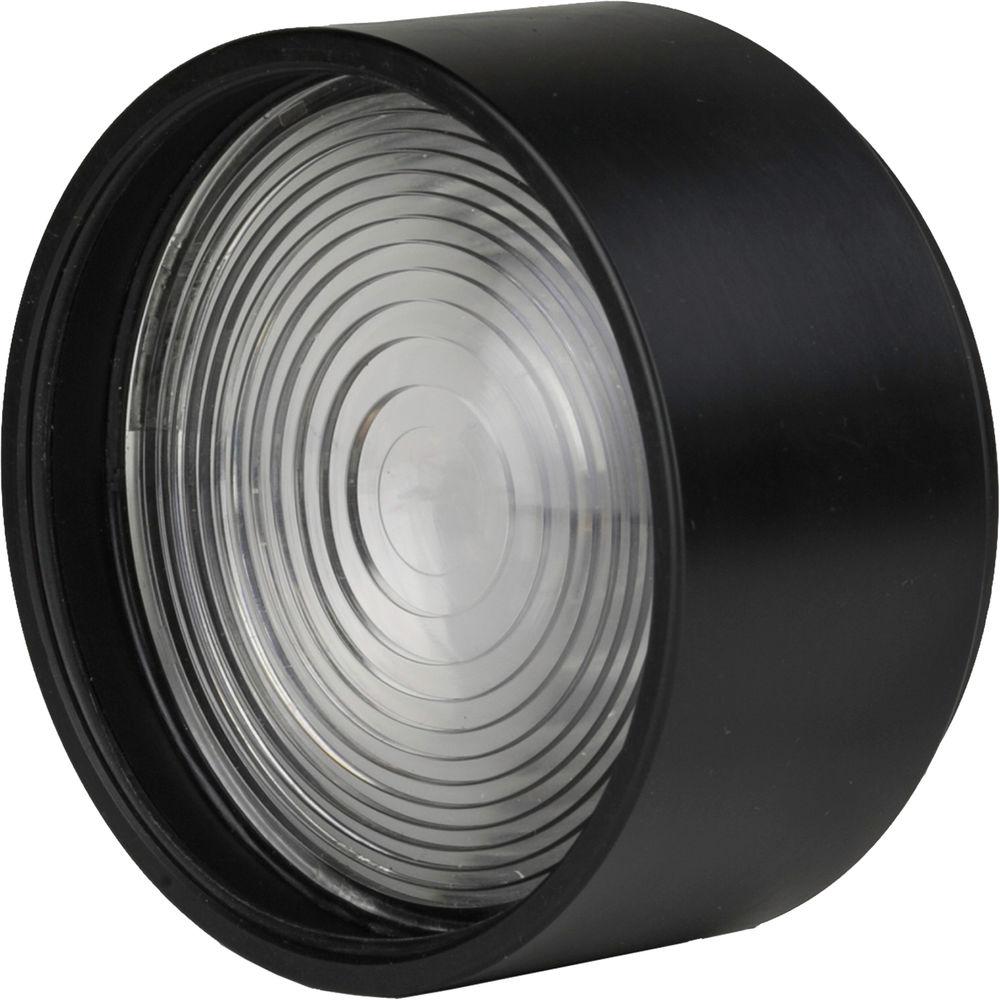

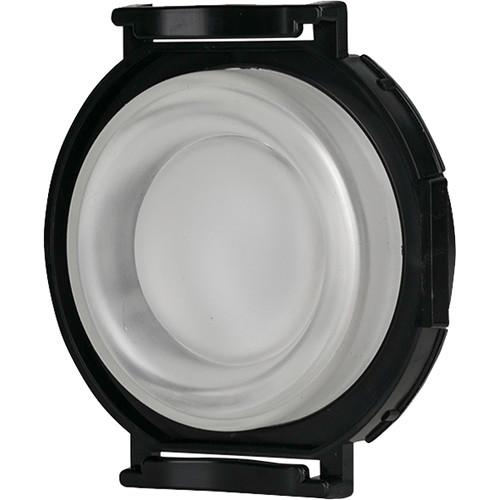

Product description The Stella Pro 5000 RF Action Kit was put together by Light & Motion to help you maximize the creative output of this LED light. The kit includes a Stella Pro 5000 with a built-in EL-Skyport transceiver as well as a wireless remote that can control the fixture at distances up to 656'. To vary the quality of light, 4-way barndoors are included while 25-degree and 50-degree focus optics offer alternatives to the Pro 5000's 120-degree beam spread. The light has a rechargeable internal battery, but an AC power supply is included for situations where mains power is readily available. The kit also includes a YS Mount Pro, C-Stand Mount, 1/4"-20 adapter, a 6' extension cord, Glo Bulb for overhead lighting, and a High-Leverage Handle for secure mounting. It all fits in the provided Tenba BYOB 13 Packlite case. - Stella Pro 5000 RF spLED 5600K LED Light
- Stella Pro Single Point LED Lights: Progressive, Portable and Powerful
- Stella Pro 5000 RF & Stella Pro 8000 RF
- Stella Pro Lights for on-Location Adventure Filmmaking

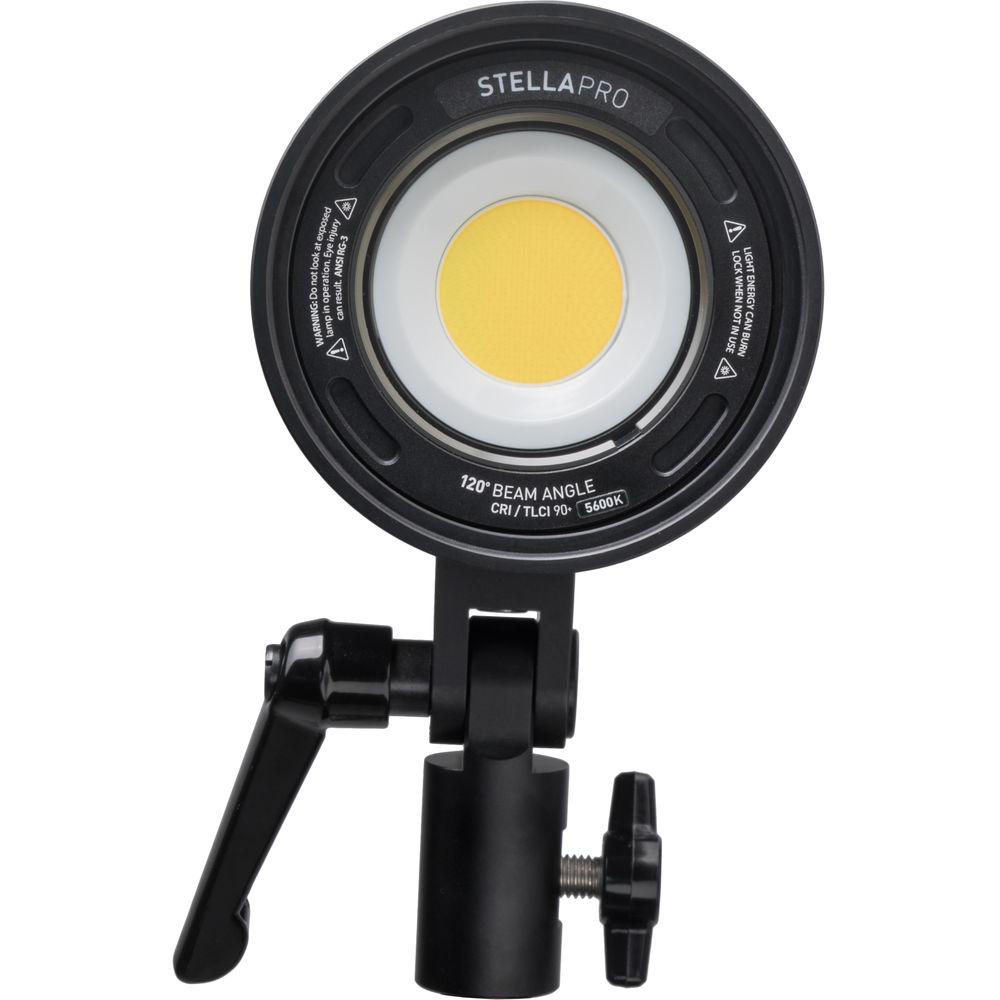

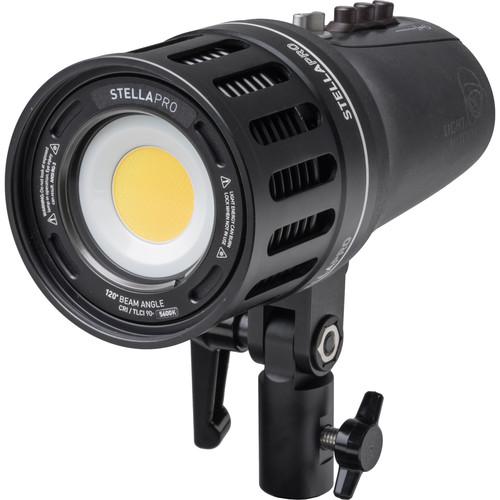

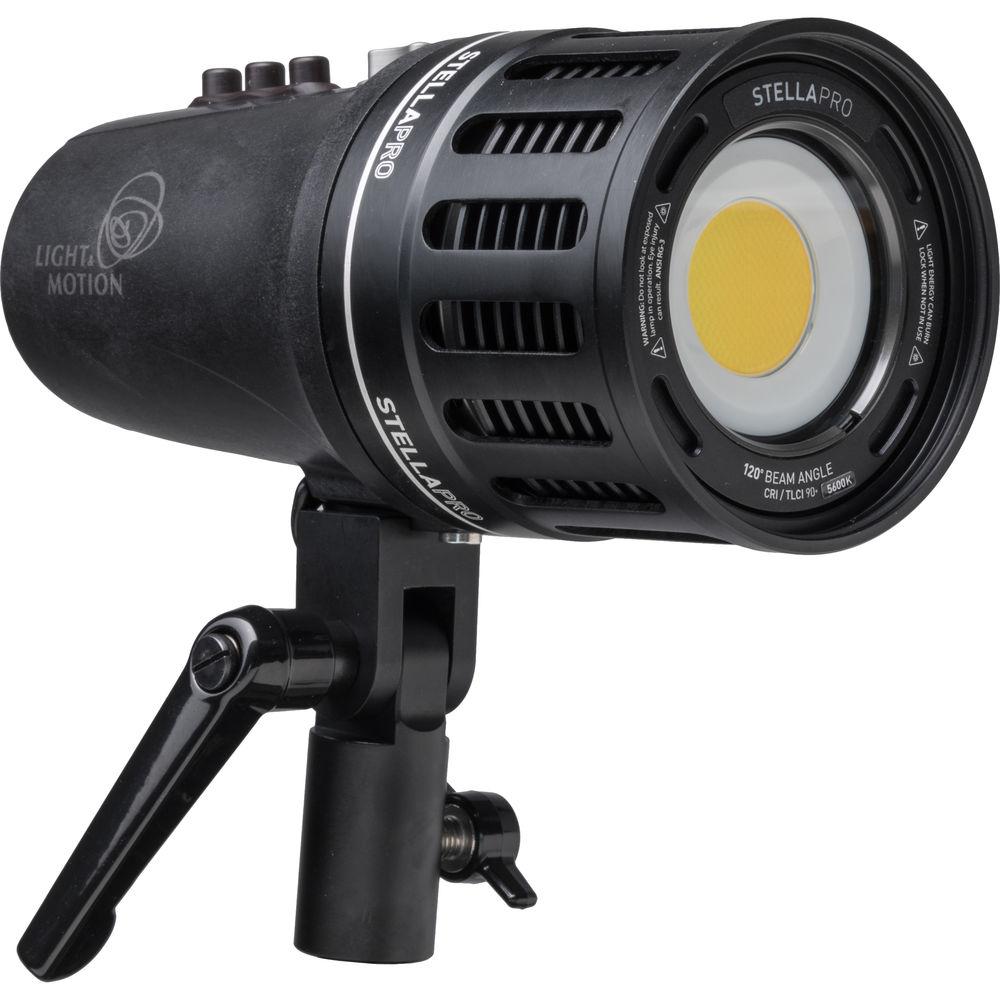

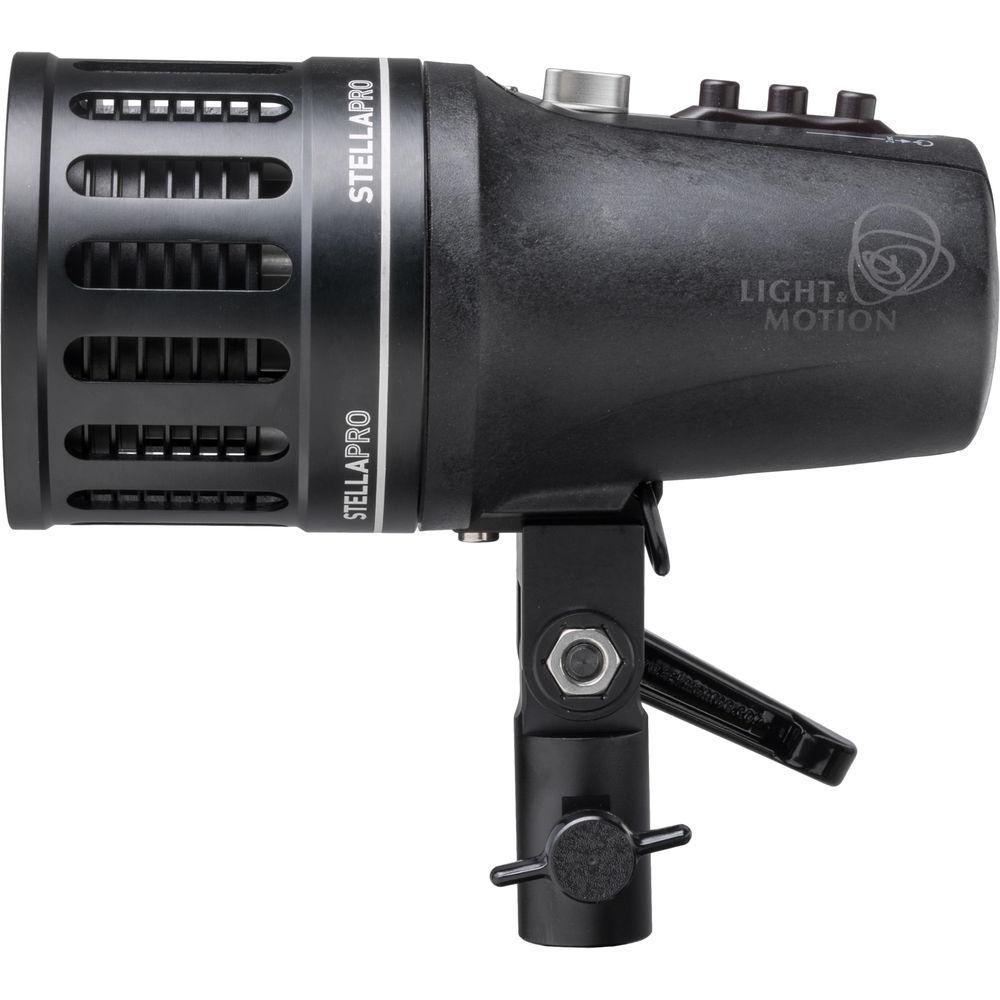

The Stella 5000 RF spLED Light from Light & Motion is a daylight-balanced LED source that packs enough features to cause many users to call it their ideal on-camera source. The spLED designation indicates "single point" enhancements to the 29 emitters that Light & Motion has made to reduce the light field and eliminate multiple shadows that can plague LED fixtures. Light & Motion has also introduced RF technology via the built-in 10-frequency Elinchrom EL-Skyport transceiver. With a separately purchased EL-Remote Control for Stella Pro you can control the output settings of 20 lights from distances of up to 656'.For location work, the Stella 5000 is hard to beat. With a very small form factor and weight of only 2.5 lb, it's barely noticeable in your kit case. What is noticeable is the clean, accurate color rendering output from the unit's flicker-free COB LED that gives it a rating of 90 CRI and 93 TLCI.The Stella 5000 has a wide 120-degree beam that can be narrowed with an optional 50-degree optic or softened with an optional diffuser. The fan-less design is dead quiet for sound-sensitive locations, while the light is dimmable either continuously or in steps. And the housing is durably built. Not only can it survive repeated dropping on concrete from a height of 3.3', but it's also waterproof to depths of 328 feet!The unit is powered by a built-in battery that charges in 1.5 hours to 80% and 2 hours to full charge, giving you a run time of 90 - 375 minutes depending on the power selected. You can also run the light from a D-Tap external battery source for longer shoots. Additionally, you can use mains power anywhere in the world thanks to the inclusion of a multi-voltage AC power supply. The Stella 5000 also comes with a YS Mount Pro, C-Stand Mount, and a High-Leverage Handle to quickly and easily secure your light on a stand or other support. - Benefits
-
- High Output "Chip on Board" LED
- Certified TLCI 93+, CRI 90+, CCT 5600K
- Output up to 5000 lux at 3.28'
- Integrated rechargeable li-ion battery provides 90 - 375 minutes of cord-free operation
- Sophisticated flicker-free firmware design
- Regulated lumen output - does not fade during use
- Dimming with continuous or stepped control
- Fan-free thermal management for silent operation
- Broad range of accessories including Profoto, Elinchrom, and Chimera adaptability
- OLED digital display for precise readout with power output, battery, and charge status
- Controlled beam angle of 120°
- Colored LED indicators give accurate battery status
- Runs off wall power, D-Tap, 12V, external battery kits
- Fast charge of 2 hours
- Certified performance (FL-1 Standard)
- Included Elinchrom RF Technology
-
- Built-in EL-Skyport transceiver supports up to 10 frequency channels and 4 light groups
- Uses remote control for Stella Pro (purchased separately)
- Control 20+ lights with range up to 656' (outdoors) and 197' (indoors) with EL-Remote
- Wireless firmware updates allow professionals to keep current with all future technology updates without losing time/work

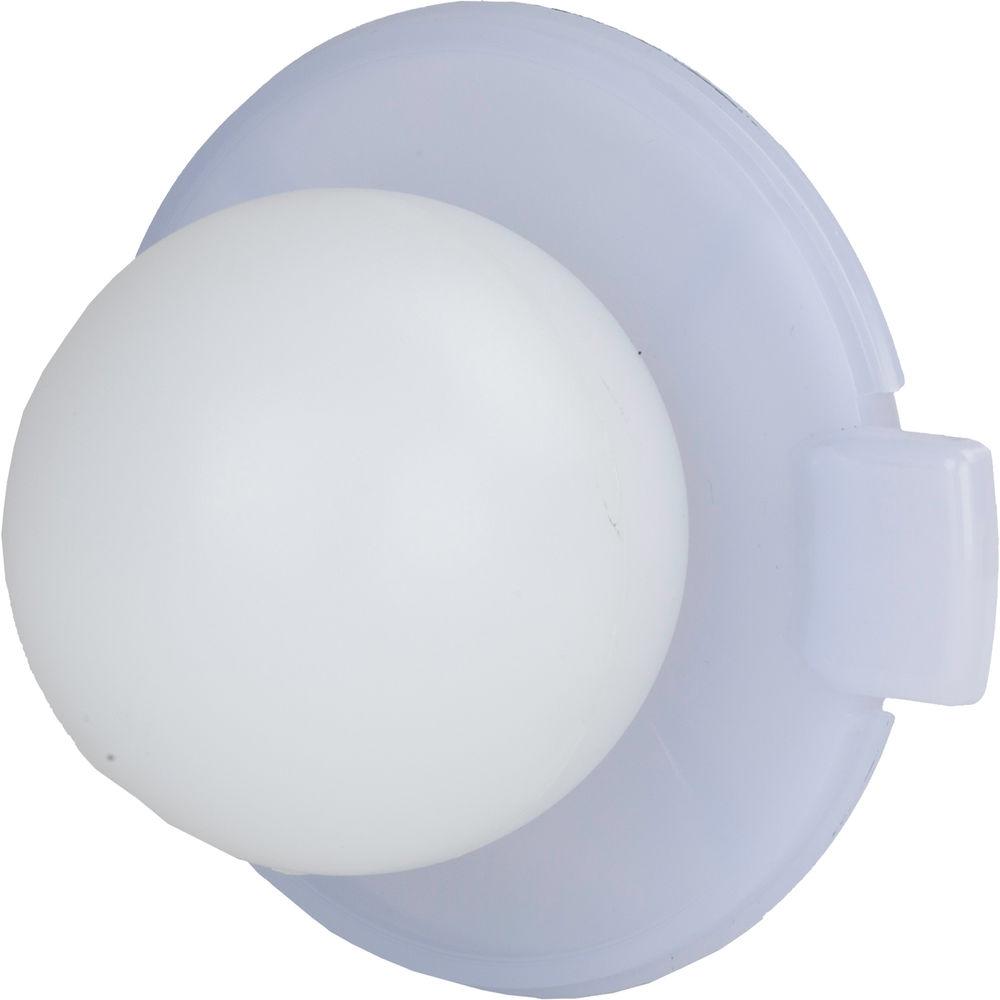

- Glo Bulb for Select Stella LED Lights An ideal accessory for overhead lighting scenarios like round table discussions and interviews, the Glo Bulb for Select Stella LED Lights casts a soft, medium contrast 180-degree beam of light with minimal shadows and an open "bare bulb" look with gradual fall off near the beam's edge. Another use is inside a softbox where it fills it evenly and eliminates the hot spot from the fixture. The Glo Bulb is compatible with the Stella 2000, Stella Pro 5000, 7000, and 10,000, as well as the Pro 10,000C and the Pro 5000D drone light. UPC: 812190017832

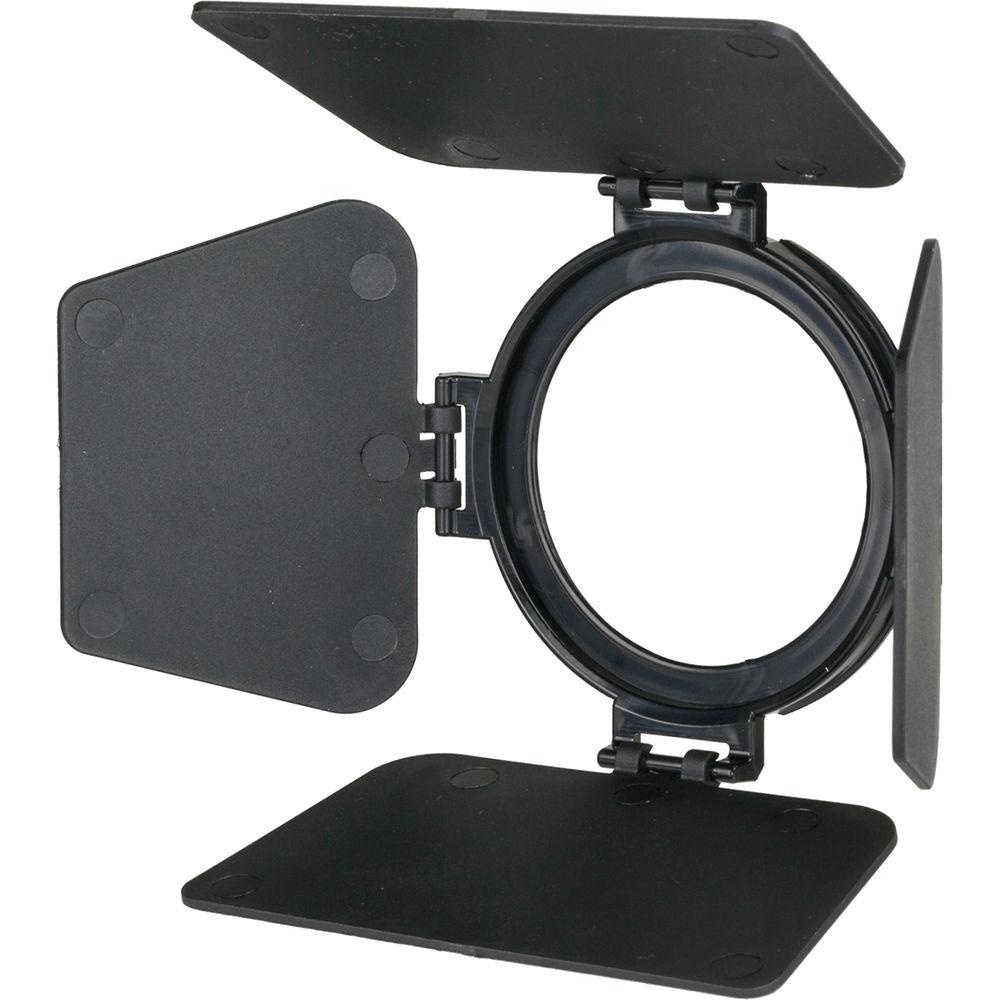

- 4-Way Barndoors for Stella 2000 and 5000 LED Heads The 4-Way Barndoors for Stella 2000 and 5000 LED Heads from Light & Motion allows you to control and shape the light beam of these fixtures while containing spill light. UPC: 812190017856
- 1/4"-20 Adapter for Stella 1000/2000/5000 LED Lights The 1/4"-20 Adapter for Stella 1000/2000/5000 LED Lights from Light & Motion allows you to mount any of these lights to a stand or lighting accessory with a 1/4"-20 male thread. UPC: 812190017870
- Tools Packlite Travel Bag for BYOB 13 (Black) Maximize your carrying options, take side trips from primary destinations without becoming overburdened with gear, and save space with the black Tools Packlite Travel Bag for BYOB 13 from Tenba. This travel bag is designed to fit the non-included BYOB 13 Tenba insert, and will accommodate a pro DSLR camera with an attached 70-200 2.8 zoom lens or similar sized gear. The bag may also be used as a simple day bag for personal items such as food and clothing. A compact, collapsible, lightweight design, it self-stows in a built-in, mesh, side pocket, which closes with a cinch cord. The bag's primary function is portability. Easily packed, and requiring a minimal amount of space, the bag allows photographers to shift and reconfigure gear from a larger bag for occasions when they require less gear. Such occasions might include a simple photo shoot, short hike, or social event. A side mesh pocket holds a small water bottle or accessory. Your Packlite may be worn from the shoulder or cross-body with the wide, adjustable, shoulder strap.
- Holds a pro DSLR camera with an attached 70-200 2.8 zoom lens
- Single, zippered compartment for use with or without the optional, non-included BYOB 13 insert, sold separately
- Compact, collapsible, lightweight design made of water-repellent nylon
- Self-stows in a built-in, mesh, side pocket, which closes with a cinch cord
- 1, mesh, side pocket for storing a water bottle or accessory
- Wide, adjustable, cross-body, shoulder strap
UPC: 026815362294 In the Box Bundle Items Stella Pro 5000 RF spLED 5600K LED Light bvsvqbztzerxuqrddeusurvzbf - YS Mount for Stella Pro Series LED Lights
- C-Stand Mount for Stella LED Lights
- High Leverage Handle for Stella YS Mount
Glo Bulb for Select Stella LED Lights 4-Way Barndoors for Stella 2000 and 5000 LED Heads 1/4"-20 Adapter for Stella 1000/2000/5000 LED Lights Tools Packlite Travel Bag for BYOB 13 (Black)

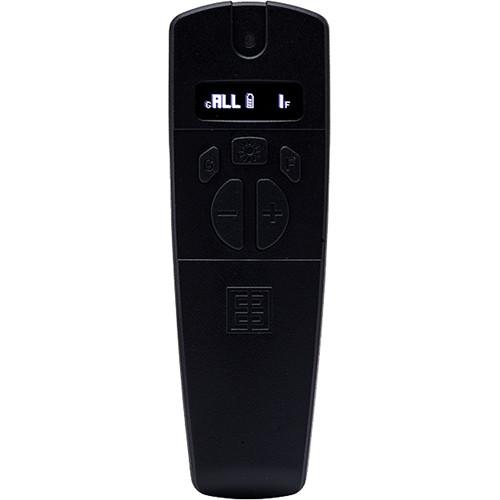

Also Includes - EL Remote Control for Stella Pro RF
- Limited 2-Year Warranty
User Manual-5000 PDF 437.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Light & Motion Stella Pro 5000 RF Action Kit - Open Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Stella Pro 5000 RF spLED 5600K LED Light
| Light Source | LED | | Color Temperature | 5600K | | CRI / TLCI | 90+ CRI and 93+ TLCI | | Light Intensity | High: 2000, Medium: 2500, Low: 1200 lumens
10,300 lux @ 3.28' (1.0 m) | | Operating Voltage | 100-240 VAC, 50/60 Hz, 24 VDC
AC power supply included | | Battery | Built-in battery
Charging: 1.5 hr to 80% and 2 hr to full charge
Also compatible with external D-Tap batteries
Run Time: High: 90 minutes, Medium: 180 minutes, Low: 375 minutes minutes on internal battery | | Beam Angle | 120° native | | Dimming | Continuous or stepped | | Mount | C-stand mount, YS mount pro | | Cooling | No fan | | Waterproof Depth | 328' (100 m), IP68 | | Dimensions | 7.0 x 3.4 x 3.4" (182 x 88 x 88 mm) | | Weight | 2.5 lb (1148 g) | | | | Box Dimensions (LxWxH) | 8.05 x 5.65 x 5.5" | - Glo Bulb for Select Stella LED Lights
| Compatibility | Stella 2000, Stella Pro 5000, 7000, 10,000, Pro 10,000C, Pro 5000D drone light. | | Diameter | 3.2" (82 mm) | | | | Box Dimensions (LxWxH) | 4.85 x 4.4 x 2.25" | - 4-Way Barndoors for Stella 2000 and 5000 LED Heads
| | | Box Dimensions (LxWxH) | 10.8 x 5.05 x 0.75" | - 1/4"-20 Adapter for Stella 1000/2000/5000 LED Lights
| | | Box Dimensions (LxWxH) | 5.0 x 4.0 x 0.5" | - Tools Packlite Travel Bag for BYOB 13 (Black)
| Carrying/Transport Options | Shoulder Strap | | | | Exterior Material | Nylon, Polyurethane | | Exterior Dimensions | 16 x 6 x 10" / 40.6 x 15 x 25 cm | | Type of Closure | Zipper | | Water Resistance | Water-Resistant Material | | | | Interior Dimensions | 16 x 6 x 10" / 40.6 x 15 x 25 cm | | Weight | 0.4 lb / 0.2 kg | | | | Box Dimensions (LxWxH) | 11.5 x 6.1 x 2.9" |
