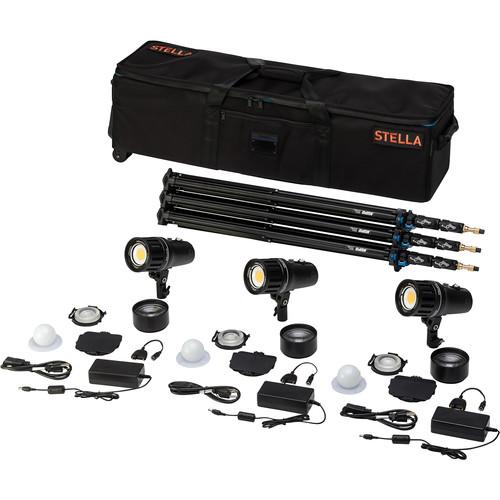

User Manual for Light & Motion Stella Pro 555 RF 3-Light Kit

• Product category: LED Lights Light & Motion
• Brand: Light & Motion
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Light & Motion LED Lights

Product description

• Stella Pro 5000 RF spLED 5600K LED Light
  • Stella Pro 5000 RF & Stella Pro 8000 RF
  • Stella Pro Three-Light Kit Walkthrough
  • Stella & Stella Pro Three-Light Indoor Interview Setups
  • Stella Pro Lights Three-light Setup in Daylight

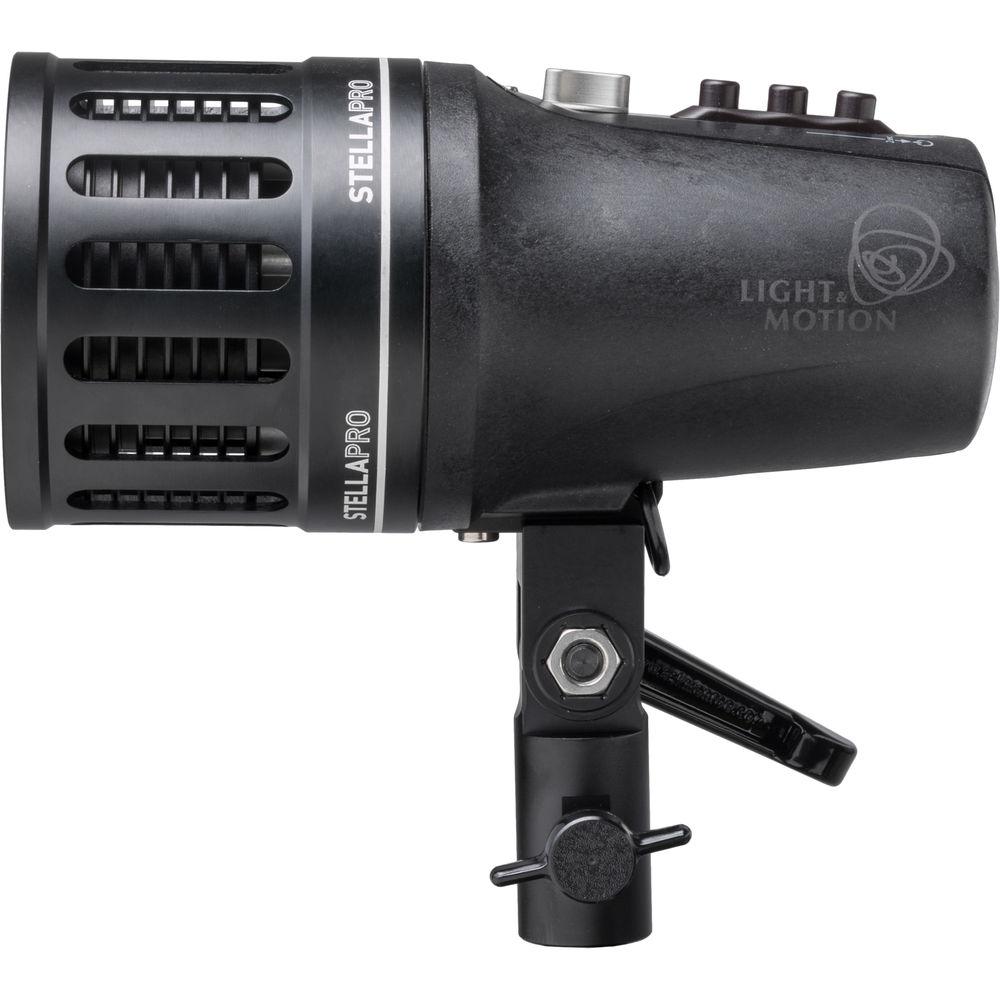

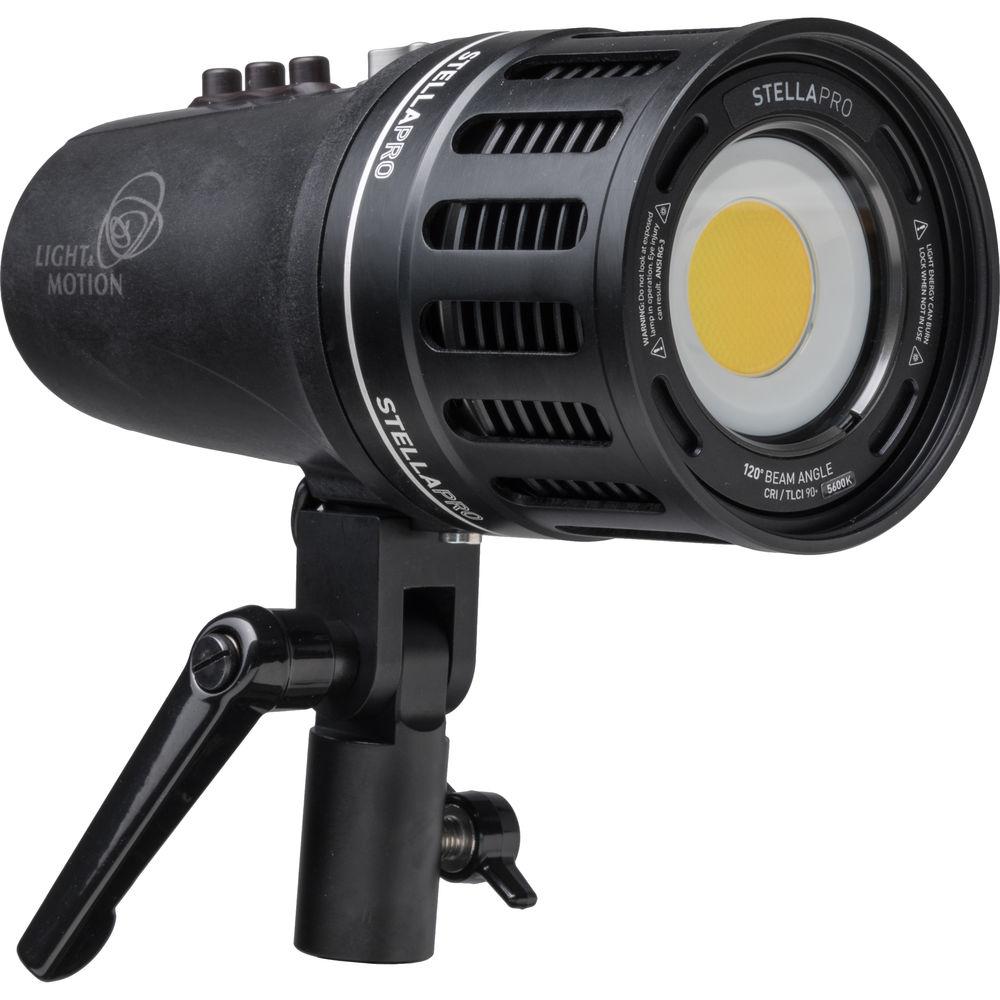

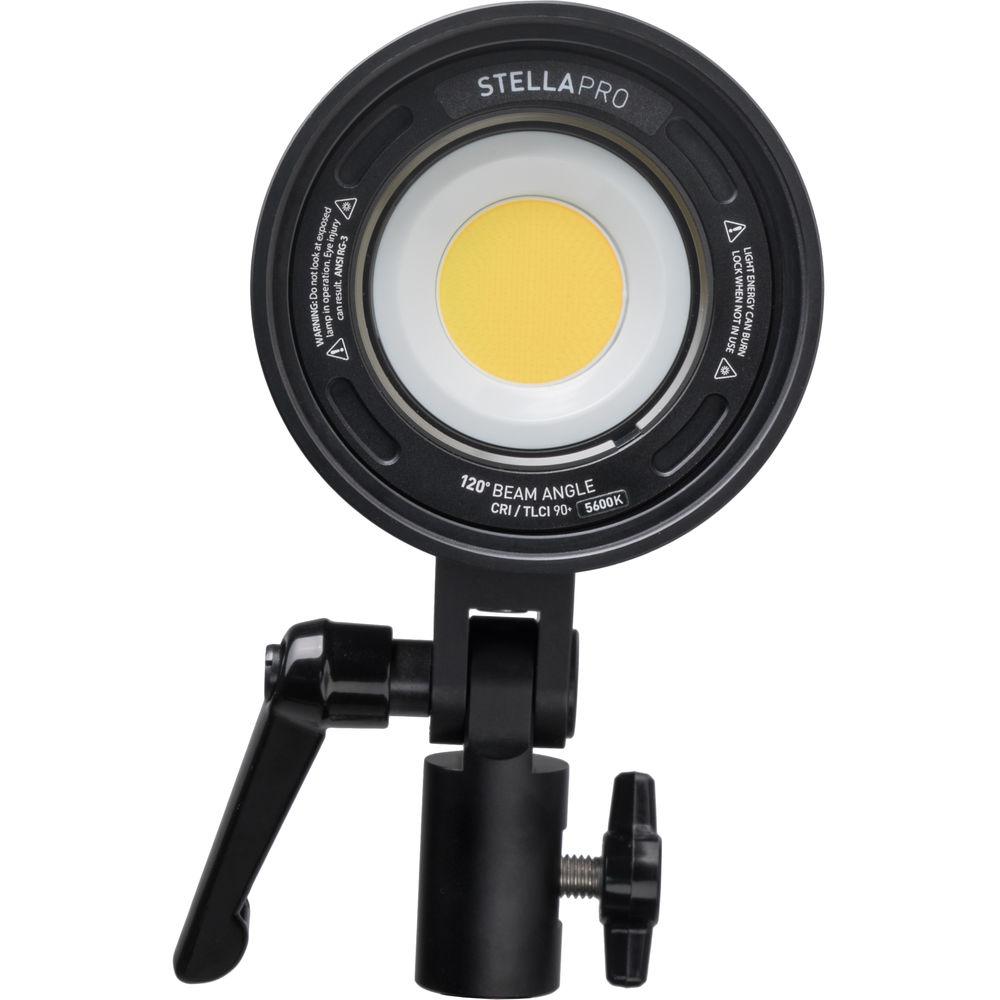

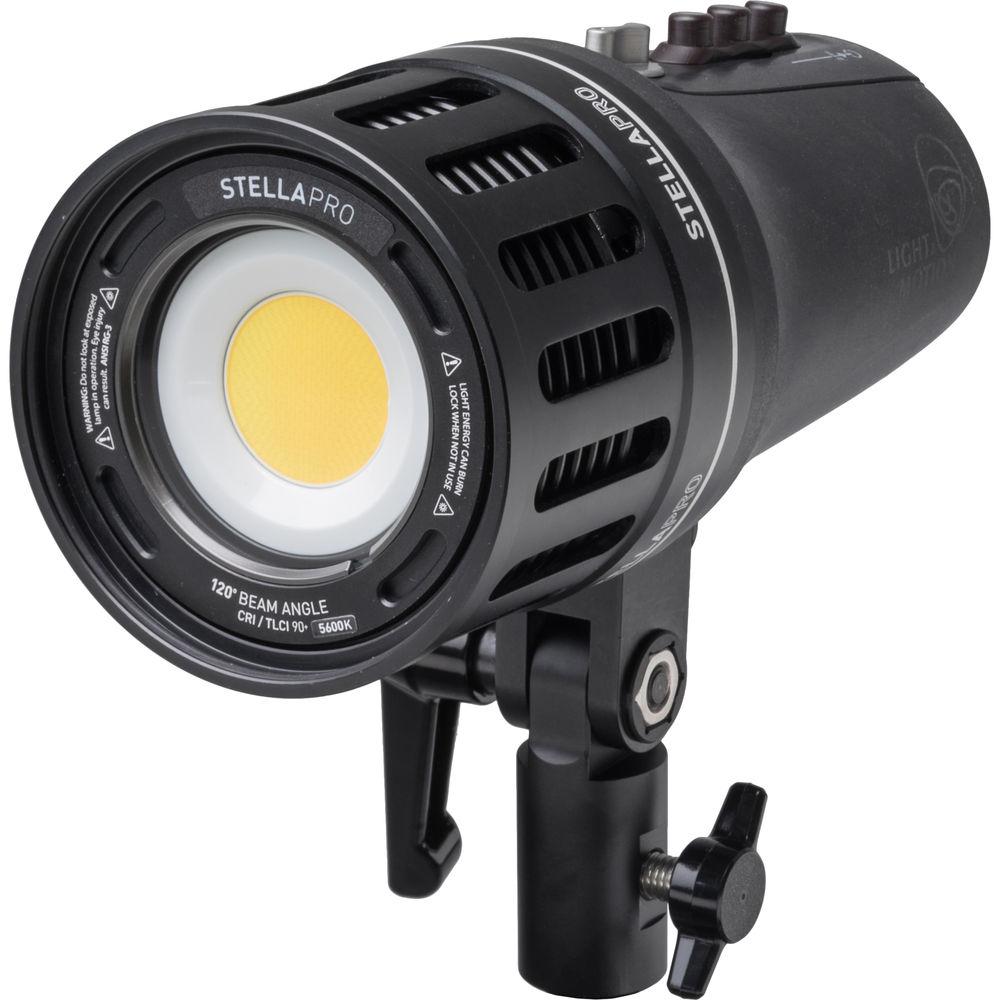

  The Stella 5000 RF spLED Light from Light & Motion is a daylight-balanced LED source that packs enough features to cause many users to call it their ideal on-camera source. The spLED designation indicates "single point" enhancements to the 29 emitters that Light & Motion has made to reduce the light field and eliminate multiple shadows that can plague LED fixtures. Light & Motion has also introduced RF technology via the built-in 10-frequency Elinchrom EL-Skyport transceiver. With a separately purchased EL-Remote Control for Stella Pro you can control the output settings of 20 lights from distances of up to 656'.For location work, the Stella 5000 is hard to beat. With a very small form factor and weight of only 2.5 lb, it's barely noticeable in your kit case. What is noticeable is the clean, accurate color rendering output from the unit's flicker-free COB LED that gives it a rating of 90 CRI and 93 TLCI.The Stella 5000 has a wide 120-degree beam that can be narrowed with an optional 50-degree optic or softened with an optional diffuser. The fan-less design is dead quiet for sound-sensitive locations, while the light is dimmable either continuously or in steps. And the housing is durably built. Not only can it survive repeated dropping on concrete from a height of 3.3', but it's also waterproof to depths of 328 feet!The unit is powered by a built-in battery that charges in 1.5 hours to 80% and 2 hours to full charge, giving you a run time of 90 - 375 minutes depending on the power selected. You can also run the light from a D-Tap external battery source for longer shoots. Additionally, you can use mains power anywhere in the world thanks to the inclusion of a multi-voltage AC power supply. The Stella 5000 also comes with a YS Mount Pro, C-Stand Mount, and a High-Leverage Handle to quickly and easily secure your light on a stand or other support.
  Benefits
  • • High Output "Chip on Board" LED
    • Certified TLCI 93+, CRI 90+, CCT 5600K
    • Output up to 5000 lux at 3.28'
    • Integrated rechargeable li-ion battery provides 90 - 375 minutes of cord-free operation
    • Sophisticated flicker-free firmware design
    • Regulated lumen output - does not fade during use
    • Dimming with continuous or stepped control
    • Fan-free thermal management for silent operation
    • Broad range of accessories including Profoto, Elinchrom, and Chimera adaptability
    • OLED digital display for precise readout with power output, battery, and charge status
    • Controlled beam angle of 120°
    • Colored LED indicators give accurate battery status
    • Runs off wall power, D-Tap, 12V, external battery kits
    • Fast charge of 2 hours
    • Certified performance (FL-1 Standard)
  Included Elinchrom RF Technology
  • • Built-in EL-Skyport transceiver supports up to 10 frequency channels and 4 light groups
    • Uses remote control for Stella Pro (purchased separately)
    • Control 20+ lights with range up to 656' (outdoors) and 197' (indoors) with EL-Remote
    • Wireless firmware updates allow professionals to keep current with all future technology updates without losing time/work
  UPC: 812190019102

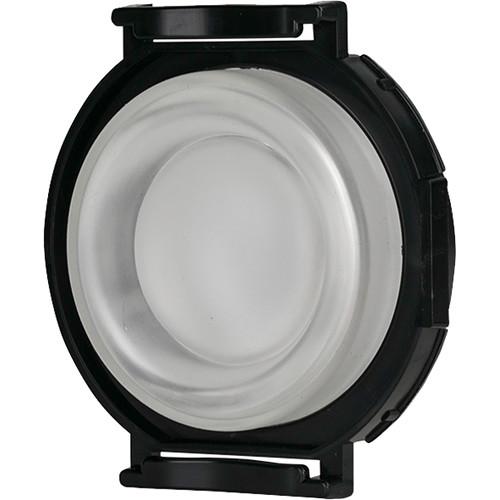

• Fresnel Lens for Stella 2000 and 5000 LED Lights The Light & Motion Fresnel Lens for Stella 2000 and 5000 LED Lights narrows the beam angle and creates a focused look with high contrast and sharp shadows. The lens has a press-on design for fast attachment or detachment. UPC: 812190017993
• Glo Bulb for Select Stella LED Lights An ideal accessory for overhead lighting scenarios like round table discussions and interviews, the Glo Bulb for Select Stella LED Lights casts a soft, medium contrast 180-degree beam of light with minimal shadows and an open "bare bulb" look with gradual fall off near the beam's edge. Another use is inside a softbox where it fills it evenly and eliminates the hot spot from the fixture. The Glo Bulb is compatible with the Stella 2000, Stella Pro 5000, 7000, and 10,000, as well as the Pro 10,000C and the Pro 5000D drone light. UPC: 812190017832
• 4-Way Barndoors for Stella 2000 and 5000 LED Heads The 4-Way Barndoors for Stella 2000 and 5000 LED Heads from Light & Motion allows you to control and shape the light beam of these fixtures while containing spill light. UPC: 812190017856
• Midi Click Stand (8') This black-finished Midi Click Stand from Kupo is an air-cushioned stand that rises to a height of 8' while supporting 11 lb and weighing 2.86 lb. The stand features a unique four-way interlocking design that allows it to click or un-click from a bundle of four, and can be carried with an optional shoulder strap. The stand has center struts for maximum stability and comes with a 5/8" top stud with 3/8" thread, with an additional male 1/4"-20 removable thread.
  Benefits
  • • Bi-color injection knob offers a positive locking and ergonomic grip
    • Quick-release clamp design on the central column for quick and easy setup
    • Equipped with a 5/8" top stud with 3/8" thread and removable 1/4"-20 threaded top
    • Double leg struts for extra stability and strength

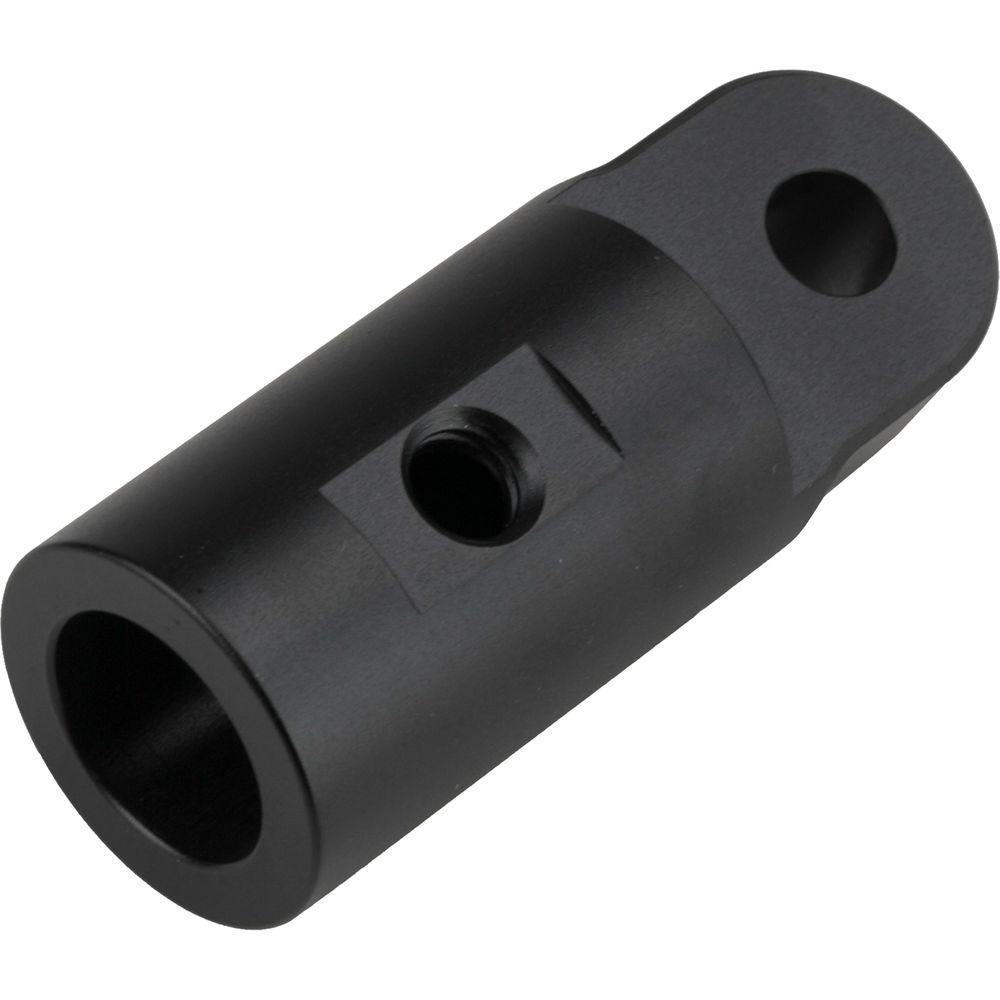

• 1/4"-20 Adapter for Stella 1000/2000/5000 LED Lights The 1/4"-20 Adapter for Stella 1000/2000/5000 LED Lights from Light & Motion allows you to mount any of these lights to a stand or lighting accessory with a 1/4"-20 male thread. UPC: 812190017870
• RF Skyport Controller for Stella Pro/Stella Pro-EL The Elinchrom RF Skyport Controller for Stella Pro/Stella Pro-EL is a compact remote control unit for the Stella Pro 5000 RF and 8000 RF. The remote control features a range of approximately 195' indoors and 650' outdoors. The Skyport Controller utilizes the reliable Skyport communication protocol to communicate with the light fixtures.

  Supporting 20 operating channels enables the Skyport to greatly reduce the chance of interference with other devices using the 2.4 GHz band. It also supports four groups, which allows you to group multiple units and control individual groups from the same remote. The remote charges via a micro-USB port, eliminating the need to carry spare replaceable batteries.
  2.4 GHz Frequency Band
  • The Skyport Controller transmits along the 2.4 GHz frequency band and allows you to remotely control your Stella Pro 5000 RF and 8000 RF lighting units. It features a transmission range of slightly greater than 650' when used outdoors, and when used indoors the range is slightly less than 200'.
  20 Channels
  • You can select from 20 channels to transmit on. This helps you find a clean channel when working in crowded RF spaces.
  Groups
  • The remote can control four groups of lights individually. This means that you can have individual control over four different light fixtures, or you can group multiple fixtures as one group and control the entire group as one. You can create up to four groups of individual or multiple light fixtures. This allows you to control an infinite number of Stella Pro/Stella Pro-EL light fixtures.
• Tools Packlite Travel Bag for BYOB 13 (Black) Maximize your carrying options, take side trips from primary destinations without becoming overburdened with gear, and save space with the black Tools Packlite Travel Bag for BYOB 13 from Tenba. This travel bag is designed to fit the non-included BYOB 13 Tenba insert, and will accommodate a pro DSLR camera with an attached 70-200 2.8 zoom lens or similar sized gear. The bag may also be used as a simple day bag for personal items such as food and clothing. A compact, collapsible, lightweight design, it self-stows in a built-in, mesh, side pocket, which closes with a cinch cord. The bag's primary function is portability. Easily packed, and requiring a minimal amount of space, the bag allows photographers to shift and reconfigure gear from a larger bag for occasions when they require less gear. Such occasions might include a simple photo shoot, short hike, or social event. A side mesh pocket holds a small water bottle or accessory. Your Packlite may be worn from the shoulder or cross-body with the wide, adjustable, shoulder strap.
  • Holds a pro DSLR camera with an attached 70-200 2.8 zoom lens
  • Single, zippered compartment for use with or without the optional, non-included BYOB 13 insert, sold separately
  • Compact, collapsible, lightweight design made of water-repellent nylon
  • Self-stows in a built-in, mesh, side pocket, which closes with a cinch cord
  • 1, mesh, side pocket for storing a water bottle or accessory
  • Wide, adjustable, cross-body, shoulder strap
  UPC: 026815362294

• YS Mount for Stella Pro Series LED Lights

• C-Stand Mount for Stella LED Lights

• High Leverage Handle for Stella YS Mount

• 24V Power Supply

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• 3-Year Limited Warranty Extension after Online Registration

• Limited 2-Year Warranty

• Micro-USB Cable

• Limited 2-Year Warranty

• Limited 5-Year Warranty

Also Includes

• Custom Tenba Rolling Grip Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Stella Pro 5000 RF spLED 5600K LED Light

  Light Source	LED
  Color Temperature	5600K
  CRI / TLCI	90+ CRI and 93+ TLCI
  Light Intensity	High: 2000, Medium: 2500, Low: 1200 lumens 10,300 lux @ 3.28' (1.0 m)
  Operating Voltage	100-240 VAC, 50/60 Hz, 24 VDC AC power supply included
  Battery	Built-in battery Charging: 1.5 hr to 80% and 2 hr to full charge Also compatible with external D-Tap batteries Run Time: High: 90 minutes, Medium: 180 minutes, Low: 375 minutes minutes on internal battery
  Beam Angle	120° native
  Dimming	Continuous or stepped
  Mount	C-stand mount, YS mount pro
  Cooling	No fan
  Waterproof Depth	328' (100 m), IP68
  Dimensions	7.0 x 3.4 x 3.4" (182 x 88 x 88 mm)
  Weight	2.5 lb (1148 g)

  Box Dimensions (LxWxH)	8.05 x 5.65 x 5.5"

• Fresnel Lens for Stella 2000 and 5000 LED Lights

  Box Dimensions (LxWxH)	4.7 x 4.4 x 2.4"

• Glo Bulb for Select Stella LED Lights

  Compatibility	Stella 2000, Stella Pro 5000, 7000, 10,000, Pro 10,000C, Pro 5000D drone light.
  Diameter	3.2" (82 mm)

  Box Dimensions (LxWxH)	4.85 x 4.4 x 2.25"

• 4-Way Barndoors for Stella 2000 and 5000 LED Heads

  Box Dimensions (LxWxH)	10.8 x 5.05 x 0.75"

• Midi Click Stand (8')

  Load Capacity	11 lb / 5 kg
  Mounting Options	1/4"-20 Male Thread 3/8"-16 Male Thread 5/8" Stud
  Column Diameter	0.98" / 2.5 cm 0.87" / 2.2 cm 0.75" / 1.9 cm
  Maximum Working Height	96" / 243.8 cm
  Collapsed Height	35" / 89 cm
  Footprint Diameter	42.9" / 109 cm
  Air Cushioned	Yes
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Material	Aluminum
  Weight	2.9 lb / 1.3 kg

  Box Dimensions (LxWxH)	36.0 x 4.5 x 3.4"

• 1/4"-20 Adapter for Stella 1000/2000/5000 LED Lights

  Box Dimensions (LxWxH)	5.0 x 4.0 x 0.5"

• RF Skyport Controller for Stella Pro/Stella Pro-EL

  Frequency	2.4 GHz
  Channels and Groups	Channels: 20 Groups: 4
  Range	656.2' / 200 m
  Battery	Volts: 3.7 VDC Cell Technology: LiPo Run-Time: 16 hours (approximately) Capacity: 1.04 Wh Charge Voltage: 5 V Charge Time: 2 hours (approximately)
  Connectors	Charging: 1 x micro-USB
  Dimensions	5.0 x 1.6 x 0.5" / 127.0 x 41.1 x 13.1 mm
  Weight	1.6 oz / 45.0 g

  Box Dimensions (LxWxH)	6.299 x 2.913 x 1.811"

• Tools Packlite Travel Bag for BYOB 13 (Black)

  Carrying/Transport Options

  Shoulder Strap

  Exterior Material	Nylon, Polyurethane
  Exterior Dimensions	16 x 6 x 10" / 40.6 x 15 x 25 cm
  Type of Closure	Zipper
  Water Resistance	Water-Resistant Material

  Interior Dimensions	16 x 6 x 10" / 40.6 x 15 x 25 cm
  Weight	0.4 lb / 0.2 kg

  Box Dimensions (LxWxH)	11.5 x 6.1 x 2.9"
