User Manual for Light & Motion Stella Pro 7000 On-Camera LED Light Click to enlarge the picture
Contents of the user manual for the Light & Motion Stella Pro 7000
- Product category: LED Lights Light & Motion
- Brand: Light & Motion
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Light & Motion LED Lights
 |
User manual for the Light & Motion Stella Pro 7000 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Light & Motion product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Light & Motion user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Light & Motion product will considerably shorten its lifespan!
|

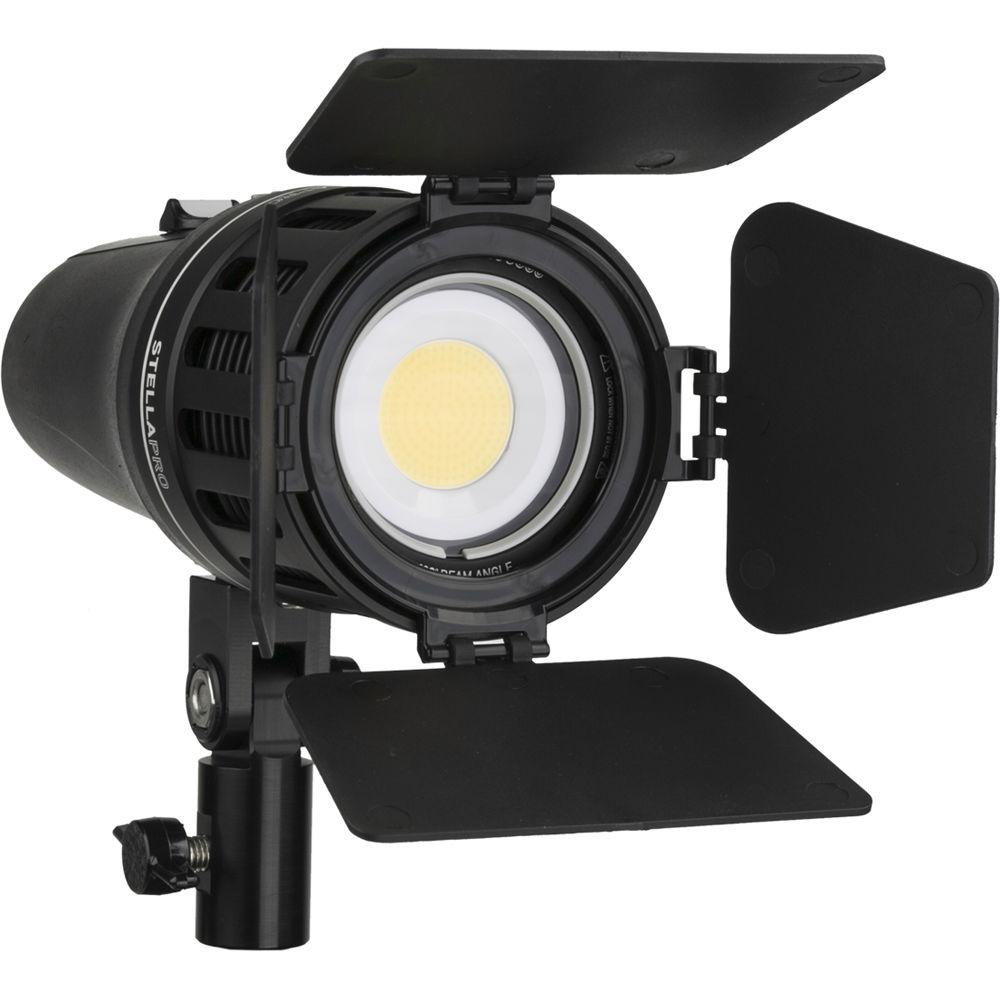

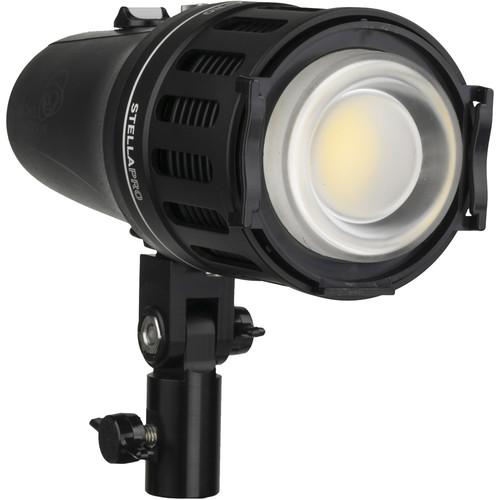

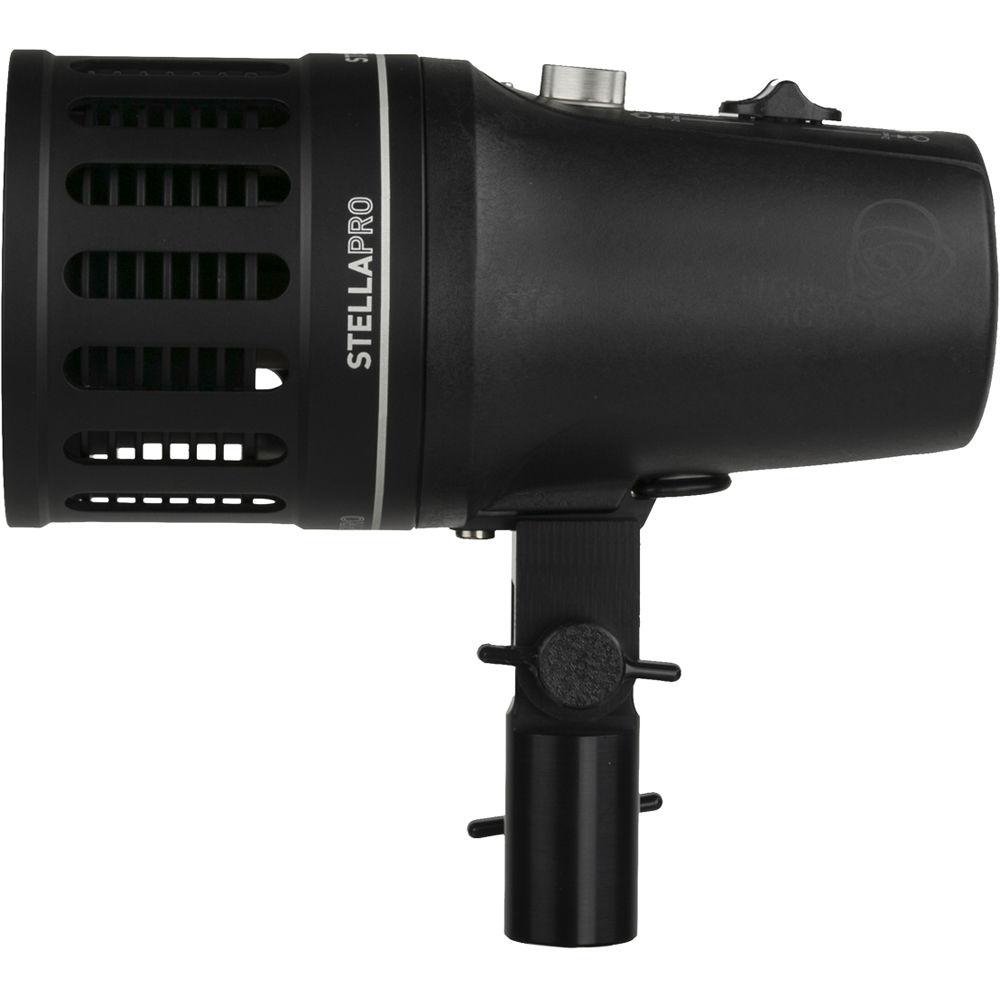

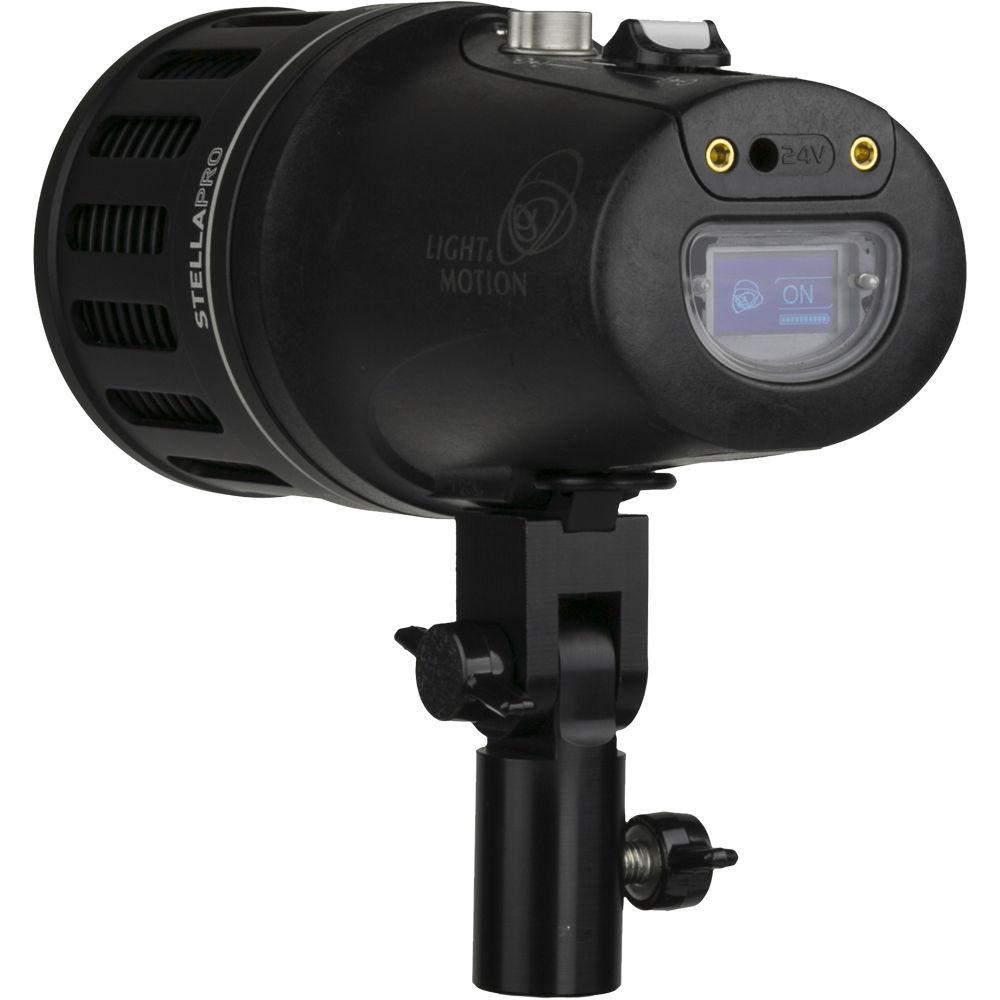

Product description The Stella Pro 7000 On-Camera LED Light from Light & Motion is a daylight-balanced dimmable LED source with a color temperature of 5000K. CRI rating of 90, and TLCI of 93. For location work, the unit features a small form factor and weight of only 2.5 lb. The built-in fan remains silent below 5000 lumens, runs low between 5000 and 6000 lumens, and runs high above 6000 lumens. The fixture features stepped and stepless dimming and integrates an OLED digital display for precise readouts.
The Stella Pro 7000 has a wide 120° beam and that can be narrowed to 50° with the included optical attachment or as narrow as 25° with an optional optical attachment. The fixture is powered by a built-in battery that charges to 80% in 1.5 hours giving you a run time of up to four hours (1 hour at full brightness). You can also run the light from a D-Tap external battery source for longer shoots. Additionally, you can use mains power anywhere in the world thanks to the inclusion of a multi-voltage AC power supply. The Stella Pro 7000 also comes with a 50° Focus Optic, 4-way barndoor set, high leverage handle, C-Stand mount, and an external power supply. - Benefits
-
- High-output Chip on Board (COB) LED
- Certified TLCI 93, CRI 90, CCT 5000K
- Integrated, rechargeable, lithium-ion battery provides 60 to 240 minutes of cord-free operation
- Flicker-free dimming
- Regulated lumen output - does not fade during use
- Dimming with continuous or stepped control
- Integrated fan
- Wide 120° beam angle
- Broad range of accessories including Profoto and Chimera adaptability
- Colored LED indicators give accurate battery status
- Runs off wall power or D-Tap, 24V, external battery kit
- Fast two hour charge time, or 1.5 hour to 80%
- Certified performance (FL-1 standard)

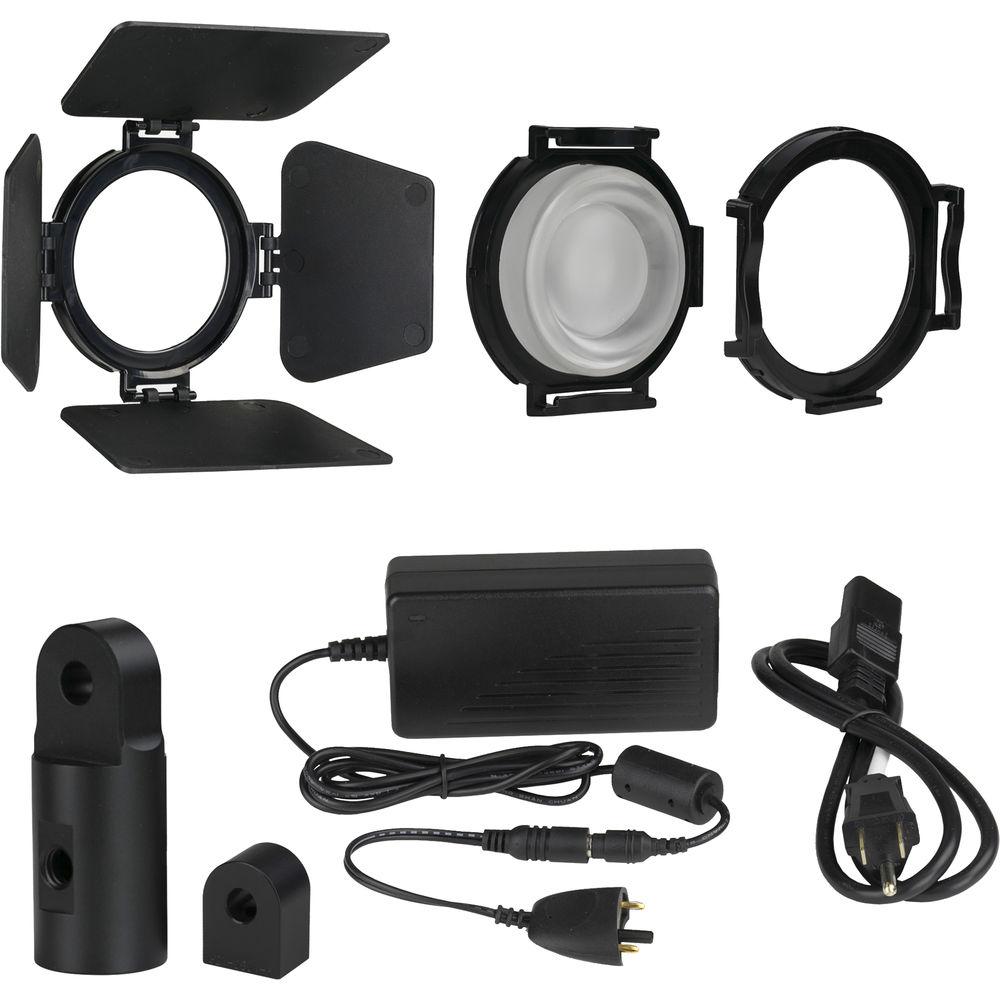

UPC: 812190018587 In the Box Light & Motion Stella Pro 7000 On-Camera LED Light 50° Focus Optic Barn Doors High Leverage Handle C-Stand Mount 1/4"-20 Adapter 24 Volt Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Light & Motion Stella Pro 7000 On-Camera LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLight & Motion Pro 7000 Specs | Color Temperature | 5000K | | CRI / TLCI | CRI: 90, TLCI: 93 | | Light Intensity | Lumens
High: 7000
Medium: 6000
Low: 5000 | | Operating Voltage | 120-240 VAC, 50/60 Hz, 24 VDC | | Battery | Built-in battery
Charging: 1.5 h to 80% and 2.0 h to full charge
Also compatible with external D-Tap batteries
Run time: 90 to 720 minutes on internal battery, depending on selected power | | Beam Angle | 120° native, 50° with included optic, | | Dimming | Continuous or stepped | | Mount | 1/4"-20 Adapter | | Weight | 2.55 lb / 1.56 kg | | | | Package Weight | 4.32 lb | | Box Dimensions (LxWxH) | 8.05 x 5.85 x 5.55" |
