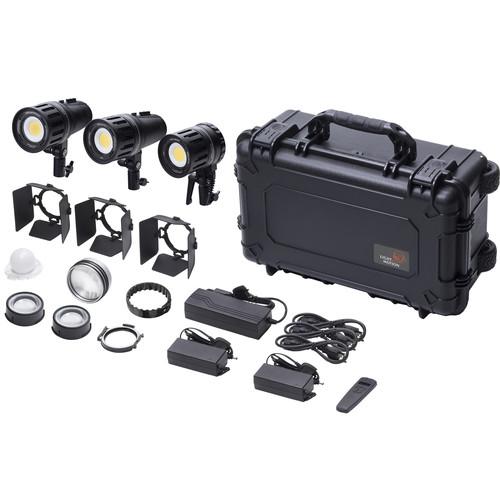

User Manual for Light & Motion Stella Pro Combo Kit Click to enlarge the picture
Contents of the user manual for the Light & Motion Stella Pro Combo
- Product category: LED Lights Light & Motion
- Brand: Light & Motion
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Light & Motion LED Lights
|
User manual for the Light & Motion Stella Pro Combo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Light & Motion product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Light & Motion user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Light & Motion product will considerably shorten its lifespan!
|
Product description Light & Motion has put together a kit with their three top-end lights, each with its own unique functions and benefits. The Stella Pro Combo Kit contains a Stella Pro 5000 RF, Stella Pro 8000 RF, and a Stella Pro 10000c 5600K LED light. Both the 5000 and the 8000 have radio receivers that allow adjustments to be made at distances up to 656' using the included Elinchrom EL remote control. All the lights are water-resistant, in fact, the Pro 5000 is completely submersible! The Pro 5000 and Pro 8000 also have built-in batteries for total wireless freedom that get up to 375 and 245 minutes run time respectively. The 10000c is AC only but it offers 10,000 lumens of output, roughly equivalent to a 665W incandescent fixture. Each light comes with 4-way barndoors, a YS mount, High Leverage handle, a C-Stand mount, and a power supply. To vary the lights' beam angle, two 50-degree Focus Optics and a 25-degree Fresnel attachment are included. Other included modifiers are a Speed Ring Gel Holder, Profoto Adapter, and an omni-directional Glo Bulb. It's all ready for transport anywhere in the world with the provided wheeled hard case. - Stella Pro 5000 RF spLED 5600K LED Light
- Light & Motion 5000 & 8000 RF Continuous Lights
- Light & Motion 10000c Singe Point LED Light
- Stella Pro Single Point LED Lights Progressive, Portable and Powerful
The Stella 5000 RF spLED Light from Light & Motion is a daylight-balanced LED source that packs enough features to cause many users to call it their ideal on-camera source. The spLED designation indicates "single point" enhancements to the 29 emitters that Light & Motion has made to reduce the light field and eliminate multiple shadows that can plague LED fixtures. Light & Motion has also introduced RF technology via the built-in 10-frequency Elinchrom EL-Skyport transceiver. With a separately purchased EL-Remote Control for Stella Pro you can control the output settings of 20 lights from distances of up to 656'.For location work, the Stella 5000 is hard to beat. With a very small form factor and weight of only 2.5 lb, it's barely noticeable in your kit case. What is noticeable is the clean, accurate color rendering output from the unit's flicker-free COB LED that gives it a rating of 90 CRI and 93 TLCI.The Stella 5000 has a wide 120-degree beam that can be narrowed with an optional 50-degree optic or softened with an optional diffuser. The fan-less design is dead quiet for sound-sensitive locations, while the light is dimmable either continuously or in steps. And the housing is durably built. Not only can it survive repeated dropping on concrete from a height of 3.3', but it's also waterproof to depths of 328 feet!The unit is powered by a built-in battery that charges in 1.5 hours to 80% and 2 hours to full charge, giving you a run time of 90 - 375 minutes depending on the power selected. You can also run the light from a D-Tap external battery source for longer shoots. Additionally, you can use mains power anywhere in the world thanks to the inclusion of a multi-voltage AC power supply. The Stella 5000 also comes with a YS Mount Pro, C-Stand Mount, and a High-Leverage Handle to quickly and easily secure your light on a stand or other support. - Benefits
-
- High Output "Chip on Board" LED
- Certified TLCI 93+, CRI 90+, CCT 5600K
- Output up to 5000 lux at 3.28'
- Integrated rechargeable li-ion battery provides 90 - 375 minutes of cord-free operation
- Sophisticated flicker-free firmware design
- Regulated lumen output - does not fade during use
- Dimming with continuous or stepped control
- Fan-free thermal management for silent operation
- Broad range of accessories including Profoto, Elinchrom, and Chimera adaptability
- OLED digital display for precise readout with power output, battery, and charge status
- Controlled beam angle of 120°
- Colored LED indicators give accurate battery status
- Runs off wall power, D-Tap, 12V, external battery kits
- Fast charge of 2 hours
- Certified performance (FL-1 Standard)
- Included Elinchrom RF Technology
-
- Built-in EL-Skyport transceiver supports up to 10 frequency channels and 4 light groups
- Uses remote control for Stella Pro (purchased separately)
- Control 20+ lights with range up to 656' (outdoors) and 197' (indoors) with EL-Remote
- Wireless firmware updates allow professionals to keep current with all future technology updates without losing time/work
UPC: 812190019102 - Stella Pro 8000 RF spLED 5600K LED Light The Stella 8000 RF spLED Light from Light & Motion is a daylight-balanced LED source that packs enough features to cause many users to call it their ideal on-camera source. The spLED designation indicates "single point" enhancements to the 29 emitters that Light & Motion has made to reduce the light field and eliminate multiple shadows that can plague LED fixtures. Light & Motion has also introduced RF technology via the built-in 10-frequency Elinchrom EL-Skyport transceiver. With a separately purchased EL-Remote Control for Stella Pro you can control the output settings of 20 lights from distances of up to 656'.For location work, the Stella 8000 is hard to beat. With a very small form factor and weight of only 2.54 lb, it's barely noticeable in your kit case. What is noticeable is the clean, accurate color rendering output from the unit's flicker-free COB LED that gives it a rating of 90 CRI and 93 TLCI.The Stella 8000 has a wide 120-degree beam that can be narrowed with an optional 50-degree optic or softened with an optional diffuser. The quiet variable speed fan automatically turns on when light output exceeds 5000 lumens, while the light is dimmable either continuously or in steps. And the housing is durably built. Not only can it survive repeated dropping on concrete from a height of 3.3', but it's also rain and splash resistant.The unit is powered by a built-in battery that charges in 1.5 hours to 80% and 2 hours to full charge, giving you a run time of 50 - 250 minutes depending on the power selected. You can also run the light from a D-Tap external battery source for longer shoots. Additionally, you can use mains power anywhere in the world thanks to the inclusion of a multi-voltage AC power supply. The Stella 8000 also comes with a YS Mount Pro, C-Stand Mount, and a High-Leverage Handle to quickly and easily secure your light on a stand or other support.
- Benefits
-
- High Output "Chip on Board" LED
- Certified TLCI 93+, CRI 90+, CCT 5600K
- Output up to 8000 lux at 3.28'
- Integrated rechargeable li-ion battery provides 50 - 250 minutes of cord-free operation
- Sophisticated flicker-free firmware design
- Regulated lumen output - does not fade during use
- Dimming with continuous or stepped control
- Integrated variable speed fan with low decibel levels automatically turns on when light output exceeds 5000 lumens
- Broad range of accessories including Profoto, Elinchrom, and Chimera adaptability
- OLED digital display for precise readout with power output, battery, and charge status
- Controlled beam angle of 120°
- Colored LED indicators give accurate battery status
- Runs off wall power, D-Tap, 12V, external battery kits
- Fast charge of 2 hours
- Certified performance (FL-1 Standard)
- Included Elinchrom RF Technology
-
- Built-in EL-Skyport transceiver supports up to 10 frequency channels and 4 light groups
- Uses remote control for Stella Pro (purchased separately)
- Control 20+ lights with range up to 656' (outdoors) and 197' (indoors) with EL-Remote
- Wireless firmware updates allow professionals to keep current with all future technology updates without losing time/work
UPC: 812190019096 - Stella Pro 10000C spLED Corded 5600K LED Light The Stella Pro 10000C spLED Corded Light from Light & Motion is a daylight-balanced LED source that packs enough features to cause many users to call it their ideal on-camera source. The spLED designation indicates "single point" enhancements to the 29 emitters that Light & Motion has made to reduce the light field and eliminate multiple shadows that can plague LED fixtures.For location work, the Stella Pro 10000C is hard to beat. With a very small form factor and weight of 26.4 oz, it's barely noticeable in your kit case. What is noticeable is the clean, accurate color rendering output from the unit's fully dimmable, flicker-free COB LEDs that give it a rating of 90 CRI and 93 TLCI.The Stella Pro 10000C has a wide 120-degree beam that can be narrowed with the included 50-degree optic or softened with an optional diffuser. The variable-speed fan turns on automatically when output exceeds 5000 lumens and runs at low decibels for sound-sensitive locations. And the housing is durably built. Not only can it survive repeated dropping on concrete from a height of 3.3', but it's also water-resistantThe unit has no built-in battery and is powered by the included AC power supply, but it will also run on 24V external batteries. The Stella Pro 10000C also comes with a 50-degree optic, Speedring Gel Holder, YS Mount Pro, C-Stand Mount, and a High Leverage Handle for secure mounting.
- Benefits
-
- High-output "Chip on Board" LED
- Certified TLCI 90, CRI 90, CCT
- Output up to 20,580 lux at 3.28'
- AC/DC supply allows light to run off AC and various external power sources
- Sophisticated flicker-free firmware design
- Regulated lumen output - does not fade during use
- Continuous dimming with control ring
- Integrated variable speed fan with low decibel levels automatically turns on when light output exceeds 5000 lumens
- Controlled focus from 120° down to 50° or 25° with adapters
- Broad range of accessories including Profoto and Chimera adaptability
- OLED digital display for precise readout
UPC: 812190019485 - 4-Way Barndoors for Stella 2000 and 5000 LED Heads The 4-Way Barndoors for Stella 2000 and 5000 LED Heads from Light & Motion allows you to control and shape the light beam of these fixtures while containing spill light. UPC: 812190017856
- Focus Optic for Stella 2000 and 5000 LED Lights (50°) The silicone Light & Motion 50° Focus Optic for Stella 2000 and 5000 LED Lights creates a narrow, evenly dispersed light beam with soft light fall off at the beam edge. The white silicone part can be removed allowing the remaining frame to be used as a 3" speedring holder for Chimera softboxes or as a holder for hard 3x3" filters. UPC: 812190017863
- Fresnel Lens for Stella 2000 and 5000 LED Lights The Light & Motion Fresnel Lens for Stella 2000 and 5000 LED Lights narrows the beam angle and creates a focused look with high contrast and sharp shadows. The lens has a press-on design for fast attachment or detachment. UPC: 812190017993
- Glo Bulb for Select Stella LED Lights An ideal accessory for overhead lighting scenarios like round table discussions and interviews, the Glo Bulb for Select Stella LED Lights casts a soft, medium contrast 180-degree beam of light with minimal shadows and an open "bare bulb" look with gradual fall off near the beam's edge. Another use is inside a softbox where it fills it evenly and eliminates the hot spot from the fixture. The Glo Bulb is compatible with the Stella 2000, Stella Pro 5000, 7000, and 10,000, as well as the Pro 10,000C and the Pro 5000D drone light. UPC: 812190017832
- Profoto Adapter for Stella Pro 5000/5000 RF and Pro 8000 The Profoto Adapter for Stella Pro 5000/5000 RF and Pro 8000 from Light & Motion allows these Pro fixtures to be used with Profoto speed rings or any other brand speed ring made for Profoto. The adapter has a split-ring design that permits speedy, secure attachment to the bezel of the fixture. UPC: 812190018075
In the Box Bundle Items Stella Pro 5000 RF spLED 5600K LED Light xayyzqtrswsqszdeefxqbezxsw - YS Mount for Stella Pro Series LED Lights
- C-Stand Mount for Stella LED Lights
- High Leverage Handle for Stella YS Mount
Stella Pro 8000 RF spLED 5600K LED Light - YS Mount for Stella Pro Series LED Lights
- C-Stand Mount for Stella LED Lights
- High Leverage Handle for Stella YS Mount
Stella Pro 10000C spLED Corded 5600K LED Light - YS Mount for Stella Pro Series LED Lights
- 3" Speed Ring and Gel Holder
- C-Stand Mount for Stella LED Lights
- High Leverage Handle for Stella YS Mount
3 x 4-Way Barndoors for Stella 2000 and 5000 LED Heads 2 x Focus Optic for Stella 2000 and 5000 LED Lights (50°) Fresnel Lens for Stella 2000 and 5000 LED Lights Glo Bulb for Select Stella LED Lights xayyzqtrswsqszdeefxqbezxsw Profoto Adapter for Stella Pro 5000/5000 RF and Pro 8000
Also Includes - EL Remote Control
- 3" Speed Ring Gel Holder
- Rolling Hard Case
Table of Contents
|
Upload User Manual
Have you got an user manual for the Light & Motion Stella Pro Combo Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Stella Pro 5000 RF spLED 5600K LED Light
| Light Source | LED | | Color Temperature | 5600K | | CRI / TLCI | 90+ CRI and 93+ TLCI | | Light Intensity | High: 2000, Medium: 2500, Low: 1200 lumens
10,300 lux @ 3.28' (1.0 m) | | Operating Voltage | 100-240 VAC, 50/60 Hz, 24 VDC
AC power supply included | | Battery | Built-in battery
Charging: 1.5 hr to 80% and 2 hr to full charge
Also compatible with external D-Tap batteries
Run Time: High: 90 minutes, Medium: 180 minutes, Low: 375 minutes minutes on internal battery | | Beam Angle | 120° native | | Dimming | Continuous or stepped | | Mount | C-stand mount, YS mount pro | | Cooling | No fan | | Waterproof Depth | 328' (100 m), IP68 | | Dimensions | 7.0 x 3.4 x 3.4" (182 x 88 x 88 mm) | | Weight | 2.5 lb (1148 g) | | | | Box Dimensions (LxWxH) | 8.05 x 5.65 x 5.5" | - Stella Pro 8000 RF spLED 5600K LED Light
| Light Source | LED | | Color Temperature | 5600K | | CRI / TLCI | 90+ CRI and 93+ TLCI | | Light Intensity | High: 8000, Medium: 4000, Low: 2000 lumens
14,920 lux @ 3.28' (1.0 m) | | Operating Voltage | 100-240 VAC, 50/60 Hz, 24 VDC
AC power supply included | | Battery | Built-in battery
Charging: 1.5 hr to 80% and 2 hr to full charge
Also compatible with external D-Tap batteries
Run Time: High: 50 minutes, Medium: 115 minutes, Low: 250 minutes minutes on internal battery | | Beam Angle | 120° native | | Dimming | Continuous or stepped | | Mount | C-stand mount, YS mount pro | | Cooling | Fan | | Waterproof Depth | Not submersible, resistant to rain and splashes | | Dimensions | 7.0 x 3.7 x 3.7" (182 x 94 x 94 mm) | | Weight | 2.54 lb (1156 g) | | | | Box Dimensions (LxWxH) | 7.9 x 5.6 x 5.6" | - Stella Pro 10000C spLED Corded 5600K LED Light
| Light Source | LED | | Color Temperature | 5600K | | CRI / TLCI | 90 CRI and 93 TLCI | | Light Intensity | High: 10,000, Medium: 5000, Low: 2500 lumens
20,580 lux @ 3.28' (1.0 m) | | Operating Voltage | 100-240 VAC, 50/60 Hz, 24 VDC
AC power supply included | | Battery | No internal battery - optional external batteries | | Beam Angle | 120° native | | Dimming | Continuous | | Mount | C-stand mount, YS mount pro | | Water Resistant | Yes | | Dimensions | 4.0 x 3.5 x 3.5" (103 x 89 x 89 mm) | | Weight | 26.4 oz (750 kg) | | | | Box Dimensions (LxWxH) | 8.0 x 5.8 x 5.4" | - 4-Way Barndoors for Stella 2000 and 5000 LED Heads
| | | Box Dimensions (LxWxH) | 10.8 x 5.05 x 0.75" | - Focus Optic for Stella 2000 and 5000 LED Lights (50°)
| Dimensions | Diameter: Approximately 3.22" (82 mm) | | | | Box Dimensions (LxWxH) | 3.3 x 2.8 x 0.8" | - Fresnel Lens for Stella 2000 and 5000 LED Lights
| | | Box Dimensions (LxWxH) | 4.7 x 4.4 x 2.4" | - Glo Bulb for Select Stella LED Lights
| Compatibility | Stella 2000, Stella Pro 5000, 7000, 10,000, Pro 10,000C, Pro 5000D drone light. | | Diameter | 3.2" (82 mm) | | | | Box Dimensions (LxWxH) | 4.85 x 4.4 x 2.25" | - Profoto Adapter for Stella Pro 5000/5000 RF and Pro 8000
| | | Box Dimensions (LxWxH) | 4.3 x 4.3 x 1.1" |
