Product description

• Stella Pro 5000 RF spLED 5600K LED Light
  • Light & Motion 5000 & 8000 RF Continuous Lights
  • Stella Pro Single Point LED Lights Progressive, Portable and Powerful

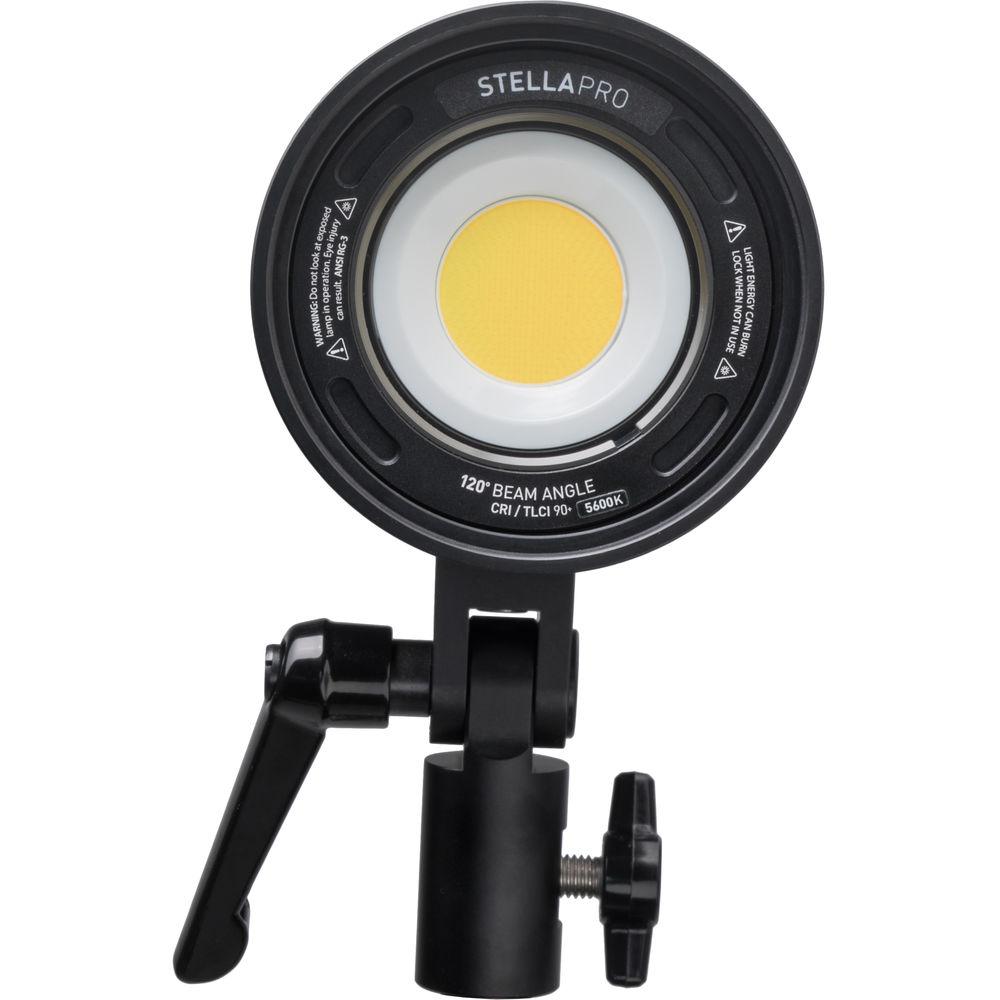

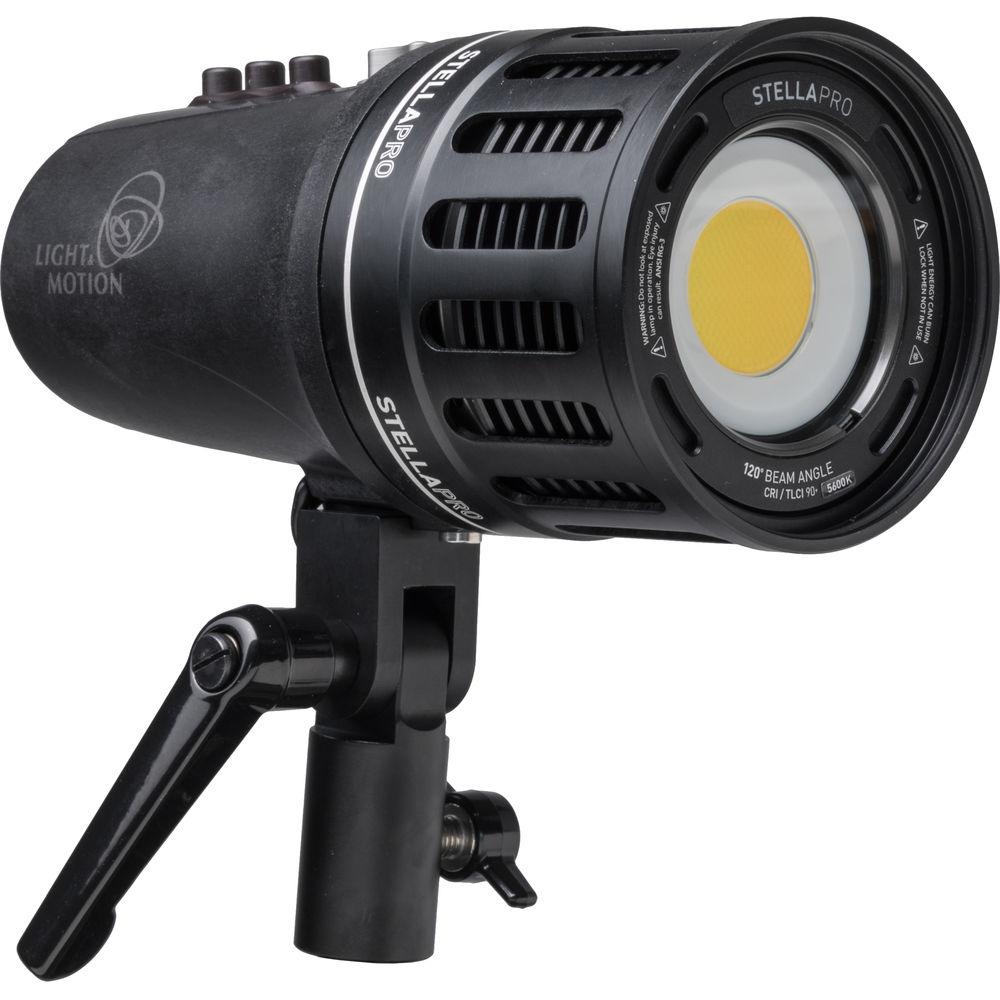

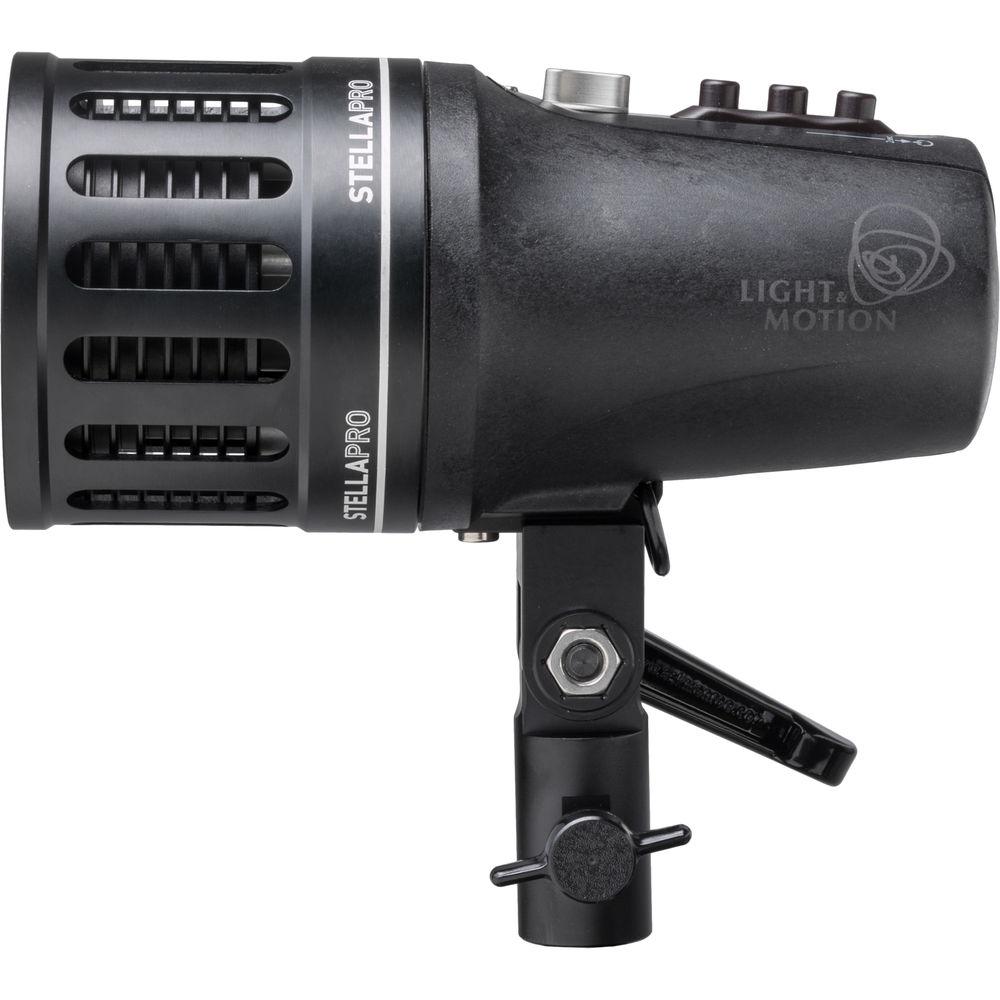

  The Stella 5000 RF spLED Light from Light & Motion is a daylight-balanced LED source that packs enough features to cause many users to call it their ideal on-camera source. The spLED designation indicates "single point" enhancements to the 29 emitters that Light & Motion has made to reduce the light field and eliminate multiple shadows that can plague LED fixtures. Light & Motion has also introduced RF technology via the built-in 10-frequency Elinchrom EL-Skyport transceiver. With a separately purchased EL-Remote Control for Stella Pro you can control the output settings of 20 lights from distances of up to 656'.For location work, the Stella 5000 is hard to beat. With a very small form factor and weight of only 2.5 lb, it's barely noticeable in your kit case. What is noticeable is the clean, accurate color rendering output from the unit's flicker-free COB LED that gives it a rating of 90 CRI and 93 TLCI.The Stella 5000 has a wide 120-degree beam that can be narrowed with an optional 50-degree optic or softened with an optional diffuser. The fan-less design is dead quiet for sound-sensitive locations, while the light is dimmable either continuously or in steps. And the housing is durably built. Not only can it survive repeated dropping on concrete from a height of 3.3', but it's also waterproof to depths of 328 feet!The unit is powered by a built-in battery that charges in 1.5 hours to 80% and 2 hours to full charge, giving you a run time of 90 - 375 minutes depending on the power selected. You can also run the light from a D-Tap external battery source for longer shoots. Additionally, you can use mains power anywhere in the world thanks to the inclusion of a multi-voltage AC power supply. The Stella 5000 also comes with a YS Mount Pro, C-Stand Mount, and a High-Leverage Handle to quickly and easily secure your light on a stand or other support.
  Benefits
  • • High Output "Chip on Board" LED
    • Certified TLCI 93+, CRI 90+, CCT 5600K
    • Output up to 5000 lux at 3.28'
    • Integrated rechargeable li-ion battery provides 90 - 375 minutes of cord-free operation
    • Sophisticated flicker-free firmware design
    • Regulated lumen output - does not fade during use
    • Dimming with continuous or stepped control
    • Fan-free thermal management for silent operation
    • Broad range of accessories including Profoto, Elinchrom, and Chimera adaptability

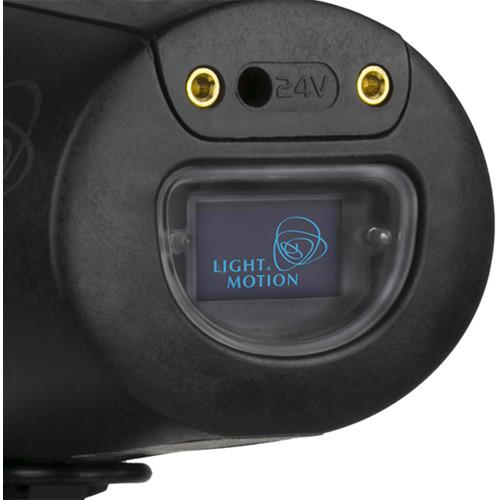

    • OLED digital display for precise readout with power output, battery, and charge status
    • Controlled beam angle of 120°
    • Colored LED indicators give accurate battery status
    • Runs off wall power, D-Tap, 12V, external battery kits
    • Fast charge of 2 hours
    • Certified performance (FL-1 Standard)
  Included Elinchrom RF Technology
  • • Built-in EL-Skyport transceiver supports up to 10 frequency channels and 4 light groups
    • Uses remote control for Stella Pro (purchased separately)
    • Control 20+ lights with range up to 656' (outdoors) and 197' (indoors) with EL-Remote
    • Wireless firmware updates allow professionals to keep current with all future technology updates without losing time/work
  UPC: 812190019102
• 4-Way Barndoors for Stella 2000 and 5000 LED Heads The 4-Way Barndoors for Stella 2000 and 5000 LED Heads from Light & Motion allows you to control and shape the light beam of these fixtures while containing spill light. UPC: 812190017856

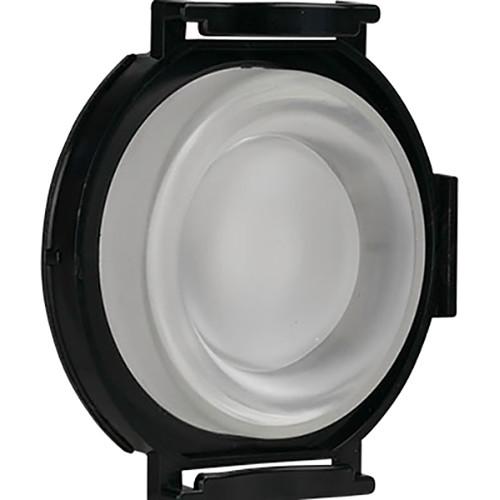

• Focus Optic for Stella 2000 and 5000 LED Lights (50°) The silicone Light & Motion 50° Focus Optic for Stella 2000 and 5000 LED Lights creates a narrow, evenly dispersed light beam with soft light fall off at the beam edge. The white silicone part can be removed allowing the remaining frame to be used as a 3" speedring holder for Chimera softboxes or as a holder for hard 3x3" filters. UPC: 812190017863

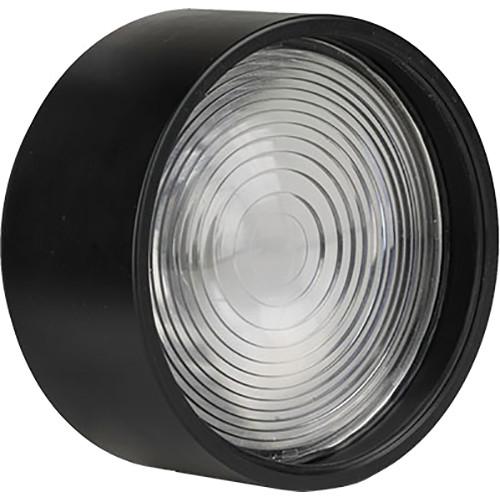

• Fresnel Lens for Stella 2000 and 5000 LED Lights The Light & Motion Fresnel Lens for Stella 2000 and 5000 LED Lights narrows the beam angle and creates a focused look with high contrast and sharp shadows. The lens has a press-on design for fast attachment or detachment. UPC: 812190017993

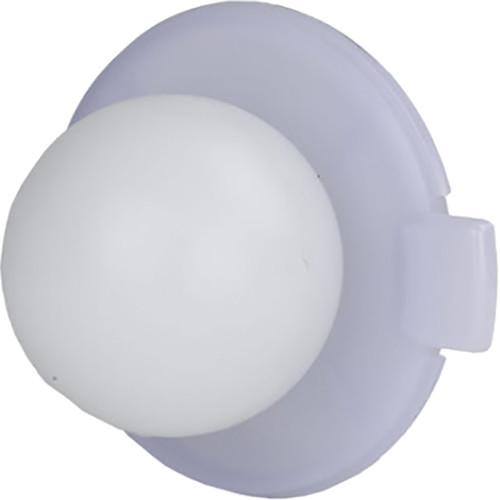

• Glo Bulb for Select Stella LED Lights An ideal accessory for overhead lighting scenarios like round table discussions and interviews, the Glo Bulb for Select Stella LED Lights casts a soft, medium contrast 180-degree beam of light with minimal shadows and an open "bare bulb" look with gradual fall off near the beam's edge. Another use is inside a softbox where it fills it evenly and eliminates the hot spot from the fixture. The Glo Bulb is compatible with the Stella 2000, Stella Pro 5000, 7000, and 10,000, as well as the Pro 10,000C and the Pro 5000D drone light. UPC: 812190017832
• Profoto Adapter for Stella Pro 5000/5000 RF and Pro 8000 The Profoto Adapter for Stella Pro 5000/5000 RF and Pro 8000 from Light & Motion allows these Pro fixtures to be used with Profoto speed rings or any other brand speed ring made for Profoto. The adapter has a split-ring design that permits speedy, secure attachment to the bezel of the fixture. UPC: 812190018075

• YS Mount for Stella Pro Series LED Lights

• C-Stand Mount for Stella LED Lights

• High Leverage Handle for Stella YS Mount

• 24V Power Supply

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

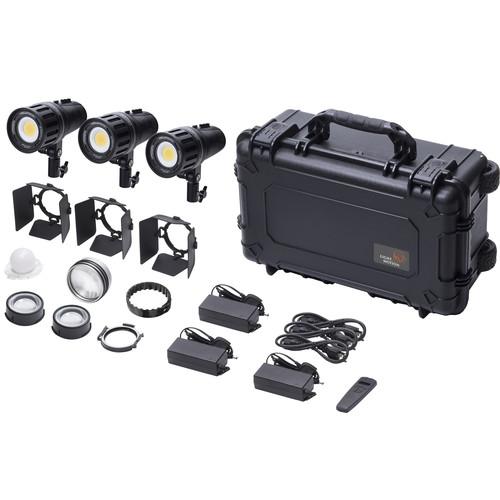

Also Includes

• EL Remote Control
• 3" Speed Ring Gel Holder
• Rolling Hard Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Stella Pro 5000 RF spLED 5600K LED Light

  Light Source	LED
  Color Temperature	5600K
  CRI / TLCI	90+ CRI and 93+ TLCI
  Light Intensity	High: 2000, Medium: 2500, Low: 1200 lumens 10,300 lux @ 3.28' (1.0 m)
  Operating Voltage	100-240 VAC, 50/60 Hz, 24 VDC AC power supply included
  Battery	Built-in battery Charging: 1.5 hr to 80% and 2 hr to full charge Also compatible with external D-Tap batteries Run Time: High: 90 minutes, Medium: 180 minutes, Low: 375 minutes minutes on internal battery
  Beam Angle	120° native
  Dimming	Continuous or stepped
  Mount	C-stand mount, YS mount pro
  Cooling	No fan
  Waterproof Depth	328' (100 m), IP68
  Dimensions	7.0 x 3.4 x 3.4" (182 x 88 x 88 mm)
  Weight	2.5 lb (1148 g)

  Box Dimensions (LxWxH)	8.05 x 5.65 x 5.5"

• 4-Way Barndoors for Stella 2000 and 5000 LED Heads

  Box Dimensions (LxWxH)	10.8 x 5.05 x 0.75"

• Focus Optic for Stella 2000 and 5000 LED Lights (50°)

  Dimensions

  Diameter: Approximately 3.22" (82 mm)

  Box Dimensions (LxWxH)	3.3 x 2.8 x 0.8"

• Fresnel Lens for Stella 2000 and 5000 LED Lights

  Box Dimensions (LxWxH)	4.7 x 4.4 x 2.4"

• Glo Bulb for Select Stella LED Lights

  Compatibility	Stella 2000, Stella Pro 5000, 7000, 10,000, Pro 10,000C, Pro 5000D drone light.
  Diameter	3.2" (82 mm)

  Box Dimensions (LxWxH)	4.85 x 4.4 x 2.25"

• Profoto Adapter for Stella Pro 5000/5000 RF and Pro 8000

  Box Dimensions (LxWxH)	4.3 x 4.3 x 1.1"
