Light & Motion Stella Wedding Photographer

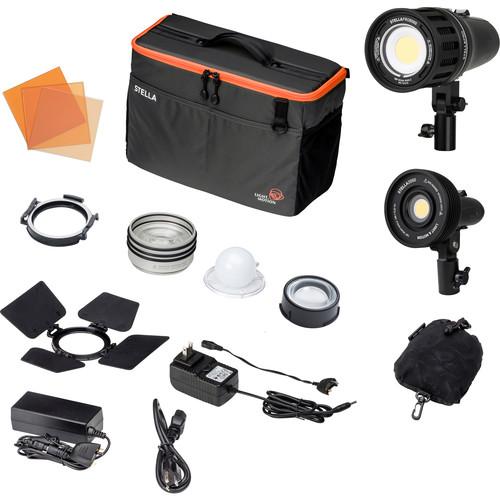

User Manual for Light & Motion Stella Wedding Photographer Kit

• Product category: LED Lights Light & Motion
• Brand: Light & Motion
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Light & Motion LED Lights

Product description

• Stella Pro 5000 Classic LED Light The Stella Pro 5000 Classic LED Light from Light & Motion is a daylight-balanced LED source that packs enough features to cause many users to call it their ideal on-camera source. For location work, the Stella Pro 5000 Classic features a very small form factor and a weight of only 2.5 pounds. It's barely noticeable in your kit case. What is noticeable is the clean, accurate color rendering output from the unit's flicker-free COB LED that gives it a rating of 92 CRI and 93 TLCI.The Stella Pro 5000 Classic has a wide 120-degree beam that can be narrowed with an optional 50° focus optic or softened with the separately-purchased diffuser. The fan-less design is dead quiet for sound-sensitive locations and is dimmable either continuously or in steps. And, the housing is durably built. Not only can it survive repeated dropping on concrete from a height of 3.3 feet, but it's also waterproof to depths of up to 328 feet.The unit is powered by a built-in battery that charges in 1.5 hours to 80% and in 2 hours to a full charge, giving you a runtime of 90 to 375 minutes depending on the power selected. You can also run the light from a D-Tap external battery source for longer shoots. Additionally, you can use mains power anywhere in the world thanks to the inclusion of a multi-voltage AC power supply.
  Benefits
  • High-output Chip on Board (COB) LED
  • Certified 92 CRI and 93 TLCI, CCT 5600 Kelvin
  • Integrated, rechargeable, Li-ion battery provides 90 to 375 minutes of cord-free operation
  • Flicker-free design
  • Regulated lumen output does not fade during use
  • Dimming with continuous or stepped control
  • Fan-free thermal management for silent operation
  • Wide 120° beam angle
  • Broad range of accessories including Profoto and Chimera adaptability
  • Runs off internal battery, AC, or external battery
  • Fast charge of 1.5 hr. to 80% and 2.0 hr. to full charge
  • Certified performance (FL-1 standard)
  UPC: 891193000362
• Stella 2000 5600K LED Light The Stella 2000 5600K LED Light from Light & Motion is a daylight-balanced LED source that packs a wide variety of features into a very compact fixture. The light employs a high-output COB LED that reduces its size and eliminates multiple shadows that can plague LED fixtures. The Stella 2000 is ideal for location. Measuring 4.8 x 3.6 x 3.6" and weighing just 1.1 lb, it's barely noticeable in your kit case. What is noticeable is the clean, accurate, flicker-free color rendering that gives it a rating of CRI rating of 90 and TLCI rating of 93. The Stella 2000 has a wide 120-degree beam that can be narrowed with an optional 50-degree optic or softened with an optional diffuser. The fan-free design is dead quiet for sound-sensitive locations, while the light is dimmable either continuously or in steps. The housing is also durably built. Not only can it survive repeated dropping on concrete from a height of 3.3', but it's also waterproof to depths of 328 feet! The unit is powered by a built-in battery that charges to full power in 1.75 hours and gives you a run time of 50 to 415 minutes depending on the power selected. You can also run the light from a D-Tap external battery source for longer shoots. Additionally, you can use mains power anywhere in the world thanks to the inclusion of a multi-voltage AC power supply. The Stella 2000 also comes with a YS Mount and a C-Stand Mount to quickly and easily secure your light on a stand or other support. UPC: 891193000409
• 4-Way Barndoors for Stella 2000 and 5000 LED Heads The 4-Way Barndoors for Stella 2000 and 5000 LED Heads from Light & Motion allows you to control and shape the light beam of these fixtures while containing spill light. UPC: 812190017856
• Fresnel Lens for Stella 2000 and 5000 LED Lights The Light & Motion Fresnel Lens for Stella 2000 and 5000 LED Lights narrows the beam angle and creates a focused look with high contrast and sharp shadows. The lens has a press-on design for fast attachment or detachment. UPC: 812190017993
• Glo Bulb for Select Stella LED Lights An ideal accessory for overhead lighting scenarios like round table discussions and interviews, the Glo Bulb for Select Stella LED Lights casts a soft, medium contrast 180-degree beam of light with minimal shadows and an open "bare bulb" look with gradual fall off near the beam's edge. Another use is inside a softbox where it fills it evenly and eliminates the hot spot from the fixture. The Glo Bulb is compatible with the Stella 2000, Stella Pro 5000, 7000, and 10,000, as well as the Pro 10,000C and the Pro 5000D drone light. UPC: 812190017832
• 50-Degree Optic DM Providing a smooth beam with gentle fall-off, the 50-Degree Optic DM from Light & Motion tightens the 120-degree beam angle of the Stella Pro RF, Stella Pro, and Stella 2000 to 50 degrees for selective lighting. Use requires the separate purchase of the Barn Doors Light Modifier with Direct Mount (DM). Alternately, the 50-Degree Optic can be used in combination with Elinchrom light shaping tools or third-party softboxes to further soften their light output. UPC: 891193000614
• CTO Filter Set for Stella 2000 The CTO Filter Set for Stella 2000 from Light & Motion contains Full, 1/2, and 1/4 amber hard-acrylic CTO filters to convert the light's daylight 5600K output to approximately 3200K, or to partially convert or warm the output. The filter set is for the Stella 2000 only and requires the separate purchase of the 3" Speed Ring Gel Holder.
• Speedring Gel Holder Compatible with Stella 2000, Stella Pro, and Stella Pro RF LED lights, the Speedring Gel Holder from Light & Motion attaches firmly to the fixture's bezel and allows the use of Chimera softbox speedring adapters. The included gel frame accepts 3x3" hard gel filters.

• External Power Adapter for Stella 24V/140W (US/Japan)

• High Leverage Handle for Stella YS Mount

• C-Stand Mount for Stella LED Lights

• YS Mount for Stella Pro Series LED Lights

• Limited 2-Year Warranty

• Power Adapter for Stella 1000 and 2000 (12V, US/UK/EU/AUS)

• YS Mount for Stella Pro Series LED Lights

• C-Stand Mount for Stella LED Lights

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Full CTO Filter

• 1/2 CTO Filter

• 1/4 CTO Filter

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Also Includes

• Soft Case with Shoulder Strap
• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Stella Pro 5000 Classic LED Light

  Beam Angle	120°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 92 TLCI 93
  Cooling System	Passive
  Dimming	Yes
  Display	OLED
  Lumens	5000
  Photometrics	20.1 fc / 216 lux at 9.84' / 3 m
  Fixture Dimensions	7.2 x 3.5 x 3.5" / 182.0 x 88.0 x 88.0 mm
  Fixture Weight	2.53 lb / 1148 g

  Battery Plate	None
  Power Input Connector	D-Tap

  Fixture Mount	1/4"-20 Female Thread
  Mount via Included Adapter	5/8" Receiver
  Accessory Mount	None

  DC Input Power	24 VDC
  Power Source	AC Adapter, Cigarette Lighter Adapter, External Battery, Integrated Battery

  Run Time	1.5 Hours at Full Power
  Charging Time	2 Hours

  IP Rating	IP68

  Box Dimensions (LxWxH)	7.8 x 5.7 x 5.3"

• Stella 2000 5600K LED Light

  Beam Angle	120°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 90 TLCI 93
  Cooling System	Passive
  Dimming	Yes
  Display	OLED
  Lumens	2000
  Photometrics	120° at 5600K: 581.6 fc / 6260 lux at 3.28' / 1 m
  Fixture Dimensions	4.8 x 3.6 x 3.6" / 122.0 x 92.0 x 92.0 mm
  Fixture Weight	17.78 oz / 504 g

  Battery Plate	None
  Power Input Connector	D-Tap

  Yoke Mount	None
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	10.5 to 18 VDC
  Power Source	AC Adapter, External Battery, Integrated Battery
  Power Pass-Thru	None

  IP Rating	IP68

  Box Dimensions (LxWxH)	7.95 x 5.7 x 5.4"

• 4-Way Barndoors for Stella 2000 and 5000 LED Heads

  Box Dimensions (LxWxH)	10.8 x 5.05 x 0.75"

• Fresnel Lens for Stella 2000 and 5000 LED Lights

  Box Dimensions (LxWxH)	4.7 x 4.4 x 2.4"

• Glo Bulb for Select Stella LED Lights

  Compatibility	Stella 2000, Stella Pro 5000, 7000, 10,000, Pro 10,000C, Pro 5000D drone light.
  Diameter	3.2" (82 mm)

  Box Dimensions (LxWxH)	4.85 x 4.4 x 2.25"

• 50-Degree Optic DM

  Beam Angle

  50°

  Box Dimensions (LxWxH)	4.05 x 2.7 x 1.75"

• CTO Filter Set for Stella 2000

  Color/Effect	Amber Conversion
  Filter Number	None

  Filter Material	Acrylic
  Shape	Square
  Dimensions	W: 3 x H: 3" / W: 76.2 x H: 76.2 mm

  Box Dimensions (LxWxH)	5.4 x 4.0 x 0.1"

• Speedring Gel Holder
