Product description

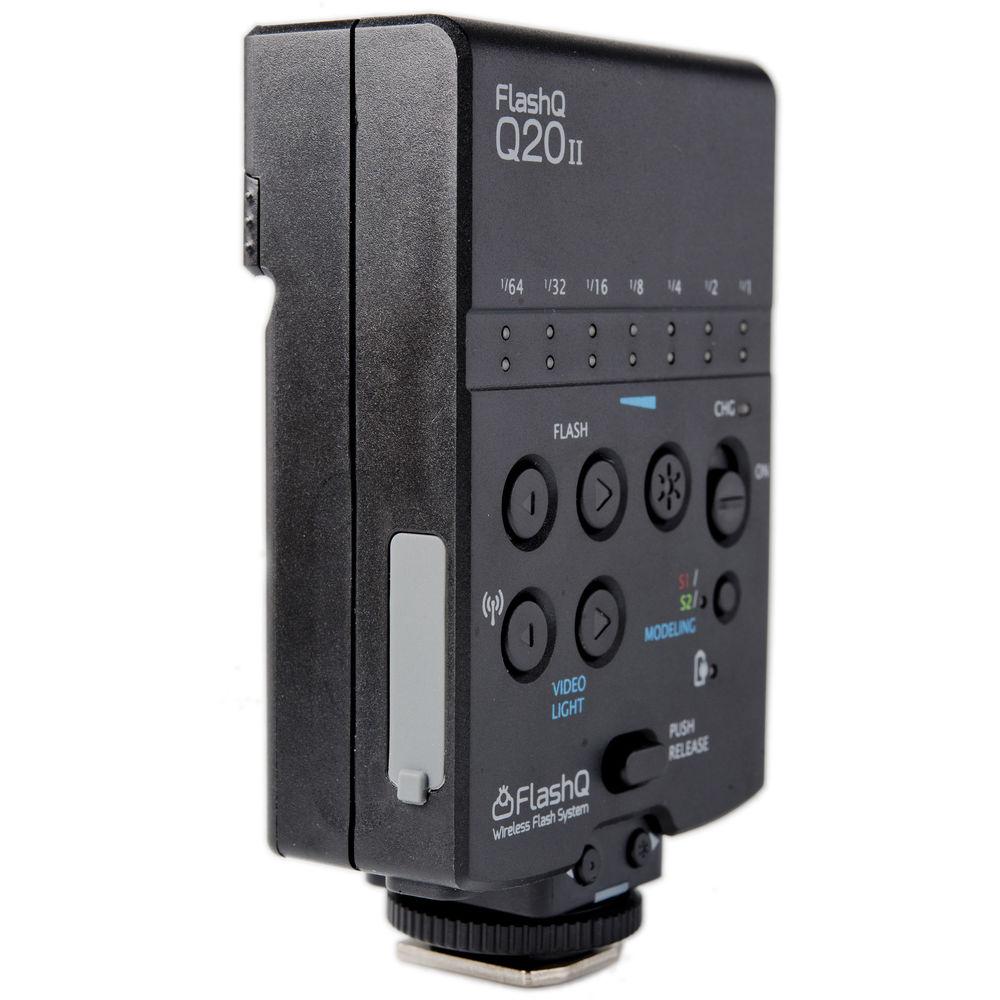

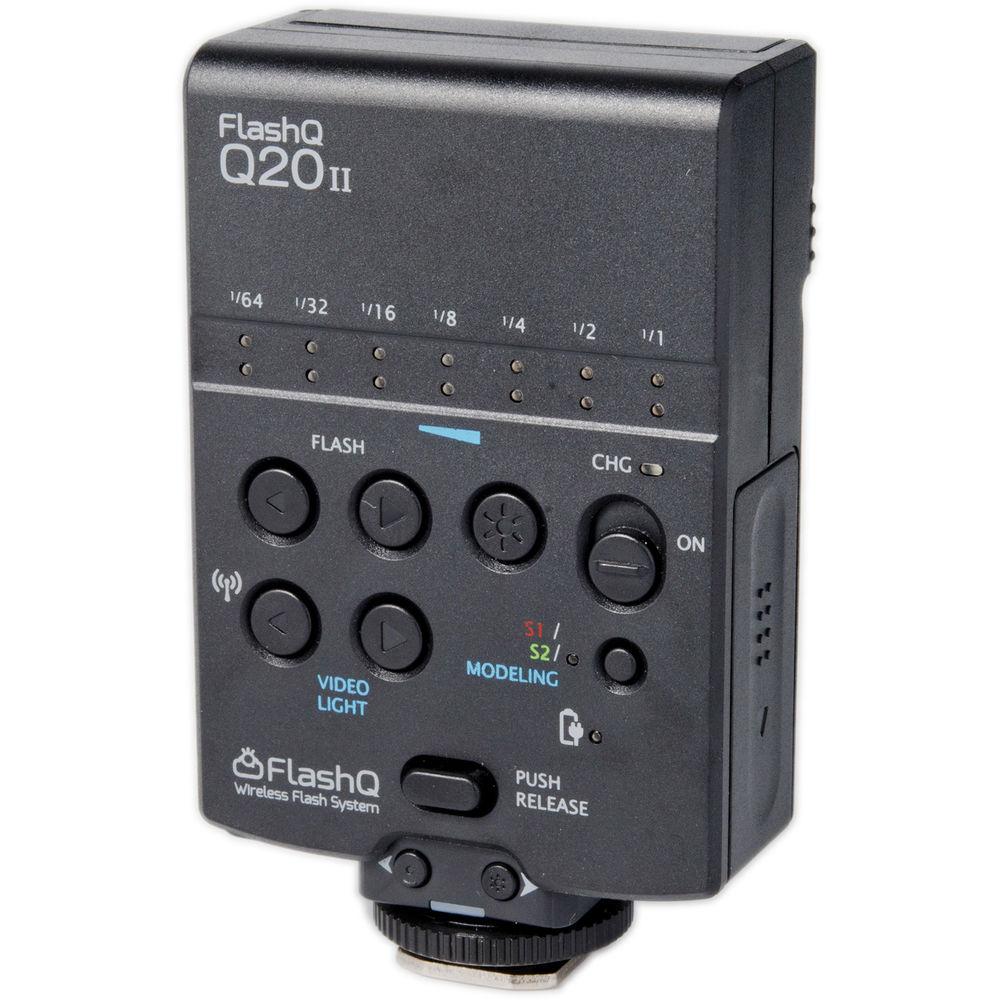

A Guide to On-Camera Flash Read More The compact, lightweight FlashQ Q20II from LightPix Labs is a cost-efficient, manual-exposure lighting solution with advanced triggering and control features. The flash weighs just 4 oz and measures 3.9 x 2.3 a 1.1", making it easy to squeeze into tight places where larger units can't go. With a guide number of 65, the Q20II has manual power selection from 1/64 to full power, runs on two alkaline or rechargeable Ni-MH batteries, and will recycle to full power in 6 to 7 seconds depending on the batteries in use. One of the flash's clever features is the RF transmitter built into its removable foot and the receiver built into the body of the unit. By detaching the transmitter and mounting the flash head remotely on a light stand, you can adjust power and trigger it from the on-camera transmitter at distances up to 33'. In fact, the transmitter can control up to eight Q20IIs simultaneously. Convenience features include a flash head with a built-in filter holder and tilting capability in 0, 45, 60, 75, and 90-degree click stops. Finally, a pleasant surprise is the Q20II's LED light which can be used as a modeling light, or with its high CRI of 95, used as a 5600K video light.
    Manual Flash Power Control

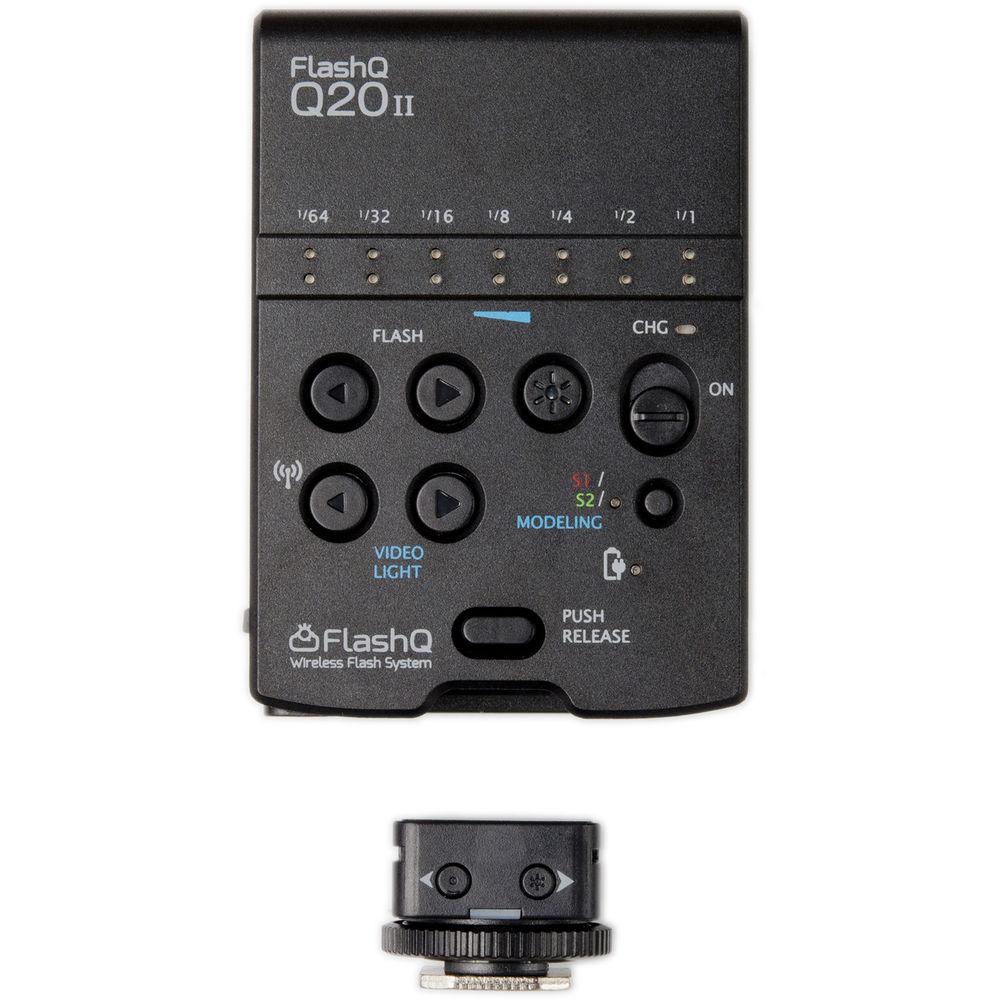

  • The Q20II allows you set the flash output from 1/64 (minimum output) to 1/1 (maximum output). These 7 steps of flash power ratios can be adjusted by two buttons.
    Remote Triggering Power Level Adjustment

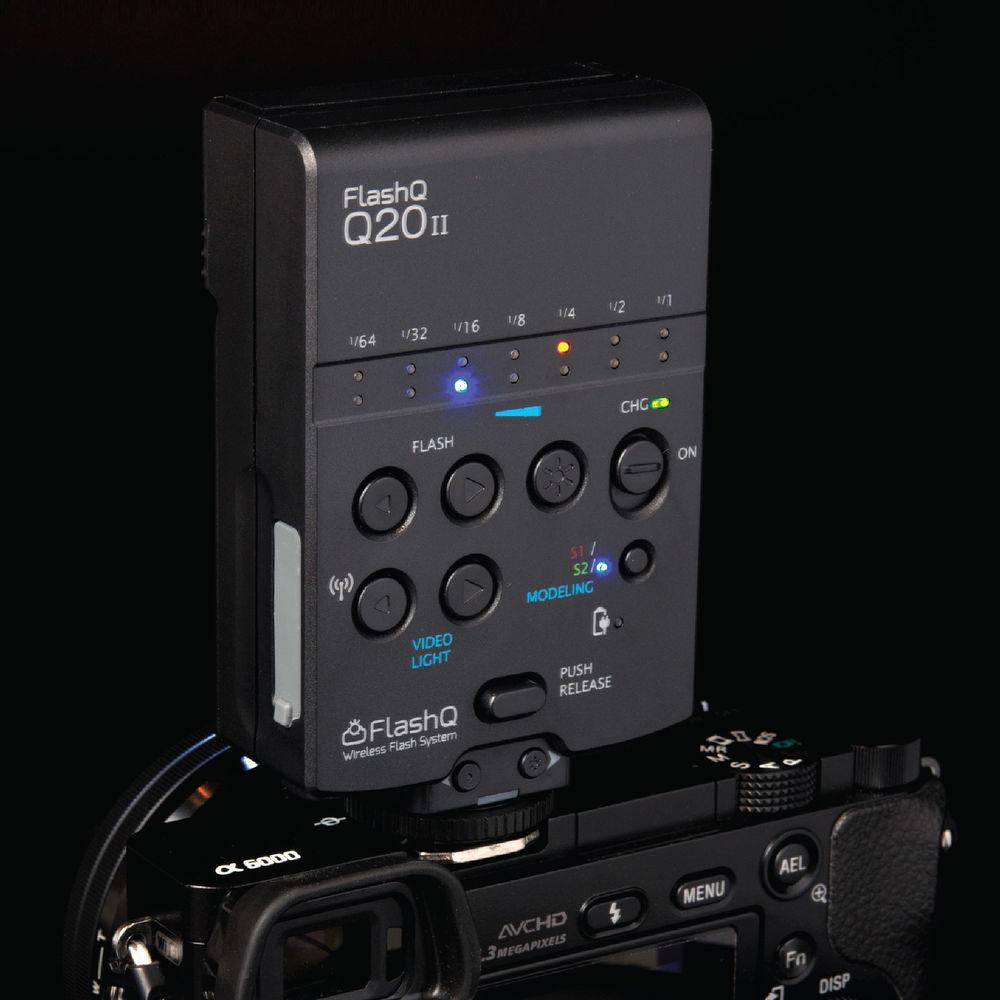

  • The Q20II functions like a typical on-camera flash while attached to the included shoe-mount FlashQ transmitter. Detaching the flash puts it into wireless mode allowing it to be used off-camera. Wireless triggering and power level adjustment can then be accomplished via the camera-mounted transmitter. The Q20II's FlashQ System can support up to 8 remote Q20II flashes simultaneously.
    Power

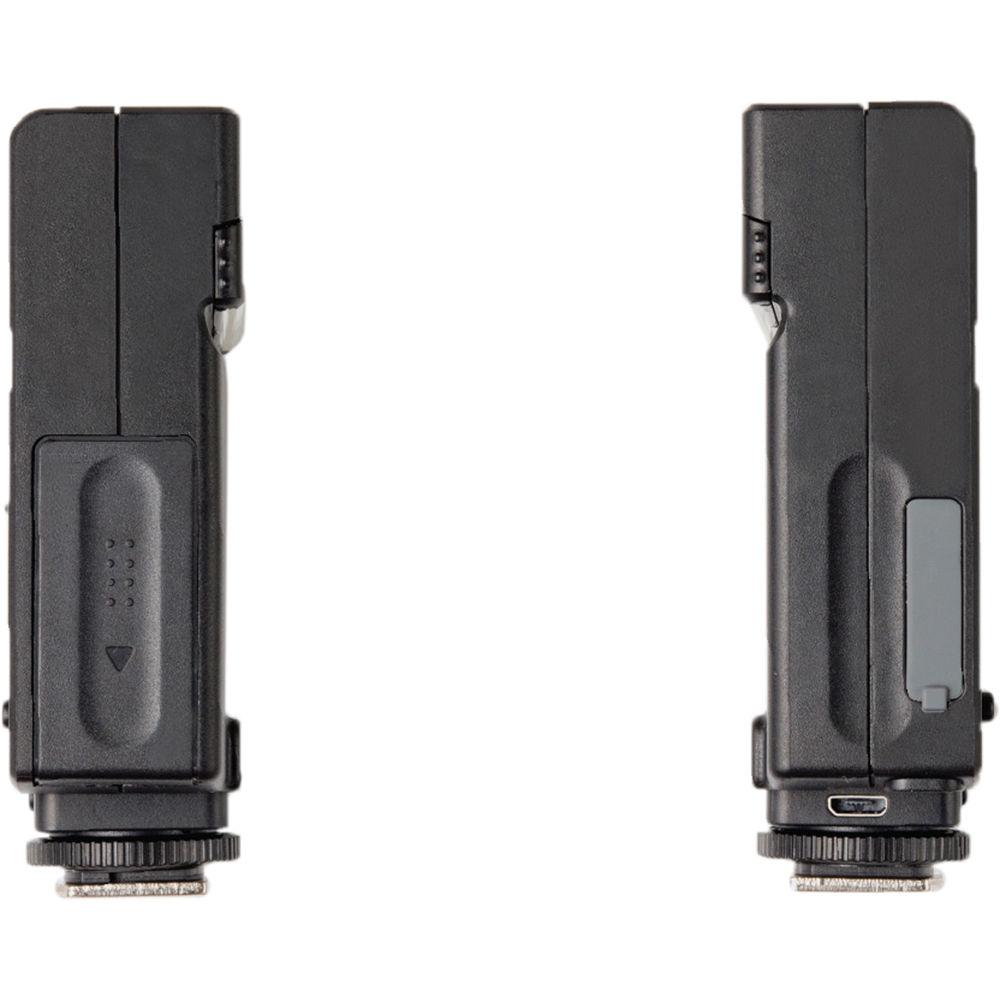

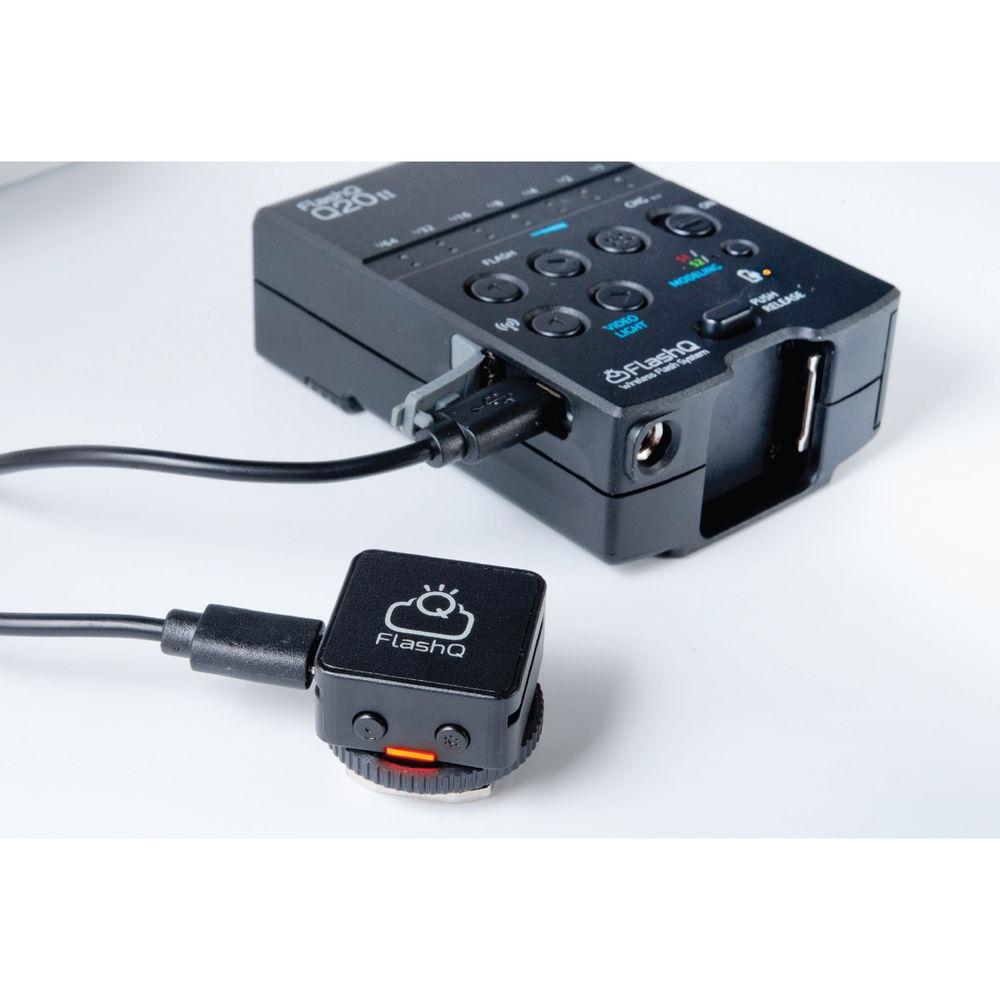

  • The Q20II runs on two AA alkaline batteries or two rechargeable Ni-MH batteries. The transmitter can be conveniently charged via USB.
    Rectangular Shape
  • The 3.9 x 2.3 x 1.1" flash is easy to squeeze into tight spaces.

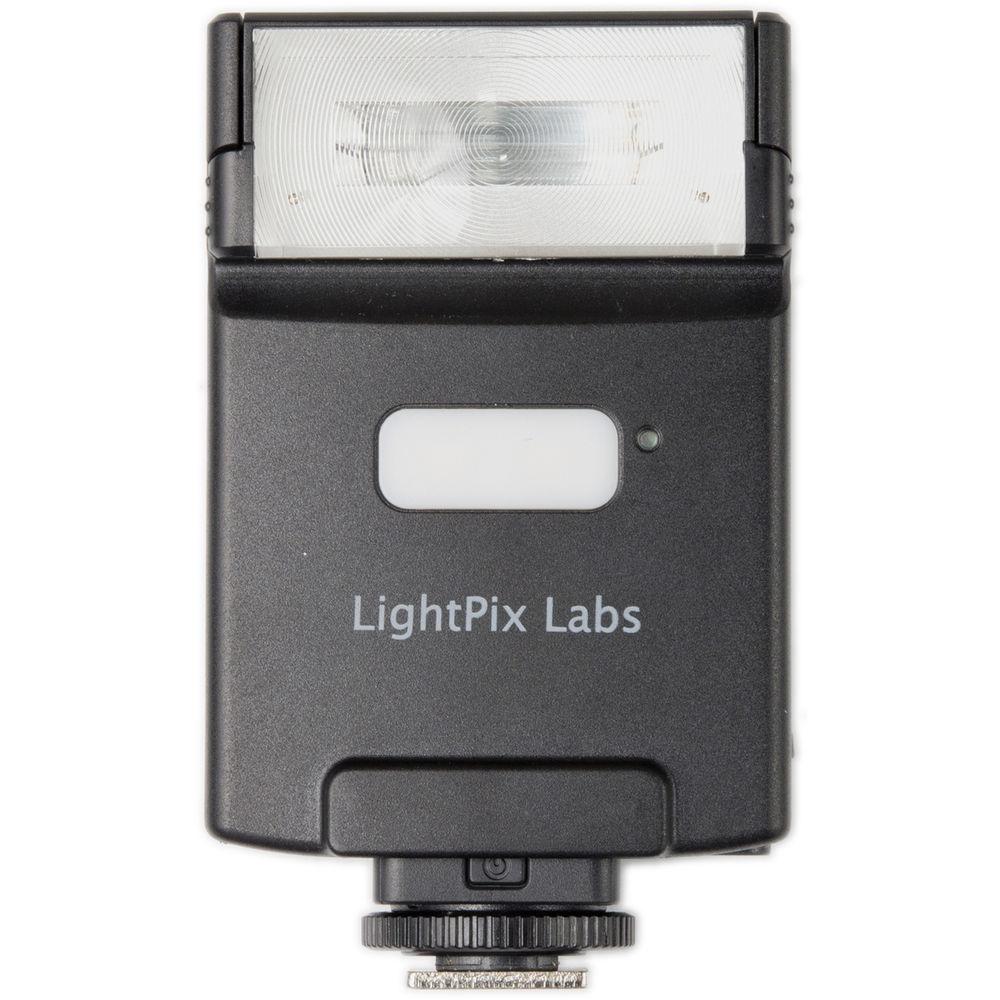

    LED Video / Modeling Light
  • The Q20II features an LED light with 7 output levels for use as a modeling light or with its CRI of 95, used as a video light. The light has a 60-minute run time with fresh batteries.

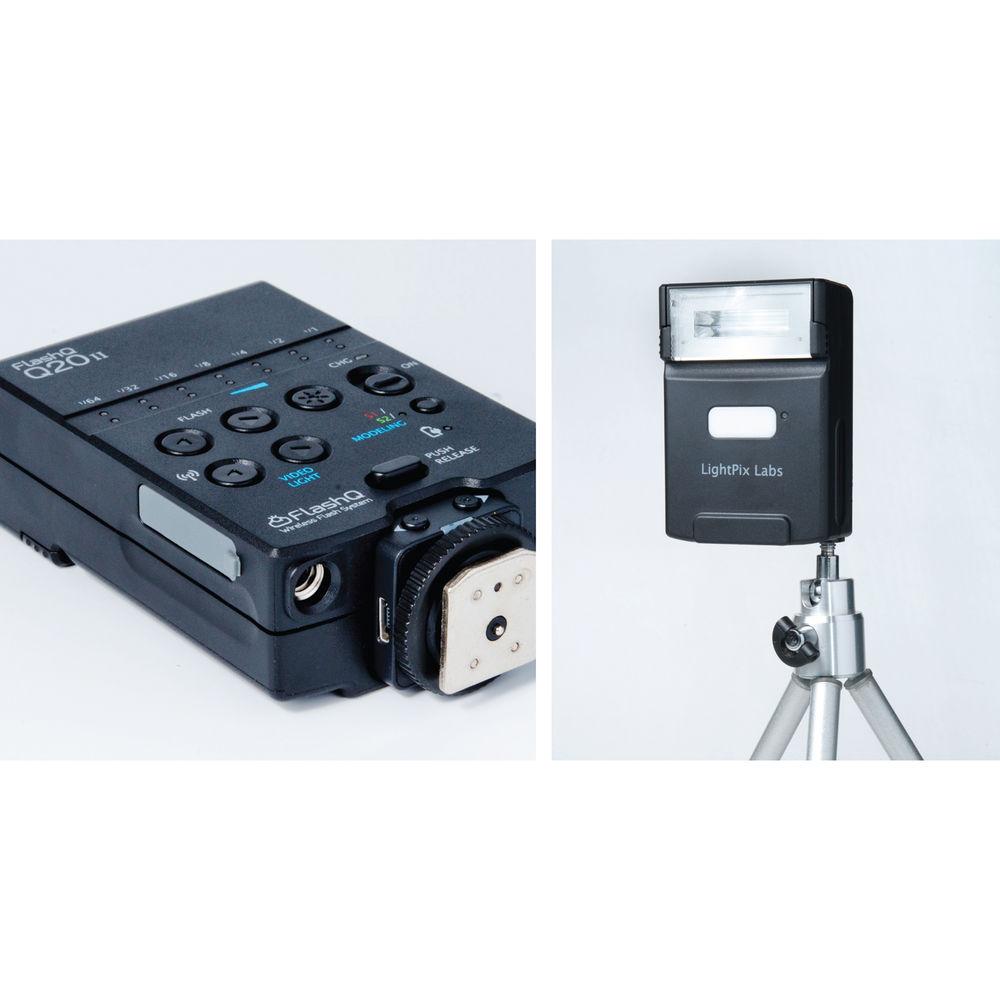

    Tripod or Light Stand Mount
  • Built-in female 1/4"-20 threads allow the Q20II to be mounted on a tripod or light stand.

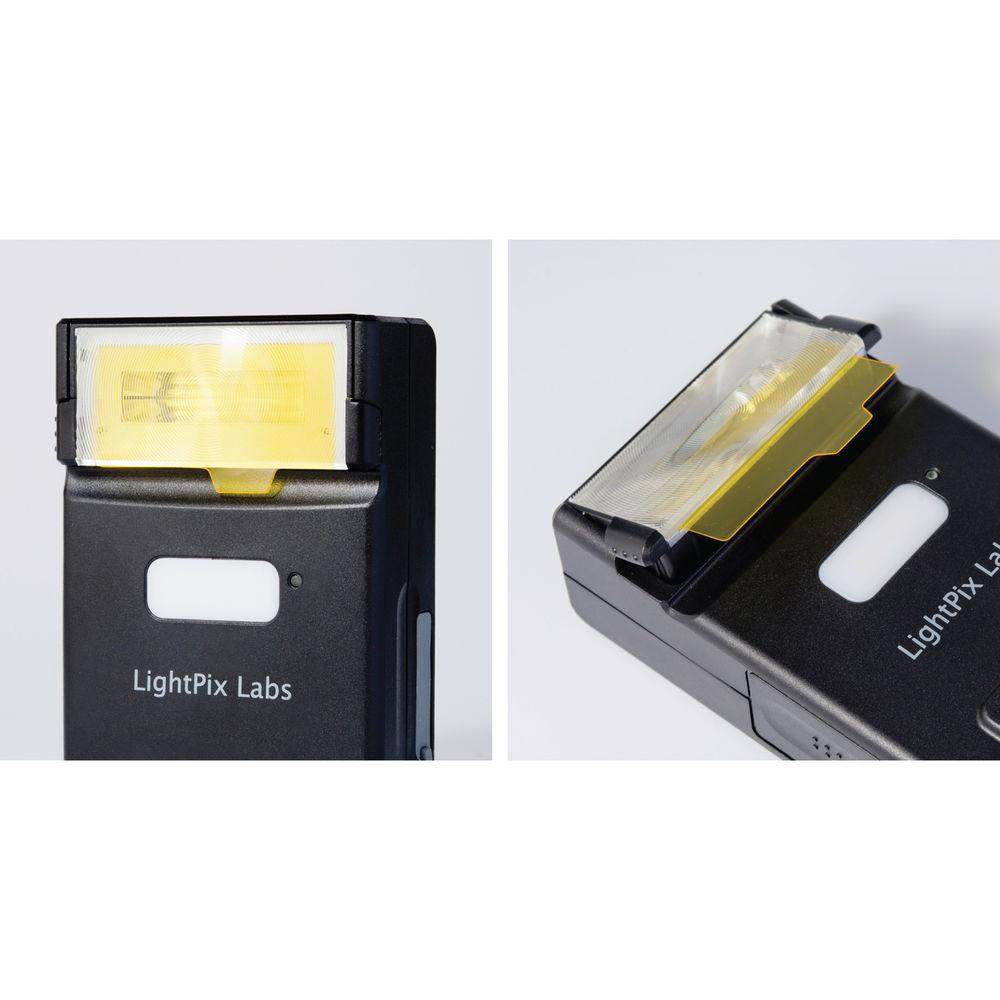

    Tilting Head, Built-in Gel Filter Holder
  • The Q20II has a built-in gel filter and can tilt in 0, 45, 60, 75, and 90-degrees click stops.
UPC: 634158732287 In the Box LightPix Labs FlashQ Q20II (Black)
  • Q20II Flash Head
  • T2 FlashQ Transmitter
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the LightPix Labs FlashQ Q20II in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    LightPix Labs FlashQ Q20II Specs

    Mount Shoe
    Guide No. 65.62' / 20 m ISO 100
    Exposure Control Manual
    Vari-Power Manual: 1/64 to 1/1
    Bounce Head Yes
    Coverage Up to 32 mm (Full Frame)
    Recycle Time Approximately 6 to 7 Seconds
    Slave Timing Modes None
    Wireless Operation Method: RF
    Distance: Up to 32.81' / 10 m
    Power Source 2 x AA Alkaline, Rechargeable NiMH Batteries
    Dimensions (W x H x D) 3.9 x 2.3 x 1.1" / 99.0 x 59.0 x 29.0 mm
    Weight 4.06 oz / 115 g without batteries
    Package Weight 0.465 lb
    Box Dimensions (LxWxH) 4.85 x 4.85 x 1.5"
