Product description Using the proprietary data transmission protocol (iPoll), the DLB 5-20 5 GHz High-Capacity Wireless Radio from LigoWave is capable of supporting wireless data transfer rates of over 500 Mb/s.
In addition to the enhanced data throughput offered by this wireless radio, it supports the 802.11ac Wi-Fi network standard and operates on the 5 GHz frequency making it compatible with nearly any Wi-Fi enabled device. Installation has also been greatly simplified, thanks to the reduced size form factor of this device and the included pole-mounting bracket. Once installed, the DLB 5-20 can withstand harsh weather conditions thanks to the IP-66 weather protection rating to help mitigate network downtime. - Enhanced Performance
- Incorporating a QCA 9563 CPU (750 MHz), a QCA 9882 radio, 64MB of RAM, and 16MB of flash memory, the DLB 5-20 is an ideal solution for capacity demanding applications. The 24V Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio in a point-to-point or point-to-multipoint network design. LigoWave DLB ac series devices are backwards compatible with other LigoWave DLB devices using iPoll mode, which helps to expand or upgrade existing networks over time.

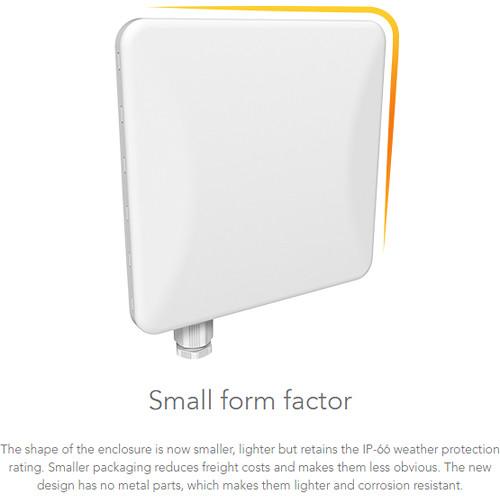

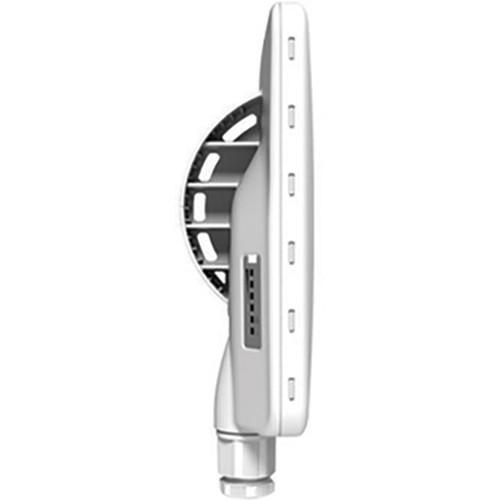

- New Form Factor
- The shape of the enclosure is now smaller and lighter but retains the IP-66 weather protection rating. The design has no metal parts, which makes them lighter and corrosion-resistant.
- Powerful OS

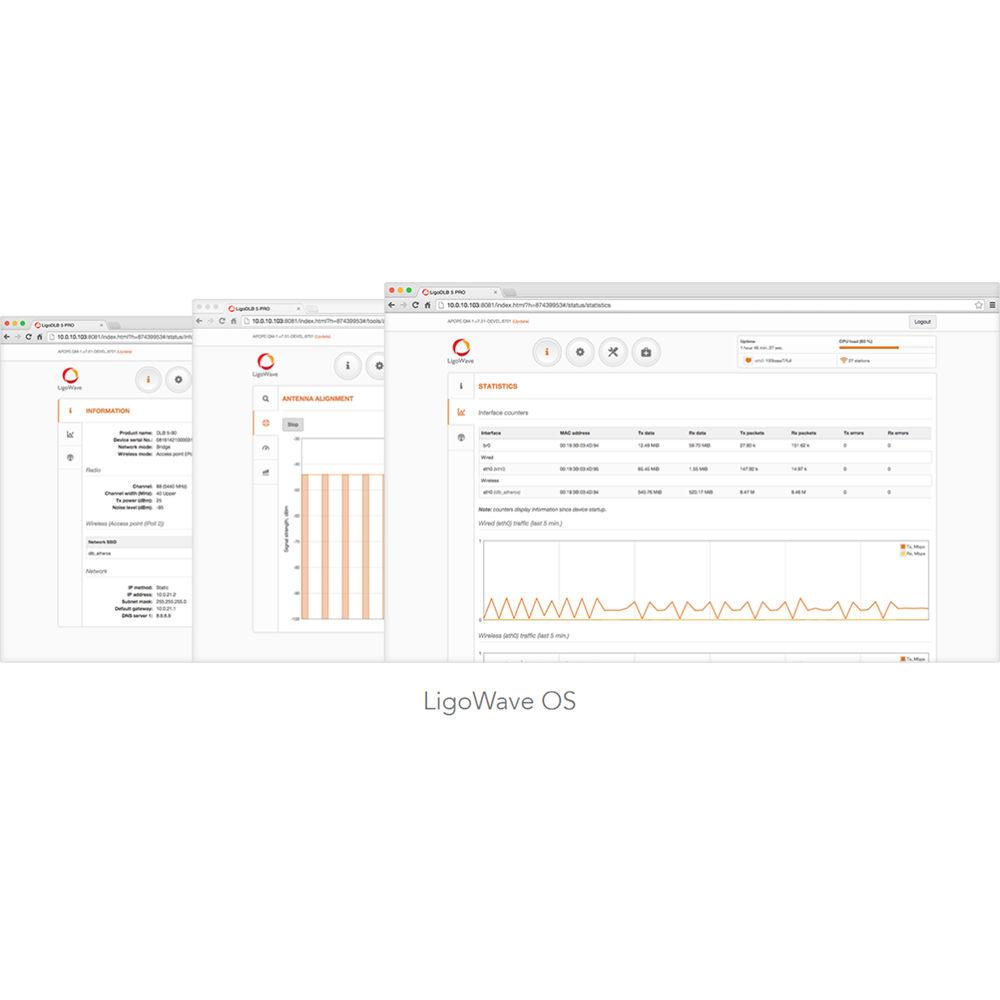

- The LigoWave DLB OS is highly functional and easy to use for effortless setup and trouble-free operation. High performance (500 Mb/s) can be combined with additional services such as VoIP and IPTV. This is possible when using LigoWave's smart QoS mechanism and multicast traffic enhancements for triple play services. Such services are essential for many providers to complement their existing portfolios. iPoll, LigoWave's proprietary transmission protocol, ensures smooth performance with a high number of clients, even in noisy environments.

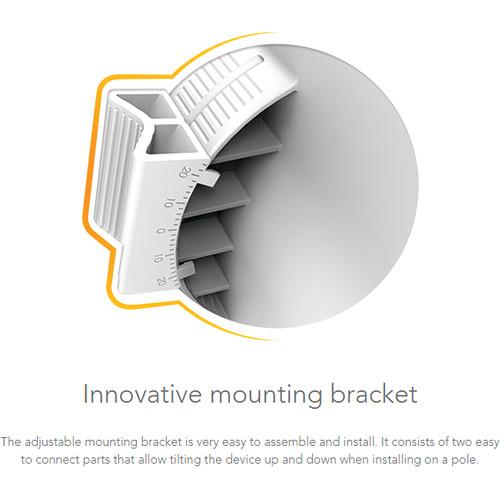

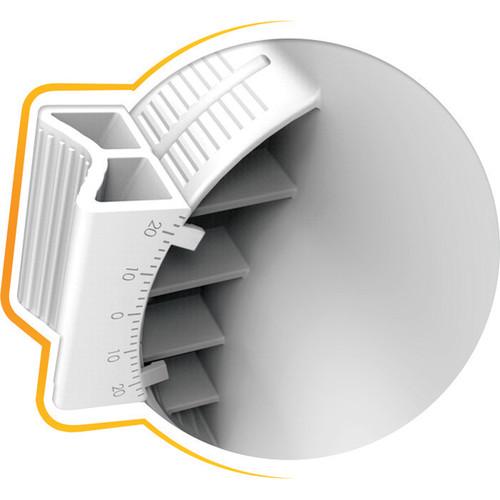

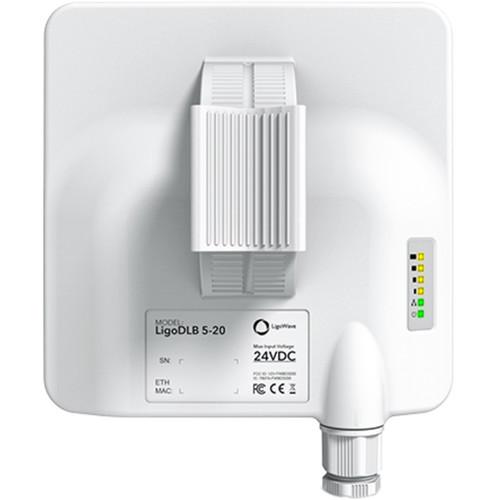

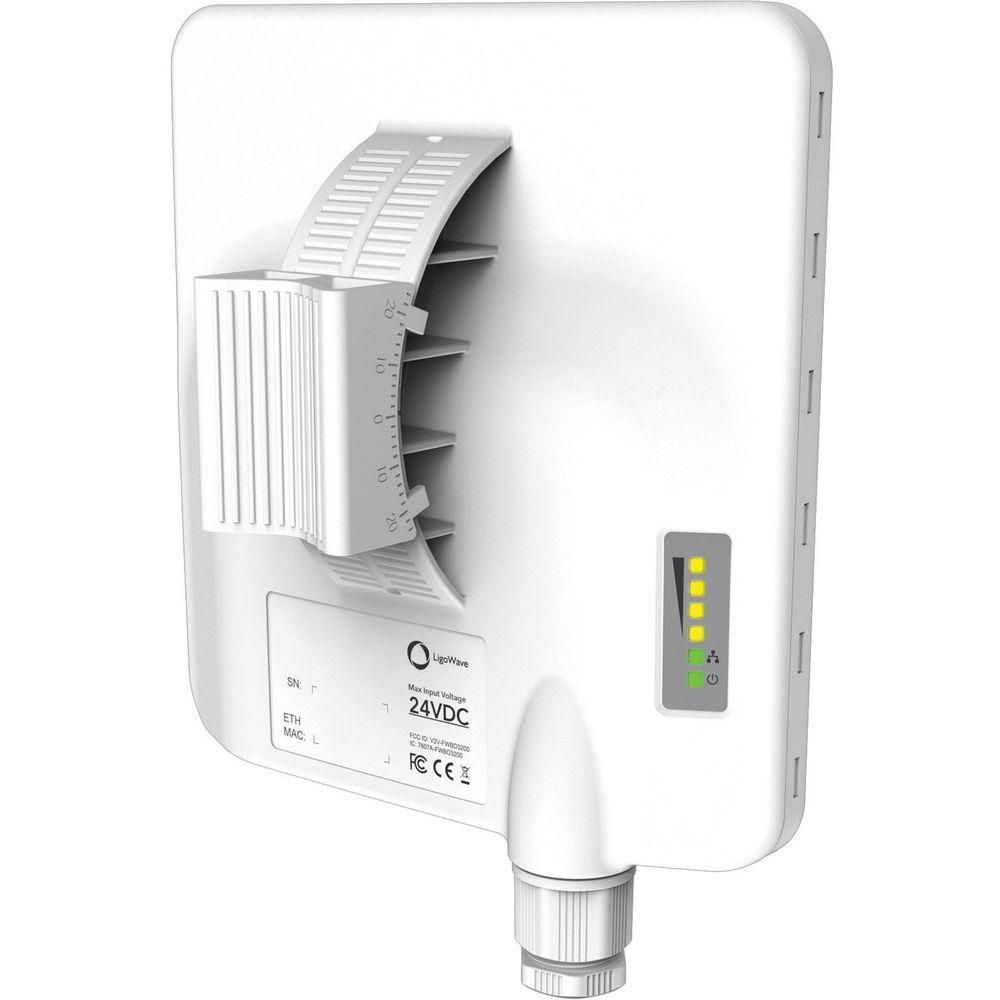

- Adjustable Mounting Bracket
- The adjustable mounting bracket is easy to assemble and install. It consists of two easy to connect parts that allow tilting the device up and down when installing on a pole. A metal strap is included to securely tighten the device. This design includes additional reinforcements and thicker materials to ensure survival in extreme climate conditions.
UPC: 855138006376 In the Box LigoWave DLB 5-20 5 GHz High-Capacity Wireless Radio Poll Mounting Bracket Table of Contents
|
Upload User Manual
Have you got an user manual for the LigoWave DLB 5-20 5 GHz High-Capacity Wireless Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLigoWave DLB-5-20AC Specs | Wireless Specifications | WLAN Standard
IEEE 802.11 a/n/ac, iPoll 3
Radio Mode
MIMO 2x2
Radio Frequency Band
5 GHz Models: 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
Transmit Power
Up to 30 dBm (country dependent)
Channel Size
5, 10, 20, 40, 80 MHz
Modulation Schemes
802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)
Data Rates
802.11 ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mb/s
802.11 ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mb/s
Error Correction
FEC, LDPC
Duplexing Scheme
Time division duplex | | Antenna Specifications | Type
Integrated dual-polarized directional panel antenna
Gain
20 dBi
Frequency Range
5.1 to 5.9 GHz
Polarization
Dual linear
Cross-pol Isolation
27 dBi
VSWR
<1.8
Azimuth Beamwidth (H pol)
16°
Azimuth Beamwidth (V pol)
16°
Elevation Beamwidth
16° | | Wired Connectivity | Interface
10/100/1000 Base-T, RJ45 | | Distance | PTMP Mode (Max.)
6.21 mi / 10 km
PTP Mode (Max.)
9.32 mi / 15 km | | Power | Power Supply
24 VDC passive PoE (AC to 24 VDC adapter is included in the package)
Power Source
100 - 240 VAC
Power Consumption (Max.)
10 W | | Temperature & Humidity | Operating Temperature
-40 to 149°F / -40 to 65°C
Humidity
0 to 90% non-condensing | | Management | System Monitoring
SNMP, Syslog, Web UI, WNMS
Configuration
WebUI, WNMS | | Regulatory Certifications | Certification
FCC/IC/CE | | Mounting | Pole mounting bracket included | | Dimensions | 8.5 x 7.2 x 3.1" / 216 x 184 x 80 mm | | Weight | 0.91 lb / 413 g | | | | Package Weight | 1.885 lb | | Box Dimensions (LxWxH) | 8.1 x 7.8 x 3.75" |
