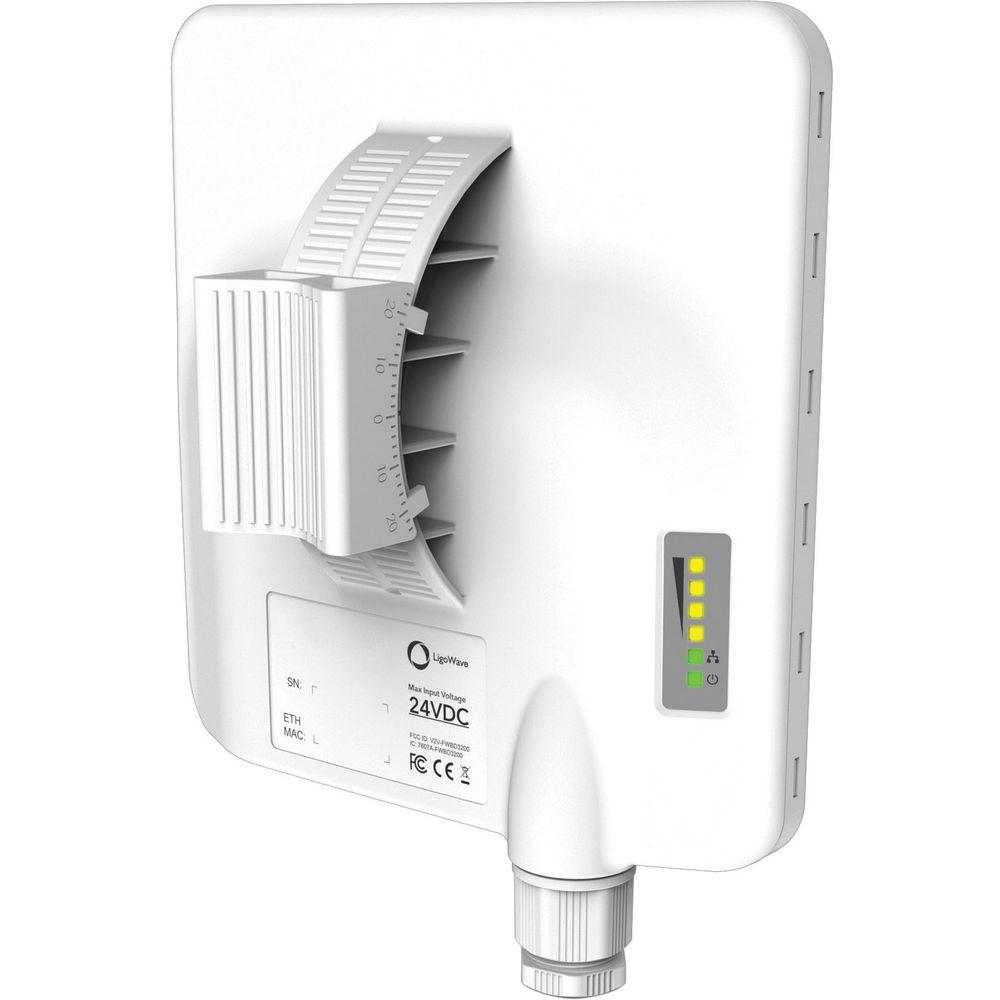

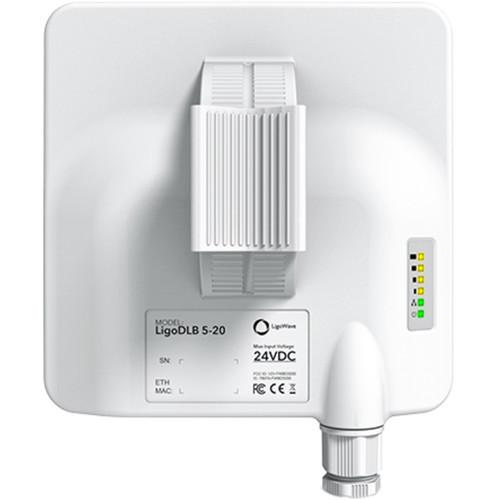

Product description Using the proprietary data transmission protocol, the DLB 5-20n 5 GHz Outdoor Wireless Radio from LigoWave is capable of supporting wireless data transfer rates of up to 170 Mb/s.
In addition to the enhanced data throughput offered by this wireless radio, it supports the 802.11n Wi-Fi network standard and operates on the 5 GHz frequency making it compatible with nearly any Wi-Fi enabled device. Installation has also been greatly simplified thanks to the reduced form factor of this device and the included poll mounting bracket. Once installed, the DLB 5-20n can withstand harsh weather conditions thanks to the IP66 weather protection rating to help mitigate network downtime. - Proprietary Operating Protocol
- The smart dynamic polling based protocol ensures reliable communication even in congested areas with 64 client devices connected to a base-station.
- LigoWave's Dual-Firmware Imaging
- Equipped with LigoWave's dual-firmware image feature, remote software upgrades are assured even if a power failure interrupts the process. The device will restart the prior firmware in the event of an upgrade failure.
- Polycarbonate Plastic Enclosure
- The enclosure is made of polycarbonate plastic with UV inhibitors to provide years of outdoor exposure in direct sunlight without cracking. The DLB 5-20n was designed and tested to meet an IP66 rating as well as vibration, temperature, drop, salt, fog, and electrical surge standards to ensure a high level of reliability unsurpassed in the industry. It is equipped with a grounding lug and a grounded 24-volt PoE to allow for professional installation.
- Reduced Size Form Factor
- The shape of the enclosure is now smaller and lighter but it retains the IP66 weather protection rating. Smaller packaging reduces freight costs and makes them less obvious. The new design has no metal parts, which makes them lighter and corrosion-resistant.

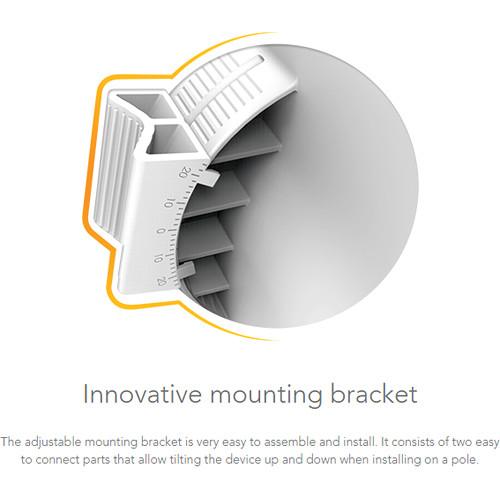

- Adjustable Mounting
- The adjustable mounting bracket is easy to assemble and install. It consists of two easy to connect parts that allow tilting the device up and down when installing on a pole. A metal strap is included to securely tighten the device. This design includes additional reinforcements and thicker materials to ensure survival in extreme climate conditions.

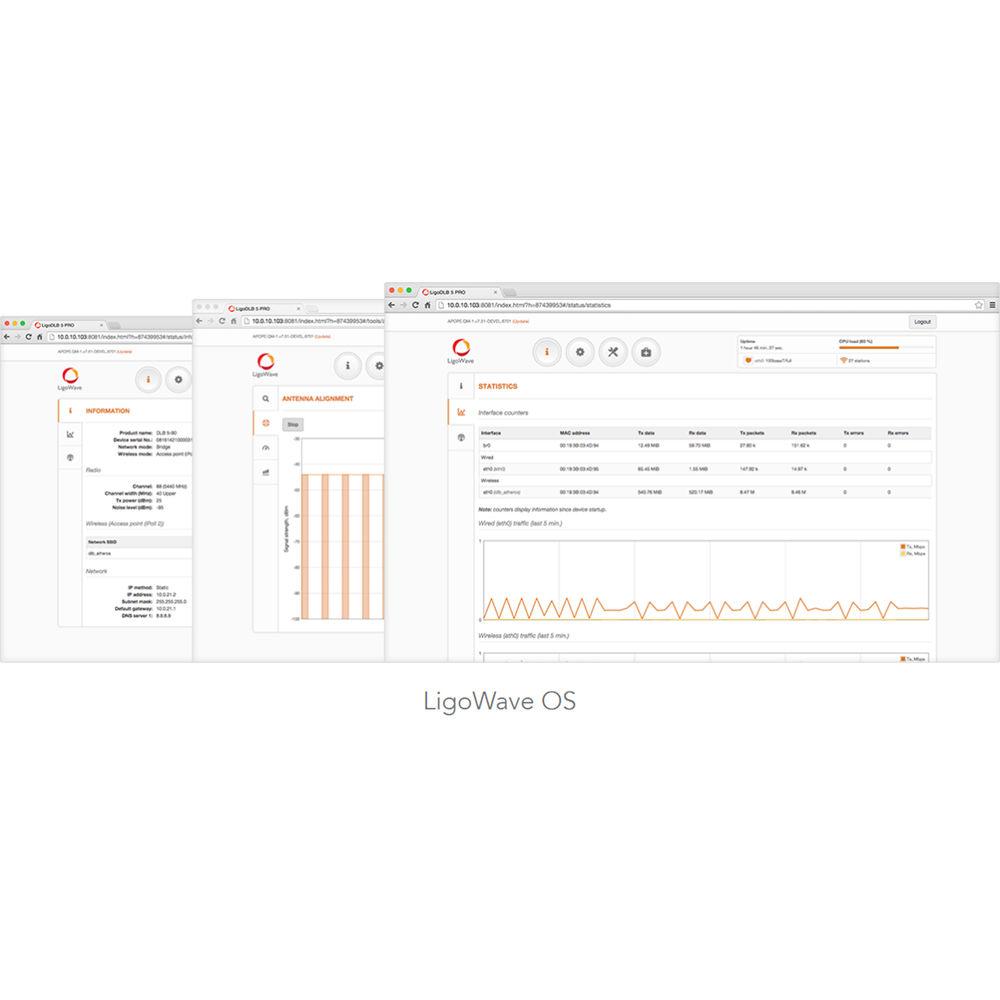

- The DLB OS
- The DLB OS is a highly functional operating system. This powerful and flexible operating system ensures enhanced operation of all DLB hardware devices and effortless setup for those deploying thenetworks.
• Smart polling data transmission protocol (iPoll 3)
• Dual-firmware image support
• Responsive HTML 5 based GUI
• 170 Mb/s capacity
• 80,000 PPS rate
• IPv6 support
• WNMS compatible UPC: 855138006062 In the Box LigoWave DLB 5-20n 5 GHz Outdoor Wireless Radio Poll Mounting Bracket Table of Contents
|
Upload User Manual
Have you got an user manual for the LigoWave DLB 5-20n 5 GHz Outdoor Wireless Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLigoWave DLB-5-20N Specs | Wireless Specifications | WLAN Standard
IEEE 802.11 a/n, iPoll (proprietary)
Radio Mode
MIMO 2x2
Radio Frequency Band
5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
Transmit Power
Up to 29 dBm
Channel Size
5,10, 20, 40 MHz
Modulation Schemes
802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
Data Rates
802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mb/s
802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mb/s
Error Correction
FEC, Selective ARQ
Duplexing Scheme
Time division duplex | | Antenna Specifications | Type
Integrated dual-polarized directional panel antenna
Gain
20 dBi
Frequency Range
5.1 to 5.9 GHz
Polarization
Dual linear
Cross-pol Isolation
21 dBi
VSWR
<1.4
Azimuth Beamwidth (H pol)
16°
Azimuth Beamwidth (V pol)
16°
Elevation Beamwidth
16° | | Wired Connectivity | Interface
10/100 Base-T, RJ45 | | Software | Wireless Operating Modes
Access point (auto WDS), access point (iPoll 3), station (WDS, iPoll 3), station (ARP NAT)
Wireless Techniques
Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC)
Wireless Security
WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation
Wireless QoS
4 queues prioritization on iPoll 3
Network Operating Modes
Bridge, router iPv4, router IPv6
Network Techniques
Routing with and without NAT, VLAN
WAN Protocols
Static IP, DHCP client, PPPoE client
Services
DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog
Management
HTTP(S) GUI, SSH, SNMP read, WNMS, Telnet
Tools
Site survey, link test, antenna alignment | | Distance | PTMP Mode
6.21 mi / 10 km
PTP Mode
9.32 mi / 15 km
PTP Mode (Full Capacity)
4.97 mi / 8 km | | Power | Power Supply
24 VDC passive PoE (AC to 24 VDC adapter is included in the package)
Power Source
100 to 240 VAC
Power Consumption (Max.)
4.5 W | | Temperature & Humidity | Operating Temperature
-40 to 149°F / -40 to 65°C
Humidity
0 to 90% non-condensing | | Management | System Monitoring
SNMP v1 server, Syslogs, system alerts via e-mail and SNMP trap | | Regulatory Certifications | Certification
FCC/IC/CE | | Mounting | Pole mounting bracket included | | Dimensions | 8.5 x 7.2 x 3.1" / 216 x 184 x 80 mm | | Weight | 0.9 lb / 413 g |
