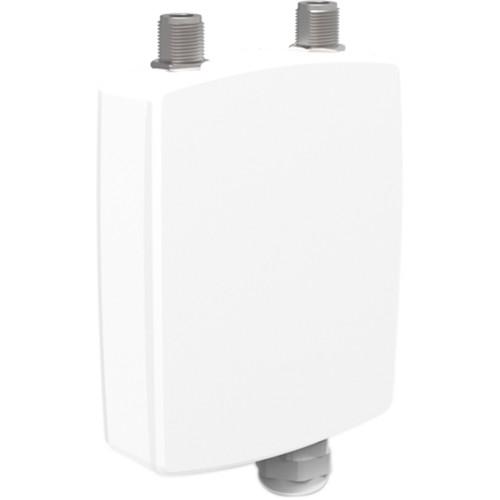

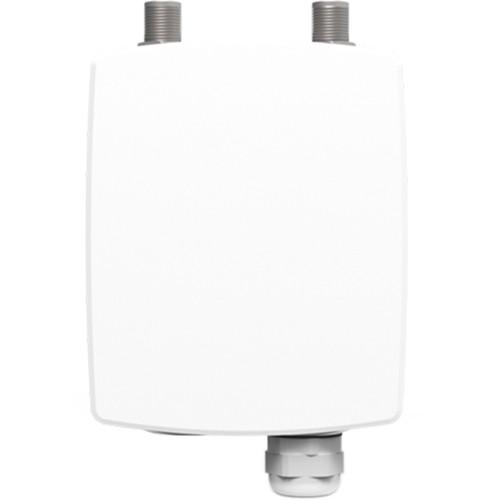

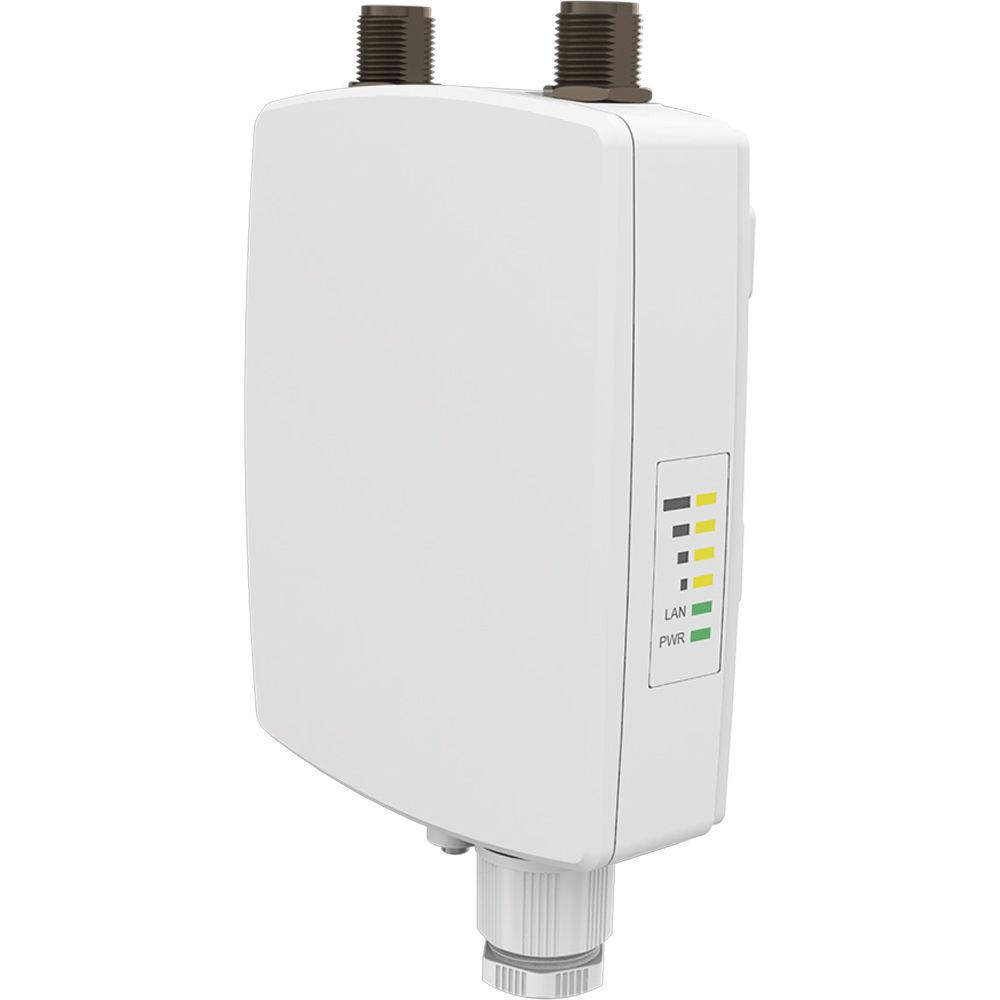

Product description This stable Outdoor 5 GHz Access Point from LigoWave operates on the 5.150 - 5.850 GHz frequency and comes equipped with dual N-type connectors making it compatible with a variety of antennas. Additionally, this access point supports the proprietary protocol, iPol 2, which utilizes smart dynamic polling to offer enhanced wireless connectivity even in congested areas. Couple the iPol 2 protocol with MIMO 2x2 radio functionality and devices can easily connect directly to this access point as it supports multiple data pathways resulting in increased bandwidth.
Setup and configuration is simple as this access point radio comes equipped with a single Fast Ethernet port and supports a variety of operating modes including access point (auto WDS), access point (iPoll 2), station (WDS, iPoll 2), and station (ARP NAT). Once configured, you can manage your network using the WNMS or Wireless Network Management System. This management system makes it easy to manage multiple networks from a single dashboard. You can also diagnose network problems, visualize networks on a map, schedule firmware upgrades, and much more. - OS

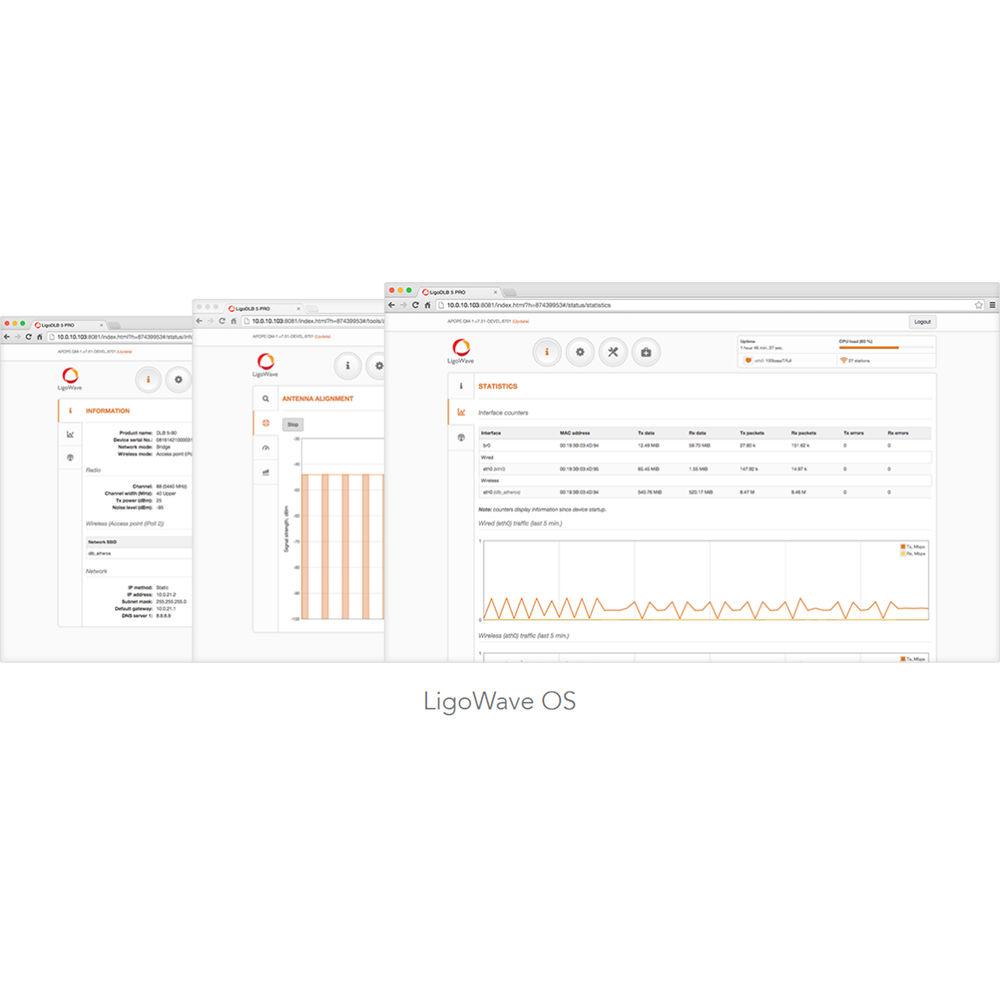

- The DLB OS is a highly functional and easy to use operating system. This powerful and flexible operating system ensures flawless operation of all DLB hardware devices and effortless setup for those deploying the networks.
• Smart polling data transmission protocol (iPoll 2)
• Dual-firmware image support
• Responsive HTML 5 based GUI
• 170 Mb/s capacity
• 80,000 PPS rate
• IPv6 support
• WNMS compatible - Wireless Network Management System
- WNMS is a free enterprise-grade Wireless Network Management System. A single software solution simplifies a large number of management and monitoring tasks for network administrators. LigoWave's comprehensive network management system supports several thousand nodes. Multiple networks may be maintained and monitored using one server. A rich feature set helps to diagnose network problems effectively, visualize networks on a map, perform scheduled firmware upgrades automatically, track states of devices, get failure alerts, and collect statistics. The Web-based system environment supports multi-user accounts. Several administrators may manage different networks on the same server, without having access to each other's equipment. WNMS is available as a stand-alone version for Linux and Windows servers, as a cloud-based system and as a mobile application for Android devices.
UPC: 855138006031 Table of Contents
|
Upload User Manual
Have you got an user manual for the LigoWave DLB 5 Outdoor 5 GHz Access Point with Dual N-Type Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLigoWave DLB-5 Specs | Wireless Specifications | WLAN Standard
IEEE 802.11 a/n, iPoll (proprietary)
Radio Mode
MIMO 2x2
Radio Frequency Band
5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
Transmit Power
Up to 29 dBm
Receive Sensitivity
Varying between -97 and -75 dBm depending on modulation
Channel Size
5,10, 20, 40 MHz
Modulation Schemes
802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
Data Rates
802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mb/s
802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mb/s
Error Correction
FEC, Selective ARQ
Duplexing Scheme
Time division duplex | | Antenna Specifications | Type
External N-connectors
Gain
Antenna dependent | | Wired Connectivity | Interface
10/100 Base-T, RJ45 | | Distance | Antenna dependent | | Software Specifications | Wireless Operating Modes
Access point (auto WDS), access point (iPoll 2), station (WDS, iPoll 2), station (ARP NAT)
Wireless Techniques
Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC)
Wireless Security
WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation
Wireless QoS
4 queues prioritization on iPoll 2
Network Operating Modes
Bridge, router iPv4, router IPv6
Network Techniques
Routing with and without NAT, VLAN
WAN Protocols
Static IP, DHCP client, PPPoE client
Services
DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog
Management
HTTP(S) GUI, SSH, SNMP read, WNMS, Telnet
Tools
Site survey, link test, antenna alignment | | Power | Power Supply
12 - 24 VDC passive PoE (24 V passive PoE adapter is included in the package)
Power Source
100 - 240 VAC
Power Consumption (Max.)
4.5 W | | Temperature & Humidity | Operating Temperature
-40 to 149°F / -40 to 65°C
Humidity
0 to 90% non-condensing | | Management | System Monitoring
SNMP v1 server, Syslogs, system alerts via e-mail and SNMP trap | | Regulatory Certifications | Certification
FCC/IC/CE | | Dimensions | 5.9 x 4.5 x 2.1" / 150 x 115 x 55 mm | | Weight | 16.2 oz / 450 g |
