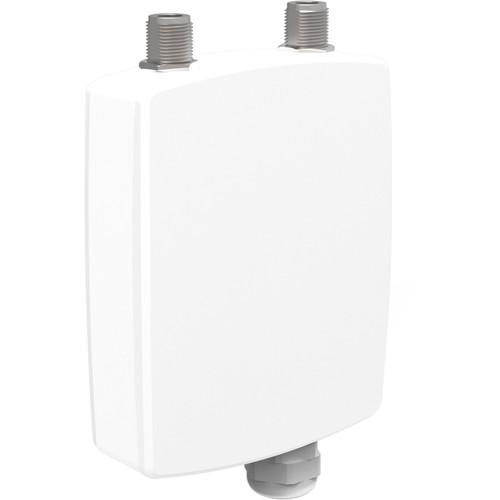

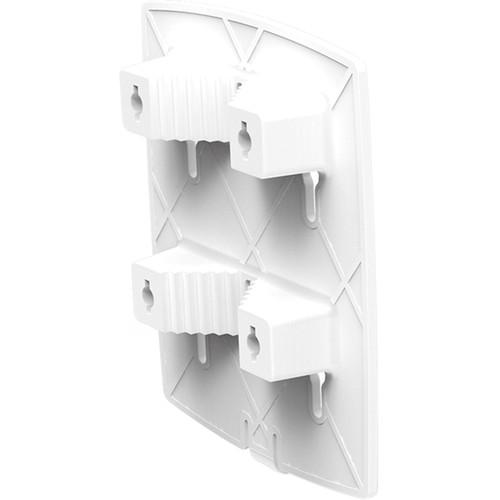

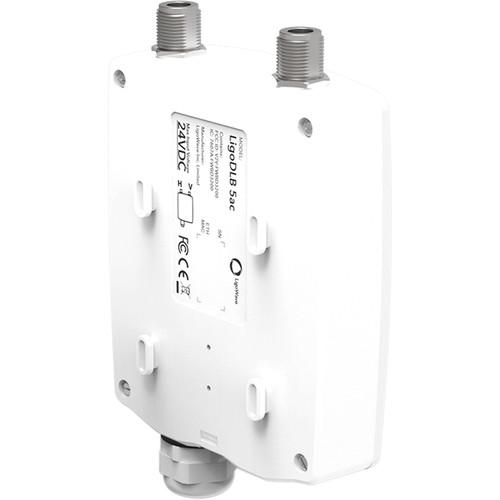

Product description This stable Outdoor 5 GHz Access Point from LigoWave operates on the 5.150 - 5.850 GHz frequency and comes equipped with dual N-type connectors making it compatible with a variety of antennas. Additionally, this access point supports the proprietary protocol, iPol 3, which utilizes smart dynamic polling to offer enhanced wireless connectivity even in congested areas. Couple the iPol 3 protocol with MIMO 2x2 radio functionality and devices can easily connect directly to this access point as it supports multiple data pathways resulting in increased bandwidth.
Setup and configuration is simple, as this access point radio comes equipped with a single Gigabit Ethernet port and supports a variety of operating modes including access point (auto WDS), access point (iPoll 2), station (WDS, iPoll 3), and station (ARP NAT). Once configured, you can manage your network using the WNMS or Wireless Network Management System. This management system makes it easy to manage multiple networks from a single dashboard. You can also diagnose network problems, visualize networks on a map, schedule firmware upgrades, and much more. - Enhanced Performance

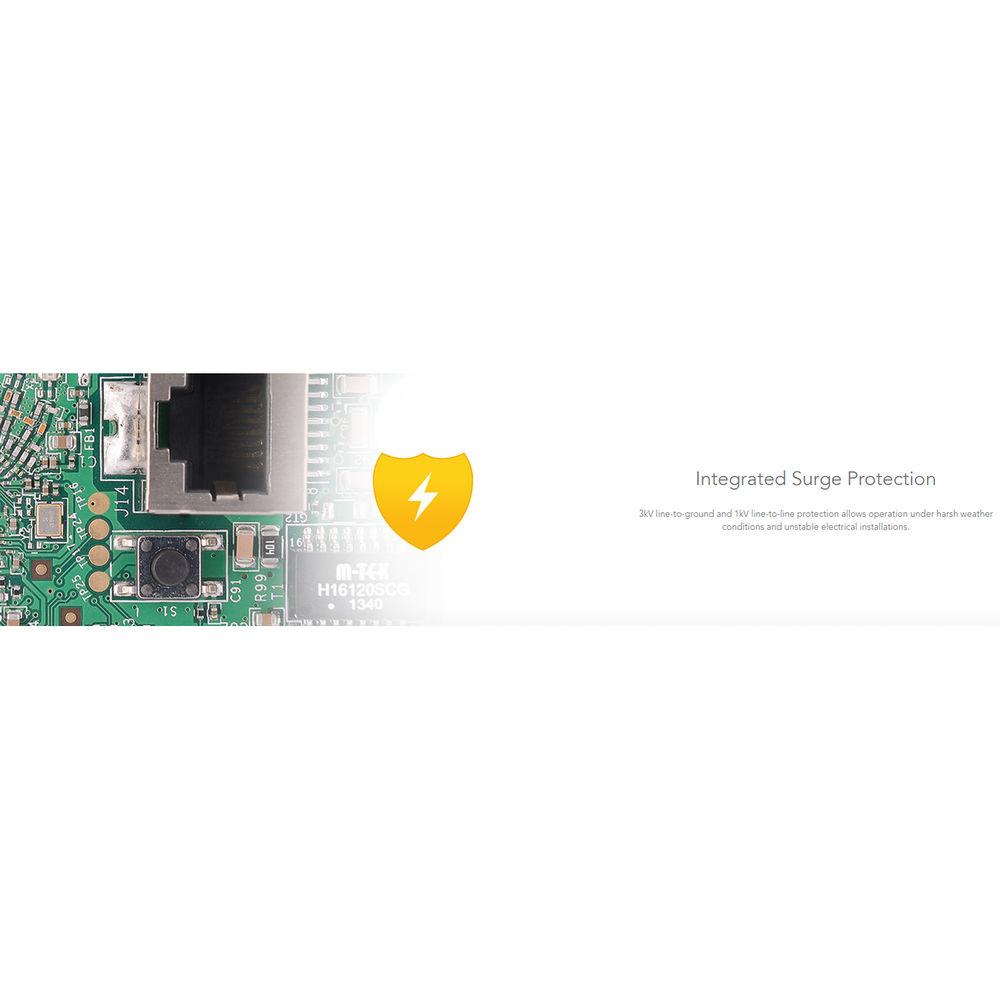

- 500+ Mb/s throughput is a result of powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (iPoll). Incorporating a QCA 9563 CPU (750 MHz), a QCA 9882 radio, 64MB of RAM, and 16MB of flash memory, the LigoDLB ac series devices are an ideal solution for capacity demanding applications. State-of-the art RF design with great output power and sensitivity parameters improve range and capacity over highest the modulation (256-QAM). The 24V Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when used in a point-to-point or point-to-multipoint network design. LigoDLB ac series devices are backwards compatible with LigoDLB devices using iPoll mode, which helps to expand or upgrade existing networks using the latest technologies over time.

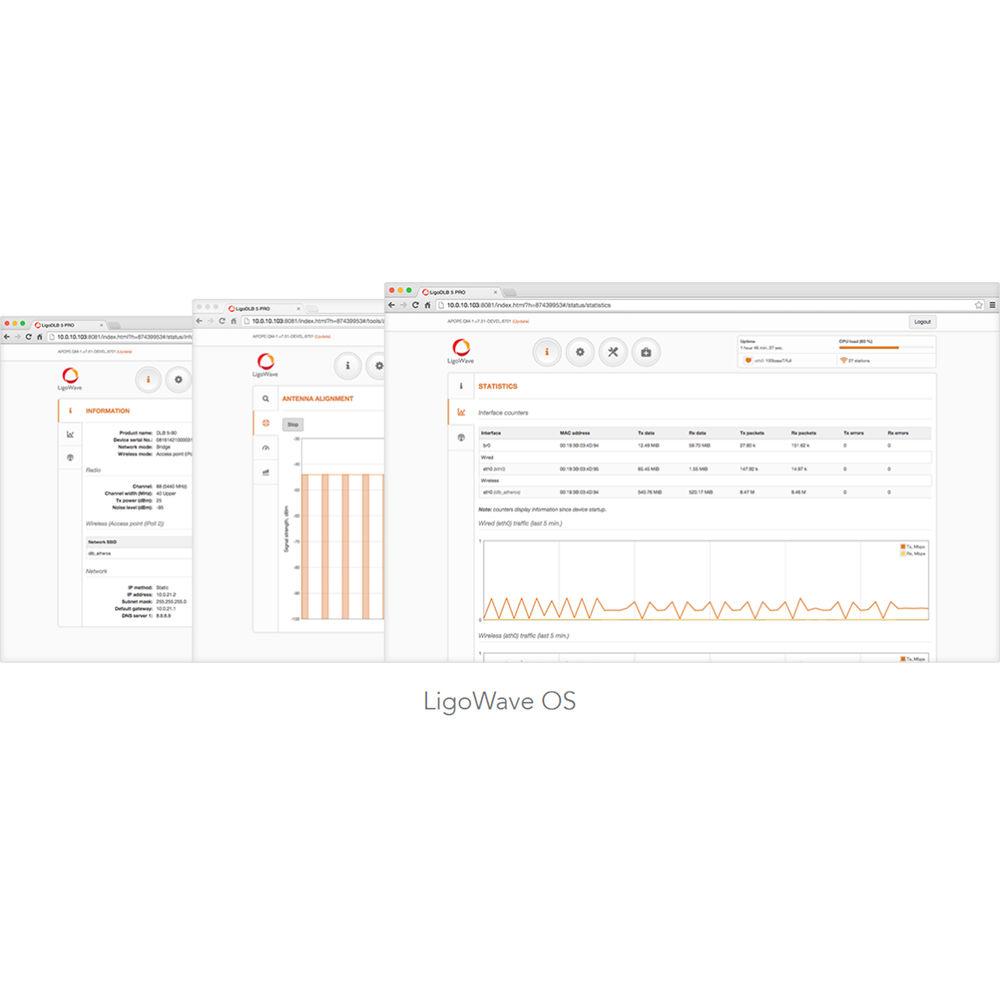

- Powerful OS
- The LigoDLB OS is a highly functional and easy-to-use operating system embedded in all LigoDLB hardware devices for effortless setup and trouble-free operation. High performance (500 Mb/s) allows offering more bandwidth together with additional services such as VoIP and IPTV. This is possible when using LigoWave's smart QoS mechanism and multi-cast traffic enhancements for triple play services. Such services are essential for all next-generation service providers to complement their existing portfolios. iPoll, LigoWave's proprietary transmission protocol, ensures smooth performance with a high number of clients even in noisy environments.
UPC: 855138006505 Table of Contents
|
Upload User Manual
Have you got an user manual for the LigoWave DLB-5AC Outdoor 5 GHz Access Point with Dual N-Type Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLigoWave DLB-5AC Specs | Wireless Specifications | WLAN Standard
IEEE 802.11ac, iPoll 3
Radio Mode
MIMO 2x2
Radio Frequency Band
5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
Transmit Power
Up to 30 dBm
Channel Size
5,10, 20, 40, 80 MHz
Modulation Schemes
802.11a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)
Data Rates
802.11ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mb/s
802.11ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mb/s
Error Correction
FEC, LDPC
Duplexing Scheme
Time division duplex | | Antenna Specifications | Type
External N-connectors
Gain
Antenna dependent | | Wired Connectivity | Interface
10/100/1000 Base-T, RJ45 | | Power | Power Supply
24 VDC passive PoE (AC to 24 VDC adapter is included in the package)
Power Source
100 - 240 VAC
Power Consumption (Max.)
10 W | | Temperature & Humidity | Operating Temperature
-40 to 149°F / -40 to 65°C
Humidity
0 to 90% non-condensing | | Management | System Monitoring
SNMP, Syslog, Web UI, WNMS
Configuration
WebUI, WNMS | | Regulatory Certifications | Certification
FCC/IC/CE | | Dimensions | 5.9 x 4.5 x 2.1" / 150 x 115 x 55 mm | | Weight | 1 lb / 450 g |
