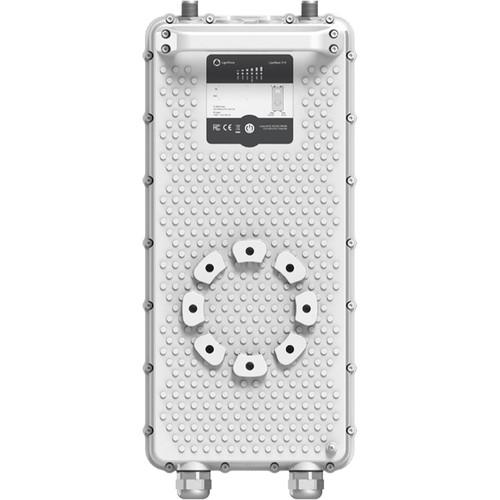

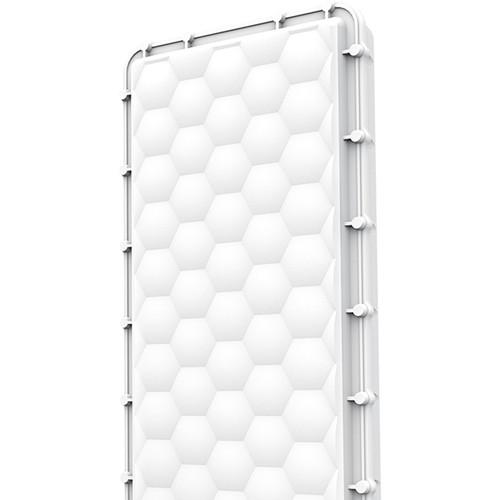

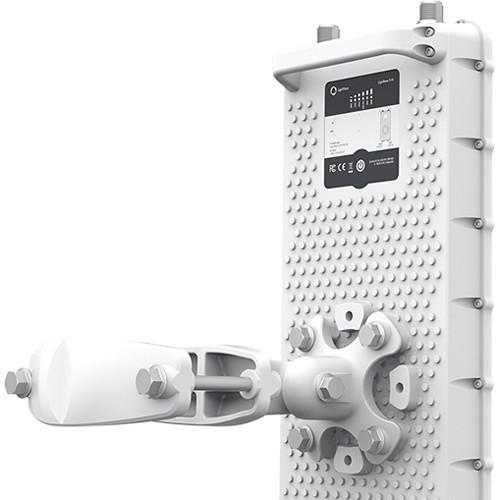

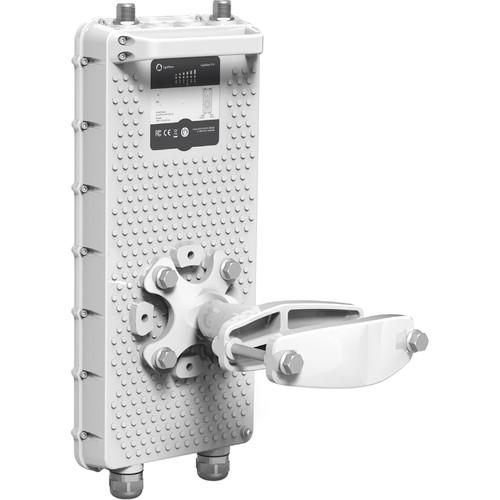

Product description Add the LigoBASE BSE 5-N Base-Station with N-Type Connectors from LigoWave to your point to multi-point configuration for a reliable network connection capable of handling data transfer rates of up to 600 Mb/s as it supports up to 256 QAM modulation and 31 dBm output power. To back up the enhanced network performance, this antenna covers the 4.9 to 5.9 GHz frequency range and features a 17 dBi gain, dual linear polarization, and 24 dBi cross-pol isolation. Once configured, network admins can take advantage of the intuitive LigoWave OS to managed a variety of aspects of the network. Furthermore, this LigoWave antenna features simple configuration and maintenance functions with a detailed setup wizard, single side configuration, a spectrum analyzer, and a 2.4 GHz access radio. - Enhanced Performance

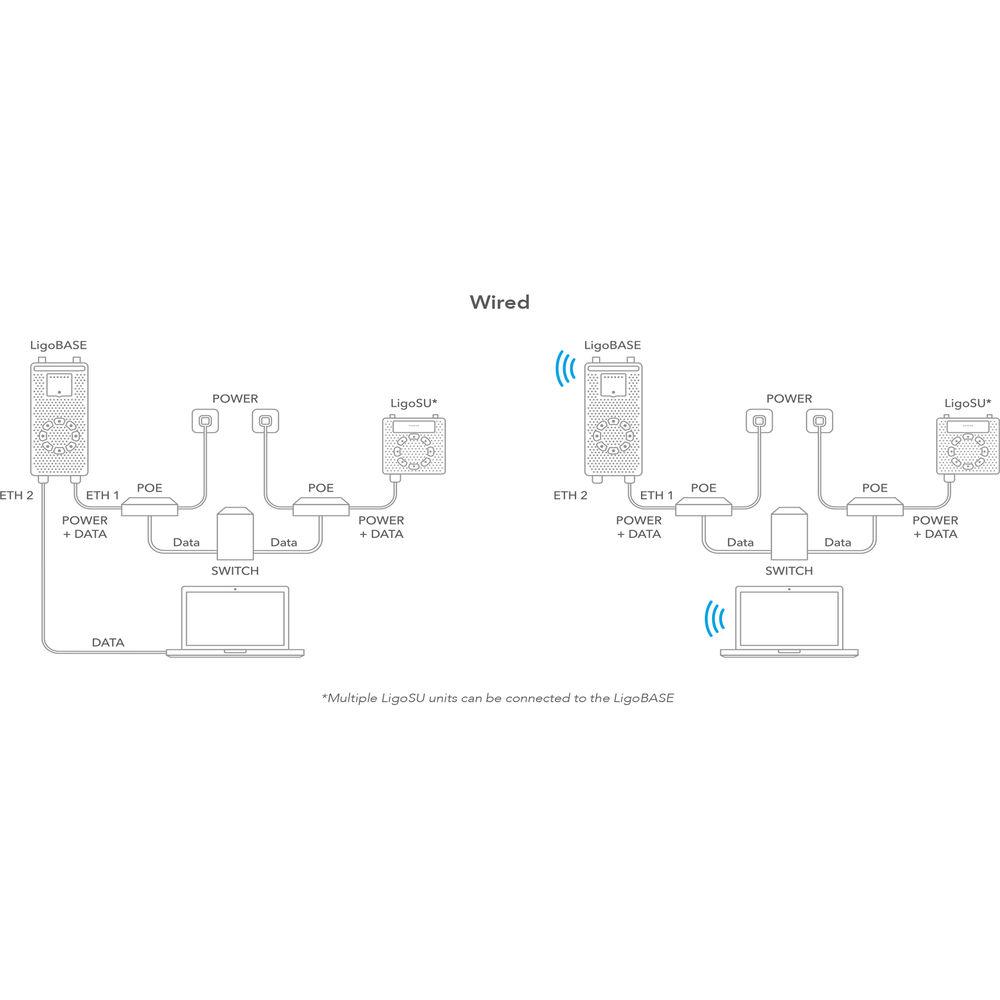

- LigoPTMP series point to multipoint system delivers 600+ Mb/s throughput via its unique and powerful RF design that supports up to 256QAM modulation and 31 dBm output power. 1.2 GHz dedicated CPU ensures swift data processing and high packet per second rate (PPS) which is important for real-time data transmission applications. Equipped with two Gigabit Ethernet ports, one with PoE passthrough, the unit allows powering and connecting two devices on the tower (another LigoBASE or IP camera). LigoBASE incorporates integrated surge and ESD protection according to IEC standards passing Class 4 requirements. Additionally, the weatherproof IP-67 standard rated enclosure design allows using the equipment in any climate conditions.
- LigoWave OS
- The full-featured operating system makes LigoPTMP devices ideal not only for WISPs and operators, but also for security, enterprise, or industrial applications. Proprietary data transmission protocol (W-Jet V) ensures smooth performance even in noisy areas at the same time delivering high capacity, low latency and high packet per second rate. QoS (quality of service) mechanism allows prioritizing mission-critical data and efficiently transmitting voice, video, or other real-time data over the wireless network. Essential tools like spectrum analyzer, site survey, antenna alignment and others are included.
- Pre-Configuration and Maintenance
- Setup Wizard
Guides the installer through the important steps of the set-up process. Single side configuration Link parameters are automatically applied to subscriber units once set on the base-station side.
Spectrum Analyzer
Demonstrates the current noise floor in a waveform and waterfall graphs.
2.4 GHz Access Radio

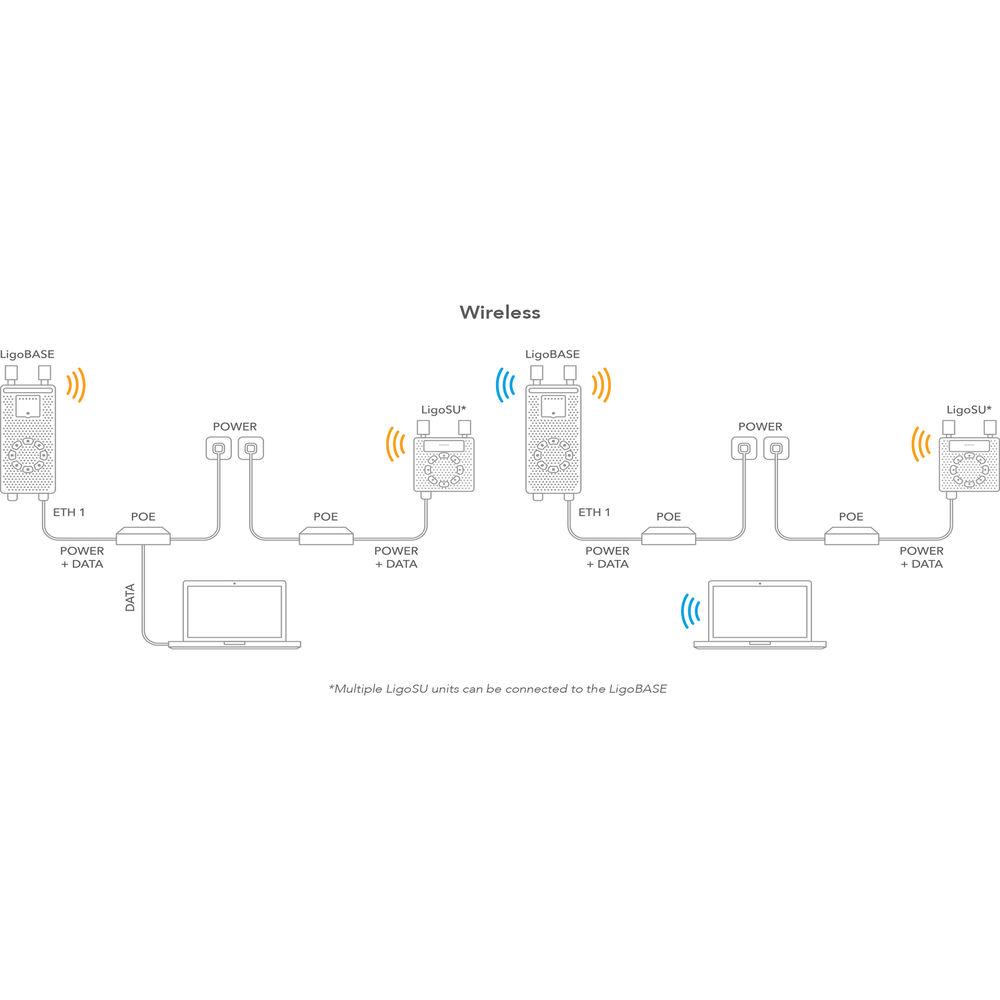

An internal 2.4 GHz radio allows access into the LigoBASE GUI by a wireless connection with any Wi-Fi equipped device. - Additional Features
-
- Wizard for fast link setup
- Centralized control from LigoBASE: A) Common wireless link parameters; B) Individual LigoSU parameters
- Smart Auto-channel
- Robust data security
- QoS with hardware acceleration
- Spectrum analyzer
- Wireless signal and device state indication on RGB LEDs
- Dual firmware image
UPC: 855138006482 In the Box LigoWave LigoBASE BSE 5-N Base-Station with N-Type Connectors - Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the LigoWave LigoBASE BSE 5-N Base-Station with N-Type Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLigoWave LW-PTMP-5-N-BS Specs | Radio | Wireless Protocol
W-Jet V
Radio Mode
MIMO 2x2
Frequency Range
4.900 - 6.100 GHz (FCC: 4.940 - 4.990 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz)
Channel Size
5, 10, 20, 40, 80 MHz
Modulation Schemes
OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)
Data Rates at 80 MHz
866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mb/s
Duplexing Scheme
TDD
Error Correction
BCC, LDPC | | Antenna | 2 x N-type connectors
Frequency Range: 4.9 - 5.9 GHz
Gain: 17 dBi
Polarization: Dual linear
Cross-pol Isolation: 24 dBi
VSWR: <1.7
Azimuth Beamwidth: (H pol) 90 deg
Azimuth Beamwidth: (V pol) 90 deg
Elevation Beamwidth: 20 deg | | Wired | First Interface: 10/100/1000 Base-T with PoE IN (RJ45)
Second Interface: 10/100/1000 Base-T with PoE OUT (RJ45) | | Power | Power Input Method, Voltage: PoE 802.3af, isolated 42-57 VDC
Power Consumption (max): 8.6 W
Power Output Method, Voltage: PoE 802.3af, 48 VDC, 12.95 W maximum
PoE inserter and AC/DC adapter are included | | Temperature & Humidity | Operating Temperature
-40 to 149°F / -40 to 65°C
Humidity
0 to 90% (non-condensing) | | Management | Dedicated 2.4 GHz radio for management
System monitoring SNMP, GUI/HTTP(S), Shell/SSH and WNMS
System configuration GUI/HTTP(S) and WNMS | | Certification | FCC/IC/CE | | Dimensions | 15.7 x 6.8 x 1.8" / 399 x 174 x 47 mm | | Weight | 6.6 lb / 3 kg |
