User Manual for LigoWave LigoDLB-5-90-20AC-PRO Integrated Antenna Base-Station Click to enlarge the picture
Contents of the user manual for the LigoWave LigoDLB-5-90-20AC-PRO Integrated Antenna Base-Station
- Product category: Antennas & Accessories LigoWave
- Brand: LigoWave
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LigoWave Antennas & Accessories
 |
User manual for the LigoWave LigoDLB-5-90-20AC-PRO Integrated Antenna Base-Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LigoWave product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LigoWave user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LigoWave product will considerably shorten its lifespan!
|

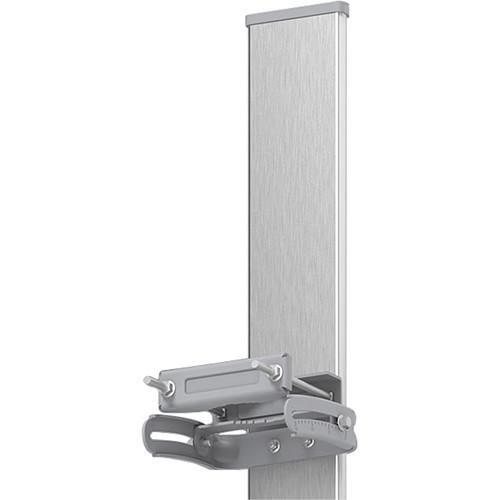

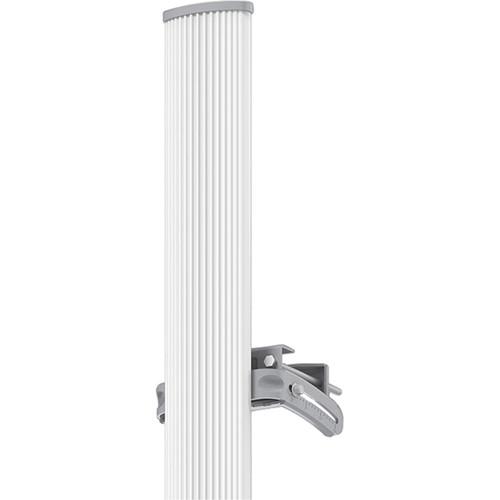

Product description With the LigoDLB-5-90-20AC-PRO Integrated Antenna Base-Station from LigoWave, clients can take advantage of wireless data throughput of over 500 Mb/s thanks to the proprietary transmission protocol - iPoll.
This base-station supports the 802.11ac Wi-Fi network standard and operates on the 5 GHz frequency reaching distances of up to 7.5 miles. Additionally, the LigoDLB-5-90-20AC-PRO features MIMO 2x2 connectivity for increased bandwidth, up to 30 dBm transmit power, and supports multiple channel sizes. Installation is simple, thanks to the single Gigabit Ethernet port and the included pole mount. Once installed, the base-station is designed to withstand harsh weather conditions thanks to the IP-67 enclosure. - Enhanced Performance
- 500+ Mb/s throughput is the result of a powerful hardware platform with an 802.11ac technology based radio and a proprietary data transmission protocol (iPoll). Incorporating a QCA 9557 CPU (720 MHz), a QCA 9882 radio and 128MB of RAM/Flash memory, the LigoDLBac PRO series access points are an ideal solution for resource-demanding installations. State-of-the-art RF design with great output power and sensitivity parameters improve range and capacity over the highest modulation—256-QAM. The 48V Gigabit Ethernet port (802.3af) allows utilizing the full capacity of the base-station. LigoDLB ac series devices are backward compatible with LigoDLB devices using iPoll mode, which helps to expand or upgrade existing networks with the latest technologies over time.

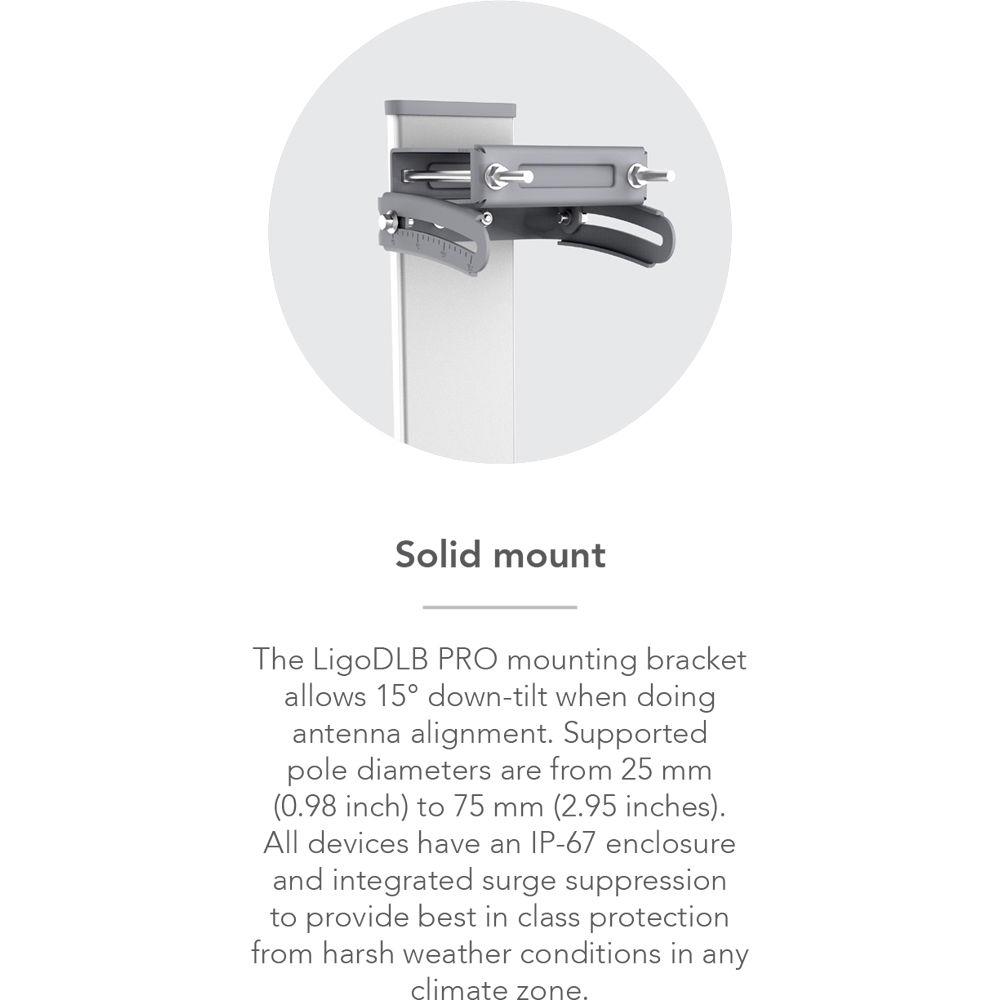

- Solid Mount

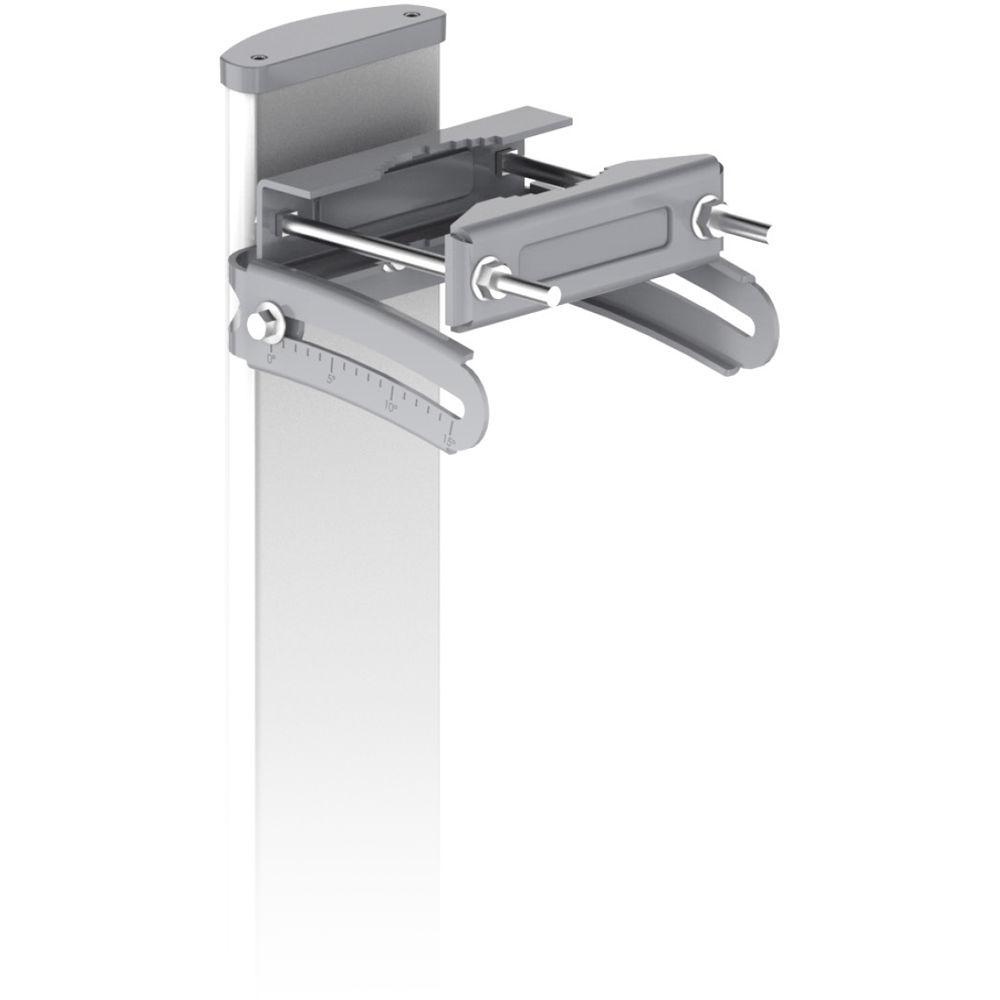

- The LigoDLB PRO mounting bracket allows 15° down-tilt when doing antenna alignment. Supported pole diameters are from 25mm (0.98") to 75mm (2.95"). All devices have an IP-67 enclosure and integrated surge suppression to provide best in class protection from harsh weather conditions in any climate zone.

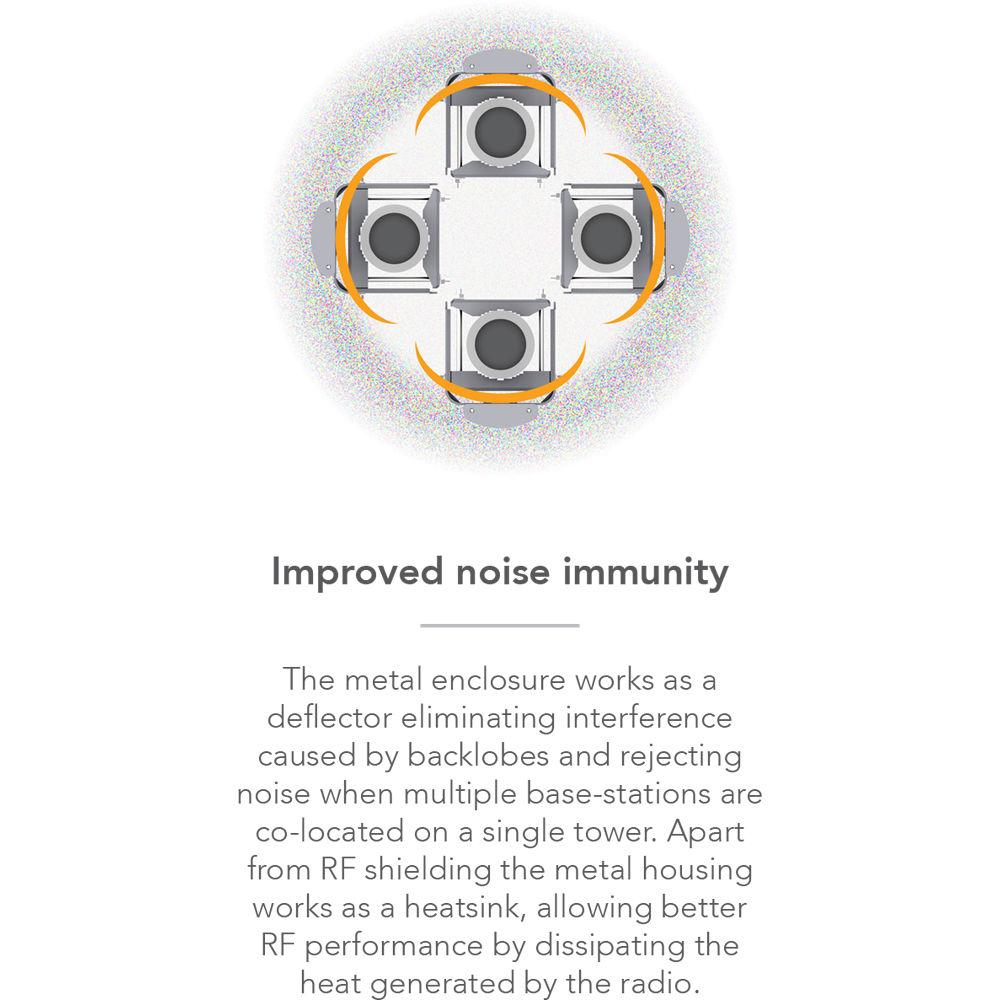

- Improved Noise Immunity
- The metal enclosure works as a deflector eliminating interference caused by backlobes and rejecting noise when multiple base-stations are co-located on a single tower. Apart from RF shielding, the metal housing works as a heatsink, allowing better RF performance by dissipating the heat generated by the radio.

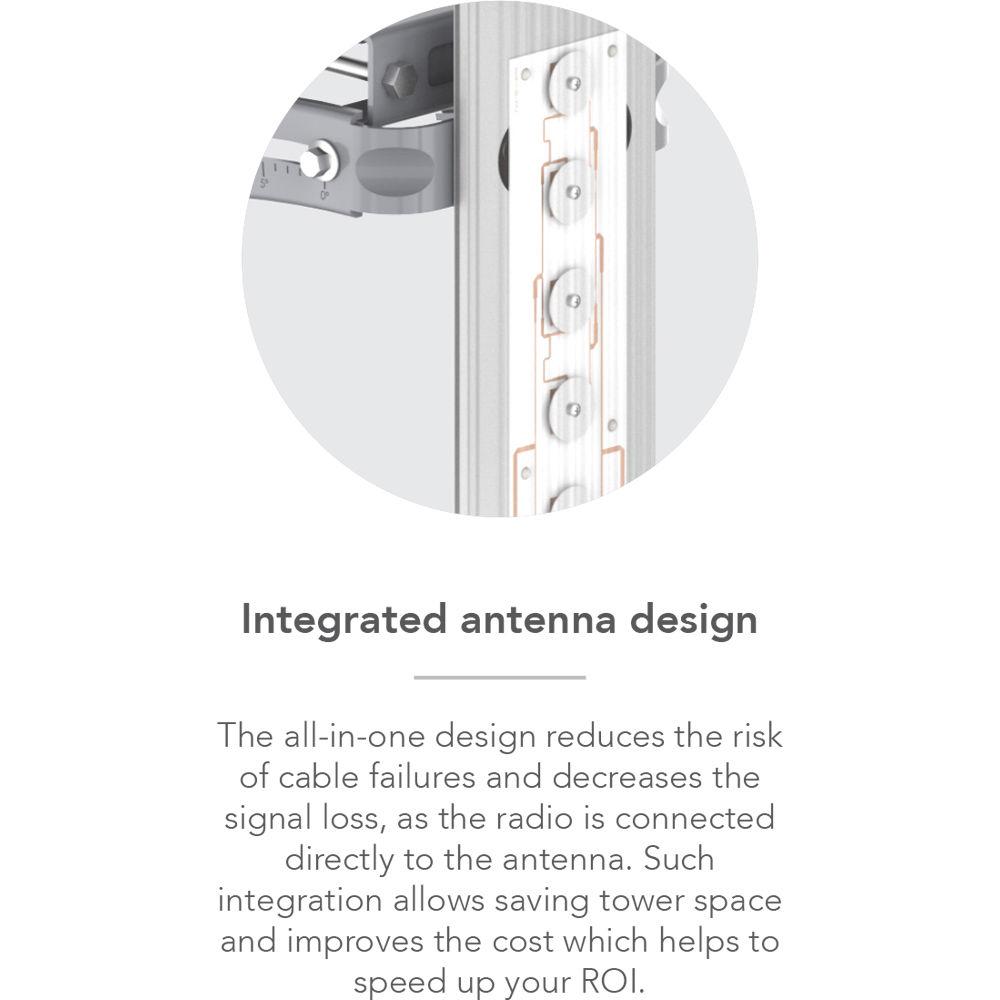

- Integrated Antenna Design
- The all-in-one design reduces the risk of cable failures and decreases the signal loss, as the radio is connected directly to the antenna. Such integration allows saving tower space and improves the cost which helps to speed up your ROI.
UPC: 855138006406 In the Box LigoWave LigoDLB-5-90-20AC-PRO Integrated Antenna Base-Station AC Adapter Pole Mount 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LigoWave LigoDLB-5-90-20AC-PRO Integrated Antenna Base-Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLigoWave DLB-5-90-20AC-PRO Specs | Coverage | 7.5 mi / 12 km | | Wireless Specifications | WLAN Standard
IEEE 802.11 a/n/ac, iPoll 3
Radio Mode
MIMO 2
