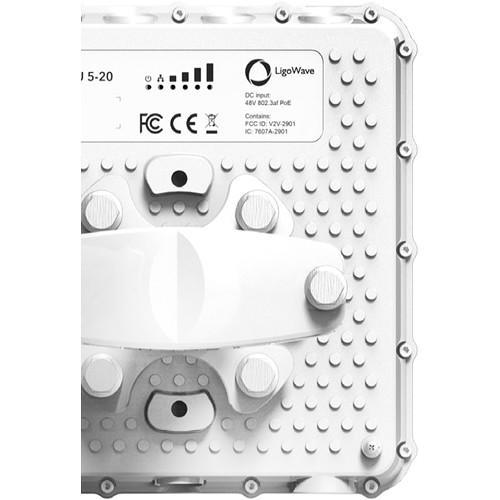

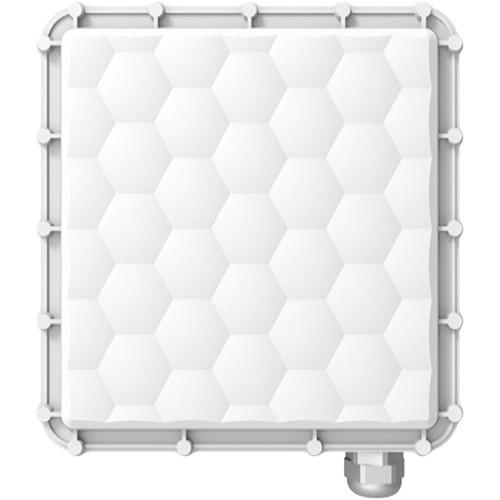

Product description With the LigoSU 5-20 High-Performance 5 GHz Subscriber Unit from LigoWave you can take advantage of data transfer rates of up to 600 Mb/s, making it easy to transfer even large files quickly and efficiently.
Installation is simple, thanks to the dedicated Gigabit Ethernet interface that's compatible with the 802.3af/at PoE network standard. Inside this device, you will find a 720 MHz dedicated CPU designed to be the backbone of this networking unit to ensure enhanced network performance including a high packet per second (PPS) rate. Once installed, this device features a directional dual-pol 20 dBi antenna, dual linear polarization, a 27 dBi cross-pol isolation, and a horizontal, vertical, and elevation beamwidth of 16° provide enhanced coverage and functionality. - Enhanced Performance
- The LigoPTMP series point-to-multipoint system delivers 600+ Mb/s throughput via its unique and powerful RF design that supports up to 256QAM modulation and 30 dBm output power. 720 MHz dedicated CPU ensures swift data processing and high packet per second rate (PPS) which is important for real-time data transmission applications. A Gigabit Ethernet port supporting the 802.3af/at standard allows powering the devices with PoE switches. The weatherproof IP-67 rated enclosure design allows using the equipment in any climate conditions.
- LigoWave OS
- The full-featured operating system makes LigoPTMP devices ideal not only for WISPs and operators, but also for security, enterprise or industrial applications. Proprietary data transmission protocol (W-Jet V) ensures smooth performance, even in noisy areas, at the same time delivering high capacity, low latency, and high packet-per-second rate. QoS (quality of service) mechanism allows prioritizing mission-critical data and efficiently transmitting voice, video, or other real-time data over the wireless network. Essential tools like spectrum analyzer, site survey, antenna alignment, and others are included.
- Setup Wizard
- Guides the installer through the important steps of the set-up process.
- Single-Side Configuration
- Link parameters are automatically applied to subscriber units once set on the base-station side.
- Spectrum Analyzer
- Demonstrates the current noise floor in a waveform and waterfall graphs.
- Pre-Configuration

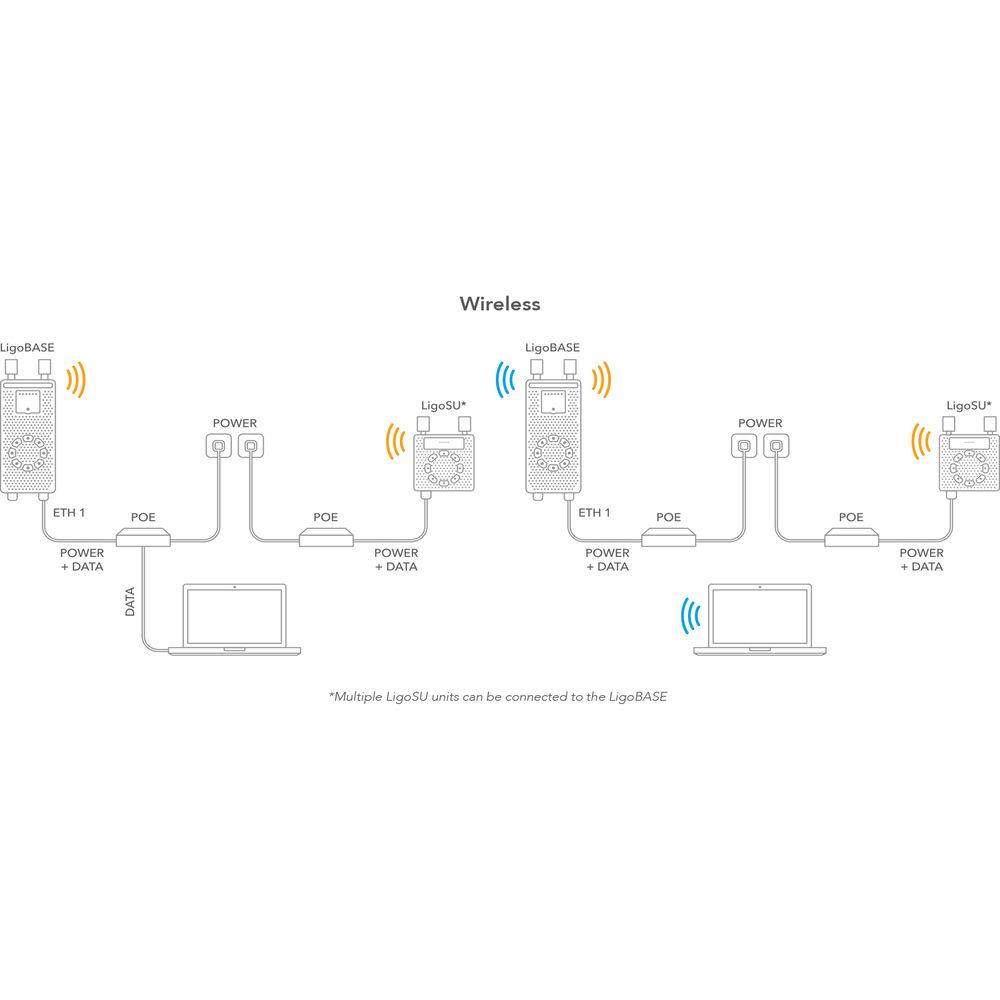

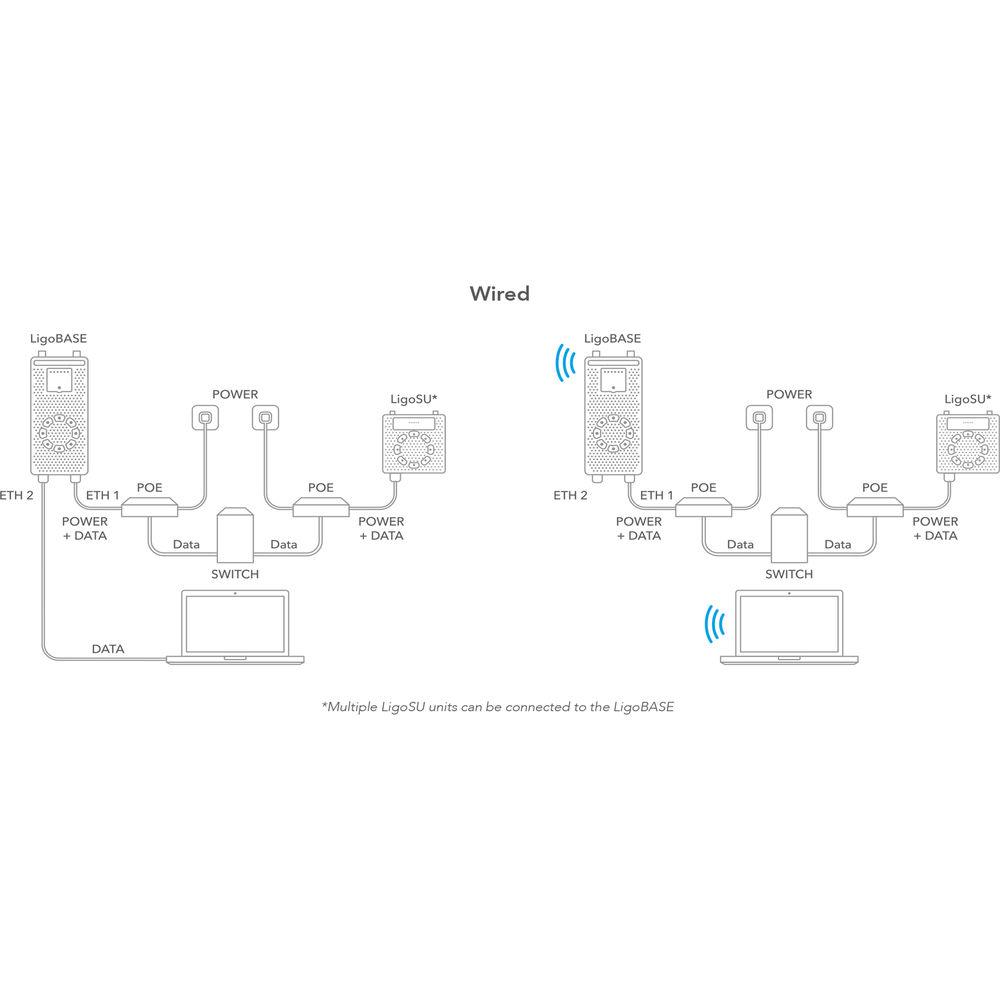

- LigoPTMP devices can be connected with each other using wired or wireless connectivity. End-user devices can also connect to the LigoBASE device using 2.4 GHz access radio or using wire to the Ethernet port of the LigoBASE device. LigoPTMP devices can be discovered using Bonjour, CDP and SSDP protocols as well.
- Software Features
- • Smart Auto-channel
• Robust data security
• QoS with hardware acceleration
• Spectrum analyzer
• Dual firmware image
• Client device is controlled via Base Station UPC: 855138006468 In the Box LigoWave LigoSU 5-20 High-Performance 5 GHz Subscriber Unit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LigoWave LigoSU 5-20 High-Performance 5 GHz Subscriber Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLigoWave LW-PTMP-5-20-SU Specs | Wireless Protocols | W-Jet V | | Radio | MIMO 2x2 | | Frequency Range | 4.900 - 6.100 GHz (FCC: 4.940 - 4.990 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz) | | Channel Sizes | 5, 10, 20, 40, 80 MHz | | Modulation | OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK) | | Data Rates | 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mb/s | | Duplex Mode | TDD | | Error Correction | BCC, LDPC | | Antenna | Integrated directional dual-pol 20 dBi antenna
Polarization: Dual linear
Cross-Pol Isolation: 27 dBi
VSWR: <1.8
Azimuth Beamwidth (H Pol): 16°
Azimuth Beamwidth (V Pol): 16°
Elevation Beamwidth: 16° | | Wired | Interface: 10/100/1000 Base-T with PoE in (RJ45) | | Power | Power Input Method: PoE 802.3af, isolated 42-57 VDC
Power Consumption (Max.): 10 W
PoE included | | Temperature & Humidity | Operating Temperature: -40 to 149°F / -40 to 65°C
Humidity: 0 to 90% non-condensing | | Certifications | FCC/IC/CE | | Dimensions | 7.7 x 7.7 x 1.9" / 198 x 198 x 50.5 mm | | Weight | 4.4 lb / 2.0 kg |
