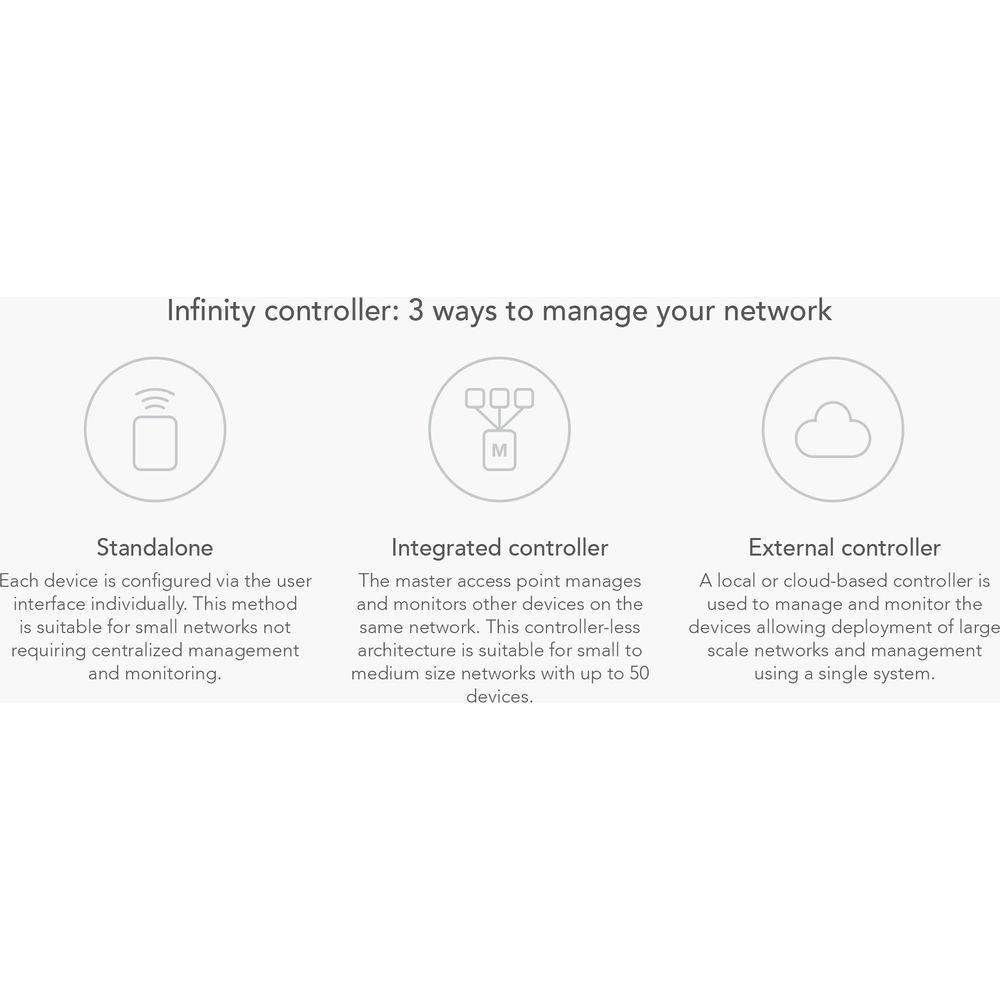

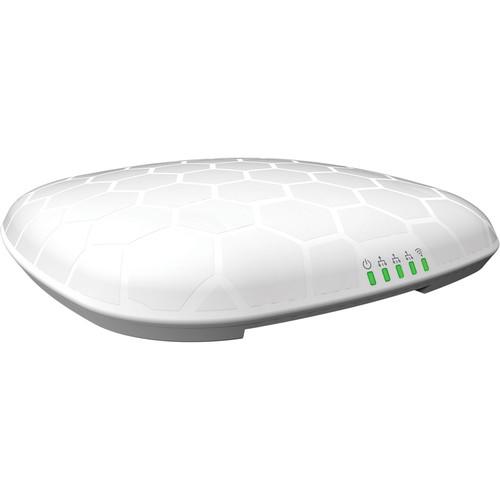

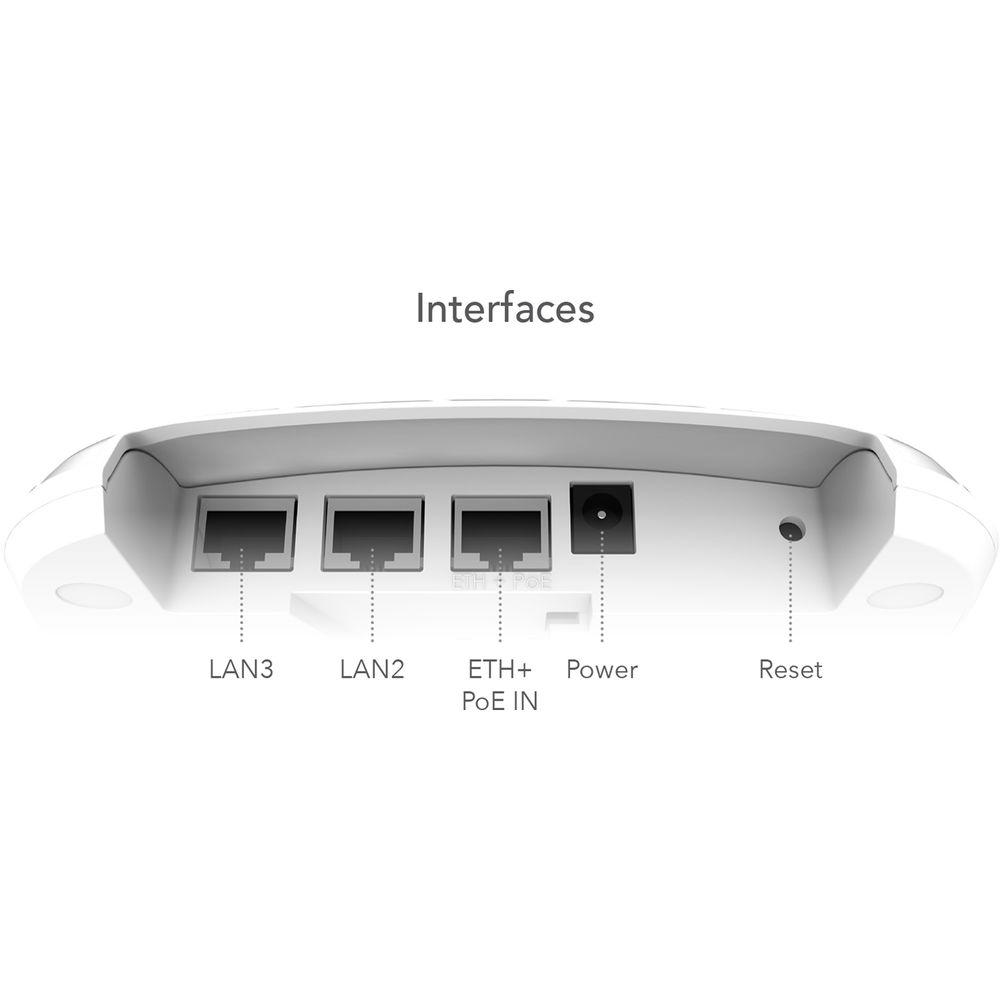

Product description With MIMO 2x2 connectivity and an output power of 27 dBm, the NFT 2AC 802.11ac Dual-Band Dual-Radio Wireless Access Point from LigoWave offers enhanced wireless connectivity at greater distances. This access point supports the 802.11ac Wi-Fi standard and operates on the 2.4 GHz and 5 GHz frequencies supporting wireless data transfer rates of up to 866 Mb/s. In addition to enhanced wireless data throughput, you can also connect Ethernet-enabled devices to any of the three Gigabit Ethernet ports found on the back of the access point. Once installed, this access point features an intuitive operating system, Infinity Controller, which provides admins with multiple ways to manage their network. Choose between standalone management where each device is configured individually, integrated controller management in which the access point is responsible for managing connected devices, or external controller management designed for larger deployments and supports both local and cloud-based functionality. - Infinity Controller - 3 Ways to Manage Your Network
- Standalone
Each device is configured via the user interface individually. This method is suitable for small networks not requiring centralized management and monitoring.
Integrated Controller
The master access point manages and monitors other devices on the same network. This controller-less architecture is suitable for small to medium size networks with up to 50 devices.
External controller
A local or cloud-based controller is used to manage and monitor the devices allowing deployment of large-scale networks and management using a single system. - Proximity
- LigoWave access points have an integrated mobile device detection feature. Any device within range can be logged with MAC address and date/time without any user interaction. The data is exported in real time and can be used to enhance the services of enterprise or managed service providers by importing it to their own application. An API is available upon request. There are several technology partners already using the functionality including Cloud4Wi and Socifi.
UPC: 855138006413 Table of Contents
|
Upload User Manual
Have you got an user manual for the LigoWave NFT 2AC 802.11ac Dual-Band Dual-Radio Wireless Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLigoWave DLB-NFT-2AC Specs | Wireless Specifications | WLAN Standard
IEEE 802.11a/b/g/n/ac
Radio Mode
MIMO 2x2
Operating Mode
Access point, repeater
Radio Frequency Band
2.402 - 2.484 GHz (country dependent) FCC 2.412 - 2.462 GHz (CH1-CH11)
5.170 - 5.875 GHz (country dependent) FCC 5.745 - 5.825 GHz (CH149-CH161)
Transmit Power
2.4 GHz: 27 dBm @ MCS0
5 GHz: 27 dBm @ MCS0
Channel Size
20, 40, 80 MHz
Modulation Schemes
802.11ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)
802.11a/g/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11b: DSS (CCK, DQPSK, DBPSK)
Data Rates
802.11ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mb/s
802.11n @ 40 MHz: 300, 270, 240, 180, 120, 90, 60, 30 Mb/s
802.11a/g @ 20 MHz: 54, 48, 36, 24, 18, 12, 9, 6 Mb/s
802.11b @ 20 MHz: 11, 5.5, 2, 1 Mb/s
Duplexing Scheme
Time division duplex
Wireless Security
WPA/WPA2 Personal, WPA/WPA2 Enterprise, WACL, Hotspot (UAM) | | Antenna | Type
4 x internal omni-directional antennas
Gain
2.4 GHz: 3 dBi
5 GHz: 3 dBi
Coverage Radius
328' / 100 m | | Wired Connectivity | Interface
3 x 10/100 Base-T, RJ45 | | Networking | Operating Mode
Bridge, router IPv4 and IPv6
Management
IPv4 static, dynamic
Management
IPv6 static, dynamic stateless, dynamic stateful
Secondary IPv4
Supported
VLAN
802.1Q for management and data
Virtual SSID
8 per each radio
Client Isolation
Supported per SSID | | Services | Services SNMP server, NTP client, WNMS client | | Power | Power Method
DC jack (37 - 56V) or 802.3af/at with passive PoE (37 - 56V) support
Power Supply
100 - 240 VAC to 48 VDC PoE (included)
Power Consumption (Max.)

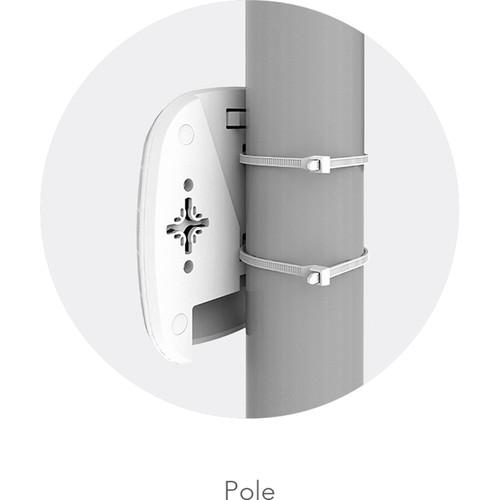

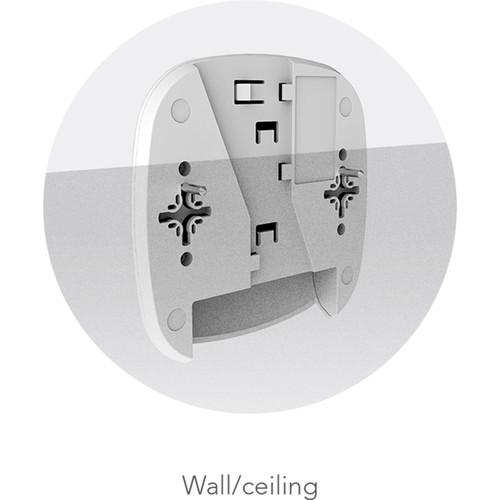

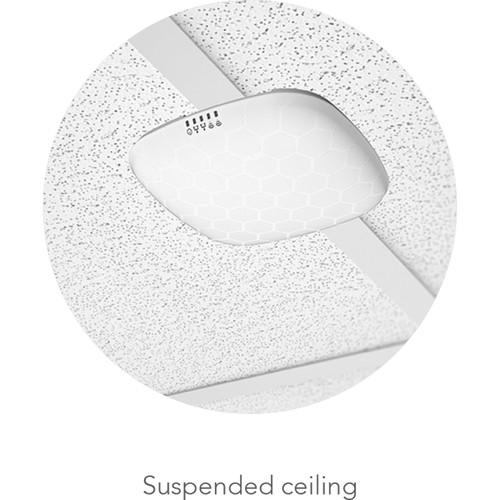

14W | | Management | System monitoring SNMP v1, wyslog | | Mounting | Suspended ceiling mount, wall/ceiling mount, pole mount | | Temperature & Humidity | Operating Temperature
14 to 131°F / -10 to 55°C
Humidity
0 to 90% (non-condensing) | | Certifications | FCC/IC/CE | | Dimensions | 6.1 x 5.8 x 1.14" / 153 x 147 x 29 mm | | Weight | 6.63 oz / 188 g | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 6.8 x 6.3 x 1.8" |
