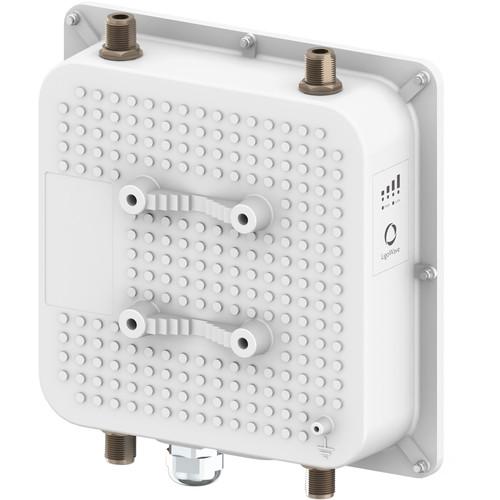

User Manual for LigoWave NFT 2AC OUTDOOR 802.11ac Dual-Band Dual-Radio Outdoor Wireless Access Point Click to enlarge the picture
Contents of the user manual for the LigoWave NFT 2AC OUTDOOR 802.11ac Dual-Band
- Product category: Wireless Access Points LigoWave
- Brand: LigoWave
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LigoWave Wireless Access Points
 |
User manual for the LigoWave NFT 2AC OUTDOOR 802.11ac Dual-Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LigoWave product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LigoWave user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LigoWave product will considerably shorten its lifespan!
|
Product description With MIMO 2x2 connectivity and an output power of 29 dBm, the NFT 2AC OUTDOOR 802.11ac Dual-Band Dual-Radio Outdoor Wireless Access Point from LigoWave offers enhanced wireless connectivity at greater distances. This access point supports the 802.11ac Wi-Fi standard and operates on the 2.4 GHz and 5 GHz frequencies supporting wireless data transfer rates of up to 866 Mb/s. In addition to enhanced wireless data throughput, this access point comes equipped with a single Gigabit Ethernet port and supports the 802.3at/af PoE networking standards for easy installation. Once installed, this access point supports the Infinity OS for enhanced operation along with support for 256 consumer clients, 16 virtual networks, and much more. Moreover, LigoWave includes their own Wireless Network Management System with this access point featuring intuitive network management tools including the ability to diagnose network problems, schedule firmware upgrades, track the state of connected devices, and much more. - OS
- The outdoor access point runs the Infinity OS, a highly functional and easy to use operating system. This powerful and flexible operating system ensures improved operation of LigoWave hardware devices and simple setup for those deploying the networks.
• Responsive HTML 5 based GUI
• 256 concurrent clients
• 16 virtual networks (SSID+VLAN)
• IPv6 support
• WNMS compatible - Proximity
- LigoWave access points have an integrated mobile device detection feature. Any device within range can be logged with MAC address and date/time without any user interaction. The data is exported in real time and can be used to enhance the services of enterprise or managed service providers by importing it to their own application. An API is available upon request. There are several technology partners already using the functionality including Cloud4Wi and Socifi.
- WNMS
- WNMS is a free enterprise-grade Wireless Network Management System. LigoWave's comprehensive network management system supports several thousand of nodes. Multiple networks may be maintained and monitored using one server. A rich feature set helps to diagnose network problems effectively, visualize networks on a map, perform scheduled firmware upgrades automatically, track states of devices, get failure alerts, and collect statistics. WNMS is available as a stand-alone version for Linux and Windows servers, as a cloud-based system and as a mobile application for Android devices.

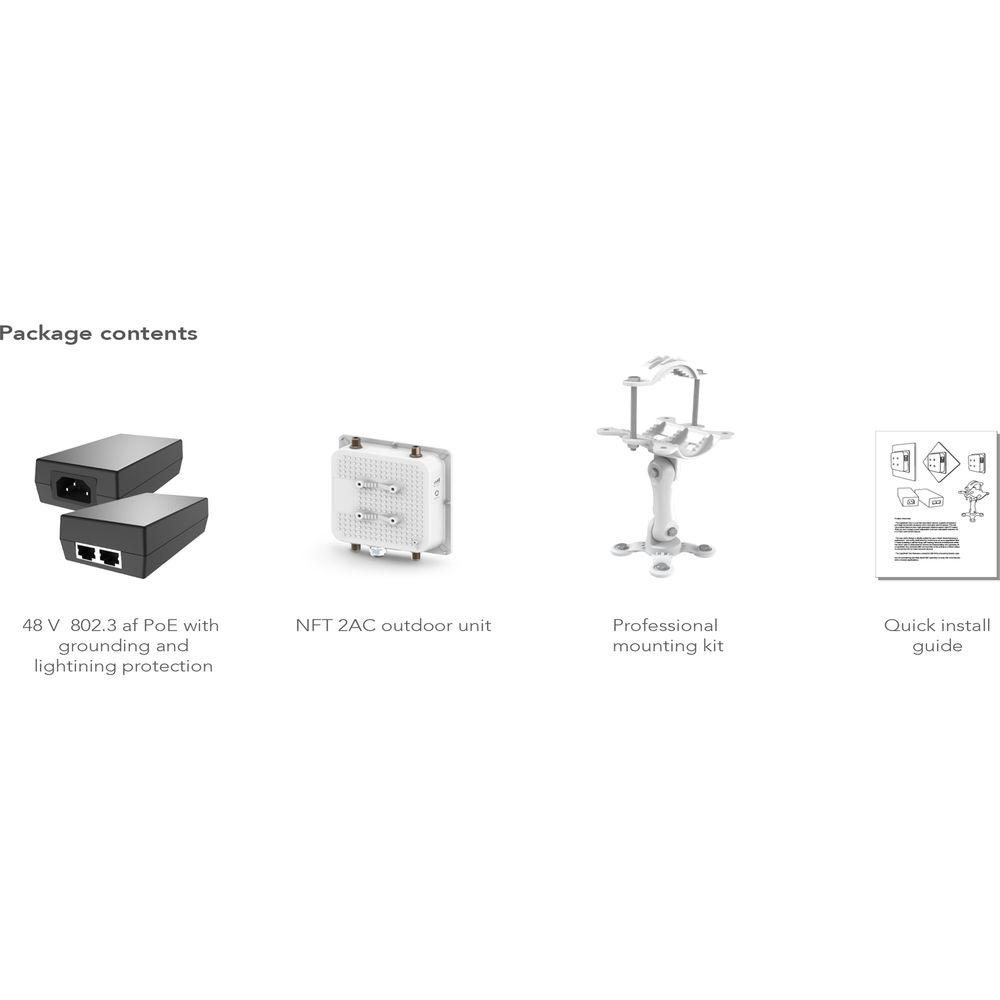

UPC: 855138006437 In the Box LigoWave NFT 2AC OUTDOOR 802.11ac Dual-Band Dual-Radio Outdoor Wireless Access Point Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LigoWave NFT 2AC OUTDOOR 802.11ac Dual-Band Dual-Radio Outdoor Wireless Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLigoWave DLB-NFT-2AC-O Specs | Wireless Specifications | WLAN Standard
IEEE 802.11a/b/g/n/ac
Radio Mode
MIMO 2x2
Operating Mode
Access point, repeater
Radio Frequency Band
2.402 - 2.484 GHz (country dependent) FCC 2.412 - 2.462 GHz (CH1-CH11)
5.170 - 5.875 GHz (country dependent) FCC 5.745 - 5.825 GHz (CH149-CH161)
Transmit Power
2.4 GHz: 29 dBm @ MCS0
5 GHz: 29 dBm @ MCS0
Channel Size
20, 40, 80 MHz
Modulation Schemes
802.11ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)
802.11a/g/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11b: DSS (CCK, DQPSK, DBPSK)
Data Rates
802.11ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mb/s
802.11n @ 40 MHz: 300, 270, 240, 180, 120, 90, 60, 30 Mb/s
802.11a/g @ 20 MHz: 54, 48, 36, 24, 18, 12, 9, 6 Mb/s
802.11b @ 20 MHz: 11, 5.5, 2, 1 Mb/s
Duplexing Scheme
Time division duplex
Wireless Security
WPA/WPA2 Personal, WPA/WPA2 Enterprise, WACL, Hotspot (UAM) | | Antenna | Type
4 x N-type connectors
Coverage Radius
Antenna dependent | | Wired Connectivity | Interface
1 x 10/100/1000 Base-T, RJ45 | | Networking | Operating Mode
Bridge, router IPv4 and IPv6
Management
IPv4 static, dynamic
Management
IPv6 static, dynamic stateless, dynamic stateful
Secondary IPv4
Supported
VLAN
802.1Q for management and data
Virtual SSID
8 per each radio
Client Isolation
Supported | | Services | Services SNMP server, NTP client, WNMS client | | Power | Power Method
802.3 af/at with passive PoE (37 - 56V) support
Power Supply
100 - 240 VAC to 48 VDC PoE (included)
Power Consumption (Max.)
19W | | Management | System monitoring SNMP v1, wyslog | | Mounting | Articulating wall/pole mounting bracket | | Temperature & Humidity | Operating Temperature
-40 to 131°F / -40 to 55°C
Humidity
0 to 90% (non-condensing) | | Certifications | FCC/IC/CE | | Dimensions | 8.5 x 8.5 x 2.7" / 218 x 218 x 70 mm | | Weight | 4.4 lb / 2 kg |
