User Manual for Lilliput 10.4" Touchscreen Monitor with Open Frame Click to enlarge the picture
Contents of the user manual for the Lilliput 10.4" Touchscreen Monitor with Open
- Product category: Commercial Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput Commercial Monitors
 |
User manual for the Lilliput 10.4" Touchscreen Monitor with Open contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|

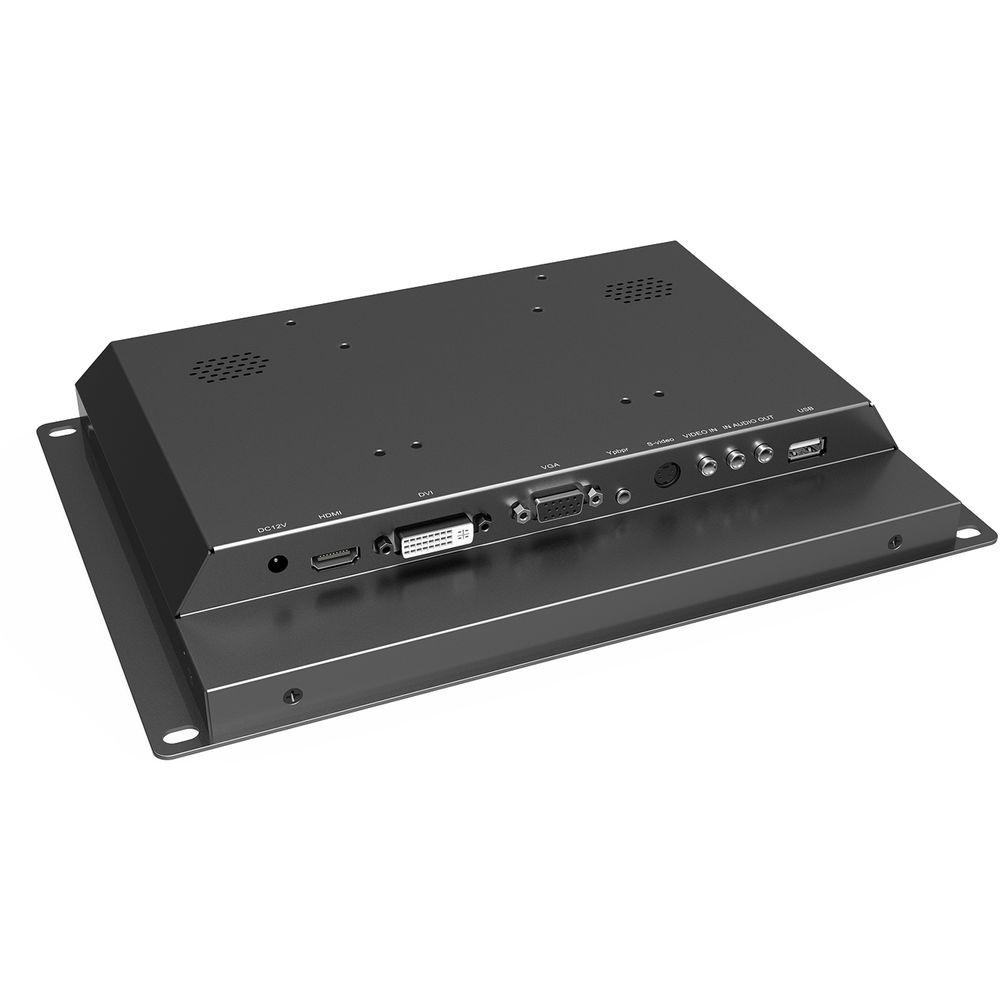

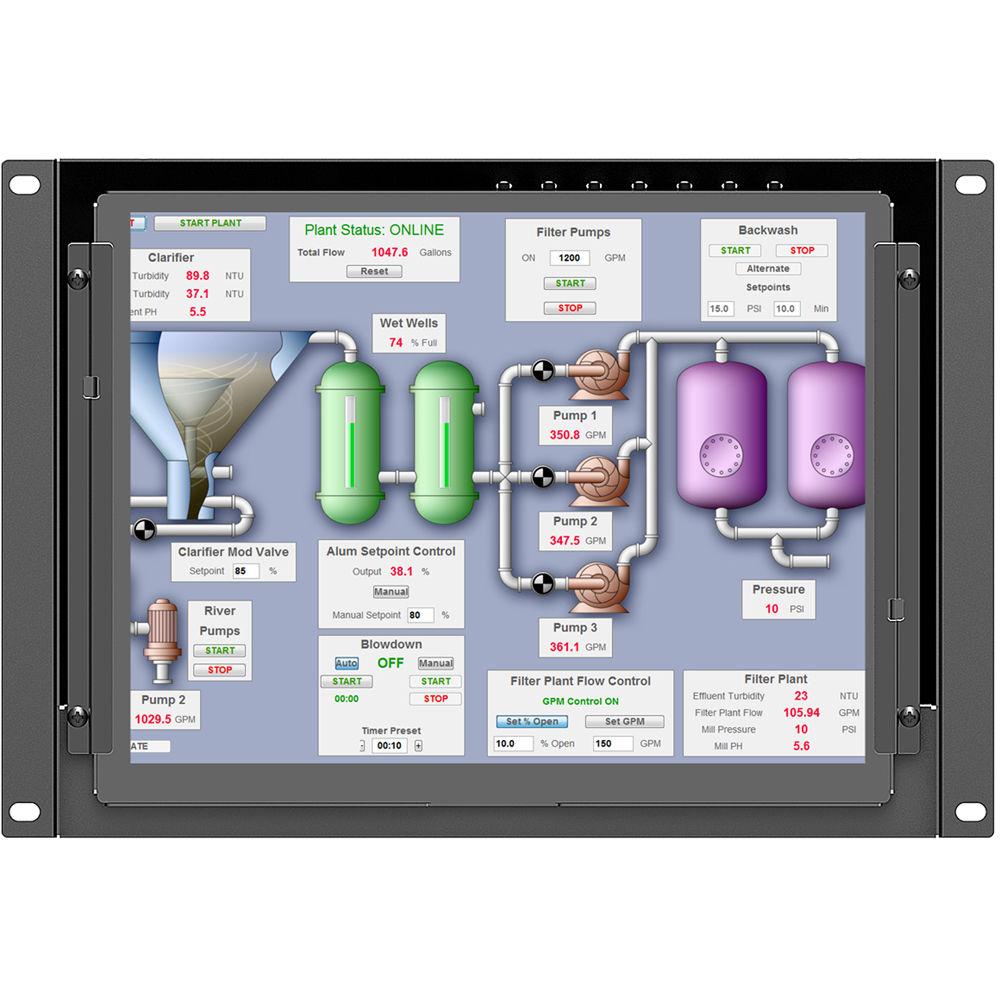

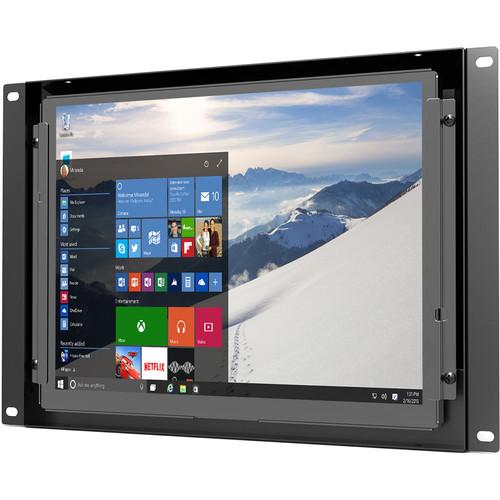

Product description Add touchscreen control to your system with the LILLIPUT 10.4" Touchscreen Monitor. It uses a 5-wire resistive touch panel and connects to your system via USB. Its native resolution is 800 x 600 with a brightness rating of 250 cd/m² and contrast ratio of 400:1. The IPS panel allows for viewing angles up to 140° horizontally and 110° vertically. The monitor is equipped with HDMI, VGA, DVI, YPbPr, and S-video inputs to support a variety of source types. It features a metal housing with open frame or 75 x 75 or 100 x 100mm VESA mounting options. -
- 5-wire resistive touchscreen design
- HDMI, DVI, VGA, YPbPr, S-Video, and other interfaces helps meet a variety of needs
- Whole-device metal housing helps protect the monitor for use in numerous industrial fields
- Open-frame design provides numerous mounting options, including within a wall, or to a VESA, desktop, or ceiling mount
In the Box Lilliput 10.4" Touchscreen Monitor with Open Frame VGA Cable 3 x A/V Cable YPbPr Cable HDMI Cable Open Frame Bracket 12 VDC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 10.4" Touchscreen Monitor with Open Frame in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput TK1040-NP/C/T -B Specs | | | Screen Size (Diagonal) | 10.4" | | Native Resolution | 800 x 600 | | Panel Type | IPS-Type LCD | | Brightness | 250 cd/m
