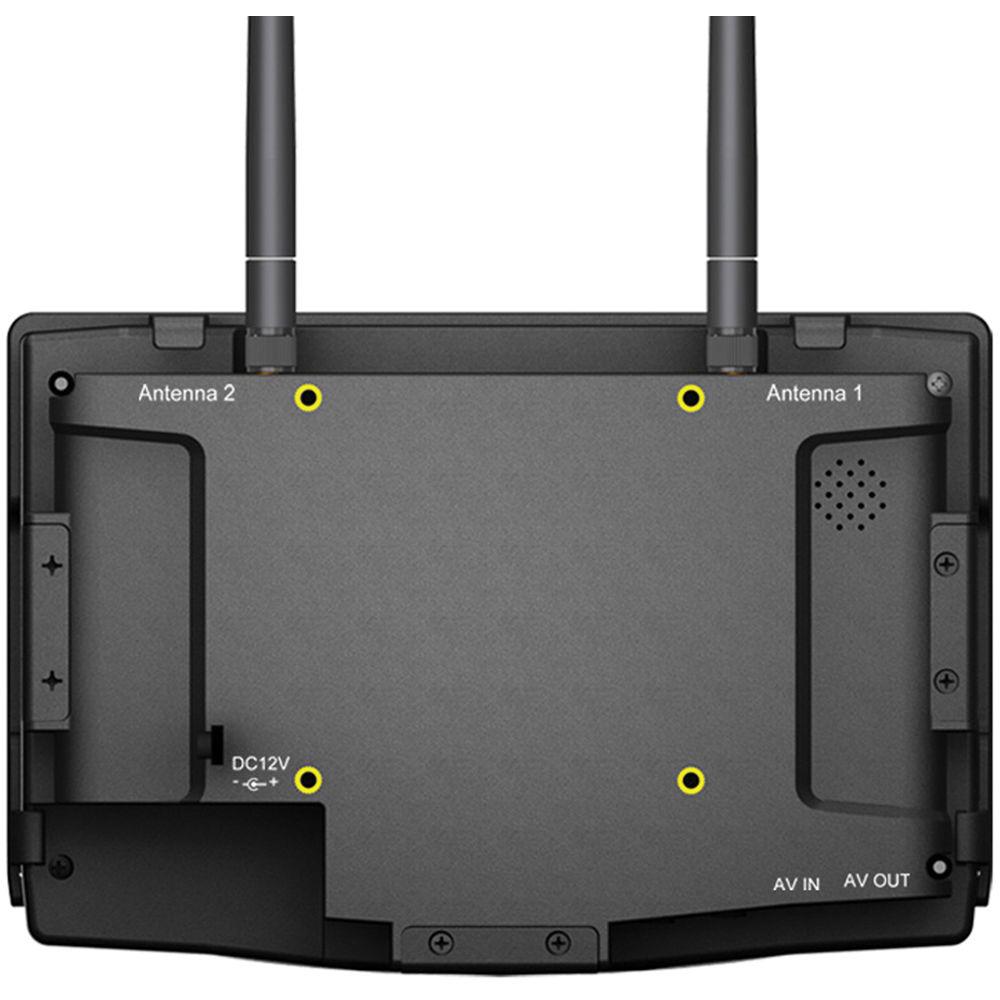

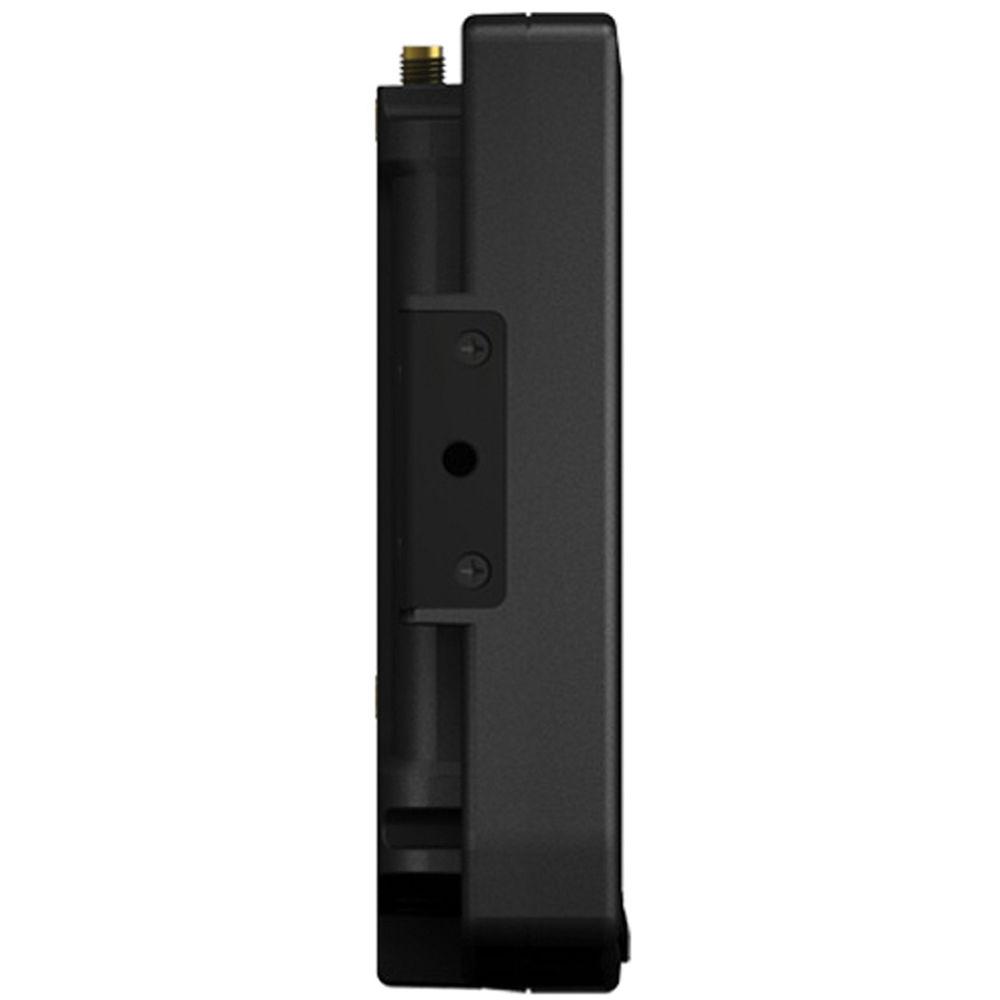

Product description The Lilliput 329/DW 7" Wireless FPV Monitor is designed for aerial photography monitoring and offers up to a 1.2 mile wireless distance. It features dual 5.8 GHz receivers and automatically switches to the one that gets the better signal. The two receivers independently cover 4 bands and a total of 31 channels.
The display has a resolution of 800 x 480 and brightness of 400 cd/m². A sunshade is included that will help you see clearer in sunlight. The 329/DW also comes with a VESA mount battery bracket and both F970 and LP-E6 battery plates. The bracket secures on the back of the monitor, and the battery plates can be used interchangeably by simple snap-on attachment. Batteries are sold separately. An F970 battery will provide with approximately 5 hours of operation and an LP-E6 battery about 2 hours. - Additional Features
-
- 7" TFT LCD aerial photography monitor
- Up to a 1.2 mile wireless distance
- Auto-switching dual 5.8 GHz receivers -- covers 4 bands and 31 channels
- 800 x 480 resolution
- 400 cd/m² brightness
- AV input/output
- F970 and LP-E6 battery plates included
- 500:1 contrast ratio
- Wireless connectivity not affected by 2.4 GHz R/C radios
- Built-in speaker
- Automatic switching between PAL/NTSC depending on location
- Sunshade included
In the Box Lilliput 329/DW 7" Wireless FPV Monitor with Dual 5.8 GHz Receivers 75mm VESA Battery Bracket F970 Battery Plate LP-E6 Battery Plate 12VDC Adapter Flexible Folding Sun Shade Remote Control AV Input Cable AV Output Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 329 DW 7" Wireless FPV Monitor with Dual 5.8 GHz Receivers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput 329/DW Specs | Panel | 7" (17.8 cm) TFT LCD | | Wireless Range | 1.2 miles / 6560 ft (2000 m) | | Resolution | 800 x 480 | | Aspect Ratio | 16:9 | | Brightness | 400 cd/m² | | Contrast Ratio | 500:1 | | Viewing Angle | 140/120° (H/V) | | Input | 1 x AV | | Output | 1 x AV | | Speaker | Built-in | | Current | 450 mA | | Input Voltage | 12 VDC | | Power Consumption | ≤6 W | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Dimensions | 7.5 x 5 x 1.2" (19 x 13 x 3 cm) | | Weight | 0.9 lb (415 g) | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 10.6 x 9.2 x 2.7" |
