Lilliput 339 W 7" FPV Monitor

Search your instruction manual in PDF to download

User Manual for Lilliput 339 W 7" FPV Monitor with Single Built-in 5.8GHz Wireless Receiver

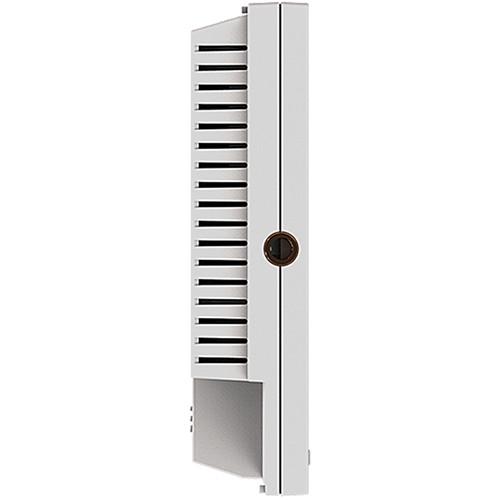

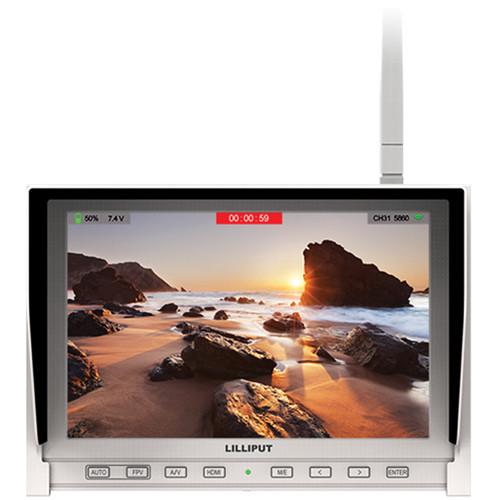

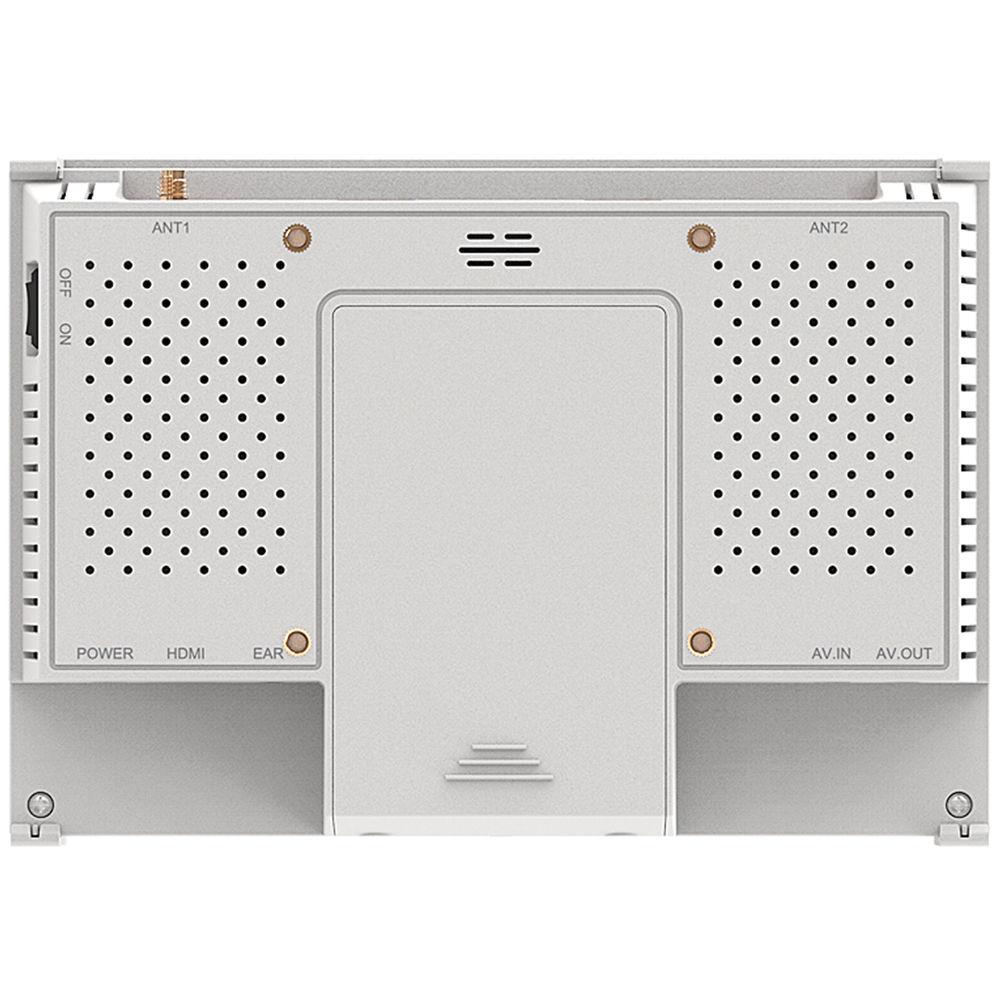

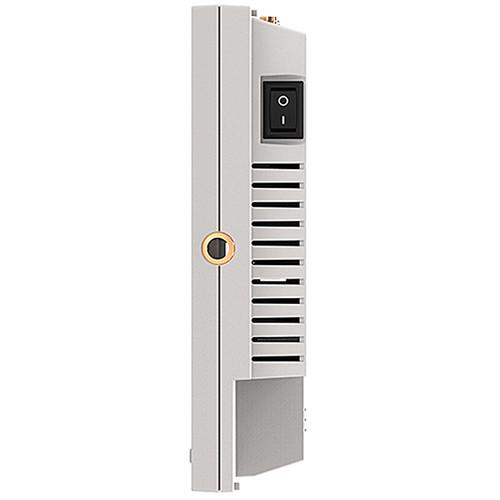

Click to enlarge the picture
Lilliput 339 W 7" FPV Monitor with Single Built-in 5.8GHz Wireless Receiver Contents of the user manual for the Lilliput 339 W 7" FPV Monitor
  • Product category: FPV (First Person View) Components Lilliput
  • Brand: Lilliput
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Lilliput FPV (First Person View) Components

Lilliput 339 W 7" FPV Monitor with Single Built-in 5.8GHz Wireless Receiver Lilliput 339 W 7" FPV Monitor with Single Built-in 5.8GHz Wireless Receiver Lilliput 339 W 7" FPV Monitor with Single Built-in 5.8GHz Wireless Receiver
User manual for the Lilliput 339 W 7" FPV Monitor contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Lilliput product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!



Product description

The white 339/W 7" FPV Monitor from Lilliput has a single built-in 5.8 GHz wireless receiver that covers 4 bands and a total of 32 channels. It has a display resolution of 1280 x 800 with an aspect ratio of 16:9. The built-in receiver supports PAL/NTSC and can be switched automatically. The monitor is suitable for aerial enthusiasts and professional photographers.

Monitor

  • Features attractive IPS panels with 1280 x 800 resolution, 178° wide viewing angle, and high brightness/contrast that provide a better viewing experience
  • Supports 32 channels
  • Integrated timer function supports up to 4-hour countdown with a 60-seconds remaining alert
  • Built-in 2600mAh battery supports up to 3 to 4 hours working time and provides battery level indicator
  • Wireless signal sensitivity indicator is convenient for users to monitor the video signal status of a UAV

Receiver

  • Built-in 5.8 GHz wireless AV receiver
  • Supports PAL / NTSC switch automatically
  • Simulation of composite video AV inputs, aerial camera connection
  • No blue screen problem when the signal gets weak, from 100 to 2000m wireless distance
In the Box Lilliput 339/W 7" FPV Monitor with Single Built-in 5.8GHz Wireless Receiver (White)
  • AV Input/Output Cable
  • 5.8 GHz Antenna
  • Li-ion Battery
  • Foldable Sunshade
  • 12 VDC Adapter
  • Limited 1-Year Warranty
  • User Manual PDF 385kbvbtqcxzzdyfxfcrfabwcffubwf Table of Contents




    Upload User Manual

    Have you got an user manual for the Lilliput 339 W 7" FPV Monitor with Single Built-in 5.8GHz Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Lilliput 339/W-W Specs

    Panel 7" IPS, LED backlit
    Resolution 1280 x 800
    Aspect Ratio 16:9
    Brightness 400 cd/m2
    Contrast 800:1
    Viewing Angle 178/178° (H/V)
    Wireless Receiver Input 1
    HDMI 1
    AV 1
    AV 1
    Speaker 1
    Earphone 1
    Current 1300 mA
    Input Voltage 7 to 24 VDC
    Battery Built-in 2600 mAh battery
    Power Consumption ≤ 18 W
    Operating Temperature -4 to 140°F (-20 to 60°C)
    Storage Temperature -22 to 158°F (-30 to 70°C)
    Dimensions (L x W x D) 7 x 5 x 1" (185 x 126 x 30 mm)
    Weight 13.5 oz (385 g)
    Package Weight 1.9 lb
    Box Dimensions (LxWxH) 10.3 x 9.1 x 2.7"
