User Manual for Lilliput 5" 4K HDMI Full HD On-Camera Monitor Click to enlarge the picture
Contents of the user manual for the Lilliput 5" 4K HDMI Full HD
- Product category: On Camera Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput On Camera Monitors
 |
User manual for the Lilliput 5" 4K HDMI Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|

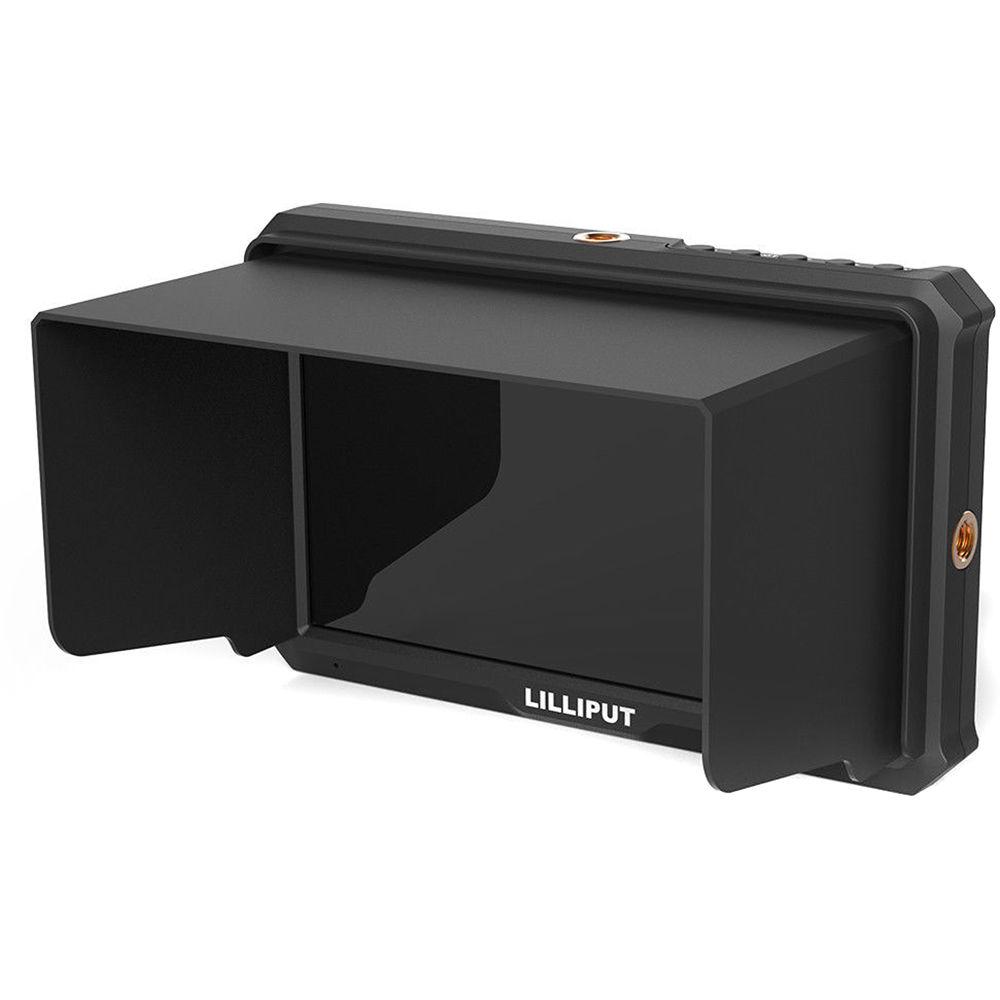

Product description This compact, lightweight, fully featured A5 5" On-Camera Monitor from Lilliput is designed to take on almost any production. The 1920 x 1080 LCD screen features 460 cd/m² brightness, 1000:1 contrast ratio, and 170° viewing angle. Its HDMI 1.4 input is compatible with DSLRs, mirrorless cameras, and professional camcorders and can input up to UHD 4K 3840 x 2160 video at 30 fps. It also features a loop-through HDMI output for additional displays.A built-in, dual-purpose NP-F / LP-E6 battery plate is provided to power the monitor. When shooting outdoors, the included sunhood makes the screen easier to see by blocking any glare. An included articulating shoe mount attaches to the monitor's 1/4"-20 mounting thread and allows you to secure the A5 to your camera via a standard accessory shoe. Additionally, the back of the monitor features a set of VESA 75 mounting holes to attach an alternative mount. - Full HD Display
- The Full HD display supports up to UHD 4K30 input and features 1920 x 1080p resolution, 1000:1 contrast ratio, and 460 cd/m² brightness
- Lightweight
- The compact, lightweight monitor weighs less than 5 ounces

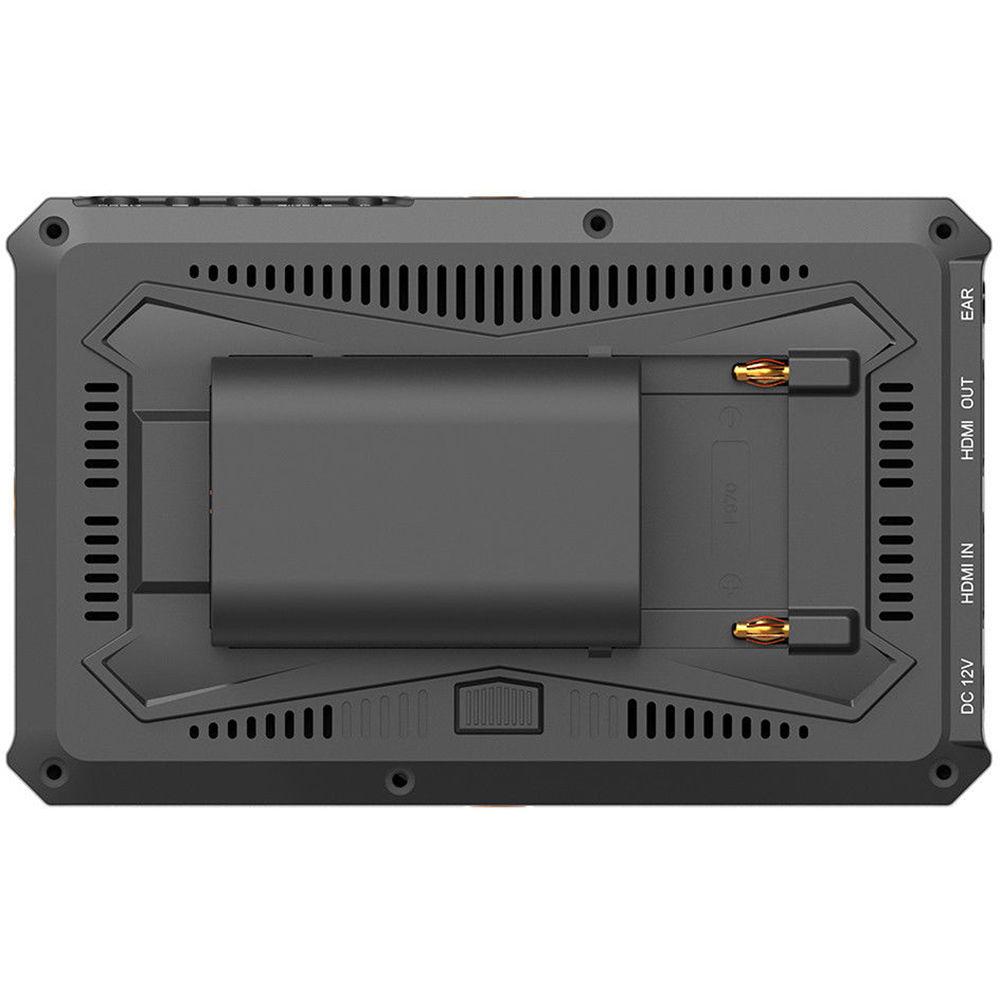

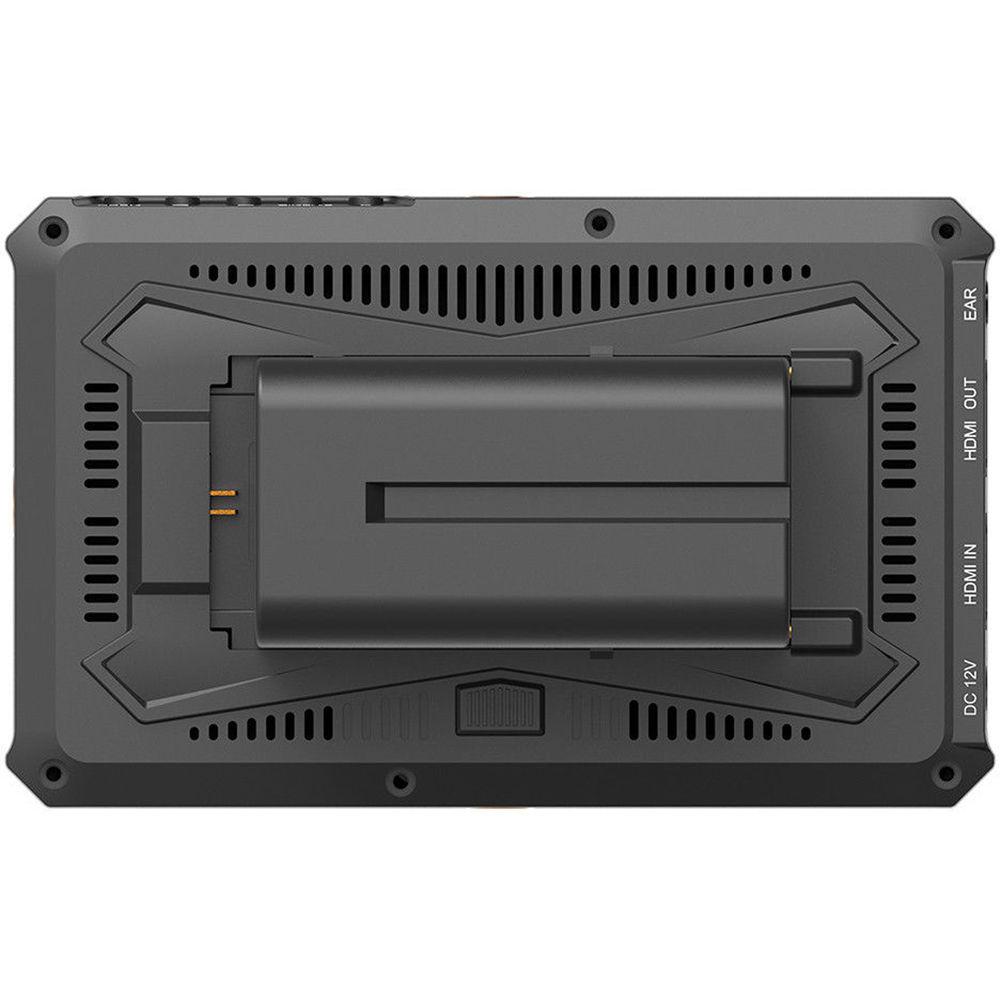

- Dual Battery Plate
- The built-in dual-purpose battery plate supports both L-Series/F-970 and LP-E6 type batteries

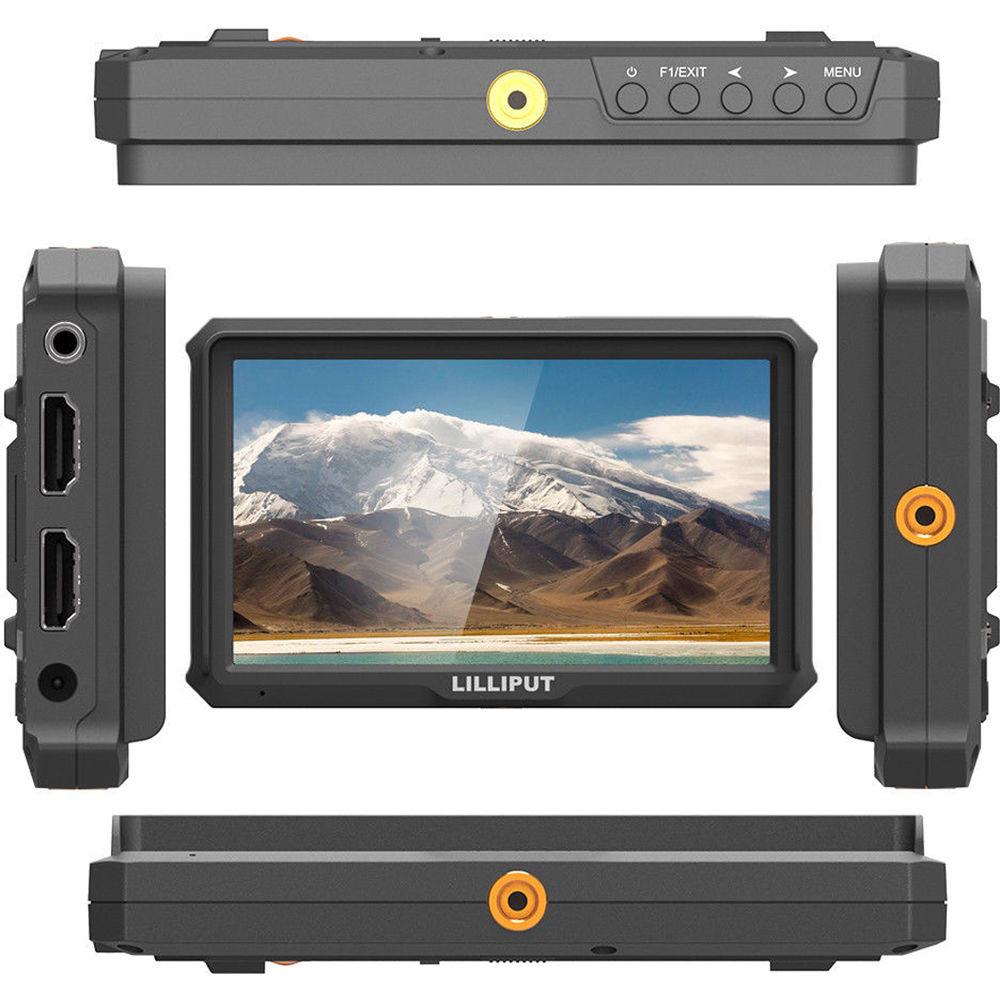

- Mounting Options
- The monitor features a 1/4"-20 mounting thread which accommodates the included ball shoe mount, as well as a VESA 75 mounting hole pattern on the back
- Monitoring Tools
- Analyze the incoming video signal with built-in video monitoring tools to achieve correct exposure, focus, and color balance. Built-in functions include:
- Timecode display
- Pixel zoom
- Pixel-to-pixel
- Waveform
- Audio level meters
- Check exposure
- Check field
- Focus peaking
- False color
- Histogram
- Zebra
- Color bars
- Image flip
In the Box Lilliput 5" 4K HDMI Full HD On-Camera Monitor Folding Sunhood HDMI Type A to HDMI Type C Cable Shoe Mount Dual LP-E6 / NP-F Battery Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 5" 4K HDMI Full HD On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput A5 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 170°
Vertical: 170° | | Maximum Brightness | 460 cd/m2 | | Contrast Ratio | 1000:1 | | Image Controls | False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Waveform | | | | Video | 1 x HDMI Type A (HDMI 1.4) Input
1 x HDMI Type A (HDMI 1.4) Output | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Card Slot | None | | | | Video Format | HDMI
UHD 4K: 30
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/23.98
576p: 50
480p: 60/59.94
NTSC: 60/59.94
PAL: 50 | | | | DC Input Power | 7 to 24 VDC at 1 A | | Battery Type | 1 x LP-E6 or L-Series | | Power Consumption | 12 W (Maximum) | | | | Mounting-Hole Pattern | 75 x 75 mm | | Mounting | 1 x 1/4"-20 Female | | | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Dimensions (W x H x D) | 5.12 x 3.15 x 0.94" / 13 x 8 x 2.4 cm | | Weight | 4.16 oz / 118 g | | | | Package Weight | 1.145 lb | | Box Dimensions (LxWxH) | 6.95 x 5.0 x 2.55" |
