User Manual for Lilliput 569O P 5" Camera-Top Monitor Click to enlarge the picture
Contents of the user manual for the Lilliput 569O P 5" Camera-Top Monitor
- Product category: On Camera Monitors Lilliput
- Brand: Lilliput
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lilliput On Camera Monitors
 |
User manual for the Lilliput 569O P 5" Camera-Top Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lilliput product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lilliput user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lilliput product will considerably shorten its lifespan!
|

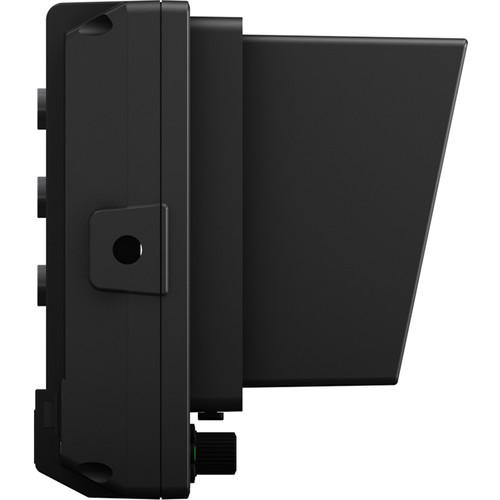

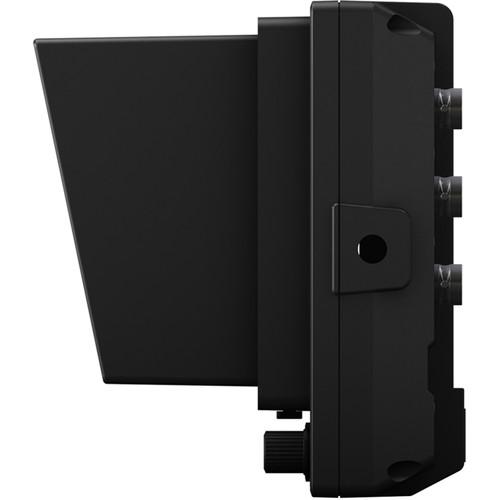

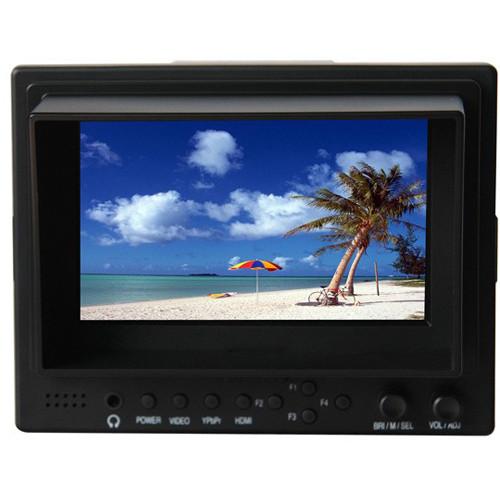

Product description The Lilliput 569O/P 5" Camera-Top Monitor is a 16:9 LED field monitor with HDMI in & out, component video, and sun hood. It comes with peaking and focus assist tools and is optimized for DSLR cameras. With 400 nits brightness, the monitor offers visibility even in challenging lighting conditions. The built-in 1W speaker outputs clear audio. This field monitor also provides advanced camera auxiliary functions such as peaking, false color, histogram, and exposure. It is great at displaying accurate images and makes photo & recording even easier with its functionality. - 5" Monitor with Wide Screen Aspect Ratio
- The high resolution 5" LCD displays pin-sharp images on a compact and lightweight monitor. It is ideal for customers looking for an external monitor that won't weigh them down.
- Optimized for DSLR Cameras
- It is the perfect external field monitor. Providing more screen real estate than the built-in LCD on most DSLRs and featuring some of the highest specifications found on a Lilliput monitor, this 5" monitor is quickly becoming many DSLR users best friend.
- Better Advanced Functions
- Providing advanced camera auxiliary functions such as peaking, false color, histogram, and exposure are major concerns with DSLR users. This field monitor is great at displaying accurate images and makes photo & recording even easier with its functionality.
- HDMI Video Output
- This field monitor includes an HDMI-output feature which allows customers to duplicate the video content onto a second monitor without the need for an HDMI splitter. The second monitor can be any size and picture quality will not be affected.
- 800 x 480 High Resolution
- Squeezing 384,000 pixels onto a 5" LCD panel creates a pin-sharp picture. When your full 1080i/p content is scaled onto this monitor, the image quality is stunning and you can pick out every detail even on this compact monitor.
- 600:1 High Contrast Ratio
- With enhanced color representation and improved LED backlight technology, DSLR users can rejoice that what they see on the monitor is what they get in post-production.
- Enhanced Brightness with Great Outdoor Performance
- Featuring a 400 cd/㎡ backlight, this field monitor produces a vivid and crystal clear picture. Your video content won't look washed out when this field monitor is used under sun light thanks to a boosted brightness LCD. The inclusive sun hood also provides even better outdoors performance.
- Wide Viewing Angles
- With a 150° wide viewing angle, you can get the same vivid picture from wherever you are standing.
- Battery plates included
- It includes two battery plates compatible with F970, LP-E6, DU21, and QM91D batteries.

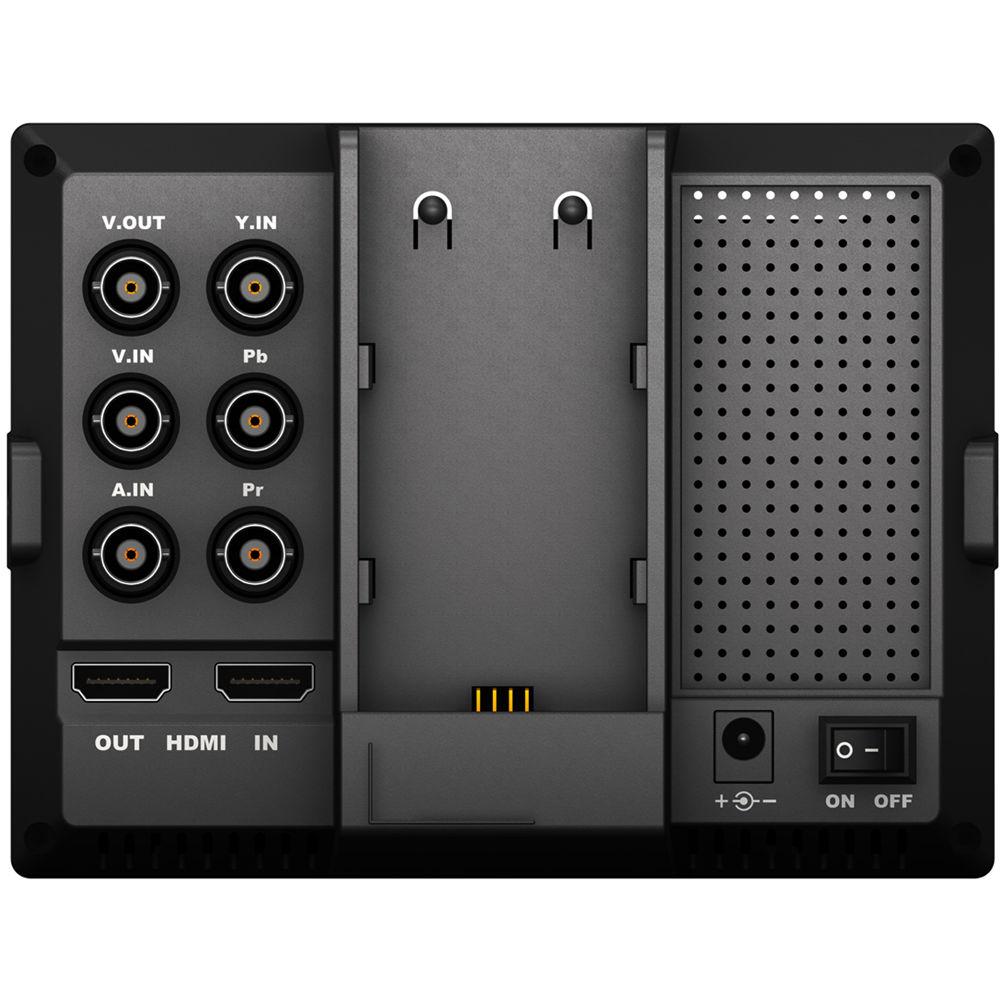

- HDMI, Component, and Composite through BNC Connectors
- No matter which camera or AV equipment you use with this field monitor, there is a video input to suit all applications. Most DSLR cameras ship with an HDMI output, but larger production cameras output HD component and regular composite through BNC connectors.
In the Box Lilliput 569O/P 5" Camera-Top Monitor Power Adapter Sun Shade 2 x F-970 Battery Plate 2 x LP-E6 Battery Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 569O P 5" Camera-Top Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput 569/O/P Specs | LCD Size | 5.0" (12.7 cm) | | Display Resolution | 800 x 480 (Support up to 1920 × 1080) | | Active Area | H x V: 4.25 x 2.55" (108.0 x 64.8 mm) | | Dot Pitch | H x V: 0.135 x 0.135 mm | | Aspect Ratio | 16:9 | | Brightness | 400 cd/m² | | Contrast Ratio | 600:1 | | Light Source | LED | | Surface Treatment | Antiglare, Hard-Coating (3H) | | Response Time | Typical: Tr: 2 ms, Tf: 6 ms
Maximum: Tr: 4 ms, Tf: 12 ms | | View Angle | 75/75° (Left/Right) and 60/70° (Up/Down) | | Interface | Video input, video out, audio input, YPbPr, HDMI input, HDMI output, DC power | | Input Connector | 1 x HDMI
1 x YPbPr
1 x Video
1 x DC power
1 x Audio | | Output Connector | 1 x HDMI 1 x Video | | Audio | 1 x Built-in speaker
1 x HDMI | | Power | 6 to 24 VDC | | Power Consumption | ≤6 W | | Control | Basic: Video, YPbPr, power, and HDMI buttons; F1-F4 User-definable buttons; BRI/M/SEL and VOL/ADJ knobs
Advanced: Brightness, contrast, saturation, sharpness, tint, volume, color mode, camera, mark, underscan, ratio, blue mode, reset, language | | Speaker | Built-in 1 W | | Menu Language | English / Chinese | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Operation Temperature | -4 to 140°F (-20 to 60°C)
At High Temperature: Ta= 60°C | | Operating Humidity | 0 to 90% RH
At High Humidity: 90% RH, 240 hours | | Dimensions | Without Sun Shade: 5.9 x 4.6 x 2" (15.1 x 11.6 x 4 cm)
With Sun Shade: 5.9 x 4.5 x 3.6" (15.1 x 11.6 x 9.2 cm) | | Weight | Without Cover: 11.1 oz (316.0 g)
With Cover: 13.6 oz (386.0 g) | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 12.1 x 7.6 x 3.1" |
