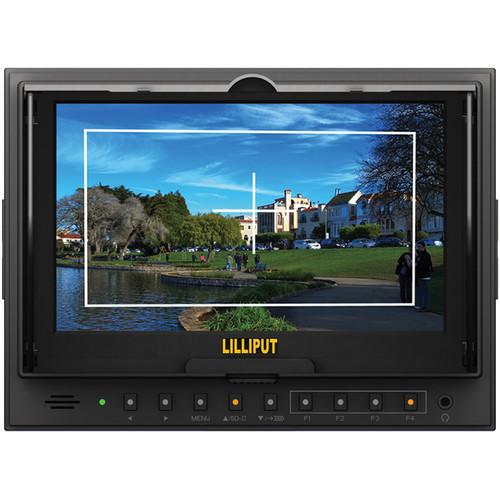

Product description The 5D-ii/O/P 7" HDMI LCD Field Monitor from Lilliput is suitable for use with DSLR cameras and can be easily stored in a camera bag. It supports video with resolution up to 1920 x 1080 and features a native resolution of 1024 x 600, scaling your input video to fit. The 800:1 contrast ratio and 250 cd/m² brightness provide a sharp, clear display.
The monitor is equipped with 1:1 pixel mapping, peaking, and a foldable sun-hood/screen protector. It features an HDMI output, allowing you to feed a second monitor without requiring a splitter, thus reducing the amount of cable clutter on your camera. Four assignable front panel buttons allow you to rapidly recall often used menu functions. The monitor comes with Canon LP-E6 and Sony F970 battery plates. - 7" LCD monitor fit for DSLR use
- Easily stored in a camera bag
- 1:1 pixel mapping allows you to maintain the original resolution of your camera's output and avoid any unexpected focus issues in post-production
- Focusing is easier with the peaking functionality

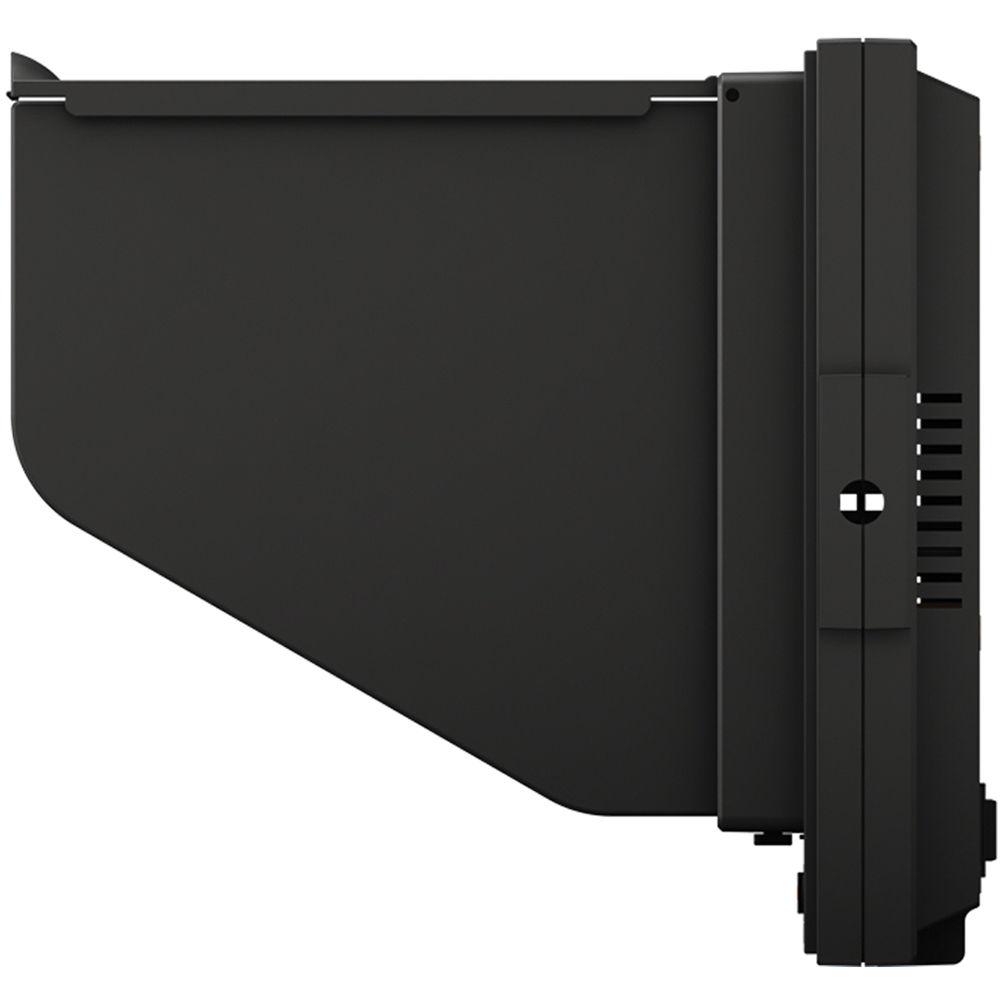

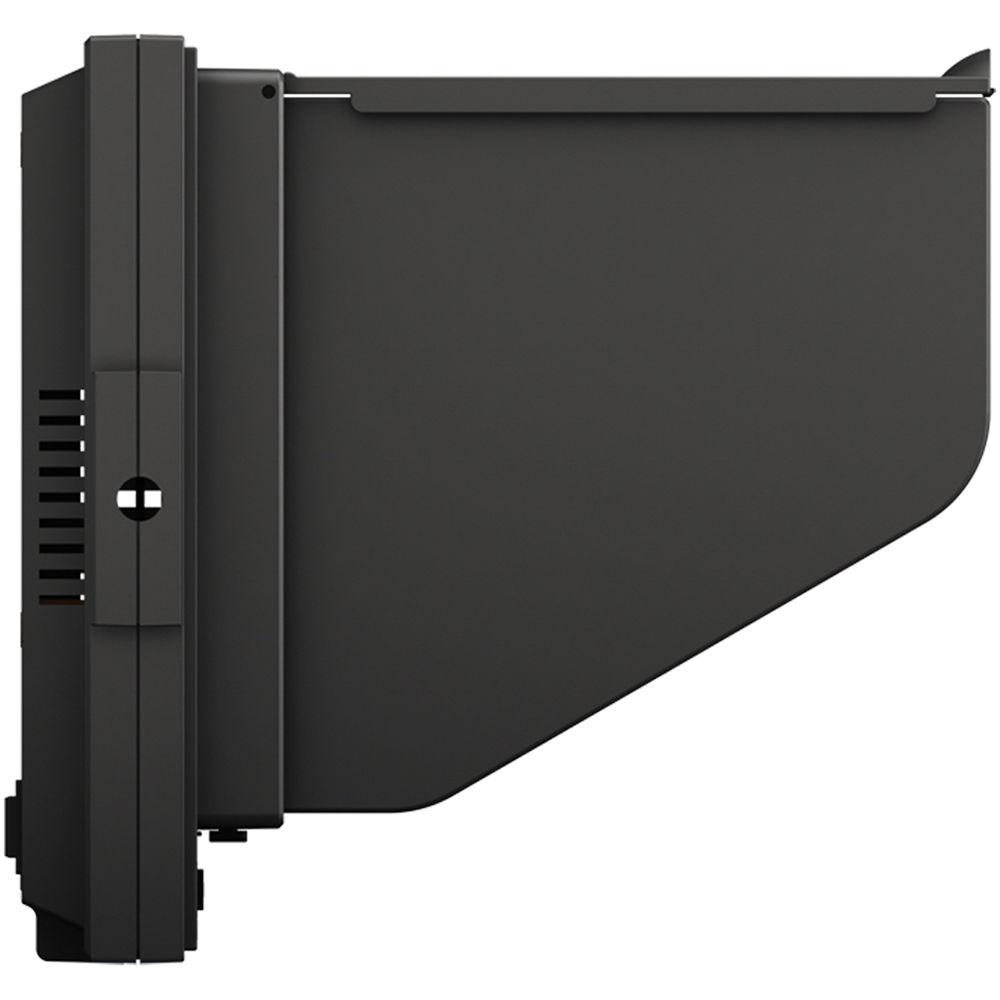

- Screen protector folds out to become a sun hood, providing protection for the LCD and eliminating the need to buy a separate sun hood

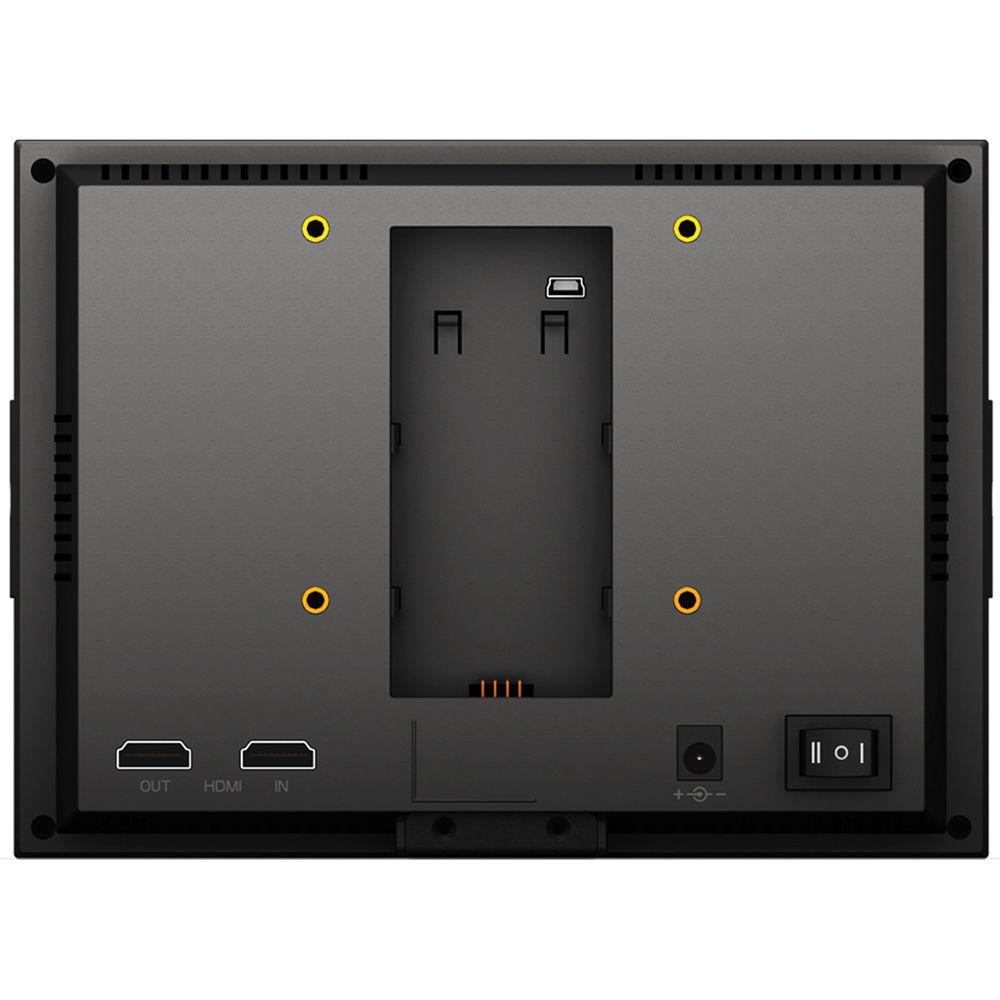

- HDMI output feature allows duplication of the video content onto a second monitor without the need of any HDMI splitters
- LED-backlit display panels deliver higher levels of detail and image accuracy
- 800:1 contrast ratio produces colors that are vivid, rich, and accurate
- With 150° viewing angle, you can get the same vivid picture from wherever you are standing
In the Box Lilliput 5D-ii/O/P 7" HDMI LCD Field Monitor Canon LP-E6 Battery Plate Sony F970 Battery Plate Shoe Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 5D-ii O P 7" HDMI LCD Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput 5D-II/O/P Specs | | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1024 x 600 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 150°
Vertical: 130° | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 800:1 | | Dot Pitch | 0.135 x 0.135 mm | | Response Time | 6 ms | | Image Controls | Focus Peaking, Pixel-to-Pixel Zoom | | | | Video | 1 x HDMI Type A Input
1 x HDMI Type A Output | | Audio | None | | Built-In Speaker | None | | Card Slot | None | | | | DC Input Power | 12 VDC | | Battery Type | 1 x LP-E6 or L-Series | | | | Mounting | 1/4"-20 Female
Cold Shoe | | | | Dimensions (W x H x D) | 7.7 x 5.7 x 1.2" / 196.5 x 145 x 31 mm | | Weight | 14.1 oz / 400 g | | | | Package Weight | 2.945 lb | | Box Dimensions (LxWxH) | 9.05 x 6.7 x 4.15" |
