Product description The 662/S 7" 3G-SDI/HDMI Field Monitor from Lilliput is a 7" widescreen metal framed LCD camera monitor with 3G-SDI and HDMI input and output. It offers 1280 x 800 resolution with 400 cd/m² brightness, an 800:1 contrast ratio, and features advanced functionality such as peaking, focus assist, waveform tools, and false color filters. The 662/S supports cross conversion between HDMI and SDI. You can input an SDI signal and receive HDMI output, and vice versa. - 7" IPS panel with 1280 x 800 resolution
- HDMI output connector can actively transmit an HDMI input signal, or output an HDMI signal that has been converted from SDI
- Features 3G-SDI, HDMI, and component and composite through BNC connectors

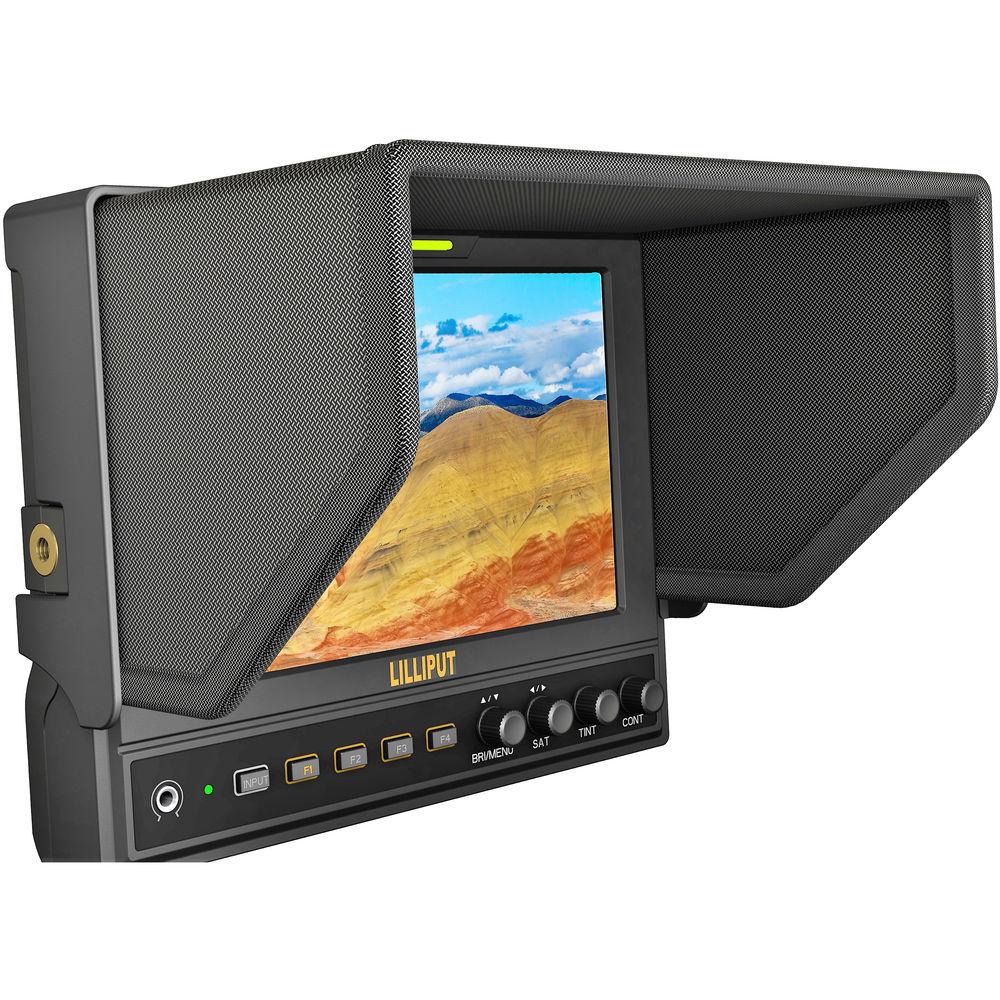

- Foldable sun hood becomes a screen protector
- HDMI output feature allows customers to duplicate the video content onto a second monitor
- You can customize four programmable function buttons for shortcut operations according to different needs
In the Box Lilliput 662/S 7" 3G-SDI/HDMI Field Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 662 S 7" 3G-SDI HDMI Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput 662/S Specs | Monitor Type | Widescreen | | Screen Size | 7" (18 cm) | | Resolution | Native: 1280 x 800
Maximum: 1920 x 1080 | | Display Scan Frequency | 60 to 72 Hz | | Display Colors | Not specified by manufacturer | | Viewing Angle | 178 x 178° | | Brightness | 400 cd/m2 | | Contrast Ratio | 800:1 | | Response Time | 6 ms | | Inputs/Outputs | Video In
3G-SDI
BNC component/composite
HDMI
Video Out
3G-SDI
HDMI (HDMI-SDI cross conversion possible)
Audio Out
<1 W | | Operating Temperature | Not specified by manufacturer | | Power Requirements | 12 VDC | | Power Consumption | Not specified by manufacturer | | Mount Type | 1/4"-20 threads, shoe mount | | Dimensions (WxHxD) | 7.6 x 5.9 x 5.5" (19.2 x 15.2 x 14.1 cm) with cover
7.6 x 5.9 x 1.2" (19.2 x 15.2 x 3.1 cm) without cover | | Weight | 14 oz (400 g) | | | | Package Weight | 6.095 lb | | Box Dimensions (LxWxH) | 12.6 x 11.05 x 4.8" |
