Product description The Lilliput 663 7"LCD On-Camera HDMI Monitor offers 1280 x 800 resolution with 400 nit brightness and an 800:1 contrast ratio. It supports both NTSC and PAL compatible signals with HDMI, Component, and Composite inputs, though it does not have any video outputs. It also features both a built-in speaker and headphone jack.

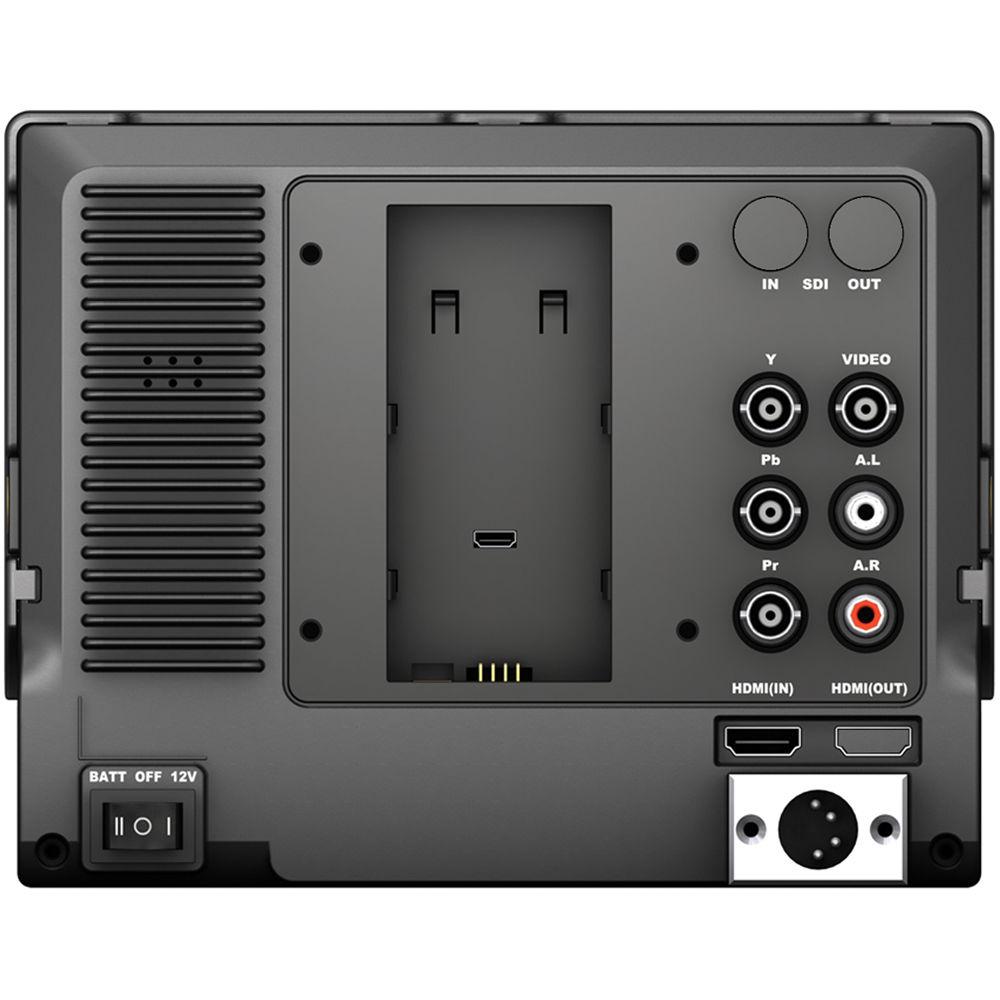

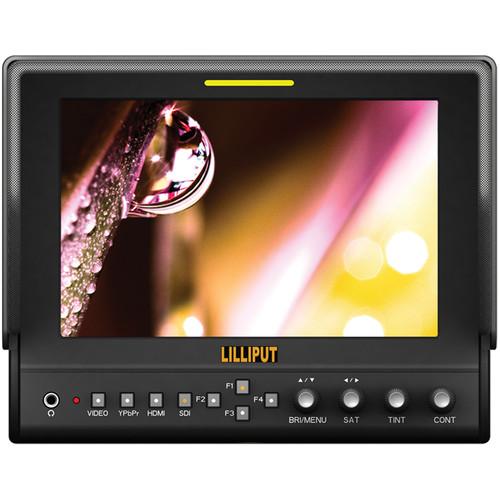

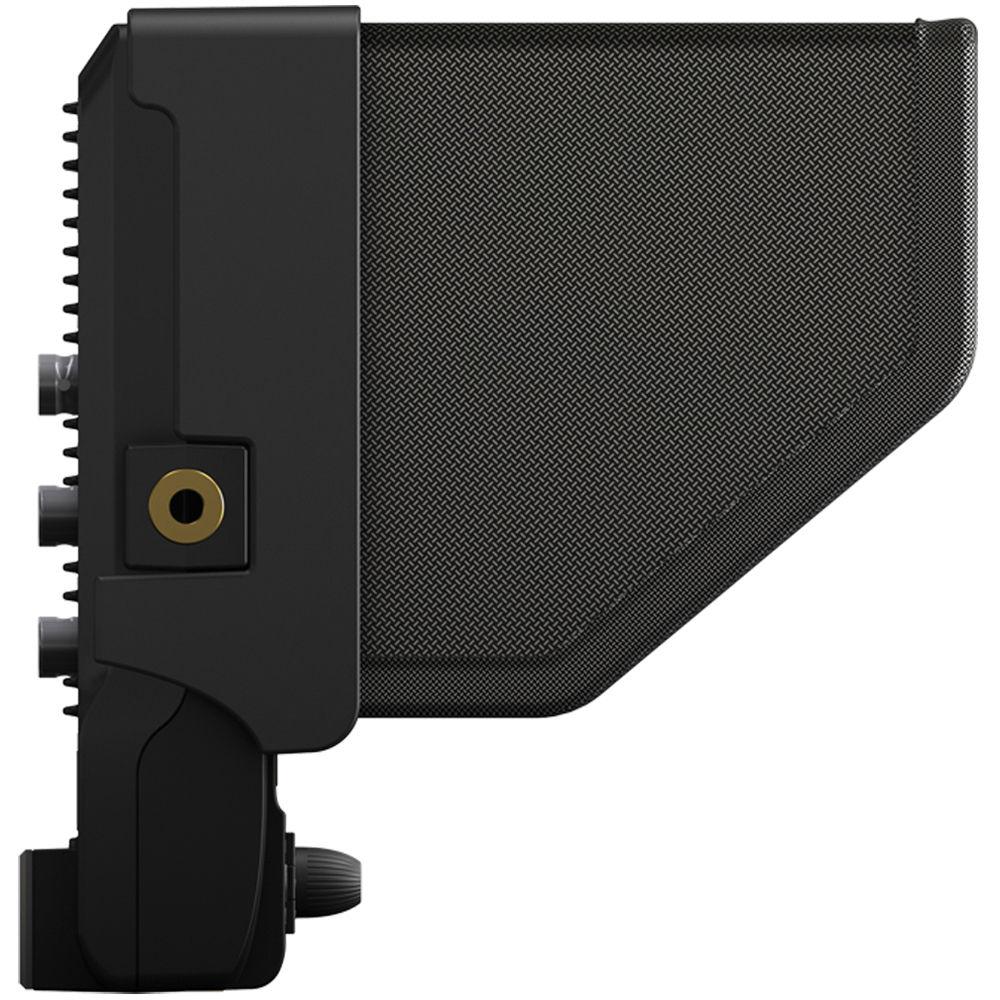

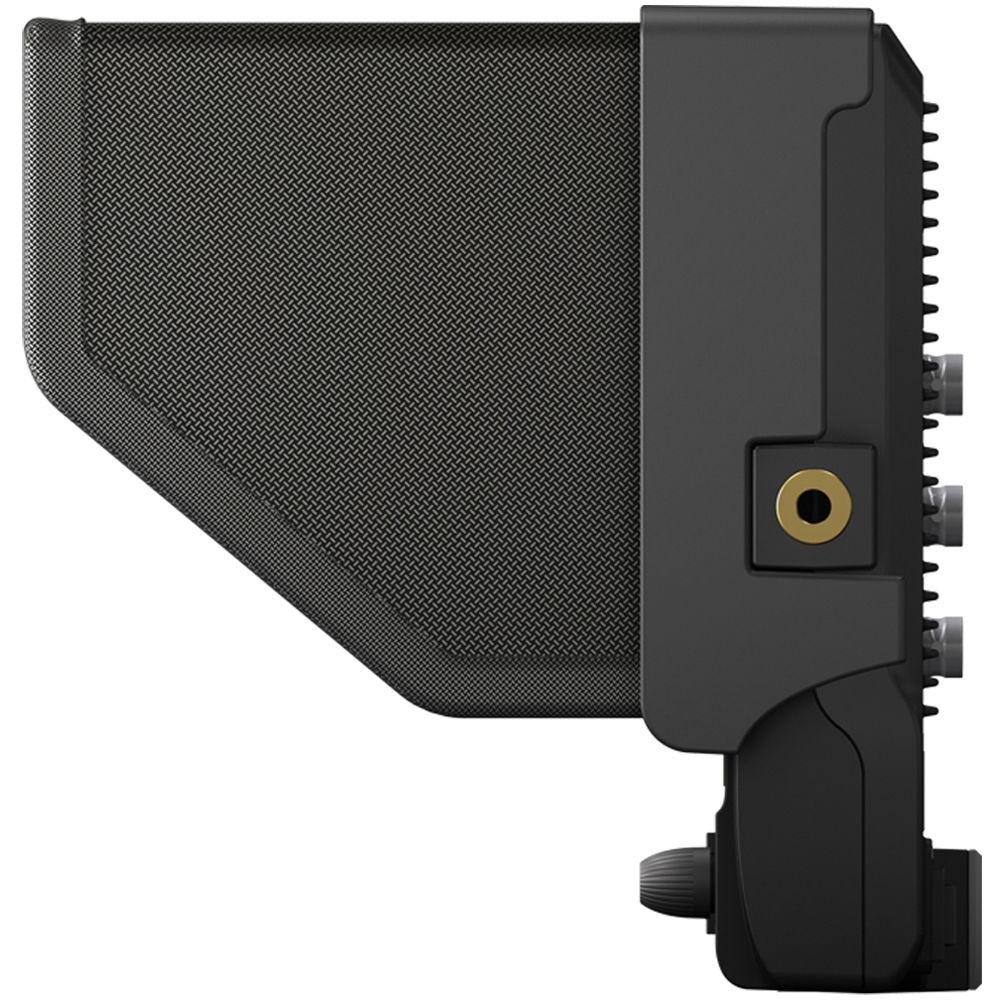

The four front panel buttons and four rotating knobs can be assigned to specific functions that allow you to call up often-used menu functions. You can power the monitor by using the included battery plates or the 4-pin XLR connector. The included 4-pin XLR power cable features a barrel connector and three pigtail cables for connecting to a tally system. The monitor features a tally indicator on the front of the monitor. An assortment of supplied accessories includes a Sony L-type and Canon LP-E6-type battery plates. The monitor incorporates a 1/4"-20 threaded mounting hole on the bottom and on each side, and the included sun hood attaches via hook and loop fastener to a removable sun hood attachment frame. A V-mount and Gold mount plate adapter allows you to mount optional V-mount or Gold mount battery plates - Assignable Function Buttons & Knobs
- The front panel buttons and knobs can be customized to call up often-used menu functions.
F1 to F4 Buttons:
- Center Marker
- Check Field
- Color Bar
- Camera (format selection)
- PIP
- Flip
- Zoom
- Pixel-to-Pixel
- Freeze
- Input
- Underscan
- H/V Delay
- Exposure
R1 to R4 Knobs
- Contrast
- Brightness
- Saturation
- Tint
- Volume
- Sharpness
- Back Light
- Monitoring Features
-
- 1:1 Pixel-to-Pixel
- Picture-in-Picture (for when the HDMI and Composite inputs are used simultaneously)
- H/V Delay
- Underscan
- Center Marker
- Zoom (up to 8x)
- Color Bar
- Image Flip
- Freeze Input
- Adjustable color temperature
- 1:1 Pixel Mode
- 1:1 pixel-to-pixel mapping allows you to look at parts of your image without any scaling, so you can see the actual detail and not be fooled by scaling artifacts.
- H/V Delay
- This mode allows you to see the video signal outside the active picture area. Settings include Off, H/V Delay, H Delay, and V Delay.
- Underscan/Overscan
- Allows you to display an image with lower resolution than the screen with either a black border around the image or fill the screen entirely.
In the Box Lilliput 663 7" LCD On-Camera HDMI Monitor Sun Shade LP-E6-Type Battery Plate F-970-Type Battery Plate HDMI A/C Cable Power & TALLY Cable Shoe Mount 12 VDC Adapter 4 x Suitcase Adapter Panel Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lilliput 663 7" LCD On-Camera HDMI Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLilliput 663 Specs | | | LCD Size | 7.0" (17.8 cm) (IPS) | | Display Resolution | 1280 x R.G.B. x 800 (Dot) | | Active Area | 149.76 (H) x 93.6 (V) mm | | Dot Pitch | 0.117 (H) x 0.117 (V) mm | | Aspect Ratio | 16:10 | | Brightness | 400 cd/m2 | | Contrast Ratio | 800:1 | | Light Source | LED | | Surface Treatment | 3H | | Response Time | TR: 14 ms (typical), 17 ms (maximum)
TF: 11 ms (typical), 14 ms (maximum) | | Viewing Angle | Left/Right/Up/Down: 89°
178° wide viewing angle | | | | Input Signal | HDMI
YPbPr
Compsite
Audio (L/R)
Tally | | Interface | HDMI, YPbPr, Video, Audio, XLR, DC Power, Earphone | | Input Connectors | HDMI, YPbPr, Composite, Audio L&R, TALLY | | Video Outputs | None | | Format Support | HDMI
Full HD: 1080p (60/59.94/50/30/29.97/25/24/23.98/23.976/24SF)
HD: 1018i (60/59.95/50), 1035i (60/59.94), 720p (60/59.94/50/30/29.97/25)
SD: 576p (50), 576i (50), 480p (60/59.94), 486i (60/59.94) | | | | Control | Basic: Video, YPbPr, HDMI bottoms. SDI (no use), F1-F4 User-definable buttons, BRI/MENU knob, SAT knob, TINT knob, CONT knob
Advance: Brightness, Contrast, Saturation, Tint, Sharpness, Color Temp, Center Marker, Screen Markers, Aspect Ratio, H/V Delay, Check Field, Pixel-to-Pixel, Underscan, Zoom, Image Flip, Freeze Input, PIP, Camera, Volume, Language, Input format OSD, LOGO, Manufacturer Default, Back Light, IPS | | Speaker | Built in, 1 W | | Language | English/Chinese | | Power Requirements | 7 to 24 VDC (XLR Connector) | | Power Consumption | ≤10 W | | Temperature | Operating: -4 to 140°F (-20 to 60°C)
Storage: -22 to 158°F (-30 to 70°C) | | Operating Humidity | 80% RH maximum | | Dimensions (WxHxD) | Monitor Without Sun Hood: 7.5 x 6 x 1.2" (191.5 x 152 x 31.0 mm)
Monitor With Sun Hood: 7.5 x 6 x 5.5" (191.5 x 152 x 141.0 mm)
Case: 12.2 x 9.7 x 3.8" (309.0 x 247.0 x 97.5 mm) | | Weight | Monitor Without Sun Hood: 1.7 lb (0.8 kg)
Monitor With Sun Hood: 2.1 lb (0.9 kg)
Monitor with Suitcase: 4.8 lb (2.2 kg) | | | | Package Weight | 5.95 lb | | Box Dimensions (LxWxH) | 12.5 x 10.6 x 4.6" |
